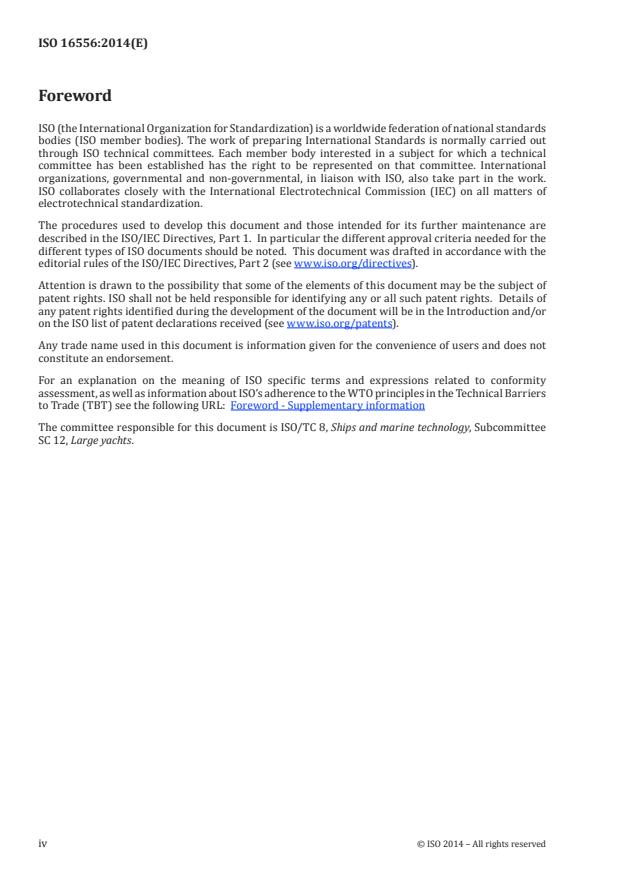

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers
to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 8, Ships and marine technology, Subcommittee
SC 12, Large yachts.
iv © ISO 2014 – All rights reserved

---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 16556:2014(E)
Large yachts — Deck equipment — Anchoring equipments
1 Scope
This International Standard defines the requirements for layout, design, and installation for large yacht
anchoring equipment.
For the purpose of this International Standard, large yachts are of L (as defined according to
H
ISO 8666:2002) equal to or longer than 24 m, in use for sport or pleasure and commercial operations.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 1704, Ships and marine technology — Stud-link anchor chains
ISO 3828, Shipbuilding and marine structures — Deck machinery — Vocabulary and symbols
ISO 4568, Shipbuilding — Sea-going vessels — Windlasses and anchor capstans
ISO 7825, Shipbuilding — Deck machinery — General requirements
ISO 8666:2002, Small craft — Principal data
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 3828 and the following apply.
3.1
working load of the windlass
F
W
working load, derived from the chain cable diameter and the chain cable grade, measured at the cable
lifter
3.2
nominal size of the windlass
NS
W
size expressed in terms of chain cable diameter, in millimetres, grade of chain cable, and pull capability
EXAMPLE 100/3/25 is the size designation of a windlass for 100 mm diameter chain cable of IACS
(International Association of Classification Societies) Grade 3, with a holding load of 25 % of the breaking load of
the chain cable.
3.3
anchor nominal weight
W
A
mass of a single anchor in kg
© ISO 2014 – All rights reserved 1

---------------------- Page: 5 ----------------------
ISO 16556:2014(E)

3.4
nominal size of chain stopper
NSC
...
