INTERNATIONAL ISO
STANDARD 4802-2
Third edition
2016-06-15
Glassware — Hydrolytic resistance
of the interior surfaces of glass
containers —
Part 2:
Determination by flame spectrometry
and classification
Verrerie — Résistance hydrolytique des surfaces internes des
récipients en verre —
Partie 2: Détermination par spectrométrie de flamme et classification
Reference number
©
ISO 2016
© ISO 2016, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2016 – All rights reserved

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 4
5 Reagents . 4
6 Apparatus . 6
7 Sample preparation . 6
7.1 Sample size . 6
7.2 Determination of the filling volume . 7
7.2.1 Flat-bottomed containers ≤20 mm outer flange diameter (except
ampoules, syringes and cartridges) . 7
7.2.2 Flat-bottomed containers >20 mm outer flange diameter . 7
7.2.3 Round-bottomed containers. 7
7.2.4 Lipped containers . 8
7.2.5 Ampoules . 8
7.2.6 Syringes and cartridges . 8
8 Procedure. 8
8.1 General . 8
8.2 Cleaning of samples . 9
8.3 Filling and heating . 9
8.4 Analysis of the extraction solutions .10
8.4.1 Containers of hydrolytic resistance container classes HC 1, HC 2 and
F F
HC B or those known to be made from borosilicate glass .10
F
8.4.2 Containers of hydrolytic resistance container classes HC 3 and HC D, or
F F
those known to be made from soda-lime-silica glass .10
8.5 Testing to determine whether the containers have been surface-treated .11
9 Expression of results .11
9.1 Determination .11
9.2 Classification .12
9.3 Distinction between containers of hydrolytic resistance container class HC 1 and
F
hydrolytic resistance container class HC 2 .12
F
9.4 Designation .12
10 Test report .12
11 Reproducibility .13
Bibliography .14

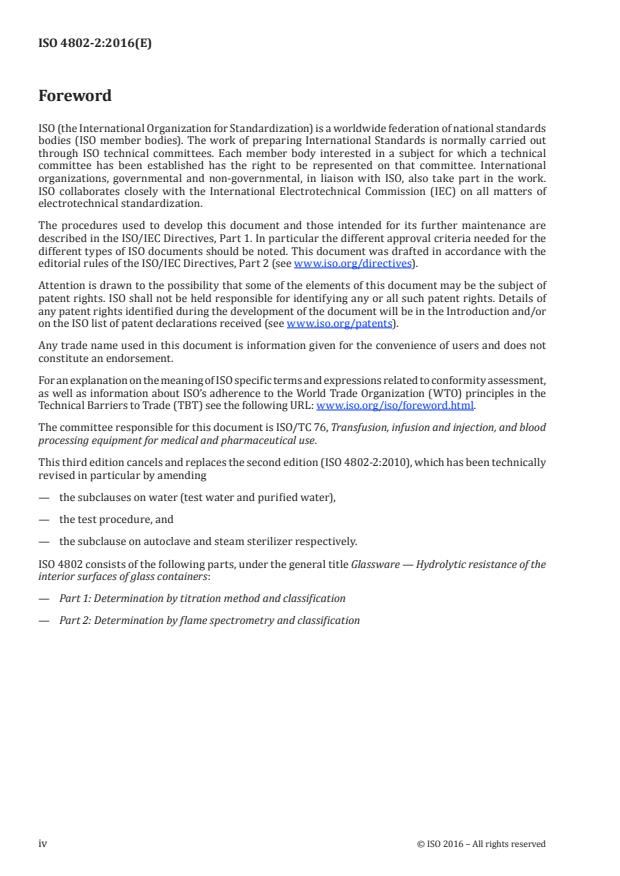

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity assessment,
as well as information about ISO’s adherence to the World Trade Organization (WTO) principles in the
Technical Barriers to Trade (TBT) see the following URL: www.iso.org/iso/foreword.html.
The committee responsible for this document is ISO/TC 76, Transfusion, infusion and injection, and blood
processing equipment for medical and pharmaceutical use.
This third edition cancels and replaces the second edition (ISO 4802-2:2010), which has been technically
revised in particular by amending
— the subclauses on water (test water and purified water),
— the test procedure, and
— the subclause on autoclave and steam sterilizer respectively.
ISO 4802 consists of the following parts, under the general title Glassware — Hydrolytic resistance of the
interior surfaces of glass containers:
— Part 1: Determination by titration method and classification
— Part 2: Determination by flame spectrometry and classification
iv © ISO 2016 – All rights reserved

Introduction
This part of ISO 4802 is largely based on a method of test approved by the International Commission
on Glass (ICG), Technical Committee 2, Chemical Durability and Analysis, for measuring the hydrolytic
resistance of the interior surfaces of glass containers.
This part of ISO 4802 contains a classification which is related to but not equivalent to the classification
set up in ISO 4802-1 for the titration method.
INTERNATIONAL STANDARD ISO 4802-2:2016(E)
Glassware — Hydrolytic resistance of the interior surfaces
of glass containers —
Part 2:
Determination by flame spectrometry and classification
1 Scope
This part of ISO 4802 specifies:
a) methods for determining the hydrolytic resistance of the interior surfaces of glass containers
when subjected to attack by water at (121 ± 1) °C for (60 ± 1) min. The resistance is measured by
determining the amount of sodium and other alkali metal or alkaline earth oxides in the extraction
solution using flame atomic emission or absorption spectrometry (flame spectrometry);
b) a classification of glass containers according to the hydrolytic resistance of the interior surfaces
determined by the methods specified in this part of ISO 4802.
The test method specified in this part of ISO 4802 might not be applicable to containers whose surfaces
have been treated with silicon (e.g. containers that are ready for direct filling).
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 385, Laboratory glassware — Burettes
ISO 719, Glass — Hydrolytic resistance of glass grains at 98 degrees C — Method of test and classification
ISO 720, Glass — Hydrolytic resistance of glass grains at 121 degrees C — Method of test and classification
ISO 1042, Laboratory glassware — One-mark volumetric flasks
ISO 3819, Laboratory glassware — Beakers
ISO 9187-1, Injection equipment for medical use — Part 1: Ampoules for injectables
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
ampoule
small, normally flat-bottomed container having stems in many different forms
Note 1 to entry: Ampoules are usually thin-walled and have a capacity normally up to 30 ml. They are intended to
be closed, after filling, by flame sealing.
3.2
bottle
flat-bottomed container, made from moulded glass
Note 1 to entry: Bottles are normally thick-walled and have a capacity usually of more than 5 ml. They may be
of circular or other geometric cross-section. Bottles are sealed with a closure made from a material other than
glass, and not by flame-sealing.
3.3
brimful capacity
volume of water required to fill a container, placed on a flat, horizontal surface
3.4
container
article made from glass to be used as primary packaging material intended to come into direct contact
with the pharmaceutical preparations
EXAMPLE Bottles, vials, syringes, ampoules and cartridges. See also Figure 1.
Note 1 to entry: These containers are made from borosilicate or soda-lime-silica glass.
3.5
filling volume
defined volume of water to fill the test specimen
Note 1 to entry: For the determination of the filling volume, see 7.2. The filling volume is a test specific quantity that
is used to compare container sets from different sources or lots. It has no relation to the nominal product volume.
3.6
borosilicate glass
silicate glass having a very high hydrolytic resistance due to its composition containing significant
amounts of boric oxide
Note 1 to entry: Borosilicate glass contains a mass fraction of boric oxide between 5 % and 13 %. This glass type
may also contain aluminium oxide and/or alkaline earth oxides.
Note 2 to entry: Neutral glass is a borosilicate glass having a very high hydrolytic resistance and a high thermal
shock resistance. When tested according to ISO 720, it meets the requirements of class HGA 1. Containers
properly made from this glass comply with hydrolytic resistance container class HC 1 of this part of ISO 4802.
F
3.7
soda-lime-silica glass
silicate glass containing a mass fraction up to approximately 15 % of alkali metal oxides, mainly sodium
oxide, and a mass fraction up to about 15 % of alkaline earth oxides, mainly calcium oxide
Note 1 to entry: Containers made from this glass will have a moderate hydrolytic resistance due to the chemical
composition of the glass, and comply with hydrolytic resistance container class HC 3.
F
2 © ISO 2016 – All rights reserved

a) Example of a glass cylinder for pen-injectors b) Example of an injection vial made of glass tubing
(see ISO 13926-1) (see ISO 8362-1)
c) Example of a glass barrel d) Example of a stem cut ampoule with constriction
(see ISO 11040-4) (see ISO 9187-1)
Figure 1 — Examples of containers
3.8
surface treatment
treatment of the internal surface of glass containers with reagents in order to achieve a de-alkalized
surface and to produce a significantly lower release of alkali metal ions (and alkali earth metal ions)
Note 1 to entry: Surface treatment is used, for example, in order to change a soda-lime-silica glass container of
hydrolytic resistance class HC 3 to a container of hydrolytic resistance class HC 2 container. Treated containers
F F
are rinsed before use.
3.9
vial
small, flat-bottomed container, made from tubing or from moulded glass
Note 1 to entry: Vials are normally thick-walled and have a capacity up to 100 ml. They are normally sealed with
a closure made from a material other than glass, and not by flame-sealing.
4 Principle
This method of test is a surface test applied to glass containers as produced and/or as delivered.
The containers to be tested are filled with specified water to a specified capacity. They are loosely
capped and then heated under specified conditions. The degree of the hydrolytic attack is measured by
flame spectrometric analysis of the extraction solutions.
5 Reagents
During the test, unless otherwise stated, use only reagents of recognised analytical grade.
5.1 Test water, to be prepared as follows:
Prepare the test water from distilled water (5.6) by multiple distillations. Remove the carbon dioxide by
boiling for at least 15 min before use in a boiling flask (6.3) of fused silica or borosilicate glass and cool.
NOTE 1 Any other suitable method can be used.
When tested immediately before use, water prepared as described above shall produce an orange-
red (not violet-red or yellow) colour corresponding to the neutral point of methyl red indicator of
pH 5,5 ± 0,1 when 0,05 ml of methyl red indicator solution (5.5) is added to 50 ml of the water to be
examined.
This water may also be used as the reference solution (see 8.4).
The conductivity of the water shall not exceed 1 µS/cm, determined at 25 °C by an in-line
conductivity meter.
[12]
NOTE 2 This description is based on the European Pharmacopoeia 3.2.1 . In the European Pharmacopoeia,
water prepared as described above is designated water R1.
[2]
NOTE 3 Water of Grade 2 according to ISO 3696 is suitable for this test.
5.2 Hydrochloric acid, solution, c(HCl) ≈ 2 mol/l.
5.3 Hydrochloric acid, solution, c(HCl) ≈ 6 mol/l (≈ 1 + 1).
5.4 Hydrofluoric acid, c(HF) ≈ 22 mol/l (i.e. ≈400 g HF/l solution).
CAUTION — Hydrofluoric acid is very toxic and highly corrosive. Consider material safety
data sheet!
4 © ISO 2016 – All rights reserved

5.5 Purified water prepared by distillation, by ion exchange, by reverse osmosis or by any other
suitable method from water having drinking water quality.
NOTE 1 See national or regional regulation on water intended for human consumption.
NOTE 2 Water that corresponds to Grade 3 according to ISO 3696 is suitable.
[12]
NOTE 3 In the European Pharmacopoeia 3.2.1 , water as described above is designated water R.
5.6 Spectrochemical buffer solution (caesium chloride solution, CsCl).
Dissolve 80 g of caesium chloride in approximately 300 ml of test water (5.1), add 10 ml of hydrochloric
acid (5.3) and transfer to a 1 000 ml volumetric flask (6.3). Dilute to the mark with the test water (5.1)
and mix.
5.7 Stock solutions.
5.7.1 Dry sodium chloride, potassium chloride and calcium carbonate at (110 ± 5) °C for 2 h. Prepare
aqueous stock solutions, using the test water (5.1), directly from the chlorides and from the calcium
carbonate, after dissolving in the minimum amount of hydrochloric acid so that all solutions have
concentrations of 1 mg/ml, calculated as sodium oxide, potassium oxide and calcium oxide.
5.7.2 Commercially available standard solutions may also be used.
5.8 Standard solutions.
5.8.1 Prepare standard solutions by diluting the stock solutions (5.7) with the test water (5.1) to
obtain concentrations suitable for establishing the reference solutions in an appropriate manner, e.g.
with concentrations of 20 µg/ml of sodium oxide, potassium oxide and calcium oxide respectively.
5.8.2 Commercially available standard solutions may also be used.
5.9 Reference solutions.
The reference solutions for establishing the calibration graph (set of calibration solutions) shall be
prepared by diluting suitable concentrated standard solutions (5.8) with the test water (5.1). They shall
cover the optimum working ranges of the specific elements according to the instrument used for the
measurement. Typical concentration ranges of the reference solutions are:
— for determination by flame atomic emission spectroscopy (FAES) of sodium oxide and potassium
oxide: up to 10 µg/ml;
— for determination by flame atomic absorption spectrometry (FAAS) of sodium oxide and potassium
oxide: up to 3 µg/ml;
— for determination by flame atomic absorption spectrometry (FAAS) of calcium oxide: up to 7 µg/ml.
For the measurement of containers of hydrolytic resistance container classes HC 1, HC 2 or HC B
F F F
(borosilicate or highly resistant glasses), the reference solutions shall be used without addition of the
spectrochemical buffer solution (5.6).
Nevertheless, when the test is run for arbitration purposes it is recommended that the spectrochemical
buffer solution also be added to these container classes.
For the measurement of containers of hydrolytic resistance container classes HC 3 or HC D (soda-
F F
lime-silica glasses), the reference solutions shall contain a volume fraction of 5 % (V/V) of the
spectrochemical buffer solution (5.6).
6 Apparatus
Ordinary laboratory apparatus, and those specified in 6.1 to 6.6.
6.1 Autoclave or steam sterilizer, capable of withstanding a pressure of at least 250 kPa (2,5 bar)
and of carrying out the heating cycle specified in 8.3. It shall be capable of maintaining a temperature of
(121 ± 1) °C, equipped with a calibrated thermometer or a calibrated thermocouple recorder, a pressure
gauge and a vent-cock.
When necessary and appropriate, the autoclave vessel and ancillary equipment shall be thoroughly
cleaned before use using the test water (5.1) in order to avoid conta
...
