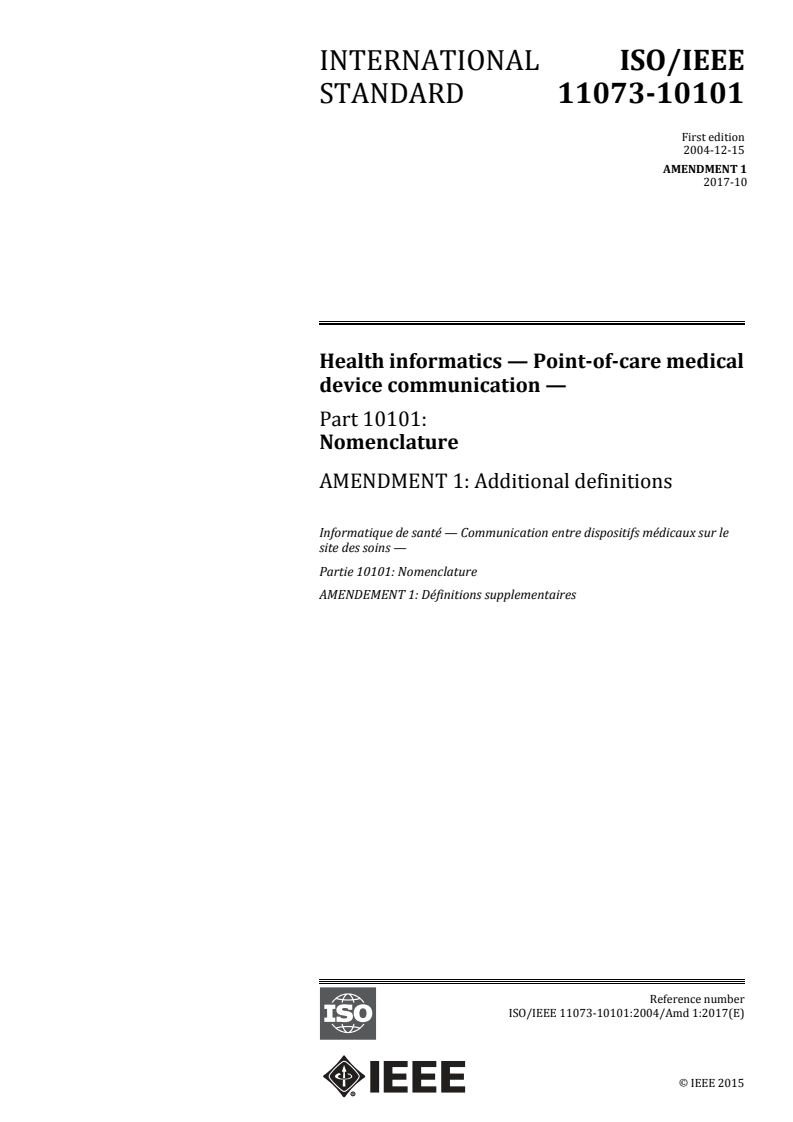

ISO/IEEE 11073-10101:2004/Amd 1:2017

INTERNATIONAL ISO/IEEE
STANDARD 11073-10101
First edition
2004‐12‐15
AMENDMENT 1
2017‐10
Health informatics — Point-of-care medical
device communication —
Part 10101:
Nomenclature
AMENDMENT 1: Additional definitions
Informatique de santé — Communication entre dispositifs médicaux sur le
site des soins —
Partie 10101: Nomenclature
AMENDEMENT 1: Définitions supplementaires
Reference number
ISO/IEEE 11073‐10101:2004/Amd 1:2017(E)
©
IEEE 2015
© IEEE 2015

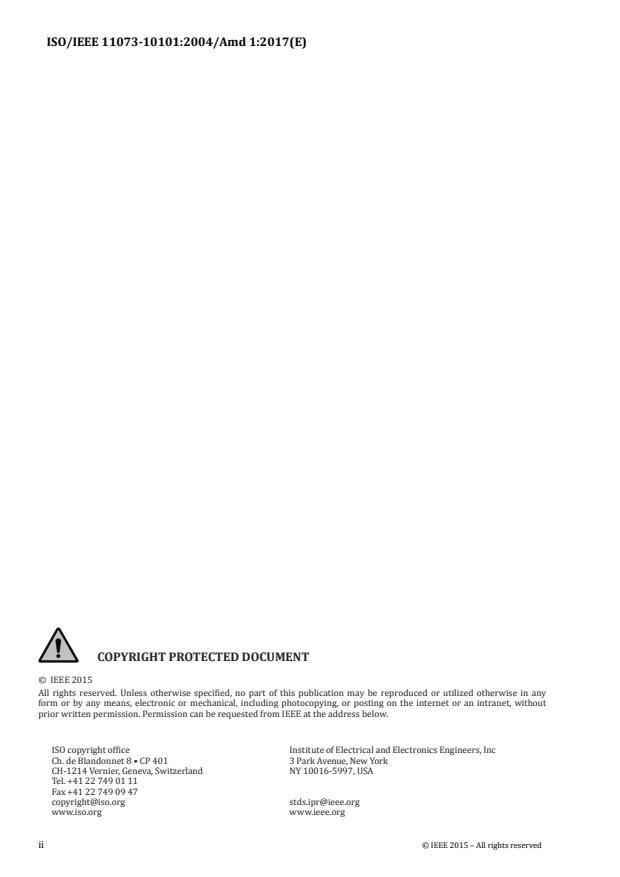

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any
form or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without
prior written permission. Permission can be requested from IEEE at the address below.
ISO copyright office Institute of Electrical and Electronics Engineers, Inc
Ch. de Blandonnet 8 • CP 401 3 Park Avenue, New York
CH-1214 Vernier, Geneva, Switzerland NY 10016-5997, USA
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org stds.ipr@ieee.org
www.iso.org www.ieee.org
ii © IEEE 2015 – All rights reserved

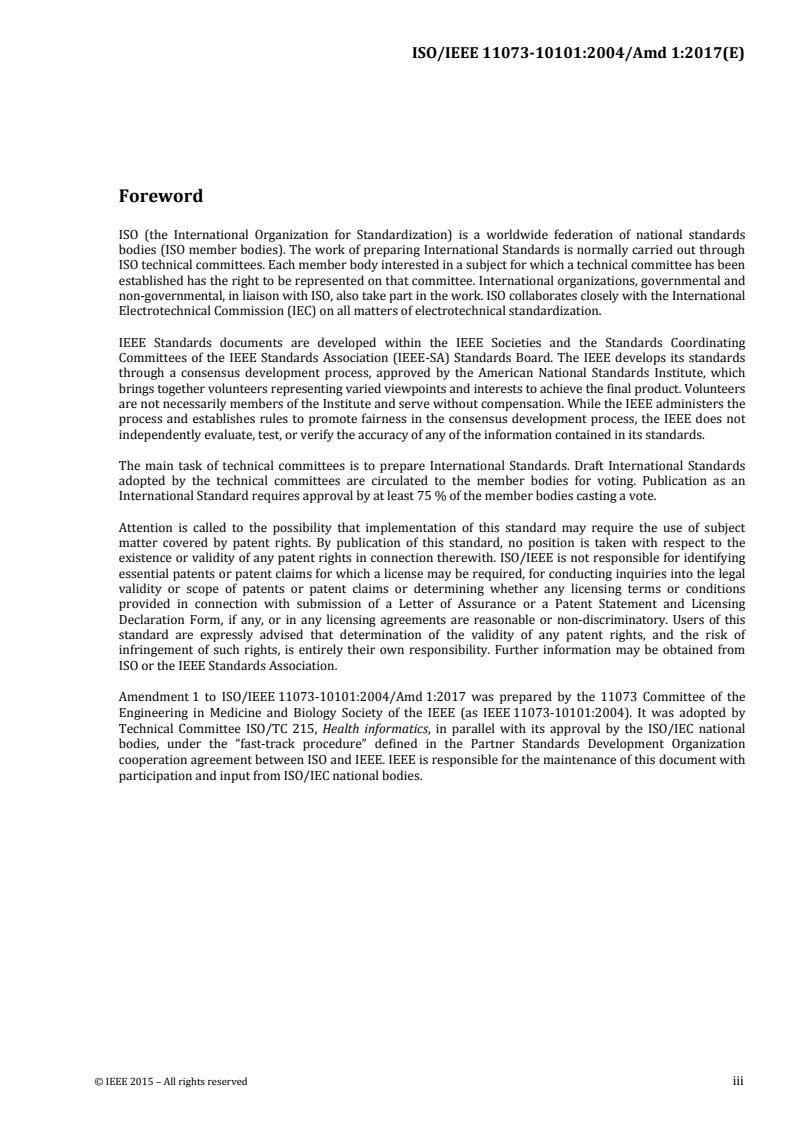

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non‐governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the International
Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
IEEE Standards documents are developed within the IEEE Societies and the Standards Coordinating
Committees of the IEEE Standards Association (IEEE‐SA) Standards Board. The IEEE develops its standards
through a consensus development process, approved by the American National Standards Institute, which
brings together volunteers representing varied viewpoints and interests to achieve the final product. Volunteers
are not necessarily members of the Institute and serve without compensation. While the IEEE administers the
process and establishes rules to promote fairness in the consensus development process, the IEEE does not
independently evaluate, test, or verify the accuracy of any of the information contained in its standards.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is called to the possibility that implementation of this standard may require the use of subject
matter covered by patent rights. By publication of this standard, no position is taken with respect to the
existence or validity of any patent rights in connection therewith. ISO/IEEE is not responsible for identifying
essential patents or patent claims for which a license may be required, for conducting inquiries into the legal
validity or scope of patents or patent claims or determining whether any licensing terms or conditions
provided in connection with submission of a Letter of Assurance or a Patent Statement and Licensing
Declaration Form, if any, or in any licensing agreements are reasonable or non‐discriminatory. Users of this
standard are expressly advised that determination of the validity of any patent rights, and the risk of
infringement of such rights, is entirely their own responsibility. Further information may be obtained from
ISO or the IEEE Standards Association.
Amendment 1 to ISO/IEEE 11073‐10101:2004/Amd 1:2017 was prepared by the 11073 Committee of the
Engineering in Medicine and Biology Society of the IEEE (as IEEE 11073‐10101:2004). It was adopted by
Technical Committee ISO/TC 215, Health informatics, in parallel with its approval by the ISO/IEC national
bodies, under the “fast‐track procedure” defined in the Partner Standards Development Organization
cooperation agreement between ISO and IEEE. IEEE is responsible for the maintenance of this document with
participation and input from ISO/IEC national bodies.
© IEEE 2015 – All rights reserved iii

IEEE Std 11073-10101a™-2015
(Amendment to
ISO/IEEE 11073-10101:2004)
Health informatics—Point-of-care medical device communication
Part 10101: Nomenclature
Amendment 1: Additional Definitions
Sponsor
IEEE 11073™ Standards Committee
of the
IEEE Engineering in Medicine and Biology Society
Approved 5 December 2015
IEEE-SA Standards Board
Abstract: Within the context of the ISO/IEEE 11073 family of standards for point-of-care (POC)
medical device communication (MDC), the nomenclature defined by the base ISO/IEEE 11073-
10101:2004 nomenclature standard is extended by this amendment. Significant extensions to
support haemodynamics, respiration, ventilation and anesthesia monitoring, blood gas, urine,
fluid-related metrics, and neurology, as well as units of measurements and measurement sites,
are included. Formal definitions for observation identifiers used by the IEEE 11073 Personal
Health Device standards and additional attributes for reporting their regulatory and certification
status are also captured and provided. Information attributes to support alert communication and
accurate medical device time synchronization and timekeeping are also defined.
Keywords: alert communication, anesthesia, blood gas, codes, Continua, fluid-related metrics,
haemodynamics, IEEE 11073-10101a, IHE PCD, information model, ISO/IEEE 11073-10101,
measurement sites, medical device certification, medical device communication, neurology,
nomenclature, NTP, ontology, patient, PCHA, Personal Connected Health Alliance, POC, point-
of-care, respiration, semantics, service model, terminology, time synchronization, timekeeping,
units of measure, urine, ventilation
xx
The Institute of Electrical and Electronics Engineers, Inc.
3 Park Avenue, New York, NY 10016-5997, USA
All rights reserved. Published 9 December 2015. Printed in the United States of America.
IEEE is a registered trademark in the U.S. Patent & Trademark Office, owned by The Institute of Electrical and Electronics Engineers,
Incorporated.
PDF: ISBN 978-1-5044-0119-7 STD20525
Print: ISBN 978-1-5044-0120-3 STDPD20525
IEEE prohibits discrimination, harassment and bullying. For more information, visit http://www.ieee.org/web/aboutus/whatis/policies/p9-26.html.
No part of this publication may be reproduced in any form, in an electronic retrieval system or otherwise, without the prior written permission
of the publisher.
vi
Important Notices and Disclaimers Concerning IEEE Standards Documents
IEEE documents are made available for use subject to important notices and legal disclaimers. These notices
and disclaimers, or a reference to this page, appear in all standards and may be found under the heading
“Important Notice” or “Important Notices and Disclaimers Concerning IEEE Standards Documents.”
Notice and Disclaimer of Liability Concerning the Use of IEEE Standards
Documents
IEEE Standards documents (standards, recommended practices, and guides), both full-use and trial-use, are
developed within IEEE Societies and the Standards Coordinating Committees of the IEEE Standards
Association (“IEEE-SA”) Standards Board. IEEE (“the Institute”) develops its standards through a
consensus development process, approved by the American National Standards Institute (“ANSI”), which
brings together volunteers representing varied viewpoints and interests to achieve the final product.
Volunteers are not necessarily members of the Institute and participate without compensation from IEEE.
While IEEE administers the process and establishes rules to promote fairness in the consensus development
process, IEEE does not independently evaluate, test, or verify the accuracy of any of the information or the
soundness of any judgments contained in its standards.
IEEE does not warrant or represent the accuracy or content of the material contained in its standards, and
expressly disclaims all warranties (express, implied and statutory) not included in this or any other
document relating to the standard, including, but not limited to, the warranties of: merchantability; fitness
for a particular purpose; non-infringement; and quality, accuracy, effectiveness, currency, or completeness
of material. In addition, IEEE disclaims any and all conditions relating to: results; and workmanlike effort.
IEEE standards documents are supplied “AS IS” and “WITH ALL FAULTS.”
Use of an IEEE standard is wholly voluntary. The existence of an IEEE standard does not imply that there
are no other ways to produce, test, measure, purchase, market, or provide other goods and services related
to the scope of the IEEE standard. Furthermore, the viewpoint expressed at the time a standard is approved
and issued is subject to change brought about through developments in the state of the art and comments
received from users of the standard.
In publishing and making its standards available, IEEE is not suggesting or rendering professional or other
services for, or on behalf of, any person or entity nor is IEEE undertaking to perform any duty owed by any
other person or entity to another. Any person utilizing any IEEE Standards document, should rely upon his
or her own independent judgment in the exercise of reasonable care in any given circumstances or, as
appropriate, seek the advice of a competent professional in determining the appropriateness of a given
IEEE standard.
IN NO EVENT SHALL IEEE BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO:
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS;
OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT OF THE PUBLICATION, USE OF, OR RELIANCE
UPON ANY STANDARD, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE AND
REGARDLESS OF WHETHER SUCH DAMAGE WAS FORESEEABLE.
Translations
The IEEE consensus development process involves the review of documents in English only. In the event
that an IEEE standard is translated, only the English version published by IEEE should be considered the
approved IEEE standard.
vii
Official statements
A statement, written or oral, that is not processed in accordance with the IEEE-SA Standards Board
Operations Manual shall not be considered or inferred to be the official position of IEEE or any of its
committees and shall not be considered to be, or be relied upon as, a formal position of IEEE. At lectures,
symposia, seminars, or educational courses, an individual presenting information on IEEE standards shall
make it clear that his or her views should be considered the personal views of that individual rather than the
formal position of IEEE.
Comments on standards
Comments for revision of IEEE Standards documents are welcome from any interested party, regardless of
membership affiliation with IEEE. However, IEEE does not provide consulting information or advice
pertaining to IEEE Standards documents. Suggestions for changes in documents should be in the form of a
proposed change of text, together with appropriate supporting comments. Since IEEE standards represent a
consensus of concerned interests, it is important that any responses to comments and questions also receive
the concurrence of a balance of interests. For this reason, IEEE and the members of its societies and
Standards Coordinating Committees are not able to provide an instant response to comments or questions
except in those cases where the matter has previously been addressed. For the same reason, IEEE does not
respond to interpretation requests. Any person who would like to participate in revisions to an IEEE
standard is welcome to join the relevant IEEE working group.
Comments on standards should be submitted to the following address:
Secretary, IEEE-SA Standards Board
445 Hoes Lane
Piscataway, NJ 08854 USA
Laws and regulations
Users of IEEE Standards documents should consult all applicable laws and regulations. Compliance with
the provisions of any IEEE Standards document does not imply compliance to any applicable regulatory
requirements. Implementers of the standard are responsible for observing or referring to the applicable
regulatory requirements. IEEE does not, by the publication of its standards, intend to urge action that is not
in compliance with applicable laws, and these documents may not be construed as doing so.
Copyrights
IEEE draft and approved standards are copyrighted by IEEE under U.S. and international copyright laws.
They are made available by IEEE and are adopted for a wide variety of both public and private uses. These
include both use, by reference, in laws and regulations, and use in private self-regulation, standardization,
and the promotion of engineering practices and methods. By making these documents available for use and
adoption by public authorities and private users, IEEE does not waive any rights in copyright to the
documents.
Photocopies
Subject to payment of the appropriate fee, IEEE will grant users a limited, non-exclusive license to
photocopy portions of any individual standard for company or organizational internal use or individual,
non-commercial use only. To arrange for payment of licensing fees, please contact Copyright Clearance
Center, Customer Service, 222 Rosewood Drive, Danvers, MA 01923 USA; +1 978 750 8400. Permission
to photocopy portions of any individual standard for educational classroom use can also be obtained
through the Copyright Clearance Center.
viii
Updating of IEEE Standards documents
Users of IEEE Standards documents should be aware that these documents may be superseded at any time
by the issuance of new editions or may be amended from time to time through the issuance of amendments,
corrigenda, or errata. An official IEEE document at any point in time consists of the current edition of the
document together with any amendments, corrigenda, or errata then in effect.
Every IEEE standard is subjected to review at least every ten years. When a document is more than ten
years old and has not undergone a revision process, it is reasonable to conclude that its contents, although
still of some value, do not wholly reflect the present state of the art. Users are cautioned to check to
determine that they have the latest edition of any IEEE standard.
In order to determine whether a given document is the current edition and whether it has been amended
through the issuance of amendments, corrigenda, or errata, visit the IEEE-SA Website at
http://ieeexplore.ieee.org/xpl/standards.jsp or contact IEEE at the address listed previously. For more
information about the IEEE SA or IEEE’s standards development process, visit the IEEE-SA Website at
http://standards.ieee.org.
Errata
Errata, if any, for all IEEE standards can be accessed on the IEEE-SA Website at the following URL:
http://standards.ieee.org/findstds/errata/index.html. Users are encouraged to check this URL for errata
periodically.
Patents
Attention is called to the possibility that implementation of this standard may require use of subject matter
covered by patent rights. By publication of this standard, no position is taken by the IEEE with respect to
the existence or validity of any patent rights in connection therewith. If a patent holder or patent applicant
has filed a statement of assurance via an Accepted Letter of Assurance, then the statement is listed on the
IEEE-SA Website at http://standards.ieee.org/about/sasb/patcom/patents.html. Letters of Assurance may
indicate whether the Submitter is willing or unwilling to grant licenses under patent rights without
compensation or under reasonable rates, with reasonable terms and conditions that are demonstrably free of
any unfair discrimination to applicants desiring to obtain such licenses.
Essential Patent Claims may exist for which a Letter of Assurance has not been received. The IEEE is not
responsible for identifying Essential Patent Claims for which a license may be required, for conducting
inquiries into the legal validity or scope of Patents Claims, or determining whether any licensing terms or
conditions provided in connection with submission of a Letter of Assurance, if any, or in any licensing
agreements are reasonable or non-discriminatory. Users of this standard are expressly advised that
determination of the validity of any patent rights, and the risk of infringement of such rights, is entirely
their own responsibility. Further information may be obtained from the IEEE Standards Association.
ix
Participants
At the time this standard was submitted to the IEEE-SA Standards Board for approval, the Upper Layers
Working Group had the following membership:
Jan Wittenber, Chair
Paul Schluter and Todd Cooper, Vice Chairs
Malcolm Clarke Norman Jones Stefan Schlichting
Steven Dain Kenneth Marks John Walsh
Kenneth Fuchs John Rhoads Daidi Zhong
Jeff Rinda
The following members of the individual balloting committee voted on this standard. Balloters may have
voted for approval, disapproval, or abstention.
Susan Burgess Werner Hoelzl Stefan Schlichting
Keith Chow Noriyuki Ikeuchi Paul Schluter
Malcolm Clarke Atsushi Ito Janek Schumann
Gion Durisch Piotr Karocki Eugene Stoudenmire
Christoph Fischer Daniel Kraehenbuehl Walter Struppler
Kenneth Fuchs Kenneth Marks John Walsh
John Garguilo Melvin Reynolds J. Wiley
Joel Goergen John Rhoads Jan Wittenber
Randall Groves Bartien Sayogo Oren Yuen
Kai Hassing Daidi Zhong
When the IEEE-SA Standards Board approved this standard on 5 December 2015, it had the following
membership:
John D. Kulick, Chair
Jon Walter Rosdahl, Vice Chair
Richard H. Hulett, Past Chair
Konstantinos Karachalios, Secretary
Masayuki Ariyoshi Joseph L. Koepfinger* Stephen J. Shellhammer
Ted Burse David J. Law Adrian P. Stephens
Stephen Dukes Hung Ling Yatin Trivedi
Jean-Philippe Faure Andrew Myles Phillip Winston
J. Travis Griffith T. W. Olsen Don Wright
Gary Hoffman Glenn Parsons Yu Yuan
Michael Janezic Ronald C. Petersen Daidi Zhong
Annette D. Reilly
*Member Emeritus
x
Introduction
This introduction is not part of IEEE Std 11073-10101a™-2015, Health informatics—Point-of-care medical device
communication—Part 10101: Nomenclature—Amendment 1: Additional Definitions.
ISO/IEEE 11073 standards enable communication between medical devices and external computer systems.
They provide automatic and detailed electronic data capture of patient vital signs information and device
operational data. The primary goals are to:
 Provide real-time plug-and-play interoperability for patient-connected medical devices
 Facilitate the efficient exchange of vital signs and medical device data, acquired at the point-of-
care, in all health care environments
This amendment extends the nomenclature originally defined by the base IEEE Std 11073-10101:2004
nomenclature standard. It reflects the continued innovation in medical device and system design for the
past decade and is based on a highly successful collaboration with the following organizations:
 Integrating the Healthcare Enterprise (IHE) Patient Care Devices (PCD) domain
 Personal Connected Health Alliance (PCHA, formerly Continua Health Alliance)
 ISO/TC 121, Anaesthetic and respiratory equipment, Subcommittee 4, Terminology and semantics
In addition, other vendors and standards development and profiling organizations have contributed to and
have recognized the value of this work and the benefit it provides to the user and provider communities and
to the patients that we ultimately serve.
This nomenclature amendment includes significant extensions to support:
 haemodynamics
 respiratory, ventilation and anesthesia monitoring
 blood gas, urine, fluid chemistry and other fluid-related metrics
 neurology
 units of measurements and measurement sites
 new medical device types, including infant warmers and incubators
This amendment also provides:
 formal definitions for observation identifiers used by IEEE 11073 Personal Health Devices
 attributes for reporting medical device regulatory and certification status
 attributes to support alert communication
 attributes to support accurate medical device time synchronization and timekeeping
NOTES as used in this amendment (preceding editorial instructions) are not meant to be included in the
rollup or part of the editorial instructions. They are used solely to provide informative guidance and
background to the reader as to why certain changes were made.
xi
Contents
4. Terms and definitions . 2
5. Symbols (and abbreviated terms) . 2
Annex A (normative) Nomenclature semantics . 4
A.5 Nomenclature, data dictionary, and codes for vital signs devices (Block A) . 5
A.6 Terminology and codes for units of measurement (Block B) . 8
A.7 Nomenclature, data dictionary, and codes for metrics (measurements and enumerations)
(Block C) . 14
A.7.3 Nomenclature and codes for hemodynamic monitoring measurements . 14
A.7.4 Nomenclature and codes for respiratory, ventilator and anesthesia measurements . 17
A.7.4.18 Gas concentration and partial pressure measurements . 17
A.7.4.19 Inspiratory breath type classification. 18
A.7.4.20 Nomenclature and code table . 20
A.7.4.21 Nomenclature and codes for nebulizers . 59
A.7.5 Nomenclature, data dictionary, and codes for common blood-gas, blood, urine, and other
fluid chemistry measurements . 61
A.7.8 Nomenclature, data dictionary, and codes for neurological monitoring measurements . 64
A.7.11 Nomenclature and code extensions for miscellaneous measurements . 66
A.7.11.7 Body Weight and Surface Area . 67
A.7.12 Nomenclature and code extensions for infant incubator and warmer microenvironments . 67
A.7.13 Nomenclature and code extensions for personal health devices. 69
A.8 Nomenclature, data dictionary, and codes for body sites (Block D) . 72
A.8.1 Sites for EEG-electrode placement on the head . 72
A.11 Information attributes to support IHE PCD DEC and PCHA Continua WAN . 73
A.11.1 Information attributes to support IHE PCD Alert Communication Management . 73
A.11.2 Infrastructure attributes to support PCHA/Continua WAN and IHE PCD DEC . 73
A.11.3 Information attributes to support PCHA/Continua WAN . 74
A.11.4 Information attributes to support IHE PCD DEC and PCHA/Continua WAN
timekeeping . 75
A.11.5 Information attributes to support semantics defined by this standard . 77
Annex C (normative) Terms and codes . 78
C.1 Overview . 78
C.2 Discriminator sets . 78
C.3 Terms and discriminators . 80
Annex D (informative) Breaths and inflations . 97
Annex E (informative) Respiratory, ventilator, and anesthesia reference ID naming conventions . 98
Annex F (informative) Anesthesia ventilation and breathing circuits . 100
F.1 Bellows driven on expiratory side . 102
F.2 Piston driven on inspiratory side . 103
F.3 Mapleson circuits . 104
Annex G (informative) Bibliography . 105
xii
Health informatics—Point-of-care medical device communication
Part 10101: Nomenclature
Amendment 1: Additional Definitions
IMPORTANT NOTICE: IEEE Standards documents are not intended to ensure safety, security, health,
or environmental protection, or ensure against interference with or from other devices or networks.
Implementers of IEEE Standards documents are responsible for determining and complying with all
appropriate safety, security, environmental, health, and interference protection practices and all
applicable laws and regulations.
This IEEE document is made available for use subject to important notices and legal disclaimers. These
notices and disclaimers appear in all publications containing this document and may be found under the
heading “Important Notice” or “Important Notices and Disclaimers Concerning IEEE Documents.” They
can also be obtained on request from IEEE or viewed at http://standards.ieee.org/IPR/disclaimers.html.
NOTE—The editing instructions contained in this amendment define how to merge the material contained therein into
the existing base standard and its amendments to form the comprehensive standard.
The editing instructions are shown in bold italic. Four editing instructions are used: change, delete, insert, and replace.
Change is used to make corrections in existing text or tables. The editing instruction specifies the location of the
change and describes what is being changed by using strikethrough (to remove old material) and underscore (to add
new material). Delete removes existing material. Insert adds new material without disturbing the existing material.
Insertions may require renumbering. If so, renumbering instructions are given in the editing instruction. Replace is used
to make changes in figures or equations by removing the existing figure or equation and replacing it with a new one.
Editing instructions, change markings, and this NOTE will not be carried over into future editions because the changes
will be incorporated into the base standard.
IEEE Std 11073-10101a-2015
Health informatics—Point-of-care medical device communication—Part 10101: Nomenclature—
Amendment 1: Additional Definitions
4. Terms and definitions
Replace the boilerplate paragraph (and its footnote) with the following sentence as shown. Renumber
footnotes accordingly.
For the purposes of this document, the following terms and definitions apply. The IEEE Standards
Dictionary Online should be consulted for terms not defined in this clause.
Insert the following new terms and definitions in alphabetical order:
base term: A fundamental semantic concept.
co-constraint: A rule describing a constraint whose scope is inclusive of more than one term.
constraint: A restriction on the set of values being assigned.
discriminators: A mechanism to provide additional semantic refinement to multiple base terms.
domain information model (DIM): The model describing common concepts and relationships for a
problem domain.
electronic health records: A longitudinal collection of electronic health information about individual
patients or populations. It is a record in digital format that is capable of being shared within or across
different health care settings by being embedded in network-connected enterprise-wide information system.
reference ID (REFID): A unique, symbolic, and programmatic form for the term. The form is correlated
to the context-free code (i.e., terms are by definition context-free with respect to all other terms); in this
standard, terms are prefixed with “MDC_” for consistency.
systematic name: An organization of differentiating, relational descriptors that are unique for each term.
terminology: A synonym for nomenclature.
5. Symbols (and abbreviated terms)
Insert the following abbreviated terms into the existing list, in alphabetical order:
aka also known as
DIM domain information model
ECG electrocardiogram
HL7 Health Level Seven
ID identifier
IEEE Standards Dictionary Online subscription is available at:
http://www.ieee.org/portal/innovate/products/standard/standards_dictionary.html.
IEEE Std 11073-10101a-2015
Health informatics—Point-of-care medical device communication—Part 10101: Nomenclature—
Amendment 1: Additional Definitions
IHE PCD Integrating the Healthcare Enterprise Patient Care Devices
MDC Medical Device Communication
PCHA Personal Connected Health Alliance (formerly Continua Health Alliance)
PHD IEEE 11073 Personal Health Device series of communication standards, including the
IEEE Std 11073-20601 base standard and -104XX Device Specializations
REFID IEEE 11073 reference identifier
typ typical
IEEE Std 11073-10101a-2015
Health informatics—Point-of-care medical device communication—Part 10101: Nomenclature—
Amendment 1: Additional Definitions
Annex A
(normative)
Nomenclature semantics
[NOTES in this amendment are not meant to be included in the rollup or part of the editorial instructions. They are
used in this amendment solely to provide informative guidance and background to the reader as to why certain changes
were made.]
NOTE—This amendment extends the nomenclature defined by the base ISO/IEEE 11073-10101:2004 nomenclature
standard. It includes significant extensions to support haemodynamics, respiration, ventilation and anesthesia
monitoring, blood gas, urine, fluid-related metrics, and neurology, as well as specialized units of measurements and
measurement sites. It also captures and provides formal definitions for observation identifiers used by the IEEE 11073
Personal Health Device standards and additional attributes for reporting their regulatory and certification status.
The nomenclature extensions may be used in other persistent storage and communication standards [e.g., Health Level
Seven International (HL7) V2 and V3, and Digital Imaging and Communications in Medicine (DICOM)] for use by
various applications, including clinical information systems, electronic patient records, and clinical research.
These enterprise-facing communication standards require that the IEEE 11073 concept of a ‘partition’ and ‘code’ be
combined into a single 32-bit ‘context-free’ identifier, as part of a single Medical Device Communication (MDC)
vocabulary identifier. In this amendment, the combined partition and code information is listed in the ‘Part::Code’
column, augmenting the earlier context-sensitive ‘Code’ column. This also facilitates aggregation and processing of
medical device data defined in multiple IEEE 11073 partitions, such as advanced diagnostic electrocardiography,
implanted devices, and personal health devices.
All new terms defined by this amendment express the context-free Part::Code identifiers without braces. Existing
context-free from IEEE Std 11073-10101:2004 are enclosed in square braces [Part::Code] and ‘refid-synonyms’ are
enclosed in wavy braces {Part::Code} terms. The braces indicate substantial equivalency to existing Part::Code
identifiers and are used to identify terms that have been included for completeness or have been modified for clarity.
IEEE Std 11073-10101a-2015
Health informatics—Point-of-care medical device communication—Part 10101: Nomenclature—
Amendment 1: Additional Definitions
A.5 Nomenclature, data dictionary, and codes for vital signs devices (Block A)
A.5.7 Code table
NOTE—This table includes vital signs devices from Annex B of IEEE Std 11073-10101:2004 that were not defined in Annex A and new vital signs devices. It does not include
vital signs devices that were already defined in Annex A (codes 1::4100 to 1::4508, inclusive). All are assigned to the partition MDC_PART_OBJ (1).
Insert the following rows at the end of Table A.5.1 as shown:
Table A.5.1—Nomenclature and codes for vital signs devices (continued)
Systematic name Common term Description/Definition Reference ID Part::Code
Device | | | Generic device Generic device, may be used as placeholder. MDC_DEV 1::4096
Device, general | | | General device Generic device, of any type. MDC_DEV_GENERAL 1::5120
Device, auxiliary | | | Auxiliary device Generic device, of any type. MDC_DEV_AUX 1::5124
Device | ElectricalPotential, Respiration ECG-derived respiration Instrument for the indirect measurement of respiration MDC_DEV_ECG_RESP
| Lung, transthoracic impedance | rate by estimating transthoracic impedance using the 1::5128
ECG leads.
Device | ElectricalPotential | Heart, ECG arrhythmia Instrument for acquisition, analysis and detection of MDC_DEV_ARRHY
arrhythmia or conduction disturbance | cardiac arrhythmias or conduction disturbances. 1::5132

Device | Pressure | Haemodynamic | Haemodynamic pulse rate Instrument for acquisition, analysis and detection of MDC_DEV_PULS
1::5136
haemodynamic pulse rate and other information.
Device | ElectricalPotential | Heart, ST ECG ST Instrument for acquisition, analysis and detection of ST MDC_DEV_ST
deviation and cardiac repolarization | deviation and cardiac repolarization disturbances. 1::5140

Analyzer | Concentration | Airway, CO2 CO2 gas analyzer, capnometer, Instrument for the direct measurement of airway CO2 MDC_DEV_CO2
1::5144
| capnograph concentration and respiration rate.
Device | Pressure, non-invasive | Blood Non-invasive blood pressure Instrument for the non-invasive measurement of blood MDC_DEV_PRESS_BLD_NONINV
1::5148
| pressure.
Device | Flow, perfusion | Blood, Cerebral perfusion Instrument for the measurement of the level of blood MDC_DEV_CEREB_PERF
1::5152
cerebral | perfusion in cerebral tissue.
Device | Concentration or Continuous CO2 Instrument for the direct and continuous measurement MDC_DEV_CO2_CTS
PartialPressure, CO2 | Continuous | of CO2 concentration or partial pressure. 1::5156

Device | PartialPressure, pCO2 | Skin, Transcutaneous pCO2 Instrument for the indirect measurement of pCO2 partial MDC_DEV_CO2_TCUT
1::5160
surface | pressure on the surface of the skin.
Analyzer | Concentration | Airway, O2 | O2 gas analyzer Instrument for the direct measurement of airway O2 MDC_DEV_O2
1::5164
concentration and respiration rate.
Device | Concentration or Continuous O2 Instrument for the direct and continuous measurement MDC_DEV_O2_CTS
PartialPressure, O2 | Continuous | of O2 concentration or partial pressure. 1::5168

IEEE Std 11073-10101a-2015
Health informatics—Point-of-care medical device communication—Part 10101: Nomenclature—
Amendment 1: Additional Definitions
Table A.5.1—Nomenclature and codes for vital signs devices (continued)
Systematic name Common term Description/Definition Reference ID Part::Code
Device | PartialPressure, pO2 | Skin, Transcutaneous pO2 Instrument for the indirect measurement of pO2 partial MDC_DEV_O2_TCUT
1::5172
surface | pressure on the surface of the skin.
Meter | Temperature | Difference | Temperature difference probe Instrument that measures temperature difference MDC_DEV_TEMP_DIFF
1::5176
between two body sites or temperature reference.
Controller | | | Generic controller Instrument that controls specific aspects of a device. MDC_DEV_CNTRL 1::5180
Alert | | | Generic alarm Instrument that processes or annunciates an alarm. MDC_DEV_AL 1::5184
Device | Pressure, Pulmonary Artery, Pulmonary wedge pressure Instrument for the direct measurement of the pulmonary MDC_DEV_WEDGE
1::5188
Occluded | Blood | artery wedge pressure.
Analyzer | Concentration | Blood, SvO2 monitor Instrument that derives the % of venous O2. MDC_DEV_O2_VEN_SAT
1::5192
Venous |
Device | Persistent Metric Store | | Data storage Device that stores physiologic information. MDC_DEV_PMSTORE
1::5196

Analyzer | Rate | Heart | Heart rate analyzer Instrument for measuring the rate of heart contractions. MDC_DEV_CARD_RATE 1::5200
Monitor | Vital Signs | Physiologic | Vital signs monitor Instrument for direct measurement and analysis of vital MDC_DEV_SYS_VS
signs such as temperature, pulse or heart rate, blood 1::5204
pressure and respiratory rate.
Monitor | Vital Signs, Configurable | Configurable (modular) vital Configurable (modular) instrument for direct MDC_DEV_SYS_VS_CONFIG
1::5208
Physiologic | signs monitor measurement and analysis of vital signs.
Monitor | Vital Signs, Non-configurable Non-configurable vital signs Non-configurable (fixed functionality) instrument for MDC_DEV_SYS_VS_UNCONFIG
1::5212
| Physiologic | monitor direct measurement and analysis of vital signs.
Alert | | Status | Generic alarm status indicator Instrument displays alarm status. MDC_DEV_AL_STAT 1::5216
Device, waveform | | | General waveform device Generic waveform device, of any type. MDC_DEV_WV_GENERAL 1::5220
Device, numeric | | | General numeric device Generic numeric device, of any type. MDC_DEV_NU_GENERAL 1::5224
Meter | Pressure | | Pressure meter or sensor Instrument or sensor for the direct measurement of MDC_DEV_METER_PRESS
1::5228
pressure
Device | Flow, perfusion | Blood | Perfusion Instrument for the measurement of blood perfusion. MDC_DEV_ANALY_PERF_REL
1::5232

Device | Plethysmograph | | Plethysmograph Instrument for measuring changes in volume within an MDC_DEV_PLETH
organ or body part due to fluctuations in the amount of
1::5236
blood or air it contains.
Calculator | Multi-Parameter | Cardiac | Cardiac calculator Instrument that derives cardiac parameters MDC_DEV_CALC_CARD
1::5240

Calculator | Multi-Parameter | Pulmonary calculator Instrument that derives pulmonary parameters MDC_DEV_CALC_PULM
1::5244
Pulmonary |
Calculator | Multi-Parameter, with Pulmonary estimates calculator Instrument that derives pulmonary parameters, where MDC_DEV_CALC_PULM_EST
estimates | Pulmonary | one or more inputs to the calculation may be clinically 1::5248
acceptable approximations or alternative values.
Analyzer | Concentration, O2 | Blood, SpO2 monitor Instrument that derives the % of arterial O2 and pulse MDC_DEV_ANALY_SAT_O2_ART
1::5252
Arterial | rate parameters (blood flow) and other analytes.
Analyzer | Concentration, O2 | Blood, SvO2 monitor Instrument that derives the % of venous O2. MDC_DEV_ANALY_SAT_O2_VEN
1::5256
Venous |
IEEE Std 11073-10101a-2015
Health informatics—Point-of-care medical device communication—Part 10101: Nomenclature—
Amendment 1: Additional Definitions
Table A.5.1—Nomenclature and codes for vital signs devices (continued)
Systematic name Common term Description/Definition Reference ID Part::Code
Analyzer | Concentration, PgCO2 | Gastric PgCO2 monitor Instrument that measures gastric PgCO2 with MDC_DEV_ANALY_PCO2_GASTRIC
1::5260
Gastric, Mucosal | tonometric catheters
Analyzer | ElectricalPotential, Bispectral Index Instrument that measures the EEG and derives a MDC_DEV_EEG_BIS
1::5264
Bispectral Index | Brain | “bispectral index”, a computed EEG parameter.
Analyzer | ElectricalPotential, Entropy | Entropy Instrument that measures the EEG and derives an MDC_DEV_EEG_ENTROPY
1::5268
Brain | “entropy” index, a computed EEG parameter.
Analyzer | ElectricalPotential, SNAP SNAP Index Instrument that measures the EEG and derives an MDC_DEV_EEG_SNAP
1::5272
Index | Brain | “SNAP” index, a computed EEG parameter.
Analyzer | ElectricalPotential, Patient Patient State Index Instrument that measures the EEG and derives a MDC_DEV_EEG_PSI
1::5276
State Index | Brain | “patient state index”, a computed EEG parameter.
Analyzer | Flow, Continuous | Blood | Continuous cardiac output Instrument that continuously derives heart output from MDC_DEV_ANALY_CARD_OUTPUT_CTS
1::5280
direct measurement of blood flow.
Analyzer | Flow, Continuous, Non- Continuous non-invasive Instrument that derives heart output from direct MDC_DEV_ANALY_CARD_OUTPUT_NONINV
1::5284
invasive | Blood | Cardiac Output measurement of blood flow.
Regulator | Microenvironment | Body, Incubator, warmer, heater, Instrument for modifying the ambient microenvironment MDC_DEV_INFANT_MICROENV
infant | humidifier for an infant, including skin temperature and ambient 1::5288
temperature, humidity and oxygen.
MDC_DEV_INFANT_MICROENV_TEMP_ENV
Regulator | Microenvironment, Incubator, warmer, heater. Instrument for modifying the ambient temperature for an
1::5292
temperature | ambient | infant.
MDC_DEV_INFANT_MICROENV_TEMP_PATIENT
Regulator | Microenvironment, Incubator,
...
