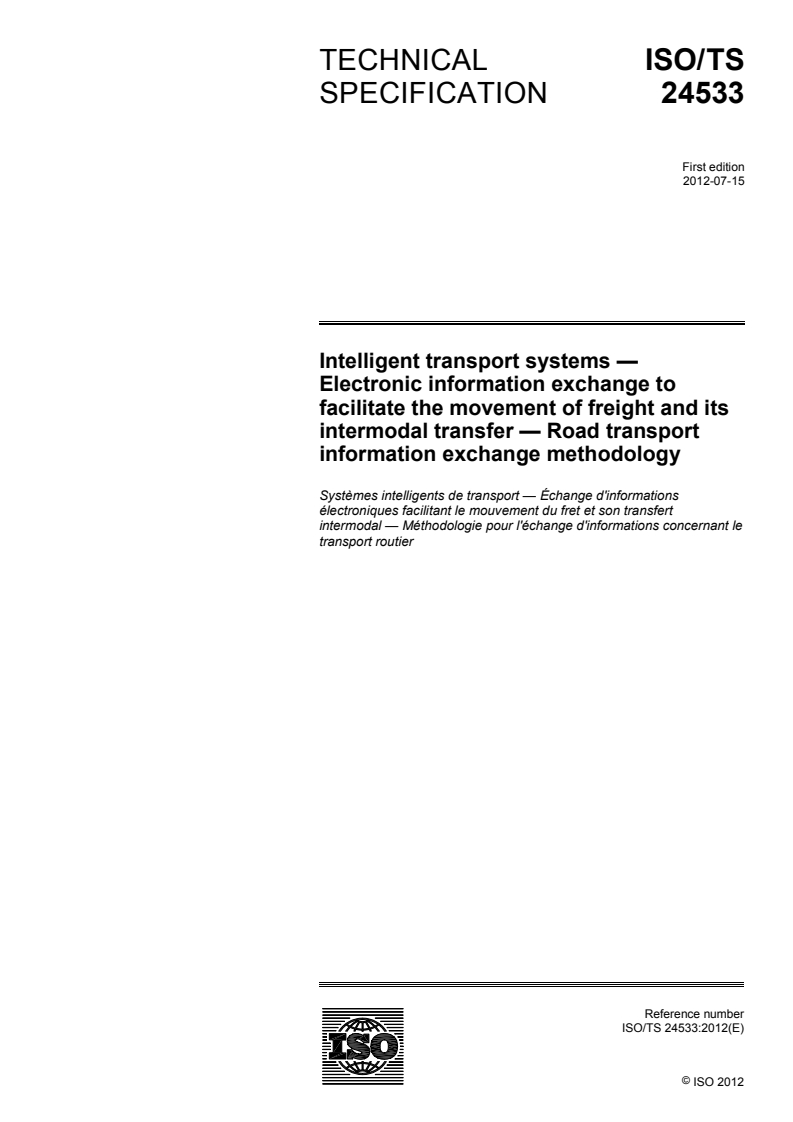

ISO/TS 24533:2012

TECHNICAL ISO/TS
SPECIFICATION 24533
First edition
2012-07-15
Intelligent transport systems —
Electronic information exchange to
facilitate the movement of freight and its
intermodal transfer — Road transport
information exchange methodology
Systèmes intelligents de transport — Échange d'informations
électroniques facilitant le mouvement du fret et son transfert
intermodal — Méthodologie pour l'échange d'informations concernant le
transport routier
Reference number
©
ISO 2012
©  ISO 2012
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2012 – All rights reserved

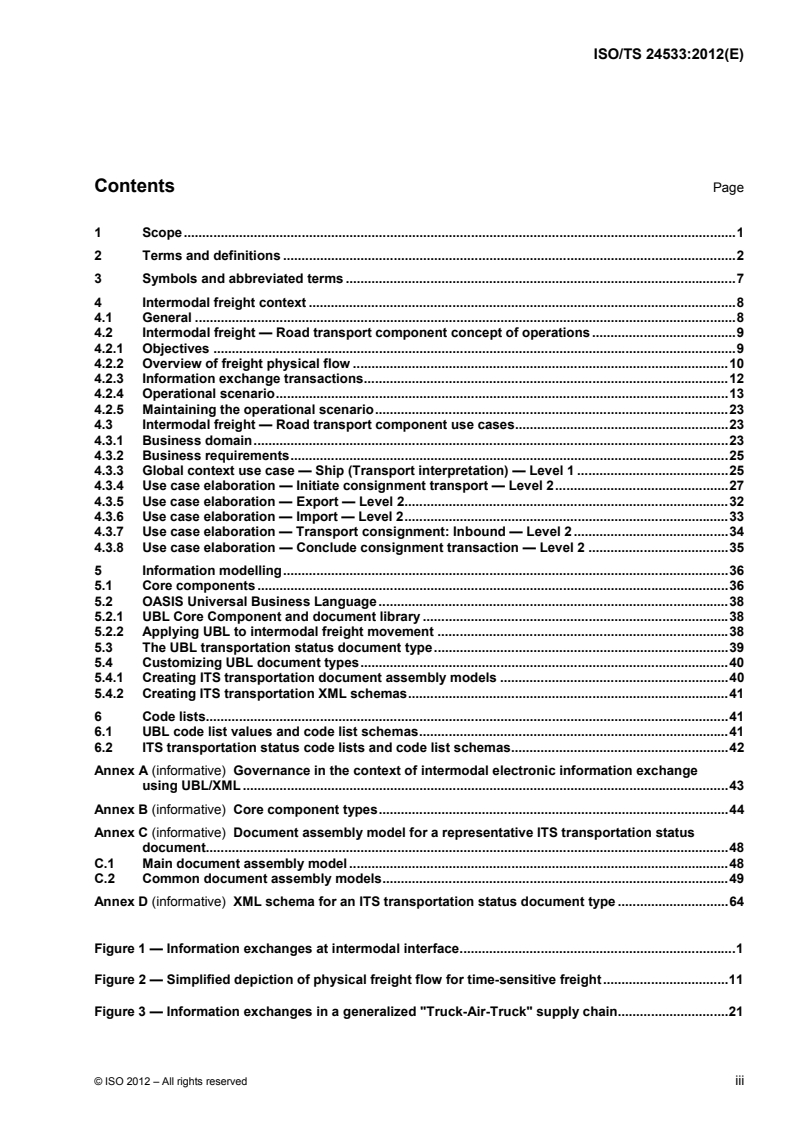

Contents Page
1 Scope.1
2 Terms and definitions .2
3 Symbols and abbreviated terms .7
4 Intermodal freight context .8
4.1 General.8
4.2 Intermodal freight — Road transport component concept of operations .9
4.2.1 Objectives.9
4.2.2 Overview of freight physical flow .10
4.2.3 Information exchange transactions.12
4.2.4 Operational scenario.13
4.2.5 Maintaining the operational scenario.23
4.3 Intermodal freight — Road transport component use cases.23
4.3.1 Business domain.23
4.3.2 Business requirements.25
4.3.3 Global context use case — Ship (Transport interpretation) — Level 1 .25
4.3.4 Use case elaboration — Initiate consignment transport — Level 2.27
4.3.5 Use case elaboration — Export — Level 2.32
4.3.6 Use case elaboration — Import — Level 2.33
4.3.7 Use case elaboration — Transport consignment: Inbound — Level 2 .34
4.3.8 Use case elaboration — Conclude consignment transaction — Level 2 .35
5 Information modelling.36
5.1 Core components .36
5.2 OASIS Universal Business Language .38
5.2.1 UBL Core Component and document library .38
5.2.2 Applying UBL to intermodal freight movement .38
5.3 The UBL transportation status document type.39
5.4 Customizing UBL document types.40
5.4.1 Creating ITS transportation document assembly models .40
5.4.2 Creating ITS transportation XML schemas.41
6 Code lists.41
6.1 UBL code list values and code list schemas.41
6.2 ITS transportation status code lists and code list schemas.42
Annex A (informative) Governance in the context of intermodal electronic information exchange
using UBL/XML .43
Annex B (informative) Core component types.44
Annex C (informative) Document assembly model for a representative ITS transportation status
document.48
C.1 Main document assembly model .48
C.2 Common document assembly models.49
Annex D (informative) XML schema for an ITS transportation status document type .64

Figure 1 — Information exchanges at intermodal interface.1
Figure 2 — Simplified depiction of physical freight flow for time-sensitive freight.11
Figure 3 — Information exchanges in a generalized "Truck-Air-Truck" supply chain.21

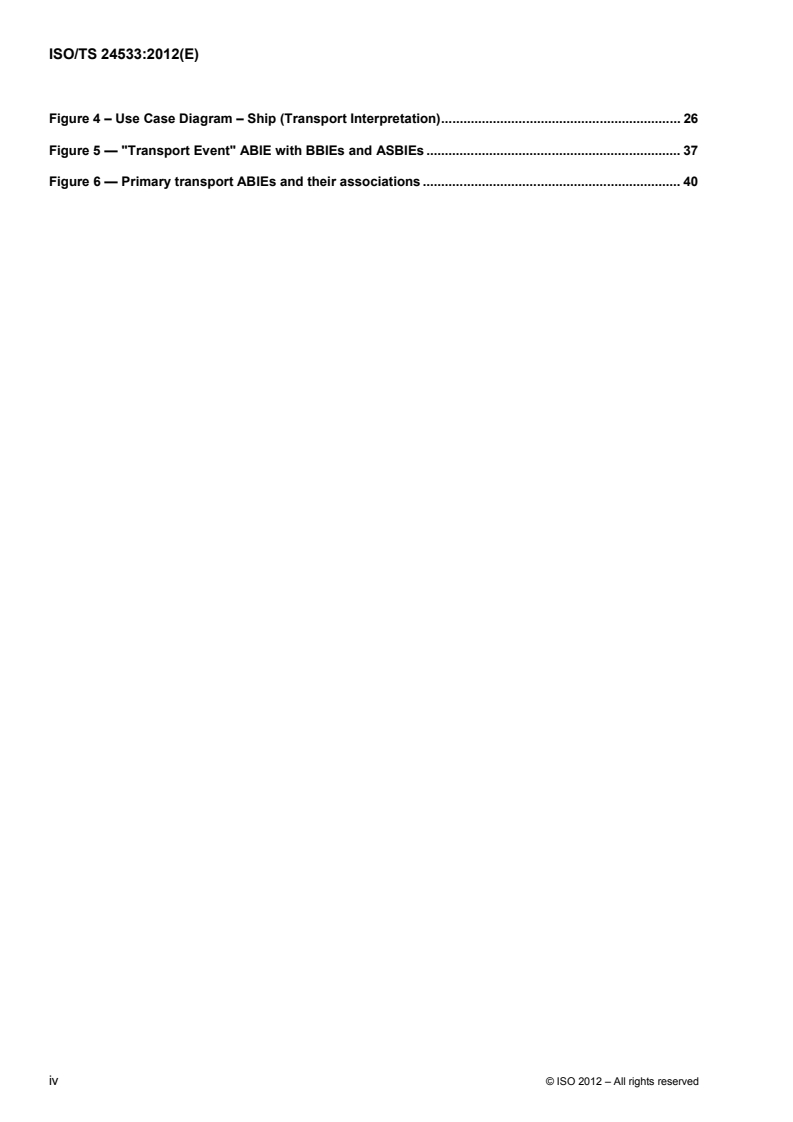

Figure 4 – Use Case Diagram – Ship (Transport Interpretation). 26
Figure 5 — "Transport Event" ABIE with BBIEs and ASBIEs . 37
Figure 6 — Primary transport ABIEs and their associations . 40

iv © ISO 2012 – All rights reserved

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
In other circumstances, particularly when there is an urgent market requirement for such documents, a
technical committee may decide to publish other types of normative document:
⎯ an ISO Publicly Available Specification (ISO/PAS) represents an agreement between technical experts in
an ISO working group and is accepted for publication if it is approved by more than 50 % of the members
of the parent committee casting a vote;
⎯ an ISO Technical Specification (ISO/TS) represents an agreement between the members of a technical
committee and is accepted for publication if it is approved by 2/3 of the members of the committee casting
a vote.
An ISO/PAS or ISO/TS is reviewed after three years in order to decide whether it will be confirmed for a
further three years, revised to become an International Standard, or withdrawn. If the ISO/PAS or ISO/TS is
confirmed, it is reviewed again after a further three years, at which time it must either be transformed into an
International Standard or be withdrawn.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO/TS 24533 was prepared by Technical Committee ISO/TC 204, Intelligent transport systems.
Introduction
Seamless exchange of accurate, complete, and timely data at transportation hand-offs has always been
important for efficiency and accountability. There is also an understanding of needs for security of transport
information, and for transfer of information related to security against terrorism as well as theft and traditional
contraband. It is imperative for standards development organizations to address and facilitate dealing with
these needs.
ISO/TR 14813-2:2000, 7.4.1 identifies a commercial vehicle functional domain:
"These transactions maintain the TICS information about a shipment from the time of the order by the
consignor to the reception of goods by the consignee. The key TICS transactions are to provide registers
of service providers and to enable the goods to be tracked throughout intermodal journeys."
Consequently, Technical Committee ISO/TC 204, Intelligent transport systems, seeks to fill a role focusing on
data exchange needs for the international supply chain that relate specifically to motor carrier transportation
including data needs for the interface with all modes of transportation since freight movement normally
includes interfaces with other modes of transportation. Those needs are essential for transport information
and control systems.
Some international shipments are carried out entirely by highway mode, but most begin and end with motor
carrier service and travel by other modes in the course of the shipment. This Technical Specification focuses
on motor carrier transport interfaces through the supply chain, or those data items that deal specifically with
the key pieces of transport information critical to getting the goods to the marketplace without delay related to
data sharing. Therefore, the interfacing modes' data structures and formats must accommodate each other to
assure efficiency and security from end to end. Truck, rail and ocean transport are vital components of
intermodal, international shipping. It is recognized that a robust intermodal standard must include interface
connections to all of these modes, and may need to be proven through demonstration tests. Research and
tests carried out in the US motivated the use of a truck-air-truck supply chain (shown in Figure 3). Preliminary
investigations suggest that there is no single organization responsible for transport data standards through the
intermodal supply chain. To achieve a coherent set of transport standards requires coordination among the
various international organizations working on component parts of these international standards. TC 204 has
advanced the idea of close coordination among other appropriate ISO Technical Committees, OASIS, IATA,
IEC, CEN, UN Centre for Trade Facilitation and Electronic Business, and the World Customs Organization.
Contact has been made and interest has been expressed in cooperating on the development of intermodal
data exchange standards that fully cover the supply chain. This Technical Specification is a preliminary step
towards coordinating between the various standards organizations.
The vision expressed in this Technical Specification is to allow electronic data sharing through many-to-many
relationships between supply chain partners which will help ensure sustaining standards. One-to-one
relationships require only two partners to have standard data relationships with each other, and could require
other partners to adopt the standards of the original two or require third party translators, which increases
costs in the transport of goods. The many-to-many relationships also ensure that data initiated by the first
partner will allow other partners equal access and can also help customs agencies to access data early in the
progress of goods coming through the supply chain.
vi © ISO 2012 – All rights reserved

TECHNICAL SPECIFICATION ISO/TS 24533:2012(E)

Intelligent transport systems — Electronic information
exchange to facilitate the movement of freight and its
intermodal transfer — Road transport information exchange
methodology
1 Scope
This Technical Specification specifies the data concepts applicable to the movement of freight and its
intermodal transfer. These data concepts include information entities (data elements), aggregated/associated
information entities (groups of data elements) and messages that comprise information exchanges at
transport interfaces along the chain of participants responsible for the delivery of goods from the point of origin
through to the final recipient as presented in Figure 1. This Technical Specification focuses on a single
"thread" of the overall end-to-end supply chain.
It includes motor transport data needs within the international supply chain to satisfy the requirements of both
businesses and governmental organizations. This Technical Specification is applicable to shipments that
originate in one country and terminate in another. It may also be applied to shipments that originate and
terminate in a single country. This Technical Specification is applicable to freight movements that interface
with other modes and incorporates requirements set for those other modes.
This Technical Specification does not constrain the requirements of customs, regulatory, and safety bodies at
border crossings but does include the data elements likely to be required by customs authorities. The same is
true with the requirements of any particular mode of operation.

Figure 1 — Information exchanges at intermodal interface
NOTE This thread may be generalized to address the various combinations of segments that occur in the global
supply chain while focusing on the information exchange at the interchange points.
2 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
2.1
agent
name and address of a person or organization authorized to act for or on behalf of another party
2.2
air carrier
carrier using aircraft to transport goods
2.3
air waybill
particular type of bill of lading, specifically a non-negotiable consignment note used to cover the transport of
goods by airfreight
NOTE An air waybill serves as a receipt for the shipper, indicating that the carrier has accepted the goods listed
therein, and obligates it to carry the consignment to the airport of destination according to specified conditions.
2.4
authority
statutory body existing within a jurisdiction and a specific area of responsibility that administers legislation to
regulate trade and/or monitors compliance with existing legislation
2.5
bill of lading
document which evidences a contract of the carriage and the taking over or loading of the goods by the
carrier, and by which the carrier undertakes to deliver the goods against surrender of the document
NOTE A provision in the document that the goods are to be delivered to the order of a named person, or to order, or
to bearer, constitutes such an undertaking. The document has the following functions: 1) a receipt for goods, signed by a
duly authorised person on behalf of the carriers, 2) a document of title to the goods described therein, 3) evidence of the
terms and conditions of carriage agreed upon between the two parties.
2.6
buyer
customer
ultimate consignee
individual or entity purchasing goods or services
2.7
carrier
person or organisation, which owns and/or operates a transport means, engaged in the transportation of
passengers or property by land, rail, air or water
2.8
certificate of origin
international business document that certifies the country of origin of the shipment
2.9
chain of possession
identification and appropriate collection of a history of the party with possession of some unit of freight, such
as a consignment, and relevant supporting data attributes about the party, the freight, and the assets involved
in enabling the transport or distribution of that freight
2.10
conformance
adherence of a candidate's implementation to a standard
2 © ISO 2012 – All rights reserved

2.11
consignee
receiver
person or company to whom goods are shipped
2.12
consignment
separately identifiable amount of goods items (available to be) transported from one consignor to one
consignee via one or more modes of transport and specified in one single transport document
2.13
consignor
shipper
party which, by contract with a carrier, consigns or sends goods with the carrier, or has them conveyed by him
2.14
consolidation
grouping together of individual consignments of goods into a combined consignment for carriage
2.15
consolidator
person or organization engaged in the process of combining more than one consignment loaded in a
container destined to one or more consignees, combining carload or truckload consignments to make carload
or truckload movements
2.16
container
receptacle for the transport of goods, especially one readily transferable from one form of transport to another
2.17
customs
government organization that deals with the levying of duties and taxes on imported goods from foreign
countries and the control over the export and import of goods
2.18
customs manifest
document itemising a list of cargo prepared by shipping companies from bills of lading which is presented to
customs for formal report of cargo
2.19
delivery party
party to whom goods should be delivered, if not identical to consignee
2.20
despatch party
party to whom goods are to be, or have been, taken over, if not identical to carrier
2.21
electronic freight manifest
electronic supply chain manifest (ESCM)
proposed concept of generating, storing, distributing, and accessing manifest-related data along the end-to-
end supply chain, facilitated by this Technical Specification
2.22
export agent
person or organisation authorised to act for or on behalf of another person or organisation in business or as a
broker in respect of services concerning the export of goods out of the country
2.23
exporter
name and address of the person who makes, or on whose behalf the "export declaration" is made, and who is
the owner of the goods or has similar right of disposal over them at the time when the declaration is accepted
2.24
freight
goods
any transported commodity
2.25
freight forwarder
party arranging the carriage of goods, including connected services and/or associated formalities, on behalf of
a consignor or consignee
2.26
governance
system by which organizations are directed and controlled
2.27
house air waybill
document made out by an agent/consolidator which evidences the contract between the shipper and the
agent/consolidator for the arrangement of carriage of goods
2.28
house bill of lading
freight forwarder’s document which performs similar functions to the bill of lading but which is not a document
of title, nor is it negotiable
NOTE A house bill of lading is used mainly as a control for the goods within the freight forwarder’s own service
system.
2.29
import agent
person or organisation authorised to act for or on behalf of another person or organisation in business or as a
broker in respect of services concerning the import of goods into the country
2.30
importer
name and address of party who makes, or on whose behalf a customs clearing agent or other authorised
person makes, an import declaration
NOTE This may include a person who has possession of the goods or to whom the goods are consigned.
2.31
intermediary
commercial party who provides services to customers, suppliers or authorities within the supply chain
NOTE This includes, but is not limited to, freight transport.
2.32
intermodal container
freight container designed and constructed to permit it to be used interchangeably in two or more modes of
transport
4 © ISO 2012 – All rights reserved

2.33
intermodal freight
cargo containers interchanged between transport modes, and where equipment is compatible within multiple
systems
NOTE Transport modes include: motor, rail, water, and air carriers.
2.34
intermodal (freight) transport
movement of goods in one and the same loading unit (e.g. intermodal container) or vehicle which uses several
modes of transport successively without handling the goods themselves when changing modes
2.35
journey
physical movement of goods from the supplier to the consignee
2.36
manifest
specification of all cargo on board the transportation vessel or any other means of transport
NOTE The manifest contains details of contents, shipper, consignee, and other details that may be required by
customs or consular authorities. Copies of manifests are provided for the country of export and country of import customs
authorities.
2.37
manufacturer
party that manufactures goods
NOTE In the context of this Technical Specification, the manufacturer may be the seller.
2.38
master air waybill
air waybill covering a consolidated consignment, showing the consolidator as shipper
2.39
master bill of lading
bill of lading issued by the master of a vessel (in actuality, the owner or charterer of the vessel)
NOTE A master bill of lading can cover a number of house bills.
2.40
(transport) mode
any transportation method, including rail, highway, air, water or pipeline
2.41
motor carrier
motor carriage
carrier using for-hire or private motorized transport on roads to transport goods
2.42
multimodal transport
carriage of goods by at least two different modes of transport
NOTE In contrast, "intermodal transport" implies the change from one mode to another using the same form of
loading unit. Multimodal transport implies that either there is more than one modal shift or that loads may be broken into
partial loads as part of a modal change.
2.43
seller
name and address of party selling merchandise to a buyer
2.44
shipment
identifiable collection of one or more goods items (available to be) transported together from the original
shipper to the ultimate consignee
NOTE A shipment can be transported in different consignments.
2.45
shipping marks
physical identification shown on individual packages, used to help move them without delay or confusion to
their final destination, and to facilitate verifying goods against their associated documents
2.46
supplier
party that provides goods
NOTE This may or may not be the same entity as the consignor/shipper. The supply chain physically begins with the
supplier.
2.47
tracing
function of retrieving information concerning goods, goods items, consignments or equipment
2.48
tracking
function of maintaining status information of goods, goods items, consignments or equipment
2.49
transport document number
reference assigned by the carrier or his agent to the transport document
2.50
transport documentation
legal and commercial documents that accompany the transport means during a journey
2.51
transport means
vehicle used for the transport of goods
EXAMPLE 1 A vessel, train, or truck.
EXAMPLE 2 The vehicles, trailers, vessels, aircraft, or combination thereof, to perform the journey to deliver the
consignment to the receiver or return returnables, together with the driver/pilot/crew physically conducting the journey.
2.52
transport seal
equipment seal
mechanical or electronic device applied to a container, unit load device, trailer, etc. to guarantee authenticity
or security
2.53
transport services provider
provider (seller) of transport services
6 © ISO 2012 – All rights reserved

2.54
waybill
document made out by, or on behalf of, the shipper and which evidences the contract between shipper and
carrier for carriage of cargo
NOTE A “through air waybill” covers the entire transportation from departure to destination of consignment. It is not a
document of title.
3 Symbols and abbreviated terms
ABIE Aggregate Business Information Entity
ACC Aggregate Core Component
AEO Authorized Economic Operator
AES Automated Export System
ASBIE Association Business Information Entity
ASCC Association Core Component
BCC Basic Core Component
BIE  Business Information Entity
BBIE Basic Business Information Entity
BPAWG Business Process Analysis Working Group
CC  Core Component
CCT Core Component Type
CCTS Core Component Technical Specification
CDL Commercial Drivers License
DUNS Dun & Bradstreet D-U-N-S Number
ebXML Electronic Business Extensible Markup Language
EIN  Employer Identification Number
ESCM Electronic Supply Chain Manifest
JIT  Just In Time
NDR Naming and Design Rules (UBL)
OASIS Organization for the Advancement of Structured Information Standards
SSN Social Security Number
UBL  Universal Business Language
UCR Unique Consignment Reference
UN/CEFACT United Nations Centre for Trade Facilitation and Electronic Business
UN/ECE United Nations Economic Commission for Europe
UN/TDED United Nations Trade Data Element Directory
USDOT US Department of Transportation
4 Intermodal freight context
4.1 General
The procedures active within the international supply chain are complex, and often cumbersome. At work are
numerous interactions between different parties, which are guided by many factors, including type of product,
country, terms of business, and the methods of operation of both the consignee and the seller. Given the
broad range of activities possible, it is hardly surprising that within the context of actually transporting goods, a
single transaction may involve many languages (both electronic and human), standards, and operational
practices.
This Technical Specification addresses a methodology for using standard messages and tools that will
maximize the efficiencies for transporting goods from a seller (or “consignor”) to a buyer (or “consignee”),
using intermodal transport that includes motor carrier and air links. It is appropriate for supporting operational
freight movements that occur worldwide, whether that freight travels from point of origin to destination
domestically or internationally. While this Technical Specification is not focused on single mode movements,
and any unique requirements therein, it is considered complementary to standards of uni-modal freight
movement.
This Technical Specification considers the four types of economic agents involved in business, as defined by
the basic resource-event-agent ontology used by UN/CEFACT’s Unified Modeling Methodology. For the
purposes of this Technical Specification, these are considered to be the following actor classes:
⎯ Customer: A party who acquires, by way of trade, goods or services.
⎯ Supplier: A party who provides, by way of trade, goods or services.
⎯ Authority: A statutory body existing within a jurisdiction and a specific area of responsibility that
administers legislation to regulate trade and/or monitors compliance with existing legislation.
⎯ Intermediary: A commercial party who provides services to customers, suppliers or authorities within the
supply chain. This includes, but is not limited to, freight transport.
There are many specific actors’ roles within these classes that participate in the supply chain. Those that are
affected by this Technical Specification are shown in Table 1.
8 © ISO 2012 – All rights reserved

Table 1 — Actors and their roles defined in this Technical Specification
Actor class Actor roles
Customer Consignee
Buyer
Receiver
Final consignee
Ultimate consignee
Supplier Original consignor (might be the manufacturer)
Consignor
Shipper
Seller
Authority Customs agencies
Receiving authorities (e.g. Port authority)
Control government agencies (e.g. Police)
Intermediary Motor carrier
Air carrier
Transport services provider
Third party logistics provider
Freight forwarder
Import agent
Export agent
Note The seller, supplier, shipper and consignor are different parties that each have a
specific role. Depending on the business transaction contract, their action can vary in the process.
The same is true for customer, buyer and consignee.

It is noted that in many supply chains, common business practice may mean that an identified consignee is an
intermediate point towards the transport of a consignment to the final, or “ultimate”, consignee. For example, a
supplier may give a consignment to a third party logistics provider, who then creates a transaction to deliver to
the final consignee. Unless otherwise noted in Clause 4, use of the term “consignee” refers to the “ultimate
consignee”.
4.2 Intermodal freight — Road transport component concept of operations
4.2.1 Objectives
There are a great many different types of exchanges of information that are required in a supply chain,
particularly one that is intermodal and international in scope. The exchanges span multiple business functions.
This Technical Specification is concerned with distribution, transportation and security-related information. A
concept of operation of how a data standard would be used operationally is driven by two major types of
benefit: operational efficiency and security.
4.2.1.1 Operational efficiency
Suppliers and consignees articulate speed, visibility, and reliability as three important requirements of supply
chains, necessary to ensure efficiency, high productivity and competitive positioning. Among the challenges to
speed, visibility and reliability are the information requirements that must be met to trigger various activities
along the physical supply chain. For example, information transactions accompanying international
consignments must be filed with customs authorities as a requirement to gaining customs clearances that
permit further freight movements towards the consignee. Paper-based information transactions frequently
become a process bottleneck, holding up the movement of freight, not only with customs but at all interface
points. Existing electronic-based information transactions, in the intermodal and international contexts, use
standards that are not globally recognized and adopted, thus introducing the same kind of process delays that
are symptomatic of the paper transactions. The use of data messages that are widely adopted throughout the
supply chain, and that can be accessed on a real-time basis from the originator on a federated basis, fosters
efficiency, and allow freight to flow without interruption. Other operational efficiencies include preventing data
re-entry by various stakeholders along any given supply chain, reducing errors and rework, reducing re-orders,
and improved operational planning and staging of labour resources by having advance shipping notices.
4.2.1.2 Security
Use of this Technical Specification is expected to promote the use of globally harmonized procedures to effect
security, and this is an important requirement of an efficient and secure supply chain system. This Technical
Specification promotes certain aspects of a chain of possession concept of the freight supply chain, as
described in ISO 28000:2007. Whenever applicable, the existing regulations on security (local, national,
European and international), e.g. the customs status Authorized Economic Operator (AEO), should be
respected. The chain of possession refers to the identification and appropriate collection of a history of the
party with possession of some unit of freight, such as a consignment, and relevant supporting data attributes
about that party, the freight, and assets involved in enabling the transport or distribution of that freight. When
authorized and authenticated stakeholders are given timely visibility to that information, it may enable
preventive, deterrent, and investigative functions of a cargo security implementation. This visibility may take
several forms, such as exception reporting, automatic system procedures, or manual querying.
This Technical Specification includes information entities and messages that are directly related to the
information exchanges associated with freight consignments. It is intended to be complementary with
messaging schemes for the physical, nested levels of shipment. It does not include the data elements and
messages that are directly tied to the physical movement of goods (for example, data describing container
seals and their status), or to the financial aspect of goods movement, or to any legal requirements between
parties (domestic or international). However, the messages within this Technical Specification do have a
strong indirect relation to the physical chain. For example, the Unique Consignment Reference (UCR), or
equivalent, required by a customs agency, can be used as the access key to retrieve all the relevant
information from the electronic exchanges. In a similar manner, the "license plate" (as defined in ISO 15459-
1:2006) that uniquely identifies the physical transported unit could be used. The information exchanges
encompassed by these messages affect and are affected by progress of the physical freight through the
physical chain. Any chain is comprised of a variety of handoff points from one “possessor” to another.
Information transactions accompany these handoffs. For example, an air carrier will not release a
consignment to a cartage company without verifying the identity of the driver, and, in some countries, verifying
security authorization documentation. The information availability provides triggers for the physical release of
the consignment. If a physical security device such as a transport seal is being used, there would also be a
transaction at this point to effect the change of possession to the motor carrier.
Another aspect of security is ensuring that the data collected, stored and transmitted is accessible by only
those stakeholders who are recognized as having legitimate rights to view (or edit, or add or delete) this data.
Ensuring this type of security is a requirement of the technology and processes that users would adopt in
implementing this data standard.
There is a chain of possession of the information itself, separate from the chain of possession of the physical
freight, that is supported by ISO 28000:2007, but that must be enforced through the processes and
technologies used to implement it.
4.2.2 Overview of freight physical flow
Figure 2 provides a simplified depiction of the physical movement of the delivery of time-sensitive freight. This
process was chosen based upon some testing conducted using four different air cargo supply chains from
China to the United States involving fashion textiles. In practice, variations in the specific actors involved and
the nature of the value these actors add to the supply chain may result in a more complex physical flow than
Figure 2 depicts. This Technical Standard is intended to be sufficiently robust to handle these variations,
assuming that the overall modality of the supply chain is: despatch party Æ motor carrier Æ air carrier Æ
10 © ISO 2012 – All rights reserved

motor carrier Æ delivery party. The business process that drives this physical flow begins with some form of
an order triggering the demand for a freight movement transaction between a seller and a customer. The
transaction physically begins at a despatch party location, which may or may not be the seller. This location
may be a manufacturing facility or a distribution facility. A motor carrier picks up freight from the despatch
party (Link 1). The motor carrier may bring freight to staging or flow-through facilities (this is not separately
shown from the trucking icon in Figure 2). The motor carrier delivers freight to the staging facility (Link 2).
There may or may not be a consolidation operation in which other freight of the same or different
manufacturers are merged and transported on a different truck or trailer (2A versus 2B). After air transport, a
motor carrier transaction moves the freight to destination. Whether the consignment is international or not
determines whether the freight bypasses a customs authority function (Link 3A), or passes through customs
(Link 3B). The eventual delivery to delivery party may, as above, involve a consolidation operation (Link 4B) or
not (4A).
NOTE It is recognized that there are numerous variations in such a fundamental process; however the simplification
is meant to capture the essence of time-sensitive freight flow for the purpose of dealing with the associated information
flow.
Figure 2 — Simplified depiction of physical freight flow for time-sensitive freight
4.2.3 Information exchange transactions
Associated with the physical freight movement transactions described in 4.2.2 are supporting information
exchanges between two or more actors. This information may serve one of a number of business functions,
including security and transportation. The scope of this Technical Specification focuses on
distribution/transportation-specific and certain security-specific information. This subclause describes the type
of information needed to support the business processes of the delivery time-sensitive freight supply chain.
There is some commonality to the information items that comprise distribution/transportation-specific
documents that are transacted, regardless of which actors or links in the supply chain are involved. These
include:
⎯ Contract of carriage for the carrier to transport the goods, which have been duly marked, to the indicated
consignee noted on the document;
⎯ Title document, which may be negotiable or non-negotiable, depending on the terms of sale;
⎯ Verification of goods receipt which documents that the goods have been physically taken into possession
by the receiving actor, and in good condition except as may be specifically noted on the document;
⎯ Mechanism for meeting regulatory and enforcement agencies’ requirements, particularly in the air cargo
area, where the documents serve this legal role.
Different names are used for these documents throughout the supply chain, depending mostly on which actors
are transacting the document, and to a lesser extent, by which companies, industry sectors and geographic
regions are involved. Table 2 lists the documents, and their specific name, according to position in the supply
chain. The differences can create some confusion. For example, “manifest” is a loosely defined term that is at
times used interchangeably with “bill of lading” (a more formal transportation document of title of the goods) or
“waybill” (which conveys the same basic information as a bill of lading but does not convey title).
Table 2 — Distribution document type by link in the supply chain
1)
Source Destination Typical distribution document
Link
1 Supplier Motor carrier The supplier can issue a transport booking, followed by
an instruction for the execution of the transport.
The carrier will issue a bill of lading for the shipper.
Often, the destination actor providing the motor carriage
function is a freight forwarder. They will also produce a
Bill of Lading.
2A Motor carrier Air carrier The motor carrier will produce a waybill or manifest
2B Consolidator Air carrier Master waybill or master manifest created from
individual waybills/manifests
3A Air carrier Motor carrier Waybill or motor carrier’s bill of lading
3B Air carrier Motor carrier (via Customs’ commercial invoice
customs authority)
4A Motor carrier Consignee Bill of lading — Arrival notice
4B Consolidator Consignee Bill of lading — Arrival notice

1) Link numbers correspond to the depiction in Figure 2.
12 © ISO 2012 – All rights reserved

The information items that comprise these documents are generally:
⎯ Consignor: name, address, other contact information,
⎯ Consignee: name, address, other contact information,
⎯ Freight description: cargo type, weight, quantity,
⎯ Consignment description: reference number, date of consignment, package and piece count, special
instructions, signature of recipient.
Other kinds of data may also appear. For example, bills of lading typically include the terms by which a motor
carrier assumes liability for the freight.
Ancillary information that is also exchanged electronically by two or more supply chain actors, and that is
consistent with the stated scope of the Technical Specification are also governed by this Technical
Specification.
Figure 3 chronologically depicts the distribution and transportation information exchanges that may occur in a
truck-air-truck supply chain, which is primarily used as an example in this Technical Specification, based up
work that was conducted between China and the US on air cargo, as previously described. Figure 3 shows
how these information exchanges relate to the physical flows.
Yet another parallel flow is the security-related exchanges that effect a chain of possession solution. To create
the complete chain that is needed for a robust security definition, exchanges would be included at every place
along the supply chain in which there is a transfer of possession from one individual/organization pair to
another. This begins when the despatch party relinquishes a consignment (typically to a transport services
provider), and ends when the delivery party confirms receipt of the consignment or a rejected consignment
returns to a consignor or their agent.
4.2.4 Operational scenario
This subclause describes the processes and behaviours that the actors might perform in an
...
