ISO 6594:2006

INTERNATIONAL ISO
STANDARD 6594
Second edition
2006-03-15

Cast iron drainage pipes and fittings —
Spigot series
Tuyaux et raccords salubres en fonte — Série à bouts unis




Reference number
ISO 6594:2006(E)
©
ISO 2006

---------------------- Page: 1 ----------------------
ISO 6594:2006(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


©  ISO 2006
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO 2006 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 6594:2006(E)
Contents Page
Foreword. iv
Introduction . v
1 Scope . 1
2 Normative references . 1
3 Technical specification . 1
3.1 Type of ends and their jointing . 1
3.2 Quality of cast iron . 2
3.3 Quality of pipe and fittings . 2
3.4 Marking . 3
3.5 Range of nominal sizes. 3
3.6 External diameters and tolerances . 3
3.7 Thicknesses and tolerances. 4
3.8 Lengths and tolerances. 4
3.9 Tolerances on angles . 4
3.10 Masses and tolerances. 5
3.11 Protection . 5
4 Dimensions. 5
4.1 Pipe. 5
4.2 Fittings . 6
5 Control testing and test methods . 16
5.1 Testing of castings . 16
5.2 Testing coated products . 17
5.3 Quality control. 17
5.4 Certificate . 18

© ISO 2006 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 6594:2006(E)

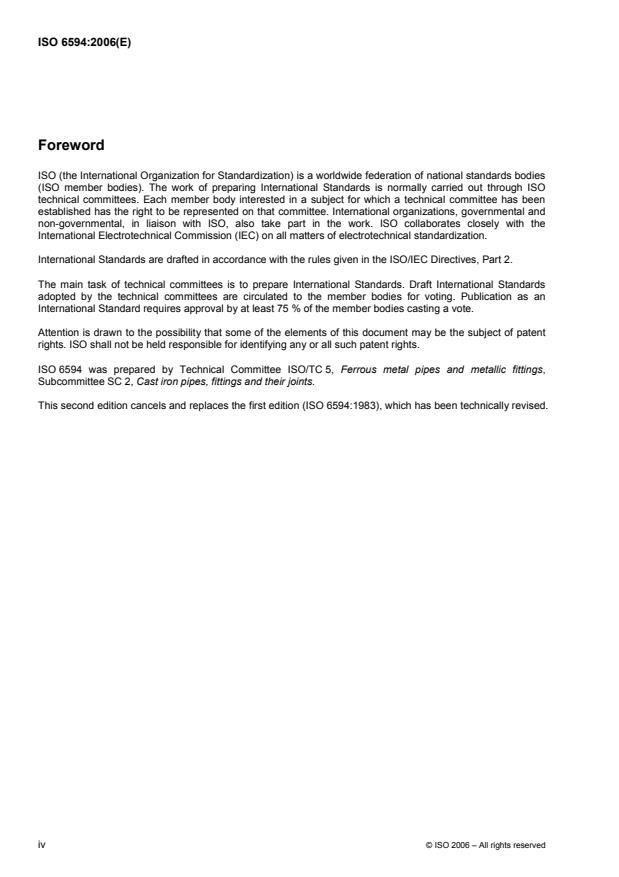

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 6594 was prepared by Technical Committee ISO/TC 5, Ferrous metal pipes and metallic fittings,
Subcommittee SC 2, Cast iron pipes, fittings and their joints.
This second edition cancels and replaces the first edition (ISO 6594:1983), which has been technically revised.
iv © ISO 2006 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 6594:2006(E)
Introduction
The distinctive character of discharge pipelines is that products flow though them in a single direction under
the force of gravity; they are thus laid on a slight slope in the direction of flow. As a result, they include
descending, vertical, oblique or slightly sipping components, but exclude any horizontal or ascending
components.
This International Standard consists of sections covering technical specifications, dimensions, and control and
compliance testing.
The technical specification applies to cast iron drainage pipes and fittings used for the discharge of waste
water, sewage, rainwater and for ventilation. Thirteen of the nominal sizes used in various countries have
been selected.
NOTE The nominal size, DN, is a number which permits classification of the pipes and fittings; it is only loosely
related to the inside diameter.
For the dimensions and masses, only the most commonly used sizes of the various pipes and fittings were
selected. This International Standard does not exclude the use of sizes which may be specified in national
standards.
If the nominal masses of finished products (pipes, fittings and accessories) are given in manufacturer's
catalogues, the lower deviation is not permitted to exceed the value specified in 3.10.
The tests and controls provided in the final section are intended to be carried out to check compliance with the
requirements given in the other two sections.

© ISO 2006 – All rights reserved v

---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 6594:2006(E)

Cast iron drainage pipes and fittings — Spigot series
1 Scope
This International Standard specifies the characteristics of cast iron drainage pipes and fittings used for the
installation of:
⎯ discharge pipes for waste and sewage,
⎯ rain water pipe systems, and
⎯ ventilation pipe systems.
The technical specification is applicable to the range of nominal sizes, DN: 40 – 50 – 70 – 75 – 100 – 125 –
150 – 200 – 250 – 300 – 400 – 500 – 600. Where applicable, national standards and/or regulations could
clarify, and possibly restrict, the field of application of the pipes and fittings covered.
In addition, this International Standard gives the dimensions for the most commonly used pipe and fitting sizes.
It also provides control testing and test methods for checking compliance with the technical specification and
the dimensional and other requirements.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 185, Grey cast irons — Classification
3 Technical specification
3.1 Type of ends and their jointing
Cast iron drainage pipes and fittings are of the spigot type without sockets.
The pipes and fittings may be assembled using various types of joints whose characteristics and tolerances
shall be specified in the national standards or, failing these, in manufacturer's catalogues.
In order to achieve satisfactory assembly, each end shall present a free length corresponding at least to the
values of Table 1. See Figure 1.
© ISO 2006 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO 6594:2006(E)
Table 1 — Minimum free lengths
Minimum free length
Nominal size
l
DN
mm
40 25
50 25
a
70 30
a
75 30
100 35
125 40
150 45
200 56
250 66
300 76
400 76
500 76
600 76
a
The range of nominal sizes and their classification differ
slightly from one country to another. The use of DN 70 or
DN 75 is subject to national standards or regulations.


Figure 1
3.2 Quality of cast iron
The quality of the type of cast iron used for drainage pipes and fittings shall be at least 150, in accordance
with ISO 185, and have a phosphorous content of less than 0,9 %.
3.3 Quality of pipe and fittings
Drainage pipes and fittings shall be sound and free from surface and other defects which would impair
performance or service life.
When fractured, the castings shall show a fine, grey, close and regular grain. Pipes and fittings with small
imperfections that are unavoidable due to the manufacturing processes and which are not harmful in any way
to their usage shall not be rejected.
Drainage pipes and fittings shall be capable of being cut with the tools normally used for installation.
2 © ISO 2006 – All rights reserved

---------------------- Page: 7 ----------------------
ISO 6594:2006(E)
3.4 Marking
Drainage pipes and fittings shall carry a durable manufacture's mark.
The pipes shall carry this manufacturer's mark and the indication of the nominal diameter at least once per
metre of length.
Where possible, the fittings shall have their nominal diameter and, if necessary, the angle of deviation, cast on.
The marking shall be effected outside the region of the joint of the spigot (see 3.1).
3.5 Range of nominal sizes
1)
The range of nominal sizes is :
40 – 50 – 70 –75 – 100 – 125 – 150 – 200 – 250 – 300 – 400 – 500 – 600
3.6 External diameters and tolerances
The external diameters of drainage pipes and fittings and the tolerances applicable are given in Table 2.
Table 2 — External diameters and tolerances
External diameter, DE, Tolerance on
of pipe body external diameter,
Nominal size
DE
DN
mm mm
+2
40 48
−1
+2
50 58
−1
+2
a
70 78
−1
+2
a
75 83
−1
100 110 ± 2
125 135 ± 2
150 160 ± 2
200 210 ± 2,5
250 274 ± 2,5
300 326 ± 2,5
+2
400 429
−3
+2
500 532
−3,5
+2
600 635
−4
a
The range of nominal sizes and their classification differ slightly from one country to
another. The use of DN 70 or DN 75 is subject to national standards or regulations.

1) The range of nominal sizes and their classification differ slightly from one country to another. The use of DN 70 or
DN 75 is subject to national standards or regulations.
© ISO 2006 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO 6594:2006(E)
3.7 Thicknesses and tolerances
Table 3 gives the minimum and nominal thicknesses of drainage pipes and fittings, spigot series. See Figure 2.
Maximum thicknesses are not specified.
Table 3 — Nominal and minimum thicknesses of pipes and fittings
Thickness
e
mm
DN
Pipe Fitting
nom. min. nom. min
40 3,0 2,5 3,7 2,5
50 3,5 3,0 4,2 3,0
a
70 3,5 3,0 4,2 3,0
a
75 3,5 3,0 4,2 3,0
100 3,5 3,0 4,2 3,0
125 4,0 3,5 4,7 3,5
150 4,0 3,5 5,3 3,5
200 5,0 4,0 6,0 4,0
250 5,5 4,5 7,0 4,5
300 6,0 5,0 8,0 5,0
400 6,3 5,0 8,3 5,0
500 7,0 5,2 9,0 5,2
600 7,7 5,8 9,7 5,8
a
The range of nominal sizes and their classification differ slightly from one country to another. The use of DN 70 or DN 75 is subject
to national standards or regulations.


Figure 2
3.8 Lengths and tolerances
The normal manufacturing lengths of the pipes and fittings, and their tolerances, are given in Clause 4.
