ISO/TR 13425:2006

TECHNICAL ISO/TR
REPORT 13425
Third edition
2006-03-01
Guidelines for the selection of statistical
methods in standardization and
specification
Lignes directrices pour la sélection des méthodes statistiques dans la
normalisation et la spécification

Reference number
©
ISO 2006

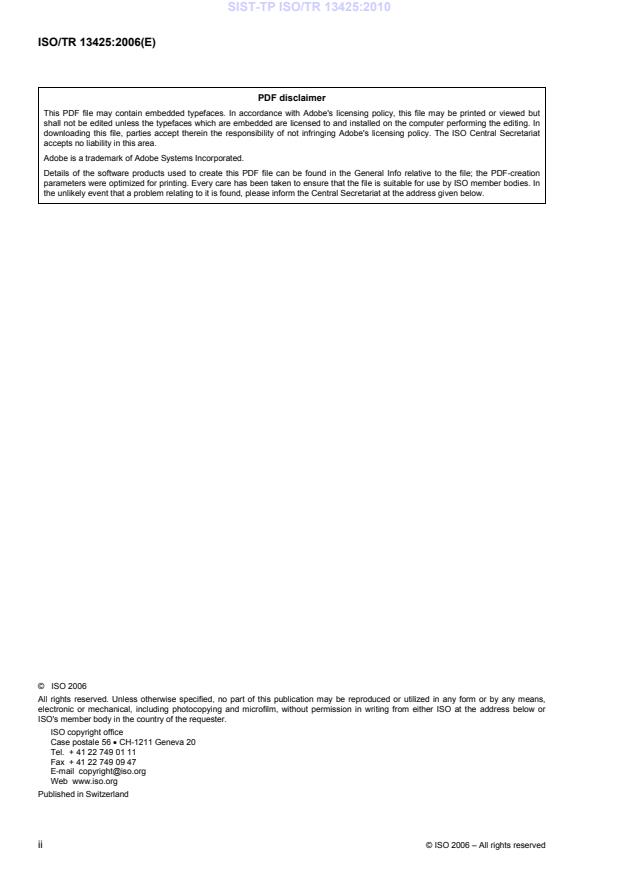

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2006
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2006 – All rights reserved

Contents Page
Foreword. iv
Introduction . v
1 Scope . 1
2 Cartography. 2
Annex A (informative) Content and use of the referenced standards and DIS. 3
Annex B (informative) List of committee drafts and working drafts in ISO/TC 69 work program . 35
Annex C (informative) Index. 36

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
In exceptional circumstances, when a technical committee has collected data of a different kind from that
which is normally published as an International Standard (“state of the art”, for example), it may decide by a
simple majority vote of its participating members to publish a Technical Report. A Technical Report is entirely
informative in nature and does not have to be reviewed until the data it provides are considered to be no
longer valid or useful.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO/TR 13425 was prepared by Technical Committee ISO/TC 69, Applications of statistical methods.
This third edition cancels and replaces the second edition (ISO/TR 13425:2003), which has been technically
revised.
iv © ISO 2006 – All rights reserved

Introduction
Statistical methods have numerous practical applications in the manufacturing and service industries,
marketing, research, laboratories and other spheres. Their effectiveness depends firstly on the suitability of
the chosen method for the intended purpose and secondly on the application, the way it is used. Incorrect
choice or poor application can lead to improper deductions and therefore to crucial errors and inappropriate
decisions.
This is one of the reasons why ISO has produced a range of International Standards for the application of
statistical methods.
This Technical Report should be seen as a descriptive catalogue of the available TC 69 International
Standards and Guides, published or in course of preparation, to assist the reader in selecting those most
suitable for his purpose, according to his needs, whether these be in decision making, problem solving or in
achieving a given purpose.
TECHNICAL REPORT ISO/TR 13425:2006(E)

Guidelines for the selection of statistical methods in
standardization and specification
1 Scope
This Technical Report gives guidance on the selection and an overview of all the referenced standards,
guides, technical reports and DIS developed by ISO/TC 69 from a user prospective. DIS are drafts which can
be amended. Both categories are documents, which are available to the public. This Technical Report also
gives two descriptions of the content of the standards by two sets of abstracts: non-technical abstracts and
technical abstracts of all these documents. Each abstract presents a brief survey of the content of the actual
standard or DIS. It also gives some indications of the use of the document in different areas.
Annex A gives the non-technical and technical abstracts. The non-technical abstracts are usually brief. In
these abstracts, the number of technical terms are kept to a minimum. They give brief outlines of the actual
documents. The technical abstracts are somewhat longer. More technical terms are used. The technical
abstracts also go more into depth with regard to the content and the use of the actual document than the non-
technical abstracts. For many documents, the two abstracts supplement each other.
Annex B lists the committee drafts, working drafts and new work item proposals in the ISO/TC 69 work
program.
The types of document are identified as follows:
Published International Standard: ISO xxxxxxx
Final Draft International Standard: FDIS
Draft International Standard: DIS
Committee Draft: CD
Working Draft: WD
New work item proposal: NP
Draft Technical Report: DTR
Published Technical Report: TR
Technical Specification TS
2 Cartography
2 © ISO 2006 – All rights reserved

Annex A
(informative)
Content and use of the referenced standards and DIS
A.1 Short non-technical abstracts of ISO/TC 69 Standards and DIS
ISO Guide 33:2000 Uses of certified reference materials (Developed jointly by REMCO and ISO/TC 69)
A reference material (RM) is a substance or an artefact for which one or more properties are established
sufficiently well to validate a measurement system. There exist several kinds of RM:
⎯ An internal reference material is a RM developed by a user for its own internal use.
⎯ An external reference material is a RM provided by someone other than the user.
⎯ A certified reference material (CRM) is a RM issued and certified by an organization recognized as
competent to do so. CRM are widely used in modern technology and the demand is expected to increase.
CRM must be used consistently in order to ensure reliable measurements.
The purpose of this Guide is to introduce basic concepts and practical aspects related to the use of CRM and
examine the conditions under which CRM are properly used and when they are misused.
1)
ISO Guide 35:— Reference materials — General and statistical principles for certification
(Developed jointly by REMCO and ISO/TC 69)
The purpose of this Guide is to provide a basic introduction to concepts and practical aspects related to the
certification of reference materials (RM). ISO Guide 33 (see above) more fully addresses concepts and
practical aspects related to their use. The present Guide is intended to describe the general and statistical
principles for the certification of RM. Another purpose of this Guide is to assist in understanding valid methods
for the certification of RM and also to help potential users to better define their technical requirements. The
Guide should be useful in establishing the full potential of certified reference materials as aids to assuring the
accuracy and interlaboratory compatibility of measurements on a national or international scale.
2)
ISO 2602:1980 Statistical interpretation of test results — Estimation of the mean — Confidence
interval
This International Standard is limited to the point and interval estimation of the mean of a normal population
on the basis of observations from a series of tests applied to a random sample of individuals drawn from such
a population. The intervals may be one- or two-sided. It deals only with the case where the variance is
unknown. Formulae are given for both ungrouped and grouped observations. It is not concerned with the
calculation of an interval containing, with a fixed probability, at least a given fraction of the population
(statistical tolerance limits).

1) To be published. (Revision of ISO Guide 35:1989, Certification of reference materials — General and statistical
principles)
2) Under revision.
3)
ISO 2854:1976 Statistical interpretation of data — Techniques of estimation and tests relating to
means and variances
This International Standard specifies the techniques required to estimate the mean and variance and to
examine certain hypotheses concerning the values of these parameters for samples of observations from one
or two normal populations drawn at random and independently. Methods to check the normality are provided.
Conditions for using the methods when the assumptions are not completely satisfied are discussed. Formulae
are given for ungrouped observations. The methods are illustrated by many examples.
4)
ISO 2859-0:1995 Sampling procedures for inspection by attributes — Part 0: Introduction to the
ISO 2859 attribute sampling system
Part 0 of ISO 2859 is a guidance document, not a source of sampling schemes or plans. It consists of two
sections. Section 1: General introduction to acceptance sampling is essentially an introduction to the sampling
schemes employed in ISO 2859 and ISO 8422 but it treats the subject in a general way. It contains
explanations of terms, gives practical advice on sampling inspection and discusses some underlying concepts.
Section 2: The ISO 2859-1 system extends Section 1 and amplifies the introductory text and instructions
contained in ISO 2859-1, by giving detailed comments and examples to assist in using the procedures and
tables that make up the ISO 2859-1 system.
ISO 2859-1:1999 Sampling procedures for inspection by attributes — Part 1: Sampling schemes
indexed by acceptance quality level (AQL) for lot-by-lot inspection
Part 1 of ISO 2859 specifies sampling plans and procedures for the case where lots consist of discrete items
and where all the product characteristics involved in the assessment of quality are attributes. It contains
sampling plans indexed by percent nonconforming and by nonconformities per 100 items. In addition to single
sampling plans, it contains double sampling (i.e. two-stage) and multiple sampling (seven stage) plans.
ISO 2859-1 contains normal, tightened and reduced inspection plans that are intended for coordinated use on
a continuing series of lots, with switching between these different levels of sampling severity in response to
the recent sampling history. Through the economic and psychological pressure of potential non-acceptance, a
supplier is thereby encouraged to maintain a process average quality at least as good as that which has been
agreed with the customer.
5)
ISO 2859-2:1985 Sampling procedures for inspection by attributes — Part 2: Sampling plans
indexed by limiting quality (LQ) for isolated lot inspection
Part 2 of ISO 2859 establishes procedures that can be used when the switching rules of ISO 2859-1 cannot
be applied, with sampling plans indexed by limiting quality (LQ). Procedure A is used when both the supplier
and the customer wish to regard the lot in isolation. Procedure B is used when the supplier regards the lot as
one of a continuing series, but the customer considers the lot received in isolation. The LQ is used to indicate
a quality level at which there is usually less than a 10 % risk of the customer accepting the lot. The LQ is
expressed in terms of the percentage nonconforming in the submitted lots, but can also be used for the case
where quality is expressed in terms of nonconformities per 100 items.
ISO 2859-3:2005 Sampling procedures for inspection by attributes — Part 3: Skip-lot sampling
procedures
ISO 2859-3:2005 is a revision of ISO 2859-3:1991. The purpose of this revision was to make the skip-lot rules
more concise and easier to use. This part of ISO 2859 specifies generic skip-lot sampling procedures for
reducing the inspection effort on products submitted by those suppliers who have demonstrated their ability to
control in an effective manner all facets of quality and who consistently produce lots that meet requirements.
The reduction in effort is achieved by determining at random, with a specified probability, whether a lot
submitted for inspection will be passed without inspection. This procedure extends to the inspection of lots the
principle of random selection applied within ISO 2859-1:1999 to the individuals comprising a lot. ISO 2859-3 is

3) Under revision.
4) Under revision as ISO 2859-10.
5) Under revision.
4 © ISO 2006 – All rights reserved

to be used only for characteristics inspected by attributes as designated in ISO 2859-1. The skip-lot
procedures in this part of ISO 2859 can only be implemented if the ISO 2859-1 procedures are in use with
normal or reduced inspection at general inspection levels I, II, or III. Multiple sampling plans may only be used
during the qualification phase associated with normal inspection. It is strongly recommended that single
sampling plans with an acceptance number of zero not be used in this part of ISO 2859. Skip-lot inspection
may be used in the place of reduced inspection if it is more economical to do so and the responsible authority
approves.
ISO 2859-3:2005 contains three annexes that summarize the options to be agreed upon prior to its use,
techniques for random selection, and information to assist in making the decision between reduced and skip-
lot inspection.
ISO 2859-4:2002 Sampling procedures for inspection by attributes — Part 4: Procedures for
assessment of declared quality levels
The procedures in ISO 2859-4 have been developed as a response to a growing need for sampling plans
suitable for formal, systematic inspections such as reviews and audits. The procedures in ISO 2859 Parts 1
to 3 are provided for acceptance sampling purposes only, and are not suitable for the verification of a quality
that has been declared for some entity. The sampling plans in ISO 2859-4 have been developed so that there
is no more than a 5 % risk of contradicting a declared quality level that is satisfied, and no more than a 10 %
probability of failing to contradict a declared quality level that is incorrect.
ISO 2859-5:2005 Sampling procedures for inspection by attributes — Part 5: System of sequential
sampling plans indexed by acceptance quality limit (AQL) for lot-by-lot
inspection
Part 5 of ISO 2859 specifies sequential sampling plans and procedures for the case where lots consist of
discrete items and where all the product characteristics involved in the assessment of quality are attributes.
Sequential sampling plans are the only statistical procedures that satisfy a need to apply statistical procedures
that require the smallest possible sample sizes. For lots of very good quality, the maximum savings for
sequential sampling plans, in comparison to single sampling plans, may reach 85 %. ISO/DIS 2859-5 contains
sampling plans indexed by percent nonconforming and by nonconformities per 100 items. It contains normal,
tightened and reduced inspection plans that are intended for coordinated use on a continuing series of lots,
with switching between these different levels of sampling severity in response to the recent sampling history.
Through the economic and psychological pressure of potential non-acceptance, a supplier is thereby
encouraged to maintain a process average quality at least as good as that which has been agreed with the
customer.
ISO/FDIS 2859-10 Sampling procedures for inspection by attributes — Part 10: Introduction to the
ISO 2859 series of attribute sampling standards
ISO 2859-10 was developed to replace ISO 2859-0:1995. However, ISO 2859-0 contained a detailed
discussion of the theory behind acceptance sampling by attributes and a description of ISO 2859-1. It is
believed that this theory belongs in ISO/TR 8550, which is under revision, to include the theory behind all
parts of ISO 2859 as well as a discussion of sampling by variables. ISO 2859-10 contains a brief summary of
the application of attribute sampling and a summary of Parts 1 to 5 of ISO 2859. The purpose of ISO 2859-10
is to introduce each part in such a way that the user can make a logical decision regarding which sampling
procedure is most appropriate. For detailed information on each part of ISO 2859, it is necessary for the user
to obtain that part of ISO 2859.
6)
ISO 3301:1975 Statistical interpretation of data — Comparison of two means in the case of
paired observations
This International Standard specifies a method for comparing the mean of a population of differences between
paired observations with zero or any other pre-assigned value. The method, known as the method of paired
observations, is a special case of a method described in ISO 2854, Statistical interpretation of data —
Techniques of estimation and tests relating to means and variances. The method can only be applied if the

6) Under revision.
following two conditions are satisfied: the series of differences of the observed pairs can be considered as a
series of independent random items, and the distribution of these differences is supposed to be normal or
approximately normal.
7)
ISO 3494:1976 Statistical interpretation of data — Power of tests relating to means and variances
This International Standard is a further development of ISO 2854. In connection with statistical tests, ISO 2854
considered the type I risk, i.e. the probability of rejecting a null hypothesis (tested hypothesis) if this
hypothesis is true. The present International Standard puts forward notions of the type II risk, the probability of
not rejecting the null hypothesis if it is false. Furthermore, the power of the tests are given. The conditions are
the same as in ISO 2854 that the observations can be considered as independent and approximately
distributed according to the normal distribution.
ISO/FDIS 3534-1 Statistics — Vocabulary and symbols — Part 1: General statistical terms and
terms used in probability
This part of ISO 3534 defines probability and general statistical terms. They may be used in the drafting of
other International Standards. In addition, symbols are defined for many of the terms.
The terms are classified under four main headings:
a) terms used in the theory of probability;
b) general statistical terms;
c) general terms relating to observations and test results;
d) general terms relating to methods of sampling.
The entries are arranged analytically and alphabetical indexes are provided. The standard includes a list of
symbols and abbreviations used in this part of ISO 3534.
ISO/FDIS 3534-2 Statistics — Vocabulary and symbols — Part 2: Applied statistics
This part of ISO 3534 defines terms in five areas of applied statistics: data generation and collection; statistical
process management; specification, values and measurement and test results; inspection and general
acceptance sampling; and sampling of bulk material. A list of standard symbols is also given. The entries are
arranged thematically. Interrelationships between the different concepts are demonstrated by a number of
concept diagrams. ISO 3534-1 is compatible with ISO 3534-2. In both parts, the mathematical level is
restricted as far as possible to attain correct and concise definitions.
ISO 3534-3:1999 Statistics — Vocabulary and symbols — Part 3: Design of experiments
This part of ISO 3534 defines the terms used in the field of design of experiments and may be used in the
drafting of other International Standards.
The terms are classified under three main headings:
a) general terms;
b) terms related to arrangements of experiments;
c) terms related to methods of analysis.
The entries are arranged analytically and alphabetical indexes are provided. A list of symbols and
abbreviations used in this part of ISO 3534 is provided.

7) Under revision.
6 © ISO 2006 – All rights reserved

8)
ISO 3951:1989 Sampling procedures and charts for inspection by variables for percent
nonconforming
ISO 3951 is a system of single sampling plans that is applicable where quality involves just one product
characteristic that is a variable having, at least approximately, a normal distribution. It applies when there is a
single upper or lower specification limit of the variable and also where there are both. A lot is judged as
unacceptable when sample measurements of the variable give grounds for believing that the proportion of the
items in the lot for which the variable lies outside specification is at an unacceptably high level. Assessment of
acceptability is made in terms of the sample mean and the sample standard deviation (or process standard
deviation, if known) of the variable. A choice is available between equivalent numerical and graphical
acceptance criteria.
ISO 3951-1:2005 Sampling procedures for inspection by variables — Part 1: Specification for
single sampling plans indexed by acceptance quality limit (AQL) for lot-by-lot
inspection for a single quality characteristic and a single AQL
ISO 3951 is being developed into a multi-part standard on single sampling by variables. Part 1 of ISO 3951
deals with a single normally distributed quality characteristic in a similar way to that in ISO 3951:1989, except
that the discussion is confined to situations where there is only one AQL. It follows that it applies when there is
a single upper or lower specification limit and where there are both, provided in the latter case that violation of
either limit is of roughly the same seriousness. The preferred sample sizes in Part 1 of ISO 3951 have been
changed from those in ISO 3951:1989 in order to provide a better match between the behaviour of the
variables plans and the behaviour of the corresponding single sampling plans of ISO 2859-1. A lot is judged
as unacceptable when sample measurements of the variable give grounds for believing that the proportion of
the items emanating from the process for which the variable lies outside specification is at an unacceptably
high level. Assessment of acceptability is made in terms of the sample mean and the sample standard
deviation (or process standard deviation, if known) of the variable. A choice is available between equivalent
numerical and graphical acceptance criteria.
ISO/FDIS 3951-2 Sampling procedures for inspection by variables — Part 2: General specification
for single sampling plans indexed by acceptance quality limit (AQL) for lot-by-lot
inspection of independent quality characteristics
ISO 3951 is being developed into a multi-part standard on single sampling by variables. Part 2 of ISO 3951
deals with normally distributed quality characteristics in a similar way to that in ISO 3951:1989, but more
generally than in ISO/DIS 3951-1, providing procedures for multiple quality characteristics and multiple AQLs.
Part 2 can be applied to any number (including one) of independent quality characteristics that have any
combination of single or double specification limits, and provides a single acceptance criterion. The preferred
sample sizes in Part 1 of ISO 3951 have been changed from those in ISO 3951:1989 in order to provide a
better match between the behaviour of the variables plans and the behaviour of the corresponding single
sampling plans of ISO 2859-1. A lot is judged as unacceptable when sample measurements of the variable(s)
give grounds for believing that the proportion of the items emanating from the process for which the
variable(s) lies(lie) outside specification is at an unacceptably high level. Assessment of acceptability is made
in terms of the sample mean(s) and the sample standard deviation(s) (or process standard deviation(s), if
known) of the variable(s).
ISO/DIS 3951-3 Sampling procedures for inspection by variables — Part 3: Double sampling
schemes indexed by acceptance quality limit (AQL) for lot-by-lot inspection
ISO 3951-3 provides plans for double sampling by variables for lot-by-lot inspection of a continuing series of
lots. These plans on average provide substantial savings of inspection effort in comparison with the
corresponding single sampling plans by variables. The savings are achieved by first selecting from the lot and
inspecting a random sample that is typically nearly 40 % smaller than that of the corresponding single
sampling plan. If these inspection results satisfy an acceptance criterion, an immediate decision is made to
accept the lot without further inspection. Alternatively, if the inspection results satisfy a non-acceptance
criterion, an immediate decision not to accept the lot is made without further inspection. Thus, when quality is

8) ISO 3951:1989 will be replaced by ISO 3951-1 and ISO 3951-2.
very good or very poor, the saving in inspection effort can amount to nearly 40 %. Only when the inspection
results from the first sample are equivocal is a second random sample, of the same size as the first, selected;
the acceptability of the lot is then resolved by combining the results of the first and second samples and
determining whether they satisfy a second acceptance criterion. However, the average total inspection effort
for double sampling schemes is less than that of the corresponding single sampling plan at all, or at least
nearly all, process quality levels.
ISO 3951-3 is indexed in terms of the acceptance quality limit (AQL). Schemes are provided for the case
where the process standard deviation is known and for the case where it is unknown. (The process mean is
generally unknown.) The schemes in the main text are for a single normally-distributed variable. The more
complicated procedures for two or more independent normally-distributed variables are provided in annexes.
ISO/FDIS 3951-5 Sampling procedures for inspection by variables — Part 5: Sequential sampling
plans indexed by acceptance quality limit (AQL) for inspection by variables
(known standard deviation)
Part 5 of ISO 3951 specifies sequential sampling plans and procedures for the case where lots consist of
discrete items and where the product characteristic involved in the assessment of quality is a normally
distributed variable with known (or precisely estimated) standard deviation. Sequential sampling plans are the
only statistical procedures that satisfy a need to apply statistical procedures that require the smallest possible
sample sizes. For lots of very good quality, the maximum average savings for sequential sampling plans, in
comparison to single sampling plans, may exceed 80 %. Moreover, for lots of very good (or very bad) quality,
the decision can be made after the inspection of only one item. ISO 3951-5 contains sampling plans indexed
by percent nonconforming. It contains normal, tightened and reduced inspection plans that are intended for
coordinated use on a continuing series of lots, with switching between these different levels of sampling
severity in response to the recent sampling history. Through the economic and psychological pressure of
potential non-acceptance, a supplier is thereby encouraged to maintain a process average quality at least as
good as that which has been agreed with the customer.
ISO 5479:1997 Statistical interpretation of data — Tests for departure from the normal
distribution
Many statistical methods used in International Standards are based on the assumption that some basic
variable(s) are distributed according to the normal distribution. This assumption may be doubtful in many
cases. A large number of “tests of normality” have therefore been developed, each of which is more or less
sensitive to a particular feature of the distribution. In this International Standard, graphical methods, moment
tests, regressions tests, and characteristic function tests are considered.
ISO 5725-1:1994 Accuracy (trueness and precision) of measurement methods and results —
Part 1: General principles and definitions
Part 1 of ISO 5725 contains definitions of terms that are used to describe the accuracy of a measurement
method: “Trueness”, “repeatability”, “reproducibility” and “intermediate precision”. “Trueness” is a measure of
the closeness of agreement between the average of large series of measurement results and an accepted
reference value, whereas the others are used to describe the closeness of agreement between measurement
results. Part 1 also sets out the principles to be followed when planning experiments to estimate the values of
these parameters, and gives guidance on how the results of such experiments should be published in
standards.
ISO 5725-2:1994 Accuracy (trueness and precision) of measurement methods and results —
Part 2: Basic method for the determination of repeatability and reproducibility of
a standard measurement method
Part 2 of ISO 5725 describes in detail how to organize experiments to determine the repeatability and
reproducibility standard deviations for a standardized measurement method, it sets out the tasks to be
performed by personnel involved in the experiments, and gives guidance on how to prepare the samples of
materials that are required. It also specifies how to analyse the data obtained in such experiments, and how to
present and report the results. It contains several examples that illustrate the method of analysis.
8 © ISO 2006 – All rights reserved

ISO 5725-3:1994 Accuracy (trueness and precision) of measurement methods and results —
Part 3: Intermediate measures of the precision of a standard measurement
method
Part 2 of ISO 5725 is concerned with measurements that are obtained under repeatability and reproducibility
conditions. However, it is common in process control for measurements to be made under conditions that are
intermediate between those to which repeatability and reproducibility can be applied. Part 3 of ISO 5725
supplements Part 2 by introducing measures of precision that are appropriate under these intermediate
conditions. It also describes experiments to use to estimate their values.
ISO 5725-4:1994 Accuracy (trueness and precision) of measurement methods and results —
Part 4: Basic methods for the determination of the trueness of a standard
measurement method
Part 4 of ISO 5725 describes how to use the inter-laboratory experiment from Part 2 to determine the bias of a
standard measurement method. It also describes an experiment that may be carried out in a single laboratory
to determine the bias of that laboratory. Both experiments require materials for which an accepted reference
value has been established, e.g. reference materials, or by preparation of known samples, or by the use of
measurement standards or a reference measurement method.
ISO 5725-5:1998 Accuracy (trueness and precision) of measurement methods and results —
Part 5: Alternative methods for the determination of the precision of a standard
measurement method
Part 5 of ISO 5725 describes two experiments that may be used in circumstances where the experiment
described in Part 2 would give biased estimates of repeatability and reproducibility standard deviations. One is
appropriate when there is a risk that operators may allow the result of a measurement on one sample to
influence the result of a subsequent measurement on another sample of the same material. The other is
appropriate when the materials to be used in the experiment are such that one cannot be confident that
identical samples can be prepared. Part 5 also describes “robust” methods of analysing the data obtained
from the experiments described in Parts 2 and 5.
ISO 5725-6:1994 Accuracy (trueness and precision) of measurement methods and results —
Part 6: Use in practice of accuracy values
Part 6 of ISO 5725 describes a number of practical applications of the values determined by the methods
described in Parts 2 to 5, including the calculation of repeatability and reproducibility limits, the use of these
limits to check the acceptability of measurement results, the assessment and control of the quality of
laboratory operations, and how to compare alternative measurement methods.
ISO/DIS 7870-1 Control charts — Part 1: General guidelines
Every production, service, or administrative process contains a certain amount of inherent variability due to
the presence of a large number of unavoidable, but usually minor, chance causes. The observed results from
a process are, as a result, not constant. Control charts are used to study this variability to gain an
understanding of its characteristics. Such information provides a basis for taking action on a process.
Part 1 of ISO 7870 presents an overview of the basic principles and concepts of control chart, and illustrates
the relationship among various control chart approaches to aid in the selection of the most appropriate
standard for given circumstances.
ISO/TR 7871:1997 Cumulative sum charts — Guidance on quality control and data analysis using
CUSUM techniques
This Technical Report gives an introduction to the use of the cumulative sum chart, usually called cusum chart,
in statistical process control. This is a highly informative graphical presentation of data which are ordered in a
logical sequence. A cusum chart monitor is intended to check a process for departure from a reference value.
The construction and applications are illustrated by means of number of examples. Different modifications for
special purposes are proposed. The performance of the cusum techniques are compared with the Shewhart
control charts and their relative merits are discussed. Generally, the cusum chart is found to be more efficient
for detecting small changes in the process level than the corresponding Shewhart chart.
9)
ISO 7873:1993 Control charts for arithmetic average with warning limits
The statistical control of processes using arithmetic average control charts with warning limits is a modification
of Shewhart control charts, see ISO 8258. Arithmetic average control charts with warning limits are able to
reveal smaller shifts of the mean value of the controlled quality measure because of additional information
obtained from the points being accumulated in the warning zone. In addition, sudden large shifts in process
level are detectable if sample average values fall beyond action limits.
10)
ISO 7966:1993 Acceptance control charts
This International Standard describes uses of acceptance control charts and gives methods of determining
action limits and decision criteria. Examples are included to illustrate a variety of circumstances under which
this technique has advantages, and to show details of sample-size determination and calculation of limits. A
comparison of this type and other types of control charts as well as the basic philosophy and concepts
regarding the use of control charts for statistical process control is given in ISO 7870.
ISO 8258:1991 Shewhart control charts
This International Standard is a guide to the use and understanding of the Shewhart control chart approach to
statistical process control. It is limited to the treatment of statistical process control methods using only the
Shewhart system of charts. Some supplementary material that is consistent with the Shewhart approach, such
as the use of warning limits, analysis of trend patterns and process capability is briefly introduced (see also
ISO 7873). A general description of several other control chart procedures can be found in ISO 7870.
ISO/FDIS 8422 Sequential sampling plans for inspection by attributes
ISO 8422 specifies sequential sampling plans for the case where inspected lots consist of discrete items and
where all the product characteristics involved in the assessment of quality are attributes. Sequential sampling
plans are the only statistical procedures that satisfy a need to apply statistical procedures that require the
smallest possible sample sizes. ISO/DIS 8422 contains sampling plans indexed by percent nonconforming
and by nonconformities per 100 items. In contrast to ISO 2859-5, whose sampling plans have been designed
to supplement the ISO 2859-1 acceptance sampling system for inspection by attributes, the sampling plans
from ISO 8422 assure that both producer's and consumer's risks are under strict control. Therefore, they may
be used when sampling is performed for regulatory reasons, the demonstration of quality of production
processes or for statistical hypothesis testing.
11)
ISO 8423:1991 Sequential sampling plans for inspection by variables for percent nonconforming
(known standard deviation)
The purpose of this International Standard is to provide sampling plans for acceptance sampling of lots when
lot quality level is specified as a percentage nonconforming, and the inspection method provides the numerical
magnitude of the characteristic. The applicability of this International Standard is restricted to situations where
the within lot standard deviation of the characteristic may be considered to be known. The sequential sampling
procedure allows the inspector to select and inspect the items one by one. After inspection of each individual
item, a decision is made whether another item shall be inspected, or whether there is sufficient information to
accept or reject the lot. Generally, the use of a sequential sampling plan leads to a smaller average sample
size than single sampling plans having the same operating characteristic, but in individual cases the
necessary sample size may considerably exceed that of a corresponding plan for single sampling. Sequential
sampling may be a relevant alternative to single sampling plans when the inspection of individual items is
costly in comparison with inspection overheads.

9) Under revision.
10) Under revision.
11) Under revision. ISO/FDIS 3951-5 replaces Annex A of ISO 8423:1991, which has been technically revised to improve
its compatibility with the sampling systems in ISO 3951-1.
10 © ISO 2006 – All rights reserved

12)
ISO/TR 8550:1994 Guide for the selection of an acceptance sampling system, scheme or plan for
inspection of discrete items in lots
The primary purpose of ISO Technical Report 8550 is to give guidance in the selection of an acceptance
sampling system, scheme or plan. It does this principally in the context of existing or draft ISO standards. It
reviews the available systems and shows ways in which they can be compared in order to assess their
suitability for an intended application. The guide also indicates how prior knowledge of the manufacturing or
service delivery process and quality performance can influence the choice of sampling system, scheme or
plan, and also how the particular needs of the customer affect the selection. Some specific circumstances
encountered in practice are described and the method of choosing a plan is explained. Some check lists or
pointers and tables are provided to assist users in selecting an appropriate system, scheme or plan for their
purpose. Two charts are included to illustrate the procedures followed in the selection process.
ISO 10576-1:2003 Statistical methods — Guidelines for the evaluation of conformity with specified
requirements — Part 1: General principles
This part of ISO 10576 sets out guidelines:
a) for drafting requirements that may be formulated as limiting values for a quantifiable characteristic; and
b) for checking conformity to such requirements when the test- or measurement result is subject to
uncertainty.
This part of ISO 10576 is applicable whenever the uncertainty may be quantified according to the principles
laid down in Guide to the expression of uncertainty in measurement. The term uncertainty is thus a descriptor
for all sources of variation in the measurement result, including uncertainty due to sampling.
It is outside the scope of this part of ISO 10576 to give rules for how to act when an inconclusive result of a
conformity test has been obtained.
ISO 10725:2000 Acceptance sampling plans and procedures for the inspection of bulk materials
ISO 10725 specifies acceptance sampling plans by the determination of variables and use of acceptance
inspection procedures for bulk materials. These sampling plans comply with specific operating characteristic
curves at reasonable cost. This International Standard is applicable to the inspection where the lot mean of a
single quality characteristic is the principal factor in the determination of lot acceptability, but it also gives
special procedures for multiple quality characteristics. This International Standard is applicable to the cases
where the values of standard deviations at individual stages of sampling are known or are imprecise.
ISO 10725 is applicable to various kinds of bulk materials, but is not always applicable to minerals such as
iron ores, coals, crude petroleum, etc., where accurate estimation of the lot mean is more important than the
determination of lot acceptability. For special cases w
...
