ISO 5411:2024

International
Standard
ISO 5411
First edition
Ships and marine technology —
2024-03
Submersibles — Vocabulary
Reference number
© ISO 2024
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
3.1 Types .1
3.2 Performance .2
3.3 Structural system .4
3.4 Mechanical system .6
3.5 Electrical system .7
3.6 Acoustic system .9
3.7 Control system .10
3.8 Surface system .11
3.9 Work mode . 12
3.10 Test and maintenance . 13
3.11 Personnel .14
Bibliography .16
Index . 17

iii

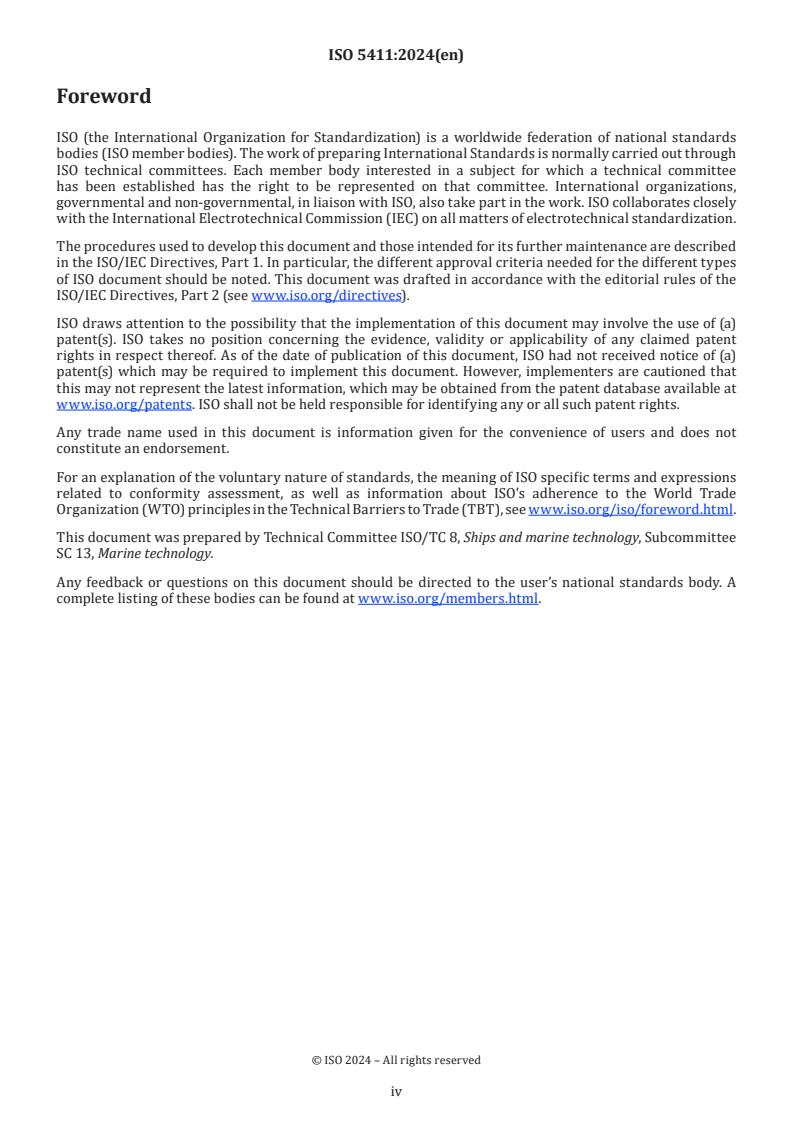

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 8, Ships and marine technology, Subcommittee
SC 13, Marine technology.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
Introduction
Many countries have the technology and ability to design, construct and operate submersibles, together
with the industrial capability and resources to support safe and effective submersible operations. To
enable greater international understanding and collaboration between participating regions, operators and
manufacturers, it is advantageous to use a common set of terms and concept definitions. This will result
in several benefits including facilitating comparison of products, contributing to innovation, reducing
misunderstanding, improving efficiency and enabling international trade. In essence, standardized
terminology is fundamental to a series of standardization activities of submersibles.

v
International Standard ISO 5411:2024(en)
Ships and marine technology — Submersibles — Vocabulary
1 Scope
This document provides basic terminology and concepts related to submersibles. It covers 11 aspects of
terminology related to submersibles: types, performance, structural system, mechanical system, electrical
system, acoustic system, control system, surface system, work pattern, test and maintenance and personnel.
It is not applicable to particular conditions, such as the classification and construction of submersibles.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1 Types
3.1.1
submersible
type of powered vessel that can travel and manoeuvre underwater
3.1.2
manned submersible
submersible (3.1.1) that encloses one or more persons within its pressure hull (3.3.2), fitted with one or more
available surface accesses, or underwater pressurized or non-pressurized accesses
3.1.3
tethered submersible
submersible (3.1.1) with an umbilical (3.8.1) or tether (3.8.2) attached to the surface, support ship (3.8.4) or
underwater structure
3.1.4
untethered submersible
submersible (3.1.1) without an umbilical (3.8.1) or tether (3.8.2)
3.1.5
transport submersible
manned submersible (3.1.2), designed for the movement of cargo, equipment or passengers (3.11.3) in addition
to crew (3.11.2) underwater, for recreation, scientific expedition, rescue or other purposes
3.1.6
passenger submersible
passenger-carrying mobile vessel, which primarily operates under water and relies on surface support
[SOURCE: IMO MSC/Circ. 981, 1.2.12]

3.1.7
deep submergence rescue vehicle
DSRV
submarine rescue vehicle
SRV
manned submersible (3.1.2) and untethered submersible (3.1.4), specifically designed to evacuate persons
from a disabled or distressed submarine using an underwater mating interface to create one or more dry
personnel transfer structures under normobaric or hyperbaric conditions
3.1.8
lock-out submersible
manned submersible (3.1.2) and untethered submersible (3.1.4), equipped with a lock-in or lock-out chamber
and access hatch for entry, egress and accommodation of a diver or divers (3.11.4) with an adjustable
operating pressure (3.2.8) capability
3.1.9
towed submersible
tethered submersible (3.1.3) towed by a power-driven vessel with depth and attitude adjustment ability
3.1.10
atmospheric diving suit
ADS
anthropomorphic and single-person tethered submersible (3.1.3) with manually operated articulated arms
and/or legs, which can perform related underwater tasks, withstanding external pressure and maintaining
internal pressure at or near one atmosphere
3.1.11
dry diving bell
manned submersible (3.1.2) and tethered submersible (3.1.3), equipped with a hemispherical frame and
specialized apparatus for transferring persons between the underwater site and deck or the deck compression
chamber (3.8.6) of a support ship (3.8.4) for operation, rescue or other purposes
3.1.12
saturation diving system
complex of functionally integrated technical means, devices and facilities in which a diver (3.11.4) is exposed
to hyperbaric pressure for a period until the diver's blood and tissues have absorbed all the gas
Note 1 to entry: The time required for decompression becomes constant at this hyperbaric pressure after the diver's
blood and tissues have absorbed all of the gas.
3.1.13
seabed laboratory
submersible (3.1.1) designed to conduct a field inspection and support a long-term underwater habitat for
persons or other creatures for an in-situ test
3.2 Performance
3.2.1
life expectancy
designed number of dives that a submersible (3.1.1) can complete safely before requiring an appropriate
technical engineering review of its structural integrity to ensure it can again be safely operated underwater
3.2.2
design mission time
time period for a submersible (3.1.1) from launch to recovery, when the designed mission is performed under
operating conditions defined by the manufacturer
3.2.3
working time
time period which consists of design mission time (3.2.2), excluding the processing time of the launch and
recovery system (3.8.5) and the related surfacing and submerging

3.2.4
bottom time
time during which a submersible (3.1.1) is permitted to sit on seabed
3.2.5
light weight
air mass of a complete submersible (3.1.1) including all its permanently installed components, liquids and
gas in machinery and piping (3.4.16) to their working levels as defined by the manufacturer, but excluding
consumables, payload (3.2.6), persons and effect
3.2.6
payload
passengers (3.11.3) from the transport submersible (3.1.5), rescued persons from the deep submergence
rescue vehicle (3.1.7) or other items carried by a submersible (3.1.1) in addition to the crew (3.11.2), pilot
(3.11.1) and permanently fitted equipment, performing the specific mission
3.2.7
operating depth
depth in metres of water (seawater or fresh water) for which a submersible (3.1.1) normally operates
3.2.8
operating pressure
pressure which a submersible (3.1.1) withstands to operate normally
Note 1 to entry: It is expressed in megapascals (MPa).
3.2.9
design depth
maximum operating depth (3.2.7) to which a submersible (3.1.1) is designed to dive safely, as measured from
the surface to its keel
3.2.10
design pressure
maximum pressure which a submersible (3.1.1) can withstand to dive safely
Note 1 to entry: It is expressed in megapascals (MPa).
3.2.11
collapse depth
depth at which a submersible’s pressure-resistant structure (3.3.1) is predicted to fail, causing the pressure
hull (3.3.2) to collapse
3.2.12
collapse pressure
external pressure which is liable to causing the pressure-resistant structure (3.3.1) to collapse
3.2.13
test depth
pre-determined depth used to enable safe pressure testing of the submersible (3.1.1) during manufacture
and through life certification of the vessel
3.2.14
test pressure
pressure withstood by the pressure-resistant structure (3.3.
...
