Ships and marine technology —
Drawings for fire protection — Indications
of fire rating by divisions for ships and
high-speed craft
Navires et technologie maritime — Dessins pour la protection contre
l'incendie — Indication des cotes au feu des cloisonnements

Reference number
©
ISO 2009

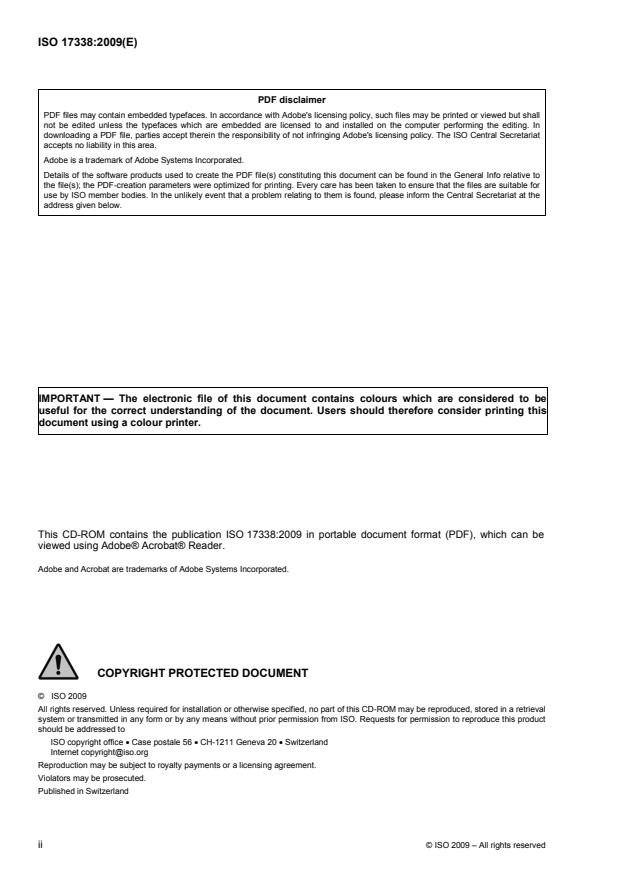

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2009
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2009 – All rights reserved

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 17338 was prepared by Technical Committee ISO/TC 8, Ships and marine technology, Subcommittee
SC 1, Lifesaving and fire protection.

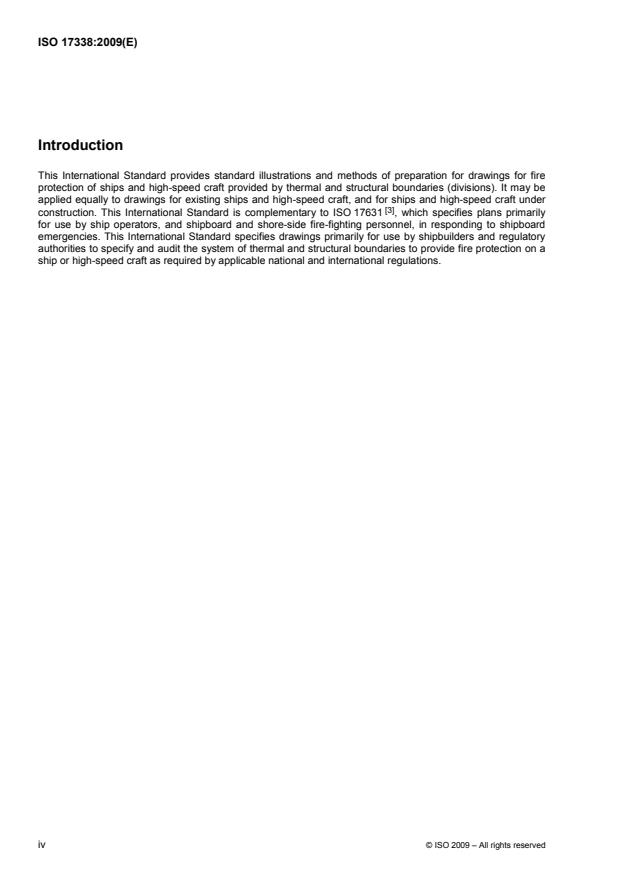

Introduction
This International Standard provides standard illustrations and methods of preparation for drawings for fire
protection of ships and high-speed craft provided by thermal and structural boundaries (divisions). It may be
applied equally to drawings for existing ships and high-speed craft, and for ships and high-speed craft under
[3]
construction. This International Standard is complementary to ISO 17631 , which specifies plans primarily
for use by ship operators, and shipboard and shore-side fire-fighting personnel, in responding to shipboard
emergencies. This International Standard specifies drawings primarily for use by shipbuilders and regulatory
authorities to specify and audit the system of thermal and structural boundaries to provide fire protection on a
ship or high-speed craft as required by applicable national and international regulations.

iv © ISO 2009 – All rights reserved

INTERNATIONAL STANDARD ISO 17338:2009(E)

Ships and marine technology — Drawings for fire protection —
Indications of fire rating by divisions for ships and high-speed
craft
IMPORTANT — The electronic file of this document contains colours which are considered to be
useful for the correct understanding of the document. Users should therefore consider printing this
document using a colour printer.
1 Scope
This International Standard specifies the design and layout of drawings for indicating the fire rating of thermal
and structural boundaries (divisions) for fire protection of ships.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
IMO International Convention for the Safety of Life at Sea, 1974 (SOLAS:1974), as amended in 2000
Torremolinos Protocol, 1993, updating, amending and absorbing the Torremolinos International Convention
for the Safety of Fishing Vessels, 1977
IMO Code for the Construction and Equipment of Mobile Offshore Drilling Units, 2001 (MODU Code)
IMO International Code of Safety for High-speed Craft, 2000 (HSC Code), as amended in 2008
3 Terms and definitions
For the purposes of this International Standard, the following terms and definitions apply.
3.1
booklet
compilation of fire protection drawing(s) for use in maintenance and/or survey, which can be easily checked
and maintained
3.2
competent authority
Administration whose flag the ship is entitled to fly, or an organization authorized by an Administration, to
perform functions as specified in this International Standard
3.3
division
thermal and structural boundary (such as a bulkhead or deck), ensembles of which confine spaces and have
fire protection properties as required by the applicable regulations
3.4
illustration
use of line drawings or colours for the description of the fire rating of divisions
4 General
4.1 Drawings prepared in accordance with this International Standard shall be made to a scale not smaller
than 1:150 with a line thickness according to Table 1.
An example drawing is shown in Annex A illustrating some of the principles outlined in this International
Standard.
Table 1 — Illustrations for indicating the fire rating of divisions
a
Illustration Description Comment on use
Referent
The line may also be coloured black
A-60 class division for main Continuous wide red

vertical zones line
The line thickness shall be 2,5 mm
The line may also be coloured black
A-30 class division for main
Dashed wide red line
vertical zones
The line thickness shall be 2,5 mm
The line may also be coloured black
A-15 class division for main Long-dashed dotted

vertical zones wide red line
The line thickness shall be 2,5 mm
The line may also be coloured black
A-0 class division for main Long-dashed double

vertical zones dotted wide red line
The line thickness shall be 2,5 mm
1. A-60 class vertical
division
The line may also be coloured black
Continuous medium red
2. Vertical fire resisting
line
division with 60 min of The line thickness shall be 1,5 mm
structural fire protection
time
1. A-30 class vertical
division
The line may also be coloured black
Dashed medium red
2. Vertical fire resisting
line
division with 30 min of The line thickness shall be 1,5 mm
structural fire protection
time
The line may also be coloured black
Long-dashed dotted
A-15 class vertical division
medium red line
The line thickness shall be 1,5 mm
1. A-0 class vertical division
The line may also be coloured black
2. Vertical fire resisting
Long-dashed double
division with 0 min of
dotted medium red line
The line thickness shall be 1,5 mm
structural fire protection
time
Grey shading may be used instead
of the yellow colour
Dashed medium yellow
B-30 class vertical division
The yellow line thickness shall be
line with black outline
1,0 mm and the black outline
thickness 0,1 mm
2 © ISO 2009 – All rights reserved

Table 1 (continued)
a
Illustration Description Comment on use
Ref
...
