Adhesives for non-structural wood applications - Test method and requirements for resistance to static load

This document specifies a method for determining the ability of a test piece bonded with a thermoplastic adhesive, to support a given load for a specified time without fracture or excessive distortion, and specifies performance requirements for mean survival time. It should be used in conjunction with ISO 19209 and ISO 19210, which describe durability classes and corresponding test methods for non-structural wood adhesives based on their ability to withstand various water treatments and relatively rapidly applied loads. The test described in this standard may be used to assess joints made with thin glue line, as defined in ISO 19210. NOTE The test described in this document is not a mandatory requirement for the classification of adhesives into the classes D1, D2, D3 and D4 given in ISO 19209. It is an additional test that can be specified by a purchaser if required.

Adhésifs pour bois à usages non structuraux — Méthode d'essai et exigences pour la résistance à la charge statique

Le présent document spécifie une méthode permettant de déterminer la capacité d’une éprouvette, collée avec un adhésif thermoplastique, à résister à une charge donnée pendant une durée spécifiée sans se rompre ni se déformer exagérément et spécifie les exigences de performance pour une durée de vie moyenne. Il convient de l’utiliser conjointement avec l’ISO 19209 et l’ISO 19210 qui décrivent les classes de durabilité et les méthodes d’essai correspondant aux adhésifs pour bois à usages non structuraux en se reposant sur la capacité de ces derniers à résister à différents traitements par l’eau et aux charges appliquées rapidement. L’essai décrit dans la présente norme peut servir à évaluer les collages réalisés avec des joints minces définis dans l’ISO 19210. NOTE L’essai décrit dans le présent document ne constitue pas une exigence obligatoire pour le classement des adhésifs dans les classes DI, D2, D3 et D4 définies dans l’ISO 19209. Il s’agit d’un essai supplémentaire qui peut éventuellement être prescrit par un acheteur.

General Information

Status
Published
Publication Date
29-Feb-2024
Technical Committee
ISO/TC 61/SC 11 - Products
Drafting Committee
ISO/TC 61/SC 11 - Products
Current Stage
6060 - International Standard published
Start Date
01-Mar-2024
Due Date
08-Apr-2024
Completion Date
01-Mar-2024

Relations

Effective Date
06-Jun-2022

Overview

ISO 34256:2024 specifies a laboratory test method for resistance to static load of joints bonded with a thermoplastic adhesive for non‑structural wood applications. The standard determines the ability of a bonded test piece to support a constant shear load for a specified time without fracture or excessive distortion and sets a performance requirement for mean survival time. ISO 34256 is intended to be used alongside ISO 19209 and ISO 19210, which describe durability classes and tensile shear test methods for non‑structural wood adhesives.

Key topics and requirements

  • Scope: Test of thin glue‑line lap joints made with thermoplastic adhesives for non‑structural wood uses.
  • Test specimen: Symmetrical single lap joint with an overlap of (20.0 ± 0.2) mm (thin glue line as per ISO 19210).
  • Loading and environment:
    • Constant shear load applied by hanging (30.0 ± 0.5) kg weights from a jig.
    • Climatically controlled environment at (23 ± 2) °C and (50 ± 5) % RH (standard 23/50).
    • Test duration up to 21 days or until a mean endurance of 14 days is achieved.
  • Failure criteria: Joint fracture or excessive deflection such that the jigs contact each other. Daily inspections record time to failure (in days).
  • Acceptance: Mean survival time must not be less than 14 days for the sample of 10 test pieces. Report individual survival times, mean and standard deviation.
  • Test report requirements: Adhesive identification, batch, application and pressing parameters, wood species and moisture content (EN 13183‑1/2), number of specimens, deviations, and test dates.

Applications and who uses this standard

ISO 34256 is relevant for:

  • Adhesive manufacturers validating product performance for non‑structural wood applications.
  • Test laboratories performing conformity and comparative static‑load testing.
  • Wood product manufacturers (furniture, cabinetry, interior joinery) specifying adhesives for applications where long‑term static loads may occur.
  • Purchasers and specifiers who require an additional static‑load performance assurance beyond standard durability classes.
  • Quality and compliance engineers documenting adhesive performance for procurement or product claims.

Practical value: ISO 34256 helps stakeholders assess the long‑term static load resistance of thermoplastic adhesives in controlled conditions, supporting product selection and procurement decisions for non‑structural wood assemblies.

Related standards

  • ISO 19209 - Classification of thermoplastic wood adhesives for non‑structural applications (durability classes D1–D4).
  • ISO 19210:2017 - Tensile shear strength of lap joints; thin glue‑line preparation.
  • EN 923, EN 13183‑1/2 - Terms/definitions and moisture content determination referenced in the test method.
Standard

ISO 34256:2024 - Adhesives for non-structural wood applications — Test method and requirements for resistance to static load Released:1. 03. 2024

English language
6 pages
sale 15% off
Preview
sale 15% off
Preview

Frequently Asked Questions

ISO 34256:2024 is a standard published by the International Organization for Standardization (ISO). Its full title is "Adhesives for non-structural wood applications - Test method and requirements for resistance to static load". This standard covers: This document specifies a method for determining the ability of a test piece bonded with a thermoplastic adhesive, to support a given load for a specified time without fracture or excessive distortion, and specifies performance requirements for mean survival time. It should be used in conjunction with ISO 19209 and ISO 19210, which describe durability classes and corresponding test methods for non-structural wood adhesives based on their ability to withstand various water treatments and relatively rapidly applied loads. The test described in this standard may be used to assess joints made with thin glue line, as defined in ISO 19210. NOTE The test described in this document is not a mandatory requirement for the classification of adhesives into the classes D1, D2, D3 and D4 given in ISO 19209. It is an additional test that can be specified by a purchaser if required.

This document specifies a method for determining the ability of a test piece bonded with a thermoplastic adhesive, to support a given load for a specified time without fracture or excessive distortion, and specifies performance requirements for mean survival time. It should be used in conjunction with ISO 19209 and ISO 19210, which describe durability classes and corresponding test methods for non-structural wood adhesives based on their ability to withstand various water treatments and relatively rapidly applied loads. The test described in this standard may be used to assess joints made with thin glue line, as defined in ISO 19210. NOTE The test described in this document is not a mandatory requirement for the classification of adhesives into the classes D1, D2, D3 and D4 given in ISO 19209. It is an additional test that can be specified by a purchaser if required.

ISO 34256:2024 is classified under the following ICS (International Classification for Standards) categories: 83.180 - Adhesives. The ICS classification helps identify the subject area and facilitates finding related standards.

ISO 34256:2024 has the following relationships with other standards: It is inter standard links to ISO 3529-2:1981. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

ISO 34256:2024 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

Standards Content (Sample)

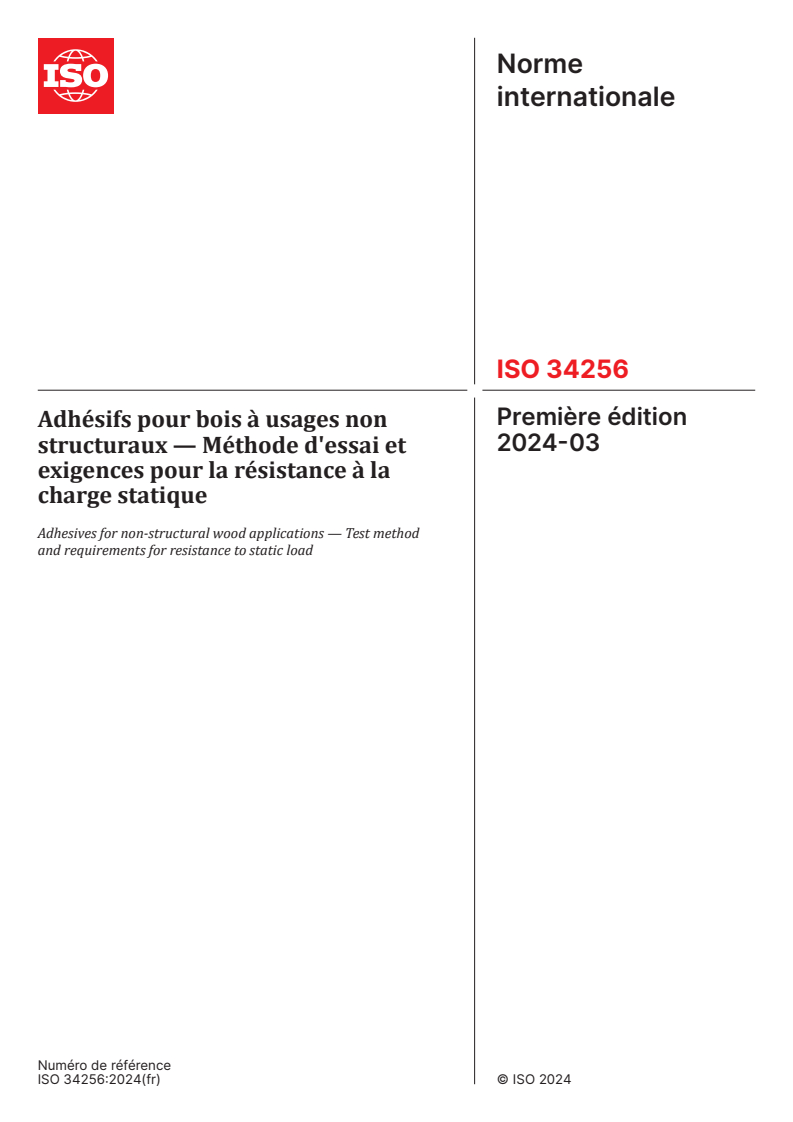

International
Standard
ISO 34256
First edition
Adhesives for non-structural wood
2024-03
applications — Test method and
requirements for resistance to
static load
Adhésifs pour bois à usages non structuraux — Méthode d'essai
et exigences pour la résistance à la charge statique
Reference number
© ISO 2024
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii

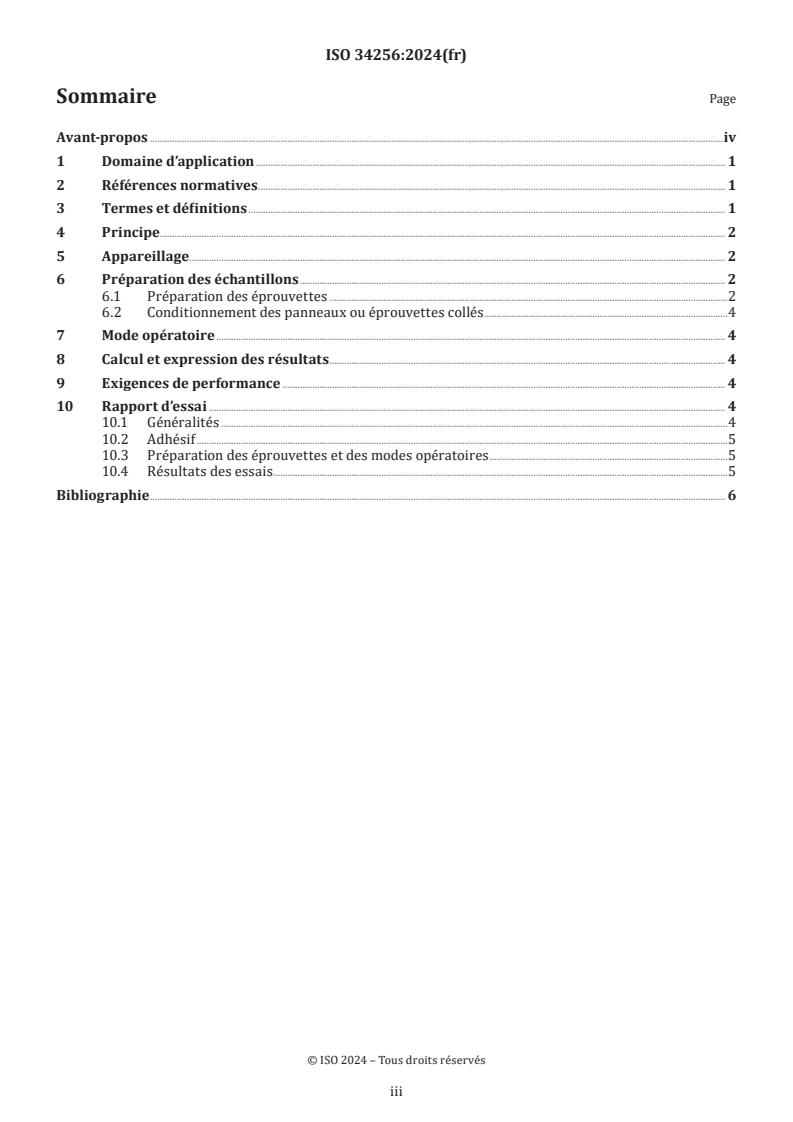

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 2
5 Apparatus . 2
6 Sample preparation . 2
6.1 Preparation of test pieces .2
6.2 Conditioning bonded panels or test pieces .4
7 Test procedure . 4
8 Calculation and expression of results . 4
9 Performance requirements . . 4
10 Test report . 4
10.1 General .4
10.2 Adhesive .5
10.3 Preparation of the test pieces and the testing procedures .5
10.4 Test results .5
Bibliography . 6

iii

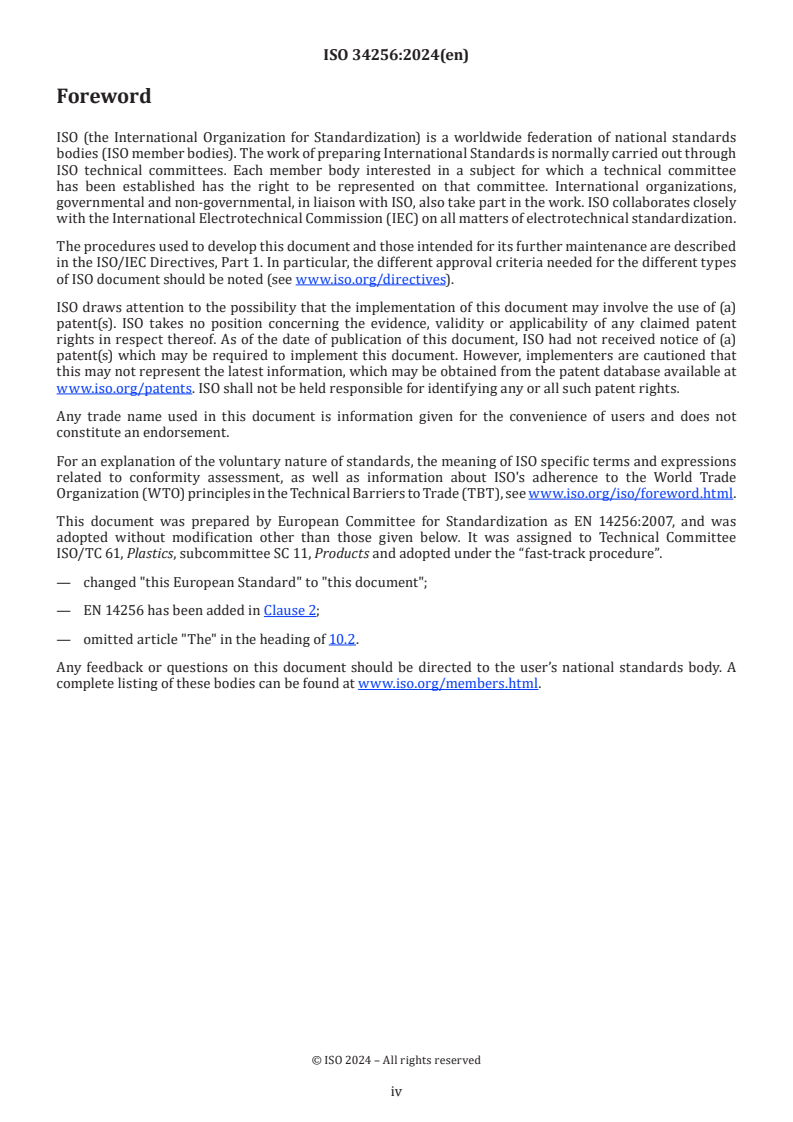

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by European Committee for Standardization as EN 14256:2007, and was
adopted without modification other than those given below. It was assigned to Technical Committee
ISO/TC 61, Plastics, subcommittee SC 11, Products and adopted under the “fast-track procedure”.
— changed "this European Standard" to "this document";
— EN 14256 has been added in Clause 2;
— omitted article "The" in the heading of 10.2.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
International Standard ISO 34256:2024(en)
Adhesives for non-structural wood applications — Test
method and requirement
...
