IEC 60086-3:2016

IEC 60086-3
Edition 4.0 2016-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Primary batteries –
Part 3: Watch batteries
Piles électriques –
Partie 3: Piles pour montres
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 15
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC 65 000 entrées terminologiques électrotechniques, en anglais
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.

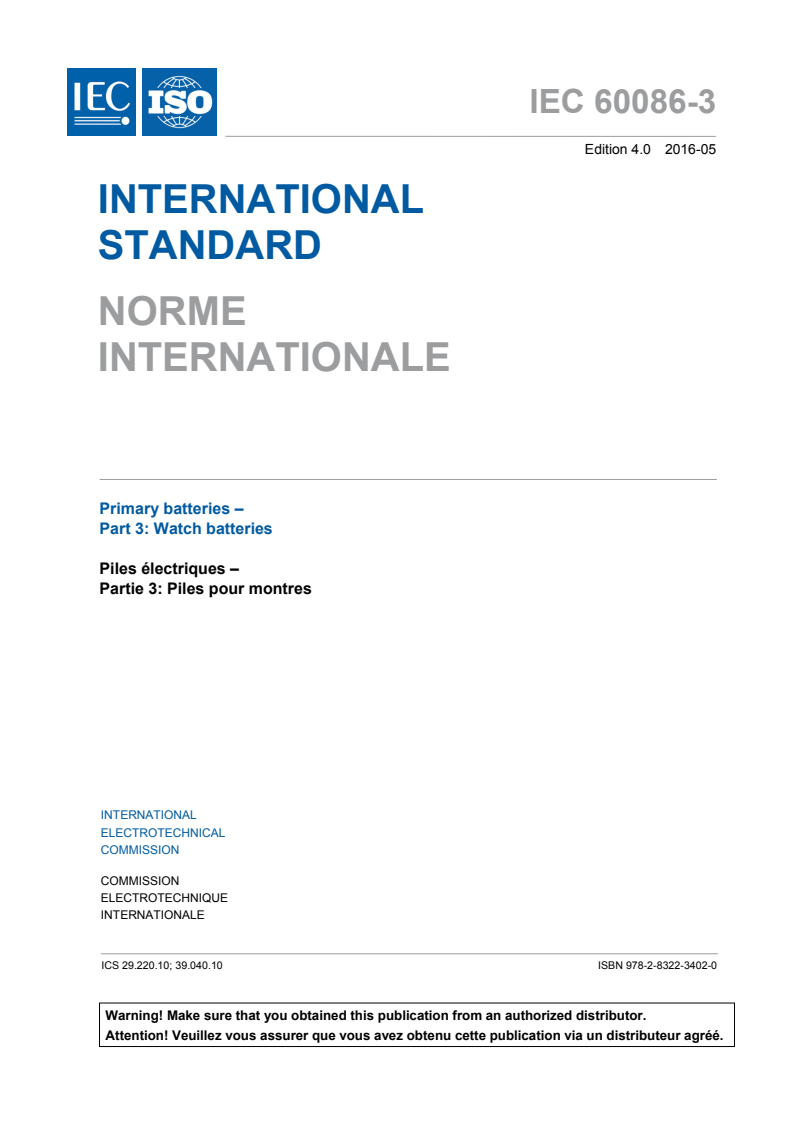

IEC 60086-3
Edition 4.0 2016-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Primary batteries –
Part 3: Watch batteries
Piles électriques –
Partie 3: Piles pour montres
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.220.10; 39.040.10 ISBN 978-2-8322-3402-0

– 2 – IEC 60086-3:2016 © IEC 2016

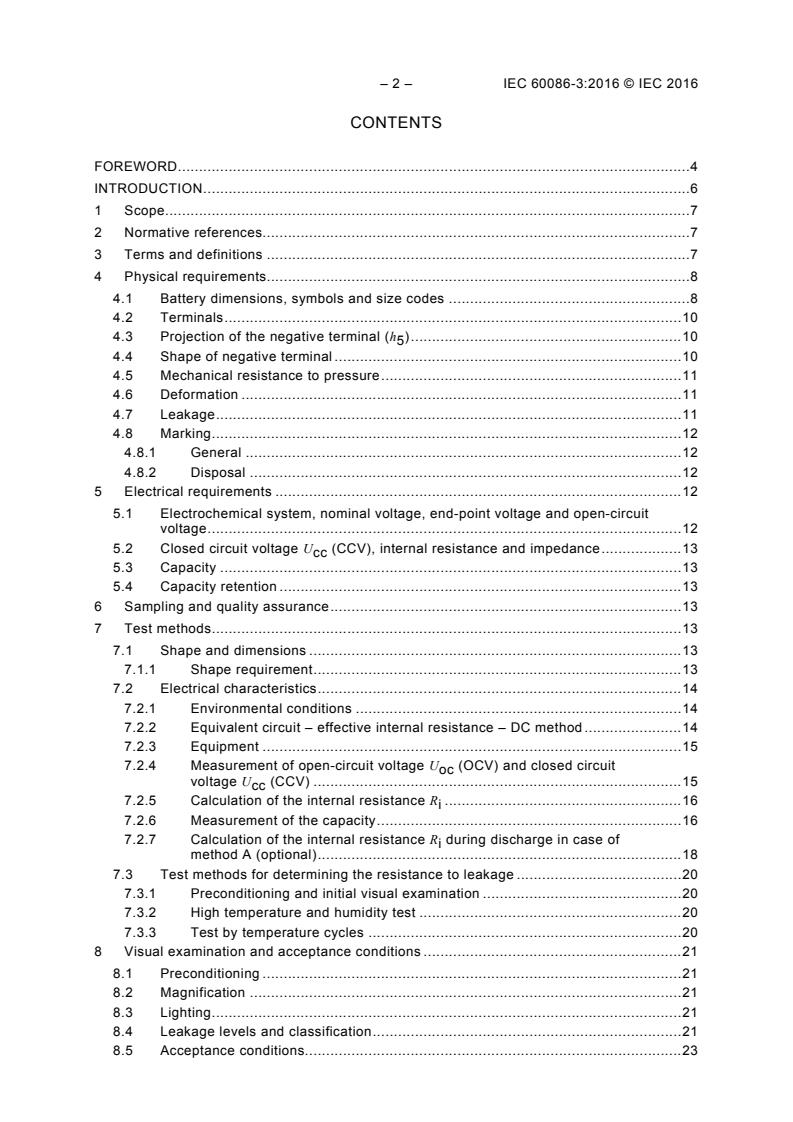

CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references. 7
3 Terms and definitions . 7
4 Physical requirements. 8
4.1 Battery dimensions, symbols and size codes . 8
4.2 Terminals . 10
4.3 Projection of the negative terminal (h ) . 10
4.4 Shape of negative terminal . 10
4.5 Mechanical resistance to pressure . 11
4.6 Deformation . 11
4.7 Leakage . 11
4.8 Marking . 12
4.8.1 General . 12
4.8.2 Disposal . 12
5 Electrical requirements . 12
5.1 Electrochemical system, nominal voltage, end-point voltage and open-circuit
voltage . 12
5.2 Closed circuit voltage U (CCV), internal resistance and impedance . 13
cc
5.3 Capacity . 13
5.4 Capacity retention . 13
6 Sampling and quality assurance . 13
7 Test methods . 13
7.1 Shape and dimensions . 13
7.1.1 Shape requirement . 13
7.2 Electrical characteristics . 14
7.2.1 Environmental conditions . 14
7.2.2 Equivalent circuit – effective internal resistance – DC method . 14
7.2.3 Equipment . 15
7.2.4 Measurement of open-circuit voltage U (OCV) and closed circuit
oc
voltage U (CCV) . 15
cc
7.2.5 Calculation of the internal resistance R . 16
i
7.2.6 Measurement of the capacity . 16
7.2.7 Calculation of the internal resistance R during discharge in case of
i
method A (optional) . 18
7.3 Test methods for determining the resistance to leakage . 20
7.3.1 Preconditioning and initial visual examination . 20
7.3.2 High temperature and humidity test . 20
7.3.3 Test by temperature cycles . 20
8 Visual examination and acceptance conditions . 21
8.1 Preconditioning . 21
8.2 Magnification . 21
8.3 Lighting . 21
8.4 Leakage levels and classification . 21
8.5 Acceptance conditions. 23

Annex A (normative) Designation . 24
Bibliography . 25

Figure 1 – Dimensional drawing . 8
Figure 2 – Shape of negative terminal . 11
Figure 3 – Shape requirement . 14
Figure 4 – Schematic voltage transient . 14
Figure 5 – Curve: U = f(t) . 15
Figure 6 – Circuitry principle . 16
Figure 7 – Circuitry principle for method A . 17
Figure 8 – Circuitry principle for method B . 18
Figure 9 – Test by temperature cycles . 20

Table 1 – Dimensions and size codes . 9
Table 2 – Dimensions and size codes . 10
Table 3 – Minimum values of l . 11
Table 4 – Applied force F by battery dimensions . 11
Table 5 – Standardised electrochemical systems . 12
Table 6 – Test method for U (CCV) measurement . 16
cc
Table 7 – Test method A for U (CCV) measurement . 17
cc
Table 8 – Discharge resistance (values) . 19
Table 9 – Storage conditions for the recommended test . 20
Table 10 – Storage conditions for optional test . 20
Table 11 – Leakage levels and classification (1 of 2) . 22

– 4 – IEC 60086-3:2016 © IEC 2016
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PRIMARY BATTERIES –
Part 3: Watch batteries
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60086-3 has been prepared by IEC technical committee 35:
Primary cells and batteries, and ISO technical committee 114: Horology.
This fourth edition cancels and replaces the third edition published in 2011. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) A harmonization of the cell sizes and service output tests with IEC 60086-2;
b) Clarifications of Clauses 6: Sampling and Quality Assurance, 7: Test methods, and 8:
Visual examination and acceptance condition;
c) Harmonization of temperature and humidity conditions with IEC 60086-1.

This publication is published as a double logo standard.
The text of this standard is based on the following documents:
FDIS Report on voting
35/1359/FDIS 35/1362/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 60086 series, published under the general title Primary batteries,
can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 6 – IEC 60086-3:2016 © IEC 2016
INTRODUCTION
This part of IEC 60086 provides specific requirements and information for primary watch
batteries. This part of IEC 60086 was prepared through joint work between the IEC and ISO to
benefit primary battery users, watch designers and battery manufacturers by ensuring the
best compatibility between batteries and watches.
This part of IEC 60086 will remain under continual scrutiny to ensure that the publication is
kept up to date with the advances in both battery and watch technologies.
NOTE Safety information is available in IEC 60086-4 and IEC 60086-5.

PRIMARY BATTERIES –
Part 3: Watch batteries
1 Scope
This part of IEC 60086 specifies dimensions, designation, methods of tests and requirements
for primary batteries for watches. In several cases, a menu of test methods is given. When
presenting battery electrical characteristics and/or performance data, the manufacturer
specifies which test method was used.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60086-1:2015, Primary batteries – Part 1: General
IEC 60086-2:2015, Primary batteries – Part 2: Physical and electrical specifications
IEC 60086-4:2014, Primary batteries – Part 4: Safety of lithium batteries
IEC 60086-5:- , Primary batteries – Part 5: Safety of batteries with aqueous electrolyte
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60086-1 as well as
the following terms and definitions apply.
3.1
capacitive reactance
part of the internal resistance, that leads to a voltage drop during the first seconds under load
3.2
capacity
electric charge (quantity of electricity) which a cell or battery can deliver under specified
discharge conditions
Note 1 to entry: The SI unit for electric charge is the coulomb (1 C = 1 As) but, in practice, capacity is usually
expressed in ampere hours (Ah).
3.3
fresh battery
undischarged battery 60 days maximum after date of manufacture
___________
To be published.
– 8 – IEC 60086-3:2016 © IEC 2016
3.4
ohmic drop
part of the internal resistance that leads to a voltage drop immediately after switching the load
on
4 Physical requirements
4.1 Battery dimensions, symbols and size codes
Dimensions and tolerances of batteries for watches shall be in accordance with Figure 1,
Table 1 and Table 2. The dimensions of the batteries shall be tested in accordance with 7.1.
The symbols used to denote the various dimensions in Figure 1 are in accordance with
IEC 60086-2:2015, Clause 4.
Dimensions in millimetres
d
0,05
0,1
0,05
<10
d
d
≥10 0,1
d
IEC
Key
h maximum overall height of the battery
h minimum distance between the flats of the positive and negative contacts
h minimum projection of the flat negative contact
d maximum and minimum diameter of the battery
d minimum diameter of the flat positive contact
d minimum diameter of the flat negative contact
NOTE This numbering follows the harmonization in the IEC 60086 series.
Figure 1 – Dimensional drawing

h
h /h
1 2
Table 1 – Dimensions and size codes
Dimensions in millimetres
Diameter Height h /h
1 2
a
Code
10 12 14 16 20 21 25 26 27 30 31 32 36 42 54
d
Tole- 4
a
d
Code
Tolerance
rance
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
–0,10 –0,15 –0,15 –0,18 –0,20 –0,20 –0,20 –0,20 –0,20 –0,25 –0,25 –0,25 –0,25 –0,25 –0,25
4 4,8   1,65 2,15
–0,15
5 5,8 2,6 1,05 1,25 1,45 1,65 2,15  2,70
–0,15
6 6,8 3,0 1,05 1,25 1,45 1,65 2,15 2,60
–0,15
7 7,9 3,5 1,05 1,25 1,45 1,65 2,10 2,60  3,10 3,60 5,40
–0,15
9 9,5 4,5 1,05 1,25 1,45 1,65 2,05 2,10  2,70  3,60
–0,15
10 10,0 3,0    2,50
–0,30
11 11,6 6,0 1,05 1,25 1,45 1,65 2,05 2,10 2,60 3,05  3,60 4,20 5,40
–0,20
12 12,5 4,0 1,20 1,60 2,00 2,50
–0,25
NOTE Open boxes in the above matrix are not necessarily available for standardisation due to the concept of overlapping tolerances.
a
See Annex A.
– 10 – IEC 60086-3:2016 © IEC 2016
Table 2 – Dimensions and size codes
Dimensions in millimetres
Diameter Height h /h
1 2
a
Code
12 16 20 25 30 32
d
a
Code d Tolerance
1 Tolerances
0 0 0 0 0 0
–0,20 –0,20 –0,25 –0,30 –0,30 –0,30
16 16 5,00 1,20 1,60 2,00 2,50 3,20
–0,25
20 20 8,00 1,20 1,60 2,00 2,50 3,20
–0,25
23 23 8,00 1,20 1,60 2,00 2,50 3,00
–0,30
24 24,5 8,00 1,20 1,60  3,00
–0,30
NOTE Open boxes in the above matrix are not necessarily available for standardisation due to the concept of
overlapping tolerances.
a
See Annex A.
4.2 Terminals
Negative contact (–): the negative contact (dimension d ) shall be in accordance with
Tables 1 and 2. This is not applied to those batteries with a two-step
negative contact.
Positive contact (+): the cylindrical surface is connected to the positive terminal. Positive
contact should be made to the side of the battery but may be made to
the base.
4.3 Projection of the negative terminal (h )
The dimension h shall be as follows:
h ≥ 0,02 for h /h ≤ 1,65
5 1 2
h ≥ 0,06 for 1,65 < h /h < 2,5
5 1 2
h ≥ 0,08 for h /h ≥ 2,5
5 1 2
The negative contact should be the highest point of the battery.
4.4 Shape of negative terminal
The space requirements shall be contained within an angle of 45° (see Figure 2).
The minimum values of l , for different heights of h /h , are given in Table 3.
1 1 2
l
45°
d
IEC
Figure 2 – Shape of negative terminal
Table 3 – Minimum values of l
Dimensions in millimetres
h /h l
1 2 1 min
1 < h /h ≤ 1,90 0,20
1 2
1,90 < h /h ≤ 3,10 0,35
1 2
0,70
3,60 ≤ h /h ≤ 4,20
1 2
0,90
5,40 ≤ h /h
1 2
4.5 Mechanical resistance to pressure
A force F (N), as specified in Table 4, applied for 10 s through a steel ball of 1 mm diameter,
at the centre of each contact area, shall not cause any deformation prejudicial to the proper
functioning of the battery, i.e. after this test, the battery shall pass the tests specified in
Clause 7.
Table 4 – Applied force F by battery dimensions
Battery dimensions Force
d h /h F
1 1 2
mm mm N
<3,0
<7,9
≥3,0 10
<3,0 10
≥7,9
≥3,0
4.6 Deformation
The dimensions of batteries shall conform with the relevant specified dimensions at all times
including discharge to the defined end-point voltage.
NOTE 1 A battery height increase up to 0,25 mm can occur, if discharged below this voltage.
NOTE 2 A battery height decrease can occur in B and C systems as discharge continues.
4.7 Leakage
Undischarged batteries and, if required, batteries tested according to 7.2.6 shall be examined
as stated in 7.3. The acceptable number of defects shall be agreed between the manufacturer
and the purchaser.
h /h
1 2
– 12 – IEC 60086-3:2016 © IEC 2016
4.8 Marking
4.8.1 General
The designation and the polarity shall be marked on the battery. Battery marking should not
impede electrical contact. All other markings may be given on the packing instead of on the
battery:
a) designation according to normative Annex A, or common;
b) expiration of a recommended usage period or year and month or week of manufacture;
The year and month or week of manufacture may be in code. The code is composed by
the last digit of the year and by a number indicating the month. October, November and
December should be represented by the letters O, Y and Z respectively.
EXAMPLE
41: January 2014;
4Y: November 2014.
c) polarity of the positive (+) terminal;
d) nominal voltage;
e) name or trade mark of the supplier;
f) cautionary advice;
g) caution for ingestion of batteries shall be given. Refer to IEC 60086-4:2014 (7.2 a) and 9.2)
and IEC 60086-5:- (7.1 l) and 9.2) for details.
NOTE Examples of the common designations can be found in Annex D of IEC 60086-2:2015.
4.8.2 Disposal
Marking of batteries with respect to the method of disposal shall be in accordance with local
legal requirements.
5 Electrical requirements
5.1 Electrochemical system, nominal voltage, end-point voltage and open-circuit
voltage
The requirements concerning the electrochemical system, the nominal voltage, the end-point
voltage and the open-circuit voltage are given in Table 5.
Table 5 – Standardised electrochemical systems
Letter Negative Electrolyte Positive electrode Nominal End- Open-circuit
electrode voltage point voltage
voltage
(V ) (EV) (U or OCV)
n OC
V V V
Max. Min.
B Lithium (Li) Organic electrolyte Carbon monofluoride (CF) 3,0 2,0 3,70 3,00
x
C Lithium (Li) Organic electrolyte Manganese dioxide (MnO ) 3,0 2,0 3,70 3,00
L Zinc (Zn) Alkali metal hydroxide Manganese dioxide (MnO ) 1,5 1,0 1,68 1,50
S Zinc (Zn) Alkali metal hydroxide Silver oxide (Ag O) 1,55 1,2 1,63 1,57
5.2 Closed circuit voltage U (CCV), internal resistance and impedance
cc
Closed circuit voltage and internal resistance shall be measured according to 7.2.
AC impedance should be measured with an LCR meter.
Limit values shall be agreed between the manufacturer and the purchaser.
5.3 Capacity
The capacity shall be agreed between the manufacturer and the purchaser on the basis of a
continuous discharge test lasting approximately 30 days, according to 7.2.6.
5.4 Capacity retention
The capacity retention is the ratio between the capacities under the given discharge
conditions measured on fresh batteries and a sample of the same lot stored during 365 days
at (20 ± 2) °C and a relative humidity between 55 ± 20 %.
The ratio of capacity retention shall be agreed between the manufacturer and the purchaser.
The minimum value should be at least 90 % for a period of 12 months. The capacity
measurement is carried out according to 7.2.6.
For the purpose of verifying compliance with this standard, conditional acceptance may be
given after completion of the initial capacity tests.
6 Sampling and quality assurance
The use of sampling plans or product quality indices should be agreed between manufacturer
and purchaser.
Where no agreement is specified, refer to ISO 2859 and ISO 21747 for sampling and quality
compliance assessment advice.
7 Test methods
7.1 Shape and dimensions
7.1.1 Shape requirement
The shape of the negative contact is checked preferably by optical projection or by an open
gauge according to Figure 3.
The measurement method shall be agreed between the manufacturer and the purchaser.

– 14 – IEC 60086-3:2016 © IEC 2016
l
d 45°
IEC
Figure 3 – Shape requirement
7.2 Electrical characteristics
7.2.1 Environmental conditions
Unless otherwise specified, the sample batteries shall be tested at a temperature of
(20 ± 2) °C and a relative humidity between 55 + 20 / – 40 %.
During use, batteries may be exposed to low temperatures; it is therefore recommended to
carry out complementary tests at (0 ± 2) °C and at (–10 ± 2) °C.
7.2.2 Equivalent circuit – effective internal resistance – DC method
Resistance of any electrical component determined by calculating the ratio between the
voltage drop ∆U across this component and the range of current ∆i passing through this
component and causing the voltage drop R = ∆U / ∆i.
NOTE As an analogy, the internal d.c. resistance R of any electrochemical cell is defined by the following relation:

i
∆U (V)
R (Ω) = (1)
i
∆i (A)
The internal d.c. resistance is illustrated by the schematic voltage transient as given below in
Figure 4.
U (i )
1 1
U = ƒ(i t)
2 2,
U (i )
2 2
∆t ∆t′
t
t t t
1 2 3
IEC
Figure 4 – Schematic voltage transient
∆U
U
h /h
∆U (t) ∆U 1 2
Ω
∆U′
Ω
As can be seen from the diagram in Figure 4, the voltage drop ∆U of the two components
differs in nature, as shown in the following relation:
∆U = ∆U + ∆U (t) (2)
Ω
The first component ∆U for (t = t ) is independent of time (ohmic drop), and results from the
Ω 1
increase in current ∆i according to the relation:
∆U = ∆i × R (3)
Ω Ω
In this relation, R is a pure ohmic resistance. The second component ∆U (t) is time
Ω
dependent and is of electrochemical origin (capacitive reactance).
7.2.3 Equipment
The equipment used for the voltage measurements shall have the following specifications:
– accuracy: ≤0,25 %;
– precision: ≤50 % of last digit;
– internal resistance: ≥1 MΩ;
– measurement time: in the tests proposed in the following subclauses, it is important to
make sure that the measurement is taken during the flat period of
the voltage transient (see Figure 5). Otherwise, a measurement error
due to the capacitive reactance may occur (lower internal resistance).
The time ∆t' necessary for the measurement shall be brief in comparison to ∆t, and the
measurement equipment compatible with these criteria.
∆t
t
IEC
Key
1 open-circuit voltage U (OCV)
oc
2 effect of capacitive reactance
3 closed circuit voltage U (CCV)
cc
4 ∆t' (measurement U )
cc
Figure 5 – Curve: U = f(t)
7.2.4 Measurement of open-circuit voltage U (OCV) and closed circuit voltage
oc
U (CCV)
cc
Refer to Figure 6:
First measurement U : The switch is left open while this measurement is being carried
oc
out.
Next measurement U : The battery being tested shall be connected to the load R . The
cc m
switch shall be left closed during the duration ∆t according to Table 6.
U
– 16 – IEC 60086-3:2016 © IEC 2016
V
IEC
Key
1 reading U / U
cc oc
2 R resistance of measurement
m
Figure 6 – Circuitry principle
Table 6 – Test method for U (CCV) measurement
cc
a
Test method Battery with KOH electrolyte All other batteries
R R
∆t ∆t
m m
s ms
Ω Ω
b
A 150 ± 0,5 % 1 ± 5 % 1 500 ± 0,5 % 10 ± 5 %
c
B 0,5 – 2 500 – 2 000
150 ± 0,5 % 470 ± 0,5 %
d
C
200 ± 0,5 % 5 ± 5 % 2 000 ± 0,5 % 7,8 ± 5 %
R should take into consideration the resistance of the connection lines of the battery being tested and the
m
contact resistance of the switch.

a
Application with high peak current.

b
Method A (recommended test): requires specialised test equipment.

c
Method B: to be used in the absence of method A test equipment.

d
Method C: to be used only by agreement between the manufacturer and the purchaser.

7.2.5 Calculation of the internal resistance R
i
The internal resistance may be determined by the following calculation:
U − U
oc cc
R =
i
U / R
cc m
NOTE The relation U / R corresponds to the current delivered through the discharge resistance R (see 7.2.4).
cc m m
7.2.6 Measurement of the capacity
7.2.6.1 General
There are two methods for measuring capacity:
– the recommended method is method A, which is more indicative of watch requirements;
– method B is a more general method and is already specified in IEC 60086-1 and
IEC 60086-2.
When presenting capacity data, the manufacturer shall specify which test method was used.

7.2.6.2 Method A
a) Circuitry principle (see Figure 7)
V 3
IEC
Key
1 reading U / U’
cc oc
2 R resistance of measurement
m
3 R resistance of continuous discharge
d
Figure 7 – Circuitry principle for method A
b) Procedure
The duration of the discharge test at the resistor R approximates to 30 days.
d
Value of the resistance R : the value of the resistive load (specified in Tables 7 and 8)
d
shall include all parts of the external circuit and shall be accurate to within ±0,5 %.
c) Determination of the capacity
The measurements of the open-circuit voltage U' and that of the closed circuit voltage
oc
U are carried out at least once a day on the battery permanently connected to R , until
cc d
the first passage of the U under the end-point voltage defined in Table 5 is obtained.
cc
1) First measurement U' : the resistance R being much higher than R , U'
oc d m oc
approximates to U .
oc
The switch is left open while the measurement is being carried out.
2) Next measurement U : the battery being tested is connected to R . The switch is left
cc m
closed during the duration ∆t according to Table 7.
Table 7 – Test method A for U (CCV) measurement
cc
Batteries with KOH electrolyte All other batteries
R ∆t R ∆t
m m
Ω s Ω ms
150 ± 0,5 % 1 ± 5 % 1 500 ± 0,5 % 10 ± 5 %

3) Calculation of the capacity C: the capacity of the battery is obtained by adding the
partial capacity amounts C , calculated after each measurement with the following
p
formula:
U′ × t
oc i
C =
p
R
d
where t is the time between two measurements
i
C = Σ C
p
4) Near the end of discharge, it is recommended to carry out several measurements a
day in order to obtain sufficient accuracy.

– 18 – IEC 60086-3:2016 © IEC 2016
7.2.6.3 Method B
a) Circuitry principle (see Figure 8)
1 V 2
IEC
Key
1 reading U
cc
2 R resistance of continuous discharge
d
Figure 8 – Circuitry principle for method B
b) See procedure in 7.2.6.2 b).
c) Determination of the capacity: when the on-load voltage of the battery under test drops for
the first time below the specified end point as specified in Table 5, the time t is calculated
and defined as service life.
The capacity is calculated by the following formula:
U (average)
cc
C= t
R
d
where
C is the capacity;
U (average) is the average voltage value of U during discharge duration time (0-t);
cc cc
t is the service life.
7.2.7 Calculation of the internal resistance R during discharge in case of method A
i
(optional)
and U is carried out according to the procedure described
After each measurement of U'
oc cc
in 7.2.6, it is possible to calculate the internal resistance R of the battery using the following
i
formula:
U' − U
oc cc
R =
i
U / R
cc m
Table 8 – Discharge resistance (values)
Letter for electrochemical Letter for electrochemical
systems systems
Code number Code number
L S C B
according to the according to the
dimensions dimensions
Discharge resistance Discharge resistance
kΩ kΩ
416  1025 68
421  1212
510  1216 62
512  1220 62
514  1225 30
516 82 1612
521 68 1616 30
527 56 1620 47
610  1625
612  1632
614 120 2012 30
616 100 2016 30 30
621 68 2020 30
626 47 2025 15
710  2032 15
712 100 2312
714 68 2316
716 68 2320 15 15
721 47 2325 15
726 33 2412
731 27 2416
736 22 22 2330 15
754 15 2430 15
916 47
920 33
921 33
927 22
936 15
1116 39
1120 22
1121 22 22
1126 15
1130 15 15
1136 15
1142 10 10
1154 6,8 6,8
NOTE Blank values under consideration.

– 20 – IEC 60086-3:2016 © IEC 2016
7.3 Test methods for determining the resistance to leakage
7.3.1 Preconditioning and initial visual examination
Before carrying out the tests specified in 7.3.2 and 7.3.3, the batteries shall be submitted to a
visual examination according to the requirements stated in Clause 8.
For tests in 7.3.2.1 and 7.3.2.2, batteries shall be pre-stored at the specified temperature
(40 °C and 45 °C respectively) for 2 h. Batteries shall be moved from the preconditioning
(alternative pre-stored) chamber (or oven) into the high temperature and humidity test
chamber within minutes in order to avoid cooling of the battery and the risk of condensation at
elevated humidity.
7.3.2 High temperature and humidity test
7.3.2.1 Recommended test
The battery shall be stored under the conditions specified in Table 9.
Table 9 – Storage conditions for the recommended test
Temperature Relative humidity Test time
°C % days
90 to 95 30 or 90
40 ± 2
The test time of 30 days may be used for an accelerated routine quality control test, whereas the test time of
90 days applies to qualification testing of new batteries.

7.3.2.2 Optional test
After agreement between the manufacturer and purchaser, the following testing conditions
may be chosen (see Table 10).
Table 10 – Storage conditions for optional test
Temperature Relative humidity Test time
°C % days
90 to 95 20 or 60
45 ± 2
The test time of 20 days may be used for an accelerated routine quality control test, whereas the test time of
60 days applies to qualification testing of new batteries.

7.3.3 Test by temperature cycles
The battery shall be submitted to 150 temperature cycles according to the schedule in
Figure 9:
1 cycle
(60 ± 2) °C
Room temperature
(–10 ± 2) °C
0,5 h 1 h 1 h 1 h 1 h
IEC
Figure 9 – Test by temperature cycles

8 Visual examination and acceptance conditions
8.1 Preconditioning
Before carrying out the initial visual examination or after the tests specified in Clause 7, the
batteries shall be stored for at least 24 h at room temperature and at a relative humidity
between 55 ± 20 %.
The leakage should be observed after crystallisation of the electrolyte. The time of the
storage of 24 h can be prolonged if necessary. This examination may be applied to new or
used batteries, or to batteries which have been submitted to different tests.
8.2 Magnification
The visual examination shall be carried out at a magnification of x15.
8.3 Lighting
The visual examination shall be carried out under a diffuse white light of 900 lx to 1 100 lx at
the surface of the battery to be inspected.
8.4 Leakage levels and classification
The visual examination shall be carried out under a diffuse white light of 900 lx to 1 100 lx at
the surface of the battery to be inspected. (See Table 11).

– 22 – IEC 60086-3:2016 © IEC 2016
Table 11 – Leakage levels and classification (1 of 2)
Leakage levels
Diagram Definition
Classification Grade
Little salting found near the gasket,
affecting less than 10 % of the
perimeter of the gasket, detected while
S1
observing at a magnification of x15.
The leak is not detectable with the
naked eye
IEC
Traces of salting near gasket can be
detected with the naked eye. At a
S2 magnification of x15, it may be noted
Salting
that these salts affect more than 10 %
of the perimeter of the gasket
IEC
Salt spreads on both sides of the
gasket can be detected with the naked
S3
eye, but do not reach the flat of the
negative contact
IEC
Leaks spread in clouds on both sides of
the gasket, do reach the flat of the
C1
negative contact but do not reach the
central part of the flat negative contact
IEC
Clouds
Leaks spread in clouds, which reach
C2 the central part of the flat negative
contact
IEC
Table 11 (2 of 2)
Leakage levels
Diagram Definition
Classification Grade
The accumulation of crystallised liquid
coming from the electrolyte swells up
L1 on part of the cloud spread, which
covers the entire surface of the flat
negative contact
IEC
Leaks
The accumulation of crystallised liquid
coming from the electrolyte swells up
L2 on the entire cloud spread, which
covers the entire surface of the flat
negative contact
IEC
8.5 Acceptance conditions
The acceptable level, as well as the proportion of defective pieces, shall be agreed between
the manufacturer and the purchaser.
Fresh batteries, with a level of leakage exceeding S1, shall not be submitted for qualification.
The acceptance criteria may be less restrictive for batteries which have been tested according
to 7.3.2. If necessary, photographic references may be established.

– 24 – IEC 60086-3:2016 © IEC 2016
Annex A
(normative)
Designation
Watch batteries manufactured with the express purpose of complying with this standard
should be designated by a system of coded letters and numbers as shown below. However,
the letter W is used to indicate compliance with IEC 60086-3.

EXAMPLE:    S R 7 21 S W

Electrochemical system
letter according to Table 5
Round cell: (according to IEC 60086-1)

Dimension: diam
...
