ISO 8489-3:1995
(Main)Textile machinery and accessories - Cones for cross winding - Part 3: Dimensions, tolerances and designation of cones with half angle 4 degrees 20'
Textile machinery and accessories - Cones for cross winding - Part 3: Dimensions, tolerances and designation of cones with half angle 4 degrees 20'
Specifies the main dimensions, tolerances and designation of cones for cross winding with a half angle of cone 4° 20 ' . Furthermore, directives are given for the characteristics of cones and for the control of the diameters and lengths of the cone.
Matériel pour l'industrie textile — Cônes pour bobinage croisé — Partie 3: Dimensions, tolérances et désignation des cônes avec demi-angle au sommet de 4 degrés 20'
General Information
- Status
- Published
- Publication Date
- 20-Dec-1995
- Current Stage
- 9599 - Withdrawal of International Standard
- Start Date
- 16-Oct-2024
- Completion Date
- 13-Dec-2025
Relations
- Effective Date
- 15-Apr-2008
Overview
ISO 8489-3:1995 specifies the dimensions, tolerances and designation for cones used in cross winding with a half angle of 4° 20'. It is part of the ISO 8489 series for cones for cross winding in textile machinery. The standard describes cone types, dimensional checks using gauges, and the information manufacturers must supply for reliable use and interchangeability.
Key topics and requirements
- Scope and cone types
- Applies specifically to cones for cross winding with a half angle of 4° 20' (also referenced as ISO 8489-3).

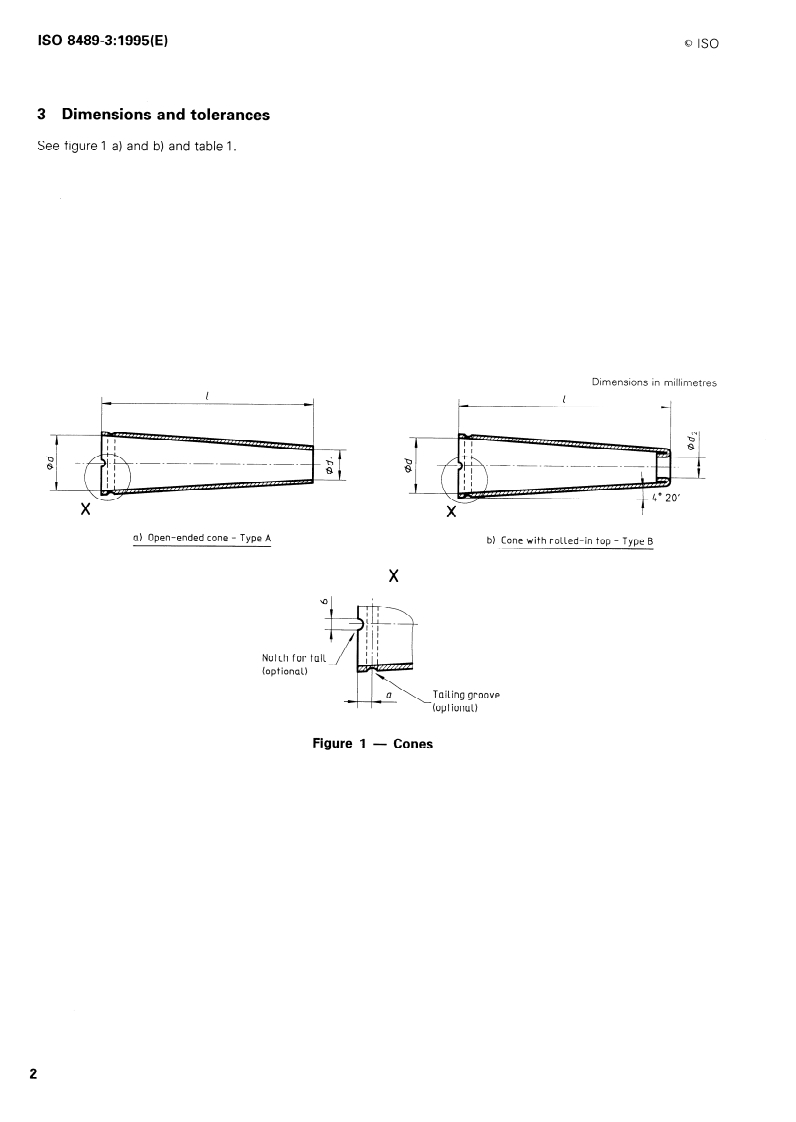

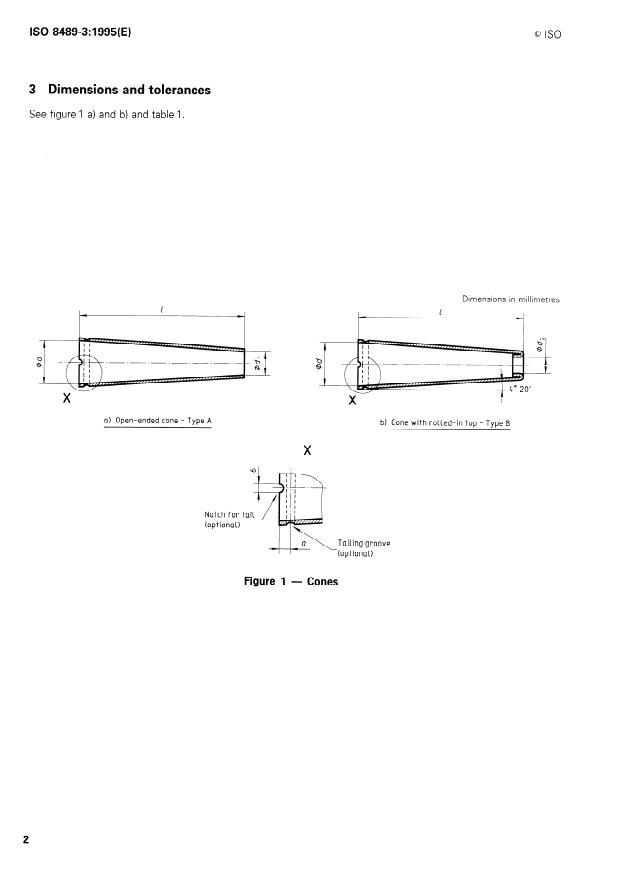

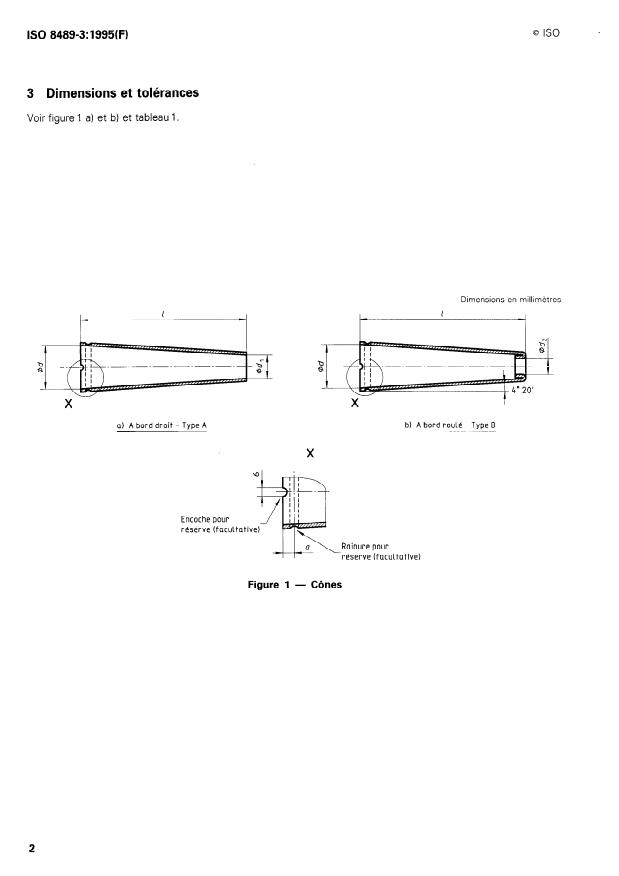

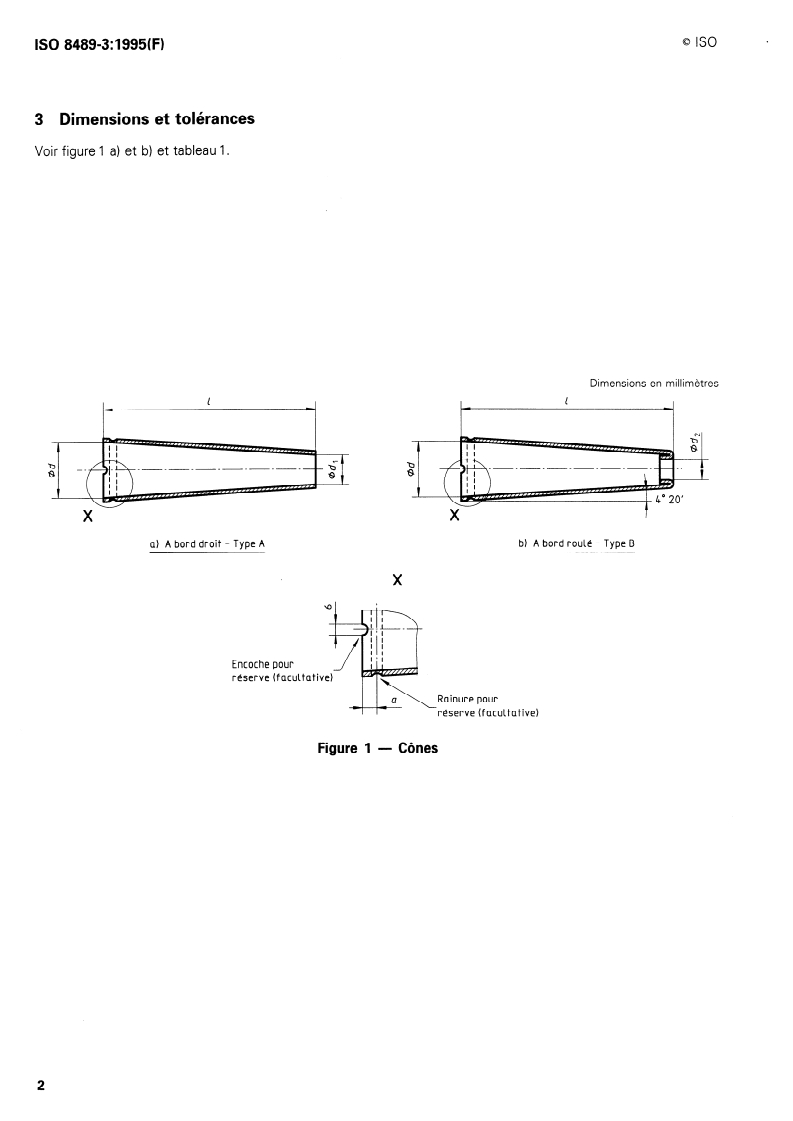

- Defines two types: Type A (open-ended) and Type B (cone with rolled-in top).
- Main dimensions and tolerances
- Nominal inner diameters and lengths are tabulated (examples include sizes such as 55 x 145 mm, 59 x 170 mm, 80 x 230 mm - see table 1 in the standard).
- Deviations from the half-angle are controlled by dimensional tolerances for the cone diameters and length.
- Characteristics manufacturers must state
- Material (paper or plastic)
- Surface treatment (e.g., untreated, impregnated, lacquered for paper cones)
- Yarn type to be wound, wall thickness, run-out tolerance, tailing grooves/notches, and perforation details
- Minimum distance between cone ends and hole edges (specified as 16 mm + 0.5 mm)
- Gauges and measurement
- Conical gauges/plug gauges are defined to check inner diameters; gauge tolerances for diameters use the ISO 286-1 fit system (js6 tolerance).
- Cone length must be checked with a slide-gauge or suitable length gauge (conical gauges are not used for length checks).
- Designation format
- Standardized ordering format: “Cone ISO 8489-3 - [Type] [large inner diameter] x [length]”
- Example: Cone ISO 8489-3 - A 59 x 170
Applications and users
- Who uses ISO 8489-3:
- Cone manufacturers specifying production tolerances and material/finish
- Textile machinery OEMs and winding-equipment designers ensuring cone compatibility
- Quality control and inspection teams verifying cone dimensions and run-out
- Procurement and spec writers placing orders for cones used in cross winding and automatic winding systems
- Practical benefits:
- Ensures interchangeability between cones and winding machines
- Supports consistent winding performance, improved downstream processing, and automation compatibility
Related standards
- ISO 8489-1 (recommended main dimensions)
- ISO 286-1 (ISO system of limits and fits), referenced for gauge tolerances
Keywords: ISO 8489-3:1995, cones for cross winding, textile machinery, cone dimensions, tolerances, designation, gauges, half angle 4°20'
ISO 8489-3:1995 - Textile machinery and accessories — Cones for cross winding — Part 3: Dimensions, tolerances and designation of cones with half angle 4 degrees 20' Released:12/21/1995
ISO 8489-3:1995 - Matériel pour l'industrie textile — Cônes pour bobinage croisé — Partie 3: Dimensions, tolérances et désignation des cônes avec demi-angle au sommet de 4 degrés 20' Released:12/21/1995
Frequently Asked Questions
ISO 8489-3:1995 is a standard published by the International Organization for Standardization (ISO). Its full title is "Textile machinery and accessories - Cones for cross winding - Part 3: Dimensions, tolerances and designation of cones with half angle 4 degrees 20'". This standard covers: Specifies the main dimensions, tolerances and designation of cones for cross winding with a half angle of cone 4° 20 ' . Furthermore, directives are given for the characteristics of cones and for the control of the diameters and lengths of the cone.
Specifies the main dimensions, tolerances and designation of cones for cross winding with a half angle of cone 4° 20 ' . Furthermore, directives are given for the characteristics of cones and for the control of the diameters and lengths of the cone.
ISO 8489-3:1995 is classified under the following ICS (International Classification for Standards) categories: 59.120.20 - Winding machines and equipment. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 8489-3:1995 has the following relationships with other standards: It is inter standard links to ISO 111:1978. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ISO 8489-3:1995 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
INTERNATIONAL
ISO
STANDARD
8489-3
First edition
1995-12-15
Textile machinery and accessories -
Cones for Cross winding -
Part 3:
Dimensions, tolerantes and designation
of cones with half angle 4” 20’
Materie/ pour I ’industrie textile
- C6nes pour bobinage croise -
Partie 3: Dimensions, tokrances et dhignation des ches avec
demi-angle au sommet de 4” 20’
Reference number
ISO 8489-33 995(E)
ISO 8489=3:1995(E)

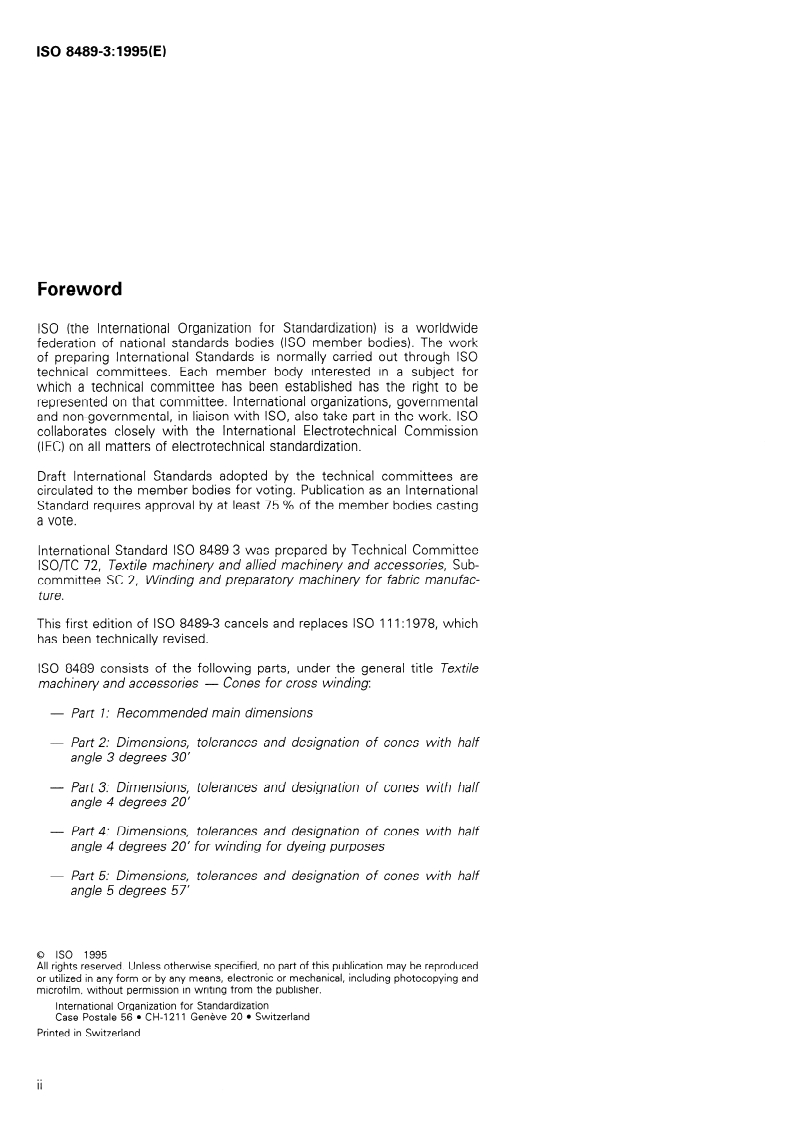

Foreword
ISO (the International Organization for Standardization) is a worldwide
federation of national Standards bodies (ISO member bodies). The work
of preparing International Standards is normally carried out through ISO
technical committees. Esch member body interested in a subject for
which a technical committee has been established has the right to be
represented on that committee. International organizations, governmental
and non-governmental, in liaison with ISO, also take part in the work. ISO
collaborates closely with the International Electrotechnical Commission
(IEC) on all matters of electrotechnical standardization.
Draft International Standards adopted by the technical committees are
circulated to the member bodies for voting. Publication as an International
Standard requires approval by at least 75 % of the member bodies casting
a vote.
International Standard ISO 8489-3 was prepared by Technical Committee
lSO/TC 72, Textile machinery and allied machinery and accessories, Sub-
committee SC 2, VVinding and preparatory machinery for fabric manufac-
tue.
This first edition of ISO 8489-3 cancels and replaces ISO 111 :1978, which
has been technically revised.
ISO 8489 consists of the following Parts, under the general title Textile
machinery and accessories - Cones for Cross winding:
- Part 7: ßecommended main dimensions
- Part 2: Dimensions, tolerantes and designation of cones with half
angle 3 degrees 30’
- Part 3: Dimensions, tolerantes and designation of cones with half
angle 4 degrees 20’
- Part 4: Dimensions, tolerantes and designation of cones
with half
angle 4 degrees 20’ for winding for dyeing purposes
- Part 5: Dimensions, tolerantes and designation of cones with half
angle 5 degrees 57’
0 ISO 1995
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced
or utilized in any form or any means, electronie or mechanical, including photocopying and
bY
microfilm, without perm issi on in writing from the publisher.
International Organization for Standardization
Case Postale 56 l CH-l 211 Geneve 20 l Switzerland
Printed in Switzerland
ISO 8489=3:1995(E)
INTERNATIONAL STANDARD 0 ISO
Textile machinery and accessories - Cones for Cross
winding -
Part 3:
Dimensions, tolerantes and designation of cones with half
angle 4” 20’
1 Scope
This patt of ISO 8489 specifies the main dimensions, tolerantes and designation of cones for Cross winding with
a half angle of cone 4” 20 ’. Furthermore, directives are given for the characteristics of cones and for the control
of the diameters and lengths of the cone.
2 Normative references
The following Standards contain provisions which, through reference in this text, constitute provisions of this part
of ISO 8489. At the time of publication, the editions indicated were valid. All Standards are subject to revision, and
Parties to agreements based on this patt of ISO 8489 are encouraged to investigate the possibility of applying the
most recent editions of the Standards indicated below. Members of IEC and ISO maintain registers of currently
valid International Standards.
- Part 7: Bases of tolerantes, deviations and fits.
ISO 286-1: 1988, ISO System of limits and fits
ISO 8489-1 :1995, Textile machinery and accessories - Cones for Cross winding - Part 7: ßecommended main
dimensions.
ISO 8489-3: 1995(
...
