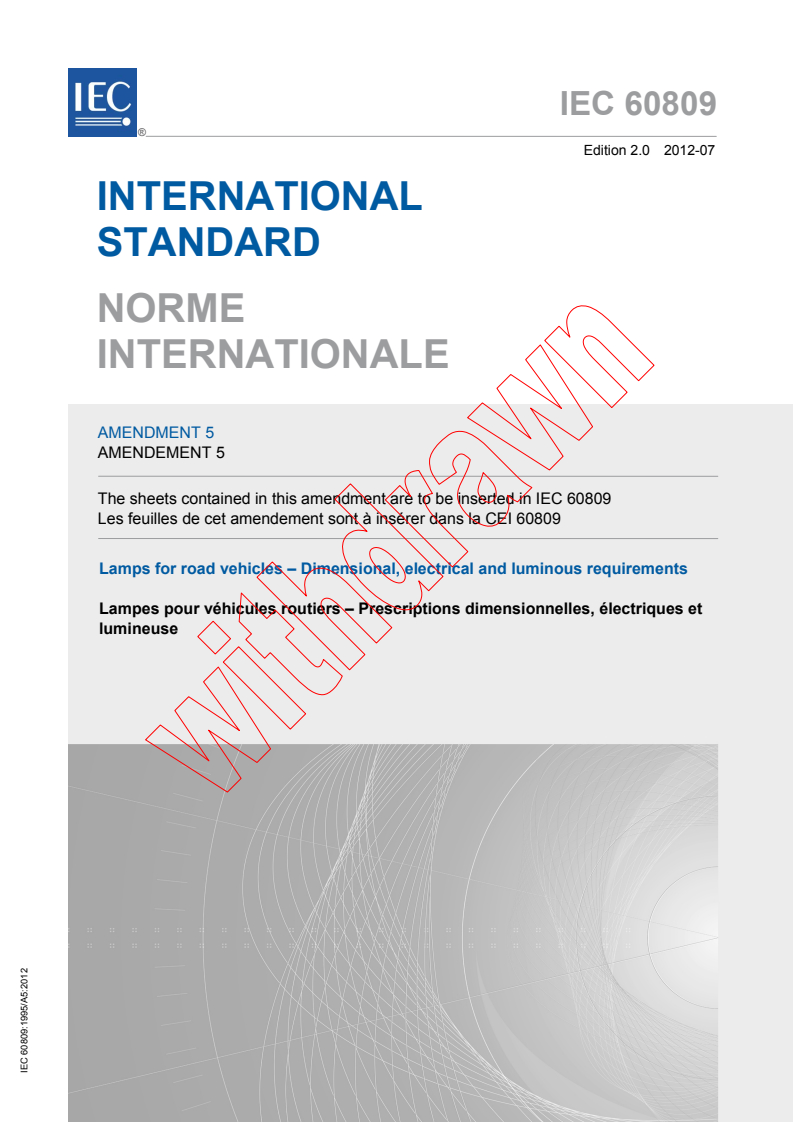

IEC 60809:1995/AMD5:2012

IEC 60809
®

Edition 2.0 2012-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 5
AMENDEMENT 5
The sheets contained in this amendment are to be inserted in IEC 60809
Les feuilles de cet amendement sont à insérer dans la CEI 60809


Lamps for road vehicles – Dimensional, electrical and luminous requirements

Lampes pour véhicules routiers – Prescriptions dimensionnelles, électriques et
lumineuse

IEC 60809:1995/A5:2012

---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2012 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.


Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les
microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch

About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:

IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: csc@iec.ch.


A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:

Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: csc@iec.ch.

---------------------- Page: 2 ----------------------

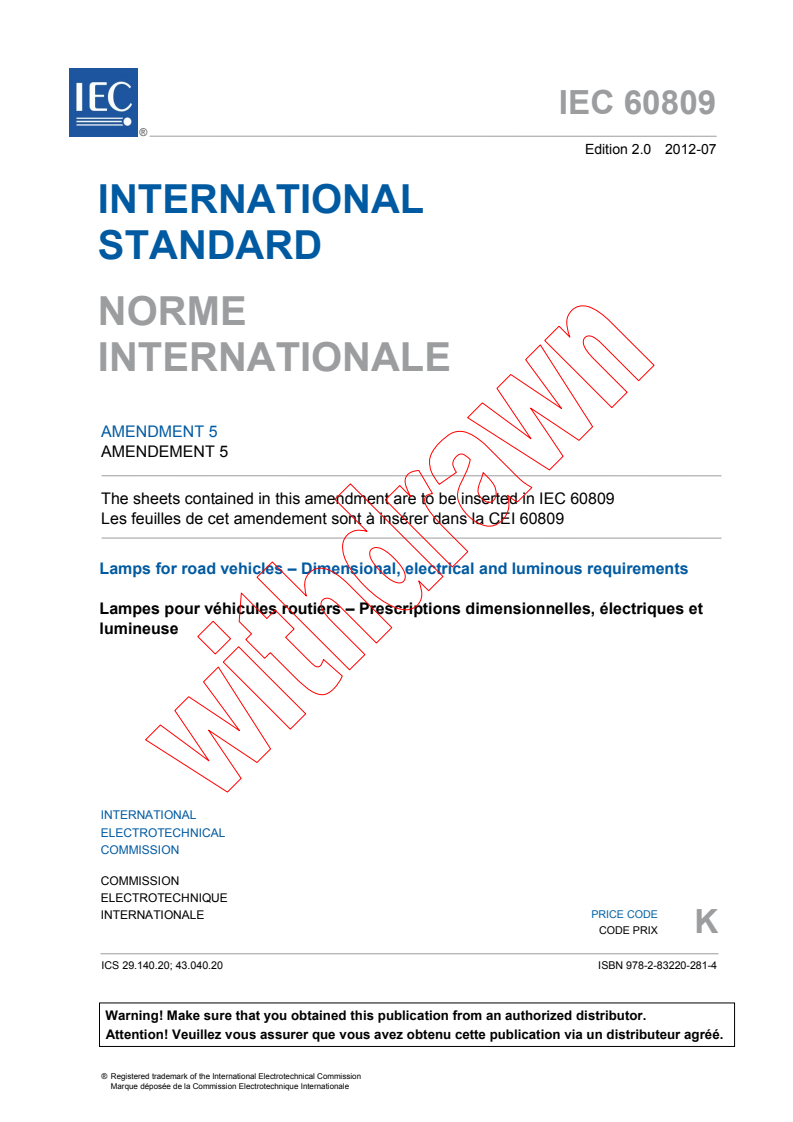

IEC 60809

®


Edition 2.0 2012-07




INTERNATIONAL



STANDARD




NORME



INTERNATIONALE




AMENDMENT 5

AMENDEMENT 5



The sheets contained in this amendment are to be inserted in IEC 60809

Les feuilles de cet amendement sont à insérer dans la CEI 60809




Lamps for road vehicles – Dimensional, electrical and luminous requirements



Lampes pour véhicules routiers – Prescriptions dimensionnelles, électriques et


lumineuse













INTERNATIONAL

ELECTROTECHNICAL

COMMISSION


COMMISSION

ELECTROTECHNIQUE

PRICE CODE
INTERNATIONALE

CODE PRIX K


ICS 29.140.20; 43.040.20 ISBN 978-2-83220-281-4



Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale

---------------------- Page: 3 ----------------------

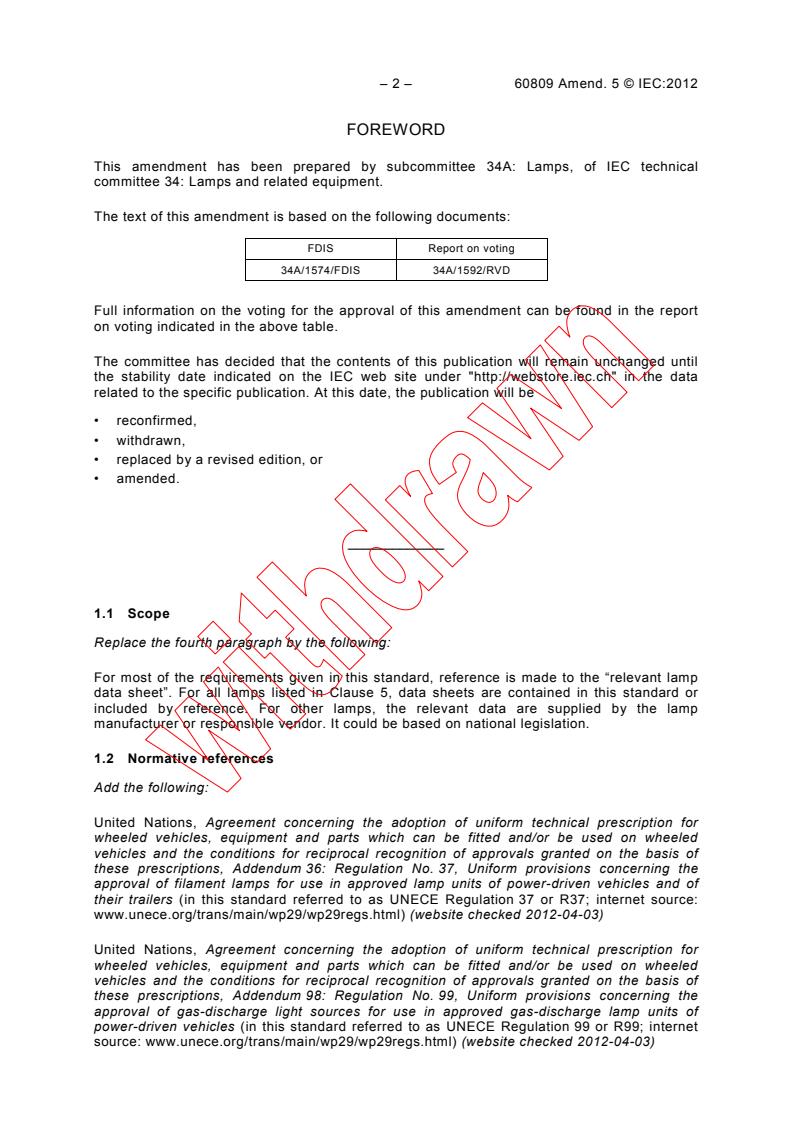

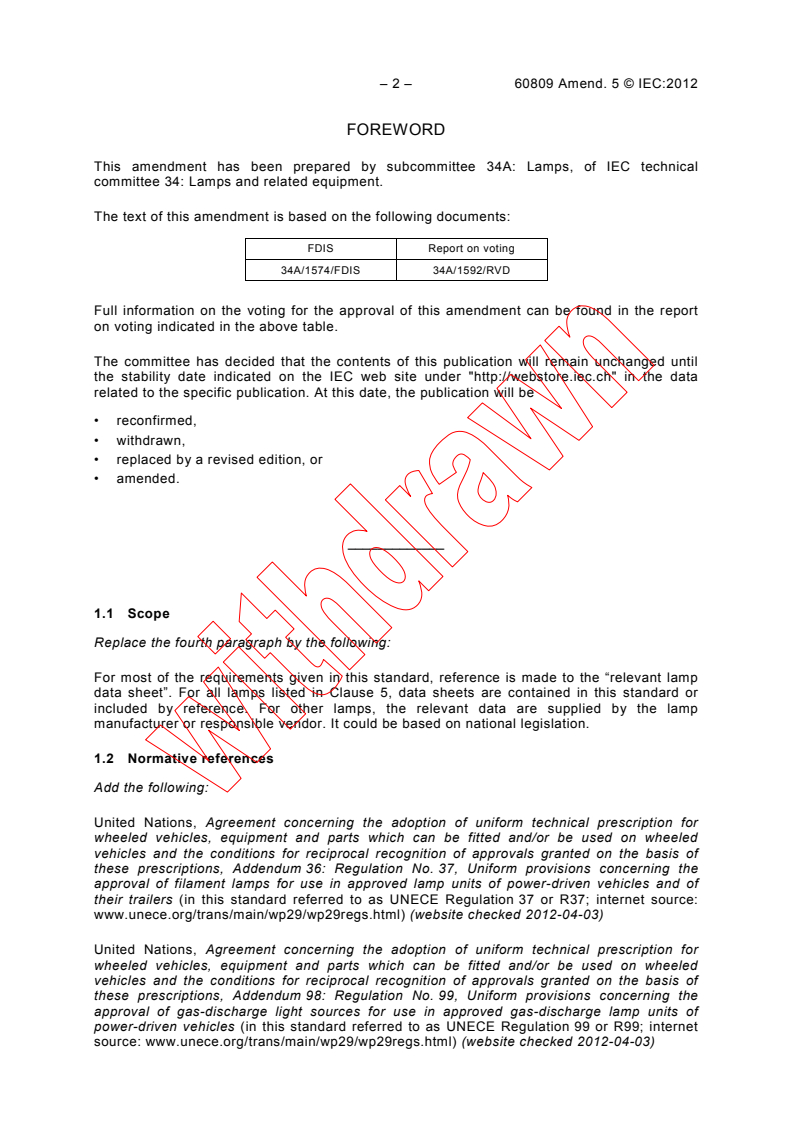

– 2 – 60809 Amend. 5 © IEC:2012
FOREWORD
This amendment has been prepared by subcommittee 34A: Lamps, of IEC technical
committee 34: Lamps and related equipment.
The text of this amendment is based on the following documents:
FDIS Report on voting
34A/1574/FDIS 34A/1592/RVD

Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

_____________

1.1 Scope
Replace the fourth paragraph by the following:
For most of the requirements given in this standard, reference is made to the “relevant lamp
data sheet”. For all lamps listed in Clause 5, data sheets are contained in this standard or
included by reference. For other lamps, the relevant data are supplied by the lamp
manufacturer or responsible vendor. It could be based on national legislation.
1.2 Normative references
Add the following:
United Nations, Agreement concerning the adoption of uniform technical prescription for
wheeled vehicles, equipment and parts which can be fitted and/or be used on wheeled
vehicles and the conditions for reciprocal recognition of approvals granted on the basis of
these prescriptions, Addendum 36: Regulation No. 37, Uniform provisions concerning the
approval of filament lamps for use in approved lamp units of power-driven vehicles and of
their trailers (in this standard referred to as UNECE Regulation 37 or R37; internet source:
www.unece.org/trans/main/wp29/wp29regs.html) (website checked 2012-04-03)
United Nations, Agreement concerning the adoption of uniform technical prescription for
wheeled vehicles, equipment and parts which can be fitted and/or be used on wheeled
vehicles and the conditions for reciprocal recognition of approvals granted on the basis of
these prescriptions, Addendum 98: Regulation No. 99, Uniform provisions concerning the
approval of gas-discharge light sources for use in approved gas-discharge lamp units of
power-driven vehicles (in this standard referred to as UNECE Regulation 99 or R99; internet
source: www.unece.org/trans/main/wp29/wp29regs.html) (website checked 2012-04-03)

---------------------- Page: 4 ----------------------
60809 Amend. 5 © IEC:2012 – 3 –
1.3.6
nominal voltage
Add the following note to entry to the definition:
Note 1 to entry: The term used in the UNECE regulations is "rated voltage".
1.3.9
rated value
Add the following note to entry to the definition:
Note 1 to entry: The term used in the UNECE regulations is "objective value".
1.3.17
production lamp
Add the following note to entry to the definition:
Note 1 to entry: The term used in the UNECE regulations is "lamp of normal production".
Add the following new Definitions 1.3.19 and 1.3.20:
1.3.19
main beam
No definition given.
Note 1 to entry: The term used in the UNECE regulations is "driving beam".
1.3.20
dipped beam
No definition given.
Note 1 to entry: The term used in the UNECE regulations is "passing beam".
2.4.1 Colour of light
Replace the existing last paragraph by the following:
For conformity of production purposes of amber and red colour only, at least 80 % of the
measuring results shall lie within the required tolerance area.
2.4.2 Colour endurance
Replace the existing text of Subclause 2.4.2 by the following:
Filament lamps, but for conformity of production purposes only colour coated lamps, for use in
light signalling devices shall be operated under test conditions for colour endurance
measurements as specified in Annex K.
Thereafter the colour of the light shall be measured by the method specified in Annex B, and
all measuring results, but for amber and red colour at least 80 % of the measuring results for
conformity of production purposes, shall be within the limits specified in 2.4.1.
In case of colour filter coatings, no cracks in these coatings shall be visible without specific
optical tools.
Test samples that have been operated under conditions as specified in Annex K shall no
longer be used in light signalling devices and are to be considered end of life for that purpose.

---------------------- Page: 5 ----------------------
– 4 – 60809 Amend. 5 © IEC:2012
5.1 List of specific lamp types
Replace the list of specific lamp types with the following:
1
UNECE sheet Category Voltage Wattage Cap
IEC sheet no.
2
no.
V W
60809-IEC-2110- R37-R2 R2 6 45/40 P45t
12 45/40 P45t
24 55/50 P45t
60809-IEC-2120- R37-H4 H4 12 60/55 P43t-38
24 75/70 P43t-38
60809-IEC-2125- - H6 12 65/55 PZ43t
60809-IEC-2130- R37-HS1 HS1 6 35/35 PX43t
12 35/35 PX43t
60809-IEC-2132- R37-HS5 HS5 12 35/30 P23t
60809-IEC-2135- - HB1 12 65/45 P29t
60809-IEC-2140- R37-S1/S2 S1 6 25/25 BA20d
12 25/25 BA20d
60809-IEC-2150- R37-S1/S2 S2 6 35/35 BA20d
12 35/35 BA20d
60809-IEC-2160- - S4 6 15/15 BAX15d
12 15/15 BAX15d
60809-IEC-2305- - H5 12 50 PY43d
60809-IEC-2310- R37-H1 H1 6 55 P14.5s
12 55 P14.5s
24 70 P14.5s
60809-IEC-2315- R37-H7 H7 12 55 PX26d
24 70 PX26d
60809-IEC-2320- - H2 6 55 X511
12 55 X511
24 70 X511
60809-IEC-2325- R37-HB3 HB3 12 60 P20d
HB3A 12 60 P20d
60809-IEC-2330- R37-H3 H3 6 55 PK22s
12 55 PK22s
24 70 PK22s
60809-IEC-2335- R37-HB4 HB4 12 51 P22d
HB4A 12 51 P22d
60809-IEC-2340- R37-HS2 HS2 6 15 PX13.5s
12 15 PX13.5s
60809-IEC-2350- - HS3 6 2,4 PX13.5s
60809-IEC-2360- R37-S3 S3 6 15 P26s
12 15 P26s
60809-IEC-2365- R37-H8 H8 12 35 PGJ19-1
60809-IEC-2370- R37-H9 H9 12 65 PGJ19-5
60809-IEC-2375- R37-H10 H10 12 42 PY20d
60809-IEC-2380- R37-H11 H11 12 55 PGJ19-2
24 70 PGJ19-2
60809-IEC-2385- R37-H12 H12 12 53 PZ20d
60809-IEC-2410- R37-HIR1 HIR1 12 65 PX20d
___________
1
 If an UNECE sheet number is referenced in the second column, the IEC sheet number refers to a data sheet
withdrawn with Amendment 5 of this standard and is given for information only.
2
 The number in front of the dash indicates the number of the UNECE regulation.

---------------------- Page: 6 ----------------------
60809 Amend. 5 © IEC:2012 – 5 –
1
UNECE sheet Category Voltage Wattage Cap
IEC sheet no.
2
no.
V W
60809-IEC-2420- R37-HIR2 HIR2 12 55 PX22d
60809-IEC-3110- R37-P21/5W P21/5W 6 21/5 BAY15d
12 21/5 BAY15d
24 21/5 BAY15d
60809-IEC-3120- R37-P21/4W P21/4W 6 21/4 BAZ15d
12 21/4 BAZ15d
24 21/4 BAZ15d
60809-IEC-3130- R37-W21/5W W21/5W 12 21/5 W3x16q
60809-IEC-3135- R37-WR21/5W WR21/5W 12 21/5 WY3x16q
60809-IEC-3140- R37-P27/7W P27/7W 12 27/7 W2.5x16q
60809-IEC-3141- R37-PY27/7W PY27/7W 12 27/7 WX2.5x16q
60809-IEC-3310- R37-P21W P21W 6 21 BA15s(BA15d)
12 21 BA15s(BA15d)
24 21 BA15s(BA15d)
60809-IEC-3311- R37-PY21W PY21W 12 21 BAU15s
24 21 BAU15s
60809-IEC-3315- R37-P27W P27W 12 27 W2.5x16d
60809-IEC-3320- R37-R5W R5W 6 5 BA15s(BA15d)
12 5 BA15s(BA15d)
24 5 BA15s(BA15d)
60809-IEC-3330- R37-R10W R10W 6 10 BA15s(BA15d)
12 10 BA15s(BA15d)
24 10 BA15s(BA15d)
60809-IEC-3340- R37-T4W T4W 6 4 BA9s
12 4 BA9s
24 4 BA9s
60809-IEC-3410- R37-H6W H6W 12 6 BAX9s
60809-IEC-3420- R37-H21W H21W 12 21 BAY9s
24 21 BAY9s
60809-IEC-3430 R37-H27W H27W/1 12 27 PG13
H27W/2 12 27 PGJ13
60809-IEC-4110- R37-C5W C5W 6 5 SV8.5
12 5 SV8.5
24 5 SV8.5
60809-IEC-4120- R37-C21W C21W 12 21 SV8.5
60809-IEC-4305- R37-W2.3W W2.3W 12 2,3 W2x4.6d
60809-IEC-4310 R37-W3W W3W 6 3 W2.1x9.5d
12 3 W2.1x9.5d
24 3 W2.1x9.5d
60809-IEC-4320- R37-W5W W5W 6 5 W2.1x9.5d
12 5 W2.1x9.5d
24 5 W2.1x9.5d
60809-IEC-4321- R37-W5W WY5W 6 5 W2.1x9.5d
12 5 W2.1x9.5d
24 5 W2.1x9.5d
60809-IEC-4330- R37-W21W W21W 12 21 W3x16d
60809-IEC-4335- R37-WY21W WY21W 12 21 WX3x16d
60809-IEC-4340- R37-W16W W16W 12 16 W2.1x9.5d
60809-IEC-5010- R37-T1.4W T1.4W 12 1,4 P11.5d
60809-IEC-7110- R99-DxS D1S 12 35 PK32d-2
D2S 12 35 P32d-2
D3S 12 35 PK32d-5
D4S 12 35 P32d-5

---------------------- Page: 7 ----------------------
– 6 – 60809 Amend. 5 © IEC:2012
1
UNECE sheet Category Voltage Wattage Cap
IEC sheet no.
2
no.
V W
60809-IEC-7120- R99-DxR D1R 12 35 PK32d-3
D2R 12 35 P32d-3
D3R 12 35 PK32d-6
D4R 12 35 P32d-6
60809-IEC-9310- - B1.13W 2,7 1,13 PX13.5s
60809-IEC-9610- - B0.6W 6 0,6 E10
60809-IEC-9620- - B2.4W 6 2,4 EP10/14x11
- R37-H10W H10W/1 12 10 BAU9s
HY10W 12 10 BAUZ9s
- R37-H11 H11B 12 55 PGJY19-2
24 70 PGJY19-2
- R37-H13 H13 12 55/60 P26.4t
H13A 12 55/60 PJ26.4t
- R37-H14 H14 12 55/60 P38t
- R37-H15 H15 12 15/55 PGJ23t-1
24 20/60 PGJ23t-1
- R37-H16 H16 12 19 PGJ19-3
H16B 12 19 PGJY19-3
- R37-H21W HY21W 12 21 BAW9s
24 21 BAW9s
- R37-H6W HY6W 12 6 BAZ9s
- R37-H8 H8B 12 35 PGJY19-1
- R37-H9 H9B 12 65 PGJY19-5
- R37-HS5A HS5A 12 45/40 PX23t
- R37-P13W P13W 12 13 PG18.5d-1
PW13W 12 13 WP3.3x14.5-7
- R37-P19W P19W 12 19 PGU20-1
PY19W 12 19 PGU20-2
PR19W 12 19 PGU20-5
PG20-1
PS19W 12 19
PSY19W 12 19 PG20-2
PSR19W 12 19 PG20-5
PW19W 12 19 WP3.3x14.5-1
PWR19W 12 19 WP3.3x14.5-2
PWY19W 12 19 WP3.3x14.5-5
- R37-P24W P24W 12 24 PGU20-3
PX24W 12 24 PGU20-7
PY24W 12 24 PGU20-4
PR24W 12 24 PGU20-6
PS24W 12 24 PG20-3
PSX24W 12 24 PG20-7
PSY24W 12 24 PG20-4
PSR24W 12 24 PG20-6
PW24W 12 24 WP3.3x14.5-3
PWR24W 12 24 WP3.3x14.5-4
PWY24W 12 24 WP3.3x14.5-6
- R37-P27/7W P27/7W 12 27/7 WU2.5x16
- R37-PC16W PC16W 12 16 PU20d-1
PCY16W 12 16 PU20d-2
PCR16W 12 16 PU20d-7
PW16W 12 16 WP3.3x14.5-8
PWR16W 12 16 WP3.3x14.5-9
PWY16W 12 16 WP3.3x14.5-10
R37-PR21/4W PR21/4W 12 21/4 BAU15d
-
24 21/4 BAU15d
- R37-PR21/5W PR21/5W 12 21/5 BAW15d
24 21/5 BAW15d

---------------------- Page: 8 ----------------------
60809 Amend. 5 © IEC:2012 – 7 –
1
UNECE sheet Category Voltage Wattage Cap
IEC sheet no.
2
no.
V W
- R37-PR21W PR21W 12 21 BAW15s
24 21 BAW15s
- R37-PSX26W PSX26W 12 26 PG18.5d-3
- R37-R10W RR10W 6 10 BAW15s
RR10W 12 10 BAW15s
RR10W 24 10 BAW15s
RY10W 6 10 BAU15s
RY10W 12 10 BAU15s
RY10W 24 10 BAU15s
- R37-R5W RR5W 6 5 BAW15s
12 5 BAW15s
24 5 BAW15s
- R37-W10W W10W 6 10 W2.1x9.5d
W10W 12 10 W2.1x9.5d
WY10W 6 10 W2.1x9.5d
WY10W 12 10 W2.1x9.5d
- R37-W15/5W W15/5W 12 15/5 WZ3x16q
- R37-W16W WY16W 12 16 W2.1x9.5d
- R37-W5W WR5W 6 5 W2.1x9.5d
12 5 W2.1x9.5d
24 5 W2.1x9.5d
- R37-WP21W WP21W 12 21 WY2.5x16d
WPY21W 12 21 WZ2.5x16d
- R37-WR21/5W WR21/5W 12 21/5 WY3x16q
- R37-WY2.3W WY2.3W 12 2,3 W2x4.6d
- R37-WY21W WY21W 12 21 WX3x16d


Data sheets
Remove the following data sheets:
60809-IEC-2110, 60809-IEC-2120, 60809-IEC-2130, 60809-IEC-2132, 60809-IEC-2140, 60809-IEC-2150,
60809-IEC-2310, 60809-IEC-2315, 60809-IEC-2325, 60809-IEC-2330, 60809-IEC-2335, 60809-IEC-2340,
60809-IEC-2360, 60809-IEC-2365, 60809-IEC-2370, 60809-IEC-2375, 60809-IEC-2380, 60809-IEC-2385,
60809-IEC-2410, 60809-IEC-2420, 60809-IEC-3110, 60809-IEC-3120, 60809-IEC-3130, 60809-IEC-3135,
60809-IEC-3140, 60809-IEC-3141, 60809-IEC-3310, 60809-IEC-3311, 60809-IEC-3315, 60809-IEC-3320,
60809-IEC-3330, 60809-IEC-3340, 60809-IEC-3410, 60809-IEC-3420, 60809-IEC-3430, 60809-IEC-4110,
60809-IEC-4120, 60809-IEC-4305, 60809-IEC-4310, 60809-IEC-4320, 60809-IEC-4321, 60809-IEC-4330,
60809-IEC-4335,  60809-IEC-4340,  60809-IEC-5010,  60809-IEC-7110 and 60809-IEC-7120.

---------------------- Page: 9 ----------------------
– 8 – 60809 Amend. 5 © IEC:2012
Annex B – Measurement method of the colour of filament lamps
Replace the existing Clause B.1 by the following:
B.1 General
Measurements shall be made on finished lamps. Filament lamps with secondary (outer) bulb
acting as colour filter shall be handled as filament lamp with primary bulb.
Tests shall be made at an ambient temperature of 23 °C ± 5 °C.
Tests shall be made at test voltage as specified in the relevant filament lamp data sheet.
Filament lamps shall be measured preferably in the normal operating position. In case of dual
filament lamps, the high wattage (major or driving-beam) filament shall be operated only.
Before starting a test, the stabilisation of the temperature of the filament lamp shall be
obtained by operating at test voltage for 10 min.
Replace the existing Clause B.3 by the following (Figure B.1 and Figure B.2 remain
unchanged):
B.3 Measuring directions
B.3.1 General
Initially, the receiver shall be positioned perpendicular to the lamp axis and to the filament
axis (or plane in case of a curved filament). After measurement, the receiver shall be moved
around the filament lamp in bi-directional steps of about 30° until the area specified in B.3.2
or B.3.3 is covered. In each position, a measurement shall be made. However, no
measurement shall be made when:
– the centreline of the receiver coincides with the filament axis; or
– the line of sight between the receiver and the filament is blocked by opaque (non-transmit
tent) parts of the light source, such as lead wires or a second filament, if any.
B.3.2 Filament lamps used in headlamps
Measurements shall be made in directions around the filament lamp with the centreline of the
receiver aperture located within an angle ± 30° from the plane perpendicular to the lamp axis
and with the origin in the centre of the filament (see Figure B.1). In case of filament lamps
with two filaments, the centre of the driving-beam filament shall be taken.
B.3.3 Filament lamps used in light signalling devices
Measurements shall be made around the filament lamp (see Figur
...
