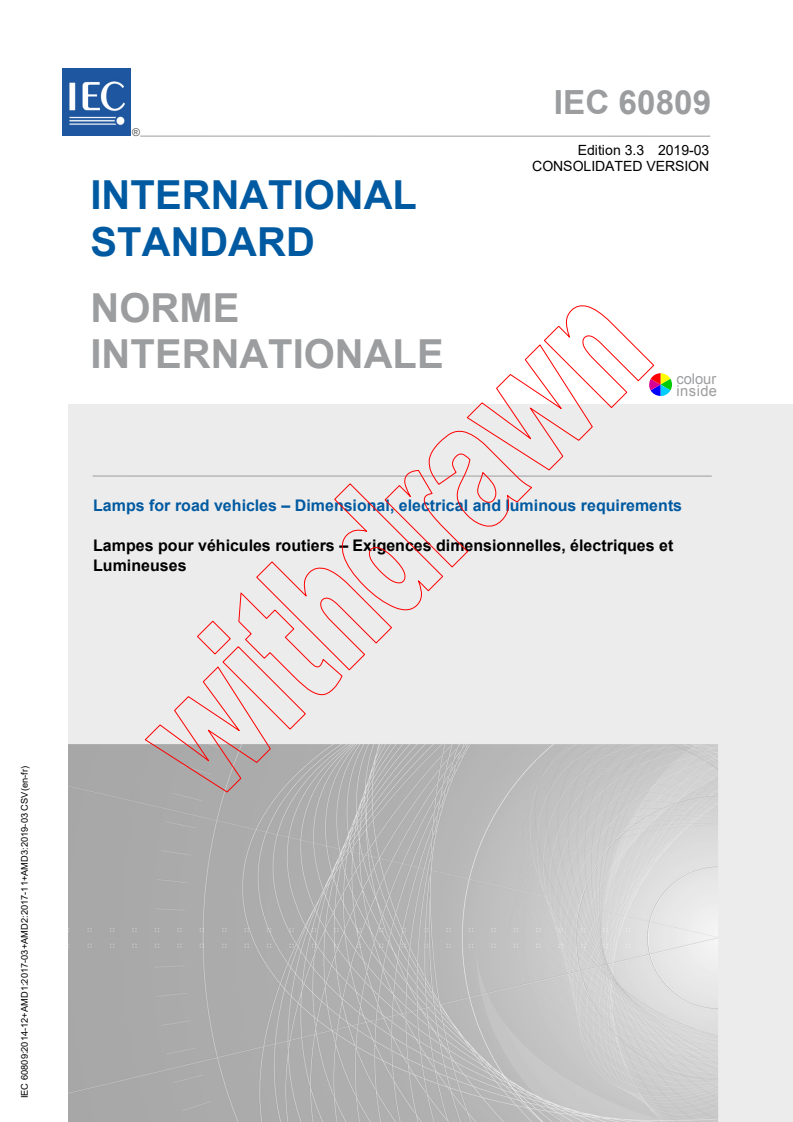

IEC 60809:2014

IEC 60809 ®
Edition 3.3 2019-03
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Lamps for road vehicles – Dimensional, electrical and luminous requirements

Lampes pour véhicules routiers – Exigences dimensionnelles, électriques et
Lumineuses

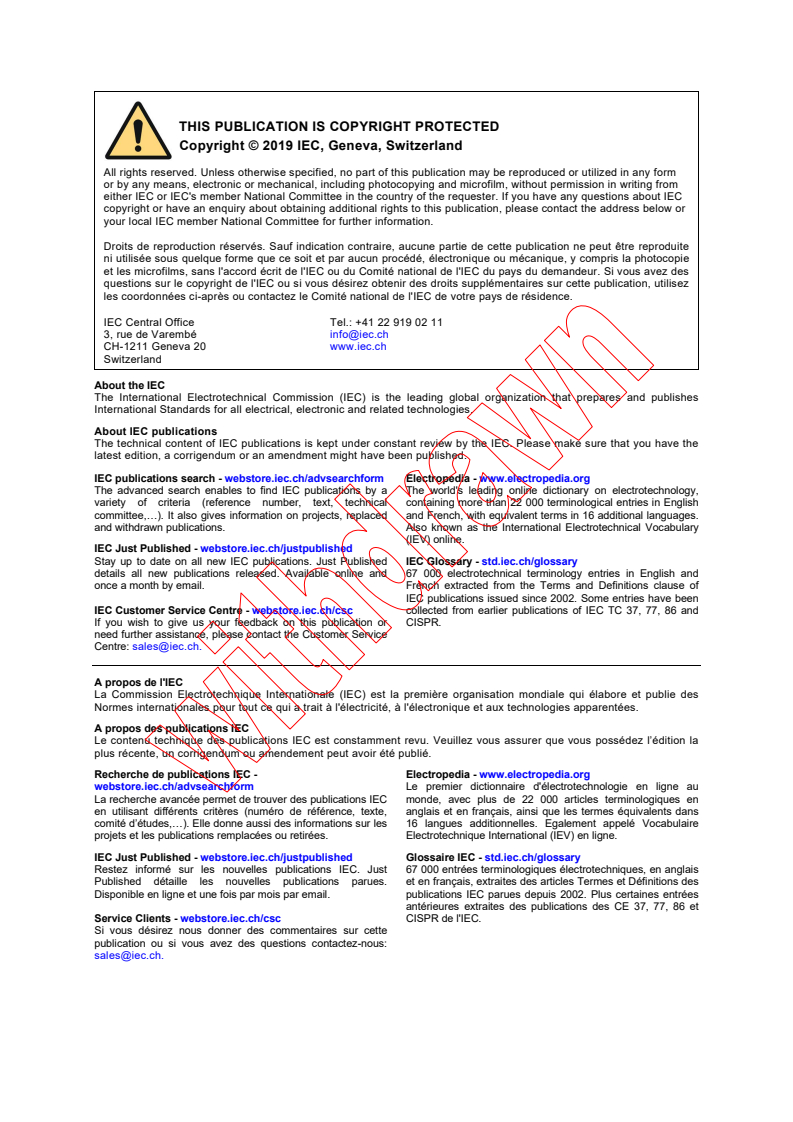

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.

need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au

La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées
antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.

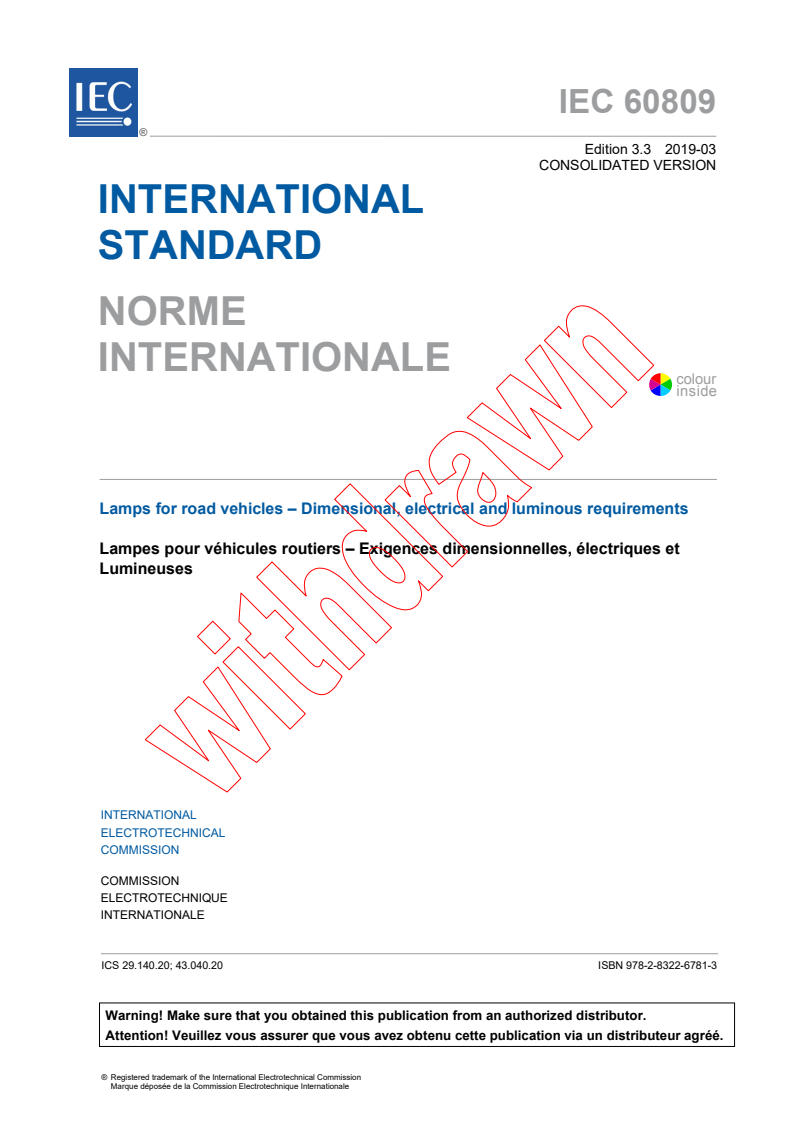

IEC 60809 ®
Edition 3.3 2019-03
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Lamps for road vehicles – Dimensional, electrical and luminous requirements

Lampes pour véhicules routiers – Exigences dimensionnelles, électriques et

Lumineuses
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.20; 43.040.20 ISBN 978-2-8322-6781-3

IEC 60809 ®
Edition 3.3 2019-03
CONSOLIDATED VERSION
REDLINE VERSION
VERSION REDLINE
colour
inside
Lamps for road vehicles – Dimensional, electrical and luminous requirements

Lampes pour véhicules routiers – Exigences dimensionnelles, électriques et
Lumineuses
 IEC 2017
INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
IEC 60809
Edition 3.0  2014-12
LAMPS FOR ROAD VEHICLES –
DIMENSIONAL, ELECTRICAL AND LUMINOUS REQUIREMENTS

INTERPRETATION SHEET 1
This interpretation sheet has been prepared by subcommittee 34A: Lamps, of IEC technical
committee 34: Lamps and related equipment.
The text of this interpretation sheet is based on the following documents:
ISH Report on voting
34A/2007/ISH 34A/2017/RVD
Full information on the voting for the approval of this interpretation sheet can be found in the
report on voting indicated in the above table.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
___________
Introduction (not part of the proposal)
In the Amendment 1 to Ed.3 (34A/1901/CDV voted positively), Annex E was updated to
extend the method of measuring internal elements of dual filament lamps to all such
categories, for instance the new category H19.
In the amendment of the current category sheet for H19 (Regulation No. 37), the distinct
physical shield width B is introduced (8,6 ± 0,3 mm) to ensure interchangeability of light
sources as it relates to road safety (see WP.29/2016/111; to become Resolution [R.E.5] on
the common specification of light source categories). In the category sheet for H19 reference
is made to Annex E of IEC 60809:2014 for the method of measurement of the internal
elements.
ICS 29.140.20; 43.040.20
– 2 – IEC 60809:2014/AMD1:2017/ISH1:2017

 IEC 2017
See in Figure 1 an extract from WP.29/2016/111.

Practical measurement set-ups use optical vision-systems like a projection system to

determine the dimensions of the internal elements.

Figure 1 – Category sheet for H19
Problem statement:
When using the above mentioned vision system, a measurement error is introduced due to
refraction and blurring (by the glass envelope), additional to the measurement uncertainty.
The effect is mainly dependent on the shield width in relation to the glass envelope diameter.
For lamp designs with a relatively small glass envelope diameter (there is only an upper limit
specified), the shield gets close to the glass envelope and the effect becomes significant.
Figure 2 shows a simplified drawing of the view imaging situations of the shield, with and
without the effect due to the “refractive index” of the glass envelope.

a) Physical dimension “B” when the glass envelope is removed,
b) Visual size of the shield width when measured through the glass envelope in direction ,
resulting in a “smaller value for “B”.
c) Visual size of the shield width when measured through the glass envelope in direction
“-” (the opposite direction as defined in IEC 60809:2014/AMD1:2017), even show the
contrary deviation from the real dimension, resulting in a “larger value for “B”.

 IEC 2017
Determination from viewing direction  results in a smaller value than real

a)
b)
Lines indicating the “cut-of” lines for light safety

Shield
Glass envelope
a)
c)
Determination from viewing direction “-” results in a larger value than real

Figure 2 – Simplified drawing of the imaging situations
Proposal:
To publish an Interpretation Sheet on Clause E.5 of IEC 60809:2014/AMD1:2017, Lamps for
road vehicles – Dimensional, electrical and luminous requirements, as follows:
INTERPRETATION SHEET
Clause E.5 of IEC 60809:2014/AMD1:2017, Lamps for road vehicles –
Dimensional, electrical and luminous requirements
Note to MP 24 to MP 25 in Table E.1
To avoid measurement errors of the shield width B due to the refractions by the glass
envelope the following options are considered:
1) The removal of the glass envelope.
2) The use of X-ray measurement.
NOTE 1 Option 1 can be used for verification.
3) The use of an immersion fluid inside and outside of the envelope in a rectangular glass

bath ensuring the refractive index of the immersion fluid matches that of the glass
envelope close enough to avoid refractions. The immersion fluid can be filled inside the
envelope after removing the top of the bulb. Care shall be taken not to touch/move
internal elements.
NOTE 2 Option 1 can be used for verification of the immersion fluid and the test setup.
4) The use of a correction factor, taking into account the optical offset and the measurement
uncertainty. The verification of the correction factor for a certain lamp design shall be
made according the measurement method under item “1)” i.e. after removal of the glass
envelope.
NOTE 3 Option 1 can be used for verification.
Note to this interpretation sheet:
The next revision of this standard shall incorporate an improvement of the body text to
elminate the need for this interpretation sheet.

– 2 – IEC 60809:2014+AMD1:2017

+AMD2:2017+AMD3:2019 CSV  IEC 2019

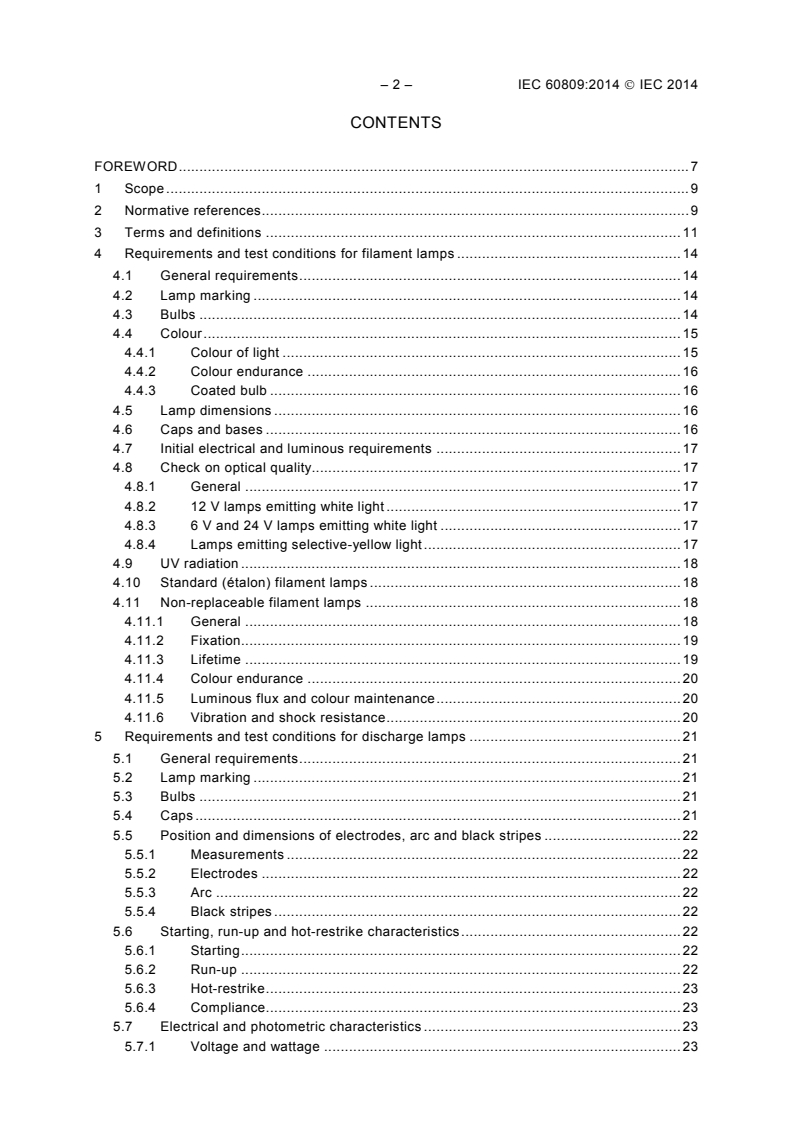

CONTENTS
FOREWORD . 7

1 Scope . 9

2 Normative references . 9

3 Terms and definitions . 11

4 Requirements and test conditions for filament lamps . 14

4.1 General requirements . 14

4.2 Lamp marking . 14

4.3 Bulbs . 15
4.4 Colour . 15
4.4.1 Colour of light . 15
4.4.2 Colour endurance . 16
4.4.3 Coated bulb . 17
4.5 Lamp dimensions . 17
4.6 Caps and bases . 17
4.7 Initial electrical and luminous requirements . 17
4.8 Check on optical quality. 17
4.8.1 General . 17
4.8.2 12 V lamps emitting white light . 17
4.8.3 6 V and 24 V lamps emitting white light . 18
4.8.4 Lamps emitting selective-yellow light . 18
4.9 UV radiation . 18
4.10 Standard (étalon) filament lamps . 18
4.11 Non-replaceable filament lamps . 19
4.11.1 General . 19
4.11.2 Fixation. 19
4.11.3 Lifetime . 20
4.11.4 Colour endurance . 20
4.11.5 Luminous flux and colour maintenance . 20
4.11.6 Vibration and shock resistance . 21
5 Requirements and test conditions for discharge lamps . 21
5.1 General requirements . 21
5.2 Lamp marking . 21

5.3 Bulbs . 21
5.4 Caps . 22
5.5 Position and dimensions of electrodes, arc and black stripes . 22
5.5.1 Measurements . 22
5.5.2 Electrodes . 22
5.5.3 Arc . 22
5.5.4 Black stripes . 22
5.6 Starting, run-up and hot-restrike characteristics . 22
5.6.1 Starting . 22
5.6.2 Run-up . 22
5.6.3 Hot-restrike . 23
5.6.4 Compliance . 23
5.7 Electrical and photometric characteristics . 23
5.7.1 Voltage and wattage . 23

+AMD2:2017+AMD3:2019 CSV  IEC 2019

5.7.2 Luminous flux . 23

5.7.3 Compliance . 23

5.8 Colour . 23

5.9 UV radiation . 24

5.10 Standard (étalon) discharge lamps . 25

6 Requirements and test conditions for LED light sources . 25

6.1 General requirements . 25

6.2 Light source marking . 25

6.3 Optical surfaces . 26

6.4 Colour of light . 26
6.5 Lamp dimensions . 26
6.6 Caps and bases . 27
6.7 Initial electrical and photometrical requirements. 27
6.8 Red content . 27
6.9 UV radiation . 27
6.10 Standard (étalon) light sources . 27
7 Sampling and conditions of compliance . 27
8 Lamp data sheets . 28
8.1 General . 28
8.2 List of specific lamp types . 28
Annex A (normative) Filament shape, length and position . 56
A.1 General . 56
A.2 Filaments shown as points . 56
A.3 Line filaments. 56
A.4 Coiled-coil filaments . 56
A.5 Extreme filament turns . 56
A.6 Filament extremities . 56
A.6.1 General . 56
A.6.2 Axial filaments . 56
A.6.3 Transverse filaments. 56
A.7 Determination of filament length . 57
A.8 Filament offsets . 57
A.9 Lateral deviation . 57
A.10 Filament location check system (box system) . 57
Annex B (normative) Measurement method of the colour of filament lamps . 60

B.1 General . 60
B.2 Colour . 60
B.3 Measuring directions . 60
B.3.1 General . 60
B.3.2 Filament lamps used in headlamps . 60
B.3.3 Filament lamps used in light signalling devices . 61
Annex C (normative) Test conditions for electrical and luminous characteristics . 62
C.1 Filament lamps. 62
C.1.1 Ageing . 62
C.1.2 Test conditions . 62
C.1.3 Electrical instrumentation . 62
C.1.4 Photometry . 62
C.2 LED light sources . 62

– 4 – IEC 60809:2014+AMD1:2017

+AMD2:2017+AMD3:2019 CSV  IEC 2019

C.2.1 Test conditions . 62

C.2.2 Luminous flux . 62

C.2.3 Normalized luminous intensity . 63

C.2.4 Colour. 63

C.2.5 Power consumption . 63

Annex D (normative) Method of measuring internal elements of R2 lamps . 64

D.1 General test conditions . 64

D.1.1 Measurement position . 64

D.1.2 Ageing . 64

D.1.3 Test condition . 64
D.2 Reference axis, reference plane and planes for measurements . 64
D.2.1 Reference axis . 64
D.2.2 Reference plane . 64
D.2.3 Plane V-V . 64
D.2.4 Plane H-H . 64
D.2.5 Plane X-X . 64
D.2.6 Plane Y1-Y1 . 64
D.2.7 Plane Y2-Y2 . 64
D.3 Viewing directions (see Figure D.1) . 65
D.3.1 Viewing direction  . 65
D.3.2 Viewing direction  . 65
D.3.3 Viewing direction  . 65
D.4 Measuring points (MP) . 65
D.5 Dimensions to be measured . 66
Annex E (normative) Method of measuring internal elements of H4 and HS1 lamps . 69
E.1 General test conditions . 69
E.1.1 Measurement position . 69
E.1.2 Ageing . 69
E.1.3 Test condition . 69
E.2 Reference axis, reference plane and planes for measurements . 69
E.2.1 Reference axis . 69
E.2.2 Reference plane . 69
E.2.3 Plane V-V . 69
E.2.4 Plane H-H . 69
E.2.5 Plane X-X . 69

E.2.6 Plane Y1-Y1 . 69
E.2.7 Plane Y2-Y2 . 70
E.2.8 Plane Y3-Y3 . 70
E.2.9 Plane Y4-Y4 . 70
E.2.10 Plane Y5-Y5 . 70
E.3 Viewing directions (see Figure E.1) . 70
E.3.1 Viewing direction  . 70
E.3.2 Viewing direction  . 70
E.3.3 Viewing direction  . 70
E.3.4 Viewing direction  . 70
E.4 Measuring points (MP) . 70
E.4.1 Shield and filaments (see Figure E.2) . 70
E.4.2 Top obscuration (see Figure E.3) . 71
E.5 Dimensions to be measured . 71

+AMD2:2017+AMD3:2019 CSV  IEC 2019

Annex F (normative) Method of measuring internal elements of HB1 lamps. 77

F.1 General test conditions . 77

F.1.1 Measurement position . 77

F.1.2 Ageing . 77

F.1.3 Test condition . 77

F.2 Dipped beam filament location . 77

F.2.1 Horizontal location . 77

F.2.2 Vertical location . 77

F.2.3 Axial location . 77

F.3 Main beam filament location . 77
F.3.1 Horizontal location . 77
F.3.2 Vertical location . 77
F.3.3 Axial location . 78
Annex G (informative) Optical set-up for the measurement of the position and form of
the arc and of the position of the electrodes of discharge lamps . 79
Annex H (normative) Measurement method of electrical and photometric characteristics
of discharge lamps . 80
H.1 General . 80
H.2 Ballast. 80
H.3 Burning position . 80
H.4 Ageing . 80
H.5 Supply voltage. 80
H.6 Starting test . 80
H.7 Run-up test . 80
H.8 Hot restrike test . 81
H.9 Electrical and photometric test. 81
H.10 Colour . 81
Annex I (informative) Overview of lamp types and their applications . 82
Annex J (normative) Test conditions for colour endurance measurements . 87
J.1 General . 87
J.2 Calibration and ageing. 87
J.3 Test voltage . 88
J.4 Operating position . 88
J.5 Test rack . 88
J.6 Operating cycles . 88

J.7 Closure . 91
Annex K (informative) Method(s) to determine the value of the light centre length for
Lx3A, Lx3B, Lx4A, Lx4B, Lx5A, Lx5B, L1A/6 and L1B/6 . 92
K.1 Measurement and calculation method based on ray tracing . 92
K.2 Alternative method . 93
Bibliography . 94

Figure A.1 – Determination of apexes, filament length and filament offsets (A and B) . 58
Figure A.2 – Determination of filament centre . 58
Figure A.3 – Determination of lateral deviations (A and B) and tolerance on the light
centre length (C) . 59
Figure B.1 – Positions of the colorimetric receiver when measuring lamps used in
headlamps . 61

– 6 – IEC 60809:2014+AMD1:2017

+AMD2:2017+AMD3:2019 CSV  IEC 2019

Figure B.2 – Positions of the colorimetric receiver when measuring lamps used in light

signalling devices . 61

Figure D.1 – Viewing directions, seen from the top of the lamp. 67

Figure D.2 – Position of measuring points of R2 lamps . 68

Figure E.1 – Viewing directions, seen from the top of the lamp . 73

Figure E.2 – Position of measuring points of H4, H17, H19 and HS1 lamps . 75

Figure E.3 – Top obscuration . 76

ab
Figure F.1 – Side view, view from  . 78

a
Figure F.2 – Plan view, view from  . 78

Figure G.1 – Optical system . 79
Figure J.1 – Side view of box . 88
Figure J.2 – Front view of box . 88
Figure J.3 – Temperature in the climate chamber during one operating cycle . 89
Figure J.4 – Relative humidity in the climate chamber during one operating cycle . 89
Figure J.5 – Switching modes of filament lamps for intermittent operation during one
operating cycle . 90
Figure J.6 – Switching modes of filament lamps for intermittent and continuous
operation during one operating cycle . 90
Figure J.7 – Switching modes of filament lamps for continuous operation during one
operating cycle . 91
Figure J.8 – Switching modes of filament lamps for intermittent and continuous
operation during one operating cycle . 91
Figure K.1 – Set-up to measure the luminance distribution of the A versions of the LED
light sources . 92
Figure K.2 – Set-up to measure the luminance distribution of the B versions of the LED
light sources . 93

Table 1 – Lifetime of non-replaceable filament lamps . 20
Table 2 – Spectral weighting function . 25
Table C.1 – Luminous flux tolerance limits . 63
Table D.1 – Dimensions to be measured for R2 lamps . 66
Table E.1 – Dimensions to be measured for H4, H17, H19 and HS1 lamps . 72
Table I.1 – Overview of lamp types and their applications . 84

Table J.1 – Applicable switching modes . 87
Table J.2 – Applicable boxes of the test racks . 87
Table J.3 – Dimensions of the applicable boxes and the relative position of the centre
of the filament . 88
Table J.4 – Timing during one operating cycle . 89
Table J.5 – Switching modes of the filament lamps . 90

+AMD2:2017+AMD3:2019 CSV  IEC 2019

INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
LAMPS FOR ROAD VEHICLES –
DIMENSIONAL, ELECTRICAL AND LUMINOUS REQUIREMENTS

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

This Consolidated version of the official Standard and its amendments has been
prepared for user convenience.
IEC 60809 edition 3.3 contains the third edition (2014-12) [documents 34A/1798/FDIS
and 34A/1819/RVD], its amendment 1 (2017-03) [documents 34A/1901/CDV and
34A/1940/RVC] and its interpretation sheet (2017-07), its amendment 2 (2017-11)
[documents 34A/2032/FDIS and 34A/2038/RVD] and its amendment 3 (2019-03)
[documents 34A/2105/CDV and 34A/2128/RVC].
In this Redline version, a vertical line in the margin shows where the technical content
is modified by amendments 1, 2 and 3. Additions are in green text, deletions are in
strikethrough red text. A separate Final version with all changes accepted is available
in this publication.
– 8 – IEC 60809:2014+AMD1:2017

+AMD2:2017+AMD3:2019 CSV  IEC 2019

International Standard IEC 60809 has been prepared by subcommittee 34A: Lamps, of IEC

technical committee 34, Lamps and related equipment.

This third edition constitutes a technical revision.

This edition includes the following signi
...

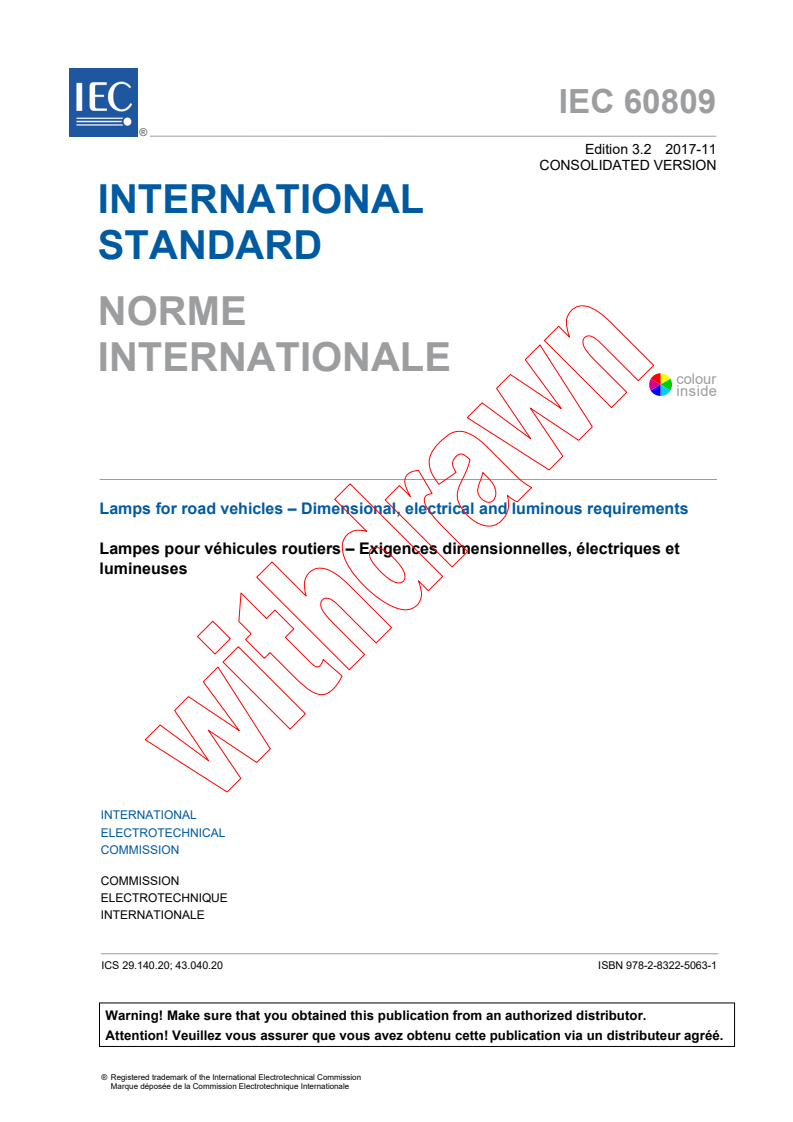

IEC 60809 ®
Edition 3.2 2017-11
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Lamps for road vehicles – Dimensional, electrical and luminous requirements

Lampes pour véhicules routiers – Exigences dimensionnelles, électriques et
lumineuses
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC
65 000 entrées terminologiques électrotechniques, en anglais
en utilisant différents critères (numéro de référence, texte,
et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les
publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées.
antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Restez informé sur les nouvelles publications IEC. Just Service Clients - webstore.iec.ch/csc
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 60809 ®
Edition 3.2 2017-11
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Lamps for road vehicles – Dimensional, electrical and luminous requirements

Lampes pour véhicules routiers – Exigences dimensionnelles, électriques et

lumineuses
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.20; 43.040.20 ISBN 978-2-8322-5063-1

IEC 60809 ®
Edition 3.2 2017-11
CONSOLIDATED VERSION
REDLINE VERSION
VERSION REDLINE
colour
inside
Lamps for road vehicles – Dimensional, electrical and luminous requirements

Lampes pour véhicules routiers – Exigences dimensionnelles, électriques et
lumineuses
 IEC 2017
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
IEC 60809
Edition 3.0  2014-12
LAMPS FOR ROAD VEHICLES –
DIMENSIONAL, ELECTRICAL AND LUMINOUS REQUIREMENTS

INTERPRETATION SHEET 1
This interpretation sheet has been prepared by subcommittee 34A: Lamps, of IEC technical
committee 34: Lamps and related equipment.
The text of this interpretation sheet is based on the following documents:
ISH Report on voting
34A/2007/ISH 34A/2017/RVD
Full information on the voting for the approval of this interpretation sheet can be found in the
report on voting indicated in the above table.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
___________
Introduction (not part of the proposal)
In the Amendment 1 to Ed.3 (34A/1901/CDV voted positively), Annex E was updated to
extend the method of measuring internal elements of dual filament lamps to all such
categories, for instance the new category H19.
In the amendment of the current category sheet for H19 (Regulation No. 37), the distinct
physical shield width B is introduced (8,6 ± 0,3 mm) to ensure interchangeability of light
sources as it relates to road safety (see WP.29/2016/111; to become Resolution [R.E.5] on
the common specification of light source categories). In the category sheet for H19 reference
is made to Annex E of IEC 60809:2014 for the method of measurement of the internal
elements.
ICS 29.140.20; 43.040.20
– 2 – IEC 60809:2014/AMD1:2017/ISH1:2017
 IEC 2017
See in Figure 1 an extract from WP.29/2016/111.
Practical measurement set-ups use optical vision-systems like a projection system to
determine the dimensions of the internal elements.

Figure 1 – Category sheet for H19
Problem statement:
When using the above mentioned vision system, a measurement error is introduced due to
refraction and blurring (by the glass envelope), additional to the measurement uncertainty.
The effect is mainly dependent on the shield width in relation to the glass envelope diameter.
For lamp designs with a relatively small glass envelope diameter (there is only an upper limit
specified), the shield gets close to the glass envelope and the effect becomes significant.
Figure 2 shows a simplified drawing of the view imaging situations of the shield, with and
without the effect due to the “refractive index” of the glass envelope.
a) Physical dimension “B” when the glass envelope is removed,
b) Visual size of the shield width when measured through the glass envelope in direction ,
resulting in a “smaller value for “B”.
c) Visual size of the shield width when measured through the glass envelope in direction
“-” (the opposite direction as defined in IEC 60809:2014/AMD1:2017), even show the
contrary deviation from the real dimension, resulting in a “larger value for “B”.

 IEC 2017
Determination from viewing direction  results in a smaller value than real
a)
b)
Lines indicating the “cut-of” lines for light safety

Shield
Glass envelope
a)
c)
Determination from viewing direction “-” results in a larger value than real

Figure 2 – Simplified drawing of the imaging situations
Proposal:
To publish an Interpretation Sheet on Clause E.5 of IEC 60809:2014/AMD1:2017, Lamps for
road vehicles – Dimensional, electrical and luminous requirements, as follows:
INTERPRETATION SHEET
Clause E.5 of IEC 60809:2014/AMD1:2017, Lamps for road vehicles –
Dimensional, electrical and luminous requirements
Note to MP 24 to MP 25 in Table E.1
To avoid measurement errors of the shield width B due to the refractions by the glass
envelope the following options are considered:
1) The removal of the glass envelope.
2) The use of X-ray measurement.
NOTE 1 Option 1 can be used for verification.
3) The use of an immersion fluid inside and outside of the envelope in a rectangular glass
bath ensuring the refractive index of the immersion fluid matches that of the glass
envelope close enough to avoid refractions. The immersion fluid can be filled inside the
envelope after removing the top of the bulb. Care shall be taken not to touch/move
internal elements.
NOTE 2 Option 1 can be used for verification of the immersion fluid and the test setup.
4) The use of a correction factor, taking into account the optical offset and the measurement
uncertainty. The verification of the correction factor for a certain lamp design shall be
made according the measurement method under item “1)” i.e. after removal of the glass
envelope.
NOTE 3 Option 1 can be used for verification.
Note to this interpretation sheet:
The next revision of this standard shall incorporate an improvement of the body text to
elminate the need for this interpretation sheet.

– 2 – IEC 60809:2014+AMD1:2017
+AMD2:2017 CSV  IEC 2017
CONTENTS
FOREWORD . 7
1 Scope . 9
2 Normative references . 9
3 Terms and definitions . 11
4 Requirements and test conditions for filament lamps . 14
4.1 General requirements . 14
4.2 Lamp marking . 14
4.3 Bulbs . 15
4.4 Colour . 15
4.4.1 Colour of light . 15
4.4.2 Colour endurance . 16
4.4.3 Coated bulb . 16
4.5 Lamp dimensions . 17
4.6 Caps and bases . 17
4.7 Initial electrical and luminous requirements . 17
4.8 Check on optical quality. 17
4.8.1 General . 17
4.8.2 12 V lamps emitting white light . 17
4.8.3 6 V and 24 V lamps emitting white light . 17
4.8.4 Lamps emitting selective-yellow light . 18
4.9 UV radiation . 18
4.10 Standard (étalon) filament lamps . 18
4.11 Non-replaceable filament lamps . 19
4.11.1 General . 19
4.11.2 Fixation. 19
4.11.3 Lifetime . 20
4.11.4 Colour endurance . 20
4.11.5 Luminous flux and colour maintenance . 20
4.11.6 Vibration and shock resistance . 21
5 Requirements and test conditions for discharge lamps . 21
5.1 General requirements . 21
5.2 Lamp marking . 21
5.3 Bulbs . 21
5.4 Caps . 22
5.5 Position and dimensions of electrodes, arc and black stripes . 22
5.5.1 Measurements . 22
5.5.2 Electrodes . 22
5.5.3 Arc . 22
5.5.4 Black stripes . 22
5.6 Starting, run-up and hot-restrike characteristics . 22
5.6.1 Starting . 22
5.6.2 Run-up . 22
5.6.3 Hot-restrike . 23
5.6.4 Compliance . 23
5.7 Electrical and photometric characteristics . 23
5.7.1 Voltage and wattage . 23

+AMD2:2017 CSV  IEC 2017
5.7.2 Luminous flux . 23
5.7.3 Compliance . 23
5.8 Colour . 23
5.9 UV radiation . 24
5.10 Standard (étalon) discharge lamps . 25
6 Requirements and test conditions for LED light sources . 25
6.1 General requirements . 25
6.2 Light source marking . 25
6.3 Optical surfaces . 26
6.4 Colour of light . 26
6.5 Lamp dimensions . 26
6.6 Caps and bases . 27
6.7 Initial electrical and photometrical requirements. 27
6.8 Red content . 27
6.9 UV radiation . 27
6.10 Standard (étalon) light sources . 27
7 Sampling and conditions of compliance . 27
8 Lamp data sheets . 28
8.1 General . 28
8.2 List of specific lamp types . 28
Annex A (normative) Filament shape, length and position . 52
A.1 General . 52
A.2 Filaments shown as points . 52
A.3 Line filaments. 52
A.4 Coiled-coil filaments . 52
A.5 Extreme filament turns . 52
A.6 Filament extremities . 52
A.6.1 General . 52
A.6.2 Axial filaments . 52
A.6.3 Transverse filaments. 52
A.7 Determination of filament length . 53
A.8 Filament offsets . 53
A.9 Lateral deviation . 53
A.10 Filament location check system (box system) . 53
Annex B (normative) Measurement method of the colour of filament lamps . 56
B.1 General . 56
B.2 Colour . 56
B.3 Measuring directions . 56
B.3.1 General . 56
B.3.2 Filament lamps used in headlamps . 56
B.3.3 Filament lamps used in light signalling devices . 57
Annex C (normative) Test conditions for electrical and luminous characteristics . 58
C.1 Filament lamps. 58
C.1.1 Ageing . 58
C.1.2 Test conditions . 58
C.1.3 Electrical instrumentation . 58
C.1.4 Photometry . 58
C.2 LED light sources . 58

– 4 – IEC 60809:2014+AMD1:2017
+AMD2:2017 CSV  IEC 2017
C.2.1 Test conditions . 58
C.2.2 Luminous flux . 58
C.2.3 Normalized luminous intensity . 59
C.2.4 Colour. 59
C.2.5 Power consumption . 59
Annex D (normative) Method of measuring internal elements of R2 lamps . 60
D.1 General test conditions . 60
D.1.1 Measurement position . 60
D.1.2 Ageing . 60
D.1.3 Test condition . 60
D.2 Reference axis, reference plane and planes for measurements . 60
D.2.1 Reference axis . 60
D.2.2 Reference plane . 60
D.2.3 Plane V-V . 60
D.2.4 Plane H-H . 60
D.2.5 Plane X-X . 60
D.2.6 Plane Y1-Y1 . 60
D.2.7 Plane Y2-Y2 . 60
D.3 Viewing directions (see Figure D.1) . 61
D.3.1 Viewing direction  . 61
D.3.2 Viewing direction  . 61
D.3.3 Viewing direction  . 61
D.4 Measuring points (MP) . 61
D.5 Dimensions to be measured . 62
Annex E (normative) Method of measuring internal elements of H4 and HS1 lamps . 65
E.1 General test conditions . 65
E.1.1 Measurement position . 65
E.1.2 Ageing . 65
E.1.3 Test condition . 65
E.2 Reference axis, reference plane and planes for measurements . 65
E.2.1 Reference axis . 65
E.2.2 Reference plane . 65
E.2.3 Plane V-V . 65
E.2.4 Plane H-H . 65
E.2.5 Plane X-X . 65
E.2.6 Plane Y1-Y1 . 65
E.2.7 Plane Y2-Y2 . 66
E.2.8 Plane Y3-Y3 . 66
E.2.9 Plane Y4-Y4 . 66
E.2.10 Plane Y5-Y5 . 66
E.3 Viewing directions (see Figure E.1) . 66
E.3.1 Viewing direction  . 66
E.3.2 Viewing direction  . 66
E.3.3 Viewing direction  . 66
E.3.4 Viewing direction  . 66
E.4 Measuring points (MP) . 66
E.4.1 Shield and filaments (see Figure E.2) . 66
E.4.2 Top obscuration (see Figure E.3) . 67
E.5 Dimensions to be measured . 67

+AMD2:2017 CSV  IEC 2017
Annex F (normative) Method of measuring internal elements of HB1 lamps. 73
F.1 General test conditions . 73
F.1.1 Measurement position . 73
F.1.2 Ageing . 73
F.1.3 Test condition . 73
F.2 Dipped beam filament location . 73
F.2.1 Horizontal location . 73
F.2.2 Vertical location . 73
F.2.3 Axial location . 73
F.3 Main beam filament location . 73
F.3.1 Horizontal location . 73
F.3.2 Vertical location . 73
F.3.3 Axial location . 74
Annex G (informative) Optical set-up for the measurement of the position and form of
the arc and of the position of the electrodes of discharge lamps . 75
Annex H (normative) Measurement method of electrical and photometric characteristics
of discharge lamps . 76
H.1 General . 76
H.2 Ballast. 76
H.3 Burning position . 76
H.4 Ageing . 76
H.5 Supply voltage. 76
H.6 Starting test . 76
H.7 Run-up test . 76
H.8 Hot restrike test . 77
H.9 Electrical and photometric test. 77
H.10 Colour . 77
Annex I (informative) Overview of lamp types and their applications . 78
Annex J (normative) Test conditions for colour endurance measurements . 81
J.1 General . 81
J.2 Calibration and ageing. 81
J.3 Test voltage . 82
J.4 Operating position . 82
J.5 Test rack . 82
J.6 Operating cycles . 82
J.7 Closure . 85
Annex K (informative) Method(s) to determine the value of the light centre length for
Lx3A, Lx3B, Lx4A, Lx4B, Lx5A and Lx5B . 86
K.1 Measurement and calculation method based on ray tracing . 86
K.2 Alternative method . 87
Bibliography . 88

Figure A.1 – Determination of apexes, filament length and filament offsets (A and B) . 54
Figure A.2 – Determination of filament centre . 54
Figure A.3 – Determination of lateral deviations (A and B) and tolerance on the light
centre length (C) . 55
Figure B.1 – Positions of the colorimetric receiver when measuring lamps used in
headlamps . 57

– 6 – IEC 60809:2014+AMD1:2017
+AMD2:2017 CSV  IEC 2017
Figure B.2 – Positions of the colorimetric receiver when measuring lamps used in light
signalling devices . 57
Figure D.1 – Viewing directions, seen from the top of the lamp. 63
Figure D.2 – Position of measuring points of R2 lamps . 64
Figure E.1 – Viewing directions, seen from the top of the lamp . 69
Figure E.2 – Position of measuring points of H4, H17, H19 and HS1 lamps . 71
Figure E.3 – Top obscuration . 72
ab
Figure F.1 – Side view, view from  . 74
a
Figure F.2 – Plan view, view from  . 74
Figure G.1 – Optical system . 75
Figure J.1 – Side view of box . 82
Figure J.2 – Front view of box . 82
Figure J.3 – Temperature in the climate chamber during one operating cycle . 83
Figure J.4 – Relative humidity in the climate chamber during one operating cycle . 83
Figure J.5 – Switching modes of filament lamps for intermittent operation during one
operating cycle . 84
Figure J.6 – Switching modes of filament lamps for intermittent and continuous
operation during one operating cycle . 84
Figure J.7 – Switching modes of filament lamps for continuous operation during one
operating cycle . 85
Figure J.8 – Switching modes of filament lamps for intermittent and continuous
operation during one operating cycle . 85
Figure K.1 – Set-up to measure the luminance distribution of the A versions of the LED
light sources . 86
Figure K.2 – Set-up to measure the luminance distribution of the B versions of the LED
light sources . 87

Table 1 – Lifetime of non-replaceable filament lamps . 20
Table 2 – Spectral weighting function . 25
Table C.1 – Luminous flux tolerance limits . 59
Table D.1 – Dimensions to be measured for R2 lamps . 62
Table E.1 – Dimensions to be measured for H4, H17, H19 and HS1 lamps . 68
Table I.1 – Overview of lamp types and their applications . 80
Table J.1 – Applicable switching modes . 81
Table J.2 – Applicable boxes of the test racks . 81
Table J.3 – Dimensions of the applicable boxes and the relative position of the centre
of the filament . 82
Table J.4 – Timing during one operating cycle . 83
Table J.5 – Switching modes of the filament lamps . 84

+AMD2:2017 CSV  IEC 2017
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LAMPS FOR ROAD VEHICLES –
DIMENSIONAL, ELECTRICAL AND LUMINOUS REQUIREMENTS
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This consolidated version of the official IEC Standard and its amendments has been prepared
for user convenience.
IEC 60809 edition 3.2 contains the third edition (2014-12) [documents 34A/1798/FDIS and
34A/1819/RVD], its amendment 1 (2017-03) [documents 34A/1901/CDV and 34A/1940/RVC], its
amendment 2 (2017-11) [documents 34A/2032/FDIS and 34A/2038/RVD] and its interpretation
sheet 1 (2017-07).
In this Redline version, a vertical line in the margin shows where the technical content is
modified by amendments 1 and 2. Additions are in green text, deletions are
in strikethrough red text. A separate Final version with all changes accepted is
available in this publication.

– 8 – IEC 60809:2014+AMD1:2017
+AMD2:2017 CSV  IEC 2017
International Standard IEC 60809 has been prepared by subcommittee 34A: Lamps, of IEC
technical committee 34, Lamps
...

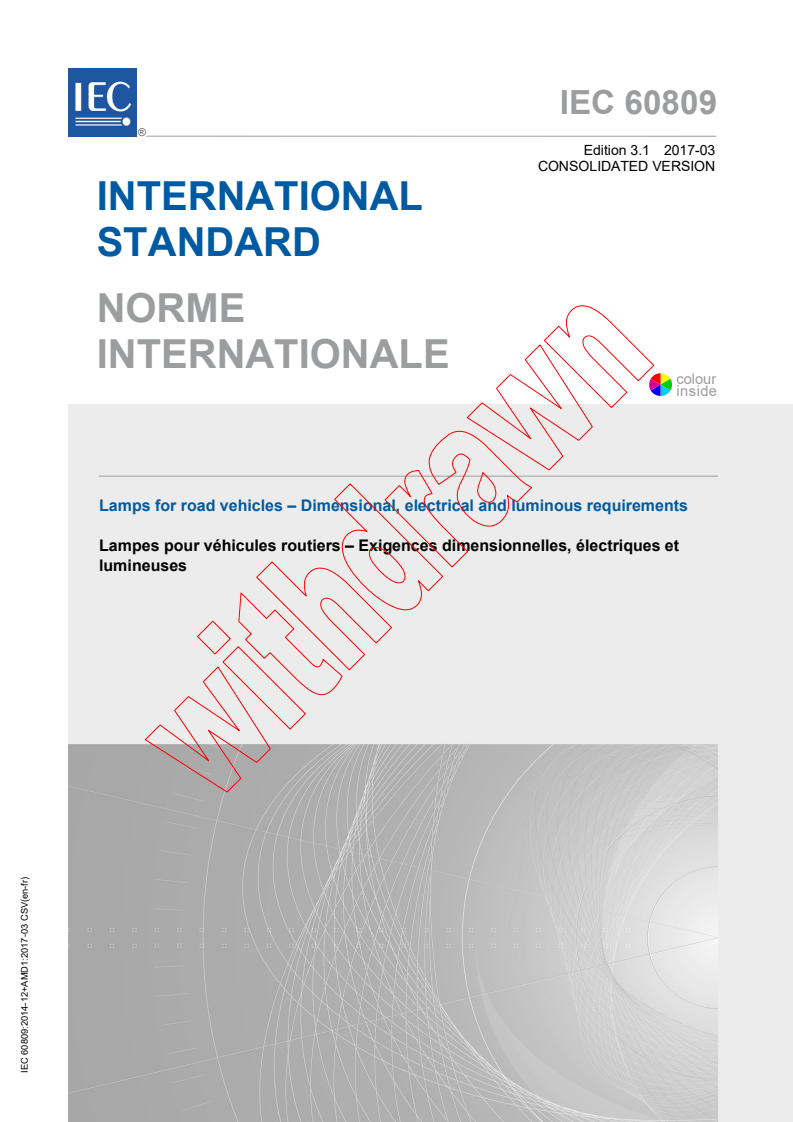

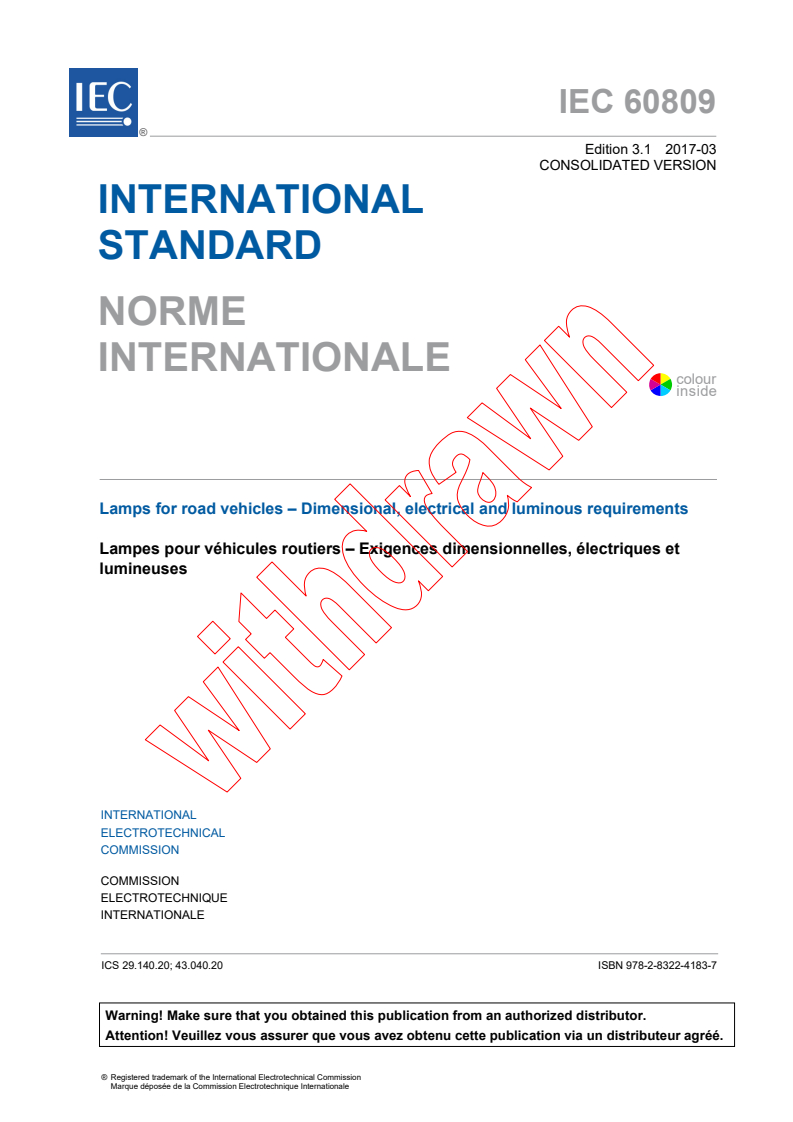

IEC 60809 ®
Edition 3.1 2017-03
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Lamps for road vehicles – Dimensional, electrical and luminous requirements

Lampes pour véhicules routiers – Exigences dimensionnelles, électriques et
lumineuses
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC
65 000 entrées terminologiques électrotechniques, en anglais
en utilisant différents critères (numéro de référence, texte,
et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les
publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées.
antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Restez informé sur les nouvelles publications IEC. Just Service Clients - webstore.iec.ch/csc
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 60809 ®
Edition 3.1 2017-03
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Lamps for road vehicles – Dimensional, electrical and luminous requirements

Lampes pour véhicules routiers – Exigences dimensionnelles, électriques et

lumineuses
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.20; 43.040.20 ISBN 978-2-8322-4183-7

IEC 60809 ®
Edition 3.1 2017-03
CONSOLIDATED VERSION
REDLINE VERSION
VERSION REDLINE
colour
inside
Lamps for road vehicles – Dimensional, electrical and luminous requirements

Lampes pour véhicules routiers – Exigences dimensionnelles, électriques et
lumineuses
 IEC 2017
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
IEC 60809
Edition 3.0  2014-12
LAMPS FOR ROAD VEHICLES –
DIMENSIONAL, ELECTRICAL AND LUMINOUS REQUIREMENTS

INTERPRETATION SHEET 1
This interpretation sheet has been prepared by subcommittee 34A: Lamps, of IEC technical
committee 34: Lamps and related equipment.
The text of this interpretation sheet is based on the following documents:
ISH Report on voting
34A/2007/ISH 34A/2017/RVD
Full information on the voting for the approval of this interpretation sheet can be found in the
report on voting indicated in the above table.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
___________
Introduction (not part of the proposal)
In the Amendment 1 to Ed.3 (34A/1901/CDV voted positively), Annex E was updated to
extend the method of measuring internal elements of dual filament lamps to all such
categories, for instance the new category H19.
In the amendment of the current category sheet for H19 (Regulation No. 37), the distinct
physical shield width B is introduced (8,6 ± 0,3 mm) to ensure interchangeability of light
sources as it relates to road safety (see WP.29/2016/111; to become Resolution [R.E.5] on
the common specification of light source categories). In the category sheet for H19 reference
is made to Annex E of IEC 60809:2014 for the method of measurement of the internal
elements.
ICS 29.140.20; 43.040.20
– 2 – IEC 60809:2014/AMD1:2017/ISH1:2017
 IEC 2017
See in Figure 1 an extract from WP.29/2016/111.
Practical measurement set-ups use optical vision-systems like a projection system to
determine the dimensions of the internal elements.

Figure 1 – Category sheet for H19
Problem statement:
When using the above mentioned vision system, a measurement error is introduced due to
refraction and blurring (by the glass envelope), additional to the measurement uncertainty.
The effect is mainly dependent on the shield width in relation to the glass envelope diameter.
For lamp designs with a relatively small glass envelope diameter (there is only an upper limit
specified), the shield gets close to the glass envelope and the effect becomes significant.
Figure 2 shows a simplified drawing of the view imaging situations of the shield, with and
without the effect due to the “refractive index” of the glass envelope.
a) Physical dimension “B” when the glass envelope is removed,
b) Visual size of the shield width when measured through the glass envelope in direction ,
resulting in a “smaller value for “B”.
c) Visual size of the shield width when measured through the glass envelope in direction
“-” (the opposite direction as defined in IEC 60809:2014/AMD1:2017), even show the
contrary deviation from the real dimension, resulting in a “larger value for “B”.

 IEC 2017
Determination from viewing direction  results in a smaller value than real
a)
b)
Lines indicating the “cut-of” lines for light safety

Shield
Glass envelope
a)
c)
Determination from viewing direction “-” results in a larger value than real

Figure 2 – Simplified drawing of the imaging situations
Proposal:
To publish an Interpretation Sheet on Clause E.5 of IEC 60809:2014/AMD1:2017, Lamps for
road vehicles – Dimensional, electrical and luminous requirements, as follows:
INTERPRETATION SHEET
Clause E.5 of IEC 60809:2014/AMD1:2017, Lamps for road vehicles –
Dimensional, electrical and luminous requirements
Note to MP 24 to MP 25 in Table E.1
To avoid measurement errors of the shield width B due to the refractions by the glass
envelope the following options are considered:
1) The removal of the glass envelope.
2) The use of X-ray measurement.
NOTE 1 Option 1 can be used for verification.
3) The use of an immersion fluid inside and outside of the envelope in a rectangular glass
bath ensuring the refractive index of the immersion fluid matches that of the glass
envelope close enough to avoid refractions. The immersion fluid can be filled inside the
envelope after removing the top of the bulb. Care shall be taken not to touch/move
internal elements.
NOTE 2 Option 1 can be used for verification of the immersion fluid and the test setup.
4) The use of a correction factor, taking into account the optical offset and the measurement
uncertainty. The verification of the correction factor for a certain lamp design shall be
made according the measurement method under item “1)” i.e. after removal of the glass
envelope.
NOTE 3 Option 1 can be used for verification.
Note to this interpretation sheet:
The next revision of this standard shall incorporate an improvement of the body text to
elminate the need for this interpretation sheet.

– 2 – IEC 60809:2014+AMD1:2017 CSV
 IEC 2017
CONTENTS
FOREWORD . 7
1 Scope . 9
2 Normative references . 9
3 Terms and definitions . 11
4 Requirements and test conditions for filament lamps . 14
4.1 General requirements . 14
4.2 Lamp marking . 14
4.3 Bulbs . 15
4.4 Colour . 15
4.4.1 Colour of light . 15
4.4.2 Colour endurance . 16
4.4.3 Coated bulb . 16
4.5 Lamp dimensions . 17
4.6 Caps and bases . 17
4.7 Initial electrical and luminous requirements . 17
4.8 Check on optical quality. 17
4.8.1 General . 17
4.8.2 12 V lamps emitting white light . 17
4.8.3 6 V and 24 V lamps emitting white light . 17
4.8.4 Lamps emitting selective-yellow light . 18
4.9 UV radiation . 18
4.10 Standard (étalon) filament lamps . 18
4.11 Non-replaceable filament lamps . 19
4.11.1 General . 19
4.11.2 Fixation. 19
4.11.3 Lifetime . 20
4.11.4 Colour endurance . 20
4.11.5 Luminous flux and colour maintenance . 20
4.11.6 Vibration and shock resistance . 21
5 Requirements and test conditions for discharge lamps . 21
5.1 General requirements . 21
5.2 Lamp marking . 21
5.3 Bulbs . 21
5.4 Caps . 22
5.5 Position and dimensions of electrodes, arc and black stripes . 22
5.5.1 Measurements . 22
5.5.2 Electrodes . 22
5.5.3 Arc . 22
5.5.4 Black stripes . 22
5.6 Starting, run-up and hot-restrike characteristics . 22
5.6.1 Starting . 22
5.6.2 Run-up . 22
5.6.3 Hot-restrike . 23
5.6.4 Compliance . 23
5.7 Electrical and photometric characteristics . 23
5.7.1 Voltage and wattage . 23

 IEC 2017
5.7.2 Luminous flux . 23
5.7.3 Compliance . 23
5.8 Colour . 23
5.9 UV radiation . 24
5.10 Standard (étalon) discharge lamps . 25
6 Requirements and test conditions for LED light sources . 25
6.1 General requirements . 25
6.2 Light source marking . 25
6.3 Optical surfaces . 26
6.4 Colour of light . 26
6.5 Lamp dimensions . 26
6.6 Caps and bases . 26
6.7 Initial electrical and photometrical requirements. 26
6.8 Red content . 26
6.9 UV radiation . 26
6.10 Standard (étalon) light sources . 26
7 Sampling and conditions of compliance . 27
8 Lamp data sheets . 27
8.1 General . 27
8.2 List of specific lamp types . 27
Annex A (normative) Filament shape, length and position . 51
A.1 General . 51
A.2 Filaments shown as points . 51
A.3 Line filaments. 51
A.4 Coiled-coil filaments . 51
A.5 Extreme filament turns . 51
A.6 Filament extremities . 51
A.6.1 General . 51
A.6.2 Axial filaments . 51
A.6.3 Transverse filaments. 51
A.7 Determination of filament length . 52
A.8 Filament offsets . 52
A.9 Lateral deviation . 52
A.10 Filament location check system (box system) . 52
Annex B (normative) Measurement method of the colour of filament lamps . 55
B.1 General . 55
B.2 Colour . 55
B.3 Measuring directions . 55
B.3.1 General . 55
B.3.2 Filament lamps used in headlamps . 55
B.3.3 Filament lamps used in light signalling devices . 56
Annex C (normative) Test conditions for electrical and luminous characteristics . 57
C.1 Filament lamps. 57
C.1.1 Ageing . 57
C.1.2 Test conditions . 57
C.1.3 Electrical instrumentation . 57
C.1.4 Photometry . 57
C.2 LED light sources . 57

– 4 – IEC 60809:2014+AMD1:2017 CSV
 IEC 2017
C.2.1 Test conditions . 57
C.2.2 Luminous flux . 57
C.2.3 Normalized luminous intensity . 58
C.2.4 Colour. 58
C.2.5 Power consumption . 58
Annex D (normative) Method of measuring internal elements of R2 lamps . 59
D.1 General test conditions . 59
D.1.1 Measurement position . 59
D.1.2 Ageing . 59
D.1.3 Test condition . 59
D.2 Reference axis, reference plane and planes for measurements . 59
D.2.1 Reference axis . 59
D.2.2 Reference plane . 59
D.2.3 Plane V-V . 59
D.2.4 Plane H-H . 59
D.2.5 Plane X-X . 59
D.2.6 Plane Y1-Y1 . 59
D.2.7 Plane Y2-Y2 . 59
D.3 Viewing directions (see Figure D.1) . 60
D.3.1 Viewing direction  . 60
D.3.2 Viewing direction  . 60
D.3.3 Viewing direction  . 60
D.4 Measuring points (MP) . 60
D.5 Dimensions to be measured . 61
Annex E (normative) Method of measuring internal elements of H4 and HS1 lamps . 64
E.1 General test conditions . 64
E.1.1 Measurement position . 64
E.1.2 Ageing . 64
E.1.3 Test condition . 64
E.2 Reference axis, reference plane and planes for measurements . 64
E.2.1 Reference axis . 64
E.2.2 Reference plane . 64
E.2.3 Plane V-V . 64
E.2.4 Plane H-H . 64
E.2.5 Plane X-X . 64
E.2.6 Plane Y1-Y1 . 64
E.2.7 Plane Y2-Y2 . 65
E.2.8 Plane Y3-Y3 . 65
E.2.9 Plane Y4-Y4 . 65
E.2.10 Plane Y5-Y5 . 65
E.3 Viewing directions (see Figure E.1) . 65
E.3.1 Viewing direction  . 65
E.3.2 Viewing direction  . 65
E.3.3 Viewing direction  . 65
E.3.4 Viewing direction  . 65
E.4 Measuring points (MP) . 65
E.4.1 Shield and filaments (see Figure E.2) . 65
E.4.2 Top obscuration (see Figure E.3) . 66
E.5 Dimensions to be measured . 66

 IEC 2017
Annex F (normative) Method of measuring internal elements of HB1 lamps. 72
F.1 General test conditions . 72
F.1.1 Measurement position . 72
F.1.2 Ageing . 72
F.1.3 Test condition . 72
F.2 Dipped beam filament location . 72
F.2.1 Horizontal location . 72
F.2.2 Vertical location . 72
F.2.3 Axial location . 72
F.3 Main beam filament location . 72
F.3.1 Horizontal location . 72
F.3.2 Vertical location . 72
F.3.3 Axial location . 73
Annex G (informative) Optical set-up for the measurement of the position and form of
the arc and of the position of the electrodes of discharge lamps . 74
Annex H (normative) Measurement method of electrical and photometric characteristics
of discharge lamps . 75
H.1 General . 75
H.2 Ballast. 75
H.3 Burning position . 75
H.4 Ageing . 75
H.5 Supply voltage. 75
H.6 Starting test . 75
H.7 Run-up test . 75
H.8 Hot restrike test . 76
H.9 Electrical and photometric test. 76
H.10 Colour . 76
Annex I (informative) Overview of lamp types and their applications . 77
Annex J (normative) Test conditions for colour endurance measurements . 79
J.1 General . 79
J.2 Calibration and ageing. 79
J.3 Test voltage . 80
J.4 Operating position . 80
J.5 Test rack . 80
J.6 Operating cycles . 80
J.7 Closure . 83

Figure A.1 – Determination of apexes, filament length and filament offsets (A and B) . 53
Figure A.2 – Determination of filament centre . 53
Figure A.3 – Determination of lateral deviations (A and B) and tolerance on the light
centre length (C) . 54
Figure B.1 – Positions of the colorimetric receiver when measuring lamps used in
headlamps . 56
Figure B.2 – Positions of the colorimetric receiver when measuring lamps used in light
signalling devices . 56
Figure D.1 – Viewing directions, seen from the top of the lamp. 62
Figure D.2 – Position of measuring points of R2 lamps . 63
Figure E.1 – Viewing directions, seen from the top of the lamp . 68

– 6 – IEC 60809:2014+AMD1:2017 CSV
 IEC 2017
Figure E.2 – Position of measuring points of H4, H17, H19 and HS1 lamps . 70
Figure E.3 – Top obscuration . 71
ab
Figure F.1 – Side view, view from  . 73
a
Figure F.2 – Plan view, view from  . 73
Figure G.1 – Optical system . 74
Figure J.1 – Side view of box . 80
Figure J.2 – Front view of box . 80
Figure J.3 – Temperature in the climate chamber during one operating cycle . 81
Figure J.4 – Relative humidity in the climate chamber during one operating cycle . 81
Figure J.5 – Switching modes of filament lamps for intermittent operation during one
operating cycle . 82
Figure J.6 – Switching modes of filament lamps for intermittent and continuous
operation during one operating cycle . 82
Figure J.7 – Switching modes of filament lamps for continuous operation during one
operating cycle . 83
Figure J.8 – Switching modes of filament lamps for intermittent and continuous
operation during one operating cycle . 83

Table 1 – Lifetime of non-replaceable filament lamps . 20
Table 2 – Spectral weighting function . 25
Table C.1 – Luminous flux tolerance limits . 58
Table D.1 – Dimensions to be measured for R2 lamps . 61
Table E.1 – Dimensions to be measured for H4, H17, H19 and HS1 lamps . 67
Table J.1 – Applicable switching modes . 79
Table J.2 – Applicable boxes of the test racks . 79
Table J.3 – Dimensions of the applicable boxes and the relative position of the centre
of the filament . 80
Table J.4 – Timing during one operating cycle . 81
Table J.5 – Switching modes of the filament lamps . 82

© IEC 2017
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LAMPS FOR ROAD VEHICLES –
DIMENSIONAL, ELECTRICAL AND LUMINOUS REQUIREMENTS
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This consolidated version of the official IEC Standard and its amendment has been
prepared for user convenience.
IEC 60809 edition 3.1 contains the third edition (2014-12) [documents 34A/1798/FDIS and
34A/1819/RVD], and its amendment 1 (2017-03) [documents 34A/1901/CDV and 34A/1940/
RVC] and its interpretation sheet 1 (2017-07).
In this Redline version, a vertical line in the margin shows where the technical content is
modified by amendment 1. Additions are in green text, deletions are in strikethrough red
text. A separate Final version with all changes accepted is available in this publication.

– 8 – IEC 60809:2014+AMD1:2017 CSV
 IEC 2017
International Standard IEC 60809 has been prepared by subcommittee 34A: Lamps, of IEC
technical committee 34, Lamps and related equipment.
This third edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) the introduction of requirements for non-replaceable filament lamps;
b) the introduction of requirements for LED light sources.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2. However,
as the original editable data sheets and some figures from previous editions were not available,
they have been reproduced in their old format which does not comply fully with the current
drafting rules.
The committee has decided that the contents of the base publication and its amendment will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.
...
