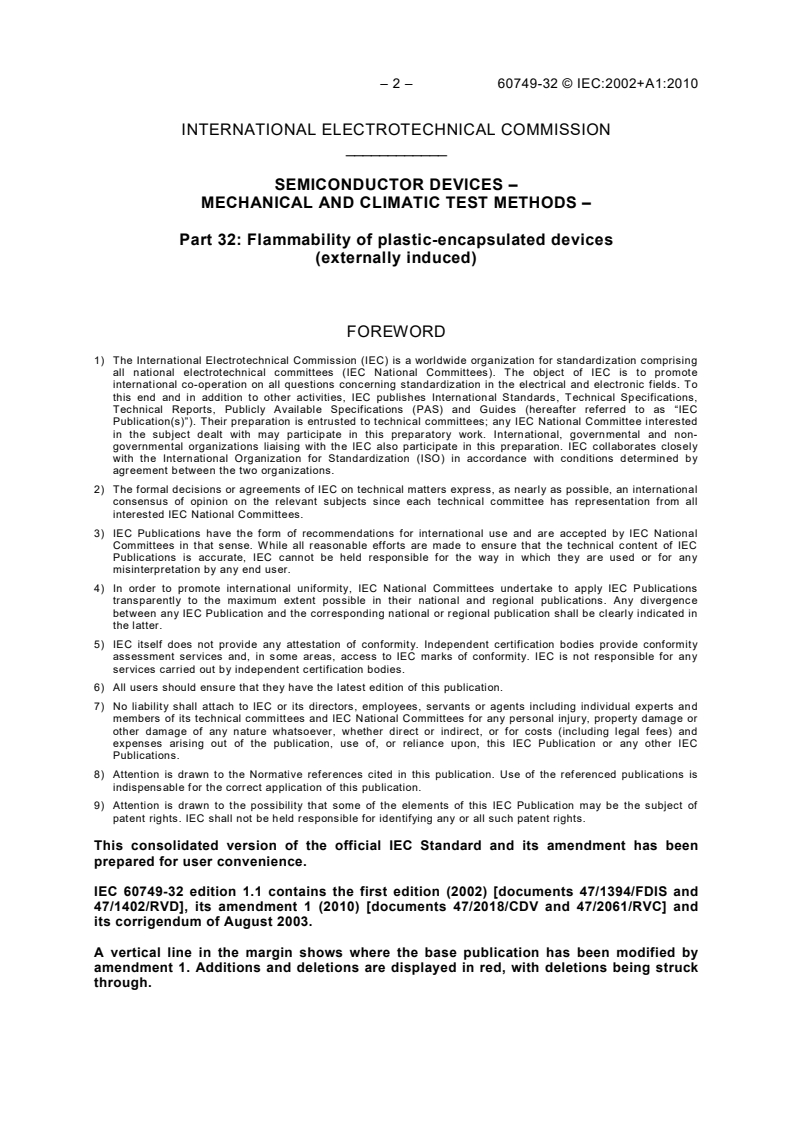

– 2 – 60749-32 © IEC:2002+A1:2010
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SEMICONDUCTOR DEVICES –
MECHANICAL AND CLIMATIC TEST METHODS –
Part 32: Flammability of plastic-encapsulated devices
(externally induced)
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This consolidated version of the official IEC Standard and its amendment has been
prepared for user convenience.
IEC 60749-32 edition 1.1 contains the first edition (2002) [documents 47/1394/FDIS and
47/1402/RVD], its amendment 1 (2010) [documents 47/2018/CDV and 47/2061/RVC] and
its corrigendum of August 2003.
A vertical line in the margin shows where the base publication has been modified by
amendment 1. Additions and deletions are displayed in red, with deletions being struck
through.
60749-32 © IEC:2002+A1:2010 – 3 –
International Standard IEC 60749-32 has been prepared by IEC technical committee 47:
Semiconductor devices.
The text of this test method is reproduced from IEC 60749 Ed.2, chapter 4, clause 1.2 without
change. It has therefore not been submitted to vote a second time.
Each test method governed by IEC 60749-1 and which is part of the series is a stand-alone
document, numbered IEC 60749-2, IEC 60749-3, etc. The numbering of these test methods is
sequential, and there is no relationship between the number and the test method (i.e. no
grouping of test methods). The list of these tests will be available in the IEC Internet site and
in the catalogue.
Updating of any of the individual test methods is independent of any other part.
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the publication will
be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The “colour inside” logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this publication using a colour printer.

– 4 – 60749-32 © IEC:2002+A1:2010
INTRODUCTION
Activity within IEC technical committee 47, working group 2, includes the generation,
coordination and review of climatic, electrical (of which only ESD, latch-up and electrical
conditions for life tests are considered), mechanical test methods, and associated inspection
techniques needed to assess the quality and reliability of the design and manufacture of
semiconductor products and processes.

60749-32 © IEC:2002+A1:2010 – 5 –
SEMICONDUCTOR DEVICES –
MECHANICAL AND CLIMATIC TEST METHODS –

Part 32: Flammability of plastic-encapsulated devices
(externally induced)
1 Scope and object
This part of IEC 60749 is applicable to semiconductor devices (discrete devices and
integrated circuits).
The object of this test is to determine whether the device ignites due to external heating. The
test uses a needle flame, simulating the effect of small flames which may result from fault
conditions within equipment containing the device.
NOTE This test is identical to the test method contained in 1.2 of chapter 4 of IEC 60749 (1996), apart from the
addition of this clause, the addition of titles to clauses 2 and 3 and renumbering.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60695-2-2:1995, Fire hazard testing – Part 2: Test methods – Section 2: Needle-flame test
IEC 60695-11-5:2004, Fire hazard testing – Part 11-5: Test flames – Needle-flame test
method – Apparatus, confirmatory test arrangement and guidance
3 Test procedure
This test shall be in accordance with the needle-flame test, with the following specific
requirements:
a) preconditioning: none;
b) number of test specimens: three, unless otherwise stated in the detail specification;
c) position of the specimen: as per according to Figure 1b of IEC 60695-2-2 60695-11-5:2004;
d) surface to be tested and point of application: as per according to Figure 1b of IEC 60695-2-2
60695-11-5:2004;
e) underlying layer: paper on pinewood, according to clause 4 of IEC 60695-2-2 5.4 of
IEC 60695-11-5:2004’;
f) duration of application of the flame (t ): 10 s;
a
g) duration of burning: 10 s;
h) extent
...
