IEC/ASTM 62885-7:2020/AMD1:2022

IEC/ASTM 62885-7 ®
Edition 1.0 2022-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
AMENDMENT 1
AMENDEMENT 1
Surface cleaning appliances –
Part 7: Dry cleaning robots for household or similar use – Methods for
measuring the performance
Appareils de nettoyage des sols –
Partie 7: Robots de nettoyage à sec à usage domestique ou analogue –
Méthodes de mesure de l’aptitude à la fonction

IEC/ASTM 62885-7:2020-10/AMD1:2022-06(en-fr)

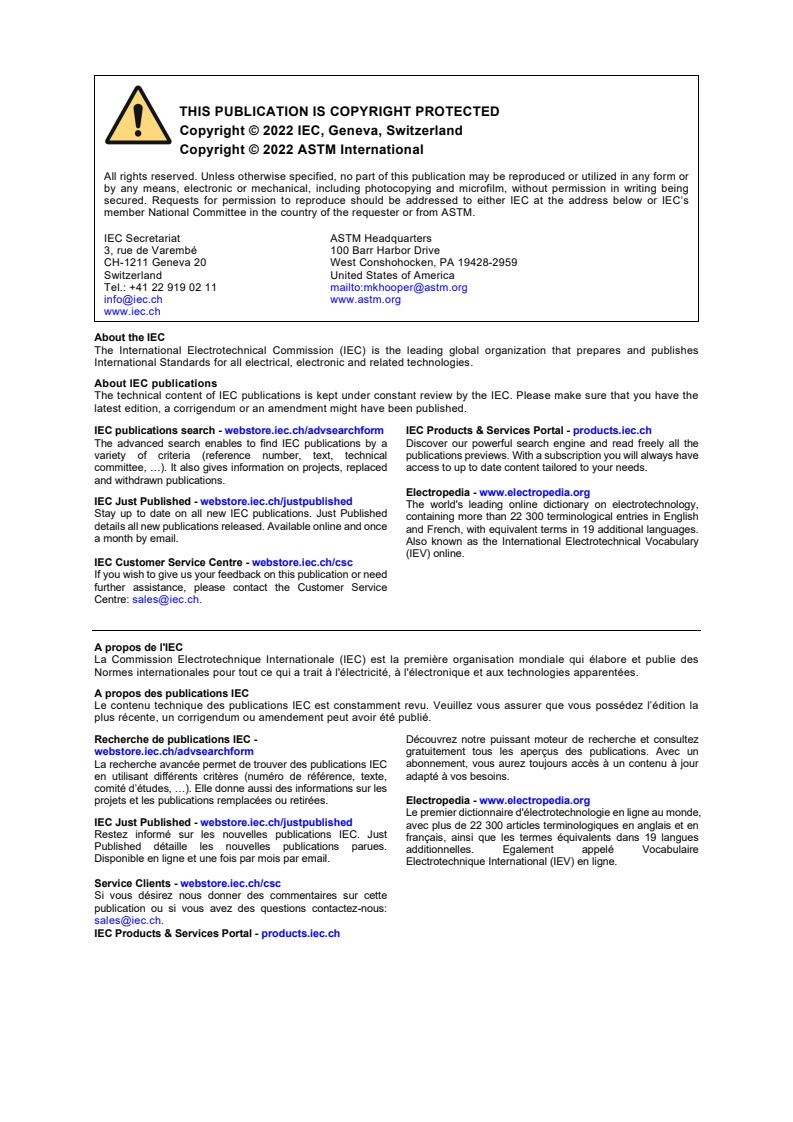

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or
by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing being
secured. Requests for permission to reproduce should be addressed to either IEC at the address below or IEC’s
member Natio nal Committee in the country of the requester or from ASTM.

IEC Secretariat ASTM Headquarters
3, rue de Varembé 100 Barr Harbor Drive
CH-1211 Geneva 20 West Conshohocken, PA 19428-2959
Switzerland United States of America
Tel.: +41 22 919 02 11 mailto:mkhooper@astm.org
info@iec.ch www.astm.org
www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc

If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Découvrez notre puissant moteur de recherche et consultez
webstore.iec.ch/advsearchform gratuitement tous les aperçus des publications. Avec un
La recherche avancée permet de trouver des publications IEC abonnement, vous aurez toujours accès à un contenu à jour
en utilisant différents critères (numéro de référence, texte, adapté à vos besoins.
comité d’études, …). Elle donne aussi des informations sur les
projets et les publications remplacées ou retirées. Electropedia - www.electropedia.org

Le premier dictionnaire d'électrotechnologie en ligne au monde,
IEC Just Published - webstore.iec.ch/justpublished
avec plus de 22 300 articles terminologiques en anglais et en
Restez informé sur les nouvelles publications IEC. Just
français, ainsi que les termes équivalents dans 19 langues
Published détaille les nouvelles publications parues.
additionnelles. Egalement appelé Vocabulaire
Disponible en ligne et une fois par mois par email.
Electrotechnique International (IEV) en ligne.

Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC Products & Services Portal - products.iec.ch

IEC/ASTM 62885-7 ®
Edition 1.0 2022-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
AMENDMENT 1
AMENDEMENT 1
Surface cleaning appliances –
Part 7: Dry cleaning robots for household or similar use – Methods for

measuring the performance
Appareils de nettoyage des sols –

Partie 7: Robots de nettoyage à sec à usage domestique ou analogue –

Méthodes de mesure de l’aptitude à la fonction

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 97.080 ISBN 978-2-8322-3894-3

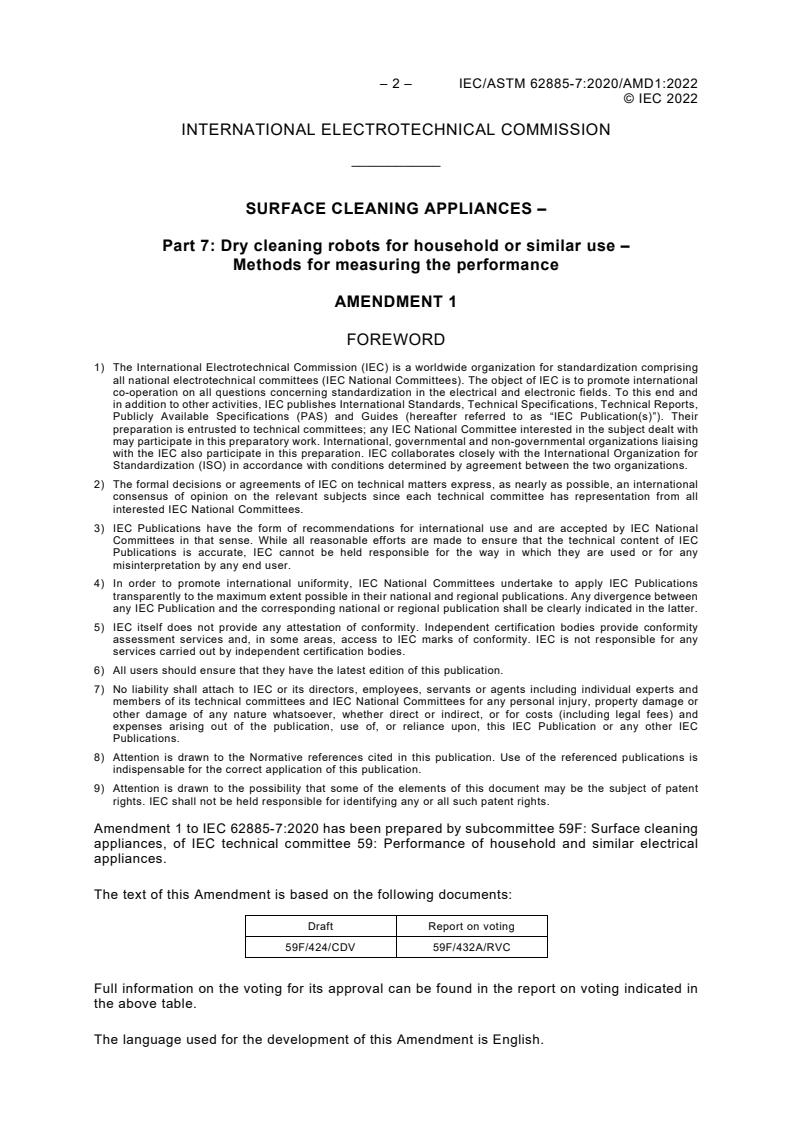

– 2 – IEC/ASTM 62885-7:2020/AMD1:2022
© IEC 2022
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SURFACE CLEANING APPLIANCES –
Part 7: Dry cleaning robots for household or similar use –
Methods for measuring the performance

AMENDMENT 1
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
Amendment 1 to IEC 62885-7:2020 has been prepared by subcommittee 59F: Surface cleaning
appliances, of IEC technical committee 59: Performance of household and similar electrical
appliances.
The text of this Amendment is based on the following documents:
Draft Report on voting
59F/424/CDV 59F/432A/RVC
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this Amendment is English.

© IEC 2022
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications/.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The "colour inside" logo on the cover page of this document indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.

___________
INTRODUCTION
The following changes to IEC 62885-7:2020 concern Clause 1, and Subclauses 8.3.2.1 and
9.1.2.
The reason for this is to clarify the area of application of this standard and to align the
specification on carpets with IEC 62885-2. A new annex on test materials is added as Annex D.

– 4 – IEC/ASTM 62885-7:2020/AMD1:2022
© IEC 2022
1 Scope
Add the following new paragraph before the last paragraph.
Due to the nature of the way this product operates in the home, comparisons with other types
of surface cleaning appliances (e.g. dry vacuum cleaners) should not be made unless otherwise
indicated. The cleaning performance methods, in particular, are only used to make comparisons
with other dry cleaning robots and not with manually operated vacuum cleaner products.
8.3.2.1 Test bed
Replace the subclause with the following.
Refer to 9.3.
Exception: remove all legs (table, chair, and sofa legs). Replace the carpet with a test carpet
of the same type as defined in 9.1.2 except in terms of length and width.
9.1.2 Carpet
Replace the subclause with the following.
9.1.2.1 General
The test bed is identical to that defined in 9.1.1, except that the floor is covered with test carpet.
Figure 19 shows the configuration of the test bed.
Dimensions in millimetres
Key
W width of robot cleaning head
RUT robot under test
Figure 19 – Straight-line carpet test bed configuration

© IEC 2022
9.1.2.2 Test carpets
The preferred test carpet for international testing and inter-laboratory comparative testing is the
Wilton type carpet. There are three additional carpets of different quality related to cleaning
performance that may be used. These carpets in verified versions are available from suppliers
listed on the IEC website (see Annex D). Specifications on these carpet types are given for
guidance in IEC TS 62885-1.
Category A, B and C test carpets are known to be well controlled and managed in terms of
quality for repeatability and reproducibility for tests of manually operated cleaning devices.
The repeatability and reproducibility of tests with Category A, B and C test carpets for a dry
cleaning robot have not yet been verified, but their assessment is under consideration.
NOTE Category A, B and C test carpets are included for potential use because these carpe
...
