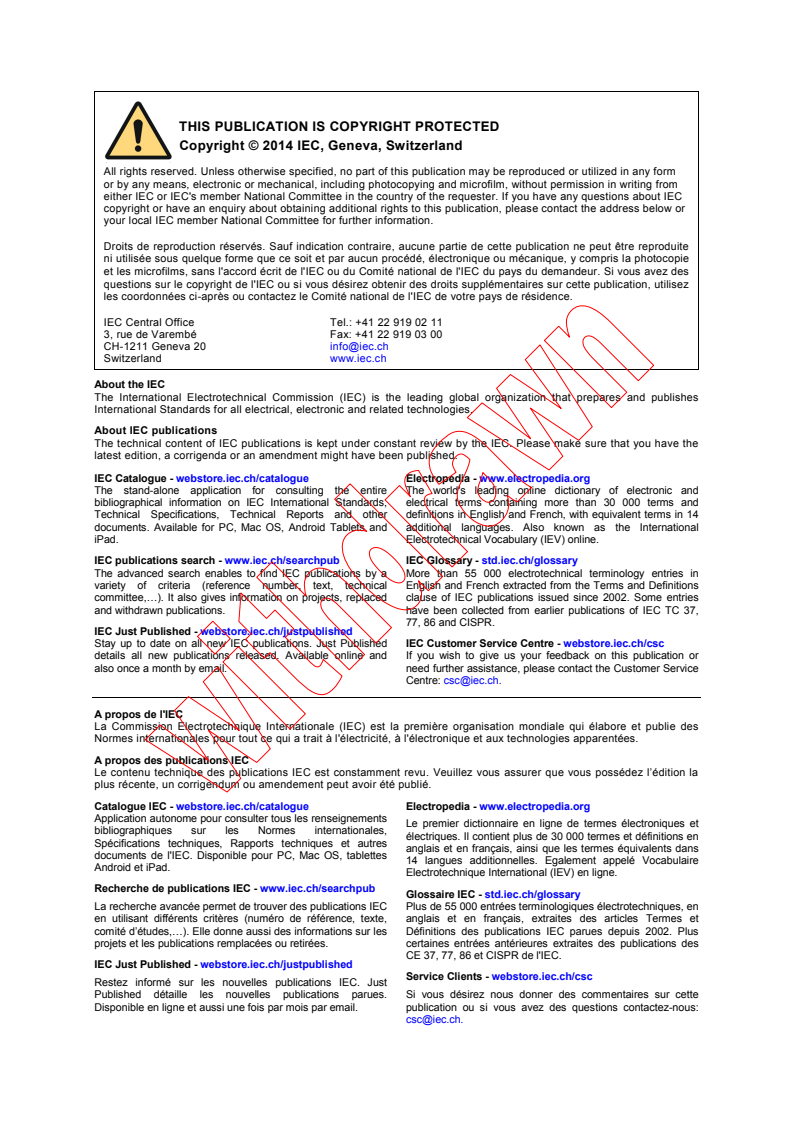

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 14
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 55 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
14 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 55 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 61340-4-4 ®
Edition 2.0 2014-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
A MENDMENT 1
AM ENDEMENT 1
Electrostatics –
Part 4-4: Standard test methods for specific applications – Electrostatic

classification of flexible intermediate bulk containers (FIBC)

Électrostatique –
Partie 4-4: Méthodes d'essai normalisées pour des applications spécifiques –

Classification électrostatique des grands récipients pour vrac souples (GRVS)

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX E
ICS 17.220.99; 29.020; 55.080 ISBN 978-2-8322-1915-7

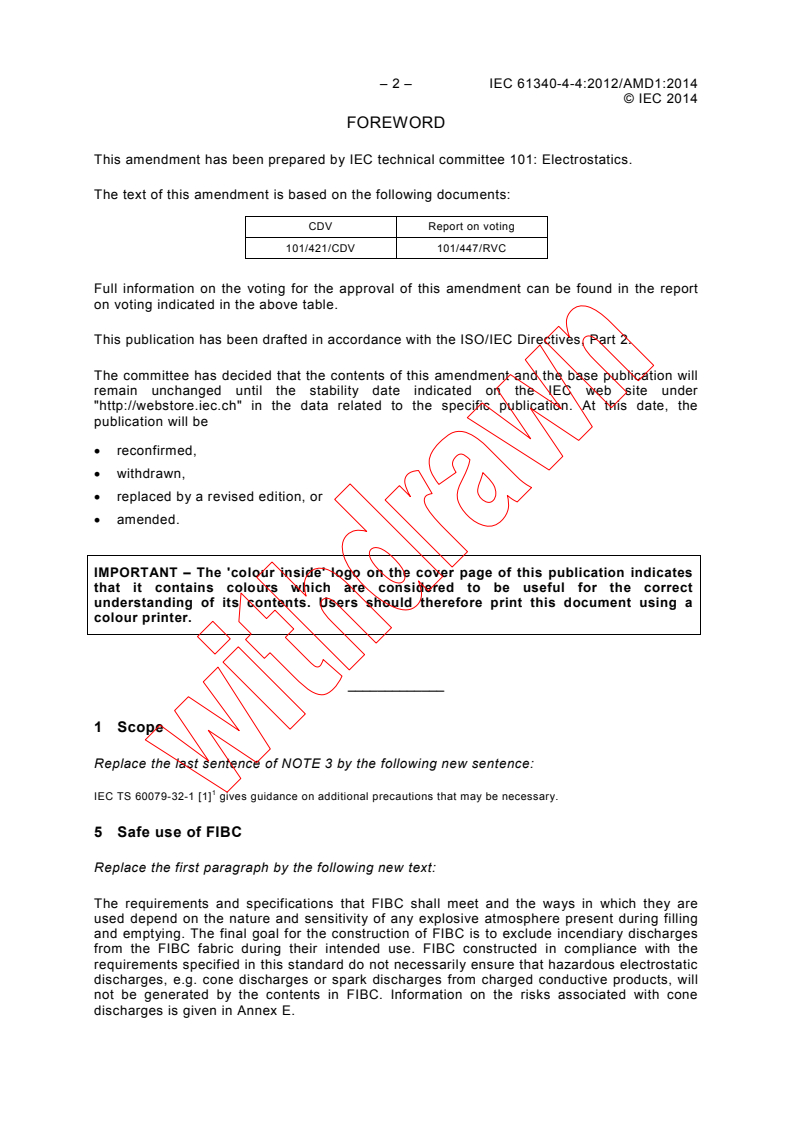

– 2 – IEC 61340-4-4:2012/AMD1:2014

© IEC 2014
FOREWORD
This amendment has been prepared by IEC technical committee 101: Electrostatics.

The text of this amendment is based on the following documents:

CDV Report on voting
101/421/CDV 101/447/RVC
Full information on the voting for the approval of this amendment can be found in the report

on voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
_____________
1 Scope
Replace the last sentence of NOTE 3 by the following new sentence:

IEC TS 60079-32-1 [1] gives guidance on additional precautions that may be necessary.
5 Safe use of FIBC
Replace the first paragraph by the following new text:
The requirements and specifications that FIBC shall meet and the ways in which they are
used depend on the nature and sensitivity of any explosive atmosphere present during filling
and emptying. The final goal for the construction of FIBC is to exclude incendiary discharges
from the FIBC fabric during their intended use. FIBC constructed in compliance with the
requirements specified in this standard do not necessarily ensure that hazardous electrostatic
discharges, e.g. cone discharges or spark discharges from charged conductive products, will
not be generated by the contents in FIBC. Information on the risks associated with cone
discharges is given in Annex E.

© IEC 2014
Replace the fifth paragraph by the following new text:

In accordance with general safety guidance (see IEC TS 60079-32-1), all conductive objects,

including personnel, Type C FIBC and any conductive contents of FIBC, within a hazardous

explosive atmosphere shall be properly earthed. Type D FIBC are not considered to be

conductive objects and are not required to be earthed.

6 Labelling
Replace the text of item j) by the following new text:

j) for Type B, Type C and Type D the phrase “All conductive objects, including personnel
shall be earthed during FIBC filling and emptying operations”;
Replace Figures 1 to 3 by the following new figures:
IEC 61340-4-4
• Permitted in dust zone 21-22 with
MIE > 3 mJ
• Electrical properties may be
affected by general usage,
contamination and reconditioning
• All conductive objects, including
TYPE
personnel shall be earthed during
FIBC filling and emptying
operations
B
IEC
Figure 1 – Example of a label for Type B FIBC

– 4 – IEC 61340-4-4:2012/AMD1:2014

© IEC 2014
IEC 61340-4-4
FIBC shall be properly earthed

according to manufacturer’s
instructions
• Permitted in dust zones 21-22 and in

gas zones 1-2 (explosion groups IIA/IIB)

• Electrical properties may be affected by
general usage, contamination and
reconditioning
TYPE
• All conductive objects, including
personnel shall be earthed during FIBC
filling and emptying operations
C
IEC
Figure 2 – Example of a label for Type C FIBC
IEC 61340-4-4
FIBC does not require earthing
• Permitted in dust zones 21- 22 and gas
zones 1- 2 (explosion groups IIA/IIB
...
