IEC

IEC 62391-1:2022

(Main)

Fixed electric double-layer capacitors for use in electric and electronic equipment - Part 1: Generic specification

Fixed electric double-layer capacitors for use in electric and electronic equipment - Part 1: Generic specification

IEC 62391-1:2022 applies to fixed electric double-layer capacitors (hereafter referred to as capacitors) mainly used in DC circuits of electric and electronic equipment.
This part of IEC 62391 establishes standard terms, inspection procedures and methods of test for use in sectional and detail specifications of electronic components for quality assessment or any other purpose.
This edition includes the following significant technical changes with respect to the previous edition:
The document has been completely restructured to comply with the ISO/IEC Directives, Part 2; a new technical categorization of test methods has been introduced and the test methods have been reorganized according to these new categories; tables, figures and references have been revised accordingly.
Calculation formula of charging/discharging efficiency in Annex D were divided into two cases: "Calculation assuming full charge and discharge" and "Calculation assuming incomplete charging and discharging due to internal resistance".

Condensateurs électriques fixes à double couche utilisés dans les équipements électriques et électroniques - Partie 1: Spécification générique

L’IEC 62391-1:2022 s’applique aux condensateurs électriques fixes à double couche (appelés ci-après condensateurs) principalement utilisés dans des circuits à courant continu d’équipements électriques et électroniques.
La présente partie de l’IEC 62391 définit les termes normalisés, les procédures de contrôle et les méthodes d’essai utilisés dans les spécifications intermédiaires et particulières des composants électroniques dans le cadre de l’assurance de la qualité, ainsi qu’à d’autres fins.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l’édition précédente:
Le présent document a été intégralement restructuré pour satisfaire aux Directives ISO/IEC, Partie 2. De nouvelles catégories techniques des méthodes d’essai ont été introduites, les méthodes d’essai ayant été réorganisées en fonction de ces nouvelles catégories. Les tableaux, figures et références ont été révisés en conséquence.
Les formules de calcul de l’efficacité de charge/décharge de l’Annexe D ont été divisées en deux: "Calcul prenant pour hypothèse la pleine charge et la pleine décharge" et "Calcul prenant pour hypothèse une charge et une décharge incomplètes, dues à la résistance interne".

General Information

Status
Published
Publication Date
19-Oct-2022
ICS
31.060.10 - Fixed capacitors
Technical Committee
TC 40 - Capacitors and resistors for electronic equipment
Drafting Committee
MT 62391-1 - TC 40/MT 62391-1
Current Stage
PPUB - Publication issued
Start Date
28-Oct-2022
Completion Date
20-Oct-2022
Ref Project

Relations

Revises
IEC 62391-1:2015 - Fixed electric double-layer capacitors for use in electric and electronic equipment - Part 1: Generic specification
Effective Date
05-Sep-2023
Revises
IEC 62391-1:2015/COR1:2016 - Corrigendum 1 - Fixed electric double-layer capacitors for use in electric and electronic equipment - Part 1: Generic specification
Effective Date
05-Sep-2023
Revises
IEC 62391-1:2015/COR2:2019 - Corrigendum 2 - Fixed electric double-layer capacitors for use in electric and electronic equipment - Part 1: Generic specification
Effective Date
05-Sep-2023

Buy Standard

IEC 62391-1:2022 - Fixed electric double-layer capacitors for use in electric and electronic equipment - Part 1: Generic specification Released:10/20/2022IEC 62391-1:2022 - Fixed electric double-layer capacitors for use in electric and electronic equipment - Part 1: Generic specification Released:10/20/2022
PreviousNext
Standard
IEC 62391-1:2022 - Fixed electric double-layer capacitors for use in electric and electronic equipment - Part 1: Generic specification Released:10/20/2022
English and French language
125 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

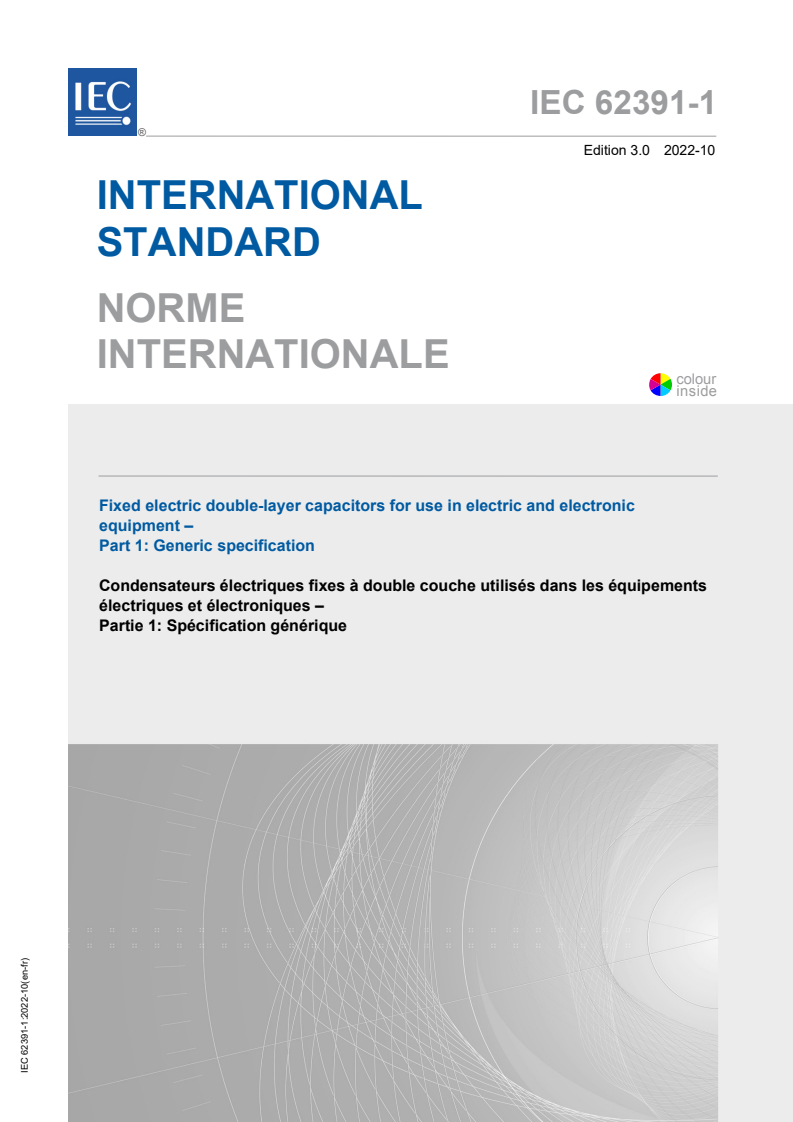

IEC 62391-1 ®
Edition 3.0 2022-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Fixed electric double-layer capacitors for use in electric and electronic
equipment –
Part 1: Generic specification
Condensateurs électriques fixes à double couche utilisés dans les équipements
électriques et électroniques –
Partie 1: Spécification générique

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 19 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un
en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour
comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 300 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
19 langues additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.

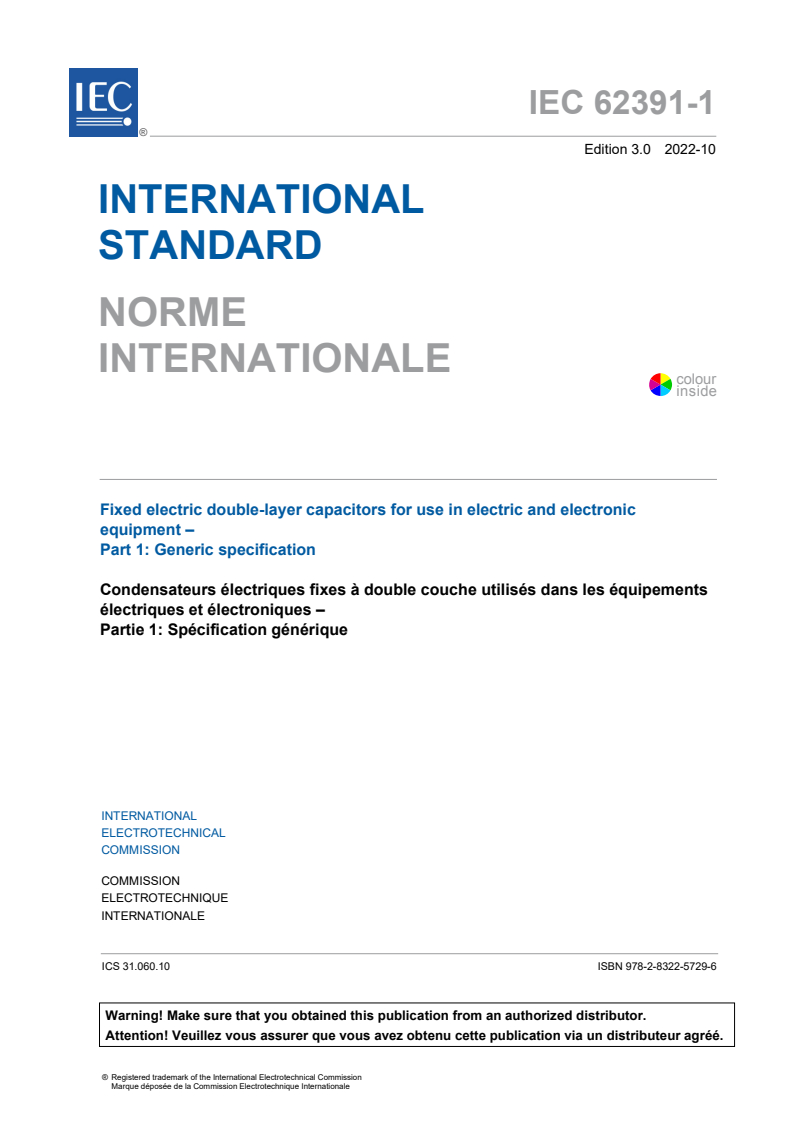

IEC 62391-1 ®
Edition 3.0 2022-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Fixed electric double-layer capacitors for use in electric and electronic

equipment –
Part 1: Generic specification
Condensateurs électriques fixes à double couche utilisés dans les équipements

électriques et électroniques –

Partie 1: Spécification générique

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.060.10 ISBN 978-2-8322-5729-6

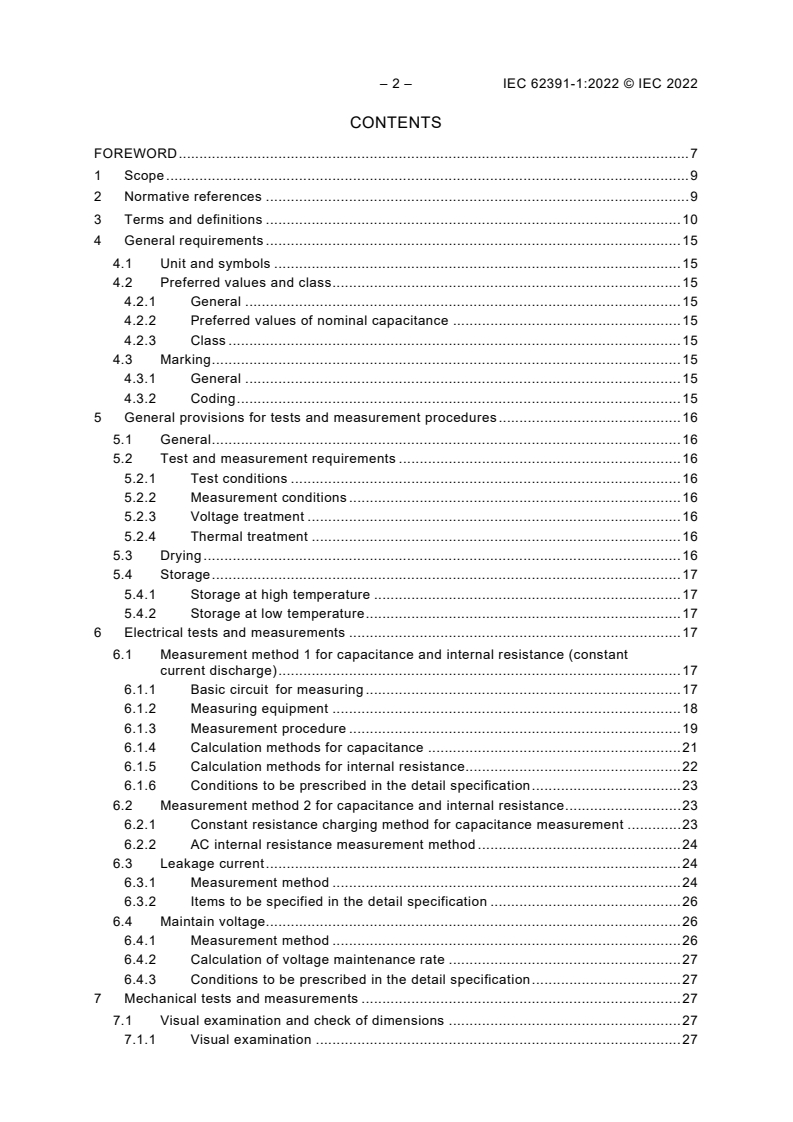

– 2 – IEC 62391-1:2022 © IEC 2022
CONTENTS
FOREWORD . 7
1 Scope . 9
2 Normative references . 9
3 Terms and definitions . 10
4 General requirements . 15
4.1 Unit and symbols . 15
4.2 Preferred values and class . 15
4.2.1 General . 15
4.2.2 Preferred values of nominal capacitance . 15
4.2.3 Class . 15
4.3 Marking . 15
4.3.1 General . 15
4.3.2 Coding . 15
5 General provisions for tests and measurement procedures . 16
5.1 General . 16
5.2 Test and measurement requirements . 16
5.2.1 Test conditions . 16
5.2.2 Measurement conditions . 16
5.2.3 Voltage treatment . 16
5.2.4 Thermal treatment . 16
5.3 Drying . 16
5.4 Storage . 17
5.4.1 Storage at high temperature . 17
5.4.2 Storage at low temperature . 17
6 Electrical tests and measurements . 17
6.1 Measurement method 1 for capacitance and internal resistance (constant
current discharge) . 17
6.1.1 Basic circuit for measuring . 17
6.1.2 Measuring equipment . 18
6.1.3 Measurement procedure . 19
6.1.4 Calculation methods for capacitance . 21
6.1.5 Calculation methods for internal resistance. 22
6.1.6 Conditions to be prescribed in the detail specification . 23
6.2 Measurement method 2 for capacitance and internal resistance . 23
6.2.1 Constant resistance charging method for capacitance measurement . 23
6.2.2 AC internal resistance measurement method . 24
6.3 Leakage current . 24
6.3.1 Measurement method . 24
6.3.2 Items to be specified in the detail specification . 26
6.4 Maintain voltage. 26
6.4.1 Measurement method . 26
6.4.2 Calculation of voltage maintenance rate . 27
6.4.3 Conditions to be prescribed in the detail specification . 27
7 Mechanical tests and measurements . 27
7.1 Visual examination and check of dimensions . 27
7.1.1 Visual examination . 27

7.1.2 Dimensions (gauging) . 27
7.1.3 Dimensions (detail) . 28
7.2 Robustness of terminations . 28
7.2.1 Test Ua1 – Tensile . 28
7.2.2 Test Ub – Bending (half of the sample) . 28
7.2.3 Test Uc – Torsion (remaining sample) . 28
7.2.4 Test Ud – Torque (for terminations with threaded studs or screws and
for integral mounting devices) . 28
7.2.5 Visual examination . 29
7.3 Vibration . 29
7.3.1 Initial measurement . 29
7.3.2 Test . 29
7.3.3 Final measurement and requirements . 29
8 Environmental and climatic tests . 29
8.1 Rapid change of temperature . 29
8.1.1 Initial measurement . 29
8.1.2 Test . 29
8.1.3 Final inspection, measurements and requirements. 29
8.2 Damp heat, steady state . 30
8.2.1 Initial measurement . 30
8.2.2 Test . 30
8.2.3 Final measurement . 30
8.3 Endurance . 30
8.3.1 Initial measurements . 30
8.3.2 Test . 30
8.3.3 Final measurement, inspection and requirements . 30
8.4 Characteristics at high and low temperature . 31
8.4.1 General . 31
8.4.2 Test procedure .
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

This May Also Interest You

IEC
IEC 60384-22:2024(Main)
Fixed capacitors for use in electronic equipment - Part 22: Sectional specification - Fixed surface mount multilayer capacitors of ceramic dielectric, Class 2

IEC 60384-22:2024 is applicable to fixed unencapsulated surface mount multilayer capacitors of ceramic dielectric, Class 2, for use in electronic equipment. These capacitors have metallized connecting pads or soldering strips and are intended to be mounted on printed boards, or directly onto substrates for hybrid circuits.
Capacitors for electromagnetic interference suppression are not included but are covered by IEC 60384-14. The object of this document is to specify preferred ratings and characteristics and to select from IEC 60384-1:2021 the appropriate quality assessment procedures, tests and measuring methods and to give general performance requirements for this type of capacitor. Test severities and requirements specified in detail specifications referring to this sectional specification provide specific test severities and requirements of an equal or higher performance level. Further information on the conception of generic, sectional and detail specifications can be found in the Introduction of IEC 60384-1:2021.
This edition includes the following significant technical changes with respect to the previous edition:
a) The document has been completely restructured to comply with the ISO/IEC Directives, Part 2 and to make it more useable; tables, figures and references have been revised accordingly.
b) The requirements of reference temperature 25 °C has been added in Table 5, Table 9, Table 10, Table 12, Table 14 and Table 17.
c) The table of temperature characteristics of capacitance for the reference temperature 25 °C have been added in Table C.1, Table C.2 and Table C.3.
d) The requirement in 5.5.2 (visual examination) has been repeated in 5.9.3, 5.10.6, 5.11.4, 5.12.6, 5.13.8, 5.14.6 and 5.15.6.
e) The deflection D in the very robust designs has been added in 5.9.1.
f) Annex C has been changed informative into normative.
g) Clause D.5 (Test schedule for quality conformance inspection) has been newly added to withdraw the blank detail specification: IEC 60384-22-1.

  • Standard
    167 pages
    English language
    sale 15% off
  • Standard
    107 pages
    English and French language
    sale 15% off
IEC
IEC 60384-21:2024(Main)
Fixed capacitors for use in electronic equipment - Part 21: Sectional specification - Fixed surface mount multilayer capacitors of ceramic dielectric, Class 1

IEC 60384-21:2024 is applicable to fixed unencapsulated surface mount multilayer capacitors of ceramic dielectric with a defined temperature coefficient (dielectric Class 1), intended for use in electronic equipment. These capacitors have metallized connecting pads or soldering strips and are intended to be mounted on printed boards, or directly onto substrates for hybrid circuits. Capacitors for electromagnetic interference suppression are not included but are covered by IEC 60384-14. The object of this document is to specify preferred ratings and characteristics and to select from IEC 60384-1:2021 the appropriate quality assessment procedures, tests and measuring methods and to give general performance requirements for this type of capacitor. Test severities and requirements specified in detail specifications referring to this sectional specification provide specific test severities and requirements of an equal or higher performance level. Further information on the conception of generic, sectional and detail specifications can be found in the Introduction of IEC 60384-1:2021.
This edition includes the following significant technical changes with respect to the previous edition:
a) the document has been completely restructured to comply with the ISO/IEC Directives, Part 2 and to make it more useable; tables, figures and references have been revised accordingly; Annex X contains all cross-references of changes in clause/subclause numbers;
b) the terms have been replaced by the letter symbols in Table 3;
c) code of temperature coefficient and tolerance of C0G, U2J have been added in Table 4, Table 6, Table 8, Table 9, Table 11, Table 13, Table 16 and Annex B;
d) the requirement in 5.5.2(visual examination) has been repeated in 5.9.3, 5.10.5, 5.11.4, 5.11.4, 5.13.7, 5.14.5 and 5.15.5;
e) the deflection D in the very robust designs has been added in 5.9.1;
f) Annex B has been changed informative into normative;
g) Clause C.5 (Test schedule for quality conformance inspection) has been newly added to withdraw the blank detail specification: IEC 60384-21-1.

  • Standard
    147 pages
    English language
    sale 15% off
  • Standard
    94 pages
    English and French language
    sale 15% off
IEC
IEC 60384-20:2023(Main)
Fixed capacitors for use in electronic equipment - Part 20: Sectional specification - Fixed metallized polyphenylene sulfide film dielectric surface mount DC capacitors

IEC 60384-20:2023 is applicable to fixed surface mount capacitors for direct current, with metallized electrodes and polyphenylene sulfide dielectric for use in electronic equipment. These capacitors have metallized connecting pads or soldering strips and are intended to be mounted directly onto printed boards or onto substrates for hybrid circuits. These capacitors can have "self-healing properties" depending on conditions of use. They are primarily intended for applications where the AC component is small with respect to the rated voltage. This part of IEC 60384 specifies preferred ratings and characteristics and selects from IEC 60384-1:2021 the appropriate quality assessment procedures, tests and measuring methods, and gives general performance requirements for this type of capacitor. Test severities and requirements specified in detail specifications referring to this sectional specification are of an equal or higher performance level; lower performance levels are not permitted. Capacitors for electromagnetic interference suppression are not included but are covered by IEC 60384‑14. This edition includes the following significant technical changes with respect to the previous edition:
- revision of all parts of the document based on the ISO/IEC Directives, Part 2:2021, and harmonization with other similar kinds of documents;
- the document structure has been organized to follow new sectional specification structure decided in TC 40;
- revised tables and Clause 5 so as to prevent duplications and contradictions;
- in Clause 5.2 (Mounting), the Subclauses 5.2.1, 5.2.2 and 5.2.3 have been added;
- in Subclause 5.5 (Shear test), the Subclauses 5.5.1 and 5.5.2 have been added;
- in Subclause 5.14 (Component solvent resistance), the Subclauses 5.14.1 and 5.14.2 have been added. In Table 8 and Table A.2, test 5.14 has been moved before 5.7.5 (Final inspections and requirements) in Group 1A and in Subgroup C1;
- in Subclause 5.15 (Solvent resistance of marking), the Subclauses 5.15.1 and 5.15.2 have been added;
- tangent of loss angle measurement has been added to resistance to soldering heat test;
- lot-by-lot and periodical inspection tables, including requirements, have been moved to Annex A;
- revised Inspection Level (IL) of A1 subgroup.

  • Standard
    122 pages
    English language
    sale 15% off
  • Standard
    76 pages
    English and French language
    sale 15% off
IEC
IEC 60384-23:2023(Main)
Fixed capacitors for use in electronic equipment - Part 23: Sectional specification - Fixed metallized polyethylene naphthalate film dielectric surface mount DC capacitors

IEC 60384-23:2023 is applicable to fixed surface mount capacitors for direct current, with metallized electrodes and polyethylene naphthalate dielectric for use in electronic equipment. These capacitors have metallized connecting pads or soldering strips and are intended to be mounted directly onto printed boards or onto substrates for hybrid circuits. These capacitors can have "self-healing properties" depending on conditions of use. They are primarily intended for applications where the AC component is small with respect to the rated voltage. This part of IEC 60384 specifies preferred ratings and characteristics, selects from IEC 60384‑1:2021 the appropriate quality assessment procedures, tests and measuring methods and gives general performance requirements for this type of capacitor. Test severities and requirements specified in detail specifications referring to this sectional specification are of an equal or higher performance level. Lower performance levels are not permitted. Capacitors for electromagnetic interference suppression are not included, but are covered by IEC 60384‑14. This edition includes the following significant technical changes with respect to the previous edition:
- this edition includes the following significant technical changes with respect to the previous edition: revision of all parts of the document based on the ISO/IEC Directives, Part 2:2021, and harmonization with other similar kinds of documents;
- the document structure has been organized to follow new sectional specification structure decided in TC 40;
- revised tables and Clause 5 so as to prevent duplications and contradictions;
- in Subclause 5.2 (Mounting), the Subclauses 5.2.1, 5.2.2 and 5.2.3 have been added;
- in Subclause 5.5 (Shear test), the Subclauses 5.5.1 and 5.5.2 have been added;
- in Subclause 5.14 (Component solvent resistance), the Subclauses 5.14.1 and 5.14.2 have been added. In Table 8 and Table A.2, test 5.14 has been moved before 5.7.5 (Final inspections and requirements) in Group 1A and in Subgroup C1;
- in Subclause 5.15 (Solvent resistance of marking), the Subclauses 5.15.1 and 5.15.2 have been added;
- tangent of loss angle measurement has been added to the resistance to soldering heat test;
- lot-by-lot and periodical inspection tables including requirements have been moved to Annex A;
- revised Inspection Level (IL) of A1 subgroup.

  • Standard
    122 pages
    English language
    sale 15% off
  • Standard
    76 pages
    English and French language
    sale 15% off
IEC
IEC 60384-14:2023(Main)
Fixed capacitors for use in electronic equipment - Part 14: Sectional specification - Fixed capacitors for electromagnetic interference suppression and connection to the supply mains

IEC 60384-14:2023 applies to capacitors and resistor-capacitor combinations intended to be connected to AC mains or other supply with a nominal voltage not exceeding 1 000 V AC (RMS), and with a nominal frequency not exceeding 100 Hz. This document includes also additional specific conditions and requirements for the connection to DC supplies with a rated voltage not exceeding 1 500 V DC. The principal object of this part of IEC 60384 is to prescribe preferred ratings and characteristics and to select, from IEC 60384-1, the appropriate quality assessment procedures, tests and measuring methods and to give general performance requirements for this type of capacitor. Test severities and requirements prescribed in detail specifications referring to this sectional specification are of equal or higher performance level; lower performance levels are not permitted. This document also provides a schedule of safety tests to be used by national testing stations in countries where approval by such stations is required. The overvoltage categories in combination with the AC mains voltages for the capacitors classified in this document are to be taken from IEC 60664-1. This edition includes the following significant technical changes with respect to the previous edition:
in damp heat steady state test, all capacitor types are tested both with and without rated voltage; the number of test pieces has been increased;
tangent of loss angle is added In Group 0 tests, in safety tests only;
qualification approval based on safety and performance tests has been removed from the main text to a normative annex;
the range of rated voltages is given instead of exact rated voltage values;
normative annex for description of capacitor styles and of creepage/clearance distance measurement has been added;
the importance of mechanical failures (cracks) in component encapsulation as a safety feature is highlighted in handling instructions and requirements after all relevant tests.

  • Standard
    274 pages
    English language
    sale 15% off
  • Standard
    180 pages
    English and French language
    sale 15% off
IEC
IEC 60384-1-1:2022(Main)
Fixed capacitors for use in electronic equipment - Part 1-1: Generic blank detail specification

IEC 60384-1-1:2022 establishes a generic template and specifies requirements to the content of detail specifications for capacitors within the IEC 60384-X series. This part of IEC 60384-1 is applicable to the drafting of detail specifications for fixed capacitors for use in electronic equipment.

  • Standard
    41 pages
    English and French language
    sale 15% off
IEC
IEC 60384-1:2021(Main)
Fixed capacitors for use in electronic equipment - Part 1: Generic specification

IEC 60384-1:2021 is a generic specification and is applicable to fixed capacitors for use in electronic equipment. It establishes standard terms, inspection procedures and methods of test for use in sectional and detail specifications of electronic components for quality assessment or any other purpose.
This edition includes the following significant technical changes with respect to the previous edition:
a) The document has been completely restructured to comply with the ISO/IEC Directives, Part 2; a new technical categorization of test methods has been introduced and the test methods have been reorganized according to these new categories; tables, figures and references have been revised accordingly.
b) Annex X has been added for comparison with the previous edition.

  • Standard
    163 pages
    English and French language
    sale 15% off
IEC
IEC 62391-1:2015/COR2:2019(Corrigendum)
Corrigendum 2 - Fixed electric double-layer capacitors for use in electric and electronic equipment - Part 1: Generic specification
  • Standard
    1 page
    English and French language
    sale 15% off
IEC
IEC 60384-21:2019(Main)
Fixed capacitors for use in electronic equipment - Part 21: Sectional specification - Fixed surface mount multilayer capacitors of ceramic dielectric, Class 1

IEC 60384-21:2019 is applicable to fixed unencapsulated surface mount multilayer capacitors of ceramic dielectric, Class 1, for use in electronic equipment. These capacitors have metallized connecting pads or soldering strips and are intended to be mounted on printed boards, or directly onto substrates for hybrid circuits. Capacitors for electromagnetic interference suppression are not included, but are covered by IEC 60384-14. The object of this document is to prescribe preferred ratings and characteristics and to select from IEC 60384-1 the appropriate quality assessment procedures, tests and measuring methods and to give general performance requirements for this type of capacitor. Test severities and requirements prescribed in detail specifications referring to this sectional specification are of equal or higher performance levels; lower performance levels are not permitted. This edition includes the following significant technical changes with respect to the previous edition: - revision of the structure in accordance with ISO/IEC Directives, Part 2:2016 to the extent practicable, and for harmonizing with IEC 60384-22;
- deletion of the description on the permissible reactive power in 6.2.2 because it is not appropriate for the purposes of this document;
- the dimensions of 0201M in Annex A have been added.

  • Standard
    127 pages
    English language
    sale 15% off
  • Standard
    84 pages
    English and French language
    sale 15% off
IEC
IEC 60384-22:2019(Main)
Fixed capacitors for use in electronic equipment - Part 22: Sectional specification - Fixed surface mount multilayer capacitors of ceramic dielectric, Class 2

IEC 60384-22:2019 is applicable to fixed unencapsulated surface mount multilayer capacitors of ceramic dielectric, Class 2, for use in electronic equipment. These capacitors have metallized connecting pads or soldering strips and are intended to be mounted on printed boards, or directly onto substrates for hybrid circuits. Capacitors for electromagnetic interference suppression are not included, but are covered by IEC 60384-14. The object of this document is to prescribe preferred ratings and characteristics and to select from IEC 60384-1 the appropriate quality assessment procedures, tests and measuring methods and to give general performance requirements for this type of capacitor. Test severities and requirements prescribed in detail specifications referring to this sectional specification are of equal or higher performance levels, lower performance levels are not permitted. This edition includes the following significant technical changes with respect to the previous edition: - revision of the structure in accordance with ISO/IEC Directives, Part 2:2016 (seventh edition) to the extent practicable, and for harmonizing with IEC 60384-21;
- deletion of the description on the permissible reactive power in 6.2.2 because it is not appropriate for the purposes of this document;
- the dimensions of 0201M in Annex A have been added.

  • Standard
    137 pages
    English language
    sale 15% off
  • Standard
    92 pages
    English and French language
    sale 15% off
