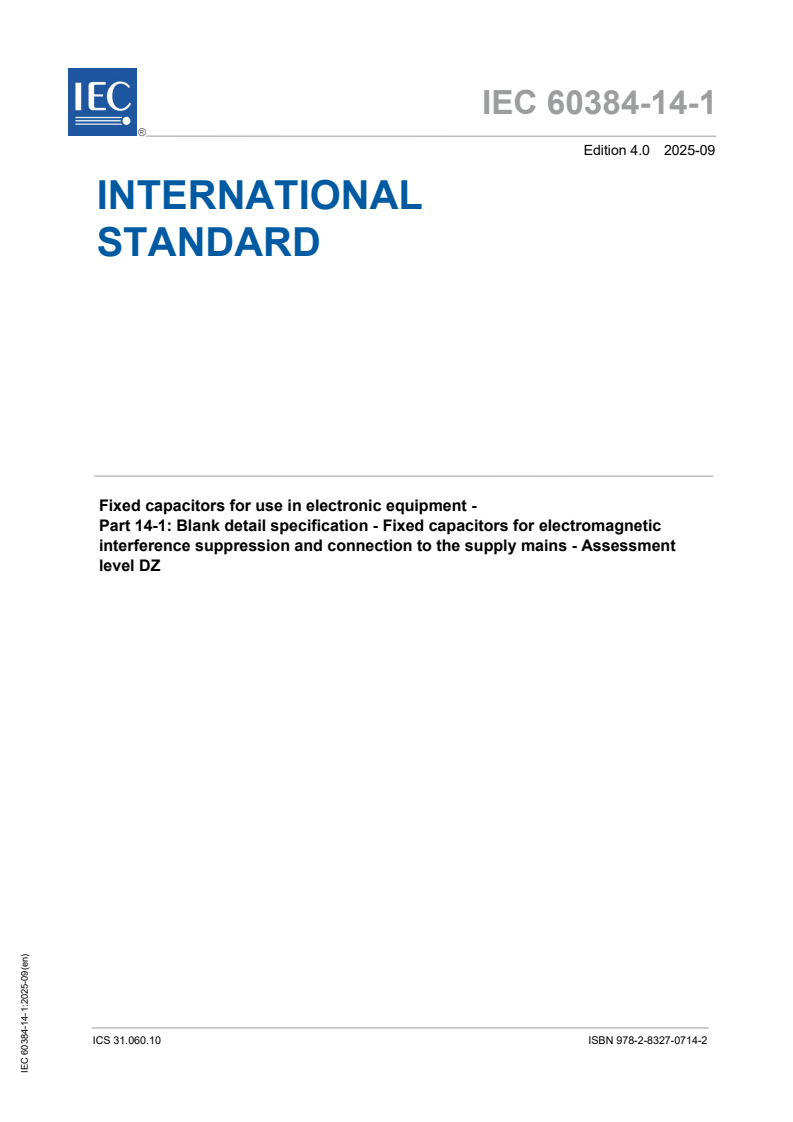

IEC 60384-14-1:2025

IEC 60384-14-1 ®
Edition 4.0 2025-09
INTERNATIONAL
STANDARD
REDLINE VERSION
Fixed capacitors for use in electronic equipment -
Part 14-1: Blank detail specification - Fixed capacitors for electromagnetic
interference suppression and connection to the supply mains - Assessment
level DZ
ICS 31.060.10 ISBN 978-2-8327-0753-1
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or
by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either
IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC copyright
or have an enquiry about obtaining additional rights to this publication, please contact the address below or your local
IEC member National Committee for further information.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Discover our powerful search engine and read freely all the
The advanced search enables to find IEC publications by a publications previews, graphical symbols and the glossary.
variety of criteria (reference number, text, technical With a subscription you will always have access to up to date
committee, …). It also gives information on projects, content tailored to your needs.
replaced and withdrawn publications.
Electropedia - www.electropedia.org
The world's leading online dictionary on electrotechnology,
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published containing more than 22 500 terminological entries in English
details all new publications released. Available online and and French, with equivalent terms in 25 additional languages.
once a month by email. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer
Service Centre: sales@iec.ch.

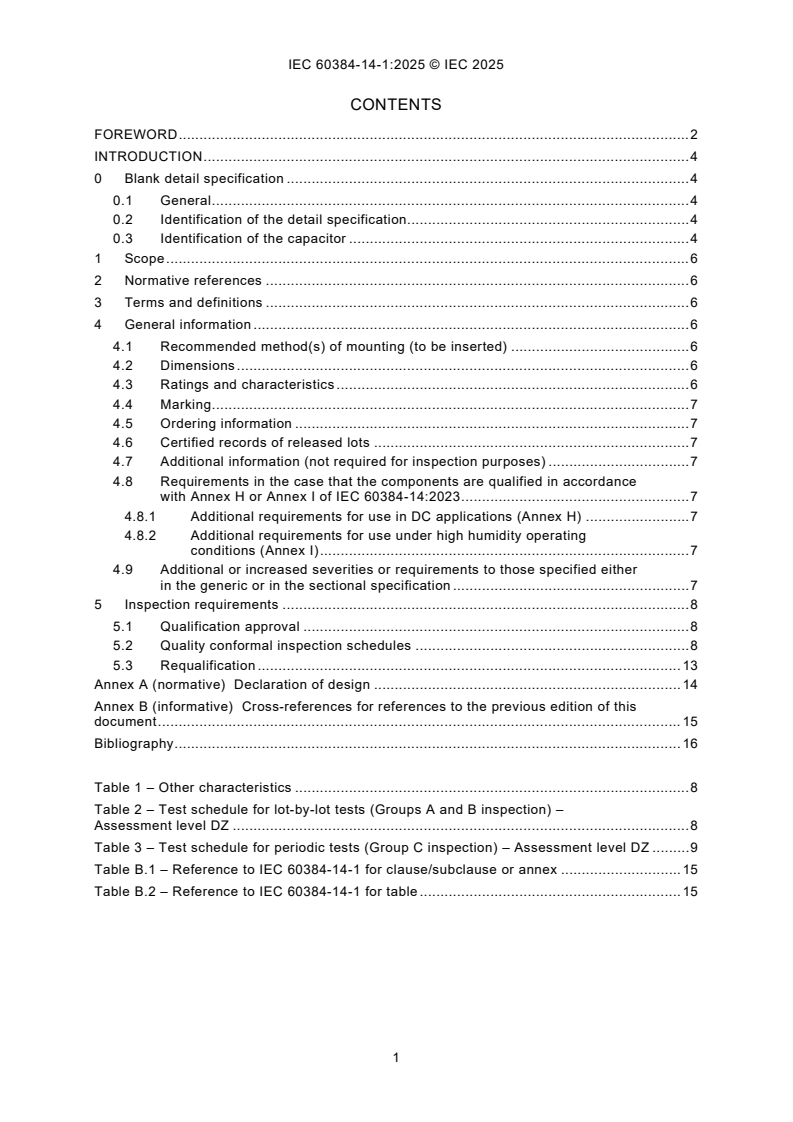

CONTENTS
FOREWORD . 2
INTRODUCTION . 1
0 Blank detail specification . 4
0.1 General . 4
0.2 Identification of the detail specification. 4
0.3 Identification of the capacitor . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 General data information . 6
4.1 Recommended method(s) of mounting (to be inserted) . 6
4.2 Dimensions . 6
4.3 Ratings and characteristics . 6
4.4 Marking . 6
4.5 Ordering information . 7
4.6 Certified records of released lots . 7
4.7 Additional information (not required for inspection purposes) . 7
4.8 Requirements in the case that the components are qualified in accordance
with Annex H or Annex I of IEC 60384-14:2023 . 7
4.8.1 Additional requirements for use in DC applications (Annex H) . 7
4.8.2 Additional requirements for use under high humidity operating
conditions (Annex I) . 8
4.9 Additional or increased severities or requirements to those specified either
in the generic and/or in the sectional specification . 8
5 Inspection requirements . 8
5.1 Qualification approval . 8
5.2 Quality conformal inspection schedules . 8
5.3 Requalification . 17
Annex A (normative) Declaration of design . 18
Annex B (informative) Cross-references for references to the previous edition of this
document . 19
Bibliography . 20

Table 1 – Dimensions .
Table 2 – Values of capacitance related to voltages and case sizes .
Table 1 – Other characteristics . 8
Table 2 – Test schedule for lot-by-lot tests (Groups A and B inspection) –
Assessment level DZ . 9
Table 3 – Test schedule for periodic tests (Group C inspection) – Assessment level DZ . 10
Table B.1 – Reference to IEC 60384-14-1 for clause/subclause or annex . 19
Table B.2 – Reference to IEC 60384-14-1 for table . 19

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
Fixed capacitors for use in electronic equipment -
Part 14-1: Blank detail specification - Fixed capacitors for
electromagnetic interference suppression and connection
to the supply mains - Assessment level DZ

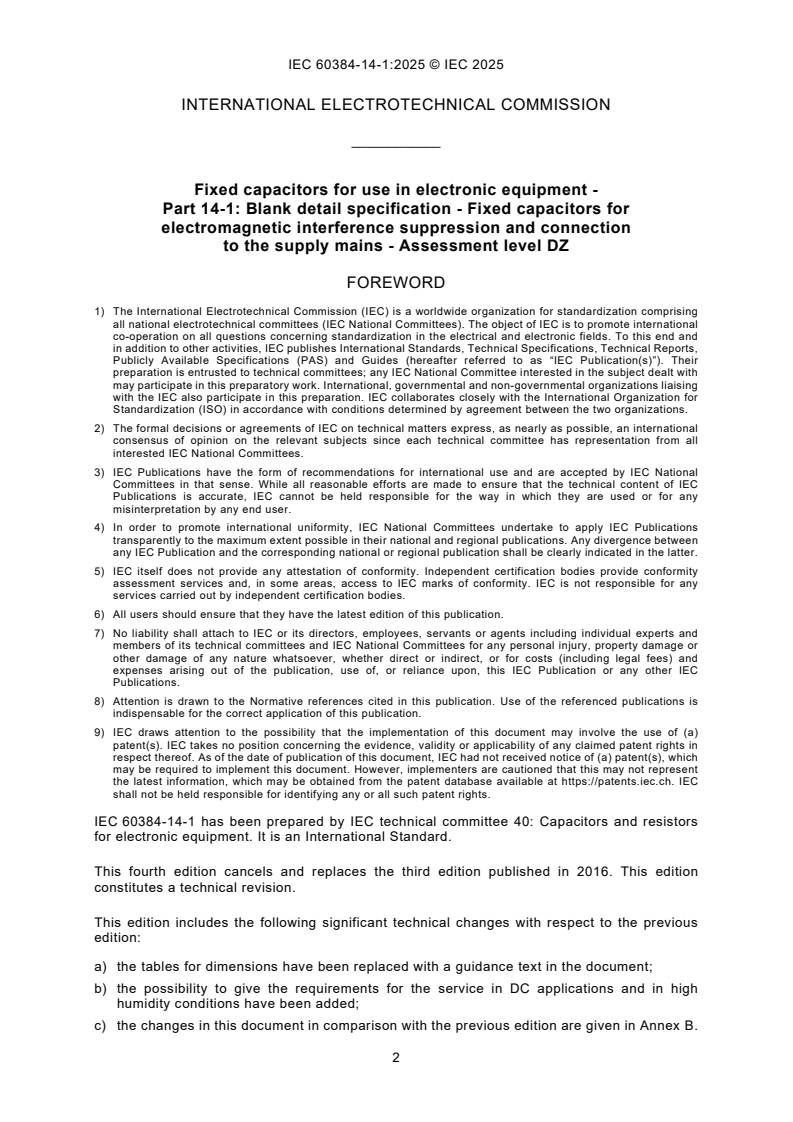

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
This redline version of the official IEC Standard allows the user to identify the changes made
to the previous edition IEC 60384-14-1:2016. A vertical bar appears in the margin wherever a
change has been made. Additions are in green text, deletions are in strikethrough red text.

IEC 60384-14-1 has been prepared by IEC technical committee 40: Capacitors and resistors
for electronic equipment. It is an International Standard.
This fourth edition cancels and replaces the third edition published in 2016. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) the tables for dimensions have been replaced with a guidance text in the document;
b) the possibility to give the requirements for the service in DC applications and in high
humidity conditions have been added;
c) the changes in this document in comparison with the previous edition are given in Annex B.
The text of this International Standard is based on the following documents:
Draft Report on voting
40/3237/FDIS 40/3250/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts in the IEC 60384 series, published under the general title Fixed capacitors for
use in electronic equipment, can be found on the IEC website.
This International Standard is to be used in conjunction with IEC 60384-1 and
IEC 60384-14:2023.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
INTRODUCTION
0 Blank detail specification
0.1 General
This blank detail specification forms the basis for a uniform procedure for a common
international safety mark. It implements the approval schedule for safety tests in IEC 60384-14,
requires specifies a declaration of design for parameters relevant to safety and indicates
conformance tests to be conducted on every lot prior to its release and requalification tests
depending on changes to the declared design.
This specification offers the assessment level DZ (zero defects).
The use of IEC 60384-14-1, may be more appropriate for components manufactured in mass
production, whereas the employment of IEC 60384-14-2 (safety tests only) may be necessary
in those cases where approval and requalification tests contribute considerably to the costs of
the product.
A blank detail specification is a supplementary document to the sectional specification and
contains requirements for style, layout and minimum content of detail specifications. Detail
specifications not complying with these requirements may are not be considered as being in
accordance with IEC specifications, nor shall should they so be described.
In the preparation of detail specifications the content of 1.4 of the sectional specification shall
be taken into account, refer to IEC 603984-14:2023, Clause 7.
0.2 Identification of the detail specification
The first page of the detail specification should have the layout recommended on the next page
of this blank detail specification. The numbers between square brackets in the layout
correspond to the following information in [1] to [4] which shall should be inserted at the position
indicated:
[1] The "International Electrotechnical Commission" or the National Standards Organization
under whose authority the detail specification is drafted.
[2] The IEC or National Standards number of the detail specification, date of issue and any
further information required by the national system.
[3] The number and issue number of the IEC, or national, generic, or sectional specification,
as relevant.
[4] If different from the IEC number, the national number of the detail specification, date of
issue and any further information required by the national system, together with any
amendment numbers.
0.3 Identification of the capacitor
The numbers between square brackets in the layout correspond to the following information in
[5] to [9] which should be inserted at the position indicated.
[5] A short description of the type of capacitor or range of capacitors. The text should be
suitable for an entry in the IECQ register of approvals.
[6] Information on typical construction (when applicable). The text should be suitable for an
entry in the IECQ register of approvals.
[7] Outline drawing with main dimensions which are of importance for either interchangeability
and/or reference to the appropriate national or international documents for outlines.
Alternatively, the drawing may can be given in an annex to the detail specification, but [7]
should always contain an illustration of the general outer appearance of the component.
[8] The level(s) of quality assessment covered by the detail specification, as appropriate.
[9] Reference data giving information on the most important properties of the component which
allow comparison between the various component types intended for the same or similar
applications.
IEC 60384-14-1-XXX
appropriate national or
[1] [2]
international detail
specification number
ELECTRONIC COMPONENTS OF
ASSESSED QUALITY IN
ACCORDANCE WITH:
IEC 60384-14-1 [4]
[3]
IEC 60384-1
IEC 60384-14
FIXED CAPACITORS
FOR
ELECTROMAGNETIC
INTERFERENCE
SUPPRESSION AND [5]
CONNECTION TO THE
Outline drawing: [see Table 1]
SUPPLY MAINS
[7]
(ASSESSMENT LEVEL
[first angle projection]
DZ)
TYPICAL
CONSTRUCTION [6]
(Examples)
[Other shapes are permitted within
Class/subclass [8]
the dimensions given]
For references [1] to [4], see 0.2.
For references [5] to [8], see 0.3.

Information on the availability of components qualified to
this detail specification is given in the Qualified products [9]
list.
For reference [9], see 0.3.
1 Scope
This part of IEC 60384‑14 is applicable to the drafting of detail specifications for fixed capacitors
and resistor-capacitor combinations for which both safety and performance tests based on
assessment level DZ, are required for use in electronic equipment.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60384-1:2016, Fixed capacitors for use in electronic equipment – Part 1: Generic
specification
IEC 60384-14:20132023, Fixed capacitors for use in electronic equipment - Part 14: Sectional
specification - Fixed capacitors for electromagnetic interference suppression and connection to
the supply mains
IEC 61193-2:2007, Quality assessment systems – Part 2: Selection and use of sampling plans
for inspection of electronic components and packages
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
– IEC Electropedia: available at https://www.electropedia.org/
– ISO Online browsing platform: available at https://www.iso.org/obp
4 General data information
4.1 Recommended method(s) of mounting (to be inserted)
See IEC 60384-14:2013, 1.4.2.
Method(s) of mounting shall be in accordance with IEC 60384-14:2023, 7.3.
4.2 Dimensions
The dimensions are given in Table 1.
Table 1 – Dimensions
Case size Dimensions
reference
mm
L W H L L L …
1 2 3 4
When there is no case size reference, Table 1 may be omitted and the dimensions shall be
given in Table 2, which then becomes Table 1.
The dimensions shall be given as maximum dimensions or as nominal dimensions with a
tolerance.
The dimensions expressed as maximum dimensions or as nominal dimensions with a tolerance
shall be given in the manufacturer's specification.
4.3 Ratings and characteristics
Ratings and characteristics are as listed below:
a) capacitance range (see Table 2);
b) tolerance on nominal capacitance;
c) rated voltage (see Table 2);
d) rated current (if applicable);
e) climatic category;
f) rated temperature;
f) tangent of loss angle;
g) insulation resistance;
h) category of passive flammability.
Values of capacitance related to the rated voltage, dimensions and ordering code or type
designation shall be given in the manufacturer's specification.
Table 2 – Values of capacitance related to voltages and case sizes
Rated voltage
Case size Case size Case size Case size
Nominal capacitance
pF and/or nF
4.4 Marking
The marking of the capacitor, if any, and the packaging shall be in accordance with the
requirements of IEC 60384-14:20132023, 1.6 Clause 6.
The details of the marking of the component and packaging shall be given in full in the detail
specification.
4.5 Ordering information
Orders for capacitors covered by this specification shall contain, in clear or in coded form, the
following information:
a) nominal capacitance;
b) tolerance on nominal capacitance;
c) rated voltage;
d) manufacturer's type designation;
e) number and issue reference of the detail specification and style reference.
4.6 Certified records of released lots
Required/not required.
Certified records of released lots shall be indicated as “required” or “not required” by the
customer.
4.7 Additional information (not required for inspection purposes)
Any additional information, which is not for inspection purposes, but which is relevant for the
customer, can be included in this specification.
4.8 Requirements in the case that the components are qualified in accordance with
Annex H or Annex I of IEC 60384-14:2023
4.8.1 Additional requirements for use in DC applications (Annex H)
In case the specified rated DC voltage exceeds the rated AC voltage, for which the capacitor is
qualified, the detail specification shall define:
– the intended rated DC voltage;
– the additional test conditions as given in IEC 60384-14:2023, Table H.1, which shall be used
for qualification and conformance testing.
4.8.2 Additional requirements for use under high humidity operating conditions
(Annex I)
In case the capacitors are specified for use in applications, where high stability under high
humidity operating conditions is required, the detail specification shall define:
– the applicable humidity robustness grade;
– the related test condition and requirements as given in IEC 60384-14:2023, Clause I.3 and
Table I.1, which shall be used for qualification and conformance testing.
4.9 Additional or increased severities or requirements to those specified either in the
generic and/or in the sectional specification
Additional or increased requirements should be specified only when essential. They should be
given in Table 1.
Table 1 – Other characteristics
This table is to be used for defining characteristics which are additional to or more
severe than those given in the generic and/or in the sectional specification.

5 Inspection requirements
5.1 Qualification approval
n accordance with IEC 60384-14:2013, 3.4
For qualification approval the procedures shall be i
IEC 60384-14:2023, 8.4.2, referring to Annex K.
5.2 Quality conformal inspection schedules
For quality conformance inspection the test schedule (see Table 2 and Table 3) includes
sampling, periodicity, severities and requirements. The formation of inspection lots is covered
by IEC 60384-14:20132023, 3.5.1 8.5.2.
Table 2 – Test schedule for lot-by-lot tests (Groups A and B inspection) –
Assessment level DZ
a a
D or ND IL c Performance
Subclause number and test of Conditions of test of
a
IEC 60384-14:2023 IEC 60384-14:2023 requirements of
IEC 60384-14:2023
b b
GroupSubgroup A1 ND S-4 0
5.2 Visual examination   No visible damage
Any marking shall be
legible and correct
5.2 Dimensions (gauging)   As specified in Table 1 4.2
of this specification
GroupSubgroup A2 ND I 0
5.3.2 Capacitance   Within specified tolerance
5.3.4 Resistance (if applicable)   Within specified tolerance
5.3.3 Tangent of loss angle Frequency: … Hz  Within specified limits
(metallized film and ceramic
paper capacitors only)
ca
Method:  No permanent breakdown
5.3.1 Voltage proof (Test A)
or flashover
5.3.5 Insulation resistance (Test A) Method:  As in Table 126
Group B1 D S-3 0
5.6 Solderability (if applicable) Without ageing  Methods 1 and 2: good
tinning
Method:
Method 3: < 3 s
The sampling sizes corresponding to inspection levels should be selected from IEC 61193-2:2007, Table 1.
a
Subclause numbers of tests and performance requirements as well as the table numbers refer to the sectional
specification, IEC 60384-14:2013, unless specified otherwise.
ca
The voltage proof test shall be combined with a suitable monitoring method to detect defects in insulation
resistance.
Key:
D = destructive;
ND = non-destructive;
IL = inspection level;
c = acceptance criterion (permitted number of non-conforming items).

Table 3 – Test schedule for periodic tests (Group C inspection) – Assessment level DZ
a a
D Sample size and Performance
Subclause number and test Conditions of test
a
or acceptance
requirements
b
ND
criterion
p n c
Group C1A D 6 6 0
4.1 Dimensions (detail) See Table 9 and Table 1

of this specification
4.4.1 Initial measurements Capacitance

tan δ (if applicable)
Resistance (if applicable)
4.3 Robustness of Severity: …
termination Visual examination No visible damage
4.4. Resistance to No pre-drying
d
Method: …
soldering heat
4.19 Component solvent Solvent: …
resistance (if Solvent temperature: …

applicable) Method 2
Recovery:
4.4.2 Final measurements Visual examination No visible damage

Capacitance   See Table 13
tan δ (if applicable) For reference

Resistance (if applicable) See Table 13

Group C1B D 6 12 0
4.5 Solderability (if Without ageing Methods 1 and 2:
applicable) Method: … good tinning

Method 3: <3 s
4.20 Solvent resistance of Solvent: … Marking shall remain
the marking Solvent temperature: … legible
Method 1
Rubbing material: cotton
wool
Recovery: …
4.6 Rapid change of T = lower category
A
d
temperature
temperature
T = upper category
B
temperature
Five cycles
Duration: t = 30 min
4.6.1 Inspection Visual examination No visible damage

c
Mounting as in 1.1of this
4.7 Vibration
specification
Severity: …
4.7.2 Inspection Visual examination   No visible damage
c
Mounting as for 1.1 of this
4.8 Bump
specification
or
c
Severity: .
4.9 Shock
Table 5 (2 of 4)
a
Subclause number D Sample size and Performance
Conditions of test
a a
or acceptance
and test requirements
b
ND
criterion
p n c
4.8.2 Final measurements Visual examination No visible damage

or Capacitance   See 4.8.2 or 4.9.2
4.9.2
tan δ (if applicable)
Resistance (if applicable) Specify limit
Group C1 D 6 18 0
4.10 Container sealing (if Test Qc or Test Qd, as No evidence of

applicable, if required) applicable leakage
4.11 Climatic sequence
d
Measurements made in
4.11.1 Initial measurements
4.4.2, 4.8.2 or 4.9.2, as
appropriate
4.11.2 Dry heat No measurements
4.11.3 Damp heat, cyclic, first

cycle
4.11.4 Cold No measurements
4.11.5 Damp heat, cyclic, No measurements

remaining cycles
4.11.6 Final measurements Visual examination No visible damage
Any marking shall
be legible
Capacitance See Table 14
Resistance (if applicable)  See Table 14

See Table 14
tan δ (if applicable)
Voltage proof See Table 14
Insulation resistance  See Table 14

Group C2 D 6 10 0
4.12 Damp heat, steady
state
d
Capacitance
4.12.1 Initial measurements
Resistance (if applicable)
tan δ (metallized capacitors
only)
4.12.2 Test conditions Ceramic capacitors:
half the sample U applied;
R
other half no voltage applied
Other capacitors:
No voltage applied
Table 5 (3 of 4)
a a
D Sample size and Performance
Subclause number and test Conditions of test
a
or acceptance
requirements
b
ND
criterion
p n c
4.12.3 Final inspection and Visual examination No visible damage

measurements Marking legible
Capacitance See Table 15
Resistance (if applicable) See Table 15

tan δ (if applicable) See Table 15

Voltage proof See Table 15
Insulation resistance  See Table 15
Group C3 D
X-capacitors 3 12 0
Y-capacitors 3 12 0
Lead-through capacitors 3 6 0
d
Capacitance
4.13.1 Initial measurements
Resistance (if applicable)
tan δ (metallized capacitors
only)
4.13 Impulse voltage 3 impulses, full wave See 4.13.2 and
Peak voltage: see Tables 1  4.13.3
and 2
4.14 Endurance Duration: 1 000 h
Voltage, current and
temperature: see 4.14.3;
4.14.4, 4.14.5 and 4.14.6
4.14.7 Final inspection and Visual examination
No visible damage
measurements Marking legible
Capacitance See Table 16
Resistance (if applicable) See Table 16

tan δ (if applicable) See Table 16

Voltage proof See Table 16
Insulation resistance See Table 16

Group C4
D 6 6 0
4.15 Charge and
Only for metallized film,
discharge (if metallized paper and

applicable) ceramic capacitors and RC-
units using such capacitors
4.15.1 Initial measurements Group 0 measurements may
be used, provided the
measuring conditions are
the same as required for this
test; in addition, except for
RC-units tan δ shall be
measured
at: 10 kHz for C ≤ 1 µF
N
1 kHz for C > 1 µF
N
Table 5 (4 of 4)
a
Subclause number D Sample size and Performance
Conditions of test
a a
or acceptance
and test requirements
b
ND
criterion
p n c
4.15.3 Final measurements Capacitance See Table 17

tan δ at same frequency as See Table 17
initial measurement (not for
RC-units)
Resistance (if applicable) See Table 17

Insulation resistance See Table 17

Group C5 ND 12 4 0
4.16 Radio frequency Specify method Specify limits
characteristics (if
required)
Group C6 D 12 6-18 0
4.17 Passive flammability See 4.17.1

Group C7 D 12 24 0
4.18 Active flammability See 4.18.4

a
Subclause numbers of tests and performance requirements as well as the table numbers refer to the sectional
specification, IEC 60384-14:2013
b
D = destructive;
ND = non-destructive;
p = periodicity in months;
n = sample size;
c = acceptance criterion (permitted number of non-conforming items).
c
These tests are required to be carried out every 12 months only.
d
When, for a ceramic capacitor, a precise measurement of capacitance drift is required, preconditioning
according to IEC 60384-14:2013, Annex G, should be performed as advised by the manufacturer.

Subclause number and D or Conditions of test Sample size and Performance
test of IEC 60384- ND of acceptance criterion requirements of
14:2023 IEC 60384-14:2023 IEC 60384-14:2023
p n c
Group C1A D 6 6 0
5.2 Dimensions (detail)   As in Table 3, and
Table 1 of this
specification
5.5.2 Initial Capacitance
measurements
tan δ (if applicable)
Resistance (if
applicable)
5.4 Robustness of Severity: …
termination
Visual examination No visible damage
5.5. Resistance to No pre-drying
b
soldering heat
Method: …
Subclause number and D or Conditions of test Sample size and Performance
test of IEC 60384- ND of acceptance criterion requirements of
14:2023 IEC 60384-14:2023 IEC 60384-14:2023
p n c
5.20 Component solvent Solvent: …  As in detail specification
resistance (if
Solvent
applicable)
temperature: …
Method 2
Recovery:
5.5.3 Final inspection, Visual examination  No visible damage
measurements,
and requirements
Capacitance  As in Table K.3
For reference
tan δ (if applicable)
Resistance (if  As in Table K.3
applicable)
Group C1B D 6 12 0
5.6 Solderability (if Without ageing  Good tinning as
evidenced by free
applicable)
Method: …
flowing of the solder
with wetting of the
terminations or solder
shall flow within 3 s, as
applicable
5.21 Solvent resistance Solvent: …  Legible marking
of the marking
Solvent
temperature: …
Method 1
Rubbing material:
cotton wool
Recovery: …
5.7 Rapid change of T = lower
A
b
temperature
category
temperature
T = upper
B
category
temperature
Five cycles
Duration:
t = 30 min
5.7.2 Final inspection Visual examination  No visible damage
a
Mounting as in 4.1
5.8 Vibration
of this specification
Severity: …
5.8.3 Final inspection Visual examination  No visible damage
5.9 Repetitive shock Mounting as for 4.1
a
of this specification
(Bump)
or
a
Severity: .
5.10 Shock
5.9.3 Final inspection, Visual examination  No visible damage
measurements,
and requirements
or Capacitance   As in 5.9.3 or 5.10.3
5.10.3 tan δ (if applicable)
Subclause number and D or Conditions of test Sample size and Performance
test of IEC 60384- ND of acceptance criterion requirements of
14:2023 IEC 60384-14:2023 IEC 60384-14:2023
p n c
Resistance (if  Specify limit
applicable)
Group C1 D 6 18 0
5.11 Container sealing Test Qc or test Qd,  No evidence of leakage
(if applicable, if as applicable
required)
5.12 Climatic sequence
5.12.2 Initial Measurements
b
made in 5.5.3,
measurements
5.9.3 or 5.10.3, as
appropriate
5.12.3 Dry heat No measurements
at the upper
category
temperature
5.12.4 Damp heat,
cyclic, first cycle
No measurements
5.12.5 Cold
at the lower
category
temperature
5.12.6 Damp heat,
cyclic, remaining
cycles
5.12.7 Final inspection, Visual examination  No visible damage
measurements,
Any marking shall be
and requirements
legible
Capacitance  As in Table 9
Resistance (if  As in Table 9
applicable)
As in Table 9
tan δ (if applicable)
Voltage proof  As in Table 9
Insulation  As in Table 9
resistance
Group C2 D 6 10 0
5.13 Damp heat, steady
state
5.13.2 Initial Capacitance
b
measurements
Resistance (if
applicable)
tan δ (metallized
film and paper
capacitors only)
5.13.3 Test conditions First half of the
sample no voltage
applied
Other half of the
sample U applied;
R
5.13.4 Final inspection, Visual examination No visible damage

measurements, Marking legible
and requirements
Capacitance As in Table 10 and

Table 11
Resistance (if -“-
applicable)
Subclause number and D or Conditions of test Sample size and Performance
test of IEC 60384- ND of acceptance criterion requirements of
14:2023 IEC 60384-14:2023 IEC 60384-14:2023
p n c
tan δ (if applicable)  -“-
Voltage proof  -“-
Insulation -“-
resistance
Group C3 D
X-capacitors  3 12 0
Y-capacitors 3 12 0
Lead-through capacitors 3 6 0
5.14.2 Initial Capacitance
b
measurements
Resistance (if
applicable)
tan δ (metallized
capacitors only)
5.14 Impulse voltage 3 impulses, full  As in 5.14.3 and 5.14.4
wave
Peak voltage: see
Tables 1 and 2
5.15 Endurance Duration: 1 000 h
Voltage, current
and temperature:
see 5.15.5, 5.15.6
and 5.15.7
5.15.9 Final inspection, Visual examination  No visible damage
measurements,
Marking legible
and requirements
Capacitance  As in Table 13
Resistance (if  As in Table 13
applicable)
tan δ (if applicable)  As in Table 13
Voltage proof  As in Table 13
Insulation  As in Table 13
resistance
Group C4 D 6 6 0
5.16 Charge and Only for metallized
discharge (if film, metallized
applicable) paper and ceramic
capacitors and RC-
units using such
capacitors
5.16.2 Initial Capacitance
measurements
tan δ shall be
measured
at:10 kHz for
CN ≤ 1 µF
1 kHz for
CN > 1 µF
(not for RC-units)
Resistance (if
applicable)
Insulation
resistance
Subclause number and D or Conditions of test Sample size and Performance
test of IEC 60384- ND of acceptance criterion requirements of
14:2023 IEC 60384-14:2023 IEC 60384-14:2023
p n c
5.16.4 Final inspection, Capacitance  As in Table 14
measurements,
tan δ at same  As in Table 14
and requirements
frequency as initial
measurement (not
for RC-units)
Resistance (if  As in Table 14
applicable)
Insulation  As in Table 14
resistance
Group C5 ND 12 4 0
5.17 Radio frequency Specify method  As in detail specification
characteristics (if
required)
Group C6 D 12 6-18 0
5.18 Passive   As in 5.18.1.2
flammability
Group C7 D 12 24 0
5.19 Active flammability   As in 5.19.3
a
When, for a ceramic capacitor, a precise measurement of capacitance drift is required, preconditioning in
accordance with IEC 60384-14:2023, Annex G, should be performed as advised by the manufacturer.
b
These tests are required to be carried out every 12 months only.
Key
D = destructive;
ND = non-destructive;
p = periodicity in months;
n = sample size;
c = acceptance criterion (permitted number of non-conforming items).

5.3 Requalification
Requalification tests may can be required by the Certification Body when a change of the
declared design as given in Annex A is intended.
The Certification Body will be informed about the intended change(s) and it decides whether
requalification tests have to be performed.
As a maximum a complete requalification in accordance with Annex A may be necessary is a
possible requirement. (Refer also to Introduction.)

Annex A
(normative)
Declaration of design
Note that this declaration is confidential to the manufacturer and the Certification Body.
The purpose of this description is to register essential data and the basic design of the
capacitors for which approval is sought. The completed form shall be submitted to the relevant
Certification Body prior to any approval testing; its circulation to the other parties is left to the
decision of the manufacturer.
Changes of the declared design are permitted only after notifying the Certification Body in
writing. In this case the Certifying Body will decide on necessary steps to be taken. As a
maximum a complete requalification may be required is a possible requirement.
Registration number:
(to be allocated by the Certifying Body)
Applicant:
Manufacturer:
Manufacturing site:
Type designation:
Class/subclass:
Circuit diagram:
Dielectric
7.1 Material,
7.2 Thickness,
7.3 Density (paper only),
7.4 Number of individual layers;
Electrode(s)
8.1 Material,
8.2 Kind of generation (e.g. foil, evaporated on to film or paper);
Capacitor element, arrangement of the individual layers:
Impregnant: (if applicable)
Encapsulation
11.1 Material(s) for cases, resins etc. (as applicable),
11.2 Material of outer insulation (if applicable);
Outline dimensions
___________ __________ _____________ ______________
Location Date Name Signature
Annex B
(informative)
Cross-references for references to the previous edition of this document
The revision of this blank detail specification has resulted in a new structure. Table B.1 and
Table B.2 provide cross-references for all references to specific elements of the previous
edition of this blank detail specification.
Table B.1 – Reference to IEC 60384-14-1 for clause/subclause or annex
IEC 60384-14-1:2016
th
4 edition
Notes
Clause/Subclause or
Clause/Subclause or
Annex
Annex
0 0 Unchanged
- 1 New clause
1.1 to 1.3 4.1 to 4.3 In accordance with the change of clause numbers.
1.4 2 In accordance with ISO/IEC Directives Part 2
1.5 to 1.8 4.4 to 4.7 In accordance with the change of clause numbers.
1.9 4.9 In accordance with the change of clause numbers.
- 4.8 New clause
2 5 In accordance with the change of clause numbers.
- 3 New clause
Annex A Annex A Unchanged
Annex B New annex
Table B.2 – Reference to IEC 60384-14-1 for table
IEC 60384-14-1:2016
th
4 edition
Notes
Table
Table
Table 1 and Table 2 - Deleted
Table 3 Table 1 In accordance with the change of table numbers
Table 4 Table 2 In accordance with the change of table numbers
Table 5 Table 3 In accordance with the change of table numbers
- Table B.1 New
- Table B.2 New
Bibliography
[1] IEC 60384-1, Fixed capacitors for use in electronic equipment - Part 1: Generic
specification
[2] IEC 61193-2:2007, Quality assessment systems - Part 2: Selection and use of sampling
plans for inspection of electronic components and packages

___________
IEC 60384-14-1 ®
Edition 4.0 2025-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fixed capacitors for use in electronic equipment -
Part 14-1: Blank detail specification - Fixed capacitors for electromagnetic
interference suppression and connection to the supply mains - Assessment
level DZ
Condensateurs fixes utilisés dans les équipements électroniques -
Partie 14-1: Spécification particulière-cadre - Condensateurs fixes
d'antiparasitaire et raccordement à l'alimentation - Niveau d'assurance DZ
ICS 31.060.10  ISBN 978-2-8327-0714-2

CONTENTS
FOREWORD . 2
INTRODUCTION . 4
0 Blank detail specification . 4
0.1 General . 4
0.2 Identification of the detail specification. 4
0.3 Identification of the capacitor . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 General information . 6
4.1 Recommended method(s) of mounting (to be inserted) . 6
4.2 Dimensions .
...
