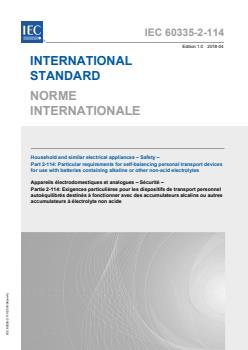

IEC 60335-2-114:2018

IEC 60335-2-114 ®
Edition 1.0 2018-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-114: Particular requirements for self-balancing personal transport devices
for use with batteries containing alkaline or other non-acid electrolytes

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-114: Exigences particulières pour les dispositifs de transport personnel
autoéquilibrés destinés à fonctionner avec des accumulateurs alcalins ou autres
accumulateurs à électrolyte non acide

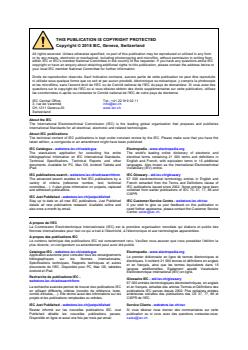

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 21 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC -
Glossaire IEC - std.iec.ch/glossary
webstore.iec.ch/advsearchform
67 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC et en français, extraites des articles Termes et Définitions des
en utilisant différents critères (numéro de référence, texte, publications IEC parues depuis 2002. Plus certaines entrées
comité d’études,…). Elle donne aussi des informations sur les antérieures extraites des publications des CE 37, 77, 86 et
projets et les publications remplacées ou retirées. CISPR de l'IEC.

IEC Just Published - webstore.iec.ch/justpublished Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just Si vous désirez nous donner des commentaires sur cette
Published détaille les nouvelles publications parues. publication ou si vous avez des questions contactez-nous:
Disponible en ligne et aussi une fois par mois par email. sales@iec.ch.

IEC 60335-2-114 ®
Edition 1.0 2018-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –

Part 2-114: Particular requirements for self-balancing personal transport devices

for use with batteries containing alkaline or other non-acid electrolytes

Appareils électrodomestiques et analogues – Sécurité –

Partie 2-114: Exigences particulières pour les dispositifs de transport personnel

autoéquilibrés destinés à fonctionner avec des accumulateurs alcalins ou autres

accumulateurs à électrolyte non acide

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 43.120 ISBN 978-2-8322-5543-8

– 2 – IEC 60335-2-114:2018 © IEC 2018

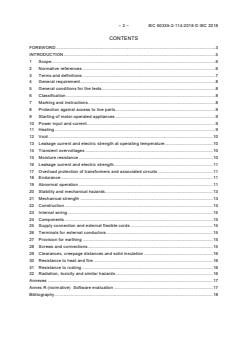

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
4 General requirement . 8
5 General conditions for the tests . 8
6 Classification . 8
7 Marking and instructions . 8
8 Protection against access to live parts . 9
9 Starting of motor-operated appliances . 9
10 Power input and current . 9
11 Heating . 9
12 Void . 10
13 Leakage current and electric strength at operating temperature . 10
14 Transient overvoltages . 10
15 Moisture resistance . 10
16 Leakage current and electric strength . 11
17 Overload protection of transformers and associated circuits . 11
18 Endurance . 11
19 Abnormal operation . 11
20 Stability and mechanical hazards . 13
21 Mechanical strength . 13
22 Construction . 14
23 Internal wiring . 15
24 Components . 15
25 Supply connection and external flexible cords . 15
26 Terminals for external conductors . 15
27 Provision for earthing . 15
28 Screws and connections . 15
29 Clearances, creepage distances and solid insulation . 16
30 Resistance to heat and fire . 16
31 Resistance to rusting . 16
32 Radiation, toxicity and similar hazards . 16
Annexes . 17
Annex R (normative) Software evaluation . 17
Bibliography . 18

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-114: Particular requirements for self-balancing personal transport
devices for use with batteries containing alkaline
or other non-acid electrolytes

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60335-2-114 has been prepared by IEC technical committee 61:
Safety of household and similar electrical appliances.
The text of this International Standard is based on the following documents:
FDIS Report on voting
61/5625/FDIS 61/5632/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – IEC 60335-2-114:2018 © IEC 2018
This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its
amendments. It was established on the basis of the fifth edition (2010) of that standard.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.
A list of all parts of the IEC 60335 series, under the general title: Household and similar
electrical appliances – Safety, can be found on the IEC website.
This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to
convert that publication into the IEC standard: Safety requirements for self-balancing personal
transport devices for use with batteries containing alkaline or other non-acid electrolytes.
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states “addition”, “modification” or “replacement”,
the relevant text in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
NOTE 4 The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this standard be adopted for implementation
nationally not earlier than 12 months or later than 36 months from the date of publication.

INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its
provisions is entrusted to appropriately qualified and experienced persons.
This standard recognizes the internationally accepted level of protection against hazards such
as electrical, mechanical, thermal, fire and radiation of appliances when operated as in
normal use taking into account the manufacturer's instructions. It also covers abnormal
situations that can be expected in practice and takes into account the way in which
electromagnetic phenomena can affect the safe operation of appliances.
This standard takes into account the requirements of IEC 60364 as far as possible so that
there is compatibility with the wiring rules when the appliance is connected to the supply
mains. However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
When a part 2 standard does not include additional requirements to cover hazards dealt with
in Part 1, Part 1 applies.
NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is
not necessary to specify particular requirements for the appliance in question over and above the general
requirements.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
NOTE 2 Horizontal and generic standards covering a hazard are not applicable since they have been taken into
consideration when developing the general and particular requirements for the IEC 60335 series of standards. For
example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as
ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.
An appliance that complies with the text of this standard will not necessarily be considered to
comply with the safety principles of the standard if, when examined and tested, it is found to
have other features that impair the level of safety covered by these requirements.
An appliance employing materials or having forms of construction differing from those detailed
in the requirements of this standard may be examined and tested according to the intent of
the requirements and, if found to be substantially equivalent, may be considered to comply
with the standard.
– 6 – IEC 60335-2-114:2018 © IEC 2018
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-114: Particular requirements for self-balancing personal transport
devices for use with batteries containing alkaline
or other non-acid electrolytes

1 Scope
This clause of Part 1 is replaced by the following.
This part of IEC 60335 deals with the electrical safety of self-balancing personal transport
devices for use with batteries containing alkaline or other non-acid electrolytes.
Appliances not intended for normal household use but which nevertheless may be a source of
danger to the public, such as appliances intended to be used by laymen in shops, in light
industry and on farms, are within the scope of this standard.
As far as is practicable, this standard deals with the common hazards presented by
appliances that are encountered by all persons in and around the home. However, in general,
it does not take into account
– persons (including children) whose
• physical, sensory or mental capabilities; or
• lack of experience and knowledge
prevents them from using the appliance safely without supervision or instruction;
– children playing with the appliance;
– operational safety such as speed restriction, falling hazards, rapid acceleration.
NOTE 101 Attention is drawn to the fact that
– for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements may
be necessary;
– in many countries, additional requirements are specified by the national health authorities, the national
authorities responsible for the protection of labour, the national transport authorities and similar
authorities.
NOTE 102 This standard does not apply to
– appliances intended exclusively for industrial purposes;
– appliances intended to be used in locations where special conditions prevail, such as the presence of a
corrosive or explosive atmosphere (dust, vapour or gas);
2 Normative references
This clause of Part 1 is applicable except as follows.
Addition:
IEC 60068-2-64, Environmental testing – Part 2-64: Tests – Test Fh: Vibration, broadband
random and guidance
IEC 61558-2 (all parts), Safety of power transformers, power supplies, reactors and similar
products – Part 2-x: Particular requirements and tests

IEC 62133-1, Secondary cells and batteries containing alkaline or other non-acid electrolytes
– Safety requirements for portable sealed secondary cells, and for batteries made from them,
for use in portable applications – Part 1: Nickel systems
IEC 62133-2, Secondary cells and batteries containing alkaline or other non-acid electrolytes
– Safety requirements for portable sealed secondary lithium cells, and for batteries made from
them, for use in portable applications – Part 2: Lithium systems
3 Terms and definitions
This clause of Part 1 is applicable except as follows.
Addition:
For the purposes of this standard, the terms and definitions given in IEC 62133-2 also apply.
3.1 Definitions relating to physical characteristics
Replacement:
3.1.9
normal operation
operation of the appliance under the conditions specified in 3.1.9.101 to 3.1.9.103
3.1.9.101
the functional part of the SPTD, with a fully charged battery is operated in such a way to
simulate the riding position and is operated on a continuous belt or rollers. The appliance is
loaded with a mass of 100 kg or the maximum load specified in the instructions, whichever is
higher. The motors are loaded to 66 % of their locked rotor current by adjusting the load on its
rotational axis in the forward direction.
3.1.9.102
the functional part of the SPTD incorporating a discharged battery that is recharged in the
appliance is connected to its detachable power supply part and the discharged battery is
fully recharged
3.1.9.103
discharged batteries that are not recharged in the appliance are connected to a battery
charger and fully recharged
3.1.101
cycle (tc)
time required for the fully charged battery to be discharged (td) while under the conditions of
normal operation until the appliance no longer operates plus the time required for the battery
to be fully recharged (tr) from this discharged condition
Note 1 to entry: tc = td + tr
3.5 Definitions relating to types of appliances
3.5.101
self-balancing personal transport device
SPTD
appliance comprising a detachable power supply part and a functional part
Note 1 to entry: The functional part has one or more wheels controlled by the self-adaption of the body of the user
and is powered by rechargeable batteries with one or more motors to drive one or more wheels.

– 8 – IEC 60335-2-114:2018 © IEC 2018
Note 2 to entry: The functional part may incorporate the battery charging circuitry and other supply unit circuitry.
(See Annex B item b)).
Note 3 to entry: The term battery as used throughout this document means “secondary battery” as defined in
IEC 62133-1 and 62133-2.
3.6 Definitions relating to parts of an appliance
3.6.2 Addition:
Note 101 to entry: If a part has to be removed with a tool solely to discard the battery before scrapping the
appliance, this part is not considered to be a detachable part even if the instructions state that it is to be removed.
4 General requirement
This clause of Part 1 is applicable.
5 General conditions for the tests
This clause of Part 1 is applicable.
6 Classification
This clause of Part 1 is applicable except as follows.
6.1 Addition:
The functional part of a SPTD shall be of class III construction.
6.2 Addition:
The functional part of a SPTD shall be at least IPX4.
7 Marking and instructions
This clause of Part 1 is applicable except as follows.
7.1 Addition:
The functional part of the SPTD shall be marked with symbol IEC 60417-5001B (2004-09) and
its type reference along with symbol ISO 7000-0790 (2004-01) or with the substance of the
following:
Use only with battery
Batteries that are detachable shall be marked with their type reference and with the substance
of the following:
Use only with self-balancing personal transport device
The functional part of the SPTD shall be marked with the maximum load in kg with which the
SPTD can be operated.
The functional part of the SPTD intended for use off-road shall be marked with the IP first
numeral 5.
7.6 Addition:
[symbol IEC 60417-5001B battery

(2004-09)]
7.12 Addition:
The instructions shall state the maximum load in kg with which the SPTD can be operated.
For SPTDs intended for use with lithium-ion batteries the instructions shall state the
– normal temperature range for charging the battery. This temperature range shall be within
the range T2 to T3 specified in IEC 62133-2;
– end-of-discharge voltage;
– upper limit of the charging voltage, for batteries comprising series connected cells;
– rated capacity of the battery (C Ah).
7.14 Addition:
The height of the marking indicating the maximum load with which the SPTD can be operated
shall be at least 10 mm.
7.15 Addition:
The maximum load in kg with which the SPTD can be operated, shall be visible when the
SPTD is in use.
8 Protection against access to live parts
This clause of Part 1 is applicable.
9 Starting of motor-operated appliances
This clause of Part 1 is not applicable.
10 Power input and current
This clause of Part 1 is applicable.
11 Heating
This clause of Part 1 is applicable except as follows.
11.2 Addition:
The SPTD is placed on the floor of the test corner and away from the walls.
11.5 Replacement:
– 10 – IEC 60335-2-114:2018 © IEC 2018
For SPTDs where the battery is charged in the appliance, when operating as specified in
3.1.9.102, the appliance is supplied with the most unfavourable voltage between 0,94 times
and 1,06 times the rated voltage.
11.7 Replacement:
The appliance is subjected to the tests of 11.7.1, 11.7.2 and 11.7.3.
11.7.1 For appliances supplied with only one battery that is charged within the functional
part of the SPTD, the appliance is operated for two cycles.
11.7.2 For appliances supplied with only one battery that is not charged within the SPTD the
functional part of the SPTD is operated as specified in 3.1.9.101 until the appliance no longer
operates. The battery is then recharged as specified in 3.1.9.103. The tests are then repeated.
11.7.3 For appliances supplied with additional batteries, with the first battery installed or
connected the functional part of the SPTD is operated as specified in 3.1.9.101 until the
appliance no longer operates. An additional battery is then connected and the functional part
of the SPTD is again operated as specified in 3.1.9.101 until the appliance no longer operates.
The batteries are then recharged as specified in 3.1.9.102 or 3.1.9.103 as applicable. The test
is then repeated using each additional battery in turn.
12 Void
13 Leakage current and electric strength at operating temperature
This clause of Part 1 is applicable.
14 Transient overvoltages
This clause of Part 1 is applicable.
15 Moisture resistance
This clause of Part 1 is applicable except as follows.
15.1 Addition:
Inspection shall show that there is no trace of water within compartments that house electrical
parts.
15.101 The functional part of the SPTD shall have adequate protection against the effects of
immersion.
Compliance is checked by the following test.
The functional part of the SPTD fitted with a fully charged battery, is partially immersed to a
depth just below the foot support surface area in water containing approximately 1 % NaCl
and having a temperature between 10 °C and 25 °C.
For appliances supplied with batteries that are charged within the SPTD, after 5 min, the
functional part of the SPTD shall then be removed from the water, after which the SPTD shall
be operated under normal operation for one cycle.

For appliances supplied with batteries that are not charged within the SPTD, after 5 min, the
functional part of the SPTD shall then be removed from the water, after which the functional
part of the SPTD shall be operated as specified in 3.1.9.101 until steady conditions are
reached.
During and after the tests, the appliance shall not emit flames, molten metal, poisonous or
ignitable gas in hazardous amounts. No explosion or ignition of the battery shall occur.
NOTE Gas vented from batteries is not considered to be poisonous or ignitable in hazardous amounts.
16 Leakage current and electric strength
This clause of Part 1 is applicable.
17 Overload protection of transformers and associated circuits
This clause of Part 1 is applicable.
18 Endurance
This clause of Part 1 is not applicable.
19 Abnormal operation
This clause of Part 1 is applicable except as follows.
19.1 Modification:
Instead of the tests specified, appliances are subjected to the tests of 19.2, 19.4, 19.7, 19.11,
19.12, 19.14, 19.15 and 19.101 to 19.103, as applicable.
19.7 Modification:
The SPTD is operated as specified in 3.1.9.101 but with the rotor locked and is operated for
period of 5 min.
19.11.2 Addition:
h) the terminals of each motor are short circuited one at a time.
When any of the fault conditions a) to h) are simulated, the duration of the test is until steady
conditions are established.
19.11.4 Modification:
The tests of 19.11.4.1 and 19.11.4.2 are only applicable to the functional part of the SPTD
during the battery discharge conditions of Clause 11.
19.13 Addition:
During the tests, the temperature of the battery surface shall not exceed 130 °C, the SPTD
shall be able to brake normally or, shall come to a standstill with a deceleration between
2 2
1,5 m/s to 2 m/s and its self-balancing function shall continue to function.

– 12 – IEC 60335-2-114:2018 © IEC 2018
Electronic circuits incorporated in the SPTD for protection of lithium-ion batteries and
electronic circuits incorporated in lithium-ion batteries shall not cause any cell in the battery
from exceeding its operating region for charging and discharging when tested in accordance
to 19.11.
No explosion or ignition of the battery shall occur during or after the test. Venting of the
battery is permitted provided that it is not vented by any means other than through its vents.
NOTE Gas vented from batteries is not considered to be poisonous or ignitable in hazardous amounts.
19.15 Addition:
For SPTDs incorporating a manual voltage selector switch intended to select battery voltage,
this switch is set to the lowest voltage position and the highest voltage is applied.
19.101 The functional part of the SPTD with a fully charged battery is subject to an overload
condition where the load is increased on the drive wheels until the overload protection or the
motor control operates. The motor current that caused the overload protection or motor
control to operate is measured.
The test is repeated with the functional part of the SPTDs drive wheels loaded to give a motor
current that is 90 % of the current that caused the protection or motor control to operate. If the
motor control or overload protection again operates, the test is repeated with the motor
current reduced in steps of 10 % of the current that caused the protection or motor control to
first operate until the motor control or overload protection does not operate.
During the test, the winding temperatures shall not exceed
– 140 °C, for class 105 (A) winding insulation;
– 155 °C, for class 120 (E) winding insulation;
– 165 °C, for class 130 (B) winding insulation;
– 180 °C, for class 155 (F) winding insulation;
– 200 °C, for class 180 (H) winding insulation;
– 220 °C, for class 200 (N) winding insulation;
– 240 °C, for class 220 (R) winding insulation;
– 270 °C, for class 250 winding insulation.
19.102 For lithium-ion batteries used in SPTDs that have cells or cell blocks connected in
series, compliance is checked by the following test.
to the end-of-discharge
All cells shall be discharged at a constant current equal to 0,2C
voltage specified in the instructions, except for one cell or cell block which is discharged to
50 % of the end-of-discharge voltage specified in the instructions.
The battery is then charged to the fully charged condition and the voltage across the partially
discharged cell of cell block is monitored to ensure that the charge voltage does not exceed
the upper limit of the charging voltage specified in the instructions. The selected cell or cell
block shall provide the most unfavourable condition of test.
19.103 With the surface of lithium-ion batteries outside of the normal temperature range for
charging specified in the instructions, compliance is checked by the following tests:
a) SPTDs fitted with a fully discharged battery, where the battery can be recharged in the
°
appliance, shall be conditioned in a chamber set to between 0 C and 5 °C below the
lower limit of the normal temperature range for charging the battery given in the
instructions. After thermal stabilization of the temperature on the surface of the battery,
the SPTD shall be connected to its designated detachable power supply part.

The detachable power supply part is supplied at rated voltage and charging of the
battery shall not occur.
b) For SPTDs where the battery cannot be recharged in the appliance, each supplied battery
shall be fully discharged and shall be conditioned in a chamber set to between 0 °C and
5°C below the lower limit of the normal temperature range for charging given in the
instructions. After thermal stabilization of the temperature on the surface of the battery, it
shall be connected to a battery charger.
The battery charger is supplied at its rated voltage and charging of the battery shall not
occur.
c) SPTDs fitted with a fully discharged battery, where the battery can be recharged in the
appliance, shall be conditioned in a chamber set to between 0 °C and 5 °C above the
upper limit of the normal temperature range for charging the battery given in the
instructions. After thermal stabilization of the temperature on the surface of the battery the
SPDT shall be connected to its designated detachable power supply part, whilst still in
the conditioning chamber.
The detachable power supply part is supplied at rated voltage and charging of the
battery shall not occur.
d) For SPTDs where the battery cannot be recharged in the appliance, each supplied battery
shall be fully discharged and shall be conditioned in a chamber set to between 0 °C and
5 °C above the upper limit of the normal temperature range for charging given in the
instructions. After thermal stabilization of the temperature on the surface of the battery, it
shall be connected to a battery charger whilst still in the conditioning chamber.
The battery charger is supplied at its rated voltage and charging of the battery shall not
occur.
20 Stability and mechanical hazards
This clause of Part 1 is applicable except as follows.
20.1 Not applicable.
21 Mechanical strength
This clause of Part 1 is applicable except as follows.
21.1 Modification:
Compliance is also checked by the tests of 21.101 and 21.102.
21.101 The functional part of the SPTD with a fully charged battery is subjected to the test
free-fall – procedure 1, of IEC 60068-2-31 from a 1 m height of fall. For SPTDs where the
battery can be recharged in the appliance, the SPTD shall then be operated for one cycle, the
battery shall not rupture or ignite and the temperature of the battery surface shall not exceed
130 °C.
21.102 A load of 200 kg or two times the maximum load specified in the instructions
whichever is higher, is applied evenly for ten minutes, to the foot support surface of the
functional part of the SPTD by two flat applicator plates each sized 100 mm by 250 mm. The
functional part of the SPTD shall be fitted with a fully charged battery for the test. After the 10
min period of the test, the load is removed.
For SPTDs where the battery can be recharged in the appliance, the SPTD shall then be
operated for one cycle. For SPTDs that are supplied with a battery that is not charged within
the appliance, the SPTD is operated as specified in 3.1.9.101 until the appliance no longer
operates.
– 14 – IEC 60335-2-114:2018 © IEC 2018
The SPTD shall then be observed for 1 h during which it shall show no damage affecting
safety and in particular there shall be no fire or explosion.
21.103 The functional part of the SPTD fitted with a fully charged battery shall be designed
to withstand vibrations to which it may be subjected.
Compliance is checked by carrying out the vibration tests specified in IEC 60068-2-64 under
the following conditions:
– the functional part of the SPTD is strapped to the vibration generator with the functional
part in its normal position of use;
– the direction of vibration is vertical;
– the amplitude of vibration is 0,35 mm;
– the sweep frequency range is 10 Hz to 55 Hz;
– the duration of the test is for 1 cycle or 30 min, whichever is longer.
After the test, the SPTD shall continue to operate normally and show no damage affecting
safety; in particular, no connections and no parts that may impair safety shall have loosened.
Furthermore, there shall be no fire or explosion or explosion of the battery.
21.104 Additional batteries and interconnecting cords provided with the SPTD shall have
means to be securely mounted to the functional part of the SPTD.
Compliance is checked by inspection.
21.105 Additional batteries shall have adequate mechanical strength.
Compliance is checked by test Ehb of IEC 60068-2-75.
The battery is rigidly supported and an impact energy value of 0,5 J is applied to every point
of the enclosure that is likely to be weak.
The battery shall show no damage affecting safety and shall then be observed for an
additional period of 1 h during which it shall again show no damage affecting safety; in
particular, there shall be no fire or explosion.
22 Construction
This clause of Part 1 is applicable except as follows.
22.1 Addition:
The functional part of SPTDs intended to be used off-road shall have a degree of protection
against access to hazardous parts and against solid foreign objects of at least IP5X, its
enclosure being category 2.
After the test, an inspection shall show that there is no trace of dust on insulation which could
result in a reduction of clearances or creepage distances below the values specified in
Clause 29.
22.46 Addition:
If programmable protective electronic circuits alone are used to ensure compliance with the
requirements of 19.13, the software shall contain measures to control the fault/error
conditions specified in Table R.2.
22.101 SPTDs that are powered by lithium ion batteries shall be constructed so that the
vents of the battery are not obstructed in such a way to defeat their venting operation.
Compliance is checked by inspection.
22.102 Lithium-ion batteries that are not recharged in the appliance shall incorporate
independent control and protection for current, voltage, temperature and any other parameter
required for safety and to maintain the battery cells within their operating region.
Compliance is checked by inspection.
23 Internal wiring
This clause of Part 1 is applicable.
24 Components
This clause of Part 1 is applicable except as follows.
24.1.2 Addition:
The detachable power supply part of a SPTD is an associated power supply for specific use
and the relevant standard is the appropriate part 2 of IEC 61558.
24.101 Batteries used in the functional part of the SPTD shall comply with the requirements
of IEC 62133-1 and IEC 62133-2 as appropriate.
Compliance is checked by inspection and the tests in IEC 62133-1 and IEC 62133-2.
25 Supply connection and external flexible cords
This clause of Part 1 is applicable.
26 Terminals for external conductors
This clause of Part 1 is applicable.
27 Provision for earthing
This clause of Part 1 is applicable.
28 Screws and connections
This clause of Part 1 is applicable.

– 16 – IEC 60335-2-114:2018 © IEC 2018
29 Clearances, creepage distances and solid insulation
This clause of Part 1 is applicable.
30 Resistance to heat and fire
This clause of Part 1 is applicable except as follows.
30.2.2 Not applicable.
31 Resistance to rusting
This clause of Part 1 is applicable.
32 Radiation, toxicity and similar hazards
This clause of Part 1 is applicable.
...
