IEC TS 62436:2008

IEC/TS 62436
Edition 1.0 2008-02
TECHNICAL
SPECIFICATION
Guideline for implementation of copy controlled multimedia interface

IEC/TS 62436:2008(E)

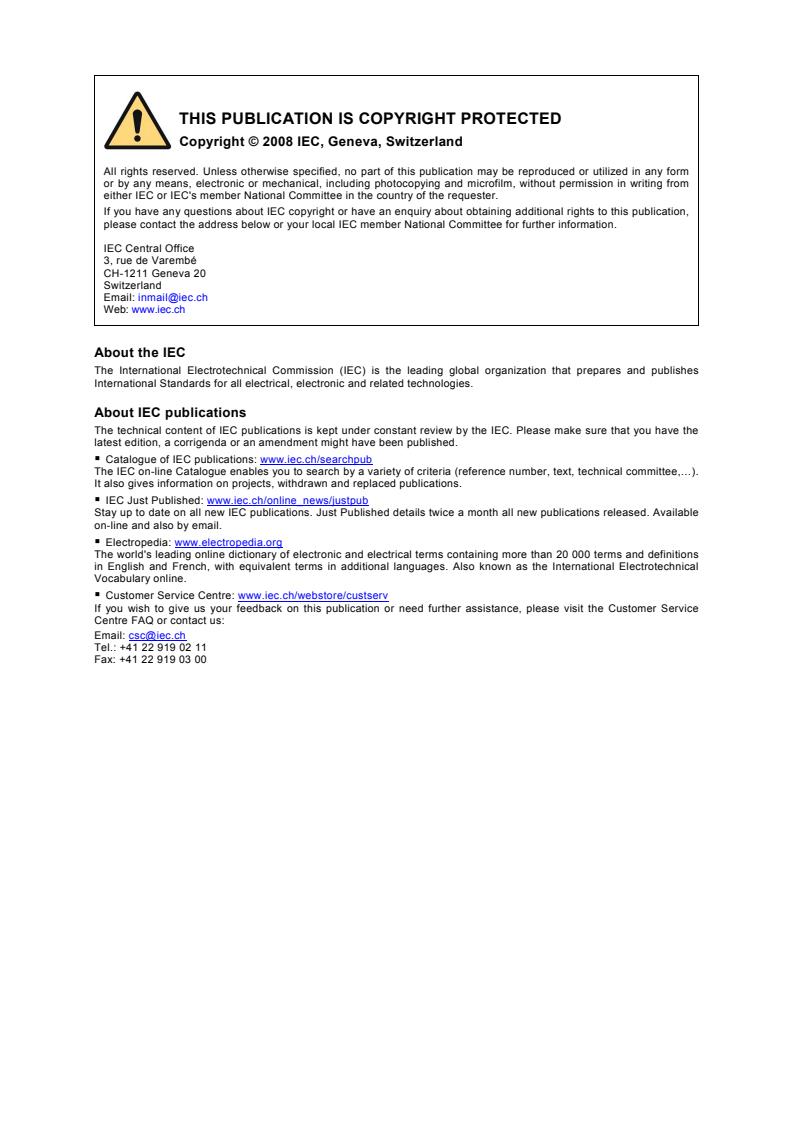

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC/TS 62436
Edition 1.0 2008-02
TECHNICAL
SPECIFICATION
Guideline for implementation of copy controlled multimedia interface

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
Q
ICS 33.160; 35.240.99 ISBN 2-8318-9612-6

– 2 – TS 62436 © IEC:2008(E)

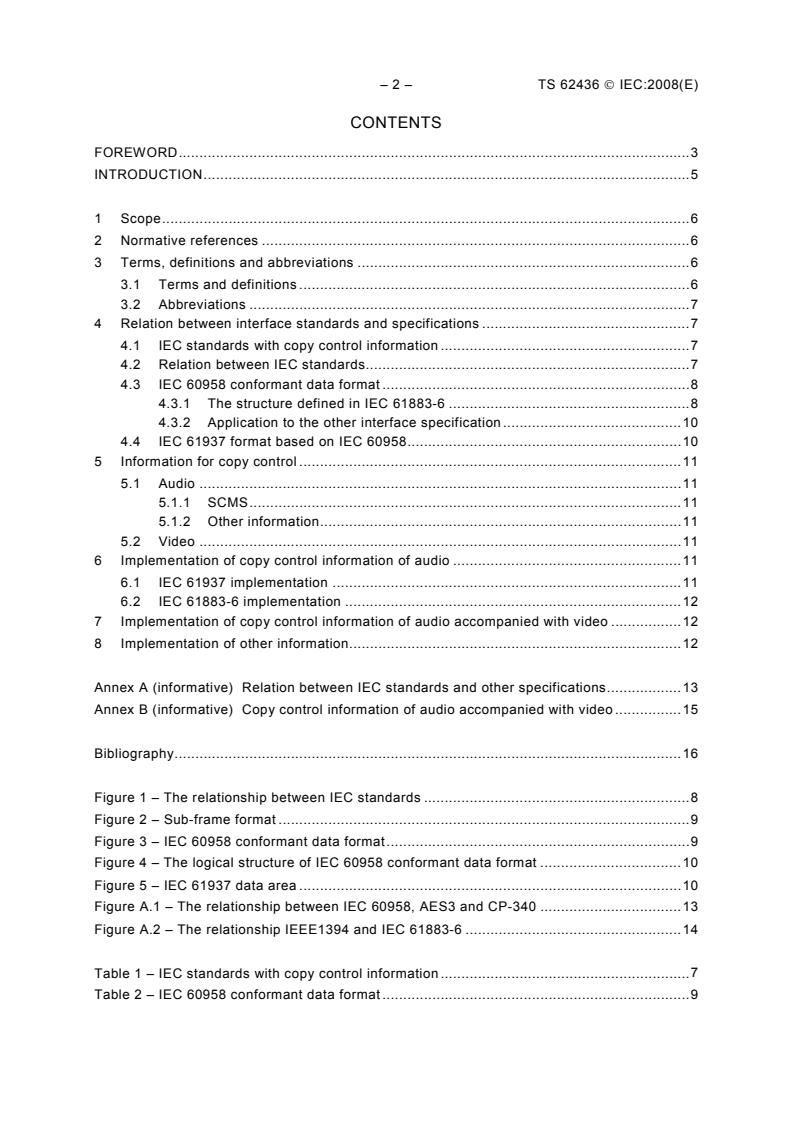

CONTENTS
FOREWORD.3
INTRODUCTION.5

1 Scope.6
2 Normative references .6
3 Terms, definitions and abbreviations .6
3.1 Terms and definitions .6
3.2 Abbreviations .7
4 Relation between interface standards and specifications .7
4.1 IEC standards with copy control information .7
4.2 Relation between IEC standards.7
4.3 IEC 60958 conformant data format .8
4.3.1 The structure defined in IEC 61883-6 .8
4.3.2 Application to the other interface specification.10
4.4 IEC 61937 format based on IEC 60958.10
5 Information for copy control .11
5.1 Audio .11
5.1.1 SCMS.11
5.1.2 Other information.11
5.2 Video .11
6 Implementation of copy control information of audio .11
6.1 IEC 61937 implementation .11
6.2 IEC 61883-6 implementation .12
7 Implementation of copy control information of audio accompanied with video .12
8 Implementation of other information.12

Annex A (informative) Relation between IEC standards and other specifications.13
Annex B (informative) Copy control information of audio accompanied with video .15

Bibliography.16

Figure 1 – The relationship between IEC standards .8
Figure 2 – Sub-frame format .9
Figure 3 – IEC 60958 conformant data format.9
Figure 4 – The logical structure of IEC 60958 conformant data format .10
Figure 5 – IEC 61937 data area .10
Figure A.1 – The relationship between IEC 60958, AES3 and CP-340 .13
Figure A.2 – The relationship IEEE1394 and IEC 61883-6 .14

Table 1 – IEC standards with copy control information .7
Table 2 – IEC 60958 conformant data format .9

TS 62436 © IEC:2008(E) – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
GUIDELINE FOR IMPLEMENTATION OF
COPY CONTROLLED MULTIMEDIA INTERFACE

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
The main task of IEC technical committees is to prepare International Standards. In
exceptional circumstances, a technical committee may propose the publication of a technical
specification when
• the required support cannot be obtained for the publication of an International Standard,
despite repeated efforts, or
• the subject is still under technical development or where, for any other reason, there is the
future but no immediate possibility of an agreement on an International Standard.
Technical specifications are subject to review within three years of publication to decide
whether they can be transformed into International Standards.
IEC 62436, which is a technical specification, has been prepared by technical area 4: Digital
system interfaces and protocols, of IEC technical committee 100: Audio, video and multimedia
systems and equipment.
– 4 – TS 62436 © IEC:2008(E)
The text of this technical specification is based on the following documents:
Enquiry draft Report on voting
100/1231/DTS 100/1334/RVC
Full information on the voting for the approval of this technical specification can be found in
the report on voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• transformed into an International standard,
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

TS 62436 © IEC:2008(E) – 5 –
INTRODUCTION
Various IEC standards have included methods for transmission of copy control information at
the time when they were developed. For instance, IEC 61119-6 defines copyright status bit for
DAT recorder, and IEC 60958-3 defines the L bit that is specified in IEC 61119-6.
The current consumer products become more complex and use the many IEC standards in
one product.
For instance, a DVD player produces its high quality audio signal securely through
IEC 61883-6, it also performs CD quality audio signal through IEC 60958 or IEC 61937, and
the DVD player can produce audio signals through the other interface using IEC 60958
conformant data format, defined in IEC 61883-6.
Another example is a digital video recorder with hard disk drive or DVD that produces audio
signal to the other audio recorder using IEC 60958 or IEC 61883-6.
These consumer products use many interface standards and should give copy control
information and other information appropriately.
This guideline describes
– the relation between digital interface standards,
– the relation of copy control information and related information,
– the method for information implementation.

– 6 – TS 62436 © IEC:2008(E)
GUIDELINE FOR IMPLEMENTATION OF
COPY CONTROLLED MULTIMEDIA INTERFACE

1 Scope
This Technical Specification gives a guideline for the implementation of the audio and video
interfaces with copy control information.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60958 (all parts), Digital audio interface
IEC 60958-1, Digital audio interface – Part 1: General
IEC 60958-3, Digital audio interface – Part 3: Consumer applications
IEC 61119-6, Digital audio tape cassette system (DAT) – Part 6: Serial copy management
system
IEC 61880-2, Video systems (525/60) – Video and accompanied data using the vertical
blanking interval – Analogue interface – Part 2: 525 progressive scan system
IEC 61883-6, Consumer audio/video equipment – Digital interface – Part 6: Audio and music
data transmission protocol
IEC 61909, Audio recording – Minidisc system
IEC 61937 (all parts), Digital audio – Interface for non-linear PCM encoded audio bitstreams
applying IEC 60958
IEC 61937-1, Digital audio – Interface for non-linear PCM encoded audio bitstreams applying
IEC 60958 – Part 1: General
IEC 61937-2, Digital audio – Interface for non-linear PCM encoded audio bitstreams applying
IEC 60958 – Part 2: Bust-info
IEC 62375, Video systems (625/50 progressive) – Video and accompanied data using the
vertical blanking interval – Analogue interface
3 Terms, definitions and abbreviations
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1.1
IEC 60958 conformant data format
data format that has conformance with the data protocol defined in of IEC 60958

TS 62436 © IEC:2008(E) – 7 –
3.2 Abbreviations
SCMS serial copy management system, for copy management of one generation
CCI copy control information
CGMS-A copy generation management system on analogue video interface
4 Relation between interface standards and specifications
4.1 IEC standards with copy control information
IEC standards that have information of copy control are described in Table 1, these standards
are the subjects of this technical specification.
Table 1 – IEC standards with copy control information
IEC standard Description of copy control information
IEC 60958-3 Digital audio interface, contains SCMS information
IEC 61937-1, IEC 61937-2,
IEC 61937-3, IEC 61937-4,
IEC 61937-5, IEC 61937-6, Digital audio interface, contains SCMS information (note 1)
IEC 61937-7, IEC 61937-8,
IEC 61937-9
IEC 61883-6 Digital audio i
...

IEC TS 62436 ®
Edition 1.1 2016-02
CONSOLIDATED VERSION
TECHNICAL
SPECIFICATION
colour
inside
Guideline for implementation of copy controlled multimedia interface

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
IEC TS 62436 ®
Edition 1.1 2016-02
CONSOLIDATED VERSION
TECHNICAL
SPECIFICATION
colour
inside
Guideline for implementation of copy controlled multimedia interface

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.160; 35.240.99 ISBN 978-2-8322-3193-7

IEC TS 62436 ®
Edition 1.1 2016-02
CONSOLIDATED VERSION
REDLINE VERSION
colour
inside
Guideline for implementation of copy controlled multimedia interface

– 2 – IEC TS 62436:2008+AMD1:2016 CSV
 IEC 2016
CONTENTS
FOREWORD. 3
INTRODUCTION . 5
INTRODUCTION to Amendment 1 . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions and abbreviations . 6
3.1 Terms and definitions . 6
3.2 Abbreviations . 7
4 Relation between interface standards and specifications . 7
4.1 IEC standards with copy control information . 7
4.2 Relation between IEC standards . 7
4.3 IEC 60958 conformant data format . 9
4.3.1 The structure defined in IEC 61883-6 . 9
4.3.2 Application to the other interface specification . 11
4.4 IEC 61937 format based on IEC 60958 . 11
5 Information for copy control . 12
5.1 Audio . 12
5.1.1 SCMS . 12
5.1.2 Other information . 12
5.2 Video . 12
6 Implementation of copy control information of audio . 12
6.1 IEC 61937 implementation . 12
6.2 IEC 61883-6 implementation . 13
7 Implementation of copy control information of audio accompanied with video . 13
8 Implementation of other information . 13
Annex A (informative) Relation between IEC standards and other specifications . 14
Annex B (informative) Copy control information of audio accompanied with video . 16
Annex C (informative) Other specifications applying copy control information . 17
Bibliography . 18

Figure 1 – The relationship between IEC standards . 9
Figure 2 – Sub-frame format . 10
Figure 3 – IEC 60958 conformant data format. 10
Figure 4 – The logical structure of IEC 60958 conformant data format . 11
Figure 5 – IEC 61937 data area . 11
Figure A.1 – The relationship between IEC 60958, AES3 and CP-340 . 14
Figure A.2 – The relationship IEEE1394 and IEC 61883-6 . 15

Table 1 – IEC standards with copy control information . 7
Table 2 – IEC 60958 conformant data format . 10

 IEC 2016
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
GUIDELINE FOR IMPLEMENTATION OF
COPY CONTROLLED MULTIMEDIA INTERFACE
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This consolidated version of the official IEC Standard and its amendment has been prepared
for user convenience.
IEC TS 62436 edition 1.1 contains the first edition (2008-02) [documents 100/1231/DTS and
100/1334/RVC] and its amendment 1 (2016-02) [documents 100/2504/DTS and 100/2609/RVC].
In this Redline version, a vertical line in the margin shows where the technical
content is modified by amendment 1. Additions are in green text, deletions are in
strikethrough red text. A separate Final version with all changes accepted is
available in this publication.

– 4 – IEC TS 62436:2008+AMD1:2016 CSV
 IEC 2016
The main task of IEC technical committees is to prepare International Standards. In
exceptional circumstances, a technical committee may propose the publication of a technical
specification when
• the required support cannot be obtained for the publication of an International Standard,
despite repeated efforts, or
• the subject is still under technical development or where, for any other reason, there is the
future but no immediate possibility of an agreement on an International Standard.
Technical specifications are subject to review within three years of publication to decide
whether they can be transformed into International Standards.
IEC 62436, which is a technical specification, has been prepared by technical area 4: Digital
system interfaces and protocols, of IEC technical committee 100: Audio, video and multimedia
systems and equipment.
The committee has decided that the contents of the base publication and its amendment will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
 IEC 2016
INTRODUCTION
Various IEC standards have included methods for transmission of copy control information at
the time when they were developed. For instance, IEC 61119-6 defines copyright status bit for
DAT recorder, and IEC 60958-3 defines the L bit that is specified in IEC 61119-6.
The current consumer products become more complex and use the many IEC standards in
one product.
For instance, a DVD player produces its high quality audio signal securely through
IEC 61883-6, it also performs CD quality audio signal through IEC 60958 or IEC 61937, and
the DVD player can produce audio signals through the other interface using IEC 60958
conformant data format, defined in IEC 61883-6.
Another example is a digital video recorder with hard disk drive or DVD that produces audio
signal to the other audio recorder using IEC 60958 or IEC 61883-6.
These consumer products use many interface standards and should give copy control
information and other information appropriately.
This guideline describes
– the relation between digital interface standards,
– the relation of copy control information and related information,
– the method for information implementation.

INTRODUCTION to Amendment 1
The revision of IEC TS 62436:2008 has become necessary to revise Figure 1 and add a new
Annex C to provide copy control information for the use of SCMS in other interface standards
and specifications that have been revised.

– 6 – IEC TS 62436:2008+AMD1:2016 CSV
 IEC 2016
GUIDELINE FOR IMPLEMENTATION OF
COPY CONTROLLED MULTIMEDIA INTERFACE

1 Scope
This Technical Specification gives a guideline for the implementation of the audio and video
interfaces with copy control information.
2 Normative references
The following referenced documents, in whole or in part, are normaly referenced in this
document and are indispensable for the its application of this document. For dated references,
only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
IEC 60958 (all parts), Digital audio interface
IEC 60958-1, Digital audio interface – Part 1: General
IEC 60958-3, Digital audio interface – Part 3: Consumer applications
IEC 61119-6, Digital audio tape cassette system (DAT) – Part 6: Serial copy management
system
IEC 61880-2, Video systems (525/60) – Video and accompanied data using the vertical
blanking interval – Analogue interface – Part 2: 525 progressive scan system
IEC 61883-6, Consumer audio/video equipment – Digital interface – Part 6: Audio and music
data transmission protocol
IEC 61909, Audio recording – Minidisc system
IEC 61937 (all parts), Digital audio – Interface for non-linear PCM encoded audio bitstreams
applying IEC 60958
IEC 61937-1, Digital audio – Interface for non-linear PCM encoded audio bitstreams applying
IEC 60958 – Part 1: General
IEC 61937-2, Digital audio – Interface for non-linear PCM encoded audio bitstreams applying
IEC 60958 – Part 2: Bust-info
IEC 62375, Video systems (625/50 progressive) – Video and accompanied data using the
vertical blanking interval – Analogue interface
3 Terms, definitions and abbreviations
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

 IEC 2016
3.1.1
IEC 60958 conformant data format
data format that has conformance with the data protocol defined in of IEC 60958
3.2 Abbreviations
SCMS serial copy management system, for copy management of one generation
CCI copy control information
CGMS-A copy generation management system on analogue video interface
4 Relation between interface standards and specifications
4.1 IEC standards with copy control information
IEC standards that have information of copy control are described in Table 1, these standards
are the subjects of this technical specification.
Table 1 – IEC standards with copy control information
IEC standard Description of copy control information
IEC 60958-3 Digital audio interface, contains SCMS information
IEC 61937-1, IEC 61937-2,
IEC 61937-3, IEC 61937-4,
IEC 61937-5, IEC 61937-6,
Digital audio interface, contains SCMS information (note 1)
IEC 61937-7, IEC 61937-8,
IEC 61937-9
IEC 61937 all parts
IEC 61883-6 Digital audio interface, contains SCMS and Audio CCI (note 2)
IEC 61119-6 Digital audio tape cassette system, defines SCMS
IEC 61909 Minidisc system, describes SCMS
IEC 61880-2 525 progressive video system, defines VBI with CGMS-A
IEC 62375 625 progressive video system, defines VBI with CGMS-A
NOTE 1 IEC 61937 does not describe SCMS, that come from the structure of IEC 60958.
NOTE 2 SCMS is contained in the IEC 60958 conformant data format.
4.2 Relation between IEC standards
Figure 1 shows the relation between digital audio interface standards IEC 60958, IEC 61937
and IEC 61883-6.
IEC 60958-1 is the fundamental standard of these related standards, and it defines the basic
structure. The application standards derived form IEC 60958-1 for the linear PCM audio data
transmission are IEC 60958-3 for consumer use and IEC 60958-4 for professional use.
IEC 61937 is derived from IEC 60958, it specifies the data packet structure based on
IEC 60958-1, it is mainly for the transmission of compressed audio data. IEC 61937-1 and
IEC 61937-2 specify the general structure. In part 1 and part 2 of IEC 61937, transmission
method for the specific compressed audio format are specified from in part 3 to part 9 and
later parts. Also IEC 62105 specifies the receiver data transmission using IEC 61937-1
structure.
IEC 61883-6 specifies IEC 60958 conformant data format, this format defines IEC 60958-1
structure in IEC 61883-6. IEC 60958 conformant data format can transmit IEC 60958-1 and all
of its derivative standards.
– 8 – IEC TS 62436:2008+AMD1:2016 CSV
 IEC 2016
IEC 60958 conformant data format can be used in any other interface specification applying
the definition of the structure of IEC 60958-1.

IEC 60958 conformant data format

IEC 60958-1 IEC 61883-6
General Audio and music transmission

Linear PCM audio
Non-linear PCM audio
IEC 60958-3
Consumer application
IEC 61937-3
AC-3
IEC 60958-4
Professional application
IEC 61937-4
MPEG audio
Non-linear PCM audio
IEC 61937-5
DTS
IEC 61937-1
General
IEC 61937-6
AAC
IEC 61937-2
Bust-info
IEC 61937-7
ATRAC and ATRAC2/3
Data
IEC 61937-8
IEC 62105 / EN 50255
WMA Pro
RDI
IEC 61937-9
MAT
IEC  195/08
 IEC 2016
Same original specification IEC 60958 conformant data format
IEC 61883-6
IEC 60958-1
AES3 (all parts)
A/M Protocol
General
Linear PCM audio
IEC 60958-3
Consumer application
IEC 60958-4
Professional application
Non-linear PCM audio
IEC 61937-1
General
IEC 61937-2
Burst-info
Non-linear PCM audio
SMPTE ST 337,
IEC 61937-3
SMPTE ST 338
and later parts
and others
Data
IEC 62105 / EN 50225
RDI
IEC
Figure 1 – The relationship between IEC standards
4.3 IEC 60958 conformant data format
4.3.1 The structure defined in IEC 61883-6
IEC 60958 conformant data format is defined by IEC 61883-6, this format defines the use of
the frame format and sub-frame format defined in IEC 60958-1 as it is.
Figure 2 shows the sub-frame format of IEC 60958 defined in IEC 60958-1. Figure 3 shows
IEC 60958 conformant data format defined in IEC 61883-6. This defines the sync preamble in
2 bits as described in Table 2. The 32 bit data of IEC 61883-6 consists of an 8 bit label and
24 bit data that are called AM824 data, and the label from 0016 to 3F16 are assigned to
IEC 60958 conformant data format including the sync preambles and the bits V, U, C and P.

– 10 – IEC TS 62436:2008+AMD1:2016 CSV
 IEC 2016
0 3 4 7 8 27 28
L
Sync M
U
Aux Audio sample word V C P
S
Preamble S
B
B
Validity flag
User data
Channel status
Parity bit
IEC  196/08
Figure 2 – Sub-frame format
SB SF
24-bit sample word (from first sub-frame)
0 0 1 P C U V
msb
SF
P C U V 24-bit sample word (from second sub-frame)
0 0 0 0
msb
IEC  197/08
Figure 3 – IEC 60958 conformant data format
Table 2 – IEC 60958 conformant data format
SB (Start of Block) and SF (Start of Frame) definitions
LABEL SB SF Description Equivalent IEC 60958
preamble codes
00 - 0F 0 0 Second subframe of W,Y
16 16
IEC 60958 frames 0 to 191
10 - 1F 0 1 First subframe of M,X
16 16
IEC 60958 frames 1 to 191
20 - 2F 1 0 Reserved -
16 16
30 - 3F 1 1 First subframe of B,Z
16 16
IEC 60958 frame 0
Figure 4 shows the logical structure of IEC 60958 conformant data format of IEC 61883-6 that
enables to transmit all of IEC 60958-1 derivative standards as Figure 1 shows.

 IEC 2016
Linear PCM IEC 60958-3 IEC 61937-3 IEC 61937-4 Other

AM824 (Linear PCM) (AC-3) (MPEG audio) standards
Raw data
DVD-Audio
IEC 60958 conformant data format
etc
IEC 61883-6 Audio and music data transmission protocol
IEC 61883-1 Isochronous Transmission General

IEEE1394
IEC  198/08
Figure 4 – The logical structure of IEC 60958 conformant data format
4.3.2 Application to the other interface specification
As IEC 61883-6 defines IEC 60958 conformant data format, IEC 60958 conformant data
format can be applied to any other interface specifications with the definition of sub-frame,
frame and block structure of IEC 60958-1. The other interface specification that applies
IEC 60958 conformant data format can transmit all of IEC 60958-1 derivative standards.
4.4 IEC 61937 format based on IEC 60958
IEC 61937-1, clause 5 defines that the interface format as defined in IEC 60958-1 and
IEC 60958-3 is used. The non-linear PCM encoded bitstream use every 16 bits data of sub-
frame defined in IEC 60958-1 as shown in Figure 5. The bits V, U, C and P are maintained as
IEC 60958 defines.
1 block = 192 frames
Frame 191 Frame 0 Frame 1 Frame 191 Frame 0
W B W M
sub-frame
V U C P
Preamble Auxiliary LSB MSB
0 3 4 7 8 11 12 27 28 31
16 bit of bitstream
IEC  199/08
Figure 5 – IEC 61937 data area

– 12 – IEC TS 62436:2008+AMD1:2016 CSV
 IEC 2016
5 Information for copy control
5.1 Audio
5.1.1 SCMS
IEC 61119-6 specifies SCMS. The status of SCMS is defined in 2 bits of DAT sub-code ID6.
• When ID6 is “00” Copyright status bit set for “not copyright protected”.
• When ID6 is “10” or “11” Copyright status bit set for “copyright protected”.
• The condition “01” in ID6 is not to be used.
A DAT recorder should provide the copyright status in the channel status of digital output. A
DAT recorder records digital audio signal form the digital input, the source device should
provide a category code with the copyright status bit “L-bit”, and it indicates the “generation
status” of the digital audio signal. A DAT recorder detects the copyright status and the
category, and controls recording permission and ID6 information referring the schemes
defined in IEC 61119-6.
The channel status includes the category code with the copyright status bit “L-bit”, which
transmits the generation status of SCMS.
IEC 60958-3 specifies the category codes in the channel status including the category codes
that IEC 61119-6 defines. In the channel status, bit 15 is referred to as the “L-bit”.
IEC 60958-3 Annex C describes the implementation for DAT in relation with input source
signal category.
IEC 60958-3 dose not mention about SCMS but defines category codes with L-bit.
5.1.2 Other information
IEC 61883-6 specifies the ancillary data for CCI in the DVD-Audio adoption layer, but the
compliance rule of CCI is not defined, it is defined by another specification, not an IEC
standard.
5.2 Video
IEC 61880-2 and IEC 62375 specify CGMS-A copy control information of analogue video
signal. In the identification data format, bit 7 and bit 8 of WORD 2 are assigned to CGMS-A. It
defies copyright status as follows.
Bit number 7, 8
0, 0 Copying is permitted without restriction
0, 1 Condition not be used
1, 0 One generation of copies may be made
1, 1 No copying is permitted
6 Implementation of copy control information of audio
6.1 IEC 61937 implementation
IEC 61937-1 defines that the interface format as defined in IEC 60958-1 and IEC 60958-3 is
used. The definition of channel status defined in IEC 60958-3 is applied to all parts of

 IEC 2016
IEC 61937, as the structure of IEC 61937 is described in 4.4. The category codes defined in
IEC 60958-3 is applied to the all parts of IEC 61937.
6.2 IEC 61883-6 implementation
IEC 61883-6 can transmit IEC 60958, IEC 61937 and others with IEC 60958 conformant data
format, the channel status is transmitted with IEC 60958 conformant data format as it is. The
category codes are transmitted with this structure.
7 Implementation of copy control information of audio accompanied with video
Audio signal accompanied with video is transmitted through IEC 60958-3, IEC 61883-6 and
other interfaces. CGMS-A is applied to video signal, the procedure of translation from CGMS-
A of video to SCMS of audio accompanied with that video depends on applications and
conditions (see Annex B).
8 Implementation of other information
Other information is defined in IEC 60958-3 by channel status and user data, for example
sampling frequency, SMPTE time code. This information is transmitted with IEC 61937 and
IEC 60958 conformant format.
– 14 – IEC TS 62436:2008+AMD1:2016 CSV
 IEC 2016
Annex A
(informative)
Relation between IEC standards and other specifications

The Interface standards of IEC have a relation with the other specifications.
Figure A.1 shows IEC 60958 relation. AES 3 is a standard of AES for professional use,
CP-340 is a standard of the former JEITA (EIAJ) for consumer use. The former version of
IEC 60958 (1989) originates from AES 3 and CP-340 and is for consumer use. After that
IEC 60958 was revised and divided into three parts, as follows:
Part 1: General;
Part 3: Consumer applications and
Part 4: Professional applications; Part 4 reflects AES3.
CP-340 was revised to CPR-1201 and both were withdrawn, the latest one is CPR-1205,
which is an explanation of IEC 60958 and refers to IEC 60958-1 and IEC 60958-3.
AES 3(2002) version was converted into IEC 60958-4 (2003), the future version of AES 3 will
be transformed into the future edition of IEC 60958-4.

AES Standard
AES 3:1985 AES 3:2002
Audio interface Audio interface

IEC Standard
