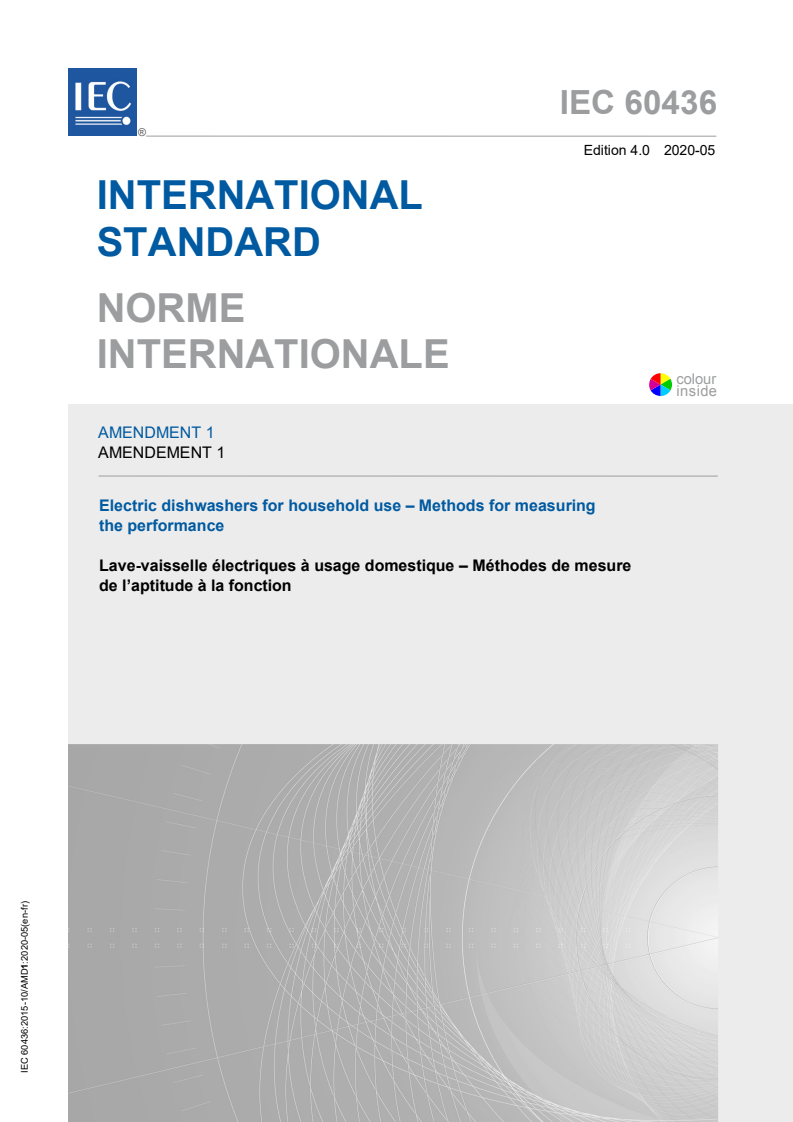

IEC 60436:2015/AMD1:2020

IEC 60436 ®
Edition 4.0 2020-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
A MENDMENT 1
AM ENDEMENT 1
Electric dishwashers for household use – Methods for measuring
the performance
Lave-vaisselle électriques à usage domestique – Méthodes de mesure
de l’aptitude à la fonction
IEC 60436:2015-10/AMD1:2020-05(en-fr)

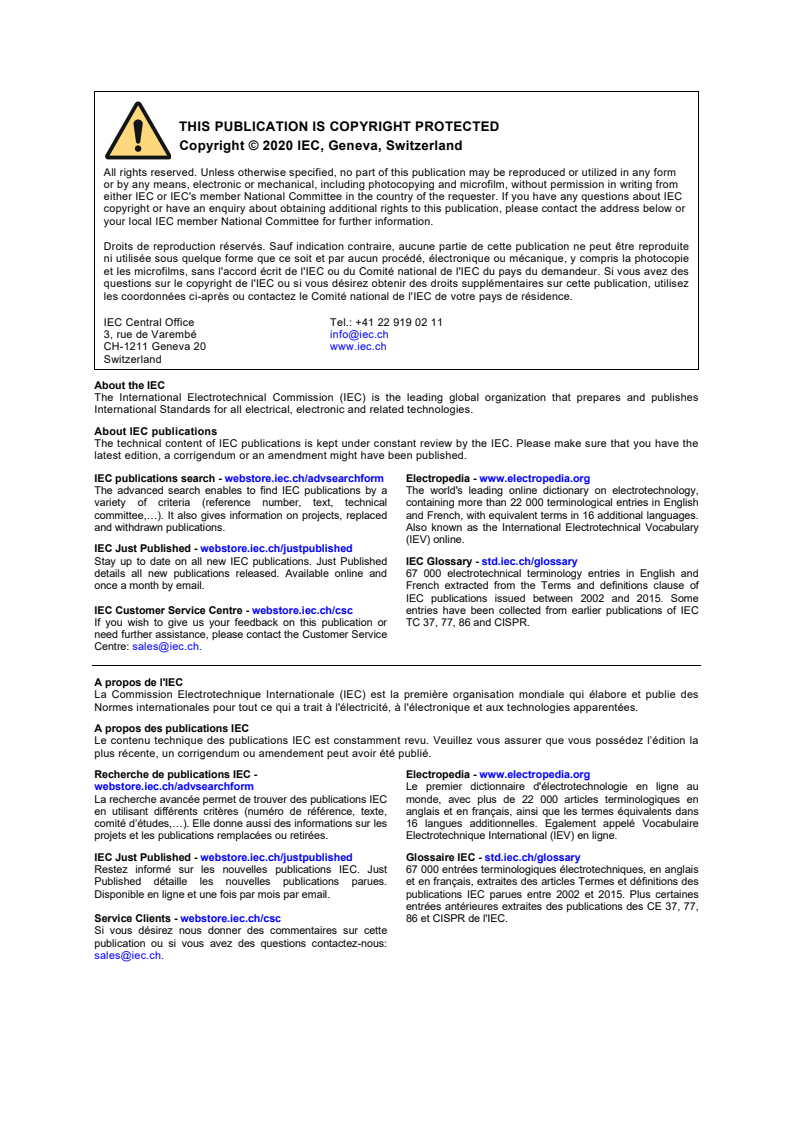

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and definitions clause of
IEC publications issued between 2002 and 2015. Some
IEC Customer Service Centre - webstore.iec.ch/csc entries have been collected from earlier publications of IEC
If you wish to give us your feedback on this publication or TC 37, 77, 86 and CISPR.

need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues entre 2002 et 2015. Plus certaines
entrées antérieures extraites des publications des CE 37, 77,
Service Clients - webstore.iec.ch/csc 86 et CISPR de l'IEC.

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.

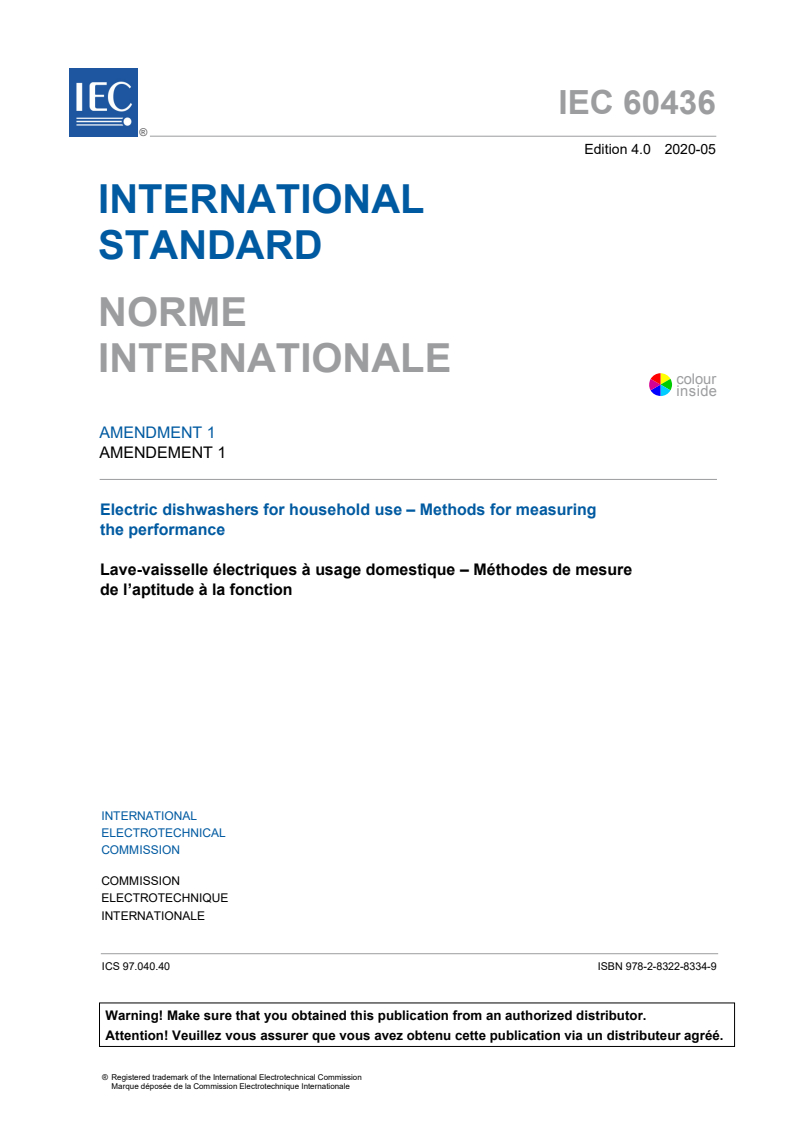

IEC 60436 ®
Edition 4.0 2020-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
A MENDMENT 1
AM ENDEMENT 1
Electric dishwashers for household use – Methods for measuring

the performance
Lave-vaisselle électriques à usage domestique – Méthodes de mesure

de l’aptitude à la fonction
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 97.040.40 ISBN 978-2-8322-8334-9

– 2 – IEC 60436:2015/AMD1:2020
© IEC 2020

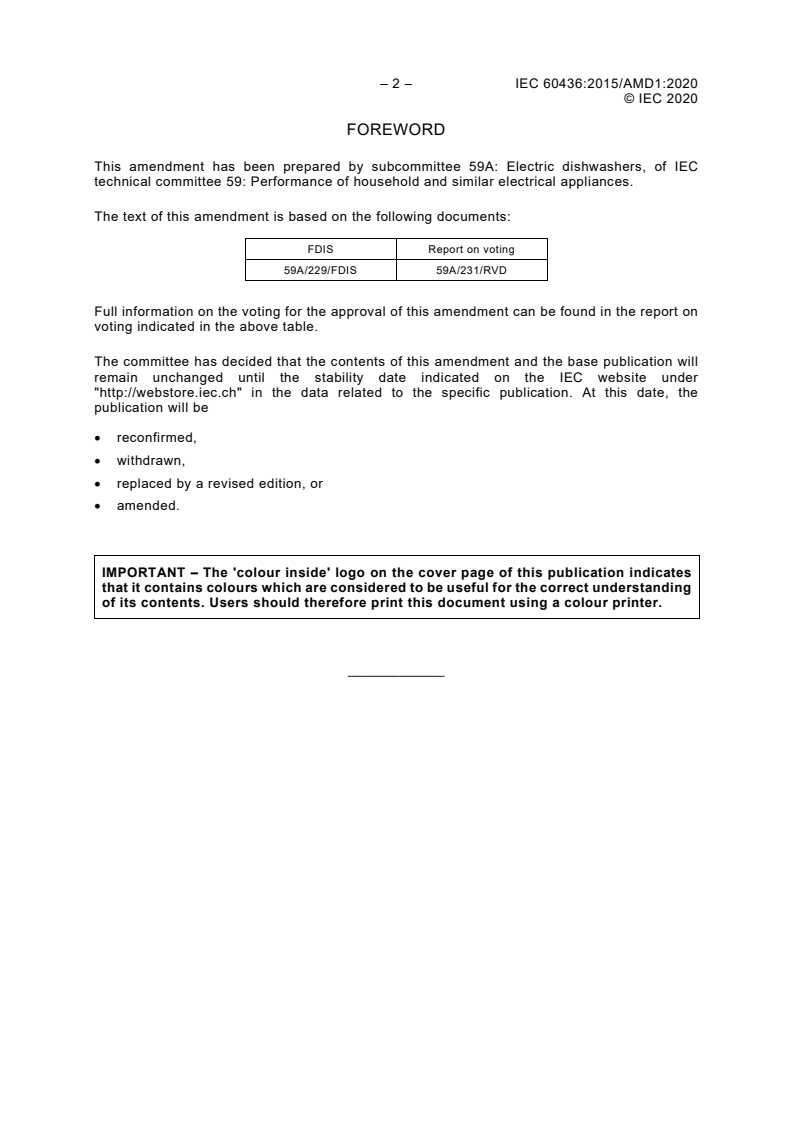

FOREWORD
This amendment has been prepared by subcommittee 59A: Electric dishwashers, of IEC
technical committee 59: Performance of household and similar electrical appliances.
The text of this amendment is based on the following documents:
FDIS Report on voting
59A/229/FDIS 59A/231/RVD
Full information on the voting for the approval of this amendment can be found in the report on
voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC website under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.

_____________
© IEC 2020
3.1 Terms and definitions
3.1.14
Replace the entire entry by the following:
programme
series of operations which are pre-defined within the dishwasher and which are declared as
suitable for specified levels of soil and/or type of load
Note 1 to entry: Usually, an end of programme indicator signals the end of the programme and the user has access
to the load.
3.1.15
Add the note to entry after the definition:
Note 1 to entry: The cycle can be equal to or last longer than the programme.
3.1.16
Replace the definition by the following:
length of time beginning with the initiation of the cycle (of the selected programme), excluding
any user-programmed delay, until all activity ceases
3.1.17
Replace the definition by the following:
length of time beginning with the initiation of the programme, excluding any user-programmed
delay, until an end of programme indicator is activated and the user has access to the load
3.1.25
Replace the entire entry by the following:
end of programme mode
mode that begins immediately after the completion of the programme, and continues without
any further intervention from the user
Note 1 to entry: This mode can persist indefinitely or can be of limited duration if the dishwasher is equipped with
a power management system.
3.1.26
Replace the entire entry by the following:
left-on mode
mode that begins as soon as the dishwasher door has been opened and/or unlatched by the
user after the completion of the programme, and continues without any further intervention
from the user
Note 1 to entry: In some products, this mode can be equivalent to the off mode.
Note 2 to entry: This mode can persist indefinitely or can be of limited duration if the dishwasher is equipped with
a power management system.
– 4 – IEC 60436:2015/AMD1:2020
© IEC 2020
3.1.27
Replace the entire entry by the following:
off mode
lowest power consumption mode of the dishwasher while it is connected to a mains power
source, achieved either automatically by the power management system of the dishwasher or
manually by switching it off using controls or switches on the dishwasher that are accessible
and intended for operation by the user during normal use
3.1.28
Replace the definition by the following:
mode where the user has selected and activated a specified delay to the commencement of the
cycle (of the selected programme) using a built-in function of the dishwasher
3.1.29
Replace the entire entry by the following:
end-of-programme mode duration
time from the start of end of programme mode until the dishwasher reverts automatically to
off mode
Note 1 to entry: This time span is only applicable to dishwashers equipped with power management systems.
3.1.30
Replace the entire entry by the following:
left-on mode duration
time from the start of left-on mode until the dishwasher reverts automatically to off mode
Note 1 to entry: This time span is only applicable to dishwashers equipped with power management systems.
Add the following new entry:
3.1.36
all activity ceases
power consumption decreases to a low steady state in which the power fluctuates by no more
than 10 % or 0,1 W, whichever is the greater, over a period of at least 60 min
Note 1 to entry: The current waveform shall be sampled at a frequency of 1000 Hz and averaged over the duration
of 60 s.
Add the following new entry:
3.1.37
intermittently recurring function
function that occurs during some, but not all, cycles of a specific programme (or programmes)
and that is directly related to water-softening operations, water-reuse operations or similar
operations and that alters water consumption, energy consumption and/or programme time for
the cycle
3.2.2
Add the following symbol after the symbol D :
T,i
D the target drying score of the reference machine
R,t
© IEC 2020
5.2 Sequence of test procedures and conditioning of the test machine
In the fourth line of the third paragraph, delete ", cycle time".
5.3.1.1 Voltage
In the second line, replace ±2 % with ±1 %.
5.3.2.1 Voltage
In the first line, replace ±2 % with ±1 %.
Add the following new subclause:
5.10 Intermittently recurring functions
5.10.1 Provision of information
Either the manufacturer or supplier shall provide information for all intermittently recurring
functions that relate to the programme selected for testing. This data shall include details of
changes to energy consumption, water consumption and programme duration that are caused
by each intermittently recurring function. The data shall also include a description of the
conditions that trigger each intermittently recurring function. An example of a format for
describing intermittently recurring functions is shown in Table V.1.
If no data is provided by the manufacturer or supplier, intermittently recurring functions may
take place during valid test cycles and, if this happens, it is likely that the measured and
averaged consumption values as well as the uncertainty of measurement will be significantly
higher.
The measured energy, water, and time of intermittently recurring functions can vary. If these
values differ by more than 10 % from the consumption values provided by the manufacturer,
then the laboratory should seek further guidance from the manufacturer.
5.10.2 Impact of intermittently recurring functions on reproducibility and the validity of
test results
When a dishwasher is tested over a test series of 5 to 8 test runs, intermittently recurring
functions may cause the results to be different to the true long-term average. For example, if
the dishwasher regenerates its softener every 3 cycles and uses a significant amount of water
to regenerate, the average water consumption for the test series would be higher if two
regenerations occurred than if only one occurred in the test series. Neither of these cases
would give the same result as the long-term average. Reproducibility of such a test would be
poor. Two options to resolve this problem are given in 5.10.3.
5.10.3 Treatment of intermittently recurring functions
For dishwashers with intermittently recurring functions, testing can be conducted according
to one of the following two options:
i) Excluding consumption data from test runs where the intermittently recurring function
takes place, from the calculation of the mean. In this case, testing shall follow the
procedures in Clause 8. This option should give reproducible results, but the values
determined will not account for the consumption associated with the intermittently
recurring function(s).
– 6 – IEC 60436:2015/AMD1:2020
© IEC 2020
ii) Extending the test series as necessary to include a suitable number of test runs where the
intermittently recurring function does not take place and a suitable number of test runs
where intermittently recurring function does take place. From such a test series,
consumption data for each case can be combined to give an appropriately weighted average
which would be representative of the long-term average. In this case, testing shall follow
the procedures in Clause 8 and Annex V. This option should give reproducible results and
account for the consumption associated with the intermittently recurring function(s).
6.4.4.2 Preparation and storage
Replace the text o
...
