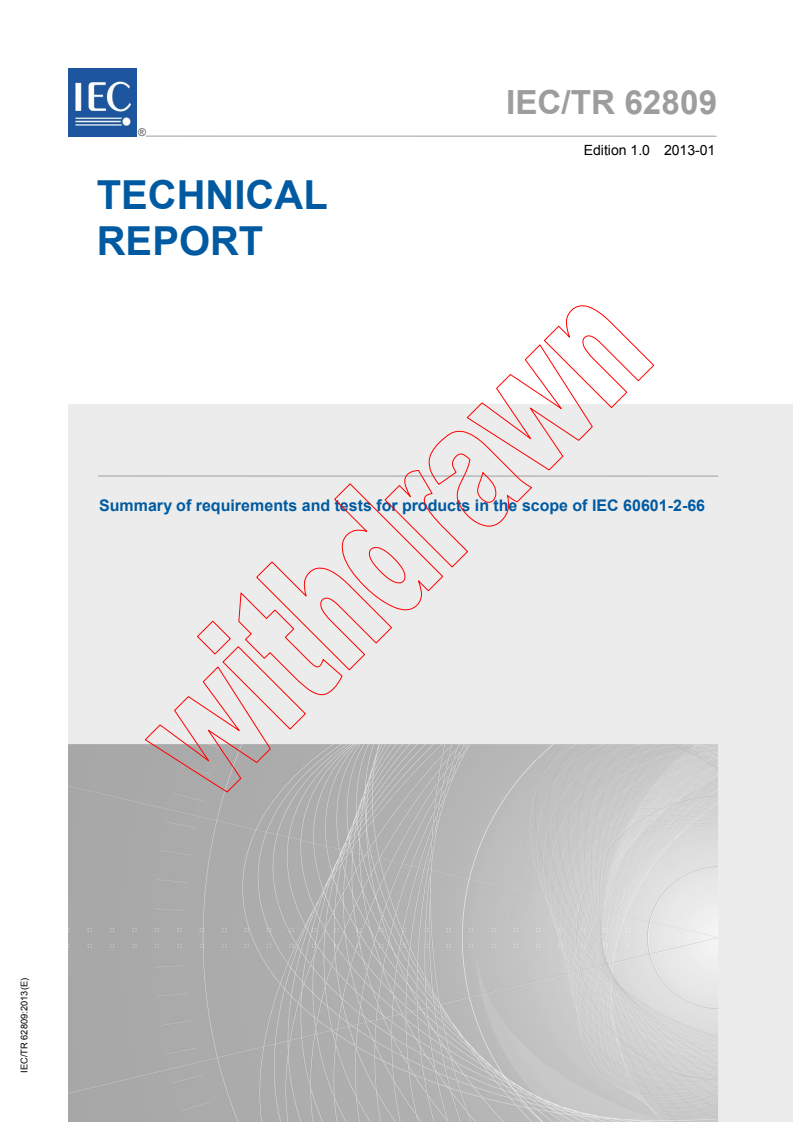

IEC TR 62809:2013

IEC/TR 62809 ®
Edition 1.0 2013-01
TECHNICAL
REPORT
Summary of requirements and tests for products in the scope of IEC 60601-2-66

IEC/TR 62809:2013(E)

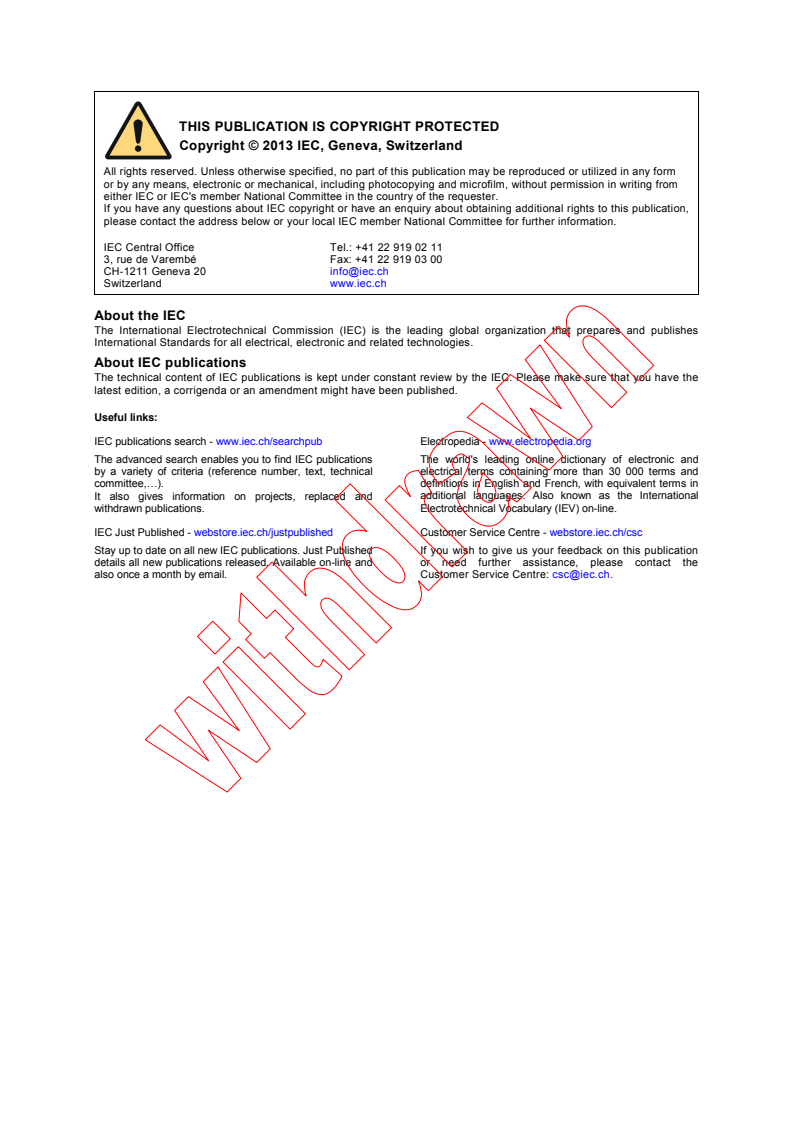

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,

please contact the address below or your local IEC member National Committee for further information.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00

CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: csc@iec.ch.

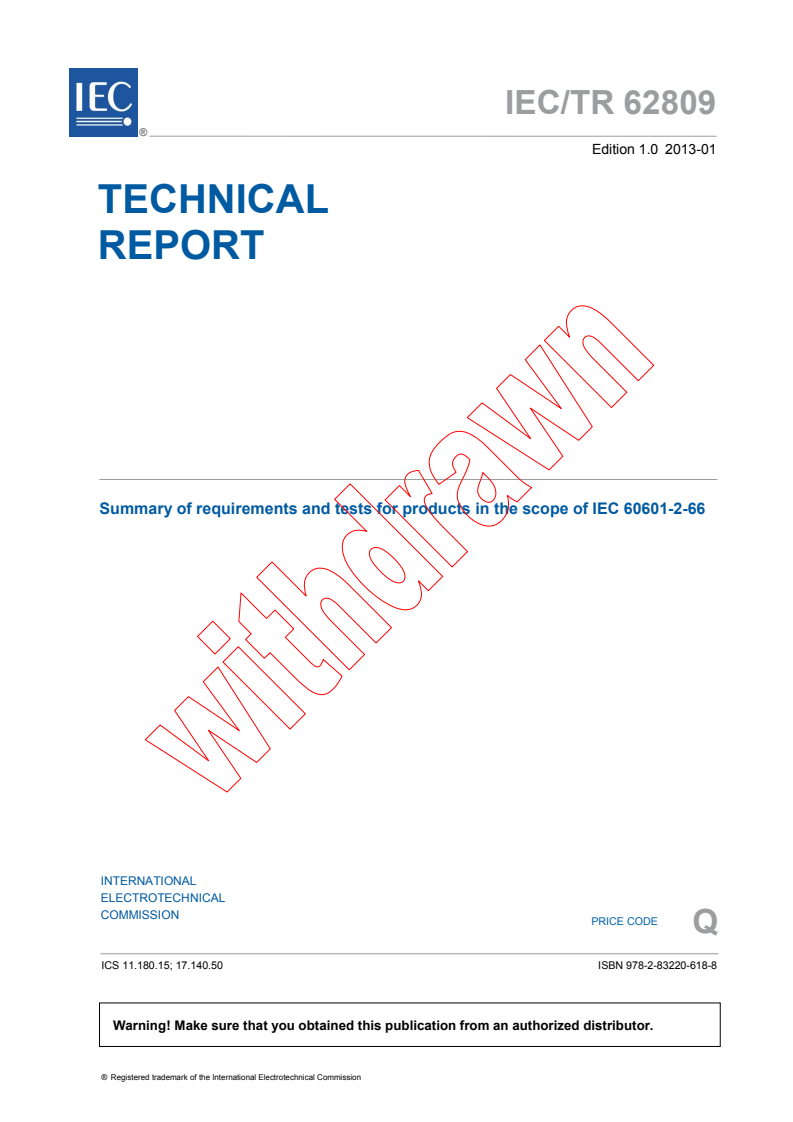

IEC/TR 62809 ®
Edition 1.0 2013-01
TECHNICAL
REPORT
Summary of requirements and tests for products in the scope of IEC 60601-2-66

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
Q
ICS 11.180.15; 17.140.50 ISBN 978-2-83220-618-8

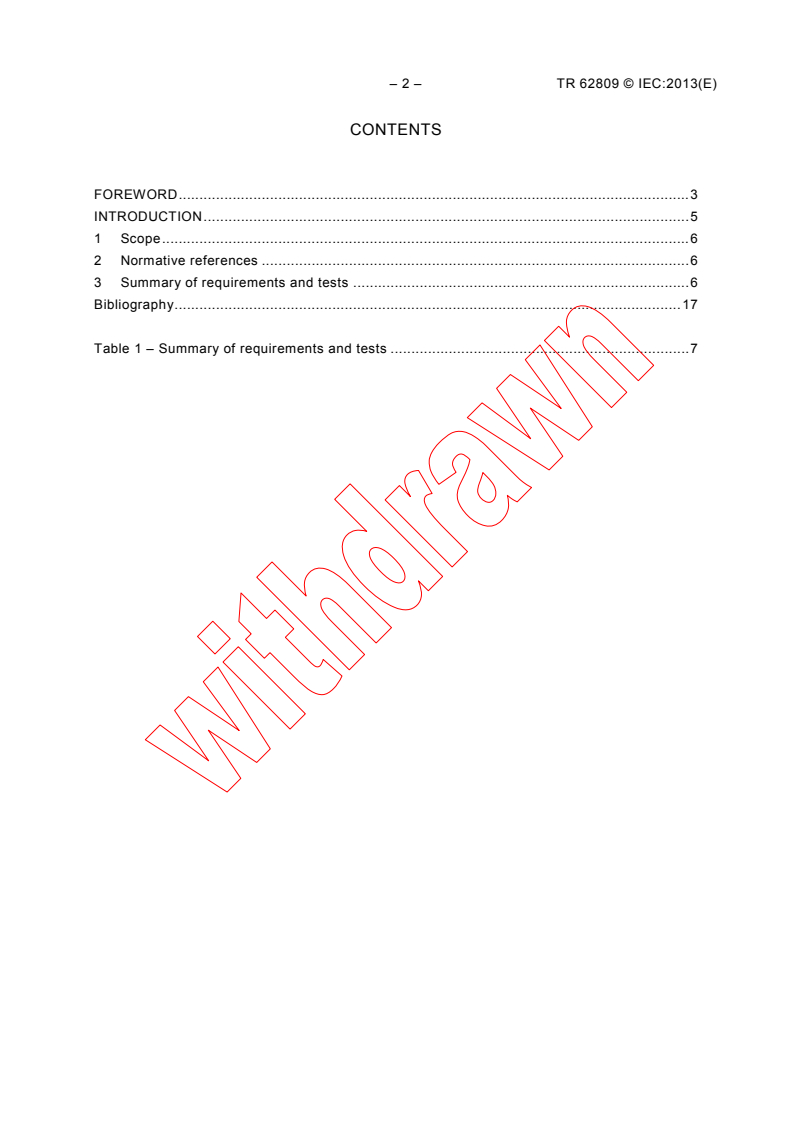

– 2 – TR 62809 © IEC:2013(E)
CONTENTS
FOREWORD . 3

INTRODUCTION . 5

1 Scope . 6

2 Normative references . 6

3 Summary of requirements and tests . 6

Bibliography . 17

Table 1 – Summary of requirements and tests . 7

TR 62809 © IEC:2013(E) – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
SUMMARY OF REQUIREMENTS AND TESTS FOR

PRODUCTS IN THE SCOPE OF IEC 60601-2-66

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
The main task of IEC technical committees is to prepare International Standards. However, a
technical committee may propose the publication of a technical report when it has collected

data of a different kind from that which is normally published as an International Standard, for
example "state of the art".
IEC 62809, which is a technical report, has been prepared by IEC technical committee 29:
Electroacoustics.
The text of this technical report is based on the following documents:
Enquiry draft Report on voting
29/776/DTR 29/791/RVC
Full information on the voting for the approval of this technical report can be found in the
report on voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – TR 62809 © IEC:2013(E)
In this standard, the following print types are used:

– requirements and definitions: roman type.

– TERMS DEFINED IN CLAUSE 3 OF THE GENERAL STANDARD, IN THIS PARTICULAR STANDARD OR AS

NOTED: SMALL CAPITALS.
The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be

• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

TR 62809 © IEC:2013(E) – 5 –
INTRODUCTION
During the preparation of IEC 60601-2-66, members of the involved technical committee and

working group voiced concerns about the complexity of the document and its structure as part

of the IEC 60601 series. Members felt distracted from the technical content by this complexity

during reviews of the document stages. There was also concern that groups in the hearing

instrument community would have problems to understand and apply the standard and that

this could be an issue with its acceptability.

In order to have a broad consensus for the new standard it was agreed that the standard

should be supported by this Technical Report, which should enable members of the

community and the industry to have a basic understanding of the requirements of the
standard, without the need to study the complete standard document and the documents that
are referenced in it.
IEC 60601-2-66 was published to address the specific requirements for safety of hearing
instruments, and it is entitled “Particular requirements for the basic safety and essential
performance of hearing instruments and hearing instruments systems”. It was published
because IEC 60601-1 is a general standard intended to address a wide range of medical
electrical equipment – including large scale facilities such as MRI machines, for example –
and thus has large sections that are not relevant to low-voltage, low power, subminiature
hearing instruments.
If IEC 60601-2-66 was not published, test and regulatory organizations would probably have
difficulty applying IEC 60601-1, because it does not contain specific guidance for hearing
instruments. This Technical Report contains all the requirements from IEC 60601-2-66 which
relate to hearing instruments, and reduces discussion with those that do not relate to hearing
instruments.
It includes specific references to the applicable requirements within IEC 60601-1, and it is
suggested that hearing instrument designers and manufacturers along with test and
regulatory organizations read this Technical Report as an overview of IEC 60601-2-66.

– 6 – TR 62809 © IEC:2013(E)
SUMMARY OF REQUIREMENTS AND TESTS FOR

PRODUCTS IN THE SCOPE OF IEC 60601-2-66

1 Scope
This Technical Report provides an overview of the requirements and tests of IEC 60601-2-66
in combination with the applicable sections of IEC 60601-1, and the collateral standards of the
IEC 60601 series.
NOTE The IEC 60601 series consists of three levels of standards: IEC 60601-1, known as the general standard,
several IEC 60601-1-X documents, known as the collateral standards and a series of particular standards covering
requirements for specific types of equipment (IEC 60601-2-X).
It is intended to assist various groups involved in the product lifecycles process – like
designers and suppliers – to get an overview of the basic requirements without studying all
involved standard documents in detail. The table includes not all but just the more common
requirements and tests.
It is crucial to understand that the summary in this document cannot serve as an input for a
product requirement specification or as a test plan without consulting the standard document
itself. This Technical Report alone cannot be used to establish or assess compliance to the
standard.
The summary in Table 1 below does not preclude the user from reading the referenced
standards in their entirety for a thorough knowledge of the basic safety of hearing instruments
and hearing instrument systems.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60601-1:2005, Medical electrical equipment – Part 1: General requirements for basic
safety and essential performance
IEC 60601-2-66:2012, Medical electrical equipment – Part 2-66: Particular requirements for

the basic safety and essential performance of hearing instruments and hearing instrument
systems
3 Summary of requirements and tests
The reference column in Table 1 shows the clause number of IEC 60601-2-66:2012 and, if
applicable the reference to IEC 60601-1:2005, or other documents. References to the
particular standard, IEC 60601-2-66:2012 start with the number 201, while references to the
general standard, IEC 60601-1:2005, start directly with the clause or subclause number.
Other documents will be referred to explicitly. Some detailed references, for example
describing tools, are placed in the text instead of in the reference column.

TR 62809 © IEC:2013(E) – 7 –
Table 1 – Summary of requirements and tests

Reference Subject Requirements and tests

201.1.1 ACCESSORY Requirements:

201.8 ACCESSORIES to HEARING INSTRUMENTS (e.g. remote control units,

audio streamers, battery chargers, power supplies) need to have

documented proof of compliance to IEC 60065, IEC 60950-1, the
IEC 60601-1 or other applicable IEC safety standards. They form a
HEARING INSTRUMENT SYSTEM when connected to the HEARING

INSTRUMENT. Wherever this connection has an influence on the

compliance to the requirements of IEC 60601-2-66 the HEARING
INSTRUMENT has to pass the requirements while being connected to
the ACCESSORY. If this connection results in additional requirements

to the ACCESSORY, these requirements have to be fulfilled beyond the
applicable IEC standards.
Programming interfaces or ACCESSORIES in a clinic
...
