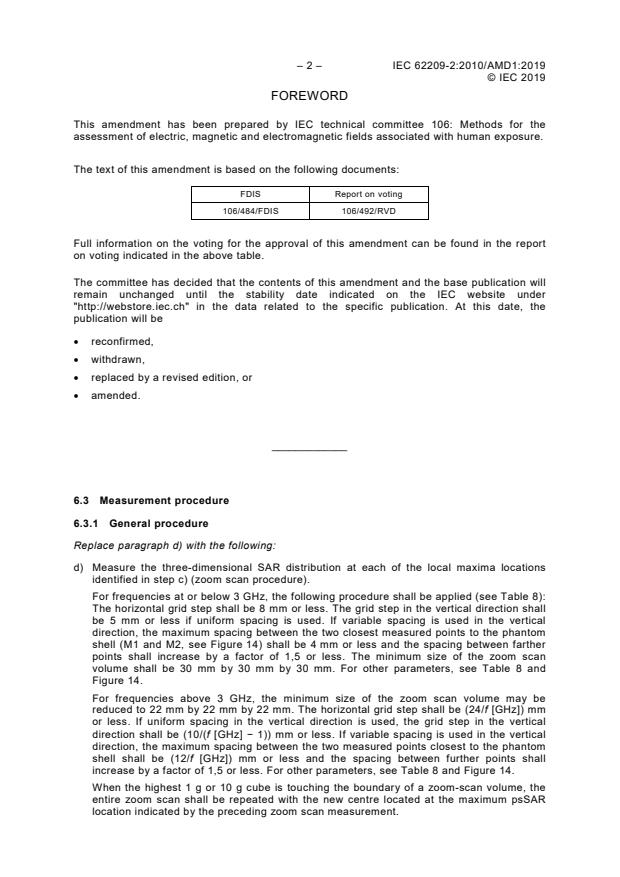

6.3 Measurement procedure
6.3.1 General procedure
Replace paragraph d) with the following:
d) Measure the three-dimensional SAR distribution at each of the local maxima locations
identified in step c) (zoom scan procedure).
For frequencies at or below 3 GHz, the following procedure shall be applied (see Table 8):
The horizontal grid step shall be 8 mm or less. The grid step in the vertical direction shall
be 5 mm or less if uniform spacing is used. If variable spacing is used in the vertical
direction, the maximum spacing between the two closest measured points to the phantom
shell (M1 and M2, see Figure 14) shall be 4 mm or less and the spacing between farther
points shall increase by a factor of 1,5 or less. The minimum size of the zoom scan
volume shall be 30 mm by 30 mm by 30 mm. For other parameters, see Table 8 and
Figure 14.
For frequencies above 3 GHz, the minimum size of the zoom scan volume may be
reduced to 22 mm by 22 mm by 22 mm. The horizontal grid step shall be (24/f [GHz]) mm
or less. If uniform spacing in the vertical direction is used, the grid step in the vertical
direction shall be (10/(f [GHz] − 1)) mm or less. If variable spacing is used in the vertical
direction, the maximum spacing between the two measured points closest to the phantom
shell shall be (12/f [GHz]) mm or less and the spacing between further points shall
increase by a factor of 1,5 or less. For other parameters, see Table 8 and Figure 14.
When the highest 1 g or 10 g cube is touching the boundary of a zoom-scan volume, the
entire zoom scan shall be repeated with the new centre located at the maximum psSAR
location indicated by the preceding zoom scan measurement.

© IEC 2019
If the zoom scan measured as defined above complies with both of the following criteria,
or if the peak spatial-average SAR is below 0,1 W/kg, no additional measurements are
needed:
1) the smallest horizontal distance from the local SAR peaks to all points 3 dB below the
SAR peak shall be larger than the horizontal grid steps in both x and y directions
(Δx, Δy). This shall be checked for the measured zoom scan plane conformal to the
phantom at the distance z . The minimum distance shall be recorded in the SAR test
M1
report;
2) the ratio of the SAR at the second measured point (M2) to the SAR at the closest
measured point (M1) at the x-y location of the measured maximum SAR value shall be
at least 30 % (see Figure 14). This ratio (in %) shall be recorded in the SAR test report.

NOTE M1 to M8 are example measurement points used for extrapolation to the surface. The maximum of the
angle α between the evaluation axis and the surface normal line is given in Table 2 and Table 8. The distance z
M1
is from the phantom shell to the first measurement point M1, and its maximum value is given in Table 2 and
Table 8. The distances Δz (i = 1, 2, 3, .) are the distances from measurement points M to M . For uniform grids,
i i i-1
Δz are equal. For graded grids, Δz > Δz . R = Δz /Δz is a ratio with a maximum value given in Table 8. The
i i+1 i z i+1 i
z direction corresponds to the vertical direction, the x direction is horizontal and the y direction is horizontal into
the page.
Figure 14 – Orientation of the probe with respect to the line normal
to the phantom surface, shown at two different locations
NOTE 1 The evaluation of the zoom scan is typically done by the post-processor by interpolation and
extrapolation and without reconstruction of the field. More focused induced SAR distributions (e.g., for
more localized sources such as capacitively coupled sources) require a more dense grid such that the
same integration and extrapolation algorithms can be used for the same ass
...
