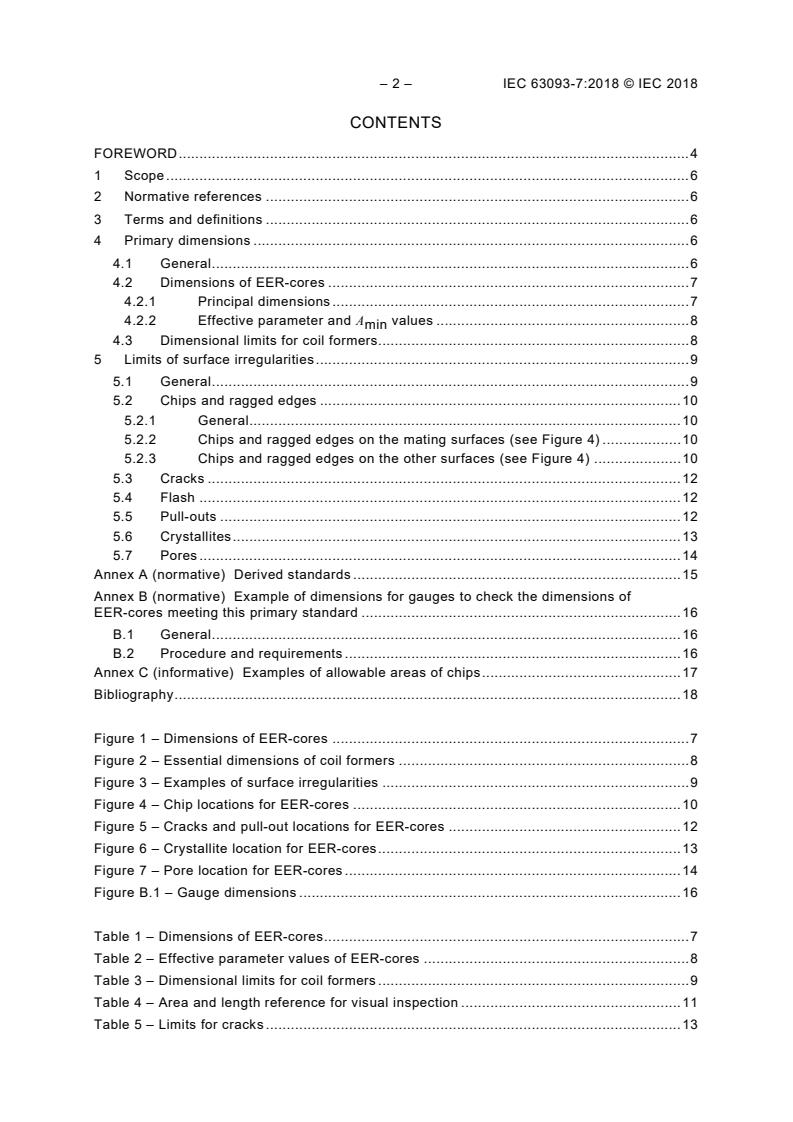

CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Primary dimensions . 6
4.1 General . 6
4.2 Dimensions of EER-cores . 7
4.2.1 Principal dimensions . 7
4.2.2 Effective parameter and A values . 8
min
4.3 Dimensional limits for coil formers. 8
5 Limits of surface irregularities . 9
5.1 General . 9
5.2 Chips and ragged edges . 10
5.2.1 General. 10
5.2.2 Chips and ragged edges on the mating surfaces (see Figure 4) . 10
5.2.3 Chips and ragged edges on the other surfaces (see Figure 4) . 10
5.3 Cracks . 12
5.4 Flash . 12
5.5 Pull-outs . 12
5.6 Crystallites . 13
5.7 Pores . 14
Annex A (normative) Derived standards . 15
Annex B (normative) Example of dimensions for gauges to check the dimensions of
EER-cores meeting this primary standard . 16
B.1 General . 16
B.2 Procedure and requirements . 16
Annex C (informative) Examples of allowable areas of chips . 17
Bibliography . 18

Figure 1 – Dimensions of EER-cores . 7
Figure 2 – Essential dimensions of coil formers . 8
Figure 3 – Examples of surface irregularities . 9
Figure 4 – Chip locations for EER-cores . 10
Figure 5 – Cracks and pull-out locations for EER-cores . 12
Figure 6 – Crystallite location for EER-cores . 13
Figure 7 – Pore location for EER-cores . 14
Figure B.1 – Gauge dimensions . 16

Table 1 – Dimensions of EER-cores . 7
Table 2 – Effective parameter values of EER-cores . 8
Table 3 – Dimensional limits for coil formers . 9
Table 4 – Area and length reference for visual inspection . 11
Table 5 – Limits for cracks . 13

Table B.1 – Gauge dimensions . 16
Table C.1 – Allowable areas of chips for EER-cores . 17

– 4 – IEC 63093-7:2018 © IEC 2018
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FERRITE CORES – GUIDELINES ON DIMENSIONS AND
THE LIMITS OF SURFACE IRREGULARITIES –

Part 7: EER-cores
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 63093-7 has been prepared by IEC technical committee 51:
Magnetic components, ferrite and magnetic powder materials.
This first edition cancels and replaces the first edition of IEC 62317-7 published in 2005. This
edition constitutes a technical revision. This edition includes the following significant technical
changes with respect to IEC 62317-7:
a) IEC 63093-7 integrates IEC 62317-7 and IEC 60424-3;
b) IEC 60424-3:2015, Table 2, has been included in Annex C as Table C.1.

The text of this International Standard is based on the following documents:
FDIS Report on voting
51/1217/FDIS 51/1226/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 63093 series, published under the general title Ferrite cores –
Guidelines on dimensions and the limits of surface irregularities can be found on the IEC
website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 6 – IEC 63093-7:2018 © IEC 2018
FERRITE CORES – GUIDELINES ON DIMENSIONS AND
THE LIMITS OF SURFACE IRREGULARITIES –

Part 7: EER-cores
1 Scope
This part of IEC 63093 specifies the dimensions that are of importance for mechanical
interchangeability for a preferred range of EER-cores made of ferrite, the essential
dimensions of coil formers to be used with them as well the effective parameter values to be
used in calculations involving them, and gives guidelines on allowable limits of surface
irregularities applicable to EER-cores.
This document is a specification useful in the negotiations between ferrite core manufacturers
and customers about surface irregularities.
The use of “derived” standards which give more detailed specifications of component parts
while still permitting compliance with this document is discussed in Annex A.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60205, Calculation of the effective parameters of magnetic piece parts
IEC 60401-1, Terms and nomenclature for cores made of magnetically soft ferrites – Part 1:
Terms used for physical irregularities
IEC 60424-1, Ferrite cores – Guidelines on the limits of surface irregularities – Part 1:
General specification
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60401-1 and
IEC 60424-1 apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 Primary dimensions
4.1 General
Compliance with the following requirements ensures mechanical interchangeability of
complete assemblies and coil formers.

4.2 Dimensions of EER-cores
4.2.1 Principal dimensions
The principal dimensions of EER-cores shall be those given in Table 1. The dimensions of the
cores may be checked by means of gauges. By way of example, possible dimensions for
these gauges are given in Annex B. In order to facilitate production, it may be necessary to
use gauges having dimensions that differ from those given in Annex B, although no relaxation
of the requirements for the dimensions of the cores given in Table 1 is permitted. The
dimensions specified in Table 1 are illustrated in Figure 1.
C
B
D
IEC
Figure 1 – Dimensions of EER-cores
Table 1 – Dimensions of EER-cores
A B C D E F
mm mm mm mm mm mm
Size
Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max.
EER25,5 24,9 26,1 9,05 9,55 7,25 7,75 5,95 6,45 19,7 20,9 7,25 7,75
EER28 27,9 29,1 13,7 14,3 11,1 11,7 9,3 9,9 21,1 22,3 9,6 10,2
EER28L 27,9 29,1 16,6 17,2 11,1 11,7 12,2 12,8 21,1 22,3 9,6 10,2
EER35 34,2 35,8 20,4 21,0 11,0 11,6 14,4 15,0 25,3 26,9 11,0 11,6
EER39 38,2 39,8 21,8 22,6 12,5 13,1 16,6 17,4 28,4 30,0 12,5 13,1
EER40 39,5 40,5 22,2 22,6 13,05 13,55 15,1 15,7 29,0 30,8 13,05 13,55
EER42 41,1 42,9 20,8 21,6 14,8 15,6 14,9 15,7 29,2 31,0 14,8 15,6
EER49 47,9 50,1 30,8 31,6 16,8 17,6 22,3 23,1 36,0 38,2 16,8 17,6

F
E
A
– 8 – IEC 63093-7:2018 © IEC 2018
4.2.2 Effective parameter and A values
min
The effective parameter values of a pair of cores whose dimensions comply with 4.2.1 shall
be as given in Table 2. For the definitions of these parameters and their calculations, see
IEC 60205.
Table 2 – Effective parameter values of EER-cores
a
C C l A V A
1 2 e e e min
Size
-1 -3 2 3 2
mm mm mm mm mm mm
-2
EER25,5 1,070 0 2,408 7 × 10 47,5 44,4 2 110 42,5
-2
EER28 0,728 16 0,843 36 × 10 62,9 86,4 5 430 77,0
-2
EER28L 0,868 36 1,013 8 × 10 74,4 85,7 6 370 77,0
-2
EER35 0,815 66 0,738 15 × 10 90,1 111 9 960 100
-2
EER39 0,762 91 0,573 84 × 10 101 133 13 500 129
-2
EER40 0,643 21 0,424 31 × 10 97,5 152 14 800 139
-2
EER42 0,510 64 0,272 52 × 10 95,7 187 17 900 179
-2
EER49 0,557 95 0,231 33 × 10 134 241 32 400 228
NOTE 1 The manufacturers can indicate in their catalogues more precise values than those given in Table 2.
NOTE 2 The above values have been calculated using the method given in IEC 60205.
a
See IEC 60205 for the definition of A .
min
4.3 Dimensional limits for coil formers
The essential dimensions of coil formers suitable for use with a pair of EER-cores shall be as
given in Table 3. The dimensions specified in Table 3 are illustrated in Figure 2.
h
IEC
Figure 2 – Essential dimensions of coil formers
d
d
Table 3 – Dimensional limits for coil formers
d d h
1 3 1
mm mm mm
Size
Max. Min. Max.
EER 25,5 19,3 8,0 11,7
EER 28 20,7 10,4 18,4
EER 28L 20,7 10,4 24,2
EER 35 24,9 11,8 28,6
EER 39 27,9 13,3 33,0
EER 40 28,5 13,8 30,0
EER 42 28,6 15,8 29,6
EER 49 35,4 17,9 44,3
5 Limits of surface irregularities
5.1 General
Surface irregularities are defined in IEC 60424-1.
Figure 3 shows different examples of surface irregularities of an EER-core.
Cracks
Flash
Ragged
edge
Pull-out
Crystallite
Chip
Pore
IEC
Figure 3 – Examples of surface irregularities

– 10 – IEC 63093-7:2018 © IEC 2018
5.2 Chips and ragged edges
5.2.1 General
The minimum area is taken as 0,5 mm , to be distinguishable to the naked eye.
5.2.2 Chips and ragged edges on the mating surfaces (see Figure 4)
The areas of the chips located on the mating surfaces (chip1 and chip1′ irregularities of
Figure 4) shall not exceed the following limits:
– the cumulative area of the chips shall be less than 6 % of the mating surface (whether
gapped or ungapped) of the centre pole;
– the total length of the ragged edges shall be less than 25 % of the perimeter of the
relevant surface.
5.2.3 Chips and ragged edges on the other surfaces (see Figure 4)
The allowable areas of chips are doubled as compared to the limits for the mating surfaces.
The rule for ragged edges is the same as that for the mating surfaces.
Mating surfaces
Chip1'
Chip2
Chip1
Ragged
edges
IEC
Figure 4 – Chip locations for EER-cores
Area and length reference for visual inspection is given in Table 4. Examples of allowable
areas of chips are given in Annex C.

Table 4 – Area and length reference for visual inspection
IEC
– 12 – IEC 63093-7:2018 © IEC 2018
5.3 Cracks
The limits for cracks at various locations shown in Figure 5 are given in Table 5.
5.4 Flash
There shall be no flash extending from the core into the wire-slot (see Figure 5).
5.5 Pull-outs
For EER-cores, the cumulative area of pull-outs of the core shall be less than 25 % of the
total respective surface area (see Figure 5).
H
S1”
S1
S1’
S3”
S3
S2
S7
S2”
S2’
S5
T
S5’
Flash
S5” Pull-out
S4'
S3'
S4’’’
S4’’
S4
W
S6
S6’
IEC
Figure 5 – Cracks and pull-out locations for EER-cores

Table 5 – Limits for cracks
Type Location Limits for single crack Limits for multiple
cracks
S1 and S1’ Mating surface of centre < 25 % of dimension W < 50 % of dimension W
pole
S1” Corner of centre pole Not acceptable Not acceptable
S2 and S2’ Mating surface of outer leg < 25 % of dimension H < 25 % of dimension H
S2” Side of outer leg < 25 % of dimension H < 25 % of dimension H
S3 and S3” Centre pole < 25 % of dimension W < 25 % of dimension W
S3′ Bottom corner of centre < 25 % of dimension W < 25 % of dimension W
pole/back wall and outer
leg/back wall
S4 Bottom corner of outer < 25 % of dimension T < 25 % of dimension T
leg/back wall
S4′ and S4” Back wall < 25 % of dimension T < 25 % of dimension T
S4’’’ Back wall < 50 % of dimension W < 100 % of dimension W
S5, S5’ and S5” Outer leg < 50 % of dimension W < 100 % of dimension W
S6 Back surface < 50 % of dimension W < 100 % of dimension W
S6’ Back surface < 25 % of dimension W < 25 % of dimension W
S7 Corner of outer leg Not acceptable Not acceptable

5.6 Crystallites
Figure 6 shows an example of crystallite location on EER-cores:
– A single area of crystallites located on any surface shall be less than 2 % of the respective
surface area.
– The cumulative area of crystallites located on any surface shall be less than 4 % of the
respective surface area (see Figure 6).
Crystallite
IEC
Figure 6 – Crystallite location for EER-cores

– 14 – IEC 63093-7:2018 © IEC 2018
5.7 Pores
Figure 7 shows an example of pore location on EER cores:
– The number of pores located on the same surface shall not exceed two. The total number
of pores located on all surfaces shall not exceed five.
– A hole with an area larger than 1 mm on any surface is not acceptable.
Pore
IEC
Figure 7 – Pore location for EER-cores

Annex A
(normative)
Derived standards
Clauses 1 to 4 of this document establish the values for the principal dimensions of core
assemblies and coil formers and enable full interchangeability for components complying with
this primary standard to be achieved.
Parties interested in making or using EER-cores may find it desirable to lay down local
standards for everyday use, which show the dimensions and tolerances in greater detail than
Clause 4, and which correspond to the state of the art in that area. These specifications are
known as “derived standards”. When doing so, care should be taken not to exclude any other
type of EER-core meeting this primary standard, which would also satisfy the performance
specification valid for a specific case.
It should be noted that even if a component complies with a derived standard and with the
requirements of Clause 4 of this primary standard, therefore permitting core assemblies and
coil formers to be freely interchanged, its constituent parts may not necessarily be
interchangeable.
When requirements lead to the establishment of a national standard, the relevant national
standardization body is strongly requested to insert a note in such a national standard stating
that:
a) it is in accordance with the dimensional requirements of this present primary standard but
that more details are given in order to promote its practical use;
b) other solutions are possible within the framework of this primary standard and should not
be excluded if the resulting core and coil formers are functionally interchangeable with
those of the national standard.

– 16 – IEC 63093-7:2018 © IEC 2018
Annex B
(normative)
Example of dimen
...
