Automatic electrical controls - Part 2-7: Particular requirements for timers and time switches

IEC 60730-2-7:2015 applies to timers and time switches for household and similar use that may use electricity, gas, oil, solid fuel, solar thermal energy, etc. or a combination thereof, including heating, air conditioning and similar applications. This standard is also applicable to individual timers utilized as part of a control system or timers which are mechanically integral with multifunctional controls having non-electrical outputs. This standard does not apply to time-delay switches (TDS) within the scope of IEC 60669-2-3. This standard applies to the inherent safety, to the operating characteristics where such are associated with equipment protection and to the testing of timers used in appliances and other apparatus, electrical and non-electrical, for household and similar purposes, but also extended to industrial purposes when no dedicated product standards exist, such as that for central heating, air conditioning, process heating, etc. Timers for equipment not intended for normal household use, but which nevertheless may be used by the public, such as equipment intended to be used by laymen in shops, in light industry and on farms, are within the scope of this standard. This third edition cancels and replaces the second edition published in 2008. This third edition constitutes a technical revision. This new edition revises the compliance criteria of type 1.S and 2.S action, revises the requirements for filament lamp loads, adds requirements for abnormal operation in Annex H, removes some special requirements for single countries as well as updates the standard to IEC 60730-1:2010, fourth edition. Key words: Timers, Time Switches
This publication is to be read in conjunction with IEC 60730-1:2013.

Dispositifs de commande électrique automatiques - Partie 2-7: Exigences particulières pour les minuteries et les minuteries cycliques

IEC 60730-2-7:2015 s'applique aux minuteries et aux minuteries cycliques qui peuvent utiliser l'électricité, le gaz, le pétrole, un combustible solide, l'énergie thermique solaire, etc., ou une combinaison de ces énergies, y compris des applications de chauffage, de climatisation et analogues.
La présente norme s'applique également aux minuteries particulières qui sont utilisées en tant que parties d'un système de commande ou aux minuteries qui sont intégrées mécaniquement dans des dispositifs de commande multifonctions qui possèdent des sorties non électriques. La présente norme ne s'applique pas aux interrupteurs temporisés (Time-Delay Switches – TDS) qui relèvent du domaine d'application de l’IEC 60669-2-3.
La présente norme s'applique à la sécurité intrinsèque, aux caractéristiques de fonctionnement dans la mesure où elles interviennent dans la protection des matériels ainsi qu'aux essais des minuteries utilisées dans les appareils et autres appareillages, électriques et non électriques, à usage domestique et analogue, mais aussi avec une extension aux applications industrielles pour lesquelles il n'existe aucune norme de produit spécifique, telles que celles pour le chauffage central, la climatisation, la production de chaleur industrielle, etc.
Les minuteries pour les matériels qui ne sont pas prévus pour un usage domestique normal, mais qui peuvent néanmoins être utilisés par le grand public, comme les matériels prévus pour être utilisés par des profanes dans les magasins, dans l'industrie légère et dans les fermes, entrent dans le domaine d'application de la présente norme.
Cette troisième édition annule et remplace la deuxième édition parue en 2008. Cette troisième édition constitue une révision technique. La présente nouvelle édition révise les critères de conformité des actions de type 1.S et 2.S ainsi que les exigences pour les charges par lampes à filament, elle ajoute des exigences pour le fonctionnement anormal dans l'Annexe H, elle supprime une partie des exigences spécifiques à certains pays et elle met la norme à jour par rapport à l'IEC 60730-1:2010, quatrième édition.
Mots clés: minuteries, minuteries cycliques
La présente partie 2-7 est destinée à être utilisée conjointement avec l'IEC 60730-1:2013.

General Information

Status
Published
Publication Date
11-Mar-2015
Drafting Committee
Current Stage
PPUB - Publication issued
Start Date
28-Feb-2015
Completion Date
12-Mar-2015
Ref Project

Relations

Buy Standard

Standard
IEC 60730-2-7:2015 - Automatic electrical controls - Part 2-7: Particular requirements for timers and time switches
English language
24 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
IEC 60730-2-7:2015 - Automatic electrical controls - Part 2-7: Particular requirements for timers and time switches
English and French language
49 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)


IEC 60730-2-7 ®
Edition 3.0 2015-03
INTERNATIONAL
STANDARD
Automatic electrical controls –
Part 2-7: Particular requirements for timers and time switches

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
IEC 60730-2-7 ®
Edition 3.0 2015-03
INTERNATIONAL
STANDARD
Automatic electrical controls –

Part 2-7: Particular requirements for timers and time switches

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 97.120 ISBN 978-2-8322-2432-8

– 2 – IEC 60730-2-7:2015 © IEC 2015

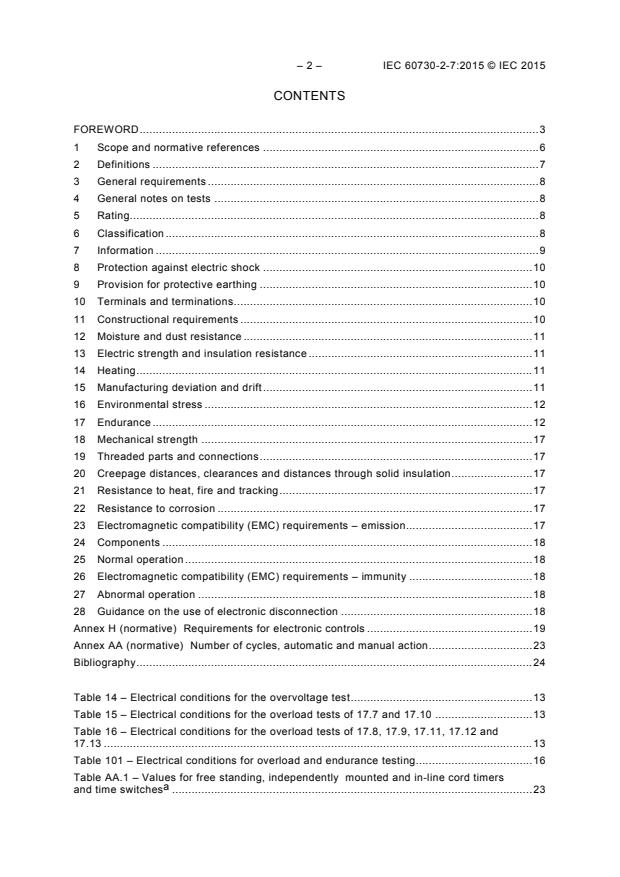

CONTENTS
