Standards Content (Sample)

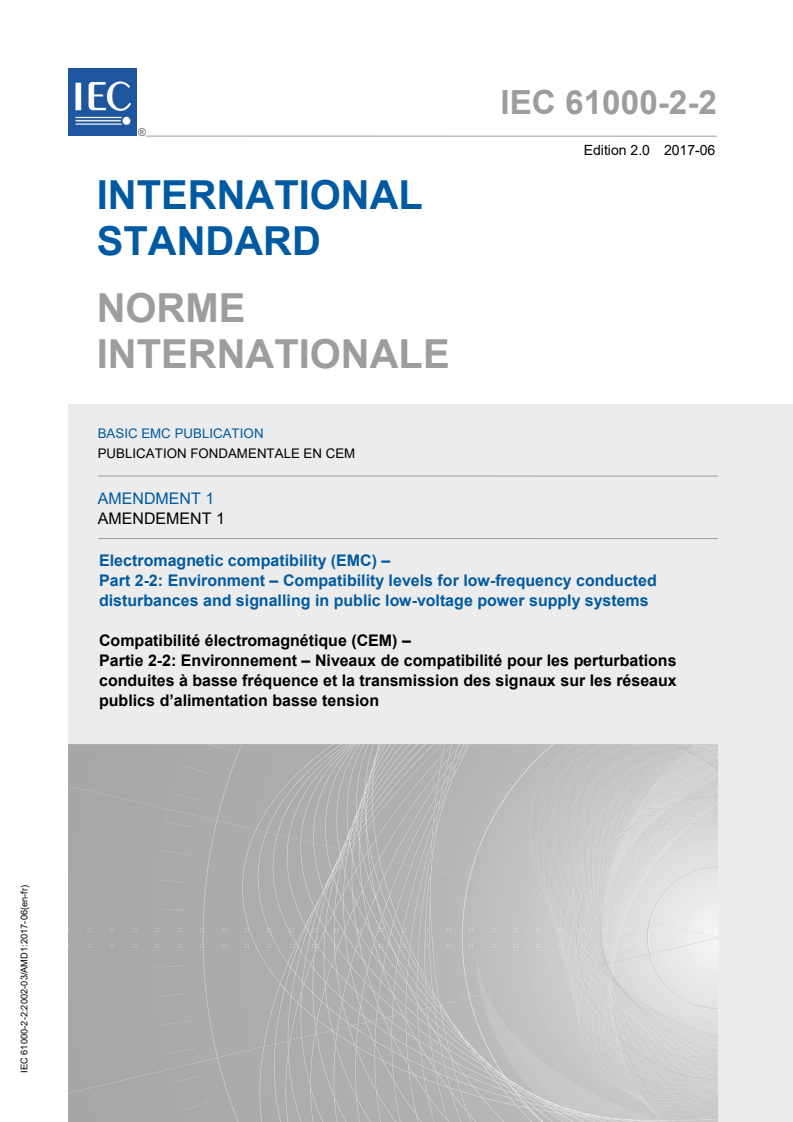

IEC 61000-2-2 ®
Edition 2.0 2017-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
BA SIC EMC PUBLICATION
P UBLICATION FONDAMENTALE EN CEM

AMENDMENT 1
AMENDEMENT 1
Electromagnetic compatibility (EMC) –
Part 2-2: Environment – Compatibility levels for low-frequency conducted
disturbances and signalling in public low-voltage power supply systems

Compatibilité électromagnétique (CEM) –
Partie 2-2: Environnement – Niveaux de compatibilité pour les perturbations
conduites à basse fréquence et la transmission des signaux sur les réseaux
publics d’alimentation basse tension

IEC 61000-2-2:2002-03/AMD1:2017-06(en-fr)

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
65 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.

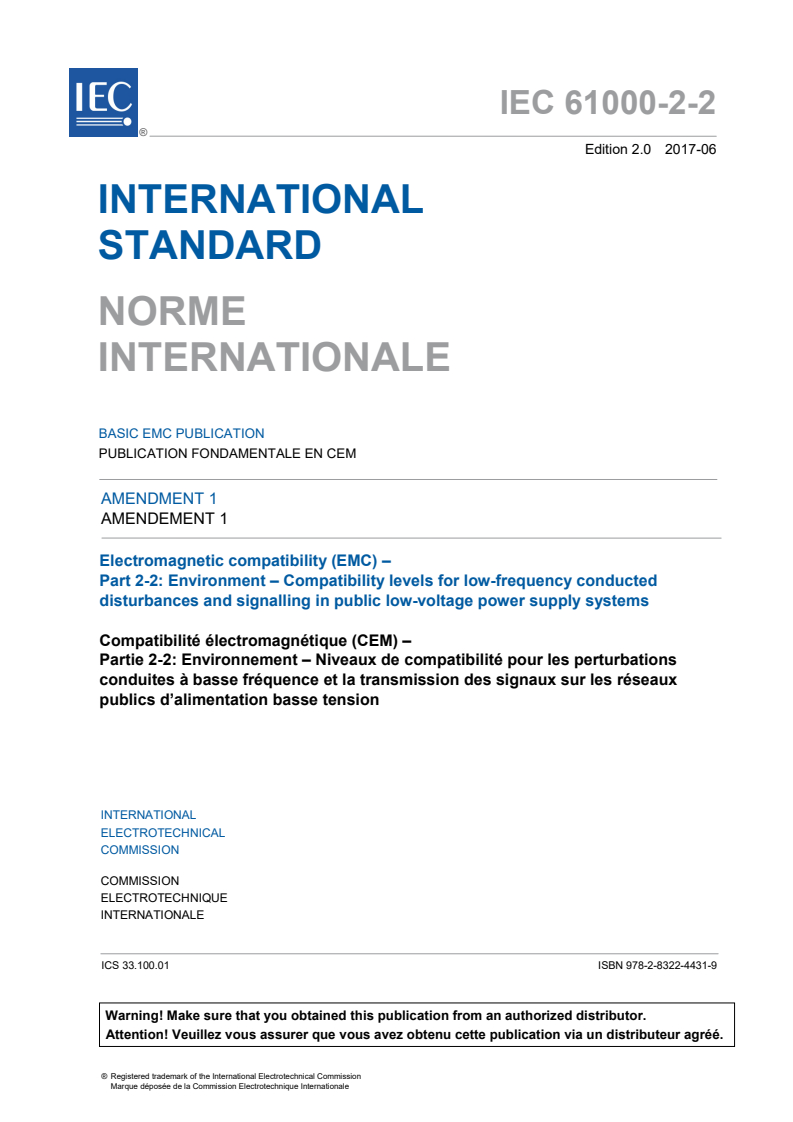

IEC 61000-2-2 ®
Edition 2.0 2017-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
BA SIC EMC PUBLICATION
P UBLICATION FONDAMENTALE EN CEM

AMENDMENT 1
AMENDEMENT 1
Electromagnetic compatibility (EMC) –

Part 2-2: Environment – Compatibility levels for low-frequency conducted

disturbances and signalling in public low-voltage power supply systems

Compatibilité électromagnétique (CEM) –

Partie 2-2: Environnement – Niveaux de compatibilité pour les perturbations

conduites à basse fréquence et la transmission des signaux sur les réseaux

publics d’alimentation basse tension

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.100.01 ISBN 978-2-8322-4431-9

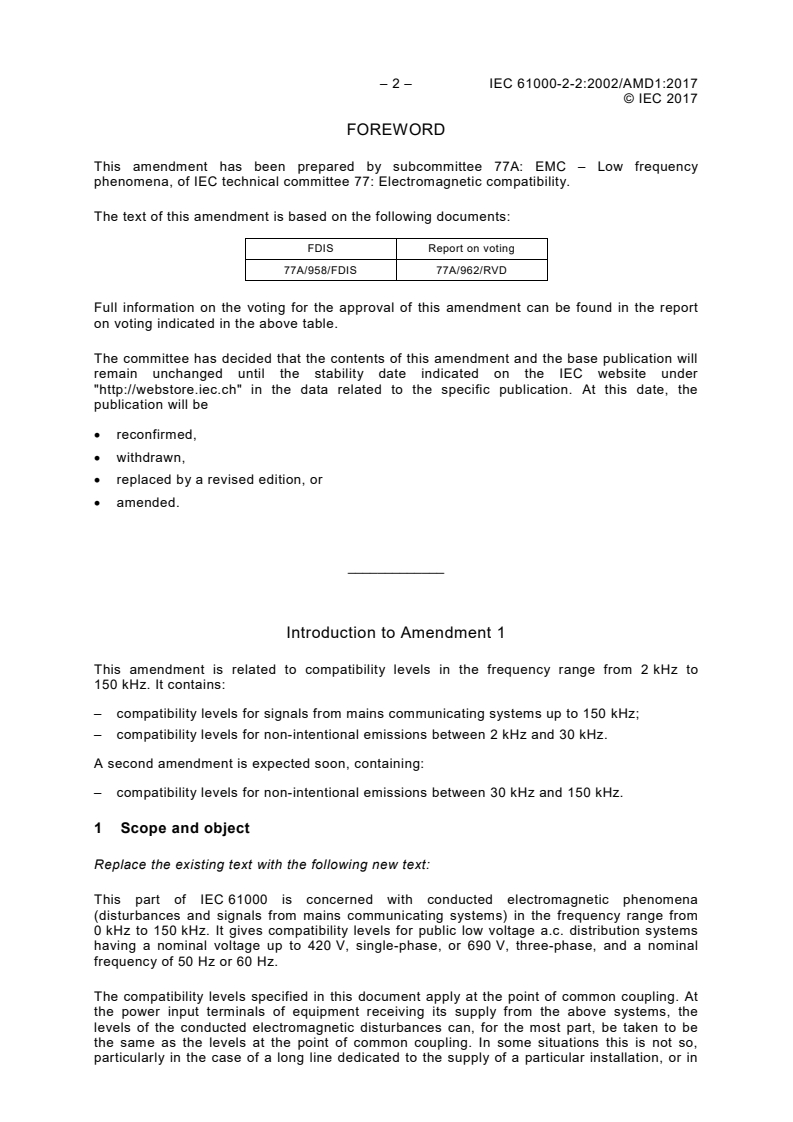

– 2 – IEC 61000-2-2:2002/AMD1:2017
© IEC 2017
FOREWORD
This amendment has been prepared by subcommittee 77A: EMC – Low frequency
phenomena, of IEC technical committee 77: Electromagnetic compatibility.
The text of this amendment is based on the following documents:
FDIS Report on voting
77A/958/FDIS 77A/962/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC website under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
Introduction to Amendment 1
This amendment is related to compatibility levels in the frequency range from 2 kHz to
150 kHz. It contains:
– compatibility levels for signals from mains communicating systems up to 150 kHz;
– compatibility levels for non-intentional emissions between 2 kHz and 30 kHz.
A second amendment is expected soon, containing:
– compatibility levels for non-intentional emissions between 30 kHz and 150 kHz.
1 Scope and object
Replace the existing text with the following new text:
This part of IEC 61000 is concerned with conducted electromagnetic phenomena
(disturbances and signals from mains communicating systems) in the frequency range from
0 kHz to 150 kHz. It gives compatibility levels for public low voltage a.c. distribution systems
having a nominal voltage up to 420 V, single-phase, or 690 V, three-phase, and a nominal
frequency of 50 Hz or 60 Hz.
The compatibility levels specified in this document apply at the point of common coupling. At
the power input terminals of equipment receiving its supply from the above systems, the
levels of the conducted electromagnetic disturbances can, for the most part, be taken to be
the same as the levels at the point of common coupling. In some situations this is not so,
particularly in the case of a long line dedicated to the supply of a particular installation, or in

© IEC 2017
the case of an electromagnetic phenomenon generated or amplified within the installation of
which the equipment forms a part.
Compatibility levels are specified for conducted electromagnetic phenomena of the types
which can be expected in public low voltage power supply systems, for guidance in the
definition of:
– the limits to be set for conducted emissions into public power supply systems (including
the planning levels defined in 3.1.5),
– the immunity limits to be set by product committees and others for the equipment exposed
to the conducted electromagnetic phenomena present in public power supply systems.
NOTE More information on compatibility levels and other main basic EMC concepts is given in IEC TR 61000-1-1.
The electromagnetic phenomena considered are:
– voltage fluctuations and flicker;
– harmonics up to and including order 40;
th
– interharmonics up to the 40 harmonic;
th
– voltage distortion in differential mode at higher frequencies (above the 40 harmonic up to
150 kHz);
– voltage dips and short supply interruptions;
– voltage unbalance;
– transient overvoltages;
– power frequency variation;
– d.c. components;
– signals from mains communicating systems (MCS).
Most of these phenomena are described in IEC TR 61000-2-1. In cases where it is not yet
possible to establish compatibility levels, some information is provided in Annex B.
2 Normative references
Add the following new references:
IEC 61000-3-8, Electromagnetic compatibility (EMC) – Part 3: Limits – Section 8: Signalling
on low-voltage electrical installations – Emission levels, frequency bands and electromagnetic
disturbance levels
CISPR 16-1-1, Specification for radio disturbance and immunity measuring apparatus and
methods – Part 1-1: Radio disturbance and immunity measuring apparatus – Measuring
apparatus
CISPR 16-2-1, Specification for radio disturbance and immunity measuring apparatus and
methods – Part 2-1: Methods of measurement of disturbances and immunity – Conducted
disturbance measurements
3.1 General definitions
Add the following new definitions:
3.1.7
non-intentional emission
conducted emission which is not intended for communication purposes

– 4 – IEC 61000-2-2:2002/AMD1:2017
© IEC 2017
Note 1 to entry: For the purposes of this document, non-intentional emissions only refer to conducted
phenomena.
3.1.8
mains communicating system
MCS
electrical system using mains power lines to transmit information signals, either on the public
electricity distribution network or within installations of network users
3.1.9
differential mode voltage
voltage in differential mode
voltage between any two phase conductors or between any phase conductor and the neutral
conductor
Note 1 to entry: The voltage distortion in differential mode is the distortion of the voltage in differential mode.
3.1.10
unsymmetrical voltage
voltage between any mains conductor (phase or neutral) and the earth
3.2 Phenomena related definitions
3.2.7
total harmonic distortion
(THD)
Replace, in the explanation below the equation, value H, "…is generally equal to 50, but…"
with "…is generally equal to 40, but…".
4.3 Harmonics
In Table 1, replace:
17 ≤ h ≤ 49 with 17 ≤ h ≤ 37,
21 < h ≤ 45 with 21 < h ≤ 39,
10 ≤ h ≤ 50 with 10 ≤ h ≤ 40.
Add, after the existing subclause 4.4 the following new subclauses:
th
4.11 Voltage distortion in differential mode above the 40 harmonic up to 9 kHz
th
In this document, voltage distortion above the 40 harmonic up to 9 kHz is considered in
relation to long-term effects, i.e. for a duration of 10 min or longer.
th
In the case of voltage distortion at frequencies above the 40 harmonic, it is generally not
relevant whether they are at harmonic or interharmonic frequencies. They can occur both at
discrete frequencies and in relatively broad bands of frequencies.
th
The compatibility levels for voltage distortion in differential mode above the 40 harmonic
(exclusive) up to 9 kHz are given in Table 2. These compatibility levels are related to voltage
distortion levels between any two phase conductors or between any phase conductor and the
neutral conductor, in a bandwidth of 200 Hz, defined as follows:
100 /∆f
u = × U (F+n⋅∆f )
b,F ∑
U
n=1−(100 /∆f )
© IEC 2017
where
F (in Hz) is the centre frequency of the 200 Hz band under consideration (F is
between 2 100 Hz and 8 900 Hz for 50 Hz systems and between
2 500 Hz and 8 900 Hz for 60 Hz systems);
u is the voltage distortion level in the bandwidth of 200 Hz around centre
b,F
frequency F (expressed in percent of the fundamental component of the
voltage U );
U (in V) is the r.m.s. value of the fundamental component of the voltage;
U (F + n·Δf) (in V) is the r.m.s. value of the component of the voltage at frequency
f = F + n·Δf measured with the frequency resolution of Δf (in Hz).
NOTE 1 The 200 Hz bandwidth has been chosen such that it is in accordance with the bandwidth specified in
CISPR 16-1-1 for frequencies above 9 kHz.
Table 2 – Compatibility levels for voltage distortion in differential mode u
b,F
th
above the 40 harmonic up to
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
