IEC 61058-2-6:2016

IEC 61058-2-6 ®
Edition 1.0 2016-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Switches for appliances –
Part 2-6: Particular requirements for switches used in electric motor-operated
hand-held tools, transportable tools and lawn and garden machinery

Interrupteurs pour appareils –
Partie 2-6: Exigences particulières pour les interrupteurs utilisés sur les outils
électroportatifs à moteur, les outils portables et les machines pour jardins et
pelouses

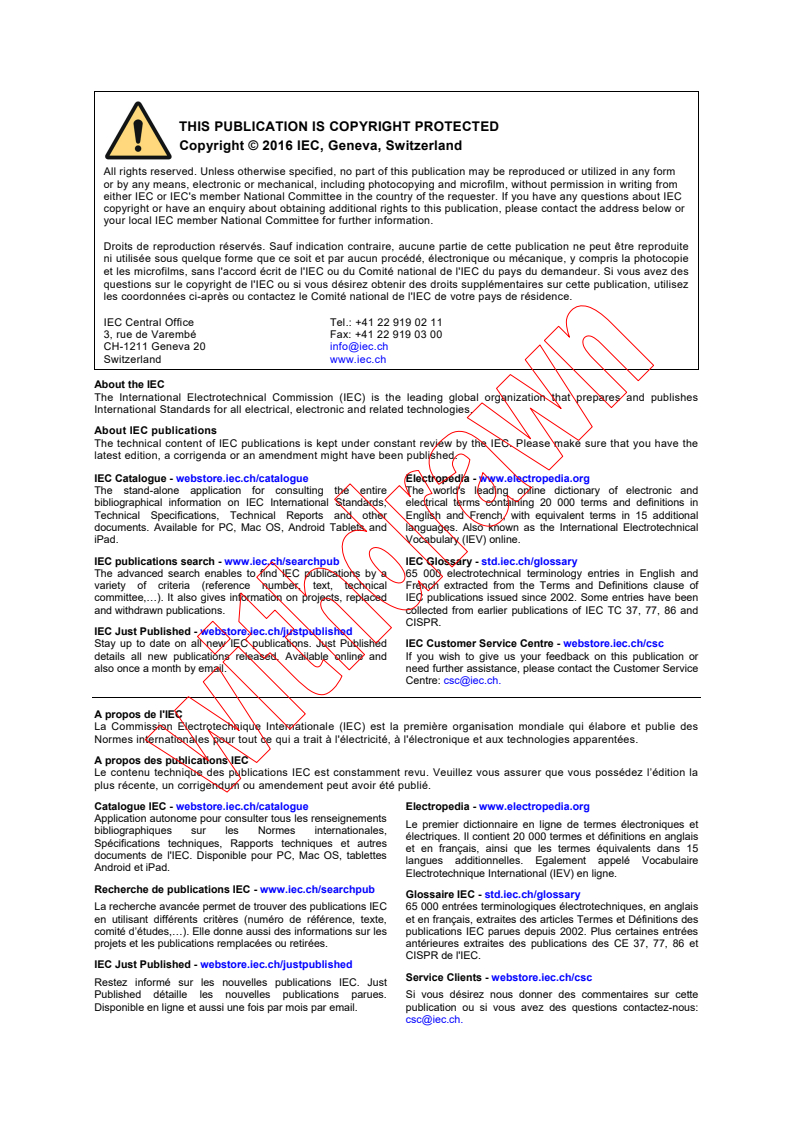

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 15
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC 65 000 entrées terminologiques électrotechniques, en anglais
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.

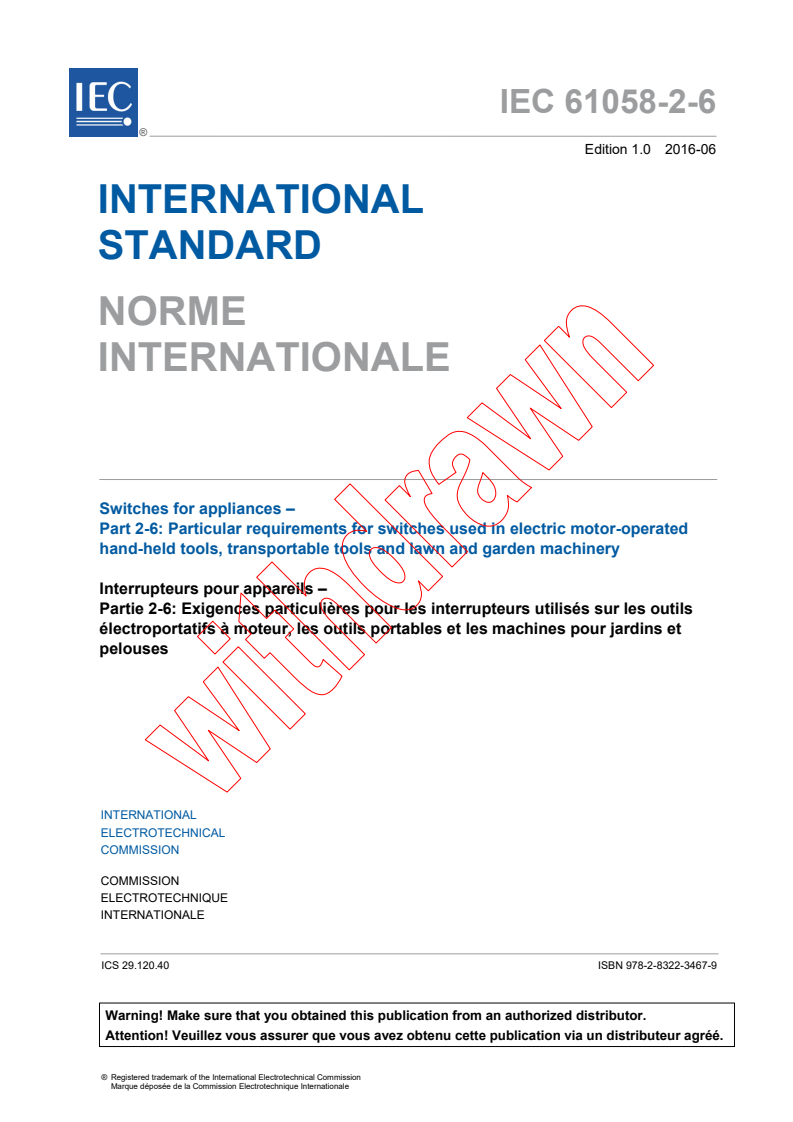

IEC 61058-2-6 ®
Edition 1.0 2016-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Switches for appliances –
Part 2-6: Particular requirements for switches used in electric motor-operated

hand-held tools, transportable tools and lawn and garden machinery

Interrupteurs pour appareils –

Partie 2-6: Exigences particulières pour les interrupteurs utilisés sur les outils

électroportatifs à moteur, les outils portables et les machines pour jardins et

pelouses
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.120.40 ISBN 978-2-8322-3467-9

– 2 – IEC 61058-2-6:2016 © IEC 2016

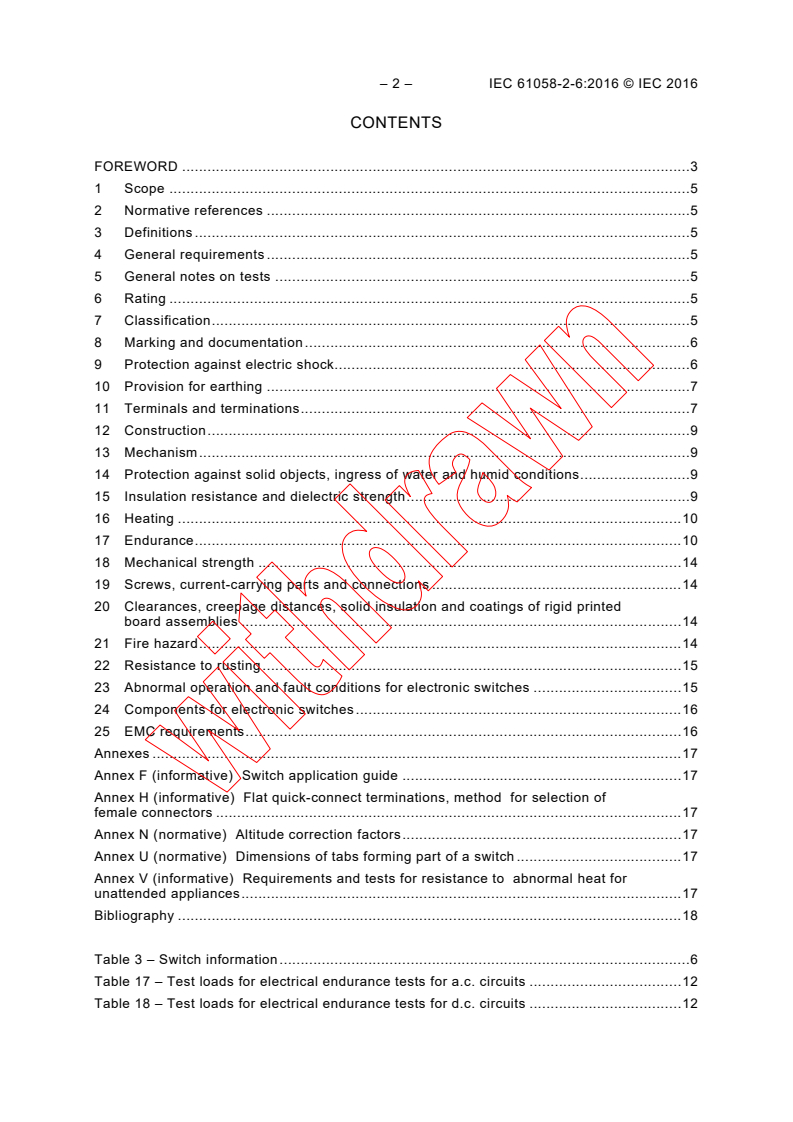

CONTENTS
FOREWORD .3

1 Scope .5

2 Normative references .5

3 Definitions .5

4 General requirements .5

5 General notes on tests .5

6 Rating .5
7 Classification .5
8 Marking and documentation .6
9 Protection against electric shock.6
10 Provision for earthing .7
11 Terminals and terminations .7
12 Construction .9
13 Mechanism .9
14 Protection against solid objects, ingress of water and humid conditions .9
15 Insulation resistance and dielectric strength .9
16 Heating . 10
17 Endurance . 10
18 Mechanical strength . 14
19 Screws, current-carrying parts and connections . 14
20 Clearances, creepage distances, solid insulation and coatings of rigid printed
board assemblies . 14
21 Fire hazard . 14
22 Resistance to rusting . 15
23 Abnormal operation and fault conditions for electronic switches . 15
24 Components for electronic switches . 16
25 EMC requirements . 16
Annexes . 17
Annex F (informative) Switch application guide . 17

Annex H (informative) Flat quick-connect terminations, method for selection of
female connectors . 17
Annex N (normative) Altitude correction factors . 17
Annex U (normative) Dimensions of tabs forming part of a switch . 17
Annex V (informative) Requirements and tests for resistance to abnormal heat for
unattended appliances . 17
Bibliography . 18

Table 3 – Switch information .6
Table 17 – Test loads for electrical endurance tests for a.c. circuits . 12
Table 18 – Test loads for electrical endurance tests for d.c. circuits . 12

INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
SWITCHES FOR APPLIANCES –
Part 2-6: Particular requirements for switches used

in electric motor-operated hand-held tools, transportable

tools and lawn and garden machinery

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61058-2-6 has been prepared by subcommittee 23J: Switches for
appliances, of IEC technical committee 23: Electrical accessories.
The text of this standard is based on the following documents:
FDIS Report on voting
23J/402/FDIS 23J/406/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – IEC 61058-2-6:2016 © IEC 2016

This Part 2-6 is to be used in conjunction with IEC 61058-1:2000, Switches for appliances –

Part 1: General requirements, and its Amendments 1 (2001) and 2 (2007).

This Part 2-6 supplements or modifies the corresponding clauses in IEC 61058-1, so as to

convert that publication into the IEC standard: Particular requirements for switches used in

electric motor-operated hand-held tools, transportable tools and lawn and garden machinery.

When a particular subclause of Part 1 is not mentioned in this Part 2-6, that subclause

applies as far as reasonable. Where this standard states “addition”, “modification” or

“replacement”, the relevant text of Part 1 is to be adapted accordingly.

In this standard:
1) the following print types are used:
• requirements proper: in roman type;
• test specifications: in italic type;
• notes: in small roman type.
2) subclauses, notes, figures and tables which are additional to those in Part 1 are
numbered starting from 101. Annexes which are additional to those in Part 1 are lettered
AA, BB, etc.
A list of all the parts in the IEC 61058 series, under the general title Switches for appliances,
can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
SWITCHES FOR APPLIANCES –
Part 2-6: Particular requirements for switches used

in electric motor-operated hand-held tools, transportable

tools and lawn and garden machinery

1 Scope
This clause of Part 1 is applicable, except as follows:
1.1 Addition:
This standard is a subset based on IEC 61058-1. The clauses outlined below are intended to
address the specific requirements for switches incorporated into or integrated with electric
motor-operated hand-held tools, transportable tools and lawn and garden machinery.
This standard is intended for switches with an ambient temperature up to and including
55 °C.
Switches tested to IEC 61058-1 are considered to comply with this standard and additional
testing is not required provided ratings, loads, and endurance are correct.
NOTE This Part 2-6 takes into account the fact that tests are conducted as part of the end product evaluation
(e.g. products tested according to the IEC 60745 and IEC 62841 series, and lawn and gardening equipment tested
according to the IEC 60335 series) and need not be conducted on the component switch.
2 Normative references
This clause of Part 1 is applicable.
3 Definitions
This clause of Part 1 is applicable.
4 General requirements
This clause of Part 1 is applicable.
5 General notes on tests
This clause of Part 1 is applicable.
6 Rating
This clause of Part 1 is applicable.
7 Classification
This clause of Part 1 is applicable, except as follows:

– 6 – IEC 61058-2-6:2016 © IEC 2016

7.1.3.2 This subclause is not applicable.

7.1.3.3 This subclause is not applicable.

7.1.5.3.1 This subclause is not applicable.

7.1.5.3.2 This subclause is not applicable.

8 Marking and documentation
This clause of Part 1 is applicable, except as follows:
8.1 Addition:
Switches declared for use in appliances such as power tools are considered unique type
(U.T) when referencing Table 3.
Replacement of Table 3:
Table 3 – Switch information
Characteristic Means of information
SWITCH IDENTIFICATION − UNIQUE TYPE REFERENCE U.T.
Manufacturer's name or trade mark Marking (Ma)
Type reference (model or catalogue number) Marking (Ma)
Identification that the switch is in compliance with this Part 2-6 (8.101) Marking (Ma)
Type of appliance for which a switch shall be used (hand held tools, Documentation (Do)
transportable tools, or lawn and garden machinery)
Number of operating cycles (7.1.4) Documentation (Do)
Degree of protection against electric shock, from outside an appliance Documentation (Do)
(7.1.5.3)
Number of contact only cycles (TC 7 for electronic switches) (17.2.4.7) Documentation (Do)
For electronic switches, the duty-type S1 (7.1.16) Documentation (Do)

Addition:
8.101 The marking to indicate compliance with this Part 2-6 shall be "PT".
Compliance is checked by inspection.
9 Protection against electric shock
This clause of Part 1 is applicable, except as follows:
9.1 This subclause is not applicable.
NOTE This subclause is covered in the end product standard.
9.2 This subclause is not applicable.
NOTE This subclause is covered in the end product standard.

10 Provision for earthing
This clause of Part 1 is not applicable.

11 Terminals and terminations
This clause of Part 1 is applicable, except as follows:

11.1.1.2 This subclause is not applicable.

NOTE This subclause is covered in the end product standard.
11.1.1.3 This subclause is not applicable except Table 4.
NOTE This subclause is covered in the end product standard.
11.1.1.4 This subclause is not applicable.
NOTE This subclause is covered in the end product standard.
11.1.1.5 This subclause is not applicable.
11.1.1.6 Replacement:
Terminals shall be designed so that the end of a conductor introduced into the hole is visible
or that the insertion of the conductor is prevented by a stop if further insertion may reduce
creepage distances and/or clearances or influence the mechanism of the switch.
Compliance is checked by inspection.
11.1.2 Screw-type terminals for unprepared conductors
Addition:
Screw type terminals for unprepared conductors are permitted but tested as part of the end
product evaluation.
11.1.2.1 This subclause is not applicable.
11.1.2.2 This subclause is not applicable.

11.1.2.3 This subclause is not applicable.
11.1.3.1 Replacement:
Screwless terminals shall allow, according to their classification, the proper connection of
conductors having cross-sectional areas as declared.
The intended disconnection of a conductor shall require an operation other than a pull at the
conductor, such that it can be effected manually with or without the help of a tool in normal
use.
11.1.3.2 Replacement:
Screwless terminals shall withstand the mechanical stress occurring in normal use. The
conductor shall be clamped reliably and between metal surfaces, except that, for screwless

– 8 – IEC 61058-2-6:2016 © IEC 2016

terminals intended to be used in circuits carrying a current not exceeding 0,2 A, one of the

surfaces may be non-metallic.
Compliance is checked by the following test, which is carried out with uninsulated copper

conductors, first having the largest declared cross-sectional area, and then having the

smallest declared cross-sectional area:

a) either rigid: five insertions and disconnections for solid conductors and one insertion and

disconnection for stranded conductors; or

b) flexible: five insertions and disconnections; or

c) rigid and flexible: if the terminal can accept both types of conductors, the tests are carried

out with rigid and flexible conductors for the number of times indicated above.
The conductors are inserted and disconnected for the number of times indicated above using
new conductors each time, except for the last time, when the conductors used for the last but
one insertion are clamped at the same place.
For each insertion, the conductors shall be either pushed as far as possible into the terminal
or shall be inserted to ensure that the connection is adequate. After each insertion, the
conductor is twisted through 90° in an axial direction and then subjected to a pull force of
35 N; the pull force is applied without jerks, for 1 min, in the direction of the axis of the
conductor space.
If the terminal is declared as suitable for two or more conductors, the appropriate pull force is
applied consecutively to each conductor. During the application of the pull force, the
conductor shall not come out of the terminal. After these tests, neither the screwless
terminals nor the clamping means shall have become loose.
11.1.3.4 This subclause of Part 1 is not applicable.
11.2 Terminals for prepared copper conductors and/or terminals requiring the use of a
special purpose tool
This subclause of Part 1 is applicable, except as follows:
11.2.1 Common requirements
This subclause is not applicable.
11.2.3.2 This subclause is not applicable.

11.2.4 Non-disconnectable screwless terminations
Addition:
Non-disconnectable screwless terminations are permitted but tested as part of the end
product evaluation.
11.2.4.1 This subclause is not applicable.
11.2.4.2 This subclause is not applicable.
11.2.4.3 This subclause is not applicable.
11.2.5.1 This subclause is not applicable.
11.2.5.2 This subclause is not applicable.

11.2.5.3 Replacement:
Tabs shall allow the application and withdrawal of female connectors without damage to the

switch so as not to impair compliance with this standard.

Compliance is checked by applying a 10 N axial pull force without jerks. No damage or

disengagement shall occur.
11.2.5.4 This subclause is not applicable.

11.2.7 Solder terminations
Addition:
Solder terminations are permitted but tested as part of the end product evaluation.
11.2.7.1 This subclause is not applicable.
11.2.7.2 This subclause is not applicable.
11.2.7.3 This subclause is not applicable.
12 Construction
This clause of Part 1 is not applicable.
NOTE This clause is covered in the end product standard.
13 Mechanism
This clause of Part 1 is not applicable.
NOTE This clause is covered in the end product standard.
14 Protection against solid objects, ingress of water and humid conditions
This clause of Part 1 is applicable, except as follows:
14.3 Protection against humid conditions
Replacement of the second paragraph:
Compliance is checked by the humidity treatment described in 14.3, followed by the test of
15.1. Cable inlet openings, if any, and drain-holes are left open. If a drain-hole is provided for
a water-tight switch, it is opened.
15 Insulation resistance and dielectric strength
This clause of Part 1 is applicable, except as follows:
15.1 Replacement:
The dielectric strength of switches shall be adequate.

– 10 – IEC 61058-2-6:2016 © IEC 2016

Compliance is checked by the test of 15.3, the test being made immediately after the test of

14.3.
The test voltage according to Table 12 is applied in the case of

• functional insulation: between the different poles of a switch. For the purpose of the test,

all the parts of each pole are connected together;

• basic insulation: between all live parts connected together and a metal foil covering the

outer accessible surface of the basic insulation and accessible metal parts in contact with

the basic insulation;
• double insulation: between all live parts connected together and a metal foil covering the

outer, normally not accessible surface of basic insulation and non-accessible metal parts;
then: between two metal foils covering separately the inner, normally not accessible
surface of supplementary insulation and connected to non-accessible metal parts, and the
outer, accessible surface of supplementary insulation and connected to accessible metal
parts;
• reinforced insulation: between all live parts connected together and a metal foil covering
the outer accessible surface of reinforced insulation and accessible metal parts;
• contacts: between the open contacts of each pole of a switch at the test voltages for
“across electronic disconnection”.
The foils are not pressed into openings but are pushed into corners and the like by means of
the standard test finger.
In cases where basic insulation and supplementary insulation cannot be tested separately,
the insulation provided is subjected to the test voltages specified for reinforced insulation.
For electronic switches, the test is carried out at the test voltages for “across full
disconnection” and “across micro-disconnection” only on electronic switches with mechanical
switching devices connected in series with the semiconductor switching device.
For electronic switches, the tests are not carried out across protective impedances and poles
interconnected by components.
15.2 This subclause is not applicable.
16 Heating
This clause of Part 1 is not applicable.

NOTE This clause is covered in the end product standard.
17 Endurance
This clause of Part 1 is applicable, except as follows:
17.1.2 Replacement:
The sequence of tests for all switches except electronic switches is as follows:
• when declared for locked rotor, a test at accelerated speed as specified in 17.2.4.9 (TC9);
• a test at accelerated speed as specified in 17.2.4.4 (TC4);
• a functional compliance test in accordance with 17.2.5.1 (TE1);
• a dielectric strength test in accordance with 17.2.5.3 (TE3).

17.1.3 Replacement:
For electronic switches (complete switch) the sequence of tests is as follows:

• a test at accelerated speed as specified in 17.2.4.4 (TC4);

• when declared for locked rotor, a test at accelerated speed as specified in 17.2.4.9 (TC9);

• a functional compliance test in accordance with 17.2.5.1 (TE1);

• a dielectric strength test in accordance with 17.2.5.3 (TE3).

Additionally 3 new specimens shall be prepared and tested as follows:

• the SSD (solid state switching device and assembly) in series with contact(s) is short
circuited and/or the SSD in parallel with contact(s) is disconnected;
• a test at accelerated speed as specified in 17.2.4.7 (TC7).
The number of operating cycles is 1 000 or the declared number (if different).
17.1.4 Replacement:
After all the tests specified, the specimens shall meet the requirements of 17.2.5.1 (TE1) and
17.2.5.3 (TE3).
17.2.1.2 This subclause is applicable, except as follows:
Replacement of Table 17 and Table 18:

– 12 – IEC 61058-2-6:2016 © IEC 2016

Table 17 – Test loads for electrical endurance tests for a.c. circuits

Type of circuit as Operation Test Test current Power
1) 3)
classified in 7.1.2 of contacts voltage r.m.s. factor

Motor-operated tools and motor-
6 × I-M 0,60 (+0,05)
operated lawn and garden
2)
Making Rated voltage or or
machinery
I-R
≥ 0,9
I-R ≥ 0,9
Breaking Rated voltage
or or
4)
I-M ≥ 0,9
Magnetically driven tools and
2)
Making Rated voltage 6 × I-I 0,60 (+0,05)
magnetically driven lawn and
garden machinery; also acceptable
for motor-operated tools and
motor-operated lawn and garden
Breaking Rated voltage
I-I 0,60 (+0,05)
machinery
Declared specific load (classified Making and
As determined by load
in 7.1.2.5) breaking
NOTE
I-I: inductive-load current
I-M: motor-load current
I-R: resistive-load current
1)
Whichever is arithmetically greater or the most unfavourable value in case of equal values.
2)
The specified making conditions are maintained for a period between 50 ms and 100 ms, and are then
reduced by an auxiliary switch to the specified breaking conditions.
For all switches except electronic switches the test current may be reduced to I-R by introducing a resistor
in the circuit. Short interruptions of the test current during the reduction to I-R not exceeding a period of
50 ms to 100 ms are permitted.
For electronic switches, the reduction to the break current should be achieved without any open circuiting of
the simulated inductive loads circuit, to ensure that no abnormal voltage transients are generated.
A typical method of achieving this is shown in Figure 19.
3)
Resistors and inductors are not connected in parallel except that if any air-core inductor is used, a resistor
taking approximately 1 % of the current through the inductor is connected in parallel with it. Iron-core
inductors may be used provided that the current has a substantial sine-wave form. For three-phase tests,
three-core inductors are used.
4)
The test circuit condition for testing electronic switches, according to Figure 18, shall be substantially
resistive.
Table 18 – Test loads for electrical endurance tests for d.c. circuits

Type of circuit as classified in Operation of contacts Test voltage Test Time constant
7.1.2 current
Declared specific load (classified Making and breaking Rated voltage As determined by load
in 7.1.2.5)
17.2.2 Thermal conditions
This subclause is not applicable.
17.2.3.1 Replacement:
The switches are operated by means of their actuating member either manually or by an
appropriate apparatus which is arranged to simulate normal actuation.

The operating speed for the operating cycles shall be as follows:

• for linear actions, the switch actuation speed shall be approximately 80 mm/s

(mechanical) and 25 mm/s (electronic);

• for rotary actions, the switch actuation speed shall be approximately 90°/s (mechanical)

and 45°/s (electronic).
17.2.3.3 This subclause is not applicable.

17.2.4.1 Increased-voltage test at accelerated speed (TC1)

This subclause is not applicable.
17.2.4.2 Test at slow speed (TC2)
This subclause is not applicable.
17.2.4.3 Test at high speed (TC3)
This subclause is not applicable.
17.2.4.4 Test at accelerated speed (TC4)
Replacement:
The electrical conditions are those specified in 17.2.1.
The thermal conditions are as follows: Tests are carried out at 25 °C ± 10 °C.
The total number of operations shall be declared by the manufacturer.
NOTE Typically the total number of operations is 50 000 for hand-held tools, 10 000 for transportable tools and
10 000 for lawn and garden machinery.
The method of operation is that specified for accelerated speed in 17.2.3.
17.2.4.5 Manual functional test (TC5)
This subclause is not applicable.
17.2.4.6 Functional test at minimum load (TC6)

This subclause is not applicable.
17.2.4.7 Test with limited number of operations (TC7)
Replacement:
The electrical conditions are those specified in 17.2.1.
The thermal conditions are 25 °C ± 10 °C.
The number of operating cycles is 1 000 or greater as declared by the manufacturer.
The method of operation is that specified in 17.2.3 for accelerated speed.

– 14 – IEC 61058-2-6:2016 © IEC 2016

17.2.4.8 Endurance test (TC8)
This subclause is not applicable.

17.2.4.10 Test at very slow speed (TC10)

This subclause is not applicable.

17.2.5 Evaluation of compliance

This subclause is applicable, except as follows:

17.2.5.2 Thermal compliance (TE2)
This subclause is not applicable.
18 Mechanical strength
This clause of Part 1 is not applicable.
NOTE This clause is covered in the end product standard.
19 Screws, current-carrying parts and connections
This clause of Part 1 is applicable.
20 Clearances, creepage distances, solid insulation and coatings of rigid
printed board assemblies
This clause of Part 1 is applicable.
21 Fire hazard
This clause of Part 1 is applicable, except as follows:
21.1 Resistance to heat
Replacement:
Parts of non-metallic material shall be resistant to heat.
This requirement does not apply to small parts, to decorative trims, actuators which are not
integral with the actuating means, and other parts for which no tests are required.
NOTE The definition for small parts is given in 3.15 of IEC 60695-2-11.
Compliance is checked with new samples using the ball pressure test according to
IEC 60695-10-2 at the following temperatures:
a) at 75 °C ± 2 °C:
for parts which are accessible when the switch is mounted as declared, and the
deterioration of which may result in the switch becoming unsafe (e.g. reduction in the
declared degree of protection, or reduction of creepage and clearances below those
values required according to Clause 20);
b) at 125 °C ± 2 °C:
– for parts which are in contact with, maintain or retain in position electrical connections

including those parts which maintain an electrical connection under spring force, for

example a connection within the switch maintained in position by a spring in

association with a non-metallic part, the deterioration of which could cause

overheating;
– for parts which are in contact with or support heat-sources (for example, heat sinks).

21.2 Resistance to abnormal heat

Replacement:
Parts of non-metallic material shall be resistant to abnormal heat.
For decorative trims, actuating members which are not integral with the actuating means, and
parts which are unlikely to be ignited or to propagate flames, no test is required.
In cases where it is neither practical nor possible to carry out the tests on a complete switch,
for example, when the switch is either too small or of an inconvenient shape, then the test is
carried out using a specimen of the material from which the relevant part is manufactured.
The size of the specimen shall be greater than 60 mm × 60 mm and with a thickness equal to
the minimum thickness as measure for the relevant part.
NOTE A switch is considered to be practical for testing if a 15 mm diameter circle can be inscribed within the
surface to be tested.
Compliance is checked with one new sample using the glow wire test of IEC 60695-2-11 at
the glow wire temperature of minimum 650 °C.
The test specimen is considered to have passed the glow-wire test if flames or the glowing of
the test specimen extinguish within 30 s after removal of the glow wire and there is no
ignition of the layer of wrapping tissue.
If there is no flame or ignition, this shall be reported.
22 Resistance to rusting
This clause of Part 1 is applicable.
23 Abnormal operation and fault conditions for electronic switches

Replacement.
Not applicable, except as follows.
Switches shall be constructed so that the risk of electric shock as a result of abnormal
condition is prevented.
Compliance is checked by carrying out the tests described in 23.1.1.1 and 23.1.1.2 for
circuits where circuit analysis shows an electric shock hazard to exist.
When tested, the switch shall be installed in a test circuit as shown in Figure 18.
The load conditions are as follows:
• for electronic switches for which no thermal current is declared, the tests are carried out
with rated current and duty type;

– 16 – IEC 61058-2-6:2016 © IEC 2016

• for electronic switches for which a thermal current is declared, the tests are carried out

with the specified thermal current and duty type;

• for electronic switches for a specific end application, the tests are carried out in or

together with the appliance.
NOTE 1 Circuits below 15 W are generally considered not to represent a risk of electric shock.

NOTE 2 These load conditions are a subset of the requirements from 16.3.3.

24 Components for electronic switches

This clause of Part 1 is not applicable.
NOTE Specific requirements for components are covered by the end product standard.
25 EMC requirements
This clause of Part 1 is not applicable.
NOTE This clause is covered in the end product standard.

Annexes
The annexes of Part 1 are applicable, except as follows:

Annex F
(informative)
Switch application guide
This annex of Part 1 is not applicable.

Annex H
(informative)
Flat quick-connect terminations, method
for selection of female connectors
This annex of Part 1 is not applicable.

Annex N
(normative)
Altitude correction factors
This annex of Part 1 is not applicable.

Annex U
(normative)
Dimensions of tabs forming part of a switch

This annex of Part 1 is not applicable.

Annex V
(informative)
Requirements and tests for resistance to
abnormal heat for unattended appliances
This annex of Part 1 is not applicable.

– 18 – IEC 61058-2-6:2016 © IEC 2016

Bibliography
The bibliography of Part 1 is applicable, except as follows:

Addition:
IEC 60745-1, Hand-held motor-operated electric tools – Safety – Part 1: General
requirements
IEC 62841-1, Electric motor-operated hand-held tools, transportable tools and lawn and
garden machinery – Safety – Part 1: General requirements

___________
