IEC 61058-1-1:2016

IEC 61058-1-1 ®
Edition 1.0 2016-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Switches for appliances –
Part 1-1: Requirements for mechanical switches

Interrupteurs pour appareils –
Partie 1-1: Exigences relatives aux interrupteurs mécaniques

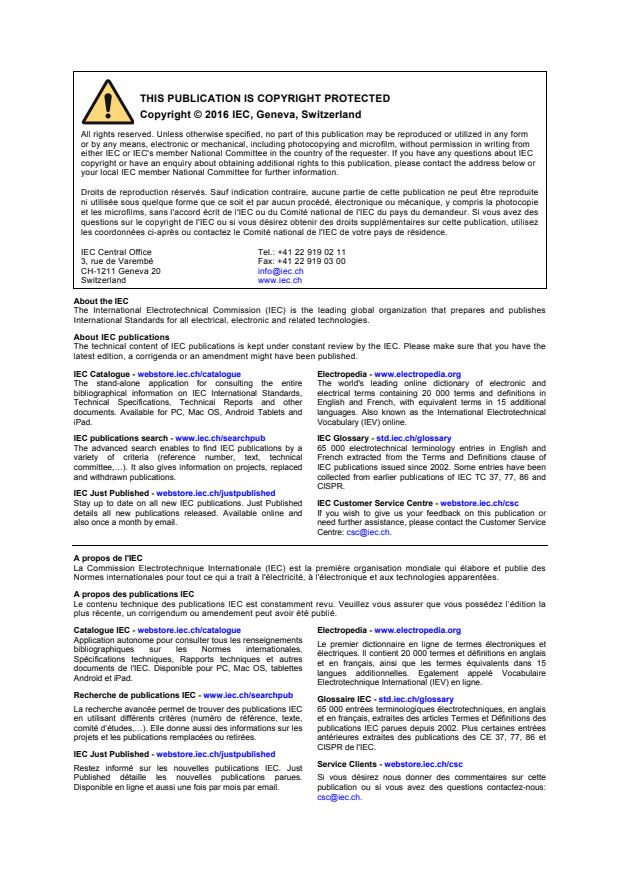

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 15
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC 65 000 entrées terminologiques électrotechniques, en anglais
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 61058-1-1 ®
Edition 1.0 2016-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Switches for appliances –
Part 1-1: Requirements for mechanical switches

Interrupteurs pour appareils –

Partie 1-1: Exigences relatives aux interrupteurs mécaniques

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.120.40 ISBN 978-2-8322-3396-2

– 2 – IEC 61058-1-1:2016  IEC 2016

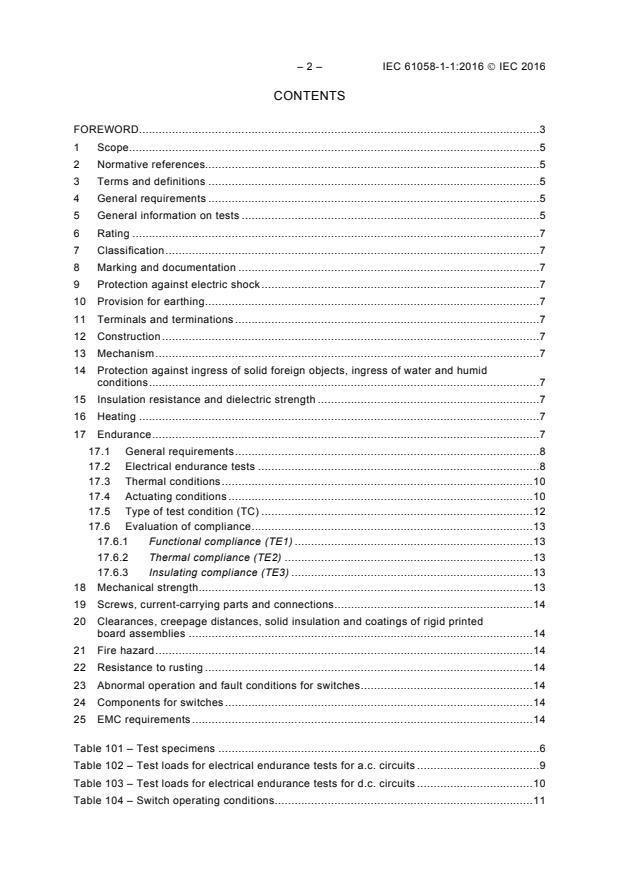

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references. 5
3 Terms and definitions . 5
4 General requirements . 5
5 General information on tests . 5
6 Rating . 7
7 Classification . 7
8 Marking and documentation . 7
9 Protection against electric shock . 7
10 Provision for earthing . 7
11 Terminals and terminations . 7
12 Construction . 7
13 Mechanism . 7
14 Protection against ingress of solid foreign objects, ingress of water and humid
conditions . 7
15 Insulation resistance and dielectric strength . 7
16 Heating . 7
17 Endurance . 7
17.1 General requirements . 8
17.2 Electrical endurance tests . 8
17.3 Thermal conditions . 10
17.4 Actuating conditions . 10
17.5 Type of test condition (TC) . 12
17.6 Evaluation of compliance . 13
17.6.1 Functional compliance (TE1) . 13
17.6.2 Thermal compliance (TE2) . 13
17.6.3 Insulating compliance (TE3) . 13
18 Mechanical strength . 13
19 Screws, current-carrying parts and connections . 14
20 Clearances, creepage distances, solid insulation and coatings of rigid printed
board assemblies . 14
21 Fire hazard . 14
22 Resistance to rusting . 14
23 Abnormal operation and fault conditions for switches . 14
24 Components for switches . 14
25 EMC requirements . 14

Table 101 – Test specimens . 6
Table 102 – Test loads for electrical endurance tests for a.c. circuits . 9
Table 103 – Test loads for electrical endurance tests for d.c. circuits . 10
Table 104 – Switch operating conditions . 11

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SWITCHES FOR APPLIANCES –
Part 1-1: Requirements for mechanical switches

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61058-1-1 has been prepared by subcommittee 23J: Switches for
appliances, of IEC technical committee 23: Electrical accessories.
The text of this standard is based on the following documents:
FDIS Report on voting
23J/399/FDIS 23J/403/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 61058 series, published under the general title Switches for
appliances, can be found on the IEC website.

– 4 – IEC 61058-1-1:2016  IEC 2016
This part of IEC 61058 is to be used in conjunction with IEC 61058-1(2016).
This Part 1-1 supplements or modifies the corresponding clauses in IEC 61058-1, so as to
convert that publication into the IEC standard: Requirements for mechanical switches.
When a particular subclause of Part 1 is not mentioned in this Part 1-1, that subclause applies
as far as reasonable. Where this standard states “addition”, “modification” or “replacement”,
the relevant text of Part 1 is to be adapted accordingly.
In this standard:
1) the following print types are used:
– requirements proper: in roman type;
– test specifications: in italic type;
– notes/explanatory matters: in small roman type.
2) subclauses, notes, figures and tables which are additional to those in Part 1 are numbered
starting from 101. Annexes which are additional to those in Part 1 are lettered AA, BB, etc.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
SWITCHES FOR APPLIANCES –
Part 1-1: Requirements for mechanical switches

1 Scope
This clause of part 1 is applicable.
Add the following at the end of Clause 1.
This part of IEC 61058 applies to mechanical switching devices and shall be used in
conjunction with the requirements of IEC 61058-1.
NOTE Additional requirements for particular switches may be found in the relevant part 2 of IEC 61058.
2 Normative references
This clause of part 1 is applicable.
3 Terms and definitions
This clause of part 1 is applicable.
4 General requirements
This clause of part 1 is applicable.
5 General information on tests
This clause of part 1 is applicable with the following addition.
Add the following at the end of 5.3.
Table 101 provides information on:
– The minimum number of specimens needed for each test.
– The minimum number of total specimens, when applicable tests are added, needed for
each evaluation.
– Additional specimens that may be required as a result of additional electrical rating,
unique construction or damage/breakage during testing.

– 6 – IEC 61058-1-1:2016  IEC 2016
Table 101 – Test specimens
Clause Description Minimum number of Notes
a)
specimens for each test
b)
5 General information on tests – i ii
6 Rating
7 Classification
8 Marking and documentation
9 Protection against electric shock
c)
10 Provision for earthing
11 Terminals
12 Construction
13 Mechanism
d)
14.1 Protection against ingress of solid foreign objects 1
d)
14.2 Protection against ingress of water 1
14.3 to 15 Protection against humid conditions e), m)
Insulation resistance and dielectric strength
f), m)
16 Heating – 3 3
f), m)
17 Endurance – 3 3
c)
18 Mechanical strength 1
c)
19 Screws, current-carrying parts and connections 1
g), h)
20 Clearance, creepage distances 1
i), c)
21 Fire hazard 2
c)
22 Resistance to rusting 1
23 Abnormal operation and fault conditions for
l)
switches
j)
24 Components for switches 3
k)
25 EMC requirements –
a)
Additional specimens may be required depending on the construction and declaration of the switch.
b)
Each electrical rating submitted to the testing of Clauses 16 and 17 requires an additional 3 specimens (such
as rating i =3 specimens, rating ii = additional 3 specimens).
c)
The specimen may be used for more than 1 test, if cumulative stress as a result of sequential testing is
avoided. When a specimen is damaged a new specimen shall be used for the next test.
d)
In general 1 specimen for ingress of solid foreign objects (dust), and 1 specimen for ingress of water.
Specific IP ratings (such as IP 5x, IP6x and protection against water) require a special enclosure to be
provided with the switch specimen in order to complete the testing.
e)
The same test specimens are used to complete the testing of 14.3 and 15. The tests are completed in
immediate sequence.
f)
Heating according to Clause 16 and endurance according to Clause 17 is recommended to be tested on the
same specimens. If declared, different specimens may be used when noted on the test record.
g)
Three additional new specimens may be required according to Clause 20, for the test according to annex G.
h)
For testing coatings on printed boards according to 20.4, the number of printed boards needed is determined
by the testing of IEC 60664-3.
i)
For testing glow wire and ball pressure special test specimens according to 60695-2-11 and 60695-10-2,
respectively may be required.
j)
The number of specimens for specific test and examination of Clause 24 is according to the individual
subclasses.
k)
Mechanical switches in general do not require EMC testing, however in the event the mechanical switch has
electronic circuitry requiring EMC, additional specimens may be required according to the EMC test program
and switch construction.
l)
Abnormal operation and fault conditions are generally destructive, typically the switch cannot be repaired
and reused for the next fault. Specially prepared specimens (such as with wires soldered to the internal
circuit) may be necessary in order to complete the testing. The total number of specimens depends on the
switch construction, for details see Clause 23.
m)
This test is part of a sequence, and a new set of 3 specimens shall not be used except as permitted by 5.1.

6 Rating
This clause of part 1 is applicable.
7 Classification
This clause of part 1 is applicable.
8 Marking and documentation
This clause of part 1 is applicable.
9 Protection against electric shock
This clause of part 1 is applicable.
10 Provision for earthing
This clause of part 1 is applicable.
11 Terminals and terminations
This clause of part 1 is applicable.
12 Construction
This clause of part 1 is applicable.
13 Mechanism
This clause of part 1 is applicable.
14 Protection against ingress of solid foreign objects, ingress of water and
humid conditions
This clause of part 1 is applicable.
15 Insulation resistance and dielectric strength
This clause of part 1 is applicable.
16 Heating
This clause of part 1 is applicable.
17 Endurance
Replace the existing text by the following:

– 8 – IEC 61058-1-1:2016  IEC 2016
17.1 General requirements
17.1.1 Switches shall withstand without excessive wear or other harmful effect the
electrical, thermal and mechanical stresses that occur in normal use.
17.1.2 The sequence of tests to be completed on the same 3 specimens is as follows:
– TC3: a test at high speed specified in 17.5.3; this test only applies to switches with more
than one pole, and where the type of connection is of polarity reversal;
– TC2: a test at slow speed specified in 17.5.2,
– TC1: an increased-voltage test at accelerated speed as specified in 17.5.1; this test does
not apply to switches classified according to 7.2.9;
– TC9: a locked-rotor test as specified in 17.5.5 at accelerated speed; this test only applies
to switches classified according to 7.2.9;
– TC4: a test at accelerated speed as specified in 17.5.4;
followed by the requirements of 17.6.
NOTE The different types of tests are specified in 17.5.
17.1.3 When required by Clause 13, the following test, TC10, is conducted on a different set
of 3 specimens:
– TC10: a test at very slow speed as specified in 17.5.6; this test only applies to switches
according to the requirements of 13.1.
The manufacturer may choose to complete TC10 in the sequence of 17.1.2 in place of TC2.
Compliance is checked by 17.6.1 (TE1) and 17.6.3 (TE3).
17.2 Electrical endurance tests
The switch shall be loaded as specified in Table 102 and/or Table 103 and connected in
accordance with the circuit as given in 61058-1:2016, Table 2.
a) Where, in IEC 61058-1:2016, Table 2, an auxiliary switch (A) is symbolized in the test
circuit, the tests for the two ON-positions of the specimen (S) are performed on two
separate sets of test samples. The connection to the test load to be performed for the two
tests is symbolized in IEC 61058-1:2016, Table 2 by an auxiliary switch A.
b) Multiway switches are loaded according to 61058-1:2016, Table 1. The load for the other
switch positions is that resulting from the loads necessary to achieve the conditions
specified above.
c) For circuits according to 7.2.7 for specific lamp load, the connection and test load are as
specified by the manufacturer using the maximum occurring inrush current at room
temperature. For a specific lamp load, it is recommended that the specimen be operated
with loads that are used in the field rather than with synthetic loads. Forced cooling of the
specific lamp load may be applied in order to ensure cold resistance for each operating
cycle and shorten the test time.
d) No electrical load is applied during the endurance tests for switches classified to 7.2.6
with a rating of 20 mA or less.

Table 102 – Test loads for electrical endurance tests for a.c. circuits
Type of circuit as classified in 7.2 OPERATION Test voltage Test Power
c)
of contacts current factor
r.m.s.
Substantially resistive (classified in 7.2.1) Making and Rated voltage
Ι-R ≥0,9
breaking
General Purpose (classified in 7.2.10) Making and Rated voltage Ι-GP
≥0,75
breaking
(+0,05)
b)
Resistive and/or motor (classified in 7.2.2) Making Rated voltage 0,60
6 × Ι-M
or (+0,05)
a)
Ι-R ≥0,9
Breaking Rated voltage Ι-R ≥0,9
or
a)
Ι-M ≥0,9
Circuit for specific load of motor with a locked rotor Making Rated voltage 6 × Ι-M 0,60
and with a power factor not less than 0,6
(+0,05)
(classified in 7.2.9)
Breaking Rated voltage 0,60
6 × Ι-M
(+0,05)
2)
Circuit for an inductive load (classified in 7.2.8) Making Rated voltage 6 × Ι-Ι 0,60
(+0,05)
Breaking Rated voltage 0,60
Ι-Ι
(+0,05)
Resistive and capacitive (classified in 7.2.3) Making and Tested in a circuit as shown in Figure 8
breaking
d)
Tungsten filament lamp load (classified in 7.2.4) Making and Tested in a circuit as shown in Figure 8
breaking
Rated voltage ≥ 110 V a.c., X = 16
Rated voltage < 110 V a.c., X = 10
Circuit for specific lamp load (classified in 7.2.7) Making and Rated voltage As determined by load
breaking
Specified declared (classified in 7.2.5) Making and Rated voltage As determined by load
breaking
Ι-Ι: inductive-load current
Ι-M: motor-load current
Ι-R: resistive-load current
a)
Whichever is arithmetically greater or the most unfavourable value in case of equal values.
b)
The specified making conditions are maintained for a period between 50 ms and 100 ms, and are then

reduced by an auxiliary switch to the specified breaking conditions.
For mechanical switches the test current may be reduced to I-R by introducing a resistor in the circuit. Short
interruptions of the test current during the reduction to I-R not exceeding a period of 50 ms to 100 ms are
permitted.
A typical method of achieving this is shown in Figure 16.
c)
Resistors and inductors are not connected in parallel except that if any air-core inductor is used, a resistor
taking approximately 1 % of the current through the inductor is connected in parallel with it. Iron-core
inductors may be used provided that the current has a substantial sine-wave form. For three-phase tests,

three-core inductors are used.
d)
In the case where the tests are performed with tungsten filament lamp bulbs, the following test conditions
apply:
– the ratio X = 16 or X = 10 shall be achieved;
– the cold resistance of the lamps shall be ensured for each operating cycle;
– the resistance of connections within the load circuit (for example lamp sockets) shall be constant;
– the proper function of the lamps performing the load set shall be ensured for each operating cycle.

– 10 – IEC 61058-1-1:2016  IEC 2016
Table 103 – Test loads for electrical endurance tests for d.c. circuits
Type of circuit as classified in 7.2 Operation of Test voltage Test current Time constant
contacts
Substantially resistive load Making and Rated voltage Ι-R L/R < 1,15 ms
breaking
Tungsten filament lamp load Making and Rated voltage Tested in a circuit as shown in
(classified in 7.2.4) breaking Figure 9
Rated voltage ≥ 110 V d.c., X = 6
Rated voltage < 110 V d.c., X = 10
a)
Resistive and capacitive load Making and Tested in a circuit as shown in Figure 9b
(classified in 7.2.3) breaking
Circuit for specific lamp load Making and Rated voltage As determined by load
(classified in 7.2.7) breaking
Declared specific load (classified in Making and Rated voltage As determined by load
7.2.5) breaking
Ι-R: resistive load current
a)
In case where the tests are performed with tungsten filament lamp bulbs, the following test conditions apply:
– the ratio X = 16 or X = 10 shall be achieved;
– the cold resistance of the lamps shall be ensured for each operating cycle;
– the resistance of connections within the load circuit (for example lamp sockets) shall be constant;
– the proper function of the lamps performing the load set shall be ensured for each operating cycle.

17.3 Thermal conditions
17.3.1 For switches according to 7.3.2, during the tests in 17.5.4 (TC4) all parts are
exposed to temperatures as follows:
– For the first half of the test period at maximum air temperature (T +5/0) °C.
– For the second half of the test period at 25 °C ± 10 °C or at the minimum air temperature
(T 0/-5) °C if T is less than 0 °C.
17.3.2 For switches according to 7.3.3, during the tests in 17.5.4 (TC4), those parts that are
declared for use at 0 °C to 55 °C shall be exposed to a temperature within this range for the
complete test period.
– For the first half of the test period, the air temperature of the remainder of the switch shall,
be maintained at the maximum air temperature (T +5/0) °C.
– For the second half of the test period the tests are carried out at 25 °C ± 10 °C or at the
minimum air temperature (T 0/-5) °C if T is less than 0 °C.
17.3.3 For switches according to 7.3.1, during the tests in 17.5.4 (TC4), the switch shall be
exposed to an air temperature of 25 °C ± 10 °C.
17.4 Actuating conditions
17.4.1 The switches are operated by means of their actuating member either manually or by
an appropriate apparatus which is arranged to simulate normal actuation.
The operating speed for the operating cycles shall be as follows:
For the tests of mechanical switches:
a) for very slow speed:
– approximately 1°/s for rotary actuation;
– approximately 0,5 mm/s for linear actuation.

b) for slow speed:
– approximately 9°/s for rotary actuations at an angle of operation ≤45°;
– approximately 18°/s for rotary actuations at an angle of operation >45°;
– approximately 20 mm/s to 25 mm/s for linear actuations.
c) for high speed, the actuation member shall be actuated by hand as fast as possible or
using the accelerated speed.
d) for accelerated speed:
– approximately 45°/s for rotary actuations at an angle of operation ≤45°;
– approximately 90°/s for rotary actuations at an angle of operation >45°;
– approximately 80 mm/s for linear actuations.
17.4.2 For biased switches, the actuating member shall be moved to the limit of travel of the
opposite position.
17.4.3 During the testing, care is taken that the test apparatus drives the actuating member,
without impeding the designed movements of the switch.
17.4.4 During the accelerated speed test
a) care shall be taken to ensure that the test apparatus allows the actuating member to
operate freely, so that there is no interference with the normal action of the mechanism;
b) for switches designed for a rotary actuation where the movement is not limited in either
direction, three-quarters of the total number of operating cycles in each test shall be made
in a clockwise direction, and one-quarter in an anti-clockwise direction;
c) for switches which are designed for rotary actuation in one direction only, the test shall be
performed in the designed direction, provided that it is not possible to rotate the actuating
member in the reverse direction using the torques necessary for actuation in the designed
direction;
d) additional lubrication shall not be applied during these tests;
e) the forces applied to the end stops of the actuating members shall not exceed the
declared values (if any) for rotary and linear actuation. The declared full travel of the
actuating member (if any) shall be applied during these tests.
17.4.5 So far as the design allows, switches are operated with the following conditions:
Table 104 – Switch operating conditions
Load type ON (s) OFF (s) Comments
Up to 10 A 1 3 Approximately 15 operating cycles per minute.
>10 up to 25 A 2 6 Approximately 7,5 operating cycles per
minute.
>25 up to 63 A 4 12 Approximately 3,75 operating cycles per
minute.
Capacitive and simulated lamp 2 15 To allow for the discharge of the capacitive
load load. See IEC 61058-1:2016, Figures 8 and 9
Tungsten lamp loads  Minimum 1 Minimum 55 55 s to allow for cooling of the tungsten lamps
for inrush current; in case of more than one
load sets the minimum cooling time for each
load set shall be 55 s and the cycle rate for
the switch may be increased.
Required very slow speed TC10 Minimum 2 Minimum 6 To allow arcing at the make and break.
Locked rotor tests (TC9) 1 30 To allow for the inrush.

– 12 – IEC 61058-1-1:2016  IEC 2016
For switches with more than one load (throw), each operating in the test circuit such as
Table 2 test codes 2.3, 2.5, 2.7 or 2.9, the ON periods will be approximately 50 %.
Multi-way switches may comply with the table above, or be actuated with the speed indicated
in 17.4.1 and a minimum ON period of 25 %.
This requirement in Table 104 is not valid for very slow speed (TC10), the on time shall be
sufficient to allow arcing.
17.5 Type of test condition (TC)
17.5.1 Increased-voltage test at accelerated speed (TC1):
– Electrical conditions: The load specified according to Table 102, the voltage increased to
1,15 the rated voltage (the load is not readjusted).
– Capacitive load and simulated lamp load tests for a.c. circuits, the test voltage is the rated
voltage and the test currents are increased to 1,15 rated currents.
– Thermal conditions: 25 °C ± 10 °C
Actuating speed: accelerated speed in 17.4.
– Operating cycles: 100.
17.5.2 Test at slow speed (TC2):
– Electrical conditions: Specified in 17.2.
– Thermal conditions: 25 °C ± 10 °C.
– Actuating speed: Slow speed in 17.4.
– Operating cycles: 100.
17.5.3 Test at high speed (TC3):
– Electrical conditions: Specified in 17.2.
– Thermal conditions: 25 °C ± 10 °C.
– Actuating speed: High speed in 17.4.
– Operating cycles: 100.
This test applies only to switches which have more than one pole and when polarity reversal
occurs (when it is possible to move from one polarity to the opposite without a mechanical
interlock or similar mechanical impediment).
17.5.4 Test at accelerated speed (TC4):
– Electrical conditions: specified in 17.2.
– Thermal conditions: specified in 17.3.
– Actuating speed: accelerated speed in 17.4.
– Operating cycles: Total number declared (7.4) less the number already made during tests
of 17.5.1, 17.5.2 and 17.5.3.
17.5.5 Locked-rotor test (TC9):
– Electrical conditions: specified in 17.2.
– Thermal conditions: 25 °C ± 10 °C.
– Actuating speed: Accelerated speed in 17.4.
– Operating cycles: 50.
For switches according to 7.2.2, the test load condition for making operation for resistive
and/or motor load with a rated current of 6 × I-M and with a power factor of 0,6 is used for the
making and breaking operation.
17.5.6 Test at very slow speed (TC10):
– Electrical conditions: specified in 17.2.
– Thermal conditions: 25 °C ± 10 °C.
– Actuating speed: very slow speed in 17.4.
– Operating cycles:100.
TC10 when required by Clause 13, is completed on a separate set of 3 specimens and is not
part of the Table 101 sequence. Compliance is checked by 17.6.1 (TE1) and 17.6.2 (TE2).
17.6 Evaluation of compliance
17.6.1 Functional compliance (TE1)
After all the appropriate tests of 17.5, the switch is inspected for functionality. Compliance is
checked by the following:
– all actions function as declared;
– no loosening of electrical or mechanical connections occur;
– sealing compound shall not flow to such an extent that LIVE PARTS are exposed.
17.6.2 Thermal compliance (TE2)
After all the appropriate tests of 17.5, the switch is tested in accordance with Clause 16 in
IEC 61058-1:2016 as modified by the following:
– 16.4.d) to 16.4.e) are not applicable
– 16.4.f): all switches are tested in an ambient of 25 °C ± 10 °C.
– 16.4.g) to 16.4.i) are not applicable
– 16.4.q): terminals are measured as close as possible to the body of the switch. If the
thermocouples cannot be positioned directly on the terminals the thermocouples may be
fixed on the conductors (with the insulation removed) as close as possible to the body of
the switch.
Compliance is checked if the temperature rise at the terminals does not exceed 55 K.
17.6.3 Insulating compliance (TE3)
After all the appropriate tests of 17.5, the switch is tested as follows:
– the dielectric strength test of 15.3 in IEC 61058-1:2016 applies with the exception that the
specimens are not subjected to the humidity treatment before the application of the test
voltage. The test voltage shall be 75 % of the corresponding test voltage specified in that
subclause.
Compliance is checked by evidence that no transient fault between live parts and earth metal,
accessible metal parts, or actuating members has occurred.
18 Mechanical strength
This clause of part 1 is applicable.

– 14 – IEC 61058-1-1:2016  IEC 2016
19 Screws, current-carrying parts and connections
This clause of part 1 is applicable.
20 Clearances, creepage distances, solid insulation and coatings of rigid
printed board assemblies
This clause of part 1 is applicable.
21 Fire hazard
This clause of part 1 is applicable.
22 Resistance to rusting
This clause of part 1 is applicable.
23 Abnormal operation and fault conditions for switches
Replace the existing text by the following:
Mechanical switches with electronic components are checked by the requirements of
Clause 23 of IEC 61058-1-2:2016.
Switches with rigid printed boards with creepage distances and clearances that do not comply
with the required distances of Table 12 to Table 14 of IEC 61058-1:2016, are checked by the
requirements of Clause 23 of IEC 61058-1-2:2016.
24 Components for switches
This clause of part 1 is applicable.
25 EMC requirements
This clause of part 1 is applicable.

___________
