IEC 60384-22:2004/COR1:2004
(Corrigendum)Corrigendum 1 - Fixed capacitors for use in electronic equipment - Part 22: Sectional specification: Fixed surface mount multilayer capacitors of ceramic dielectric, Class 2
Corrigendum 1 - Fixed capacitors for use in electronic equipment - Part 22: Sectional specification: Fixed surface mount multilayer capacitors of ceramic dielectric, Class 2
General Information
- Status
- Published
- Publication Date
- 28-Sep-2004
- Technical Committee
- TC 40 - Capacitors and resistors for electronic equipment
- Current Stage
- DELPUB - Deleted Publication
- Start Date
- 09-Dec-2011
- Completion Date
- 14-Feb-2026
Relations
- Effective Date
- 05-Sep-2023
- Effective Date
- 05-Sep-2023
Buy Documents
IEC 60384-22:2004/COR1:2004 - Corrigendum 1 - Fixed capacitors for use in electronic equipment - Part 22: Sectional specification: Fixed surface mount multilayer capacitors of ceramic dielectric, Class 2 Released:9/29/2004
Frequently Asked Questions
IEC 60384-22:2004/COR1:2004 is a standard published by the International Electrotechnical Commission (IEC). Its full title is "Corrigendum 1 - Fixed capacitors for use in electronic equipment - Part 22: Sectional specification: Fixed surface mount multilayer capacitors of ceramic dielectric, Class 2". This standard covers: Corrigendum 1 - Fixed capacitors for use in electronic equipment - Part 22: Sectional specification: Fixed surface mount multilayer capacitors of ceramic dielectric, Class 2
Corrigendum 1 - Fixed capacitors for use in electronic equipment - Part 22: Sectional specification: Fixed surface mount multilayer capacitors of ceramic dielectric, Class 2
IEC 60384-22:2004/COR1:2004 is classified under the following ICS (International Classification for Standards) categories: 31.060.10 - Fixed capacitors. The ICS classification helps identify the subject area and facilitates finding related standards.
IEC 60384-22:2004/COR1:2004 has the following relationships with other standards: It is inter standard links to IEC 60384-22:2004, IEC 60384-22:2011. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
IEC 60384-22:2004/COR1:2004 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
IEC 60384-22
(First edition – 2004-06)
Fixed capacitors for use in electronic equipment –
Part 22: Sectional specification: Fixed surface mount multilayer capacitors
of ceramic dielectric, Class 2
CORRIGENDUM 1
Page 8
1.5.6
rated voltage (DC)
Replace, in the note, ‘AC’ by ‘a.c.’.
Page 8
1.5.6
rated voltage (DC)
Replace, in the title and text, ‘DC’ by ‘d.c.’.
Page 9
1.6.1
Replace, in item b), ‘DC’ by ‘d.c.’.
Page 10
2.2.5 Temperature characteristic of capacitance
Replace, in the first paragraph, ‘DC’ by ‘d.c.’.
Page 11
Table 3 – Temperature characteristic of capacitance
Replace, throughout the table, ‘DC’ by ‘d.c.’.
September 2004

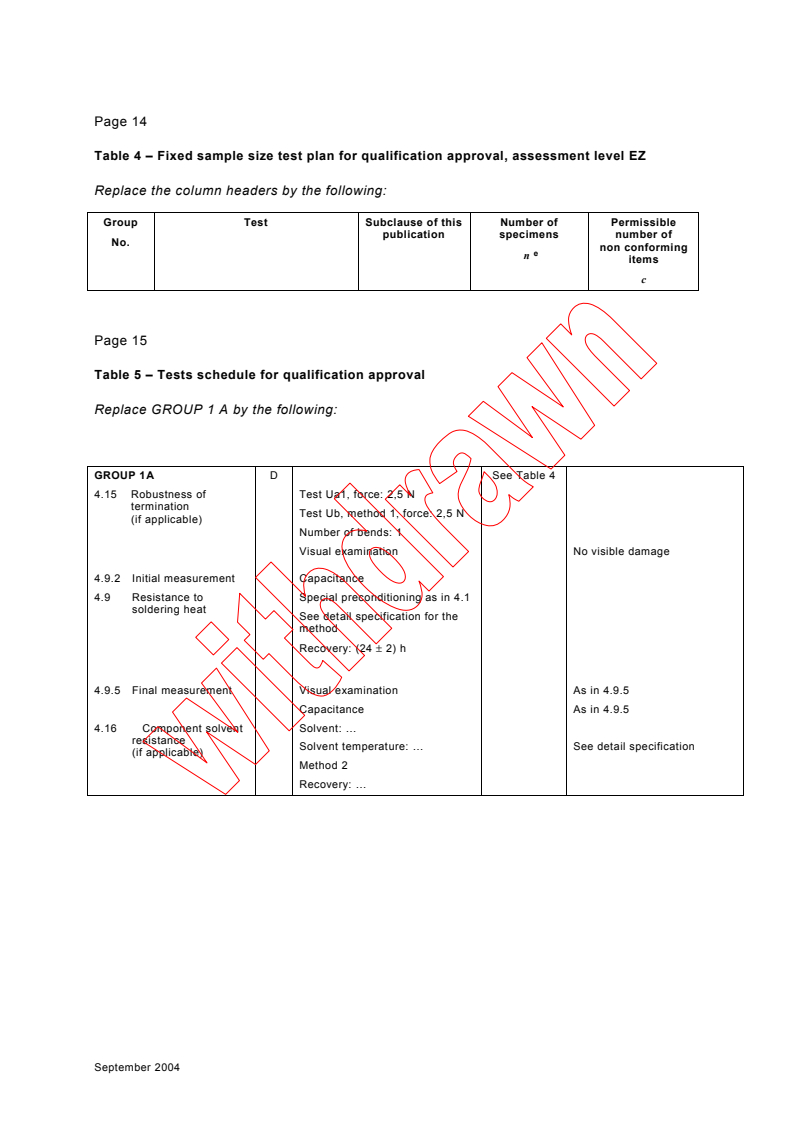

Page 14
Table 4 – Fixed sample size test plan for qualification approval, assessment level EZ
Replace the column headers by the following:
Group Test Subclause of this Number of Permissible
publication specimens number of
No.
non conforming
e
n
items
c
Page 15
Table 5 – Tests schedule for qualification approval
Replace GROUP 1 A by the following:
GROUP 1A D See Table 4
4.15 Robustness of Test Ua1, force: 2,5 N
termination
Test Ub, method 1, force: 2,5 N
(if applicable)
Number of bends: 1
Visual examination No visible damage
4.9.2 Initial measurement Capacitance
4.9 Resistance to Special preconditioning as in 4.1
soldering heat
See detail specification for the
method
Recovery: (24 ± 2) h
4.9.5 Final measurement Visual examination As in 4.9.5
Capacitance As in 4.9.5
4.16 C
...
