Intrepretation sheet 1 - Explosive atmospheres - Part 7: Equipment protection by increased safety "e"

Feuille d'intreprétation 1 - Atmosphères explosives - Partie 7: Protection du matériel par sécurité augmentée "e"

General Information

Status: Published
Publication Date: 14-Sep-2016

ICS: 29.260.20 - Electrical apparatus for explosive atmospheres

Technical Committee: TC 31 - Equipment for explosive atmospheres

Current Stage: PPUB - Publication issued
Start Date: 15-Sep-2016
Completion Date: 30-Sep-2016

Relations

Revises: IEC 60079-7:2015 - Explosive atmospheres - Part 7: Equipment protection by increased safety "e"
Effective Date: 05-Sep-2023

Buy Documents

IEC 60079-7:2015/ISH1:2016 - Intrepretation sheet 1 - Explosive atmospheres - Part 7: Equipment protection by increased safety "e"
Released:9/15/2016 - Page 1 preview

Standard

IEC 60079-7:2015/ISH1:2016 - Intrepretation sheet 1 - Explosive atmospheres - Part 7: Equipment protection by increased safety "e" Released:9/15/2016

English and French language (10 pages)

sale 15% off

Preview

sale 15% off

Preview

Get Certified

Connect with accredited certification bodies for this standard

Intertek Testing Services NA Inc.

Intertek certification services in North America.

ANAB United States Verified

Visit Website

UL Solutions

Global safety science company with testing, inspection and certification.

ANAB United States Verified

Visit Website

ANCE

Mexican certification and testing association.

EMA Mexico Verified

Visit Website

Frequently Asked Questions

What is IEC 60079-7:2015/ISH1:2016?

IEC 60079-7:2015/ISH1:2016 is a standard published by the International Electrotechnical Commission (IEC). Its full title is "Intrepretation sheet 1 - Explosive atmospheres - Part 7: Equipment protection by increased safety "e"". This standard covers: Intrepretation sheet 1 - Explosive atmospheres - Part 7: Equipment protection by increased safety "e"

What is the scope of IEC 60079-7:2015/ISH1:2016?

Intrepretation sheet 1 - Explosive atmospheres - Part 7: Equipment protection by increased safety "e"

What ICS categories does IEC 60079-7:2015/ISH1:2016 belong to?

IEC 60079-7:2015/ISH1:2016 is classified under the following ICS (International Classification for Standards) categories: 29.260.20 - Electrical apparatus for explosive atmospheres. The ICS classification helps identify the subject area and facilitates finding related standards.

What standards are related to IEC 60079-7:2015/ISH1:2016?

IEC 60079-7:2015/ISH1:2016 has the following relationships with other standards: It is inter standard links to IEC 60079-7:2015. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

How can I access IEC 60079-7:2015/ISH1:2016?

IEC 60079-7:2015/ISH1:2016 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

Standards Content (Sample)

IEC 60079-7:2015/ISH1:2016 - I...

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
IEC 60079-7
Edition 5.0 2015-06
EXPLOSIVE ATMOSPHERES –
Part 7: Equipment protection by increased safety 'e'

INTERPRETATION SHEET 1
This interpretation sheet has been prepared by IEC technical committee 31: Equipment for
explosive atmospheres.
The text of this interpretation sheet is based on the following documents:
ISH Report on voting
31/1258/ISH 31/1272/RVD
Full information on the voting for the approval of this interpretation sheet can be found in the
report on voting indicated in the above table.
___________
IEC 60079-7:2015 Edition 5.0, Explosive atmospheres – Part 7: Equipment protection by
increased safety “e”
Question:
Do the requirements given in 5.2.3 prohibit the use of a terminal box opened to the interior of
a motor rated 1 kV or greater, provided the interior of the machine has an ingress protection
of IP54 or greater?
IEC 60079-7:2015 Edition 5.0
5.2.3 Degrees of protection provided by electrical machines, Level of Protection “ec”
The requirements of 4.10 apply, except that terminal boxes attached to electrical machines
operating at voltages up to 1 kV, may be opened to the interior of the machine, only when the
degree of protection of the electrical machine is at least IP44. Covers and entries of the
terminal box shall provide at least degree of protection IP54.
ICS 29.260.20
IEC 60079-7:2015-06/ISH1:2016-09(en-fr)

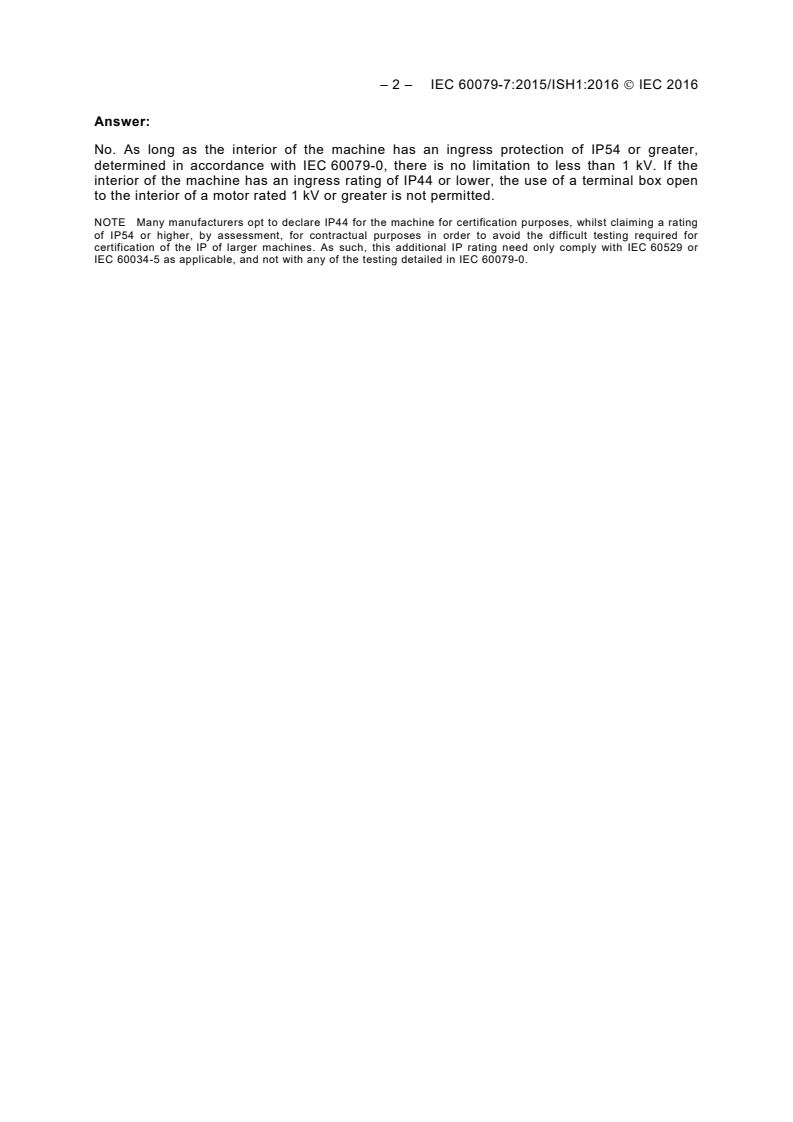

– 2 – IEC 60079-7:2015/ISH1:2016  IEC 2016
Answer:
No. As long as the interior of the machine has an ingress protection of IP54 or greater,
determined in accordance with IEC 60079-0, there is no limitation to less than 1 kV. If the
interior of the machine has an ingress rating of IP44 or lower, the use of a terminal box open
to the interior of a motor rated 1 kV or greater is not permitted.
NOTE Many manufacturers opt to declare IP44 for the machine for certification purposes, whilst claiming a rating
of IP54 or higher, by assessment, for contractual purposes in order to avoid the difficult testing required for
certification of the IP of larger machines. As such, this additional IP rating need only comply with IEC 60529 or
IEC 60034-5 as applicable, and not with any of the testing detailed in IEC 60079-0.

COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
____________
IEC 60
...
