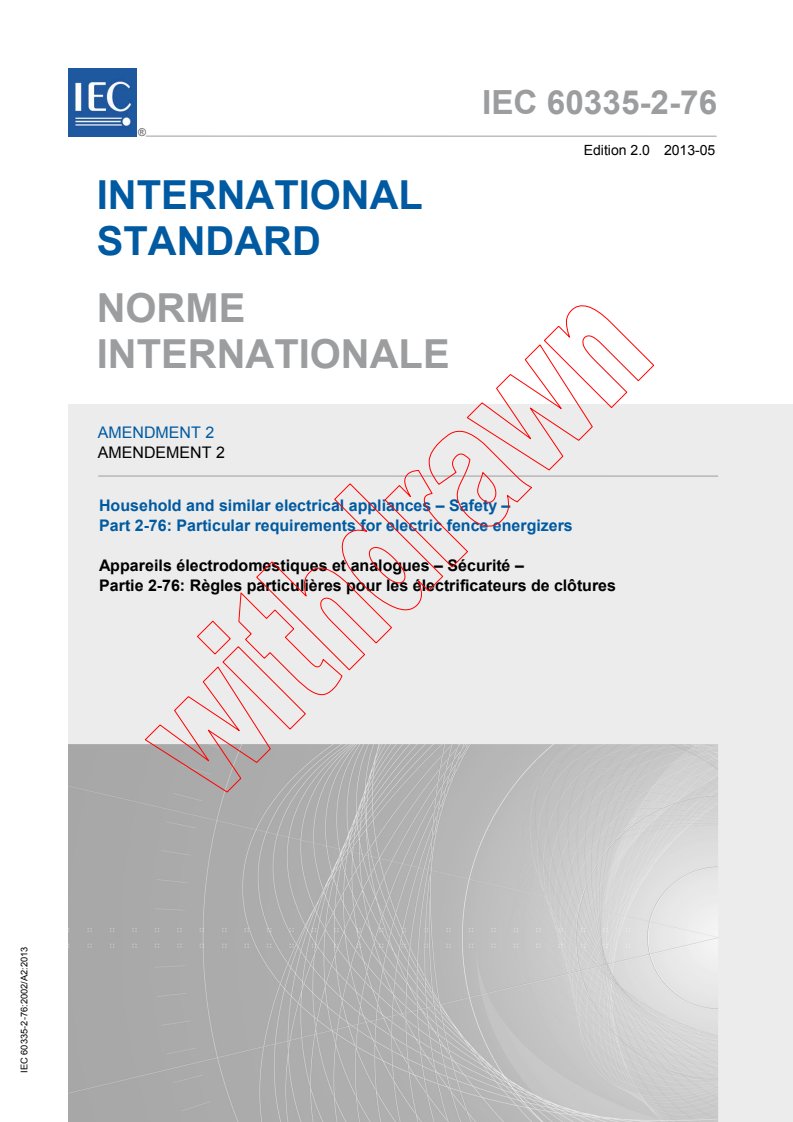

IEC 60335-2-76 ®
Edition 2.0 2013-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 2
AMENDEMENT 2
Household and similar electrical appliances – Safety –

Part 2-76: Particular requirements for electric fence energizers

Appareils électrodomestiques et analogues – Sécurité –

Partie 2-76: Règles particulières pour les électrificateurs de clôtures

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX K
ICS 65.040.99 ISBN 978-2-83220-808-3

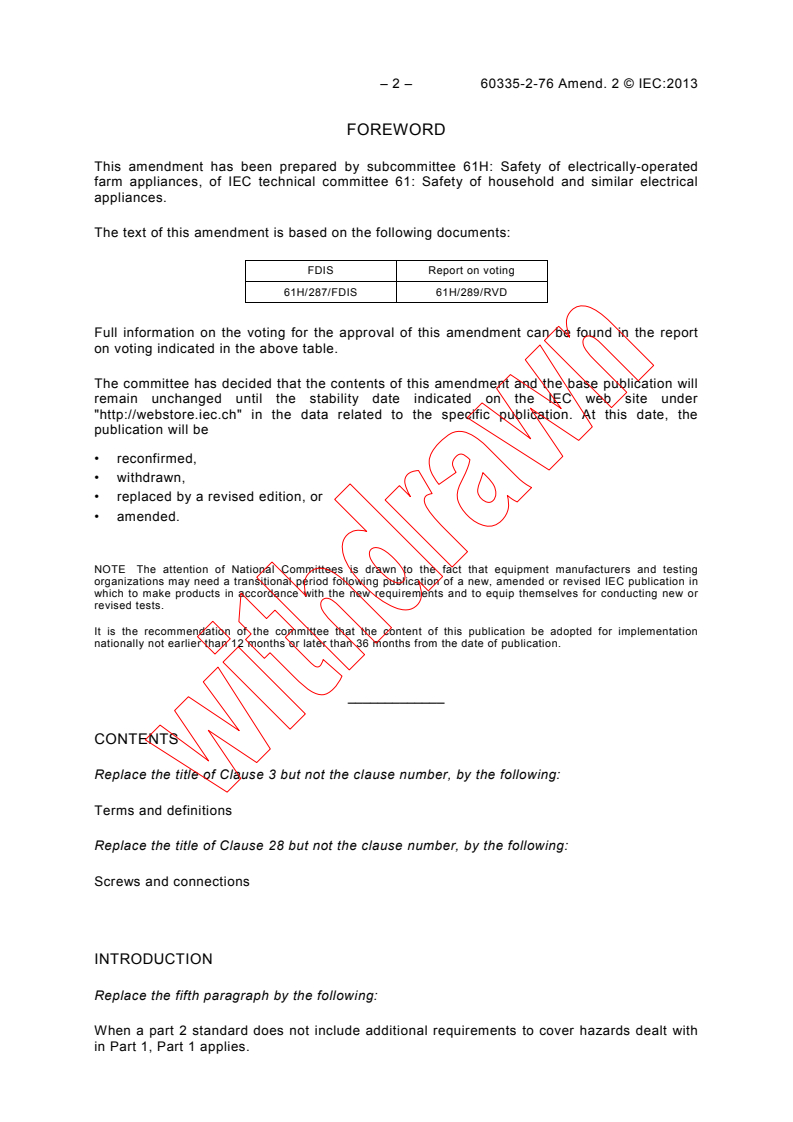

– 2 – 60335-2-76 Amend. 2 © IEC:2013

FOREWORD
This amendment has been prepared by subcommittee 61H: Safety of electrically-operated

farm appliances, of IEC technical committee 61: Safety of household and similar electrical

appliances.
The text of this amendment is based on the following documents:

FDIS Report on voting
61H/287/FDIS 61H/289/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
NOTE The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation
nationally not earlier than 12 months or later than 36 months from the date of publication.

_____________
CONTENTS
Replace the title of Clause 3 but not the clause number, by the following:

Terms and definitions
Replace the title of Clause 28 but not the clause number, by the following:
Screws and connections
INTRODUCTION
Replace the fifth paragraph by the following:
When a part 2 standard does not include additional requirements to cover hazards dealt with
in Part 1, Part 1 applies.
60335-2-76 Amend. 2 © IEC:2013 – 3 –

NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is

not necessary to specify particular requirements for the appliance in question over and above the general
requirements.
This standard is a product family standard dealing with the safety of appliances and takes

precedence over horizontal and generic standards covering the same subject.

NOTE 2 Horizontal and generic standards covering a hazard are not applicable since they have been taken into

consideration when developing the general and particular requirements for the IEC 60335 series of standards. For
example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as

ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.

2 Normative references
Add the following new references:
IEC 60335-2-29, Household and similar electrical appliances – Safety – Part 2-29: Particular
requirements for battery chargers
IEC 61204-7, Low-voltage power supplies, d.c. output – Part 7: Safety requirements
IEC 61558-2-16, Safety of transformers, reactors, power supply units and similar products for
voltages up to 1 100 V – Part 2-16: Particular requirements and tests for switch mode power
supply units and transformers for switch mode power supply units
ISO 3864-1, Graphical symbols – Safety colours and safety signs – Part 1: Design principles
for safety signs and safety markings
3 Definitions
Replace the title of Clause 3 but not the clause number, by the following:
Terms and definitions
3.1.6 Delete the addition to this subclause.
3.106 In the term definition, delete “separate”.
3.107 Replace the term definition by the following:
battery-operated energizer suitable for connection to the mains consisting of an impulse

generating circuit intended to be powered by a battery, or a separate supply unit, when the
energizer is in operation. The impulse generating circuit or the battery may be connected to a
separate battery charger for recharging the battery when the energizer is in operation.
Note 1 to entry: Examples of separate supply units are power supply units and uninterruptible power supplies.
5 General conditions for the tests
5.8.1 Replace the first two paragraphs of the addition by the following:
For energizers where the supply terminals for connection of a battery have no indication of
polarity, the more unfavourable polarity shall be applied.
Replace the third paragraph of the addition by the following:

– 4 – 60335-2-76 Amend. 2 © IEC:2013

For energizer tests that require a connection to the mains supply, the reference source

impedance of the mains supply shall be 0,4 Ω + j0,25 Ω.

6 Classification
6.2 Add the following to the addition as a new sentence:

This requirement does not apply to separate supply units of type D energizers.

7 Marking and instructions
7.1 In the first paragraph replace “symbol 1641 of ISO 7000” by “symbol ISO 7000-0790
(2004-01)”.
Replace the third paragraph by the following:
Battery-operated energizers shall be marked with the symbol for “connection to mains-
operated equipment prohibited” or with the substance of the following warning:
WARNING: Do not connect to mains-operated equipment including battery chargers
The rules for a prohibition sign in ISO 3864-1, except for colours, apply to the symbol for
“connection to mains-operated equipment prohibited”.
A Type D Energizer shall be marked with symbol IEC 60417-6181 (2013-03) and the
references of the separate supply units that may be used to supply the impulse generating
circuit.
7.6 Delete the “dangerous voltage symbol” and its associated text.
Replace [symbol 5017 of IEC 60417] by [symbol IEC 60417-5017 (2006-08)].
Replace the last paragraph by the following:
The symbols for output (Fence) and output (Earth) shall be in accordance with symbols
IEC 60417-5036 (2002-10) and IEC 60417-5017 (2006-08) respectively.
Add the following:
[symbol IEC 60417-6181
separate supply unit
(2013-03)]
connection to mains-operated equipment

prohibited
7.12 Replace the text of the addition by the following:
Instructions for battery-operated energizers suitable for connection to the mains shall

60335-2-76 Amend. 2 © IEC:2013 – 5 –

– include a warning against using non-rechargeable batteries while the energizer is powered

by the mains;
– state that during charging, vented rechargeable-batteries must be placed in a well-

ventilated area.
If the symbol for a separate supply unit or the symbol for “connection to mains-operated

equipment prohibited” is used, its meaning shall be explained.

Add the following:
7.14 Addition:
If symbol IEC 60417-6181 (2013-03) is marked on the appliance, its length shall be at least
12 mm.
If the symbol for “connection to mains-operated equipment prohibited” is marked on the
appliance, the outer diameter of the circle shall be at least 15 mm.
The height of characters used in the warning information that is marked on the appliance shall
not be less than that given by a 12 point font.
7.15 Addition:
If symbol IEC 60417-6181 (2013-03) is used, one shall be located adjacent to the appliance
inlet.
7.101 Replace the first paragraph of the requirement by the following:
Unless the correct mode of connection is obvious or irrelevant, the output terminals of the
energizer, other than dedicated output earth terminals, shall be clearly and indelibly identified
using symbol IEC 60417-5036 (2002-10). Dedicated output earth terminals, shall be clearly
and indelibly identified using symbol IEC 60417-5017 (2006-08).
Replace the last paragraph of the requirement by the following:
The height of characters in the marking shall not be less than that given by an 18 point font
and the symbols shall have a height of at least 6 mm.
7.102 Replace the text of the requirement by the following:

For battery-operated energizers and battery-operated energizers suitable for connection
to the mains, the supply terminals for connection of the battery shall be clearly indicated by
symbol IEC 60417-5005 (2002-10) for positive polarity, and by symbol IEC 60417-5006
(2002-10) for negative polarity, unless the polarity is irrelevant.
11 Heating
11.5 In the last paragraph, delete “, when they are connected for battery charger supply,”.
14 Transient overvoltages
14.101 Replace the first two dashed items by the following:
– 14.102 to 14.104 for mains-operated energizers and battery-operated energizers
suitable for connection to the mains;

– 6 – 60335-2-76 Amend. 2 © IEC:2013

14.102 Add the following as a new second paragraph:

Type D energizers are further tested as follows.

Each specified separate supply unit is connected to the impulse generating circuit of the

energizer in turn. The impulse voltages a
...
