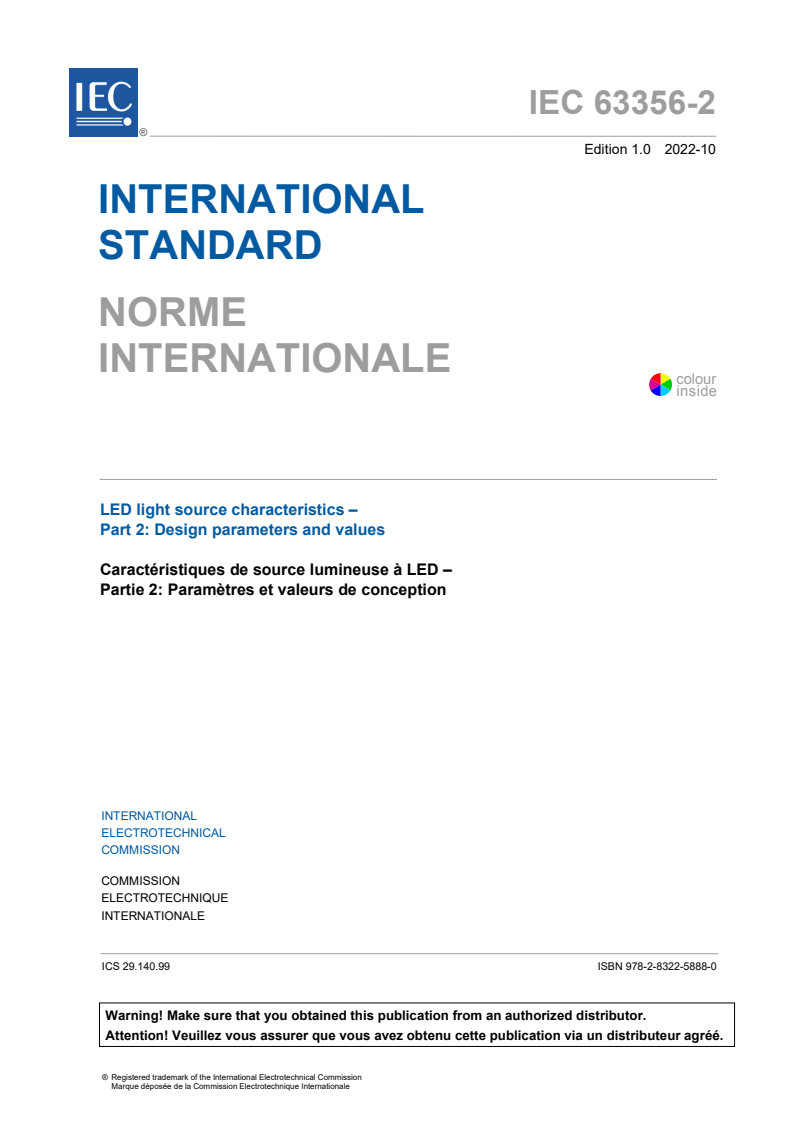

IEC 63356-2:2022

IEC 63356-2 ®
Edition 1.0 2022-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
LED light source characteristics –
Part 2: Design parameters and values

Caractéristiques de source lumineuse à LED –
Partie 2: Paramètres et valeurs de conception

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 19 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un
en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour
comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 300 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
19 langues additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC 63356-2 ®
Edition 1.0 2022-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
LED light source characteristics –

Part 2: Design parameters and values

Caractéristiques de source lumineuse à LED –

Partie 2: Paramètres et valeurs de conception

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.99 ISBN 978-2-8322-5888-0

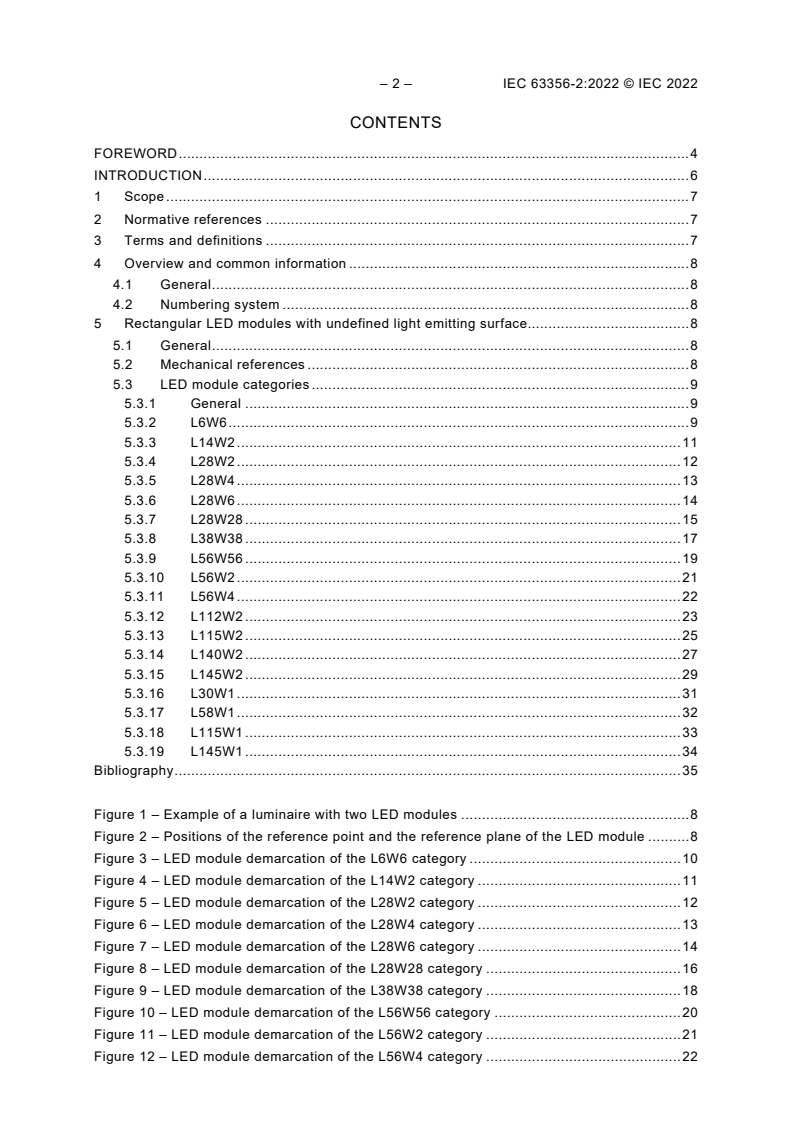

– 2 – IEC 63356-2:2022 © IEC 2022
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 7
4 Overview and common information . 8
4.1 General . 8
4.2 Numbering system . 8
5 Rectangular LED modules with undefined light emitting surface. 8
5.1 General . 8
5.2 Mechanical references . 8
5.3 LED module categories . 9
5.3.1 General . 9
5.3.2 L6W6 . 9
5.3.3 L14W2 . 11
5.3.4 L28W2 . 12
5.3.5 L28W4 . 13
5.3.6 L28W6 . 14
5.3.7 L28W28 . 15
5.3.8 L38W38 . 17
5.3.9 L56W56 . 19
5.3.10 L56W2 . 21
5.3.11 L56W4 . 22
5.3.12 L112W2 . 23
5.3.13 L115W2 . 25
5.3.14 L140W2 . 27
5.3.15 L145W2 . 29
5.3.16 L30W1 . 31
5.3.17 L58W1 . 32
5.3.18 L115W1 . 33
5.3.19 L145W1 . 34
Bibliography . 35

Figure 1 – Example of a luminaire with two LED modules . 8
Figure 2 – Positions of the reference point and the reference plane of the LED module . 8
Figure 3 – LED module demarcation of the L6W6 category . 10
Figure 4 – LED module demarcation of the L14W2 category . 11
Figure 5 – LED module demarcation of the L28W2 category . 12
Figure 6 – LED module demarcation of the L28W4 category . 13
Figure 7 – LED module demarcation of the L28W6 category . 14
Figure 8 – LED module demarcation of the L28W28 category . 16
Figure 9 – LED module demarcation of the L38W38 category . 18
Figure 10 – LED module demarcation of the L56W56 category . 20
Figure 11 – LED module demarcation of the L56W2 category . 21
Figure 12 – LED module demarcation of the L56W4 category . 22

Figure 13 – LED module demarcation of the L112W2 category . 24
Figure 14 – LED module demarcation of the L115W2 category . 26
Figure 15 – LED module demarcation of the L140W2 category . 28
Figure 16 – LED module demarcation of the L145W2 category . 30
Figure 17 – LED module demarcation of the L30W1 category . 31
Figure 18 – LED module demarcation of the L58W1 category . 32
Figure 19 – LED module demarcation of the L115W1 category . 33
Figure 20 – LED module demarcation of the L145W1 category . 34

Table 1 – LED module demarcation of the L6W6 category . 9
Table 2 – LED module demarcation of the L14W2 category . 11
Table 3 – LED module demarcation of the L28W2 category . 12
Table 4 – LED module demarcation of the L28W4 category . 13
Table 5 – LED module demarcation of the L28W6 category . 14
Table 6 – LED module demarcation of the L28W28 category . 15
Table 7 – LED module demarcation of the L38W38 category . 17
Table 8 – LED module demarcation of the L56W56 category . 19
Table 9 – LED module demarcation of the L56W2 category . 21
Table 10 – LED module demarcation of the L56W4 category . 22
Table 11 – LED module demarcation of the L112W2 category. 23
Table 12 – LED module demarcation of the L115W2 category. 25
Table 13 – LED module demarcation of the L140W2 category. 27
Table 14 – LED module demarcation of the L145W2 category. 29

– 4 – IEC 63356-2:2022 © IEC 2022
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LED LIGHT SOURCE CHARACTERISTICS –

Part 2: Design parameters and values

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 63356-2 has been prepared by subcommittee 34A: Electric light sources, of IEC technical
committee 34: Lighting. It is an International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
34A/2298/FDIS 34A/2313/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.

A list of all parts in the IEC 63356 series, published under the general title LED light source
characteristics, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The "colour inside" logo on the cover page of this document indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.

– 6 – IEC 63356-2:2022 © IEC 2022
INTRODUCTION
The IEC 63356 series – (LED light source characteristics) is split into two parts:
• Part 1: Data sheets
The scope of Part 1 covers data sheets that are comprehensive specifications for unique
LED light sources (LED lamp or LED module). These are full specifications for products
including, where necessary, information on interchangeability aspects, for example
mechanical, electrical, optical.
Each data sheet in Part 1 relates to an individual type of LED lamp or LED module.
• Part 2: Design parameters and values
The scope of Part 2 covers design parameters and values that are used in the design of an
LED light source (LED lamp or LED module) or a related component. Part 2 does not provide
full product specifications but includes important interface aspects (e.g. mechanical,
electrical, optical) that should be taken account of in the design of LED light sources and
related components.
LED LIGHT SOURCE CHARACTERISTICS –

Part 2: Design parameters and values

1 Scope
This part of IEC 63356 specifies design parameters and design values of an LED light source
or related interface characteristics.
NOTE 1 Interface characteristics can cover interfaces between the LED light source and the luminaire or the
controlgear, or the LED light source and additional attachments.
NOTE 2 Interfaces can be related to for example electrical, mechanical, or optical aspects.
This document does not cover interchangeability between products from different LED light
source manufacturers.
NOTE 3 Interchangeability is covered by IEC 63356-1.
Lamp caps and lampholders specified in the IEC 60061 series are not within the scope of this
document.
for
Compliance criteria relating to parameters in this document are covered by IEC 63220
safety, or IEC 63221 for performance.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
3.1
thermal interface material
TIM
material with specified thermal conductivity assembled between an LED module and a luminaire
to enable improved heat dissipation
___________
Under consideration.
Under consideration.
– 8 – IEC 63356-2:2022 © IEC 2022
4 Overview and common information
4.1 General
Unless otherwise specified, mechanical dimensions refer to a temperature of (25 ± 5) °C.
All values of dimensions that omit an explicit unit indication are in millimetres.
4.2 Numbering system
Products that have comparable interfaces are grouped in separate clauses.
5 Rectangular LED modules with undefined light emitting surface
NOTE Clause 5 is derived from Zhaga Book 7 Edition 1.7.
5.1 General
Rectangular LED modules with undefined light emitting surface (LES) are intended to be
mounted in a luminaire. Figure 1 illustrates an example of an LED module-luminaire
combination. In this example the luminaire holds two LED modules. In practice, a luminaire can
hold any number of LED modules.

Figure 1 – Example of a luminaire with two LED modules
The luminaire typically features luminaire-optics which shape the light output of the LED
module(s).
5.2 Mechanical references
The reference plane and the reference point of an LED module, including (optional) TIM are
defined in Figure 2. Dimensions are specified relative to either the reference point or the
reference plane unless indicated otherwise. Moreover, dimensions are specified to include the
thickness of the TIM (if present).

Figure 2 – Positions of the reference point and the reference plane of the LED module

5.3 LED module categories
5.3.1 General
Subclause 5.3 specifies a number of LED module categories that are identified by a designation.
The LED module demarcations of these LED module categories are specified in 5.3.2 to 5.3.19.
The intention of the demarcation model is to visualize restricted areas or volumes that no part
of a luminaire should cross. The hashed area indicates limits for the inclusion zone for LED
module design and the exclusion zone for luminaire design.
Unless stated otherwise, all holes are available and for each hole at least 25 % of the
circumference of the hole is present in the LED module. The demarcation model specifies the
minimum diameter of the mounting holes at a specified position.
NOTE In typical designs the diameter of these holes can be larger allowing for a tolerance on the position of the
holes.
In case the LED module is applied in combination with a TIM, this material is defined to be part
of the LED module. Thus, the total height of the module and TIM should not exceed the
maximum height H (see 5.3.2 to 5.3.19).
5.3.2 L6W6
The designation for this category is 'L6W6'.
The LED module demarcation of the L6W6 category is defined in Table 1 and Figure 3.
Table 1 – LED module demarcation of the L6W6 category
Dimension Value
L 60
W 60
H 20
a 48
b 48
M 20
P 35
Øc 4,3
– 10 – IEC 63356-2:2022 © IEC 2022

NOTE The top drawing shows the detail X.
Figure 3 – LED module demarcation of the L6W6 category
The X-axis and Y-axis are the symmetry axes for the outline and the mounting holes.

5.3.3 L14W2
The designation for this category is 'L14W2'.
The LED module demarcation of the L14W2 category is defined in Table 2 and Figure 4.
Table 2 – LED module demarcation of the L14W2 category
Dimension Value
L 140
W 24
H 20
a 110
b 18,4
d 15
Øc 4,3
NOTE The top drawing shows the detail X.
Figure 4 – LED module demarcation of the L14W2 category
The X-axis and Y-axis are the symmetry axes for the outline and the crosshair lines of the
mounting holes.
– 12 – IEC 63356-2:2022 © IEC 2022
5.3.4 L28W2
The designation for this category is 'L28W2'.
The LED module demarcation of the L28W2 category is defined in Table 3 and Figure 5. The
two mounting holes at the bottom of the diagram of Figure 5 are optional.
Table 3 – LED module demarcation of the L28W2 category
Dimension Value
L 280
W 24
H 20
a 125
b 18,4
Øc 4,3
NOTE The top drawing shows the detail X.
Figure 5 – LED module demarcation of the L28W2 category
The X-axis is the symmetry axis for the outline and the crosshair lines of the mounting holes.
The Y-axis is the symmetry axis for the outline and mounting holes.

5.3.5 L28W4
The designation for this category is 'L28W4'.
The LED module demarcation of the L28W4 category is defined in Table 4 and Figure 6.
Table 4 – LED module demarcation of the L28W4 category
Dimension Value
L 281
W 41
H 20
a 110
b 31
Øc 4,3
NOTE The top drawing shows the detail X.
Figure 6 – LED module demarcation of the L28W4 category
The X-axis is the symmetry axis for the outline and the crosshair lines of the mounting holes.
The Y-axis is the symmetry axis for the outline and mounting holes.

– 14 – IEC 63356-2:2022 © IEC 2022
5.3.6 L28W6
The designation for this category is 'L28W6'.
The LED module demarcation of the L28W6 category is defined in Table 5 and Figure 7.
Table 5 – LED module demarcation of the L28W6 category
Dimension Value
L 281
W 61
H 20
a 91
b 40
Øc 4,3
d 11
e 15
NOTE The top drawing shows the detail X.
Figure 7 – LED module demarcation of the L28W6 category
The X-axis is the symmetry axis for the outline and the crosshair lines of the mounting holes.
The Y-axis is the symmetry axis for the outline and the leftmost and rightmost mounting holes.

5.3.7 L28W28
The designation for this category is 'L28W28'.
The LED module demarcation of the L28W28 category is defined in Table 6 and Figure 8.
Table 6 – LED module demarcation of the L28W28 category
Dimension Value
L 281
W 281
H 20
a 222
b 180
Øc 4,3
– 16 – IEC 63356-2:2022 © IEC 2022

NOTE The top drawing shows the detail X.
Figure 8 – LED module demarcation of the L28W28 category
The X-axis and Y-axis are the symmetry axes for the outline and the mounting holes.

5.3.8 L38W38
The designation for this category is 'L38W38'.
The LED module demarcation of the L38W38 category is defined in Table 7 and Figure 9.
Mounting holes not being in the corners of the LED module are optional.
Table 7 – LED module demarcation of the L38W38 category
Dimension Value
L 381
W 381
H 20
a 371,9
a1 21,3
b 67,2
Øc 4,3
– 18 – IEC 63356-2:2022 © IEC 2022

NOTE The top drawing shows the detail X.
Figure 9 – LED module demarcation of the L38W38 category
The X-axis is the symmetry axis for the outline and the mounting holes.
The Y-axis is the symmetry axis for the outline and the crosshair lines of mounting holes.

5.3.9 L56W56
The designation for this category is 'L56W56'.
The LED module demarcation of the L56W56 category is defined in Table 8 and Figure 10.
Table 8 – LED module demarcation of the L56W56 category
Dimension Value
L 562
W 562
H 20
a 503
b 461
Øc 4,3
– 20 – IEC 63356-2:2022 © IEC 2022

NOTE The top drawing shows the detail X.
Figure 10 – LED module demarcation of the L56W56 category
The X-axis and Y-axis are the symmetry axes for the outline and the mounting holes.

5.3.10 L56W2
The designation for this category is 'L56W2'.
The LED module demarcation of the L56W2 category is defined in Table 9 and Figure 11. The
four mounting holes at the bottom of the diagram of Figure 11 are optional.
Table 9 – LED module demarcation of the L56W2 category
Dimension Value
L 560
W 24
H 20
a 125
b 18,4
d 30
Øc 4,3
NOTE The top drawing shows the detail X.
Figure 11 – LED module demarcation of the L56W2 category
The X-axis is the symmetry axis for the outline and the crosshair lines of the mounting holes.
The Y-axis is the symmetry axis for the outline and mounting holes.

– 22 – IEC 63356-2:2022 © IEC 2022
5.3.11 L56W4
The designation for this category is 'L56W4'.
The LED module demarcation of the L56W4 category is defined in Table 10 and Figure 12.
Table 10 – LED module demarcation of the L56W4 category
Dimension Value
L 561
W 41
H 20
a 110
b 31
Øc 4,3
d 61
NOTE The top drawing shows the detail X.
Figure 12 – LED module demarcation of the L56W4 category
The X-axis is the symmetry axis for the outline and the crosshair lines of the mounting holes.
The Y-axis is the symmetry axis for the outline and mounting holes.

5.3.12 L112W2
The designation for this category is 'L112W2'.
The LED module demarcation of the L112W2 category is defined in Table 11 and Figure 13.
Table 11 – LED module demarcation of the L112W2 category
Dimension Value
L 1 120
W 24
H 20
a 125
b 18,4
Øc 4,3
d 30
e 155
– 24 – IEC 63356-2:2022 © IEC 2022

NOTE The left drawing shows the detail X.
Figure 13 – LED module demarcation of the L112W2 category
The X-axis and Y-axis are the symmetry axes for the outline and the mounting holes.

5.3.13 L115W2
The designation for this category is 'L115W2'.
The LED module demarcation of the L115W2 category is defined in Table 12 and Figure 14.
Table 12 – LED module demarcation of the L115W2 category
Dimension Value
L 1 150
W 24
H 20
a 125
b 18,4
Øc 4,3
d 30
e 155
– 26 – IEC 63356-2:2022 © IEC 2022

NOTE The left drawing shows the detail X.
Figure 14 – LED module demarcation of the L115W2 category
The X-axis and Y-axis are the symmetry axes for the outline and the mounting holes.

5.3.14 L140W2
The designation for this category is 'L140W2'.
The LED module demarcation of the L140W2 category is defined in Table 13 and Figure 15.
Table 13 – LED module demarcation of the L140W2 category
Dimension Value
L 1 400
W 24
H 20
a 125
b 18,4
Øc 4,3
d 30
e 155
– 28 – IEC 63356-2:2022 © IEC 2022

NOTE The left drawing shows the detail X.
Figure 15 – LED module demarcation of the L140W2 category
The X-axis and Y-axis are the symmetry axes for the outline and the mounting holes.

5.3.15 L145W2
The designation for this category is 'L145W2'.
The LED module demarcation of the L145W2 category is defined in Table 14 and Figure 16.
Table 14 – LED module demarcation of the L145W2 category
Dimension Value
L 1 450
W 24
H 20
a 125
b 18,4
Øc 4,3
d 30
e 155
– 30 – IEC 63356-2:2022 © IEC 2022

NOTE The left drawing shows the detail X.
Figure 16 – LED module demarcation of the L145W2 category
The X-axis and Y-axis are the symmetry axes for the outline and the mounting holes.

5.3.16 L30W1
The designation for this category is 'L30W1'.
The LED module demarcation of the L30W1 category is defined in Figure 17.

Figure 17 – LED module demarcation of the L30W1 category
The X-axis and Y-axis are the symmetry axes for the outline.

– 32 – IEC 63356-2:2022 © IEC 2022
5.3.17 L58W1
The designation for this category is 'L58W1'.
The LED module demarcation of the L58W1 category is defined in Figure 18.

NOTE The X-axis is not to scale.
Figure 18 – LED module demarcation of the L58W1 category
The X-axis and Y-axis are the symmetry axes for the outline.

5.3.18 L115W1
The designation for this category is 'L115W1'.
The LED module demarcation of the L115W1 category is defined in Figure 19.

NOTE The X-axis is not to scale.
Figure 19 – LED module demarcation of the L115W1 category
The X-axis and Y-axis are the symmetry axes for the outline.

– 34 – IEC 63356-2:2022 © IEC 2022
5.3.19 L145W1
The designation for this category is 'L145W1'.
The LED module demarcation of the L145W1 category is defined in Figure 20.

NOTE The X-axis is not to scale.
Figure 20 – LED module demarcation of the L145W1 category
The X-axis and Y-axis are the symmetry axes for the outline.

Bibliography
IEC 60061 (all parts), Lamp caps and holders together with gauges for the control of
interchangeability and safety, available at http://std.iec.ch/iec60061
IEC 63220 , LED Light sources – Safety requirements
IEC 63221 , LED Light sources – Performance requirements
IEC 63356-1, LED light source characteristics – Data sheets
Zhaga interface specification Book 7: Edition 1.7, April 2021 – Rectangular LED Module with
undefined LES
___________
___________
Under consideration.
Under consideration.
– 36 – IEC 63356-2:2022 © IEC 2022
