IEC 62868-2-1:2020

IEC 62868-2-1 ®
Edition 1.1 2025-05
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
Organic light emitting diode (OLED) light sources for general lighting – Safety –
Part 2-1: Particular requirements – Semi-integrated OLED modules
ICS 29.140.99 ISBN 978-2-8327-0439-4
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or
by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either
IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC copyright
or have an enquiry about obtaining additional rights to this publication, please contact the address below or your local
IEC member National Committee for further information.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Discover our powerful search engine and read freely all the
The advanced search enables to find IEC publications by a publications previews, graphical symbols and the glossary.
variety of criteria (reference number, text, technical With a subscription you will always have access to up to date
committee, …). It also gives information on projects, content tailored to your needs.
replaced and withdrawn publications.
Electropedia - www.electropedia.org
The world's leading online dictionary on electrotechnology,
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published containing more than 22 500 terminological entries in English
details all new publications released. Available online and and French, with equivalent terms in 25 additional languages.
once a month by email. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer
Service Centre: sales@iec.ch.
REDLINE VERSION – 2 – IEC 62868-2-1:2020+AMD1:2025 CSV
© IEC 2025

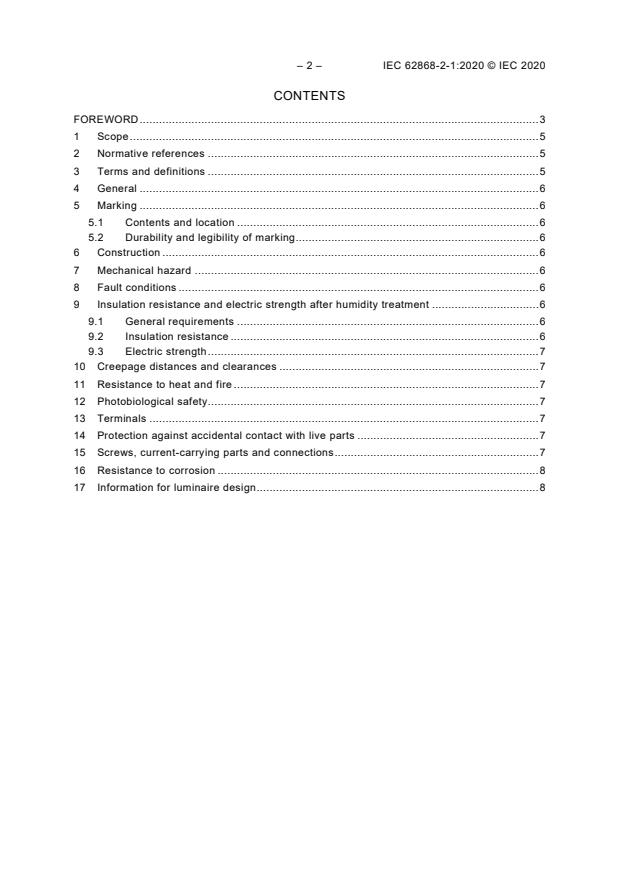

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 General . 6
4.1 General requirements . 6
4.2 General test requirements . 6
5 Marking . 6
5.1 Contents and location . 6
5.2 Durability and legibility of marking . 7
6 Construction . 7
7 Mechanical hazard . 7
8 Fault conditions . 7
9 Insulation resistance and electric strength after humidity treatment . 7
9.1 General requirements . 7
9.2 Insulation resistance . 7
9.3 Electric strength . 8
18 Thermal stress . 8
10 Creepage distances and clearances . 8
11 Resistance to heat and fire . 8
11.1 Resistance to heat . 8
11.2 Resistance to flame and ignition . 8
12 Photobiological safety . 8
13 Terminals . 8
14 Protection against accidental contact with live parts . 9
15 Screws, current-carrying parts and connections . 9
16 Resistance to corrosion . 9
17 Information for luminaire design . 9
19 Provisions for protective earthing. 9
Annex A (informative) Classification of OLED modules . 10
A.1 Power supply classification . 10
A.2 Installation method classification . 10
Bibliography . 11

Table 1 – Contents and location of marking . 7

© IEC 2025
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ORGANIC LIGHT EMITTING DIODE (OLED) LIGHT
SOURCES FOR GENERAL LIGHTING – SAFETY –

Part 2-1: Particular requirements – Semi-integrated OLED modules

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s),
which may be required to implement this document. However, implementers are cautioned that this may not
represent the latest information, which may be obtained from the patent database available at
https://patents.iec.ch. IEC shall not be held responsible for identifying any or all such patent rights.
This consolidated version of the official IEC Standard and its amendment has been
prepared for user convenience.
IEC 62868-2-1 edition 1.1 contains the first edition (2020-08) [documents 34A/2192/FDIS
and 34A/2199/RVD] and its amendment 1 (2025-05) [documents 34A/2422/FDIS and
34A/2449/RVD].
In this Redline version, a vertical line in the margin shows where the technical content
is modified by amendment 1. Additions are in green text, deletions are in strikethrough
red text. A separate Final version with all changes accepted is available in this
publication.
REDLINE VERSION – 4 – IEC 62868-2-1:2020+AMD1:2025 CSV
© IEC 2025
International Standard IEC 62868-2-1 has been prepared by subcommittee 34A: Electric light
sources, of IEC technical committee 34: Lighting.
IEC 62868-2-1 has been prepared in parallel with IEC 62868-2-2.
The text of this International Standard is based on the following documents:
FDIS Report on voting
34A/2192/FDIS 34A/2199/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 62868 series, published under the general title Organic light
emitting diode (OLED) light sources for general lighting – Safety, can be found on the IEC
website.
In this document, the following print type is used:
– compliance statements: in italic type.
The committee has decided that the contents of this document and its amendment will remain
unchanged until the stability date indicated on the IEC website under webstore.iec.ch in the
data related to the specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
© IEC 2025
ORGANIC LIGHT EMITTING DIODE (OLED) LIGHT
SOURCES FOR GENERAL LIGHTING – SAFETY –

Part 2-1: Particular requirements – Semi-integrated OLED modules

1 Scope
This part of IEC 62868 specifies safety requirements for semi-integrated organic light emitting
(OLED) diode modules operating with an external controlgear connected to the mains voltage,
and which, in addition, have a control means inside ("semi-integrated") for operation under
constant voltage, constant current or constant power and have a rated voltage up to 120 V
ripple free DC or 50 V AC RMS at 50 Hz or 60 Hz.
NOTE 1 The classification of OLED modules is given in Annex A.
NOTE 2 The classification of OLED modules according to the power supply method is illustrated
IEC 62868-1:2020/AMD1:2024.
NOTE 3 The flexible OLED tiles or panels, or the OLED tiles or panels complying with this document are deemed
to comply with the requirements of IEC 62868-2-3 or IEC 62868-2-4, unless otherwise specified in this document.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60598-1:2014, Luminaires – Part 1: General requirements and tests
IEC 60598-1:2014/AMD1:2017
IEC 60838-2-2, Miscellaneous lampholders – Part 2-2: Particular requirements – Connectors
for LED modules
IEC 61347-1:2015, Lamp controlgear – Part 1: General and safety requirements
IEC 61347-1:2015/AMD1:2017
IEC 62504, General lighting − Light emitting diode (LED) products and related equipment
−Terms and definitions
IEC 62868-1:2020, Organic light emitting diode (OLED) light sources for general lighting –
Safety – Part 1: General requirements and tests
IEC 62868-1:2020/AMD1:2024
IEC TS 62972, General lighting − Organic light emitting diode (OLED) products and related
equipment − Terms and definitions
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 62504, IEC 62868-1
and IEC TS 62972 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
REDLINE VERSION – 6 – IEC 62868-2-1:2020+AMD1:2025 CSV
© IEC 2025
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
rated maximum temperature
t
c
highest permissible temperature which may occur on the outer surface of the OLED module
(at the indicated position, if marked) under normal operating conditions and at the rated
voltage/current/power or the maximum of the rated voltage/current/power range
3.2
integral OLED
OLED, designed to form a non-replaceable component of a luminaire
3.3
built-in OLED
OLED, designed to form a replaceable component to be built into a luminaire and into a
module
3.4
independent OLED
OLED, designed for being mounted or placed separately from a luminaire, from an additional
box or enclosure or the like
Note 1 to entry: An independent OLED module provides all the necessary protection with regard to safety
according to its classification and marking.
Note 2 to entry: An example of an independent OLED module is a system where the OLED module is connected
via a glass fibre with the luminaire head.
4 General
The requirements of IEC 62868-1:2020, Clause 4 apply.
4.1 General requirements
The requirements of IEC 62868-1:2020, 4.1 and IEC 62868-1:2020/AMD1:2024, 4.1 apply.
4.2 General test requirements
The requirements of IEC 62868-1:2020, 4.2 and IEC 62868-1:2020/AMD1:2024, 4.2 apply.
The ambient temperature and mounting requirements of IEC 62868-1:2020, 4.2 and
IEC 62868-1:2020/AMD1:2024, 4.2 apply.
The tests shall be conducted at the design voltage or current, unless otherwise specified in
this document.
5 Marking
5.1 Contents and location
Marking of the module shall be done according to IEC 62868-1:2020, 5.1. Additionally, the
rated maximum temperature t shall be marked on the packaging or product datasheet or
c
leaflet but is optional on the product.
The requirements of IEC 62868-1:2020, 5.1 apply.

© IEC 2025
IEC 62868-1:2020, Table 1 applies together with Table 1 of this document.
Table 1 – Contents and location of marking
Parameters Product Packaging or product datasheet or leaflet
Rated maximum temperature t Optional Mandatory
c
5.2 Durability and legibility of marking
The requirements of IEC 62868-1:2020, 5.2 and IEC 62868-1:2020/AMD1:2024, 5.2 apply.
6 Construction
The requirements of IEC 62868-1:2020, Clause 6 and IEC 62868-1:2020/AMD1:2024,
Clause 6 apply.
7 Mechanical hazard
The requirements of IEC 62868-1:2020, Clause 7 apply.
8 Fault conditions
The requirements of IEC 61347-1:2015, Clause 14 and IEC 61347-1:2015/AMD1:2017,
Clause 14, apply. Additionally, the requirements of IEC 62868-1:2020, Clause 8 apply.
The requirements of IEC 62868-1:2020/AMD1:2024, Clause 8 apply.
9 Insulation resistance and electric strength after humidity treatment
9.1 General requirements
Insulation resistance and electric strength shall be adequate between live parts of the OLED
module and accessible parts of the OLED module.
9.2 Insulation resistance
Insulation shall be adequate between live parts and outer metal parts, including fixing screws
and metal foil in contact with outer insulating parts.
The OLED module shall be conditioned for 48 h in a cabinet containing air with a relative
humidity between 91 % and 95 %. The temperature of the air shall be maintained within 1 °C
of any convenient value between 20 °C and 30 °C.
Insulation resistance shall be measured in the humidity cabinet with a DC voltage of 100 V,
1 min after application of the voltage.
Insulation resistance shall be measured 1 min after application of a 100 V DC potential.
The test shall be conducted in the humidity cabinet.

REDLINE VERSION – 8 – IEC 62868-2-1:2020+AMD1:2025 CSV
© IEC 2025
Compliance:
The insulation resistance shall be not less than 1 MΩ between live parts and the outer metal
parts.
9.3 Electric strength
Immediately after the insulation resistance test, the OLED module shall withstand an electric
strength test for 1 min applied between the parts as specified in 9.2.
The test voltage of substantially sine-wave form shall have a value of 500 V RMS and
frequency of 50 Hz or 60 Hz. Initially, not more than half the specified voltage shall be applied,
the voltage shall then be raised rapidly to the full value. Measurements shall be carried out in
a humidity cabinet.
Compliance:
No flashover or breakdown shall occur during the test.
18 Thermal stress
The requirements of IEC 62868-1:2020, Clause 10 apply.
10 Creepage distances and clearances
The requirements of IEC 61347-1:2015, Clause 16 and IEC 61347-1:2015/AMD1:2017,
Clause 16 apply.
11 Resistance to heat and fire
The requirements of IEC 61347-1:2015, Clause 18 apply.
11.1 Resistance to heat
The requirements of IEC 61347-1:2015, 18.1 apply.
11.2 Resistance to flame and ignition
The requirements of IEC 61347-1:2015, 18.2 apply.
12 Photobiological safety
OLED products are not expected to reach a level of UV, infrared or blue light hazard that
requires marking or measurement.
The requirements of IEC 62868-1:2020, Clause 13 and IEC 62868-1:2020/AMD1:2024,
Clause 13 apply.
13 Terminals
For screw terminals, the requirements of IEC 60598-1:2014, Section 14, shall be used, if
applicable.
© IEC 2025
For screwless terminals, the requirements
...
