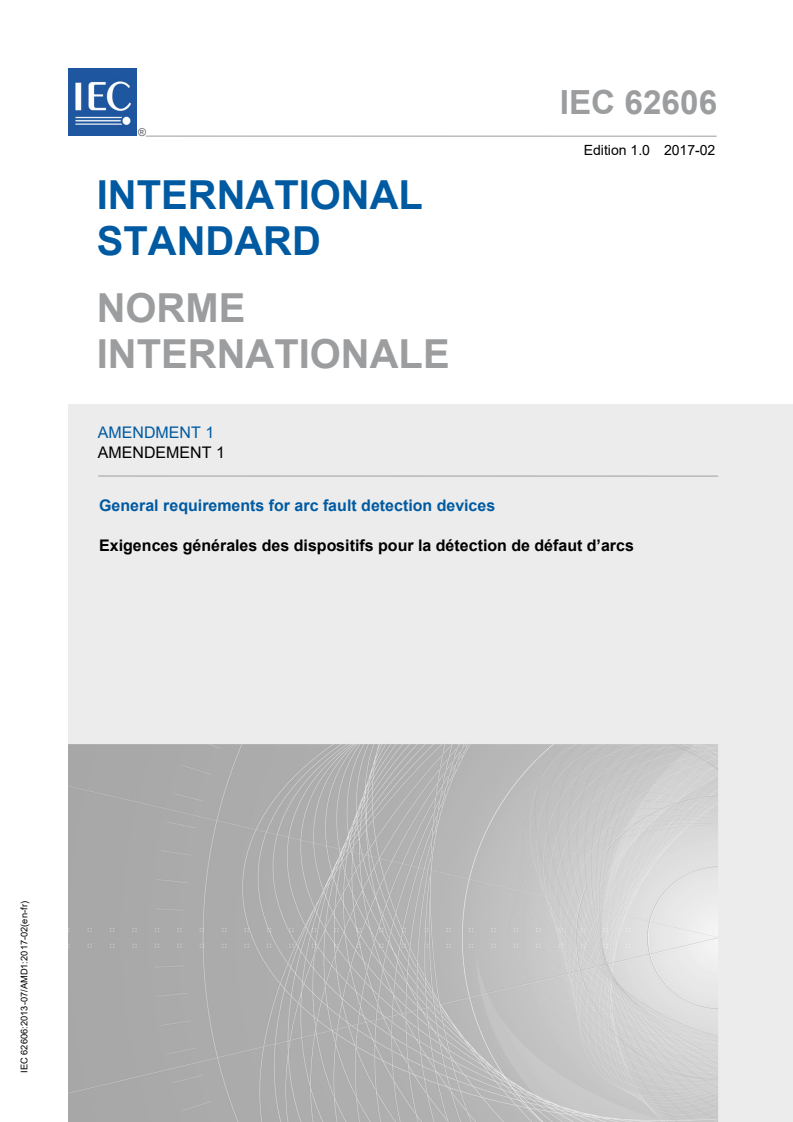

IEC 62606:2013/AMD1:2017

IEC 62606 ®
Edition 1.0 2017-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 1
AM ENDEMENT 1
General requirements for arc fault detection devices

Exigences générales des dispositifs pour la détection de défaut d’arcs

IEC 62606:2013-07/AMD1:2017-02(en-fr)

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales, électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes langues additionnelles. Egalement appelé Vocabulaire
Android et iPad. Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC 65 000 entrées terminologiques électrotechniques, en anglais
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Restez informé sur les nouvelles publications IEC. Just Service Clients - webstore.iec.ch/csc
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.

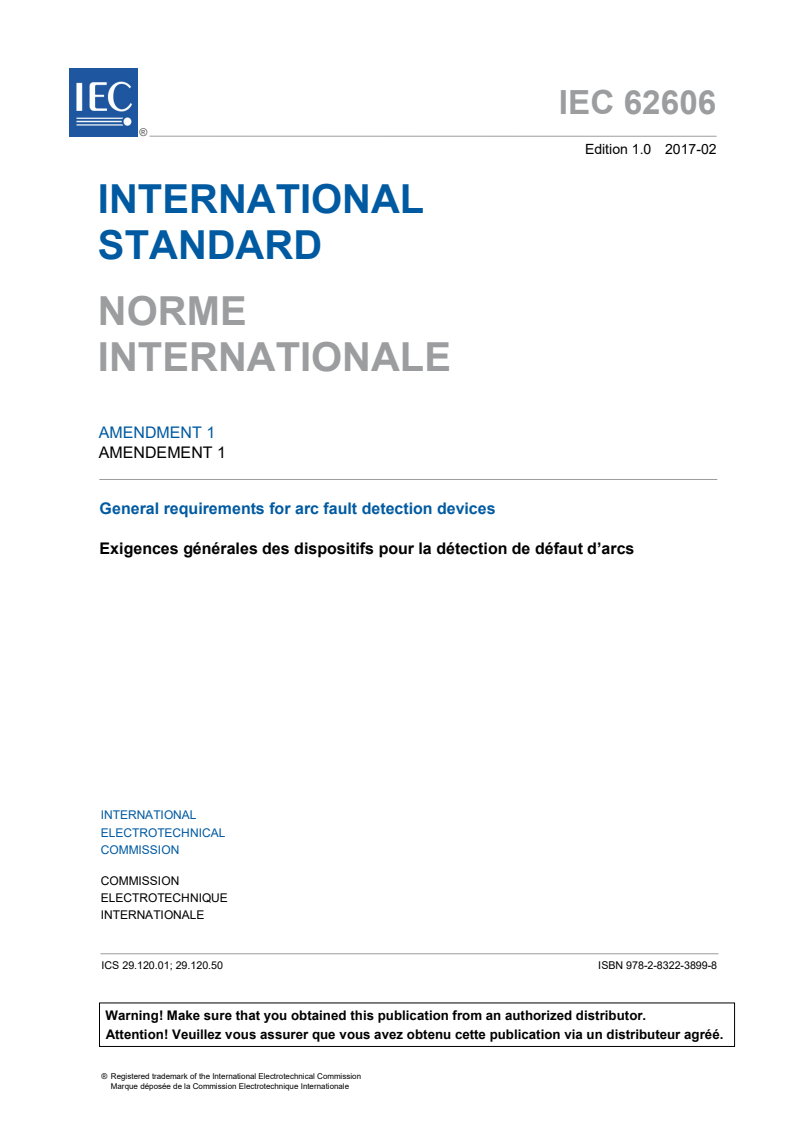

IEC 62606 ®
Edition 1.0 2017-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 1
AM ENDEMENT 1
General requirements for arc fault detection devices

Exigences générales des dispositifs pour la détection de défaut d’arcs

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.120.01; 29.120.50 ISBN 978-2-8322-3899-8

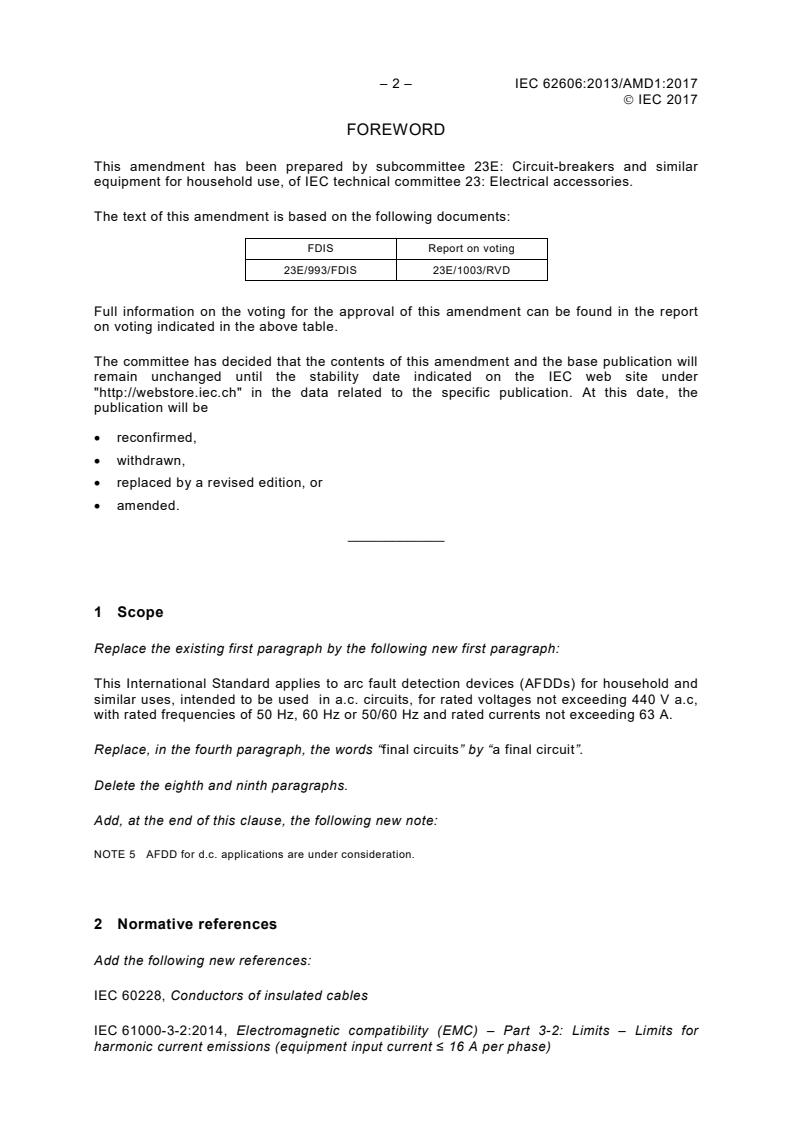

– 2 – IEC 62606:2013/AMD1:2017
 IEC 2017
FOREWORD
This amendment has been prepared by subcommittee 23E: Circuit-breakers and similar
equipment for household use, of IEC technical committee 23: Electrical accessories.
The text of this amendment is based on the following documents:
FDIS Report on voting
23E/993/FDIS 23E/1003/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
1 Scope
Replace the existing first paragraph by the following new first paragraph:
This International Standard applies to arc fault detection devices (AFDDs) for household and
similar uses, intended to be used in a.c. circuits, for rated voltages not exceeding 440 V a.c,
with rated frequencies of 50 Hz, 60 Hz or 50/60 Hz and rated currents not exceeding 63 A.
Replace, in the fourth paragraph, the words “final circuits” by “a final circuit”.
Delete the eighth and ninth paragraphs.
Add, at the end of this clause, the following new note:
NOTE 5 AFDD for d.c. applications are under consideration.

2 Normative references
Add the following new references:
IEC 60228, Conductors of insulated cables
IEC 61000-3-2:2014, Electromagnetic compatibility (EMC) – Part 3-2: Limits – Limits for
harmonic current emissions (equipment input current ≤ 16 A per phase)

© IEC 2017
IEC 61543:1995, Residual current-operated protective devices (RCDs) for household and
similar use – Electromagnetic compatibility
IEC 61543:1995/AMD1:2004
IEC 61543:1995/AMD2:2005
3 Terms and definitions
3.2
arc fault
arcing fault
Replace the existing definition by the following new definition:
dangerous unintentional arc
3.4
arc fault detection unit
AFD unit
Replace, at the end of the note, the reference “see (4.1.3)” by “(see 4.1.3)”.

4.1 According to the method of construction
4.1.1 Replace the existing text by the following new text:
4.1.1 AFDD as one single device, comprising an AFD unit and opening means not providing
overcurrent or residual current protection.

4.3 According to the number of poles and current paths
Add to the existing list the following two new dashes:
– Three-pole AFDD;
– Four-pole AFDD.
Delete NOTE 1 and renumber “NOTE 2” as “NOTE”.

5.3.1 Preferred values of rated voltage (U )
n
Replace the existing text by the following new text:
Preferred values of rated voltage are as indicated in Table 22.

– 4 – IEC 62606:2013/AMD1:2017
 IEC 2017
Table 22 – Preferred values of rated voltage
Rated voltage of Rated voltage of
AFDDs for use in AFDDs for use in
systems 230 V or systems 120/240 V or
AFDD Circuit supplying the AFDD
230/400 V or 400 V 240 V
V V
Single phase
Single-pole (with
(phase to earthed middle conductor or 230 120
two current paths)
phase to neutral)
Single phase
Two-pole (phase to neutral or phase to phase or 230, 400 120, 240
phase to earthed middle conductor)
Three phases (3-wire or 4-wire)
Three-pole
(400 V or 230/400 V or 230 V-system)
Three phases (4-wire)
Four-pole 400
(230/400 V-system)
NOTE 1 In IEC 60038 the network voltage value of 230/400 V has been standardized. This value is likely to
progressively supersede the values of 220/380 V and 240/415 V.
NOTE 2 Wherever in this standard there is a reference to 230 V or 400 V, they can be read as 220 V or 240 V,
380 V or 415 V, respectively.
NOTE 3 Wherever in this standard there is a reference to 120 V or 120/240 V or 240 V, they can be read as
100 V, 100/200 V or 200 V, respectively.
NOTE 4 Wherever in this standard there is a reference to 240 V three phases, it can be read as 100 V or
120/208 V.
NOTE In Japan, the phase to neutral conductor and phase to earthed conductor (grounded conductor) are
considered in a different way because single phase 2-wire systems supplied from a 2-wire system source do not
have a neutral point.
5.3.3 Preferred values of rated frequency
Replace the heading of 5.3.3 by the following new heading:
5.3.3 Standard values of rated frequency
Replace, in the first paragraph, “Preferred” by “Standard”.
Delete the second paragraph.
5.3.7.1 Limit values of operating criteria for AFDDs at low arc currents up to 63 A
Table 1 – Limit values of break time for U = 230 V AFDDs
n
Replace the heading of Table 1 by the following new heading:
Table 1 – Limit values of break time for U = 230 V and 400 V AFDDs
n
5.3.7.2 Limit values of operating criteria for AFDDs at high arc currents above 63 A
Table 3 – Maximum allowed number of arcing half-cycles within 0,5 s for U 230 V
n
AFDDs and U = 120 V AFDDs
n
© IEC 2017
Replace the heading of Table 3 by the following new heading:
Table 3 – Maximum allowed number of arcing half-cycles within 0,5 s

6.1 Marking
Replace, in the first sentence of the sixth paragraph, “c & e” by “c and e”.
Replace, in the second sentence of the sixth paragraph, “a, b, d, f & i” by “a, b, d, f, i and j”.
Replace, in the third sentence of the sixth paragraph, “the information under h” by “the
information under i”.
8.2.3 Clearances and creepage distances (see Annex B)
Replace, in the third paragraph, “and arrangements of 9.7.2 items b), c), d) and e)” by “and
arrangements of 9.7.3 items b), c), d) and e)”.
Replace, in the third paragraph, the existing first indent by the following new indent:
– tests according to 9.7.3 to 9.7.6 as applicable;
Replace, in NOTE 1, “9.7.6” by “9.7.7.2”.

8.17 Performance of the AFD test device
Delete, at the end of the penultimate paragraph, the words “is operated”.
Add the following new subclause:
8.18 Performance in case of partial loss of supply connections
Three-pole AFDDs and four-pole AFDDs shall also perform as required for series, parallel and
earth arc fault when connected as follows:
– for three-pole AFDD, with two phases only;
– for four-pole AFDD: with three phases without neutral, with two phases only, and one
phase and neutral.
Compliance is checked by the tests of 9.23.

9.1.2 The characteristics of AFDDs are checked by means of tests
Table 10 – List of type tests
Add, at the end of the table, the following new row:
– Verification of the behaviour in case of partial loss of supply connections 9.23

– 6 – IEC 62606:2013/AMD1:2017
 IEC 2017
9.7.2.4 Condition of the AFDD after the test
Replace “9.7.7” by “9.7.6”.
9.7.3 Insulation resistance of the main circuit
Replace the existing item c) by the following new item c):
c) with the AFDD in the closed position, between all poles connected together and the frame,
including a metal foil or part in contact with the outer surface of the housing of insulating
material but with the terminal areas kept completely free to avoid flashover between
terminals and the metal foil.
9.7.5 Insulation resistance and dielectric strength of auxiliary circuits
Replace the existing item b) by the following new item b):
b) The measurements of the insulation resistance are carried out:
– between the auxiliary circuits connected to each other and to the frame;
– between each of the parts of the auxiliary circuits which might be isolated from the
other parts in normal service and the whole of the other parts connected together;
at a voltage of approximately 500 V d.c. after this voltage has been applied for 1 min.
The insulation resistance shall be not less than 2 MΩ.

9.7.7.1 General testing procedure for the impulse withstand voltage tests
Replace, in NOTE 1, “9.7.6.2” by “9.7.7.2”.
9.7.7.2 Verification of clearances with the impulse withstand voltage
Add, in the first line of the first paragraph, “of” before “Table 7”.

9.8.2 Test procedure
Replace the existing second paragraph by the following two new paragraphs:
For four-pole AFDD, the test is first made by passing the specified current through the three
phase poles only.
The test is then repeated by passing the current through the pole intended for the connection
of the neutral and the pole adjacent to the neutral.

9.9.1 General
Replace the existing fourth paragraph by the following new paragraph:

© IEC 2017
For an AFDD having more than one rated frequency, the tests shall be carried out at each
rated frequency.
9.9.2.1 General
Add, after the first paragraph, the following new paragraph:
The AFDD being supplied with all phases, the tests shall be performed, if applicable, between
one phase, chosen at random and neutral, and between two phases chosen at random.
Replace the existing second paragraph by the following new paragraph:
The tests shall be conducted by connecting a cable specimen (prepared in accordance with
9.9.2.6) in series with the AFDD according to Figure 4 for tests of 9.9.2.2 to 9.9.2.5 and
according to Figure 38 for tests of 9.9.2.8 and 9.9.2.9.
Replace the existing third paragraph by the following new paragraph:
The adjustment of the test currents without arcing, in the line where the cable specimen is
placed, is achieved by application of the line to neutral voltage reduced by 50 V to take into
account the value of the arc voltage during the test. For three-pole AFDD, the mid-point of the
resistors in Figure 38 shall be connected directly to the neutral. For tests of 9.9.2.2, and at
the rated current only, the adjustment of the test current in the cable specimen without arcing
is achieved by application of the rated voltage.
Delete the fourth paragraph.
9.9.2.3 Verification of correct operation in case of inserting load a with a series arc
fault
Replace the title of subclause 9.9.2.3 by the following new title:
9.9.2.3 Verification of correct operation in case of inserting a load with series arc fault

9.9.2.5 Test at the temperature limits
Add, at the end of the second dash, the following new text:
For the tripping tests, the flow of rated current may be interrupted, provided that the total
interruption period does not exceed 30 s. As soon as the sum of interruption periods exceeds
30 s, the AFDD shall be loaded again with rated current for 5 min before the next tripping time
measurement.
9.9.2.6 Preparation of the cable specimens
Replace the existing text of item c) by the following new text:
c) A slit or incision, perpendicular to the cable specimens axis, is to be made in the
insulation of the cable approximately half way along the length of the cable so as to
expose the conductors without severing any strands.

– 8 – IEC 62606:2013/AMD1:2017
 IEC 2017
Replace the existing text of item e) by the following new text:
e) The conductors are to be stripped at one end, approximately 12 mm (or 0,5 in), for
connection to the test circuits.

Add the following new subclauses:
9.9.2.8 Verification of correct operation in case of arc in a three-phase system with
unbalanced load
This test is applicable for a four-pole AFDD only.
The detection test shall be performed for each pole and neutral separately. Whatever the
rated current value, the current in the three phases shall be adjusted at 2,5 A, 5 A and the
rated current (see Figure 38), according to 9.9.2.1. The arc test shall be performed on each
phase, in turn, at the previously adjusted current.
The test procedure shall be according to 9.9.2.2.
9.9.2.9 Verification of correct operation in case of arc in a three-phase system with
balanced load
This test is applicable for a three-pole AFDD and a four-pole AFDD.
The detection test shall be performed for each pole, except the neutral. The load current in
each phase shall be adjusted at the lowest arc current value and at the rated current of the
AFDD (see Figure 38), according to 9.9.2.1.
The test procedure shall be applied according to 9.9.2.2.

9.9.3.1 Verification of correct operation in case of parallel arc with limited current
Add, after the third paragraph, the following new paragraph:
The AFDD being supplied with all phases, the tests shall be performed between a phase
chosen at random and neutral (if any), and between two phases chosen at random, if
applicable.
9.9.3.2 Verification of correct operation in case of parallel arc cable cutting test
Add, after the second paragraph, the following new paragraph:
The tests shall be performed between a phase chosen at random and neutral (if any), and
between two phases chosen at random, if applicable.

9.9.4.1 General
Add, after the first paragraph, the following new paragraph:
The AFDD being supplied with all phases, the tests shall be performed between a phase
chosen at random and neutral (if any), and between two phases chosen at random, if
applicable.
© IEC 2017
9.9.4.2 Masking test with inhibition loads
Add, before the existing first paragraph, the following new paragraph:
This test applies to a single-pole AFDD with two current paths and a two-pole AFDD.
Add, after item b), the following new note:
NOTE 1 THD can be calculated with the formula of IEC 61000-3-2:2014, 3.14.2, for total harmonic distortion
 
I
h
THD=
 
∑
 
h=2
I
 
Replace the existing text of item c) by the following new text:
c) A capacitor start (air compressor type) motor, with a peak inrush current of 130 A ± 10 %
for a 120 V rated voltage AFDD, is to be started under load (compressor operating
without any air pressure in the air tank) and operated. For a 230 V rated voltage AFDD, a
2,2 kW capacitor start (air compressor type) motor is to be used;
Replace in d) “NOTE” by “NOTE 2”.
Add, after the sixth paragraph, the following new paragraph:
For selecting the maximum break time in Table 1 or Table 2, the test arc current is the current
in the cable specimen without arcing; it is measured by application of the rated voltage
reduced by 50 V.
9.9.4.3 Masking test with EMI filter
Replace the existing text of item a) by the following new text:
a) Two EMI filters of 0,22 μF shall be installed. One filter shall be installed at one end of two
resistive loads of 15 m (or 50 feet) in length and 2,5 mm (or 12 AWG) in cross-section;
the cable shall comply with IEC 60228. Each filter shall be on the end of approximately
2,0 m (or 6 feet) in length and of 1,5 mm (or 16 AWG) in cross-section. The arcing shall
be initiated as shown in Figure 12.
Replace the existing text of item b) by the following text:
b) An EMI filter as described in Figure 14 shall be installed at the end of 15 m (or 50 feet), in
length and 2,5 mm (or 12 AWG) in cross-section; the cable shall comply with IEC 60228.
The filter shall be on the end of 2,0 m (or 6 feet) in length and 1,5 mm (or 16 AWG) in
cross-section flexible cable. The AFDD and the arcing shall be located as shown in
Figure 13.
Add the following new subclause:
9.9.4.5 Masking test with inhibition loads for three-pole and four-pole AFDDs
A series of tests is performed with inhibition loads according to 9.9.2.9. The AFDD and arc
fault tester are connected in the circuit according to Figure 39.
The AFDD shall be tested with each of the following masking loads at AFDD rated voltage and
rated frequency:
– 10 – IEC 62606:2013/AMD1:2017
 IEC 2017
+20
a) a three-phase asynchronous motor loaded to draw 2,5 A % per AFDD pole for 400 V
+20
rated voltage AFDD and 5 A % per AFDD pole for 230 V rated voltage AFDD;
b) a variable speed drive with a three-phase asynchronous motor adjusted in such a way that
the voltage applied to the motor is equal to the 80 % of the AFDD rated voltage and the
ratio U /f remains constant where U is the rated voltage and f the rated frequency.
n n
+20
The asynchronous motor consumption shall be adjusted for consuming 2,5 A % per AFDD
+20
pole for 400 V rated voltage AFDD and 5 A % per AFDD pole for 230 V rated voltage
AFDD.
The switching frequency of the variable speed drive shall be between 10 kHz and 12 kHz.
Systems comprising variable speed drives, motors and cabling, shall be confirmed by the
drive supplier to fulfil the requirements regarding the limit of harmonic current emissions as
defined in IEC 61000-3-2 for Class A equipments. The AFDD shall clear the arcing fault as
specified in Table 1 or Table 2 when using carbonized cable specimen or within 2,5 times the
break time in Table 1 or Table 2 when using the arc generator.
9.9.5.1 General
Add, after the existing first paragraph, the following new paragraph:
The AFDD being supplied with all phases, the tests shall be performed between a phase,
chosen at random and neutral (if any), and between two phases chosen at random, if
applicable.
9.9.5.2 Cross talk test
Replace the existing first paragraph by the following new paragraph:
Two branch circuits installed as close as possible in the same panel are supplied with the
same phase and neutral, if any, as described in Figure 16, one with AFDD protection and one
without AFDD protection (but with conventional overcurrent protection). Both circuits are
connected to a resistive load drawing a current equal to 5 A. For three-pole and four-pole
AFDDs, a 3-phase resistive load with 5 A in each phase shall be used.
Replace the existing second paragraph by the following new paragraph:
An arc is initiated with an arc generator (according to 9.9.2.7) or a cable specimen (according
to 9.9.2.6) in the circuit without the AFDD, according to the test conditions of 9.9.2.2. The arc
conditions shall be sustained for a duration of minimum 0,5 s for 230 V and for 400 V circuits,
or a duration of minimum 1 s for a 120 V circuit; the AFDD shall not trip.

9.9.5.4 Test with various disturbing loads
Replace the title by the following new title:
9.9.5.4 Test with various disturbing loads for single-pole AFDD with two current path
and two-pole AFDD
Replace, in the existing first paragraph, “9.9.4.1” by “9.9.4.2”.

© IEC 2017
Add the following new subclause:
9.9.5.5 Test with various disturbing loads for three-pole and four-pole AFDDs
The AFDD is tested as in 9.9.4.5 but without the arc fault tester shown in Figure 39.
The AFDD shall be tested with each of the following loads:
+20
a) a three-phase (asynchronous motor) fan consuming, 2,5 A % per AFDD pole for a
+20
400 V rated voltage AFDD and 5 A % per AFDD pole for 230 V rated voltage AFDD;
b) a variable speed drive with a three-phase (asynchronous motor) adjusted in such a way
that the voltage applied to the fan is equal to the 80 % of the AFDD rated voltage and the
ratio U /f remains constant where U is the rated voltage and f the rated frequency.
n n
+20
The fan consumption shall be adjusted for consuming, 2,5 A % per AFDD pole for a 400 V
+20
rated voltage AFDD and 5 A % per AFDD pole for 230 V rated voltage AFDD.
The switching frequency of the variable speed drive shall be between 10 kHz and 12 kHz.
The variable speed drive shall not be equipped with optional EMC filters.
If an acceleration ramp is used for reaching the voltage applied to the fan, it shall not take
more than 5 s.
The loads are energized during at least 10 s. Five Start/Stop operations shall be performed.
The AFDD shall not trip.
9.10.2 Test procedure
Replace the existing third dash of the third paragraph by the following new dash:
– 500, or in the case of no test device 1 000, operating cycles by tripping the AFDD. The
tripping means and conditions will be decided between the manufacturer and the
laboratory.
9.11.2.2 General conditions for test
Add, in item a), the following new dashes:
– a three-pole AFDD;
– a four-pole AFDD.
Replace, in item a) after the sentence “Z , suitably calibrated, is an impedance used to obtain
one of the following currents:”, the two existing dashes by the following new dashes:
– the rated making and breaking capacity on one pole I ;
m1
– the rated conditional short-circuit current on one pole I .
nc1
Replace, in the third paragraph of item e), “I ” by” I ”.
c1 nc1
– 12 – IEC 62606:2013/AMD1:2017
 IEC 2017
Replace, in the first dash of item i), “9.7.6.3” by “9.7.7.3”.
Replace, in the second dash of item i), “9.7.3” by “9.7.4”.
Replace, in the second paragraph of item i), “9.7.2” by “9.7.3” (2 times).

9.11.2.4 Verification of the rated making and breaking capacity on one pole (I ) of
m1
AFDDs and their suitability for use in IT systems
Replace the existing first paragraph of item b) by the following new paragraph:
The following sequence of operations is performed. The closing is performed by an actuator
operating the mechanism of the AFDD and opening at least 0,05 s later to ensure that current
flows in the AFDD.
9.11.2.5 Verification of the coordination between the AFDD and the declared
protective device
Delete, in the third paragraph of item c) 1), the word “residual”.

9.19.3 Test with temperature of 40 °C
Delete the note.
Add, at the end of the third paragraph, the following new sentence:
For a four-pole AFDD, only three poles are loaded.

9.21.1 General
Replace the existing text by the following new text:
AFDDs shall be submitted to the EMC tests according to IEC 61543:1995,
IEC 61543:1995/AMD1:2004 and IEC 61543:1995/AMD2:2005 and according to the additional
information given in 9.21.2, 9.21.3, and 9.21.4.

Add the following new subclause:
9.23 Verification of the behaviour in case of partial loss of supply connections
A three-pole AFDD shall be tested with two-poles connected, chosen at random.
A four-pole AFDD shall be tested with two phases chosen at random, with one phase chosen
at random and neutral, and with three phases without neutral.
The following tests shall be performed: 9.9.2.2, 9.9.2.3, 9.9.2.4, 9.9.3.2 and 9.9.3.3.

© IEC 2017
Replace, in Figures 4, 6, 7, 9, 10 and 13, “Neutral” by “Phase or neutral”

Figure 4 – Test circuit for series arc fault tests
Add the following new note:
NOTE This figure represents a single-phase test set-up. Three-pole and four-pole devices are supplied as for
normal use.
Add the following new Figure 38:
S2
S4
S1 Load
S3
L1
L1
R1
L2
N
R2
R3
AFDD
L3
Phase or
neutral
L2
L3
IEC
Figure 38 – Test circuit for series arc in a three-phase system
with balanced and unbalanced load
Add the following new Figure 39:
L1
L2
AFDD
L3
Arc fault tester Masking load
IEC
Figure 39 – Test configuration for masking tests for three-pole and four-pole AFDDs

– 14 – IEC 62606:2013/AMD1:2017
 IEC 2017
Figure 16 – Cross talk test
Replace the existing Figure 16 by the following new figure:
Phase
Neutral
Circuit-
AFDD
breaker
Cable
specimen
or
arc
generator
Load Load
IEC
NOTE This figure represents only single-phase devices. For three-pole and four-pole devices, adapt accordingly.
Figure 16 – Cross talk test
Figure 17 – Controlled current test circuit
Delete the title and figure and replace with the following:
Figure 17 – Void
Figure 18 – Controlled current with delay angle 45°, 90° and 135°
Delete the title and figure and replace with the following:
Figure 18 – Void
Replace, in the paragraph “Explanation of letter symbols used in Figures 19, 20 and 21”
(below Figure 18), the explanations for Z and I by the following:
2 4
Z = Adjustable impedance for the calibration of I and I , if applicable
2 m1 nc1
I = Additional current sensor, if needed
© IEC 2017
Figure 19 –Short circuit test
Replace the existing figure and its title by the following new figure and title:
S
N
V
Z Z Z
R
R
S
F 1
R
R Z
2 2
T
I
G G
G
1 1
P 1
C B
U 1 U 3
r r
U 2
r
Frame
D
G G G G
1 1 1 1
I I I
1 2 3
G G G
2 2 2
Z Z Z
1 1 1
IEC
Figure 19 – Typical diagram for all short circuit tests except for 9.11.2.4 c)

– 16 – IEC 62606:2013/AMD1:2017
 IEC 2017
Figure 20 – Typical diagram for short circuit tests ((9.11.2.4c)
Replace the existing figure and its title by the following new figure and title:
S
L1 L2 N
V
Z
F
R
R
T
G G
1 1
P
B C
U 1
r
Frame
D
G
I
Z
IEC
Figure 20 – Typical diagram for short circuit tests of 9.11.2.4.c)

© IEC 2017
Figure 36 – Preparation of the cable specimens (9.9.2.6)
Replace the existing figure by the following new figure:
Electrical PVC tape
+ fibreglass tape
12 mm Stripped conductor
Slit in the
for connection
cables insulation
IEC
Figure 36 – Preparation of the cable specimens (9.9.2.6)

– 18 – IEC 62606:2013/AMD1:2017
 IEC 2017
Annex A – Test sequence and number of samples to be submitted for
certification purposes
Replace, in Tables A.1, A.2 and A.3, the existing test sequences B and H with the following
new test sequences:
Test
Clause or subclause Test (or inspection)
sequence
B 9.7.7.4 Resistance of the insulation of open contacts
and basic insulation against an impulse voltage
in normal conditions
9.7.7.5 Verification of the behaviour of components
bridging the basic insulation
9.7.2 Resistance to humidity
9.7.3 Insulation resistance of the main circuit
9.7.4 Dielectric strength of the main circuit
9.7.5 Insulation resistance and dielectric strength of
auxiliary circuits
9.7.6 Capability of control circuits connected to the
main circuits withstanding high d.c. voltages
due to insulation measurements
9.7.7.2 Verification of clearances with the impulse
withstand voltage
9.8 Temperature rise
9.19.3 Reliability at 40 °C
9.20 Ageing of electronic components

Test
Clause or subclause Test (or Inspection)
sequence
H IEC 61543:1995/AMD1:2004, Table 4 – T1.1 Harmonics, interharmonics
IEC 61543:1995/AMD1:2004, Table 4 – T1.2 Signalling voltage
9.21, Table 21 – T2.3 Surges
_____________
The term “certification” denotes either a Declaration of Conformity by the manufacturer, or a Third Party
Certification, e.g. by an independent testing station.

© IEC 2017
Table A.1 – Test sequences for AFDDs classified according to 4.1.1
Replace the existing test sequence D with the following new test sequence:
Test
Clause or subclause Test (or Inspection)
sequence
D 9.9.2 Operating characteristics (series arc fault)
9.9.3 Operating characteristics (parallel arc fault)
9.23 Verification of behaviour in case of partial loss of supply
connections
D 9.9.4 Masking test
9.9.5 Unwanted tripping
D
9.18 Behaviour in the case of surge currents
9.11.2.4 a) b) Performance at Im1
9.12 Resistance to mechanical shock and impact
9.17 Non-operating current under overcurrent conditions
D 9.11.2.4 c) Verification of the suitability in IT-systems
Add the following note:
NOTE Test of sequence B, in 9.7, can be done on separate samples.
Table A.2 – Test sequences for AFDDs classified according to 4.1.2
Replace the existing test sequence D with the following new test sequence:
Test
Clause or subclause Test (or Inspection)
sequence
D 9.9.2 Operating characteristics (series arc fault)
9.9.3 Operating characteristics (parallel arc fault)
9.23 Verification of behaviour in case of partial loss of supply connections
D 9.9.4 Masking test
9.9.5 Unwanted tripping
D
9.18 Behaviour in the case of surge currents
9.12 Resistance to mechanical shock and impact
9.17 Non-operating current under overcurrent conditions
D 9.11.1 Verification of AFDDs after sequence C of IEC 60898-1, sequence
2 2
D of IEC 61008-1 or sequence C of IEC 61009-1
2 2
Table A.3 – Test sequences for AFDDs classified according to 4.1.3
Delete, in the existing test sequence A, D.6.4.
Replace the existing test sequence D with the following new test sequence:

– 20 – IEC 62606:2013/AMD1:2017
 IEC 2017
Test Clause or subclause Test (or Inspection)
sequence
D D.6.4 Verification for devices declared to be disassembled
9.9.2 Operating characteristics (series arc fault)
9.9.3 Operating characteristics (parallel arc fault)
9.23 Verification of behaviour in case of partial loss of supply
connections
D 9.9.4 Masking test
D
9.9.5 Unwanted tripping
9.18 Behaviour in the case of surge currents
9.12 Resistance to mechanical shock and impact
9.17 Non-operating current under overcurrent conditions
D 9.11.1 Verification of AFDDs after sequence C of IEC 60898-1,
2 2
sequence D of IEC 61008-1 or sequence C of IEC 61009-1
2 2
Table A.5 – Number of samples for simplified test procedure
Add, after the existing test sequence A, the following new test sequence A2:
Test
a b
Number of samples
sequence
A 3 max. rating I
2 n
Annex D – Additional requirements and tests for AFDDs according to the
classification 4.1.3 designed to be assembled on site together with a main
protective device (circuit-breaker or RCCB or RCBO)
D.6.4 Verification of marking and constructional requirements of AFDDs
Delete, in the first paragraph, “and D.5.4” in order to read “. of D.4.1, D.4.2, D.4.3, D.5.1,
D.5.2 and D.5.3…”.
Replace, at the end of the second paragraph, “in Table A.1” by “in Table A.3”.

Bibliography
Add, before the reference for IEC 60060-2, the following new reference:
IEC 60038, IEC Standard voltages
Add, after the reference for IEC 60884-1, the following new reference:
IEC 61000-3-2, Electromagnetic compatibility (EMC) – Part 3-2: Limits – Limits for harmonic
current emissions (equipment input current ≤ 16 A per phase)

____________
– 22 – IEC 62606:2013/AMD1:2017
© IEC 2017
AVANT-PROPOS
Le présent amendement a été établi par le sous-comité 23E: Disjoncteurs et appareillage
similaire pour usage domestique, du comité d'études 23 de l’IEC: Petit appareillage.
Le texte de cet amendement est issu des documents suivants:
FDIS Rapport de vote
23E/993/FDIS 23E/1003/RVD
Le rapport de vote indiqué dans le tableau ci-dessus donne toute information sur le vote ayant
abouti à l'approbation de cet amendement.
Le comité a décidé que le contenu de cet amendement et de la publication de base ne sera
pas modifié avant la date de stabilité indiquée sur le site web de l'IEC sous
"http://webstore.iec.ch" dans les données relatives à la publication recherchée. A cette date,
la publication sera
• reconduite,
• supprimée,
• remplacée par une édition révisée, ou
• amendée.
_____________
1 Domaine d'application
Remplacer le premier alinéa existant par le nouveau premier alinéa suivant:
La présente Norme internationale s’applique aux dispositifs pour la détection de défaut d’arc
(DPDA) utilisés à des fins domestiques et analogues dans des circuits en courant alternatif
(AC), pour des tensions assignées ne dépassant pas 440 V AC, avec des fréquences
assignées de 50 Hz, 60 Hz ou 50/60 Hz et des courants assignés ne dépassant pas 63 A.
Remplacer, dans quatrième alinéa, les mots "les circuits finaux" par "un circuit final".
Supprimer le huitième et le neuvième alinéas.
Ajouter, à la fin de cet article, la nouvelle note suivante:
NOTE 5 Des DPDA pour applications DC sont à l'étude.

2 Références normatives
Ajouter les nouvelles références suivantes:
IEC 60228, Ames des câbles isolés

© IEC 2017
IEC 61000-3-2:2014, Compatibilité électromagnétique (CEM) – Partie 3-2: Limites – Limites
pour les émissions de courant harmonique (courant appelé par les appareils ≤ 16 A par
phase)
IEC 61543:1995, Dispositifs différentiels résiduels (DDR) pour usages domestique et
analogues – Compatibilité électromagnétique
IEC 61543:1995/AMD1:2004
IEC 61543:1995/AMD2:2005
3 Termes et définitions
3.2
défaut d’arc
défaut de production d’arc électrique
Remplacer la définition existante par la nouvelle définition suivante:
arc non intentionnel dangereux
3.4
module pour la détection d’arcs
module PDA
Cette correction ne s'applique qu'à la version anglaise.

4.1 Selon la méthode de construction
4.1.1 Remplacer le texte existant par le nouveau texte suivant:
4.1.1 DPDA comme dispositif unique, composé d’un module PDA et d’un système
d’ouverture ne fournissant pas de protection contre les surintensités ou contre le courant
différentiel.
4.3 Selon le nombre de pôles et de voies de courant
Ajouter à la liste existante les deux nouveaux tirets suivants:
– DPDA tripolaires;
– DPDA quadripolaires.
Supprimer la NOTE 1 et renuméroter la "NOTE 2" en "NOTE".

5.3.1 Valeurs préférentielles de la tension assignée (U )
n
Remplacer le texte existant par le nouveau texte suivant:
Les valeurs préférentielles de la tension assignée sont telles qu'indiquées dans le Tableau
22:
– 24 – IEC 62606:2013/AMD1:2017
© IEC 2017
Tableau 22 – Valeurs préférentielles de la tension assignée
DPDA Circuit alimentant le DPDA Tension assignée Tension assignée
des DPDA utilisés des DPDA utilisés
dans des systèmes dans des systèmes
230 V, 230/400 V ou 120/240 V ou 240 V
400 V
V V
Unipolaire (à deux Monophasé 230 120
voies de courant) (phase à conducteur milieu à la terre ou
phase à neutre)
Bipolaire Monophasé 230, 400 120, 240
(phase à neutre ou phase à phase ou
phase à conducteur milieu à la terre)
Tripolaire Triphasé (3 fils ou 4 fils) 230
(système 400 V, 230/400 V ou 230 V)
Quadripolaire Triphasé (4 fils) 400
(système 230/400 V)
NOTE 1 Dans l’IEC 60038, la valeur de la tension de réseau de 230/400 V a été normalisée. Cette valeur va
probablement remplacer progressivement les valeurs de 220/380 V et 240/415 V.
NOTE 2 A chaque fois qu’il est fait référence à 230 V ou 400 V dans cette norme, les valeurs à prendre en
compte peuvent être respectivement 220 V ou 240 V et 380 V ou 415 V.
NOTE 3 A chaque fois qu’il est fait référence à 120 V, 120/240 V ou 240 V dans cette norme, les valeurs à
prendre en compte peuvent être respectivement 100 V, 100/200 V ou 200 V.
NOTE 4 A chaque fois qu’il est fait référence à 240 V en triphasé dans cette norme, les valeurs à prendre en
compte peuvent être 100 V ou 120/208 V.

NOTE Au Japon, le conducteur phase-neutre et le conducteur phase-terre (conducteur à la masse) sont pensés
différemment, car les systèmes monophasés à 2 fils alimentés par une source de système à 2 fils ne possèdent
pas de point neutre.
5.3.3 Valeurs préférentielles de la fréquence assignée
Remplacer le titre de 5.3.3 par le nouveau titre suivant:
5.3.3 Valeurs normalisées de la fréquence assignée
Remplacer, dans le premier alinéa, "préférentielles" par "normalisées".
Supprimer le deuxième alinéa.
5.3.7.1 Valeurs limites des critères de fonctionnement pour les DPDA destinés aux
courants d’arcs faibles jusqu’à 63 A
Tableau 1 – Valeurs limites du temps de fonctionnement pour les DPDA avec Un = 230 V
Remplacer le titre du Tableau 1 par le nouveau titre suivant:
Tableau 1 – Valeurs limites du temps de fonctionnement pour les DPDA avec U = 230 V
n
et 400 V
© IEC 2017
5.3.7.2 Valeurs limites des critères de fonctionnement pour les DPDA avec des
courants d’arcs élevés supérieurs à 63 A
Tableau 3 – Nombre maximal de demi-cycles d’arc autorisés en 0,5 s pour les DPDA
avec U = 230 V et 120 V
n
Remplacer le titre du Tableau 3 par le nouveau titre suivant:
Tableau 3 – Nombre maximal de demi-cycles d’arc autorisés en 0,5 s

6.1 Marquage
Cette correction ne s'applique qu'à la version anglaise.
Remplacer, dans la deuxième phrase du sixième alinéa, " a, b, d, f et i" par " a, b, d, f, i et j"
Remplacer, dans la troisième phrase du sixième alinéa "l'information spécifiée en h" par
"l'information spécifiée en i".

8.2.3 Distances d'isolement dans l'air et lignes de fuite (voir l’Annexe B)
Remplacer, dans le troisième alinéa, "et les conditions mentionnées en 9.7.2, points b), c), d)
et e)" par "et les conditions mentionnées en 9.7.3, points b), c), d) et e)".
Remplacer, dans le troisième alinéa, le premier tiret existant par le nouveau tiret suivant:
– essais selon 9.7.3 à 9.7.6, le cas échéant;
Remplacer, dans la NOTE 1, "9.7.6" par "9.7.7.2".

8.17 Performances du module PDA
Supprimer, à la fin de l'avant-dernier alinéa, les mots "est actionné".
Ajouter le nouveau paragraphe suivant:
8.18 Performances en cas de perte partielle des raccordements à l'alimentation
Les DPDA tripolaires et quadripolaires doivent également se comporter comme exigé en cas
de défaut d'arc en série, en parallèle et à la terre lorsqu'ils sont connectés comme suit:
– pour un DPDA tripolaire, avec deux phases seulement;
– pour un DPDA quadripolaire: avec trois phases sans neutre, avec d
...
