CISPR 14-2:2015
(Main)Electromagnetic compatibility - Requirements for household appliances, electric tools and similar apparatus - Part 2: Immunity - Product family standard
Electromagnetic compatibility - Requirements for household appliances, electric tools and similar apparatus - Part 2: Immunity - Product family standard
CISPR 14-2:2015 deals with the electromagnetic immunity of appliances and similar apparatus for household and similar purposes that use electricity, as well as electric toys and electric tools, the rated voltage of the apparatus being not more than 250 V for single-phase apparatus to be connected to phase and neutral, and 480 V for other apparatus. Apparatus may incorporate motors, heating elements or their combination, may contain electric or electronic circuitry, and may be powered by the mains, by transformer, by batteries, or by any other electrical power source. Apparatus not intended for household use, but which nevertheless may require the immunity level, such as apparatus intended to be used by laymen in shops, in light industry and on farms, are within the scope of this standard, as far as they are included in CISPR 14-1. In addition, the following are also included in the scope of this standard:
- microwave ovens for domestic use and catering;
- cooking hobs and cooking ovens, heated by means of r.f. energy;
- (single- and multiple-zone) induction cooking appliances;
- appliances for personal care equipped with radiators in the range from UV to IR, inclusive (this includes visible light);
- power supplies and battery chargers provided with or intended for apparatus within the scope of this standard.
This second edition cancels and replaces the first edition published in 1997, Amendment 1:2001 and Amendment 2:2008. It constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
- 5.1: For ESD tests on contacts of plugs and sockets the note ("The 4 kV contact discharge shall be applied to conductive accessible parts. Metallic contacts, such as in battery compartments or in socket outlets, are excluded from this requirement.") saying that no test on contacts is necessary has been removed. The IEC 61000-4-2 includes a detailed description how to deal with ESD on contacts and other surfaces. Also discharge on HCP and VCP is required by the basic standard IEC 61000-4-2.
- 5.3 and 5.4: The tables for tests at D.C. power ports according IEC 61000-4-6 are aligned with the generic standards and are the same for 5.3 and 5.4.
- 5.3 and 5.4: For EUT with single mains cable and not other cable, the test set-up as shown in Figure 2 shall be used. The set-up as described in Annex F of IEC 61000-4-6:2013 shall not be used.
- 5.5: The IEC 61000-4-22 has been introduced as alternative method for testing radiated immunity.
- 5.6: No line-to-earth surges are applied to products which do not have provision for connection to earth.
Compatibilité électromagnétique - Exigences relatives aux appareils électrodomestiques, outillages électriques et appareils analogues - Partie 2: Immunité - Norme de famille de produits
La CISPR 14-2:2015 traite de l'immunité aux perturbations électromagnétiques des appareils électrodomestiques et analogues qui utilisent de l'électricité, ainsi que des jouets électriques et des outils électriques dont la tension assignée ne dépasse pas 250 V pour les appareils monophasés raccordés entre phase et neutre, et 480 V pour les autres appareils. Ces appareils peuvent comporter des moteurs et/ou des éléments chauffants. Ils peuvent comporter des circuits électriques ou électroniques et être alimentés par le réseau, par transformateur, par des piles ou batteries ou par toute autre source électrique. Les appareils qui ne sont pas destinés à un usage domestique, mais peuvent néanmoins exiger un certain niveau d'immunité, tels que ceux destinés à être utilisés par des usagers non avertis dans les magasins, l'industrie légère et les fermes, entrent dans le domaine d'application de la présente norme dans la mesure où ils sont couverts par la CISPR 14-1. Entrent également dans le domaine d'application de la présente Norme:
- les fours à micro-ondes à usage domestique ou à usage des collectivités;
- les foyers de cuisson et fours chauffés par des fréquences radioélectriques;
- les appareils de cuisson à induction (comportant un ou plusieurs foyers);
- les appareils à usage individuel avec dispositif à rayonnement dont la gamme s'étend des ultraviolets aux infrarouges (cela comprend la lumière visible);
- les alimentations et chargeurs de batterie dotés d'un appareil ou prévus pour un appareil appartenant au domaine d'application de la présente Norme. Cette deuxième édition annule et remplace la première édition parue en 1997, Amendement 1 (2001) et Amendement 2 (2008). Elle constitue une révision technique. La présente édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
- 5.1: Pour les essais électrostatiques réalisés sur les contacts des prises, la note ("La décharge au contact, de 4 kV, doit être appliquée aux parties conductrices accessibles. Les contacts métalliques, par exemple dans les compartiments de piles ou batteries ou dans les socles de prises de courant ne sont pas concernés par cette exigence.") indiquant qu'aucun essai n'est nécessaire a été retirée. L'IEC 61000-4-2 contient une description détaillée de la manière de traiter les décharges électrostatiques sur les contacts et les autres surfaces. De même, les décharges sur le PCH et le PVC sont exigées par la norme de base IEC 61000-4-2.
- 5.3 et 5.4: Les tableaux relatifs aux essais réalisés au niveau des accès d'alimentation continue selon l'IEC 61000-4-6 sont alignés sur les normes génériques et sont identiques pour 5.3 et 5.4.
- 5.3 et 5.4: Pour l'EUT ne contenant qu'un câble de réseau, le montage d'essai présenté à la Figure 2 doit être utilisé. Le montage décrit à l'Annexe F de l'IEC 61000-4-6:2013 ne doit pas être utilisé.
- 5.5: L'IEC 61000-4-22 a été introduite comme une autre méthode d'essai d'immunité aux rayonnements.
- 5.6: Aucune onde de choc entre ligne et terre n'est appliquée aux produits qui n'ont pas de disposition pour le raccordement à la terre.
General Information
Relations
Buy Standard
Standards Content (Sample)
CISPR 14-2 ®
Edition 2.0 2015-02
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
INTERNATIONAL SPECIAL COMMITTEE ON RADIO INTERFERENCE
Electromagnetic compatibility – Requirements for household appliances,
electric tools and similar apparatus –
Part 2: Immunity – Product family standard
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.
IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and
CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
CISPR 14-2 ®
Edition 2.0 2015-02
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
INTERNATIONAL SPECIAL COMMITTEE ON RADIO INTERFERENCE
Electromagnetic compatibility – Requirements for household appliances,
electric tools and similar apparatus –
Part 2: Immunity – Product family standard
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.100 ISBN 978-2-8322-2296-6
– 2 – CISPR 14-2:2015 RLV © IEC 2015

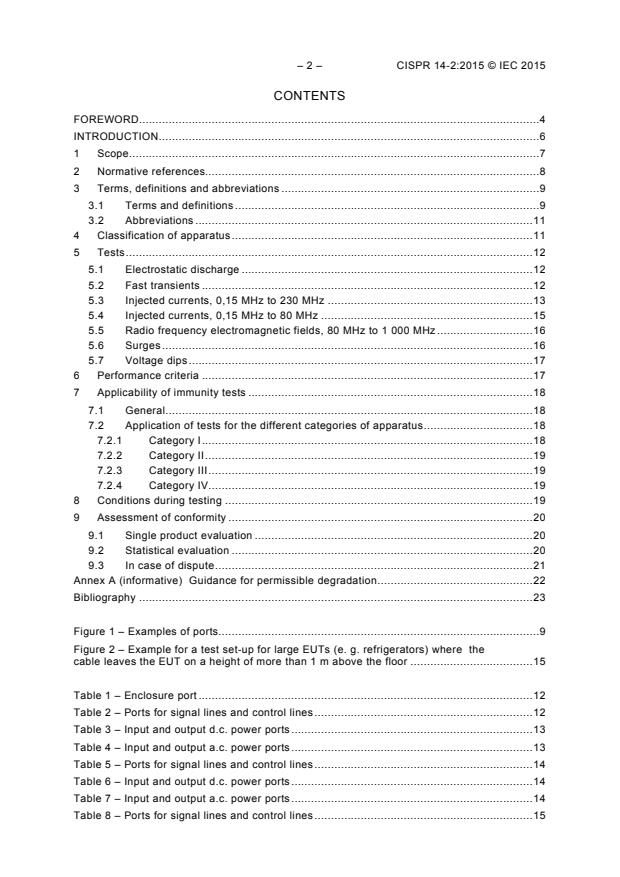

CONTENTS
