IEC 61169-70:2024

IEC 61169-70 ®
Edition 1.0 2024-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Radio-frequency connectors –
Part 70: Sectional specification for series HD-BNC radio-frequency coaxial
connectors – Characteristic Impedance 75 Ω

Connecteurs pour fréquences radioélectriques –
Partie 70 : Spécification intermédiaire pour les connecteurs coaxiaux pour
fréquences radioélectriques de la série HD-BNC – Impédance caractéristique de
75 Ω
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.

IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.

Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need

further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC -  IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications, symboles
en utilisant différents critères (numéro de référence, texte, graphiques et le glossaire. Avec un abonnement, vous aurez
comité d’études, …). Elle donne aussi des informations sur les toujours accès à un contenu à jour adapté à vos besoins.
projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au monde,
Restez informé sur les nouvelles publications IEC. Just
avec plus de 22 500 articles terminologiques en anglais et en
Published détaille les nouvelles publications parues.
français, ainsi que les termes équivalents dans 25 langues
Disponible en ligne et une fois par mois par email.
additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC 61169-70 ®
Edition 1.0 2024-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Radio-frequency connectors –
Part 70: Sectional specification for series HD-BNC radio-frequency coaxial

connectors – Characteristic Impedance 75 Ω

Connecteurs pour fréquences radioélectriques –

Partie 70 : Spécification intermédiaire pour les connecteurs coaxiaux pour

fréquences radioélectriques de la série HD-BNC – Impédance caractéristique de

75 Ω
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.220  ISBN 978-2-8322-8278-6

– 2 – IEC 61169-70:2024 © IEC 2024

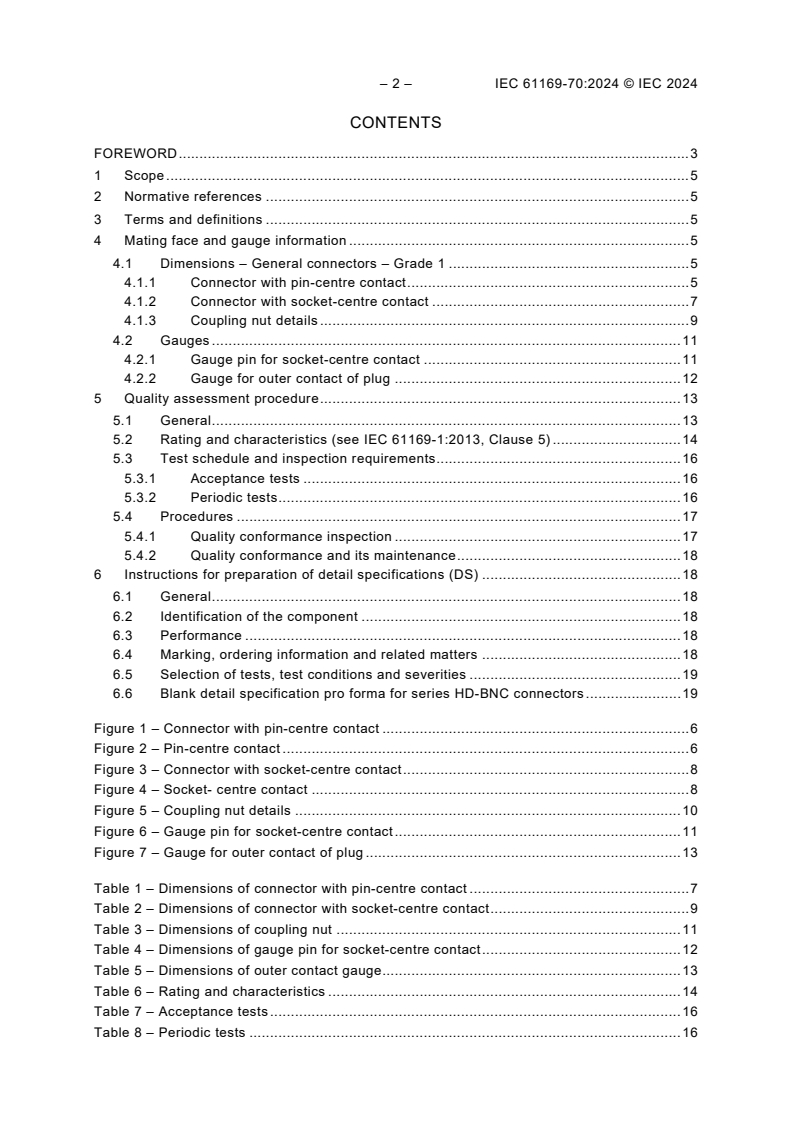

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Mating face and gauge information . 5
4.1 Dimensions – General connectors – Grade 1 . 5
4.1.1 Connector with pin-centre contact . 5
4.1.2 Connector with socket-centre contact . 7
4.1.3 Coupling nut details . 9
4.2 Gauges . 11
4.2.1 Gauge pin for socket-centre contact . 11
4.2.2 Gauge for outer contact of plug . 12
5 Quality assessment procedure . 13
5.1 General . 13
5.2 Rating and characteristics (see IEC 61169-1:2013, Clause 5) . 14
5.3 Test schedule and inspection requirements. 16
5.3.1 Acceptance tests . 16
5.3.2 Periodic tests . 16
5.4 Procedures . 17
5.4.1 Quality conformance inspection . 17
5.4.2 Quality conformance and its maintenance . 18
6 Instructions for preparation of detail specifications (DS) . 18
6.1 General . 18
6.2 Identification of the component . 18
6.3 Performance . 18
6.4 Marking, ordering information and related matters . 18
6.5 Selection of tests, test conditions and severities . 19
6.6 Blank detail specification pro forma for series HD-BNC connectors . 19

Figure 1 – Connector with pin-centre contact . 6
Figure 2 – Pin-centre contact . 6
Figure 3 – Connector with socket-centre contact . 8
Figure 4 – Socket- centre contact . 8
Figure 5 – Coupling nut details . 10
Figure 6 – Gauge pin for socket-centre contact . 11
Figure 7 – Gauge for outer contact of plug . 13

Table 1 – Dimensions of connector with pin-centre contact . 7
Table 2 – Dimensions of connector with socket-centre contact . 9
Table 3 – Dimensions of coupling nut . 11
Table 4 – Dimensions of gauge pin for socket-centre contact . 12
Table 5 – Dimensions of outer contact gauge. 13
Table 6 – Rating and characteristics . 14
Table 7 – Acceptance tests . 16
Table 8 – Periodic tests . 16

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RADIO-FREQUENCY CONNECTORS –
Part 70: Sectional specification for series HD-BNC radio-frequency
coaxial connectors – Characteristic impedance 75 Ω

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 61169-70 has been prepared by subcommittee 46F: RF and microwave passive
components, of IEC technical committee 46: Cables, wires, waveguides, RF connectors, RF
and microwave passive components and accessories. It is an International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
46F/657/FDIS 46F/664/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.

– 4 – IEC 61169-70:2024 © IEC 2024
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts of the IEC 61169 series, under the general title: Radio-frequency connectors,
can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
RADIO-FREQUENCY CONNECTORS –
Part 70: Sectional specification for series HD-BNC radio-frequency
coaxial connectors – Characteristic impedance 75 Ω

1 Scope
This part of IEC 61169, which is a sectional specification (SS), provides information and rules
for the preparation of detail specifications (DS) of HD-BNC series RF coaxial connectors
together with the pro forma blank detail specification. HD-BNC series connectors with
characteristic impedance of 75 Ω are used with RF cables or micro-strips in microwave,
telecommunication, wireless and other fields. The operating frequency limit is up to 18 GHz.
It also prescribes mating face dimensions for general purpose connectors, gauging information
and tests selected from IEC 61169-1, applicable to all detail specifications relating to series
HD-BNC RF connectors.
This specification indicates the recommended performance characteristics to be considered
when writing a detail specification and it covers test schedules and inspection requirements for
assessment levels M and H.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61169-1:2013, Radio frequency connectors − Part 1: Generic specification − General
requirements and measuring methods
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
4 Mating face and gauge information
4.1 Dimensions – General connectors – Grade 1
4.1.1 Connector with pin-centre contact
The mating face of connector with pin-centre contact is shown in Figure 1 and Figure 2, and its
dimensions are given in Table 1. Metric dimensions are original dimensions. All undimensioned
pictorial information is for reference only.

– 6 – IEC 61169-70:2024 © IEC 2024

For dimensions, see Table 1.
NOTE Mechanical and electrical reference plane.
Figure 1 – Connector with pin-centre contact

For dimensions, see Table 1.
Figure 2 – Pin-centre contact
Table 1 – Dimensions of connector with pin-centre contact
mm
Ref. Notes
Min Max
Reference – Dimension to meet
a 3,73
gauge test per 4.2.2
b 3,61 Ref – Dimension to meet gauge test
c 3,49 Ref – Dimension to meet gauge test
d 2,80 2,85 Inner diameter of outer contact
e 3,71 -- Insulator
f 0,28 0,62
g 4,80 4,88
h 0,36 0,39
i 30° Angle
j 0,80 Ref
k 45° Angle
l 2,50 --
m -- 0,10 Flat
4.1.2 Connector with socket-centre contact
The mating face of connector with socket-centre contact is shown in Figure 3 and Figure 4, and
its dimensions are given in Table 2. Metric dimensions are original dimensions. All
undimensioned pictorial information is for reference only.

– 8 – IEC 61169-70:2024 © IEC 2024

For dimensions, see Table 2.
NOTE Mechanical and electrical reference plane.
Figure 3 – Connector with socket-centre contact

For dimensions, see Table 2.
NOTE Socket contact configuration to meet electrical and mechanical requirements.
Figure 4 – Socket- centre contact

Table 2 – Dimensions of connector with socket-centre contact
mm
Ref. Notes
Min Max
a 4,52 4,58
b 3,56 3,62
c -- 1,75
d 5,66 5,76
e 3,10 3,20
f 1,35 1,45
g 1,25 --
h 0,42 --
i 20° Angle
j 2,45 2,65 Contact
k 0,45 0,55
l -- 3,48
m 4,03 4,09
p 2,86 --
q 0,80
4.1.3 Coupling nut details
The details of the coupling nut for the pin-centre contact connector are shown in Figure 5, and
its dimensions are given in Table 3. Metric dimensions are original dimensions. All
undimensioned pictorial information is for reference only.

– 10 – IEC 61169-70:2024 © IEC 2024

For dimensions, see Table 3.
NOTE Front face.
Figure 5 – Coupling nut details

Table 3 – Dimensions of coupling nut
Ref. mm Notes
Min Max
a 6,30 6,35
b 3,10 3,20
c 1,62 Typical
d 0,81 Typical
e 4,62 4,72
f 7,65 7,85
g 2,48 2,58
h 0,55 Reference
i R 0,76 R 0,86 Typical
j 45° Reference Typical
k 0,92 Reference
l 0,77 0,87
m 1,58 1,68
n 3,02 3,12
o 4,65 4,75
4.2 Gauges
4.2.1 Gauge pin for socket-centre contact
4.2.1.1 Gauge pin dimensions
The gauge pin for socket contacts is shown in Figure 6, and its dimensions are given in Table 4.
Metric dimensions are original dimensions. All undimensioned pictorial information is for
reference only.
For dimensions, see Table 4.
Figure 6 – Gauge pin for socket-centre contact

– 12 – IEC 61169-70:2024 © IEC 2024
Table 4 – Dimensions of gauge pin for socket-centre contact
Gauge A Gauge B
(for measurement of retention force for
(for sizing purposes) inner conductor)
Mass of gauge: (14+2) g
mm mm
Ref.
Min Max Min Max
a -- 0,10 -- 0,10
b 0,390 0,395 0,360 0,365
c As needed As needed
d -- 2,00 -- 2,00
e 45 45
f 30 30
Material: steel, polished.
Surface roughness: Ra = 0,4 μm max.

4.2.1.2 Test procedure
The gauge A shall be inserted once into the socket-centre contact. This is a sizing operation.
After this, the gauge B shall be inserted into socket-centre contact. The contact shall support
the mass of the gauge in a vertical downward attitude.
4.2.1.3 Additional test
Following the sizing operation, and if prescribed in the detail specification (DS), the force
necessary to insert gauge A fully into the socket centre contact shall be measured. When this
test is required, the maximum permitted insertion force shall then be specified and shall not
exceed 6,67 N.
NOTE Gauge A is used for qualification approval tests only. The minimum diameter of gauge A corresponds to the
maximum diameter of a plug pin contact.
4.2.2 Gauge for outer contact of plug
4.2.2.1 Gauge ring dimensions
The gauge ring for outer contacts is shown in Figure 7, and its dimensions are given in Table 5.
Metric dimensions are original dimensions. All undimensioned pictorial information is for
reference only.
For dimensions, see Table 5.
Figure 7 – Gauge for outer contact of plug
Table 5 – Dimensions of outer contact gauge
Gauge A Gauge B
(for measurement of retention force for
(for sizing purposes)
outer conductor)
mm mm
Ref.
Min Max Min Max
a 3,55 3,56 3,62 3,63
b 0,45 0,55 -- --
Material: steel, polished.
Surface roughness: Ra = 0,4 μm max.

4.2.2.2 Test procedure
The sizing gauge A representing maximum material (smallest diameters) is applied once only
as in the standard procedure, but the force to remove the gauge shall also be measured. The
maximum force to remove the gauge shall be 20 N (2 kg).
The retention force gauge B representing minimum material (largest diameters) is then applied.
The mass of the gauge shall be 495 g (± 10 g) and the gauge shall be retained in the vertical
downward attitude.
4.2.2.3 Additional test
At the conclusion of the tests and if prescribed in the DS, the force necessary to insert gauge
A shall be measured. When this test is required, the force shall not exceed 13,3 N.
5 Quality assessment procedure
5.1 General
The following subclauses provide recommended ratings, performance and test conditions to be
considered when writing a detail specification (DS). They also provide an appropriate schedule
of tests with minimum levels of conformance inspection sampling, together with the pro forma
blank detail specification (BDS) and instructions for the preparation of a detail specification.

– 14 – IEC 61169-70:2024 © IEC 2024
5.2 Rating and characteristics (see IEC 61169-1:2013, Clause 5)
The values indicated in Table 6 are recommended for HD-BNC series RF coaxial connectors
and are given for the writer of the detail specification. They are applicable for the condition
when the connectors are fully mated.
Certain tests are listed without any recommended values being given. These tests will usually
not be required. When these tests are required, appropriate values shall be entered in the detail
specification at the discretion of the specification writer.
Table 6 – Rating and characteristics
Rating and characteristics Test method Value Remarks, deviations
IEC 61169‑1:2013 from standard test
Subclause method
Electrical
Nominal impedance 75 Ω
Frequency range
Grade 1 connectors
– straight styles Up to 18 GHz Or upper frequency

limit of cable
– right-angle styles Up to 18 GHz

– PCB mounting styles Up to 18 GHz

a
9.2.1
Return loss
Grade 1 connectors
– straight styles 0,05 GHz to 6 GHz:

≥20 dB
6 GHz to 12 GHz
≥15 dB
– right-angle styles See DS
– component mounting styles See DS

– PCB mounting styles See DS
b
9.2.3
Centre contact resistance
– initial ≤ 6,0 mΩ
– after conditioning ≤ 15,0 mΩ

b
9.2.3
Outer conductor continuity
– initial ≤ 3,0 mΩ
– after conditioning ≤ 9,0 mΩ
b
9.2.5
Insulation resistance
– initial ≥ 5 000 MΩ
– after conditioning ≥ 200 MΩ
c,d
9.2.6
Voltage proof at sea level
– uncabled styles 500 V
– cabled See DS
c,d
9.2.6 4,4 kPa approximately
Voltage proof at 4,4 kPa
equivalent to 20 km
– uncabled styles 150 V
– cabled See DS
c,d
9.2.6
Environmental test voltage at sea level

– uncabled styles 170 V
– cabled See DS
Rating and characteristics Test method Value Remarks, deviations
IEC 61169‑1:2013 from standard test
Subclause method
c,d
9.2.6 4,4 kPa approximately
Environmental test voltage at 4,4 kPa

equivalent to 20 km
– uncabled styles 45 V
– cabled See DS
Mechanical
Gauge retention force (resilient contacts) 9.3.4

– centre ≥ 0,14 N
– outer ≥ 4,86 N
Centre contact captivation 9.3.5

– axial force ≥ 7 N Interface dimensions

shall remain as
– torque See DS
specified.
Engagement and separation forces and 9.3.6
torques
– engagement force ≤ 20 N
– separation force ≥ 5 N
Technical tests on cable fixing

– cable rotation (nutation) 9.3.7 See DS

– cable pulling 9.3.8 See DS
– cable bending 9.3.9 See DS
– cable torsion 9.3.10 See DS

Tensile strength of coupling mechanism 9.3.11  ≥ 266 N

f
Bending moment 9.3.12
na
Vibration 9.3.3 15 g
150 m/s
n
Shock 9.3.14 (10 to 2 000) Hz 50 g
n
500 m/s
1/2 sine wave
11 ms
Environmental
e
55/125/21
Climatic category
f
Sealing non-hermetic 9.4.7
na
Salt mist 9.4.10 48 h spray
Endurance
Mechanical endurance 9.3.15 500 operations

e
9.4.5 250 h at 125 °C
High temperature endurance
a
These values apply to basic connector. In practice, these can be influenced by the cable used and reference
should always be made to the actual values given in the detail specification.
b
Values for a single pair of connectors.
c
Voltages are RMS values of AC at 40 Hz to 65 Hz, unless otherwise specified.
d
Some cables usable with these connectors have ratings lower than the values given here.
e
For certain connectors, the upper temperature limit is restricted by the cable characteristics. Reference should
be made to the relevant cable specification. When semi-rigid and semi-flexible cables are used, the upper
temperature is limited to 115 °C maximum.
f
na = not applicable.
– 16 – IEC 61169-70:2024 © IEC 2024
5.3 Test schedule and inspection requirements
5.3.1 Acceptance tests
Table 7 describes the acceptance tests to be performed.
Table 7 – Acceptance tests
Test method Assessment level M (higher) Assessment level H (lower)
IEC 61169-1:2013
Test IL AQL Period Test IL AQL Period
Subclause
required % required %
Group A1
Visual examination 9.1.1 a II 1,0 a S3 1,5

Group B1
Outline dimension 9.1.2 a S4 0,40 a S3 4,0
Lot Lot
Mechanical compatibility 9.1.2.2 a II 1,0 a S3 1,5

Engagement and separation 9.3.6 a S4 0,40 a S3 1,5

Gauge retention (resilient 9.3.4 ia II 1,0 ia S3 1,5

contacts)
By By
Sealing
non-hermetic 9.4.7 ia II 0,65 ia S3 1,0

hermetic 9.4.8 ia II 0,015 ia S3 0,025
Lot Lot
Voltage proof 9.2.6 a II 0,40 a II 4,0
Solderability (d) 9.3.2.2 ia S4 0,40 ia S3 4,0
Insulation resistance 9.2.5 a S4 0,40 a S3 4,0
For the symbols, abbreviations and procedures, see the end of Table 8.

5.3.2 Periodic tests
Table 8 describes the periodic tests to be performed.
There are no group C tests for levels H and M.
Table 8 – Periodic tests
Test Assessment level M (higher) Assessment level H (lower)
method
Test Number of Permitted Period Test Number of Permitted Period
IEC 61169-
required specimens failures required specimens failures
1:2013
per group# per group#
Subclause
Group D1 (d)  6 1 3 years 3 1 3 years
Solderability 9.3.2.1 ia  ia
connector
assemblies
Resistance to 9.3.2.3 ia  ia
soldering heat
Mechanical tests
on cable fixing
– cable rotation 9.3.7 ia  ia
(nutation)
– cable pulling 9.3.8 ia  ia
– cable bending 9.3.9 ia  ia
– cable torsion 9.3.10 ia  ia

Test Assessment level M (higher) Assessment level H (lower)
method
Test Number of Permitted Period Test Number of Permitted Period
IEC 61169-
required specimens failures required specimens failures
1:2013
per group# per group#
Subclause
Group D2 (d)  6 1 3 years 3 1 3 years
Contact 9.2.3 a  a
resistance, outer
conductor and
centre conductor
continuity
Vibration 9.3.3 a
Damp heat, 9.4.3 a  a
steady state
Group D3 (d)  1* 0 3 years 1* 0 3 years
Dimensions 9.1.2 a  a
piece-parts and
materials
Group D4 (d)  6 1 3 years 3 1 3 years
Mechanical 9.3.15 a  a
endurance
High tempera- 9.4.5 a  a
ture endurance
Discharge test 9.2.8 na  na
Sulphur dioxide 9.4.12 na  na
Group D5 (d)  6 1 3 years 3 1 3 years
Return loss 9.2.1 a  a
Screening 9.2.7 a  a
effectiveness
Water immersion 9.4.9 ia  ia
Group D6 (d)  6 1 3 years 3 1 3 years
Contact 9.3.5 a  a
captivation
Rapid change of 9.4.4 na  na
temperature
Climatic 9.4.2 a  a
sequence
Group D7 (d)  1§ 0 3 years
Salt mist 9.4.10 a
Details of symbols, abbreviations and procedures:
a = suggested as applicable
ia = test suggested (if technically applicable)
na = not applicable
IL = inspection level
AQL = acceptable quality level
* = one set of piece-parts each style and variant, unless using common piece parts
# = for Qualification Approval (QA), a total of two failures only permitted for level H and 1 failure only for level M from
groups D1 to D7
§ = Group D7 – number of pairs for each solvent
(d) = destructive tests – specimens shall not be returned to stock

5.4 Procedures
5.4.1 Quality conformance inspection
This shall consist of test group A1 and B1 on a lot-by-lot basis.

– 18 – IEC 61169-70:2024 © IEC 2024
5.4.2 Quality conformance and its maintenance
This shall consist of three consecutive lots passing test groups A1 and B1 followed by selection
of specimens from the lots as appropriate. These specimens shall successfully pass the
specified periodic D tests.
6 Instructions for preparation of detail specifications (DS)
6.1 General
Detail specifications (DS) writers shall use the appropriate blank detail specification (BDS). The
following pages comprise the BDS dedicated for use with 75 Ω Type HD-BNC connectors. As
such it will already have entered on it information in relation to:
a) the basic specification number applicable to all the detail specifications covering connector
styles of the series covered by the sectional specification;
b) the connector series designation.
The specification writer should enter the details relating to the connector style to be covered as
indicated. The numbers in brackets in the BDS correspond to the following indications, which
shall be given.
6.2 Identification of the component
(1) Enter the following details:
– Style: the style designation of the connector including type of fixing and sealing if
applicable.
– Attachment: by deletion of the inapplicable options of cable/wire given for centre and
outer conductors.
– Special features and markings: as applicable.
– Series designation: in bold characters/digits approximately 15 mm high.
(2) Enter detail of assessment level and the climatic category.
(3) A reproduction of the outline drawing and details of the panel piercing (if applicable). It
shall provide the maximum envelope dimensions, also the position of the reference plane
and, in the case of a fixed connector, the position of the mounting plane(s) relative to
the front face of the connector.
(4) Any maximum panel thickness limitations for fixed connectors shall be stated.
(5) Particulars of all variants covered by the DS. As appropriate, the information shall
include
– cable type (or sizes) applicable to each variant,
– alternative plated or protective finishes,
– details of alternative mounting flanges having either tapped or plain mounting holes,
– details of alternative solder spills or solder buckets including, when applicable, those
for use with microwave integrated circuit (MIC) components.
6.3 Performance
(6) Performance data listing the most important characteristics of the connector in
accordance with the requirements of the relevant sectional specification. Deviations from
the minimum requirements shall be clearly indicated. Non-applicable parameters shall
be marked "na".
6.4 Marking, ordering information and related matters
(7) Insert marking and ordering information as appropriate together with details of related
documents and any invoked structural similarity.

6.5 Selection of tests, test conditions and severities
(8) "na" shall be used to indicate non-applicable tests. All tests marked "a" by detail
specification writer shall be mandatory.
When using the normal procedure with a dedicated BDS, the letter "a" − for applicable
– shall be entered in the "test required" column against each of the tests indicated as
being mandatory in the test schedule of the relevant sectional specification. Any
additional test required at the discretion of the specification writer shall also be indicated
by an "a".
The specification writer shall also indicate, when necessary, details of deviations from
the standard test conditions, including any relevant deviations given in the test schedule
of the sectional specification.
6.6 Blank detail specification pro forma for series HD-BNC connectors
The following pages contain the complete BDS pro-forma.
(9) Performance (including limiting conditions of use)
(1) Page 1 of ….(2)
ELECTRONIC COMPONENT OF ASSESSED (3).
QUALITY IN ACCORDANCE WITH
(4).
GENERIC SPECIFICATION IEC 61169-1:2013
NATIONAL REFERENCE
(5) Detail specification for radio frequency coaxial connector of Type HD-BNC
assessed quality
Style:. Special features and markings
Method of cable/wire+ attachment Centre conductor – solder/crimp+
Outer conductor – solder/clamp/crimp +
+ Delete as appropriate
(6) Assessment level. Characteristic impedance 75 Ω Climatic category./././
(7) Outline and maximum dimensions Panel piercing and mounting details
(8) Variants
Variant No. Description of 61196 IEC
variant
01. . . . .
............. ............. .............
............. ............. .............
............. ............. ............. ............. ............. .............
............. ............. ............. ............. ............. .............
............. ............. ............. ............. ............. .............
............. ............. ............. ............. ............. .............
............. ............. ............. ............. ............. .............
............. ............. ............. ............. ............. .............
............. ............. ............. ............. .............
.............
Information about manufacturers who have components qualified under the IECQ Conformity Assessment
System is available through the IECQ on-line certificate system.

– 20 – IEC 61169-70:2024 © IEC 2024
Remarks including any
IEC 61169-1:2013
Ratings and characteristics Value deviations from standard test
Subclause
methods
Electrical
Nominal impedance  …75 Ω
Frequency range  ….GHz Measurement frequency range
Return loss Variant No. 9.2.1
Designation
01.
........... ........... ...........
........... ...........
Centre contact resistance 9.2.3 ≤ .mΩ Initial
After conditioning
≤.mΩ
Centre conductor 01. 9.2.4 .mΩ Resistance change due to
continuity . .mΩ conditioning
............ .............mΩ
.............. .............mΩ
Outer contact continuity 9.2.4 Initial
≤ .mΩ
After conditioning
≤.mΩ
Insulation resistance 9.2.5 ≥.GΩ Initial
After conditioning
≥.GΩ
+ Proof voltage at sea 01. 9.2.6 .kV 86 kPa to 106 kPa
level . .kV
............ ..............kV
.............. ..............kV
+ Proof voltage at 4,4 kPa 01. 9.2.6 .V .kPa (if not 4,4 kPa)
........... ...............V
............ ...............V
.............. ...............V
Screening effectiveness 01. 9.2.7 .dB at.GHz Z ≤. mΩ
t
...........
............
..............
Discharge test (corona) at 01. 9.2.8 ≥. V Extinction voltage
sea level .
≥. V
............
≥. V
..............
≥. V
Additional electrical
Characteristics
+ Voltage values are RMS values at 75 Hz to 60 Hz, unless otherwise specified.

Remarks including any
IEC 61169-1:2013
Ratings and characteristics Value deviations from standard test
Subclause
methods
Mechanical
Soldering 9.3.2
– bit size .
Gauge retention resilient  For gauging details, see
contacts 9.3.4
................N Figure 6 and Table 4
– inner contact
................N
– outer contact
Figure 7 and Table 5
Centre contact captivation 9.3.5
– axial force .N
– permitted displacement .mm
in each direction
– torque .Nm
Engagement and 9.3.6
separation
– axial force
Strength of coupling 9.3.11 ……………N
mechanism
Effectiveness of cable
fixing against
– cable rotation 01. 9.3.7 Rotations
........... .................
............ ..................
.............. .................
– cable pulling 01. 9.3.8 .N
........... ...........
............ ............
.............. ..............
– cable bending 01. 9.3.9 .cycles Length of cable and mass
........... ........... ................. ..........
............ ............ ................. ..........
.............. .............. ................. ..........
– cable torsion 01. 9.3.10 .…Nm
........... ...........
............ ............
.............. ..............
Bending moment 9.3.12 .…Nm Relative to reference plane
Bumps total 9.3.13 (.g acceleration)
........…m/s
n
…….to…. Hz
Vibration 9.3.3 (.g acceleration)
........…m/s
n
......to..….. Hz
Shock 9.3.14 (.g acceleration)
........…m/s
n
........…Shape
........…ms
Additional mechanical
characteristics
– 22 – IEC 61169-70:2024 © IEC 2024
Remarks including any
IEC 61169-1
Ratings and characteristics Value deviations from standard test
Subclause
methods
Environmental
Climatic category  ././.
Sealing non-hermetically 9.4.7 100 kPa to 110 kPa pressure
......cm /h
sealed connectors differential
Water immersion 9.4.9
Salt mist 9.4.10 ……… h Duration of spraying
Additional environmental
characteristics
Endurance
Mechanical 9.3.15 ….operations
High temperature 9.4.5 .h
at.°C
Additional endurance
characteristics
Chemical contamination
Resistance to solvents and 9.4.11 .
contaminating fluids to be .
used. .
...............
Applicable fluids.
...............
...............
...............
Sulphur dioxide 9.4.12 . days

(10) Supplementary information
‒ Marking of the component: in accordance with IEC 61169-1:2013, 11.1 in the following order of
procedure
1) Identity of manufacture: . .….………………………………………………….
2) Manufacturing date code  year /week
3) Component identification variant No./designation Identification
............................. .....................
............................. .....................
............................. .....................
............................. .....................
............................. .....................
............................. .....................
............................. .....................
............................. .....................
............................. .....................
‒ Marking and contents of package: in accordance with IEC 61169-1:2013, 11.2
1) Information prescribed in IEC 61169-1:2013, 11.1 detailed above
2) Nominal characteristic impedance . 75 Ω
3) Assessment level code letter .
4) Any additional marking required .
‒ Ordering information:
1) Number of the detail specification ………………… / variant code…………………
2) Assessment level code letter .
3) Body finish (if more than one listed) .
...
