EUROPEAN STANDARD EN 60598-2-5

NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2015
ICS 29.140.40 Supersedes EN 60598-2-5:1998
English Version
Luminaires - Part 2-5: Particular requirements - Floodlights
(IEC 60598-2-5:2015)
Luminaires - Partie 2-5: Exigences particulières - Leuchten - Teil 2: Besondere Anforderungen -
Projecteurs Hauptabschnitt 5: Scheinwerfer
(IEC 60598-2-5:2015) (IEC 60598-2-5:2015)
This European Standard was approved by CENELEC on 2015-09-10. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 60598-2-5:2015 E

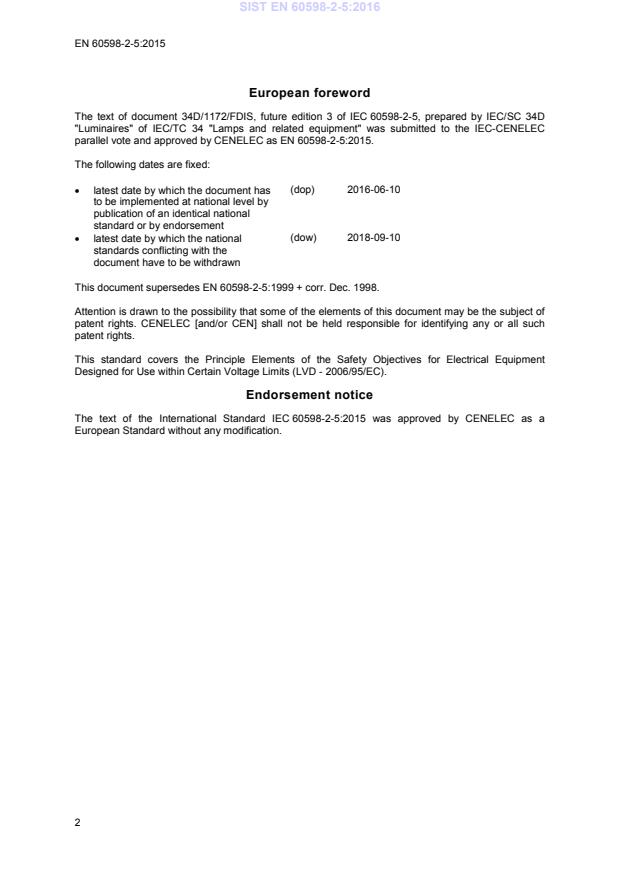

European foreword
The text of document 34D/1172/FDIS, future edition 3 of IEC 60598-2-5, prepared by IEC/SC 34D
"Luminaires" of IEC/TC 34 "Lamps and related equipment" was submitted to the IEC-CENELEC
parallel vote and approved by CENELEC as EN 60598-2-5:2015.
The following dates are fixed:
• latest date by which the document has (dop) 2016-06-10
to be implemented at national level by
publication of an identical national
standard or by endorsement
(dow) 2018-09-10
• latest date by which the national
standards conflicting with the
document have to be withdrawn
This document supersedes EN 60598-2-5:1999 + corr. Dec. 1998.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
This standard covers the Principle Elements of the Safety Objectives for Electrical Equipment
Designed for Use within Certain Voltage Limits (LVD - 2006/95/EC).
Endorsement notice
The text of the International Standard IEC 60598-2-5:2015 was approved by CENELEC as a
European Standard without any modification.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60068-2-75 -  Environmental testing - Part 2-75: Tests - EN 60068-2-75 -
Test Eh: Hammer tests
IEC 60598-1 -  Luminaires -- Part 1: General requirements EN 60598-1 -
and tests
IEC 62262 -  Degrees of protection provided by EN 62262 -
enclosures for electrical equipment against
external mechanical impacts (IK code)

IEC 60598-2-5 ®
Edition 3.0 2015-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Luminaires –
Part 2-5: Particular requirements – Floodlights

Luminaires –
Partie 2-5: Exigences particulières – Projecteurs

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.40 ISBN 978-2-8322-2821-0

– 2 – IEC 60598-2-5:2015 © IEC 2015
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
5.1 Scope . 6
5.2 Normative references . 6
5.3 Terms and definitions . 6
5.4 Classification of Iuminaires . 6
5.5 Marking . 7
5.6 Construction . 7
5.7 Creepage distances and clearances . 10
5.8 Provision for earthing . 10
5.9 Terminals . 10
5.10 External and internal wiring . 10
5.11 Protection against electric shock . 10
5.12 Endurance tests and thermal tests . 10
5.13 Resistance to dust and moisture . 11
5.14 Insulation resistance and electric strength . 11
5.15 Resistance to heat, fire and tracking . 11
Annex A (informative) Schedule of amended clauses containing more serious/critical

requirements which require products to be retested . 12

Figure 1 – Counting particles at the edge of the square . 9

IEC 60598-2-5:2015 © IEC 2015 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LUMINAIRES –
Part 2-5: Particular requirements – Floodlights

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60598-2-5 has been prepared by subcommittee 34D: Luminaires, of
IEC technical committee 34: Lamps and related equipment.
This third edition cancels and replaces the second edition published in 1998, and constitutes a
technical revision.
This edition includes the following significant technical changes with respect to the previous
edition: it introduces requirements for the glass breaking test.

– 4 – IEC 60598-2-5:2015 © IEC 2015
The text of this standard is based on the following documents:
FDIS Report on voting
34D/1172/FDIS 34D/1180/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This standard is to be read in conjunction with IEC 60598-1: Luminaires – Part 1: General
requirements and tests.
A list of all the parts in the IEC 60598 series, published under the general title Luminaires can
be found on the IEC website.
NOTE In this standard, the following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
The committee has decided that the contents of this publication will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IEC 60598-2-5:2015 © IEC 2015 – 5 –
INTRODUCTION
The mechanical stress on floodlights is similar to the mechanical stress on
...
