CLC/TS 50612:2013

SLOVENSKI STANDARD
01-marec-2014
3UHQRVQLHOHNWULþQLDSDUDWL]DPHULWYHSDUDPHWURY]JRUHYDOQLKGLPQLKSOLQRY
8SRUDEDSULL]URþDQMXYREUDWRYDQMHVHUYLVLUDQMXLQY]GUåHYDQMXSOLQVNLKNRWORY
Portable electrical apparatus for the measurement of combustion flue gas parameters -
Use in the process of commissioning, servicing and maintaining gas fired boilers
7UDJEDUHHOHNWULVFKH*HUlWH]XU0HVVXQJYRQ9HUEUHQQXQJVSDUDPHWHUQ(LQVDW]IU
,QEHWULHEQDKPH:DUWXQJXQG,QVWDQGVHW]XQJ
YRQJDVEHIHXHUWHQ+HL]XQJVDQODJHQ
Appareils électriques portatifs pour la mesure des paramètres des gaz de combustion
dans les conduits d'évacuation - Utilisation dans le processus de mise en service,
entretien et maintenance des chaudières à gaz
Ta slovenski standard je istoveten z: CLC/TS 50612:2013
ICS:
13.040.40 (PLVLMHQHSUHPLþQLKYLURY Stationary source emissions
91.140.10 Sistemi centralnega Central heating systems
ogrevanja
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

TECHNICAL SPECIFICATION
CLC/TS 50612
SPÉCIFICATION TECHNIQUE
December 2013
TECHNISCHE SPEZIFIKATION
ICS 13.040.40; 91.140.10
English version
Portable electrical apparatus for the measurement of combustion flue gas
parameters -
Guide to their use in the process of commissioning, servicing and
maintaining gas fired central heating boilers

Appareils électriques portatifs pour la Tragbare elektrische Geräte zur Messung
mesure des paramètres des gaz de von Verbrennungsparametern -
combustion dans les conduits Einsatz für Inbetriebnahme, Wartung und
d'évacuation - Instandsetzung von gasbefeuerten
Utilisation dans le processus de mise en Heizungsanlagen
service, entretien et maintenance des
chaudières à gaz
This Technical Specification was approved by CENELEC on 2013-11-18.

CENELEC members are required to announce the existence of this TS in the same way as for an EN and to
make the TS available promptly at national level in an appropriate form. It is permissible to keep conflicting
national standards in force.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

CEN-CENELEC Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2013 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. CLC/TS 50612:2013 E

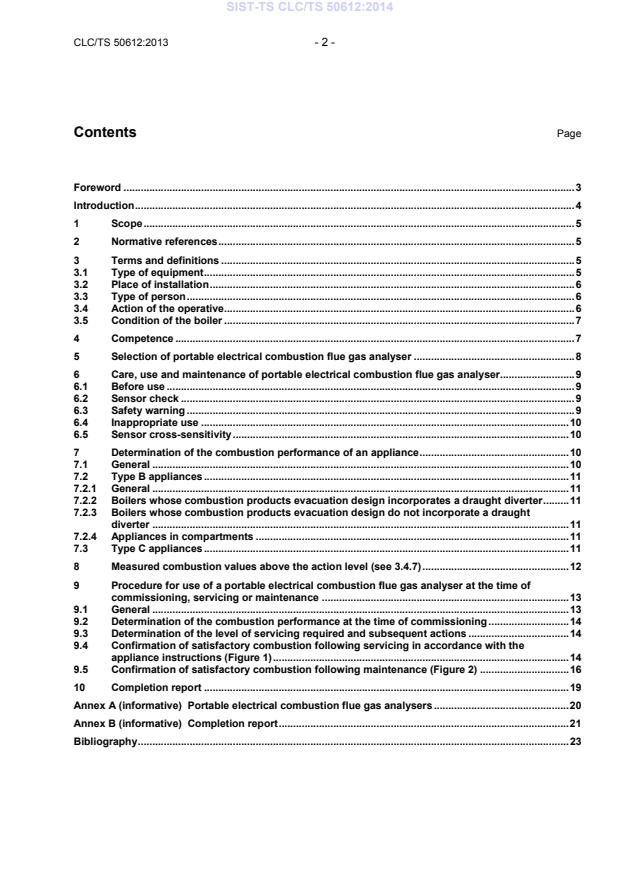

Contents Page
Foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
3.1 Type of equipment . 5
3.2 Place of installation . 6
3.3 Type of person . 6
3.4 Action of the operative. 6
3.5 Condition of the boiler . 7
4 Competence . 7
5 Selection of portable electrical combustion flue gas analyser . 8
6 Care, use and maintenance of portable electrical combustion flue gas analyser. 9
6.1 Before use . 9
6.2 Sensor check . 9
6.3 Safety warning . 9
6.4 Inappropriate use . 10
6.5 Sensor cross-sensitivity . 10
7 Determination of the combustion performance of an appliance . 10
7.1 General . 10
7.2 Type B appliances . 11
7.2.1 General . 11
7.2.2 Boilers whose combustion products evacuation design incorporates a draught diverter . 11
7.2.3 Boilers whose combustion products evacuation design do not incorporate a draught
diverter . 11
7.2.4 Appliances in compartments . 11
7.3 Type C appliances . 11
8 Measured combustion values above the action level (see 3.4.7) . 12
9 Procedure for use of a portable electrical combustion flue gas analyser at the time of
commissioning, servicing or maintenance . 13
9.1 General . 13
9.2 Determination of the combustion performance at the time of commissioning . 14
9.3 Determination of the level of servicing required and subsequent actions . 14
9.4 Confirmation of satisfactory combustion following servicing in accordance with the
appliance instructions (Figure 1) . 14
9.5 Confirmation of satisfactory combustion following maintenance (Figure 2) . 16
10 Completion report . 19
Annex A (informative) Portable electrical combustion flue gas analysers . 20
Annex B (informative) Completion report . 21
Bibliography . 23

- 3 - CLC/TS 50612:2013
Foreword
This document (CLC/TS 50612:2013) has been prepared by CLC/TC 216 "Gas detectors" together with
CEN/TC 109 "Central heating boilers using gaseous fuels".
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CENELEC by the European Commission and
the European Free Trade Association.
NOTE Commentary text is presented in italic type. It gives background information and does not constitute a
normative element.
Introduction
This Technical Specification is intended as a guide for operatives who, in the course of their professional
activities, are required to measure combustion parameters of gas-fired central heating boilers using
combustion flue gas analysers during any or all of the commissioning, servicing and maintenance of such
appliances.
It is intended to complement the following through a generic approach:
a) the appliance commissioning, servicing and maintenance instructions, and/or
b) national or local regulations or standards.
NOTE 1 A Technical Specification is announced and made available at national level, but conflicting national standards
may continue to exist.
NOTE 2 Existing national or local regulations or standards conflicting with the guidance in this Technical Specification
have precedence over this guidance.
It is not intended that a combustion gas analysis be used as a substitute for commissioning, servicing and/or
maintenance carried out in accordance with the appliance instructions. It is to be regarded and used as a
diagnostic tool to confirm satisfactory combustion to help in the process of carrying out these activities to
ensure the safe and efficient operation of the boiler installation.
In the preparation of this Technical Specification, it has been assumed that the execution of its provisions will
be entrusted to competent operatives, (see Clause 4) for whose use it has been produced.

- 5 - CLC/TS 50612:2013
1 Scope
This Technical Specification provides guidance on the selection, use and maintenance of portable electrical
apparatus conforming to EN 50379-1 [4] and EN 50379-2 [5] or EN 50379-3 [6] designed to measure
combustion flue gas parameters of Type B and Type C gas-fired central heating boilers (hereafter referred to
st nd rd
as boilers) using 1 , 2 or 3 family gases in domestic premises as a diagnostic instrument to assist an
operative:
a) in confirming satisfactory combustion at the time of commissioning, in accordance with appliance
instructions or national or local regulations or standards;
b) in confirming satisfactory combustion at the time of servicing in accordance with national or local
regulations or standards or following servicing in accordance with appliance instructions;
c) in confirming satisfactory combustion following maintenance, in accordance with appliance instructions or
national or local regulations or standards.
NOTE 1 Type B and Type C classification of gas-fired appliances are described in CEN/TR 1749 [1].
NOTE 2 Existing national or local regulations or standards conflicting with the guidance in this Technical Specification
have precedence over this guidance.
NOTE 3 It is not the intention of this Technical Specification to suggest that portable electrical combustion flue gas
analysers are to be used as a substitute for normal service and maintenance carried out in accordance with the appliance
instructions. Clause 9 describes how analysers can be used in conjunction with the appliance instructions.
NOTE 4 EN 50379-1 [4] specifies general requirements for the construction, testing and performance of portable spot
reading apparatus designed to check the combustion performance of heating appliances in domestic premises, using
commercially available fuels.
NOTE 5 EN 50379-2 [5] is for apparatus intended to be used for statutory measurements. In several European
countries, legal requirements exist for the performance of heating appliances (see informative Annex A of
EN 50379-1:2012 [4]). Legal consequences resulting from performance measurements makes for strict requirements for
the apparatus used (see normative Annexes B and C of EN 50379-1:2012 [4]).
NOTE 6 EN 50379-3 [6] is for apparatus intended to be used for non-statutory applications, which allows for reduced
performance requirements for the portable electrical apparatus.
NOTE 7 This Technical Specification deals with the determination of levels of combustion gases such as carbon
monoxide (CO) and carbon dioxide (CO ) in combustion products from boilers. Combustion products from boilers will
contain nitrogen oxides (NO ), predominantly nitrogen monoxide (nitric oxide, NO) and nitrogen dioxide (NO ). This
X 2
Technical Specification does not deal with the measurement of combustion products such as NO and aldehydes.
X
2 Normative references
Not applicable.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1 Type of equipment
3.1.1
portable electrical combustion flue gas analyser
apparatus that will detect and measure the concentrations of components in combustion gases and clearly
display the result
Note 1 to entry: Clause 5 and Annex A provide information on suitable portable electrical combustion flue gas analysers.

3.1.2
boiler
unit placed on the market as a complete appliance designed to deliver safely and effectively the heating
service claim
...
