EN 50066:1992
(Main)Mini-couplers for the interconnection of electrical mains supplied equipment in road vehicles
- BACK
- 01-Sep-1992
- CLC/TC 23H
Mini-couplers for the interconnection of electrical mains supplied equipment in road vehicles
This standard specifies general safety requirements for mini-couplers with a rated current of 16 A and a rated voltage of 250 V a.c. single phase, applies for the interconnection of mains supplied equipment in road vehicles e.g. to supply electrical heaters, battery chargers and cab heaters. This standard may also be used for mini-couplers for other similar applications. The standard does not apply to devices used in flexible supply cables for the connection of household electrical appliances and the like to their supply. The introduction of requirements for mini-couplers for 440 V three phase is under consideration. It should borne in mind that aspects of product liability will have to be considered in conjunction with the use of mini-couplers
Steckvorrichtungen für das Verbinden der elektrischen Einrichtungen mit Netzanschluß in Kraftwagen, Omnibussen und dergleichen
Mini-conducteurs d'interconnexion de l'équipement électrique raccordé au réseau dans les automobiles, autocars, caravanes et véhicules analogues
Mini-couplers for the interconnection of electrical mains supplied equipment in road vehicles
General Information

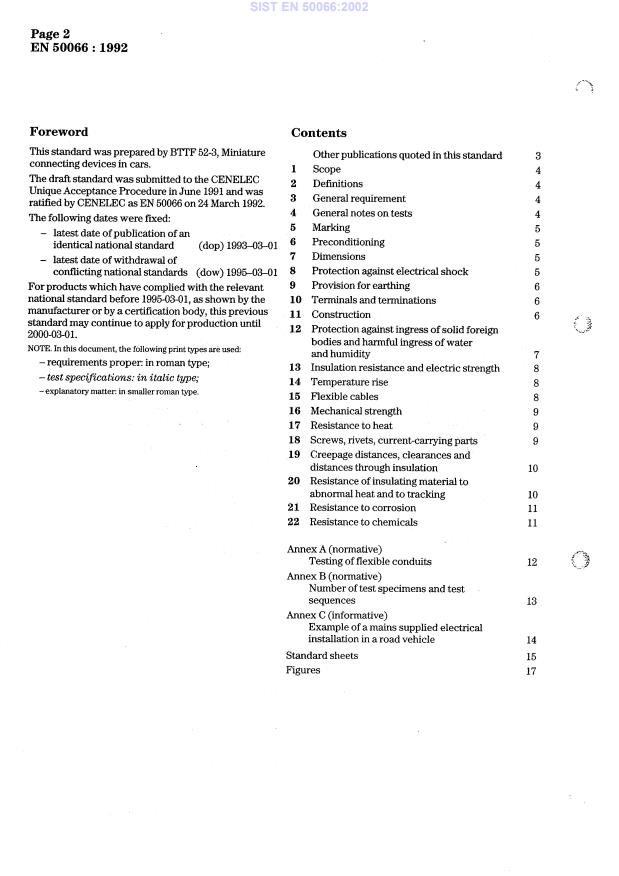

Standards Content (Sample)
SLOVENSKI STANDARD
01-maj-2002
Mini-couplers for the interconnection of electrical mains supplied equipment in
road vehicles
Mini-couplers for the interconnection of electrical mains supplied equipment in road
vehicles
Steckvorrichtungen für das Verbinden der elektrischen Einrichtungen mit Netzanschluß
in Kraftwagen, Omnibussen und dergleichen
Mini-conducteurs d'interconnexion de l'équipement électrique raccordé au réseau dans
les automobiles, autocars, caravanes et véhicules analogues
Ta slovenski standard je istoveten z: EN 50066:1992
ICS:
29.120.30 9WLþLYWLþQLFHVSRMNH Plugs, socket-outlets,
couplers
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---
...
