Standards Content (Sample)


SLOVENSKI STANDARD
01-december-2012
(OHNWURDNXVWLND0HWRGH]DGRORþDQMHSRSUDYNRY]DUDGL]DJRWRYLWYHRG]LYDQMD
PHULOQLND]YRþQHUDYQLYRGSUWHPSURVWRUX
Electroacoustics - methods to determine corrections to obtain the free-field response of a
sound level meter
Elektroakustik - Verfahren zur Ermittlung von Korrekturwerten für die Bestimmung des
Freifeld-Frequenzgangs eines Schallpegelmessers
Electroacoustique - méthode de détermination de corrections pour obtenir la réponse en
champ libre d'un sonomètre
Ta slovenski standard je istoveten z: EN 62585:2012
ICS:
17.140.50 Elektroakustika Electroacoustics
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 62585
NORME EUROPÉENNE
October 2012
EUROPÄISCHE NORM
ICS 17.140.50
English version
Electroacoustics -
Methods to determine corrections to obtain the free-field response
of a sound level meter
(IEC 62585:2012)
Électroacoustique -  Elektroakustik -
Méthode de détermination de corrections Verfahren zur Ermittlung
pour obtenir la réponse en champ libre von Korrekturwerten für die Bestimmung
d'un sonomètre des Freifeld-Frequenzgangs eines
(CEI 62585:2012) Schallpegelmessers
(IEC 62585:2012)
This European Standard was approved by CENELEC on 2012-08-29. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2012 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 62585:2012 E

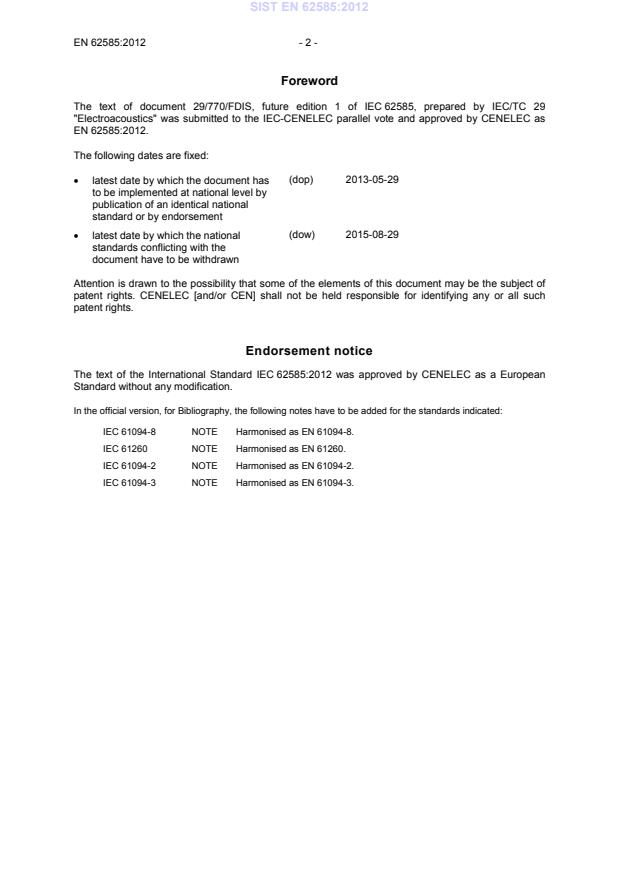

Foreword
The text of document 29/770/FDIS, future edition 1 of IEC 62585, prepared by IEC/TC 29
"Electroacoustics" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
(dop) 2013-05-29
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
(dow) 2015-08-29
• latest date by which the national
standards conflicting with the
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
Endorsement notice
The text of the International Standard IEC 62585:2012 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:

IEC 61094-8 NOTE Harmonised as EN 61094-8.
IEC 61260 NOTE Harmonised as EN 61260.
IEC 61094-2 NOTE Harmonised as EN 61094-2.
IEC 61094-3 NOTE Harmonised as EN 61094-3.

- 3 - EN 62585:2012
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60942 - Electroacoustics - Sound calibrators EN 60942 -

IEC 61094-1 - Measurement microphones - EN 61094-1 -
Part 1: Specifications for laboratory
standard microphones
IEC 61094-5 - Measurement microphones - EN 61094-5 -
Part 5: Methods for pressure calibration
of working standard microphones by
comparison
IEC 61094-6 - Measurement microphones - EN 61094-6 -
Part 6: Electrostatic actuators for
determination of frequency response

IEC/TS 61094-7 - Measurement microphones - - -
Part 7: Values for the difference between
free-field and pressure sensitivity levels
of laboratory standard microphones

IEC 61183 - Electroacoustics - Random-incidence EN 61183 -
and diffuse-field calibration of sound
level meters
IEC 61672-1 - Electroacoustics - Sound level meters - EN 61672-1 -
Part 1: Specifications
IEC 61672-2 - Electroacoustics - Sound level meters - EN 61672-2 -
Part 2: Pattern evaluation tests

IEC 61672-3 - Electroacoustics - Sound level meters - EN 61672-3 -
Part 3: Periodic tests
ISO/IEC Guide 98-3 - Uncertainty of measurement - - -
Part 3: Guide to the expression of
uncertainty in measurement (GUM)

ISO/IEC Guide 99 - International vocabulary of metrology - Basic - -
and general concepts and associated terms
(VIM)
IEC 62585 ®
Edition 1.0 2012-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electroacoustics – Methods to determine corrections to obtain the free-field

response of a sound level meter

Électroacoustique – Méthodes de détermination de corrections pour obtenir la

réponse en champ libre d'un sonomètre

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX X
ICS 17.140.50 ISBN 978-2-83220-290-6

– 2 – 62585 © IEC:2012
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 8
3 Terms and definitions . 8
4 Reference environmental conditions . 9
5 Uncertainties of measurement . 9
6 General requirements for measurement of adjustment value and corrections . 10
7 Submission and inspection . 12
8 Determination of the adjustment value at the calibration check frequency . 12
9 Determination of corrections for the typical effects of reflections from the case of
the sound level meter and diffraction of sound around the microphone . 13
10 Determination of corrections for the deviation of the microphone free-field
frequency response from a uniform frequency response . 13
11 Determination of corrections for the use of windscreens and similar accessories . 14
12 Determination of corrections over a range of frequencies when a sound calibrator
is recommended for use by the sound level meter manufacturer . 14
13 Determination of corrections over a range of frequencies when a comparison
coupler is recommended for use by the sound level meter manufacturer . 15
14 Determination of corrections over a range of frequencies when an electrostatic
actuator is recommended for use by the sound level meter manufacturer . 16
15 Documentation . 16
Annex A (normative) Calibration check frequency – Determination of the adjustment
value . 18
Annex B (normative) Determination of the effects of reflections from the case of the
sound level meter and diffraction of sound around the microphone . 20
Annex C (normative) Determination of the effects of the use of windscreens and
similar accessories . 21
Annex D (informative) Determination of corrections for use with sound calibrators to
determine equivalent free-field response at all frequencies of interest . 22
Annex E (informative) Determination of corrections for use with comparison couplers
to determine equivalent free-field frequency response at all frequencies of interest . 25
Annex F (informative) Determination of corrections for use with electrostatic actuators
to determine equivalent free-field frequency response at all frequencies of interest . 28
Annex G (informative) Comparison techniques. 31
Annex H (informative) Exact one-twelfth-octave frequencies . 34
Annex I (informative) Example calculations of expanded uncertainty of measurement . 36
Bibliography . 40

Figure 1 – Mounting methods for the sound level meter . 11
Figure A.1 – Diagrammatic representation of factors for consideration in optimising
adjustment value at the calibration check frequency . 19
Figure D.1 – Measurement steps using a sound calibrator . 22
Figure E.1 – Measurement steps using a comparison coupler . 25

62585 © IEC:2012 – 3 –
Figure F.1 – Measurement steps using an electrostatic actuator . 28

Table H.1 – Exact frequencies for one-twelfth-octave steps over one decade . 35
Table I.1 – Description of likely uncertainty components . 37
Table I.2 – Uncertainty example for a frequency of 1 kHz . 38
Table I.3 – Uncertainty example for a frequency of 8 kHz . 39
