EN 62586-2:2014

SLOVENSKI STANDARD
01-oktober-2014
0HUMHQMHNDNRYRVWLHOHNWULþQHHQHUJLMHYQDSDMDOQLKVLVWHPLKGHO=DKWHYH]D
IXQNFLRQDOQHSUHVNXVHLQQHJRWRYRVW,(&
Power quality measurement in power supply systems - Part 2: Functional tests and
uncertainty requirements (IEC 62586-2:2013)
Geräte zur Überwachung der Spannungsqualität in Versorgungssystemen - Teil 2:
Funktionsprüfungen und Anforderungen an die Messunsicherheit (IEC 62586-2:2013)
Mesure de la qualité de l'alimentation dans les réseaux d'alimentation - Partie 2: Essais
fonctionnels et exigences d'incertitude (CIE 62586-2:2013)
Ta slovenski standard je istoveten z: EN 62586-2:2014
ICS:
17.220.20 0HUMHQMHHOHNWULþQLKLQ Measurement of electrical
PDJQHWQLKYHOLþLQ and magnetic quantities
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 62586-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2014
ICS 17.220.20
English Version
Power quality measurement in power supply systems - Part 2:
Functional tests and uncertainty requirements
(IEC 62586-2:2013)
Mesure de la qualité de l'alimentation dans les réseaux Messung der Spannungsqualität in
d'alimentation - Partie 2: Essais fonctionnels et exigences Energieversorgungssystemen - Teil 2: Funktionsprüfungen
d'incertitude und Anforderungen an die Messunsicherheit
(CEI 62586-2:2013) (IEC 62586-2:2013)
This European Standard was approved by CENELEC on 2014-01-16. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 62586-2:2014 E

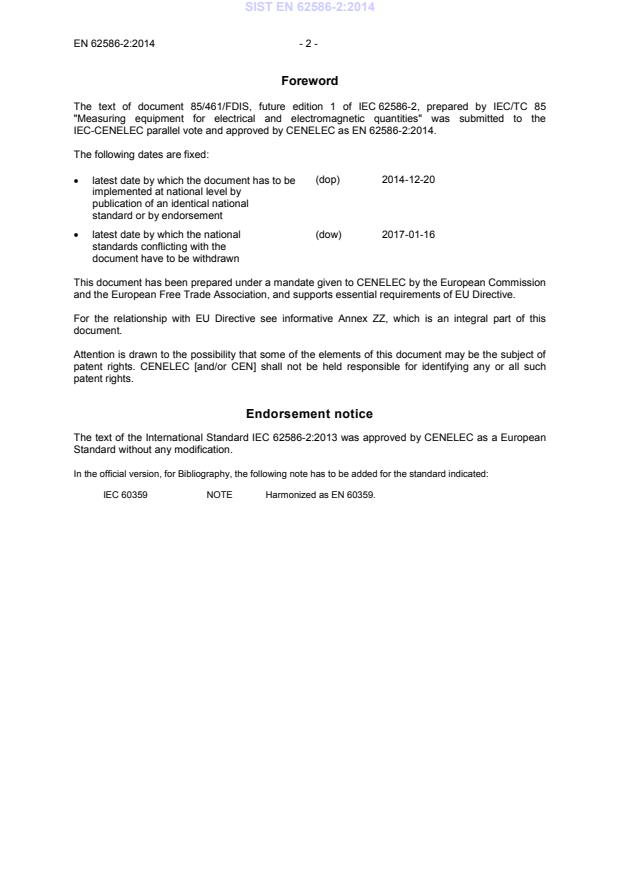

Foreword
The text of document 85/461/FDIS, future edition 1 of IEC 62586-2, prepared by IEC/TC 85
"Measuring equipment for electrical and electromagnetic quantities" was submitted to the
IEC-CENELEC parallel vote and approved by CENELEC as EN 62586-2:2014.

The following dates are fixed:
(dop) 2014-12-20
• latest date by which the document has to be
implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2017-01-16
standards conflicting with the
document have to be withdrawn
This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association, and supports essential requirements of EU Directive.

For the relationship with EU Directive see informative Annex ZZ, which is an integral part of this
document.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
Endorsement notice
The text of the International Standard IEC 62586-2:2013 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following note has to be added for the standard indicated:

IEC 60359 NOTE Harmonized as EN 60359.

- 3 - EN 62586-2:2014
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu
Publication Year Title EN/HD Year

IEC 61000-2-4 -  Electromagnetic compatibility (EMC) - EN 61000-2-4 -
Part 2-4: Environment - Compatibility levels
in industrial plants for low-frequency
conducted disturbances
IEC 61000-4-7 -  Electromagnetic compatibility (EMC) - EN 61000-4-7 -
Part 4-7: Testing and measurement
techniques - General guide on harmonics
and interharmonics measurements and
instrumentation, for power supply systems
and equipment connected thereto
IEC 61000-4-15 -  Electromagnetic compatibility (EMC) - EN 61000-4-15 -
Part 4-15: Testing and measurement
techniques - Flickermeter - Functional and
design specifications
IEC 61000-4-30 2008 Electromagnetic compatibility (EMC) - EN 61000-4-30 2009
Part 4-30 : Testing and measurement
techniques - Power quality measurement
methods
IEC 62586-1 -  Power quality measurement in power EN 62586-1 -
supply systems -
Part 1: Power Quality Instruments (PQI)

Annex ZZ
(informative)
Coverage of Essential Requirements of EU Directives

This European Standard has been prepared under a mandate given to CENELEC by the
European Commission and the European Free Trade Association and within its scope the
standard covers protection requirements of Annex I Article 1 of the EU Directive 2004/108/EC.
Compliance with this standard provides one means of conformity with the specified essential
requirements of the Directive concerned.
WARNING: Other requirements and other EU Directives may be applicable to the products falling
within the scope of this standard.

IEC 62586-2 ®
Edition 1.0 2013-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Power quality measurement in power supply systems –

Part 2: Functional tests and uncertainty requirements

Mesure de la qualité de l'alimentation dans les réseaux d'alimentation –

Partie 2: Essais fonctionnels et exigences d'incertitude

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX XE
ICS 17.220.20 ISBN 978-2-8322-1292-9

– 2 – 62586-2 © IEC:2013
CONTENTS
FOREWORD . 7
INTRODUCTION . 9
1 Scope . 10
2 Normative references . 10
3 Terms, definitions, abbreviations, notations and symbols. 10
3.1 General terms and definitions . 11
3.2 Terms and definitions related to uncertainty . 11
3.3 Notations . 12
3.3.1 Functions. 12
3.3.2 Symbols and abbreviations . 12
3.3.3 Indices. 12
4 Requirements . 12
4.1 Requirements for products complying with class A . 12
4.2 Requirements for products complying with class S . 13
5 Functional type tests common requirements . 14
5.1 General philosophy for testing . 14
5.1.1 Measuring ranges . 14
5.1.2 Single "power system influence quantities" . 16
5.1.3 Mixed "power system influence quantities" measuring range . 17
5.1.4 "External influence quantities" . 18
5.1.5 Test criteria . 18
5.2 Testing procedure . 19
5.2.1 Device under test . 19
5.2.2 Testing conditions . 19
5.2.3 Testing equipment . 19
6 Functional testing procedure for instruments complying with class A according to

IEC 61000-4-30 . 19
6.1 Power frequency . 19
6.1.1 General . 19
6.1.2 Measurement method . 19
6.1.3 Measurement uncertainty and measuring range . 20
6.1.4 Measurement evaluation . 21
6.1.5 Measurement aggregation . 21
6.2 Magnitude of supply voltage . 21
6.2.1 Measurement method . 21
6.2.2 Measurement uncertainty and measuring range . 21
6.2.3 Measurement evaluation . 21
6.2.4 Measurement aggregation . 22
6.3 Flicker . 23
6.4 Supply voltage interruptions, dips and swells . 23
6.4.1 General . 23
6.4.2 Check dips / interruptions in polyphase system . 31
6.4.3 Check swells in polyphase system . 33
6.5 Supply voltage unbalance . 34
6.5.1 General . 34
6.5.2 Measurement method, measurement uncertainty and measuring
range . 34

62586-2 © IEC:2013 – 3 –
6.5.3 Aggregation . 35
6.6 Voltage harmonics . 35
6.6.1 Measurement method . 35
6.6.2 Measurement uncertainty and measuring range . 36
6.6.3 Measurement evaluation . 37
6.6.4 Measurement aggregation . 37
6.7 Voltage inter-harmonics . 39
6.7.1 Measurement method . 39
6.7.2 Measurement uncertainty and measuring range . 39
6.7.3 Measurement evaluation . 40
6.7.4 Measurement aggregation . 40
6.8 Mains signalling voltages on the supply voltage. 42
6.8.1 Measurement method . 42
6.8.2 Measurement uncertainty and measuring range . 44
6.8.3 Aggregation . 45
6.9 Measurement of underdeviation and overdeviation parameters . 45
6.9.1 Measurement method . 45
6.9.2 Measurement uncertainty and measuring range . 47
6.9.3 Measurement evaluation . 47
6.9.4 Measurement aggregation . 47
6.10 Flagging . 49
6.11 Clock uncertainty testing . 51
6.12 Variations due to external influence quantities . 51
6.12.1 General . 51
6.12.2 Influence of temperature . 52
6.12.3 Influence of power supply voltage . 55
7 Functional testing procedure for instruments complying with class S according to
IEC 61000-4-30 . 56
7.1 Power frequency . 56
7.1.1 General . 56
7.1.2 Measurement method . 56
7.1.3 Measurement uncertainty and measuring range . 57
7.1.4 Measurement evaluation . 58
7.1.5 Measurement aggregation . 58
7.2 Magnitude of the supply voltage . 58
7.2.1 Measurement method . 58
7.2.2 Measurement uncertainty and measuring range . 58
7.2.3 Measurement evaluation . 59
7.2.4 Measurement aggregation . 59
7.3 Flicker . 60
7.4 Supply voltage interruptions, dips and swells . 60
7.4.1 General requirements . 60
7.4.2 Check dips / interruptions in polyphase system . 66
7.4.3 Check swells in polyphase system . 68
7.5 Supply voltage unbalance . 69
7.5.1 General . 69
7.5.2 Measurement method, measurement uncertainty and measuring
range . 69
7.5.3 Aggregation . 70

– 4 – 62586-2 © IEC:2013
7.6 Voltage harmonics . 70
7.6.1 General . 70
7.6.2 Measurement method . 70
7.6.3 Measurement method, measurement uncertainty and measuring
range . 72
7.6.4 Measurement evaluation . 73
7.6.5 Measurement aggregation . 73
7.7 Voltage inter-harmonics . 74
7.8 Mains Signalling Voltages on the supply voltage . 75
7.8.1 General . 75
7.8.2 Measurement method . 75
7.8.3 Measurement uncertainty and measuring range . 75
7.8.4 Aggregation . 75
7.9 Measurement of underdeviation and overdeviation parameters . 75
7.10 Flagging . 75
7.11 Clock uncertainty testing . 77
7.12 Variations due to external influence quantities . 77
7.12.1 General . 77
7.12.2 Frequency measurement . 78
7.12.3 Influence of temperature . 78
7.12.4 Influence of power supply voltage . 79
8 Calculation of measurement uncertainty and operating uncertainty . 79
Annex A (normative) Intrinsic uncertainty, operating uncertainty, and overall system
uncertainty . 81
Annex B (normative) Calculation of measurement and operating uncertainty for
voltage magnitude and power frequency . 83
Annex C (informative) Further test on dips (amplitude and phase angles changes) . 86
Annex D (informative) Further tests on dips (polyphase): test procedure . 88
Annex E (normative) Gapless measurements of voltage amplitude and harmonics test . 92
Annex F (informative) Gapless measurements of voltage amplitude and harmonics . 95
Annex G (informative) Testing equipment requirements . 103
Annex H (informative) Example of test report . 104
Annex I (informative) Mixed influence quantities . 105
Bibliography . 107

Figure 1 – Overview of test for dips according to test A4.1.1 . 26
Figure 2 – Detail 1 of waveform for test of dips according to test A4.1.1 . 27
Figure 3 – Detail 2 of waveform for tests of dips according to A4.1.1 . 27
Figure 4 – Detail 3 of waveform for tests of dips according to test A4.1.1 . 27
Figure 5 – Detail 1 of waveform for test of dips according to test A4.1.2 . 28
Figure 6 – Detail 2 of waveform for tests of dips according to test A4.1.2 . 28
Figure 7 – Detail 1 of waveform for test of swells according to test A4.1.2 . 29
Figure 8 – Detail 2 of waveform for tests of swells according to test A4.1.2 . 29
Figure 9 – Sliding reference voltage test . 30
Figure 10 – Sliding reference start up condition . 30
Figure 11 – Detail 1 of waveform for test of polyphase dips/interruptions . 31

62586-2 © IEC:2013 – 5 –
Figure 12 – Detail 2 of waveform for test of polyphase dips/interruptions . 32
Figure 13 – Detail 3 of waveform for test of polyphase dips/interruptions . 32
Figure 14 – Detail 1 of waveform for test of polyphase swells . 33
Figure 15 – Detail 2 of waveform for test of polyphase swells . 34
Figure 16 – Flagging test for class A . 50
Figure 17 – Clock uncertainty testing . 51
Figure 18 – Detail 1 of waveform for test of dips according to test S4.1.2 . 63
Figure 19 – Detail 2 of waveform for tests of dips according to test S4.1.2 . 63
Figure 20 – Detail 1 of waveform for test of swells according to test S4.1.2 . 64
Figure 21 – Detail 2 of waveform for tests of swells according to test S4.1.2 . 64
Figure 22 – Sliding reference voltage test . 65
Figure 23 – Sliding reference start up condition . 65
Figure 24 – Detail 1 of waveform for test of polyphase dips/interruptions . 66
Figure 25 – Detail 2 of waveform for test of polyphase dips/interruptions . 67
Figure 26 – Detail 3 of waveform for test of polyphase dips/interruptions . 67
Figure 27 – Detail 1 of waveform for test of polyphase swells . 68
Figure 28 – Detail 2 of waveform for test of polyphase swells . 69
Figure 29 – Flagging test for class S . 76
Figure 30 – Clock uncertainty testing . 77
Figure A.1 – Different kinds of uncertainties . 81
Figure C.1 – Phase-to-neutral testing on three-phase systems . 86
Figure C.2 – Phase-to-phase testing on three-phase systems . 86
Figure D.1 – Example for on phase of a typical N cycle injection . 89
Figure D.2 – Dip/interruption accuracy (amplitude and timing) test . 90
Figure D.3 – Swell accuracy (amplitude and timing) test . 91
Figure F.1 – Simulated signal under noisy conditions . 95
Figure F.2 – Waveform for checking gapless RMS voltage measurement . 96
Figure F.3 – 2,3 Hz Frequency fluctuation . 96
Figure F.4 – Spectral leakage effects for a missing sample . 97
Figure F.5 – Illustration of QRMS for missing samples . 98
Figure F.6 – Detection of a single missing sample . 98
–6
Figure F.7 – Q for an ideal signal, sampling error = 300 x 10 . 99
RMS
–6
Figure F.8 – Q for an ideal signal, sampling error = 400 x 10 . 99
RMS
–6
Figure F.9 – Q for an ideal signal, sampling error = 200 x 10 . 100
RMS
Figure F.10 – Q with ideal test signal and perfect sampling frequency
RMS
synchronization . 101
–6 –6
Figure F.11 – Q with 300 x 10 sampling frequency error and 100 x 10
RMS
modulation frequency error . 101
Figure F.12 – Q with a 20/24 cycles sliding window with a output every 10/12
RMS
cycles . 102
Figure F.13 – Amplitude test for fluctuating component . 102

Table 1 – Summary of type tests for Class A . 13
Table 2 – Summary of type tests for Class S . 14

– 6 – 62586-2 © IEC:2013
Table 3 – Testing points for each measured parameter . 14
Table 4 – List of single "power system influence quantities" . 16
Table 5 – List of mixed "power system influence quantities" . 17
Table 6 – Influence of Temperature . 18
Table 7 – Influence of auxiliary power supply voltage . 18
Table 8 – List of generic test criteria . 18
Table 9 – Uncertainty requirements . 80
Table C.1 – Tests pattern . 87
Table I.1 – Mixed influence quantities test for frequency . 105
Table I.2 – Mixed influence quantities test for magnitude of voltage . 105
Table I.3 – Mixed influence quantities test for dips and swells. 106

62586-2 © IEC:2013 – 7 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
POWER QUALITY MEASUREMENT IN POWER SUPPLY SYSTEMS –

Part 2: Functional tests and uncertainty requirements

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62586-2 has been prepared by IEC technical committee 85:
Measuring equipment for electrical and electromagnetic quantities.
The text of this standard is based on the following documents:
FDIS Report on voting
85/461/FDIS 85/467/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of the IEC 62586 series, published under the general title Power quality
measurement in power supply systems, can be found on the IEC website.

– 8 – 62586-2 © IEC:2013
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
62586-2 © IEC:2013 – 9 –
INTRODUCTION
Power quality is worldwide more and more important in power supply systems and is generally
assessed by power quality instruments.
IEC 62586-2 is a standard specifying functional and uncertainty tests intended to verify the
compliance of a product to class A and class S measurement methods defined in
IEC 61000-4-30.
IEC 62586-2 therefore complements IEC 61000-4-30.

– 10 – 62586-2 © IEC:2013
POWER QUALITY MEASUREMENT IN POWER SUPPLY SYSTEMS –

Part 2: Functional tests and uncertainty requirements

1 Scope
This part of IEC 62586 specifies functional tests and uncertainty requirements for instruments
whose functions include measuring, recording, and possibly monitoring power quality
parameters in power supply systems, and whose measuring methods (class A or class S) are
defined in IEC 61000-4-30.
This standard applies to power quality instruments complying with IEC 62586-1.
This standard may also be referred to by other product standards (e.g. digital fault recorders,
revenue meters, MV or HV protection relays) specifying devices embedding class A or class
S power quality functions according to IEC 61000-4-30.
These requirements are applicable in single, dual- (split phase) and 3-phase a.c. power
supply systems at 50 Hz or 60 Hz.
NOTE 1 It is not the intent of this standard to address user interface or topics unrelated to device measurement
performance.
NOTE 2 The standard does not cover postprocessing and interpretation of the data, for example with a dedicated
software.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61000-2-4, Electromagnetic compatibility (EMC) – Part 2-4: Environment – Compatibility
levels in industrial plants for low-frequency conducted disturbances
IEC 61000-4-7, Electromagnetic compatibility (EMC) – Part 4-7: Testing and measurement
techniques – General guide on harmonics and interharmonics measurements and
instrumentation, for power supply systems and equipment connected thereto
IEC 61000-4-15, Electromagnetic compatibility (EMC) – Part 4-15: Testing and measurement
techniques – Flickermeter – Functional and design specifications
IEC 61000-4-30:2008, Electromagnetic compatibility (EMC) – Part 4-30: Testing and
measurement techniques – Power quality measurement methods
IEC 62586-1, Power quality measurement in power supply systems – Part 1: Power quality
instruments (PQI)
3 Terms, definitions, abbreviations, notations and symbols
For the purposes of this document, the terms and definitions given in IEC 61000-4-30 as well
as the following terms and definitions apply.

62586-2 © IEC:2013 – 11 –
3.1 General terms and definitions
3.1.1
limit range of operation
extreme conditions that a measuring instrument can withstand without damage and
degradation of its metrological characteristics when it is subsequently operated within its
rated operating conditions
Note 1 to entry: The measuring instrument should be able to function within the limit range of operation
3.1.2
rated range of operation
range of values of a single influence quantity that forms a part of the rated operating
conditions
Note 1 to entry: Uncertainty should be met within the rated range of operation
3.2 Terms and definitions related to uncertainty
3.2.1
intrinsic uncertainty
uncertainty of a measuring instrument when used under reference conditions
Note 1 to entry: In this standard, it is a percentage of the measured value defined in its rated range and with all
influence quantities under reference conditions, unless otherwise stated.
[SOURCE: IEC 60359:2001, 3.2.10, modified – Note 1 to entry has been added.]
3.2.2
influence quantity
quantity which is not the subject of the measurement and whose change affects the
relationship between the indication and the result of the measurement
Note 1 to entry: Influence quantities can originate from the measured system, the measuring equipment or the
environment [IEV].
Note 2 to entry: As the calibration diagram depends on the influence quantities, in order to assign the result of a
measurement it is necessary to know whether the relevant influence quantities lie within the specified range [IEV].
Note 3 to entry: An influence quantity is said to lie within a range C' to C" when the results of its measurement
satisfy the relationship: C' ≤ V – U < V + U ≤ C".
[SOURCE: IEC 60359:2001, 3.1.14]
3.2.3
variation
variation due to a single influence quantity
difference between the value measured under reference conditions and any value measured
within the rated operating range (for this specific influence quantity)
Note 1 to entry: The other performance characteristics and the other influence quantities should stay within the
ranges specified for the reference conditions.
3.2.4
rated operating conditions
set of conditions that must be fulfilled during the measurement in order that a calibration
diagram may be valid
Note 1 to entry: Beside the specified measuring range and rated operating ranges for the influence quantities, the
conditions may include specified ranges for other performance characteristics and other indications that cannot be
expressed as ranges of quantities.
[SOURCE: IEC 60359:2001, 3.3.13]

– 12 – 62586-2 © IEC:2013
3.2.5
operating uncertainty
uncertainty under the rated operating conditions
Note 1 to entry: The operating instrumental uncertainty, like the intrinsic one, is not evaluated by the user of the
instrument, but is stated by its manufacturer or calibrator. The statement may be expressed by means of an
algebraic relation involving the intrinsic instrumental uncertainty and the values of one or several influence
quantities, but such a relation is just a convenient means of expressing a set of operating instrumental
uncertainties under different operating conditions, not a functional relation to be used for evaluating the
propagation of uncertainty inside the instrument.
[SOURCE: IEC 60359:2001, 3.2.11, modified – The word "instrumental" has been removed
from both the term and the definition.]
3.2.6
overall system uncertainty
uncertainty including the instrumental uncertainty of all components related to the
measurement system (sensors, wires, measuring instrument, etc.) under the rated operating
conditions
3.3 Notations
3.3.1 Functions
See functions defined in IEC 61000-4-30:2008.
3.3.2 Symbols and abbreviations
N.R. not requested
N.A. not applicable
3.3.3 Indices
min minimum value
max maximum value
4 Requirements
4.1 Requirements for products complying with class A
Products compliant with class A of IEC 61000-4-30 shall comply with the following
requirements:
– Compliance with class A operational uncertainty, based on testing, as defined in Clause 8.
– Compliance with class A functional tests as defined in Clause 6, based on common
requirements defined in Clause 5. A summary of those tests is provided in Table 1.

62586-2 © IEC:2013 – 13 –
Table 1 – Summary of type tests for Class A
Power system Clause Measurement Measurement uncertainty and Measurement Measurement

influence method measuring range evaluation aggregation
quantities
Uncertainty Variations
under due to
reference influence
conditions quantities
Power 6.1 6.1.2 6.1.3.1 6.1.3.2 6.1.4 N.A.
frequency
Magnitude of 6.2 6.2.1 6.2.2.1 6.2.2.2 N.A. 6.2.4
supply voltage
Flicker 6.3 See See N.A. N.A. N.A.
IEC 61000-4- IEC 61000-4-
15 15
Supply voltage 6.4 6.4 6.4 6.4 N.A. 6.4
interruptions,
dips and swells
Supply voltage 6.5 6.5 6.5 N.A. N.A. N.A.
unbalance
Voltage 6.6 6.6.1 6.6.2.1 6.6.2.2 N.A. 6.6.4
harmonics
Voltage inter- 6.7 6.7.1 6.7.2.1 6.7.2.2 N.A. 6.7.4
harmonics
Mains signalling 6.8 6.8 6.8 6.8.2.2 N.A. 6.8
voltage
Under-over 6.9 6.9 6.9 6.9 N.A. 6.9
deviations
Flagging 6.10 6.10 N.A. N.A. N.A. N.A.
Clock 6.11 N.A. 6.11 N.A. N.A. N.A.
uncertainty
testing
Variations due 6.12 N.A. N.A. 6.12 N.A. N.A.
to external
influence
quantities
4.2 Requirements for products complying with class S
The testing procedure for class S instruments is identical to class A instruments, if class A
measurement methods are implemented (see Clause 6). However, the measurement range
and measuring uncertainty are expected to meet or exceed the performance requirements
defined in IEC 61000-4-30 for class S instruments.
Products compliant with class S of IEC 61000-4-30 shall comply with the following
requirements:
– Compliance with class S operational uncertainty, based on testing, as defined in Clause 8.
– Compliance with class S functional tests as defined in Clause 7, based on common
requirements defined in Clause 5. A summary of those tests is
...
