EN 61138:1997/A11:2003

SLOVENSKI SIST EN 61138:1999/A11:2004

STANDARD
januar 2004
(istoveten EN 61138:1997/A11:2003)
Amendment to EN - Maintenance of LV standards Group F
ICS 29.060.20 Referenčna številka
©  Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

EUROPEAN STANDARD
EN 61138/A11
NORME EUROPÉENNE
February 2003
EUROPÄISCHE NORM
ICS 29.060.20; 29.240.01
English version
Cables for portable earthing and short-circuiting equipment

Câbles d'équipement portable  Leitungen für ortsveränderliche
de mise à la terre et de court-circuit Erdungs- und Kurzschließ-Einrichtungen

This amendment A11 modifies the European Standard EN 61138:1997; it was approved by CENELEC on
2003-02-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this amendment the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CENELEC member into its own language and notified to the
Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Czech Republic,
Denmark, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Luxembourg, Malta,
Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2003 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 61138:1997/A11:2003 E

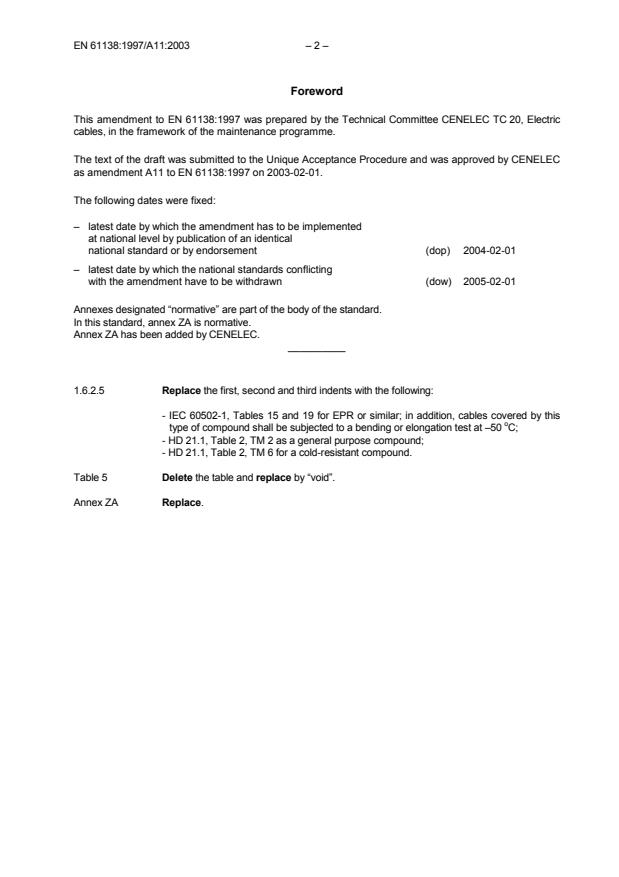

Foreword
This amendment to EN 61138:1997 was prepared by the Technical Committee CENELEC TC 20, Electric
cables, in the framework of the maintenance programme.
The text of the draft was submitted to the Unique Acceptance Procedure and was approved by CENELEC
as amendment A11 to EN 61138:1997 on 2003-02-01.
The following dates were fixed:
– latest date by which the amendment has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2004-02-01
– latest date by which the national standards conflicting
with the amendment have to be withdrawn (dow) 2005-02-01

Annexes designated “normative” are part of the body of the standard.
In this standard, annex ZA is normative.
Annex ZA has been added by CENELEC.
__________
1.6.2.5 Replace the first, second and third indents with the following:

- IEC 60502-1, Tables 15 and 19 for EPR or similar; in addition, cables covered by this
o
C;
type of compound shall be subjected to a bending or elongation test at –50
- HD 21.1, Table 2, TM 2 as a general purpose compound;
- HD 21.1, Table 2, TM 6 for a cold-resistant compound.

Table 5 the table and by “void”.
Delete replace
Annex ZA Replace.
– 3 – EN 61138:1997/A11:2003
Annex ZA (normative)
Normative references to international publications
with their corresponding European publications

This European Standard incorporates by dated or undated reference, provisions from other publications.
These normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to or revisions of any of these publications apply
to this European Standard only when incorporated in i
...
