EUROPEAN STANDARD EN IEC 60079-15
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2019
ICS 29.260.20 Supersedes EN 60079-15:2010
English Version
Explosive atmospheres - Part 15: Equipment protection by type
of protection "n"
(IEC 60079-15:2017)
Atmosphères explosives - Partie 15: Protection du matériel Explosionsfähige Atmosphäre - Teil 15: Geräteschutz durch
par mode de protection "n" Zündschutzart "n"
(IEC 60079-15:2017) (IEC 60079-15:2017)
This European Standard was approved by CENELEC on 2018-01-12. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60079-15:2019 E

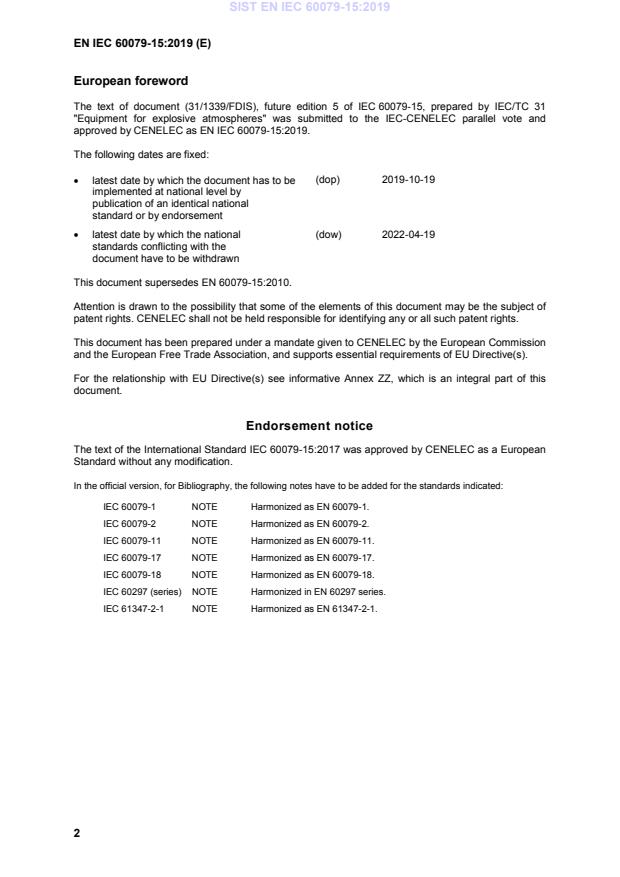

European foreword
The text of document (31/1339/FDIS), future edition 5 of IEC 60079-15, prepared by IEC/TC 31
"Equipment for explosive atmospheres" was submitted to the IEC-CENELEC parallel vote and
approved by CENELEC as EN IEC 60079-15:2019.
The following dates are fixed:
(dop) 2019-10-19
• latest date by which the document has to be
implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2022-04-19
standards conflicting with the
document have to be withdrawn
This document supersedes EN 60079-15:2010.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association, and supports essential requirements of EU Directive(s).
For the relationship with EU Directive(s) see informative Annex ZZ, which is an integral part of this
document.
Endorsement notice
The text of the International Standard IEC 60079-15:2017 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60079-1 NOTE Harmonized as EN 60079-1.
IEC 60079-2 NOTE Harmonized as EN 60079-2.
IEC 60079-11 NOTE Harmonized as EN 60079-11.
IEC 60079-17 NOTE Harmonized as EN 60079-17.
IEC 60079-18 NOTE Harmonized as EN 60079-18.
IEC 60297 (series) NOTE Harmonized in EN 60297 series.
IEC 61347-2-1 NOTE Harmonized as EN 61347-2-1.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60079-0 - Explosive atmospheres - Part 0: EN IEC 60079-0 2018
Equipment - General requirements
IEC 60079-7 - Explosive atmospheres - Part 7: EN 60079-7 2015
Equipment protection by increased safety
"e"
Annex ZZ
(informative)
Relationship between this European standard and the essential requirements
of 2014/34/EU [2014 OJ L96] aimed to be covered
This European standard has been prepared under a Commission’s standardisation request
M/BC/CEN/92/46 to provide one voluntary means of conforming to essential requirements of
2014/34/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation
of the laws of the Member States relating to equipment and protective systems intended for use in
potentially explosive atmospheres (recast).
Once this standard is cited in the Official Journal of the European Union under that Directive,
compliance with the normative clauses of this standard given in Table ZZ.1 confers, within the limits of
the scope of this standard, a presumption of conformity with the corresponding essential requirements
of that Directive, and associated EFTA regulations.
Table ZZ.1 – Correspondence between this European standard and Annex II of Directive
2014/34/EU [2014 OJ L96]
Essential Requirements of Clause(s) / sub-clause(s)
Remarks / Notes
2014/34/EU of this EN
1.0.1. Entire Standard Second indent only
1.0.2. 3.7 and note In addition to EN 60079-0
1.0.3. Reference to EN 60079-0
1.0.4. Reference to EN 60079-0
1.0.5. And reference to EN 60079-0
1.0.6. Reference to EN 60079-0
1.1. Reference to EN 60079-0
1.2.1. Reference to EN 60079-0
1.2.2. Reference to EN 60079-0
1.2.3. Not applicable. Release of
flammable material is not
foreseen
1.2.4. Not applicable. Dust
atmospheres and deposits are
out of scope
1.2.5. Reference to EN 60079-0
1.2.6. Warning label deemed
adequate for Category 3
Equipment
1.2.7. Reference to EN 60079-0 and
relevant standards for normal
industrial applications
1.2.8. Not specifically applied to
Category 3 Equipment but
covered in general for normal
conditions by the installation
requirements in EN 60079-14
1.2.9. Not applicable
1.3.1. Reference to EN 60079-0, plus
the principle of Ex n protection
throughout standard
1.3.2. Reference to EN 60079-0
1.3.3. Reference to EN 60079-0
1.3.4. Not applicable
1.3.5. Not applicable
1.4. Reference to EN 60079-0
1.5. Not applicable
1.6.1. to 1.6.3 Not applicable
1.6.4. Reference to EN 60079-0
1.6.5. Not applicable
2.0. 2.1 and 2.2 Not applicable. Out of scope
2.3.1. Entire standard And reference to EN 60079-0
2.3.2. Not applicable. Out of scope
3. Not applicable. Out of scope
WARNING 1: Presumption of conformity stays valid only as long as a reference to this European
standard is maintained in the list published in the Official Journal of the European Union. Users of this
standard should consult frequently the latest list published in the Official Journal of the European
Union.
WARNING 2: Other Union legislation may be applicable to the product(s) falling within the scope of
this standard.
IEC 60079-15 ®
Edition 5.0 2017-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Explosive atmospheres –
Part 15: Equipment protection by type of protection "n"
Atmosphères explosives –
Partie 15: Protection du matériel par mode de protection «n»
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.260.20 ISBN 978-2-8322-5047-1
– 2 – IEC 60079-15:2017 © IEC 2017
CONTENTS
FOREWORD . 4
1 Scope . 9
2 Normative references . 15
3 Terms and definitions . 16
4 General . 17
4.1 Equipment grouping and temperature classification . 17
4.2 Potential ignition sources . 17
4.3 Equipment requirements . 17
5 Maximum surface temperatures . 17
6 Requirements for electrical equipment . 18
6.1 General . 18
6.2 Electric strength insulation from earth or frame . 18
7 Requirements for non-incendive components. 18
7.1 Type testing . 18
7.2 Circuit limitations . 18
8 Requirements for hermetically sealed devices . 18
9 Requirements for sealed devices . 19
9.1 Non-metallic materials . 19
9.2 Opening . 19
9.3 Internal spaces . 19
9.4 Handling . 19
9.5 Gasket and seals . 19
9.6 Type tests . 19
10 Requirements for restricted-breathing enclosures . 19
10.1 General . 19
10.2 Constructional requirements . 20
10.2.1 Type of equipment . 20
10.2.2 Cells and batteries . 20
10.2.3 Cable glands and conduit entries . 20
10.2.4 Operating rods, spindles and shafts . 21
10.2.5 Windows . 21
10.2.6 Gasket and seal requirements . 21
10.2.7 Non-resilient seals . 21
10.2.8 Test port . 22
10.2.9 Internal fans . 23
10.3 Temperature limitation . 23
10.4 Additional requirements for restricted-breathing luminaires . 23
10.4.1 Mounting arrangement . 23
10.4.2 Reflectors . 23
10.4.3 Surface temperatures of restricted-br
...
