Standards Content (Sample)

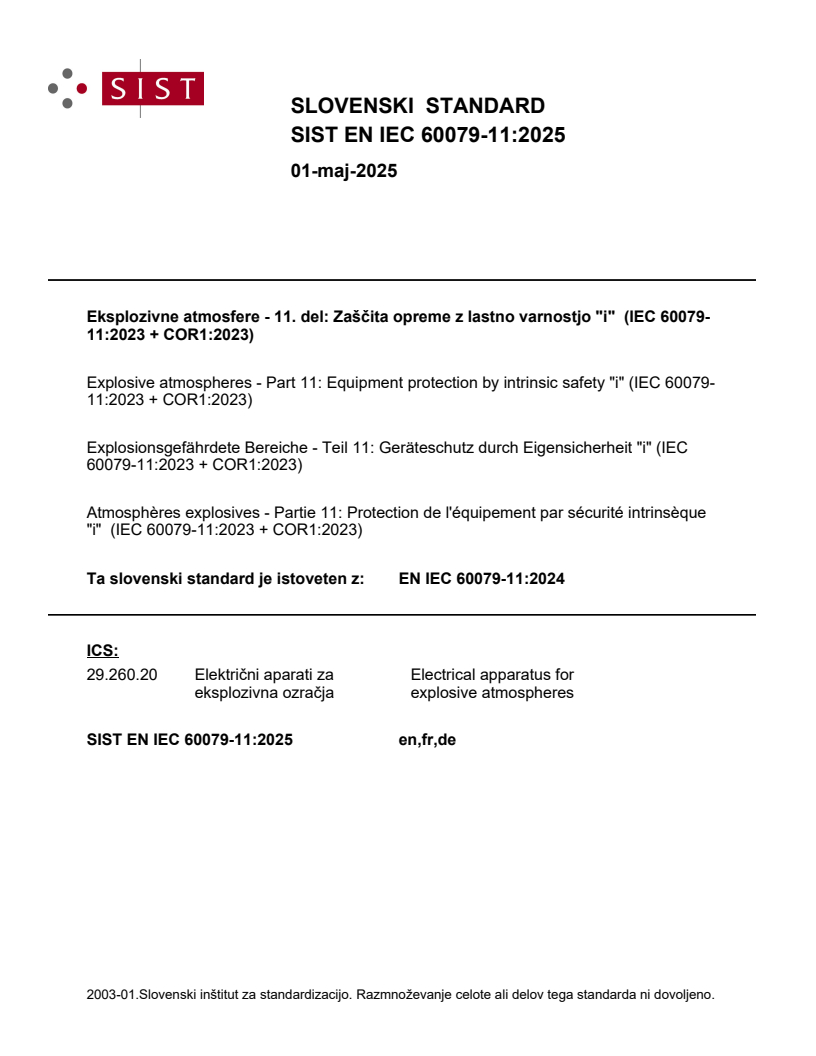

SLOVENSKI STANDARD
01-maj-2025
Eksplozivne atmosfere - 11. del: Zaščita opreme z lastno varnostjo "i" (IEC 60079-
11:2023 + COR1:2023)
Explosive atmospheres - Part 11: Equipment protection by intrinsic safety "i" (IEC 60079-
11:2023 + COR1:2023)
Explosionsgefährdete Bereiche - Teil 11: Geräteschutz durch Eigensicherheit "i" (IEC
60079-11:2023 + COR1:2023)
Atmosphères explosives - Partie 11: Protection de l'équipement par sécurité intrinsèque
"i" (IEC 60079-11:2023 + COR1:2023)
Ta slovenski standard je istoveten z: EN IEC 60079-11:2024
ICS:
29.260.20 Električni aparati za Electrical apparatus for
eksplozivna ozračja explosive atmospheres
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN IEC 60079-11
NORME EUROPÉENNE
EUROPÄISCHE NORM December 2024
ICS 29.260.20 Supersedes EN 60079-11:2012
English Version
Explosive atmospheres - Part 11: Equipment protection by
intrinsic safety "i"
(IEC 60079-11:2023 + COR1:2023)
Atmosphères explosives - Partie 11: Protection de Explosionsgefährdete Bereiche - Teil 11: Geräteschutz
l'équipement par sécurité intrinsèque "i" durch Eigensicherheit "i"
(IEC 60079-11:2023 + COR1:2023) (IEC 60079-11:2023 + COR1:2023)
This European Standard was approved by CENELEC on 2024-10-16. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60079-11:2024 E

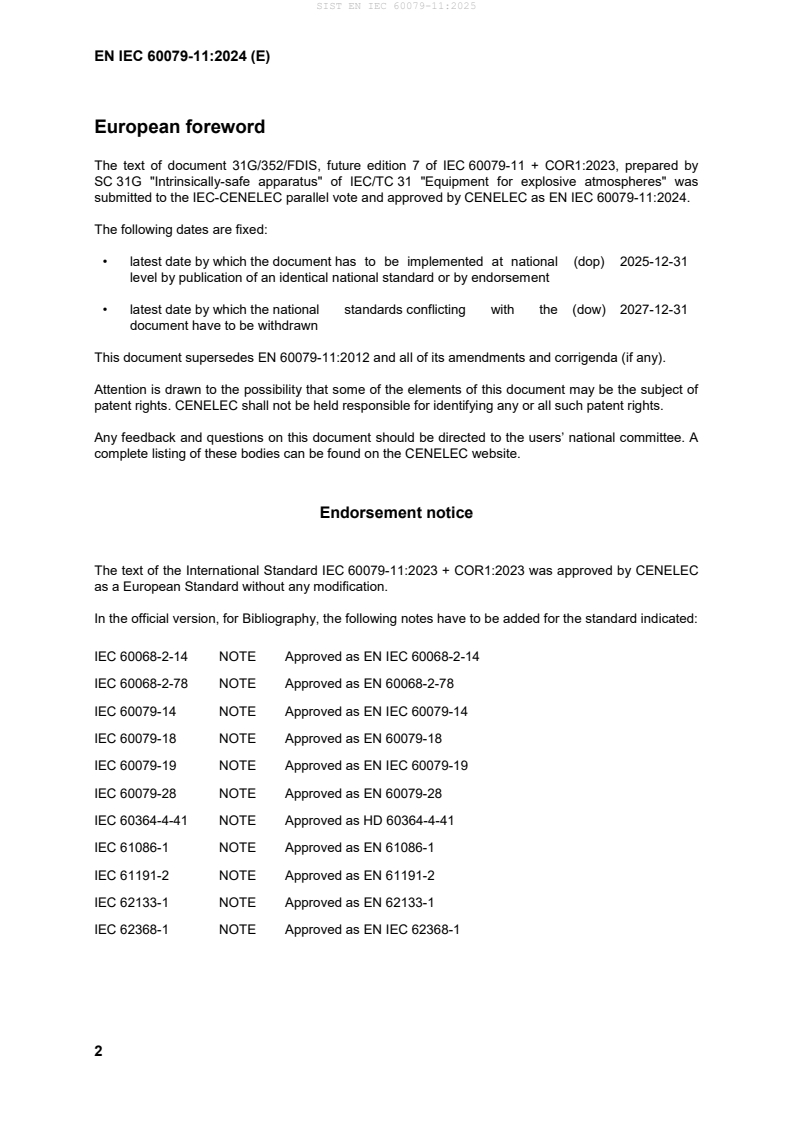

European foreword
The text of document 31G/352/FDIS, future edition 7 of IEC 60079-11 + COR1:2023, prepared by
SC 31G "Intrinsically-safe apparatus" of IEC/TC 31 "Equipment for explosive atmospheres" was
submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN IEC 60079-11:2024.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2025-12-31
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2027-12-31
document have to be withdrawn
This document supersedes EN 60079-11:2012 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 60079-11:2023 + COR1:2023 was approved by CENELEC
as a European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 60068-2-14 NOTE Approved as EN IEC 60068-2-14
IEC 60068-2-78 NOTE Approved as EN 60068-2-78
IEC 60079-14 NOTE Approved as EN IEC 60079-14
IEC 60079-18 NOTE Approved as EN 60079-18
IEC 60079-19 NOTE Approved as EN IEC 60079-19
IEC 60079-28 NOTE Approved as EN 60079-28
IEC 60364-4-41 NOTE Approved as HD 60364-4-41
IEC 61086-1 NOTE Approved as EN 61086-1
IEC 61191-2 NOTE Approved as EN 61191-2
IEC 62133-1 NOTE Approved as EN 62133-1
IEC 62368-1 NOTE Approved as EN IEC 62368-1
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60079-0 - Explosive atmospheres - Part 0: EN IEC 60079-0 -
Equipment - General requirements
IEC 60079-7 - Explosive atmospheres - Part 7: EN 60079-7 -
Equipment protection by increased safety
"e"
IEC 60079-25 - Explosive atmospheres - Part 25: EN IEC 60079-25 -
Intrinsically safe electrical systems
IEC 60085 - Electrical insulation - Thermal evaluation EN 60085 -
and designation
IEC 60112 - Method for the determination of the proof EN IEC 60112 -
and the comparative tracking indices of
solid insulating materials
IEC 60127 series Miniature fuses EN IEC 60127 series
IEC 60317-0-1 - Specifications for particular types of EN 60317-0-1 -
winding wires - Part 0-1: General
requirements - Enamelled round copper
wire
IEC 60529 - Degrees of protection provided by EN 60529 -
enclosures (IP Code)
IEC 60664-1 - Insulation coordination for equipment EN IEC 60664-1 -
within low-voltage supply systems - Part 1:
Principles, requirements and tests
IEC 60664-3 - Insulation coordination for equipment EN 60664-3 -
within low-voltage systems - Part 3: Use of
coating, potting or moulding for protection
against pollution
IEC 60691 - Thermal-links - Requirements and EN IEC 60691 -
application guide
IEC 60747-5-5 - Semiconductor devices - Part 5-5: EN IEC 60747-5-5 -
Optoelectronic devices - Photocouplers
Publication Year Title EN/HD Year
IEC 60747-17 - Semiconductor devices - Part 17: Magnetic EN IEC 60747-17 -
and capacitive coupler for basic and
reinforced insulation
IEC 60851-5 - Winding wires - Test methods - Part 5: EN 60851-5 -
Electrical properties
IEC 61010-1 - Safety requirements for electrical EN 61010-1 -
equipment for measurement, control, and
laboratory use - Part 1: General
requirements
IEC 61158-2 - Industrial communication networks - EN IEC 61158-2 -
Fieldbus specifications - Part 2: Physical
layer specification and service definition
IEC 61810-1 - Electromechanical elementary relays - Part EN 61810-1 -
1: General and safety requirements
IEC 62133-2 - Secondary cells and batteries containing EN 62133-2 -
alkaline or other non-acid electrolytes -
Safety requirements for portable sealed
secondary lithium cells, and for batteries
made from them, for use in portable
applications - Part 2: Lithium systems
ANSI/UL 248 series Standard for low-voltage fuses - series
ANSI/UL 746E - Polymeric Materials - Industrial Laminates, - -
Filament Wound Tubing, Vulcanized Fibre,
and Materials Used In Printed Wiring
Boards
UL 810A - Standard for Electrochemical Capacitors - -
DIN VDE V 0884-11 - Semiconductor devices - Part 11: Magnetic - -
and capacitive coupler for basic and
reinforced isolation
IEC 60079-11 ®
Edition 7.0 2023-01
INTERNATIONAL
STANDARD
colour
inside
Explosive atmospheres –
Part 11: Equipment protection by intrinsic safety "i"
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.260.20 ISBN 978-2-8322-6271-9
IEC 60079-11:2023/ISH1:2024 – 1 –
© IEC 2024
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
IEC 60079-11
Edition 7.0 2023-01
EXPLOSIVE ATMOSPHERES –
Part 11: Equipment protection by intrinsic safety "i"
INTERPRETATION SHEET 1
This interpretation sheet has been prepared by subcommittee 31G: Intrinsically-safe apparatus,
of IEC technical committee 31: Equipment for explosive atmospheres.
The text of this interpretation sheet is based on the following documents:
DISH Report on voting
31G/392/DISH 31G/397/RVDISH
Full information on the voting for the approval of this interpretation sheet can be found in the
report on voting indicated in the above table.
___________
IEC 60079-11:2023 (Edition 7.0)
Explosive atmospheres – Part 11: Equipment protection by intrinsic safety “i”
Background
5.4.1 of IEC 60079-11:2023 states, in part:
All surfaces of intrinsically safe apparatus that come into contact with explosive atmospheres
shall be assessed to ensure that, under the conditions specified in 5.2, the apparatus complies
with the maximum surface temperature requirements of IEC 60079-0.
Question
Is "all surfaces of intrinsically safe apparatus that come into contact with explosive
atmospheres", as referenced in 5.4.1 for thermal ignition compliance, intended to mean the
junction temperature of a sealed semiconductor?
ICS 29.260.20
IEC 60079-11:2023-01/ISH1:2024-05(en)
– 2 – IEC 60079-11:2023/ISH1:2024
© IEC 2024
Answer
No. It is not necessary to consider temperatures within a sealed semiconductor for thermal
ignition compliance. It is not necessary to test a packaged component to confirm sealing. It is
not necessary for the packaging of such a component to conform to the encapsulation
requirements of IEC 60079-11.
An example of a sealed semiconductor is one which is fabricated into a package by the
semiconductor manufacturer using moulding or an equivalent process, such that the explosive
atmosphere is excluded, such as SOIC, DIP, QFN, SOT.
IEC 60079-11:2023/ISH2:2024 – 1 –
© IEC 2024
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
IEC 60079-11
Edition 7.0 2023-01
EXPLOSIVE ATMOSPHERES –
Part 11: Equipment protection by intrinsic safety "i"
INTERPRETATION SHEET 2
This interpretation sheet has been prepared by subcommittee 31G: Intrinsically-safe apparatus,
of IEC technical committee 31: Equipment for explosive atmospheres.
The text of this interpretation sheet is based on the following documents:
DISH Report on voting
31G/393/DISH 31G/398/RVDISH
Full information on the voting for the approval of this interpretation sheet can be found in the
report on voting indicated in the above table.
___________
IEC 60079-11:2023 (Edition 7.0)
Explosive atmospheres – Part 11: Equipment protection by intrinsic safety “i”
Background
Table 22, "Rating and failure modes of PPTC devices used to limit current", includes ITRIP as
a parameter requiring a safety factor of 1,0.
Question 1
Where Table 22 applies a safety factor of 1,0 for ITRIP, is external current limitation required
to achieve the safety factor?
ICS 29.260.20
IEC 60079-11:2023-01/ISH2:2024-05(en)
– 2 – IEC 60079-11:2023/ISH2:2024
© IEC 2024
Answer 1
No. A PPTC may be considered to self-limit the current for the purpose of achieving the required
safety factor. Faults still need to be applied according to Table 22.
Question 2
Does IEC 60079-11 permit a PPTC device to be used to limit current for the purpose of spark
ignition compliance?
Answer 2
No. Subclause 7.16.3 only permits the use of a PPTC device to limit current for the purposes
of thermal ignition compliance, power rating of components, and the determination of P .
o
IEC 60079-11:2023/ISH3:2024 – 1 –
© IEC 2024
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
IEC 60079-11
Edition 7.0 2023-01
EXPLOSIVE ATMOSPHERES –
Part 11: Equipment protection by intrinsic safety “i”
INTERPRETATION SHEET 3
This interpretation sheet has been prepared by subcommittee 31G: Intrinsically-safe apparatus,
of IEC technical committee 31: Explosive atmospheres.
The text of this interpretation sheet is based on the following documents:
DISH Report on voting
31G/400/DISH 31G/403/RVDISH
Full information on the voting for the approval of this interpretation sheet can be found in the
report on voting indicated in the above table.
___________
IEC 60079-11 Edition 7.0 2023
EXPLOSIVE ATMOSPHERES – Part 11: Equipment protection by intrinsic safety “i”
Background
Devices which read from memory during operation are clearly programmable components and
need to be considered according to 7.7.8. IEC 60079-11 is not clear whether a component which
only reads from memory or internal registers during initialisation – such as a digital
potentiometer – is a programmable component according to 7.7.8 or a simpler semiconductor
which can be considered according to 7.7.2.
Question
Can a digital potentiometer (or other similar device) which relies on reading from memory or an
internal register only during initialization to set the resistance value be used as a component
on which intrinsic safety depends for Levels of
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
