EUROPEAN STANDARD
EN 60728-3
NORME EUROPÉENNE
February 2011
EUROPÄISCHE NORM
ICS 33.060.40; 33.170 Supersedes EN 60728-3:2006

English version
Cable networks for television signals, sound signals and interactive
services -
Part 3: Active wideband equipment for cable networks
(IEC 60728-3:2010)
Réseaux de distribution par câbles pour Kabelnetze für Fernsehsignale,
signaux de télévision, signaux de Tonsignale und interaktive Dienste -
radiodiffusion sonore et services Teil 3: Aktive Breitbandgeräte für koaxiale
interactifs - Kabelnetze
Partie 3: Matériel actif à large bande pour (IEC 60728-3:2010)
réseaux de distribution par câbles
(CEI 60728-3:2010)
This European Standard was approved by CENELEC on 2011-01-13. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2011 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60728-3:2011 E

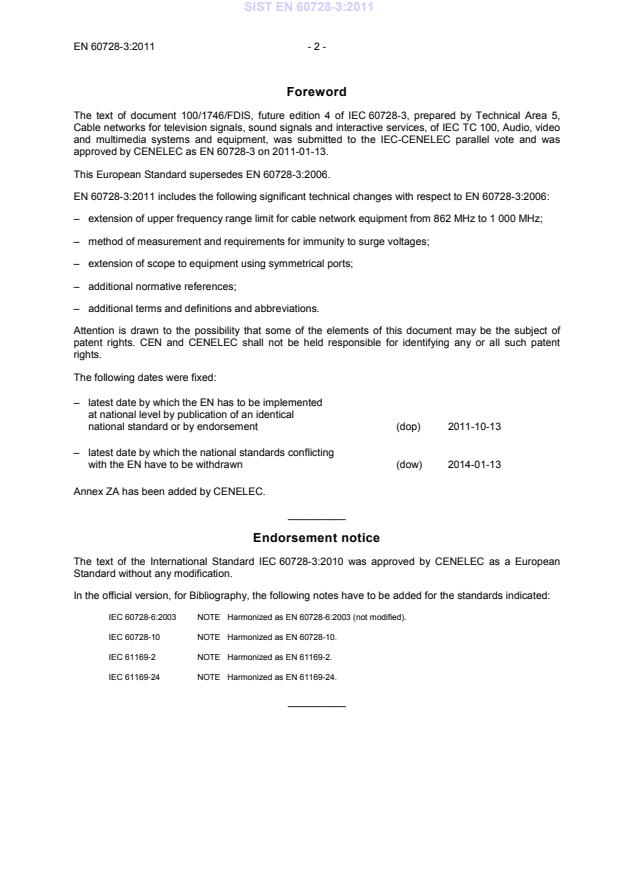

Foreword
The text of document 100/1746/FDIS, future edition 4 of IEC 60728-3, prepared by Technical Area 5,
Cable networks for television signals, sound signals and interactive services, of IEC TC 100, Audio, video
and multimedia systems and equipment, was submitted to the IEC-CENELEC parallel vote and was
approved by CENELEC as EN 60728-3 on 2011-01-13.
This European Standard supersedes EN 60728-3:2006.
– extension of upper frequency range limit for cable network equipment from 862 MHz to 1 000 MHz;
– method of measurement and requirements for immunity to surge voltages;
– extension of scope to equipment using symmetrical ports;
– additional normative references;
– additional terms and definitions and abbreviations.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN and CENELEC shall not be held responsible for identifying any or all such patent
rights.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
(dop) 2011-10-13
national standard or by endorsement
– latest date by which the national standards conflicting
(dow) 2014-01-13
with the EN have to be withdrawn
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 60728-3:2010 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60728-6:2003 NOTE  Harmonized as EN 60728-6:2003 (not modified).
IEC 60728-10 NOTE  Harmonized as EN 60728-10.
IEC 61169-2 NOTE  Harmonized as EN 61169-2.
IEC 61169-24 NOTE  Harmonized as EN 61169-24.
__________
- 3 - EN 60728-3:2011
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60065 - Audio, video and similar electronic apparatus -EN 60065 -
Safety requirements
IEC 60068-1 1988 Environmental testing - EN 60068-1 1994
Part 1: General and guidance
IEC 60068-2-1 - Environmental testing - EN 60068-2-1 -
Part 2-1: Tests - Test A: Cold

IEC 60068-2-2 - Environmental testing - EN 60068-2-2 -
Part 2-2: Tests - Test B: Dry heat

IEC 60068-2-6 - Environmental testing - EN 60068-2-6 -
Part 2-6: Tests - Test Fc: Vibration
(sinusoidal)
IEC 60068-2-14 - Environmental testing - EN 60068-2-14 -
Part 2-14: Tests - Test N: Change of
temperature
IEC 60068-2-27 - Environmental testing - EN 60068-2-27 -
Part 2-27: Tests - Test Ea and guidance:
Shock
IEC 60068-2-29 - Environmental testing - EN 60068-2-29 -
Part 2: Tests - Test Eb and guidance: Bump

IEC 60068-2-30 - Environmental testing - EN 60068-2-30 -
Part 2-30: Tests - Test Db: Damp heat, cyclic
(12 h + 12 h cycle)
IEC 60068-2-31 - Environmental testing - EN 60068-2-31 -
Part 2-31: Tests - Test Ec: Rough handling
shocks, primarily for equipment-type
specimens
IEC 60068-2-32 - Environmental testing. EN 60068-2-32 -
Part 2-32: Tests. Test Ed: Free fall

IEC 60068-2-40 - Basic environmental testing procedures - EN 60068-2-40 -
Part 2-40: Tests - Test Z/AM: Combined
cold/low air pressure tests
IEC 60068-2-48 - Environmental testing - EN 60068-2-48 -
Part 2-48: Tests - Guidance on the application
of the tests of IEC 60068 to simulate the
effects of storage
IEC 60529 - Degrees of protection provided by enclosures - -
(IP Code)
Publication Year Title EN/HD Year
IEC 60728-1 - Cable networks for television signals, sound EN 60728-1 -
signals and interactive services -
Part 1: System performance of forward paths

IEC 60728-2 - Cabled distribution systems for television and EN 50083-2 -
sound signals -
Part 2: Electromagnetic compatibility for
equipment
IEC 60728-4 - Cable networks for television signals, sound EN 60728-4 -
signals and interactive services -
Part 4: Passive wideband equipment for
coaxial cable networks
IEC 60728-5 - Cable networks for television signals, sound EN 60728-5 -
signals and interactive services -
Part 5: Headend equipment
IEC 60728-11 - Cable networks for television signals, sound EN 60728-11 -
signals and interactive services -
Part 11: Safety
IEC 60950-1 - Information technology equipment - Safety - EN 60950-1 -
Part 1: General requirements
IEC 61000-4-5 - Electromagnetic compatibility (EMC) - EN 61000-4-5 -
Part 4-5: Testing and measurement
techniques - Surge immunity test

IEC 61319-1 - Interconnections of satellite receiving EN 61319-1 -
equipment -
Part 1: Europe
IEC 61319-2 - Interconnections of satellite receiving - -
equipment -
Part 2: Japan
ITU-T - Transmission aspects of unbalance about - -
Recommendation earth
G.117
ITU-T - Measuring arrangements to assess the - -
Recommendation degree of unbalance about earth
O.9
IEC 60728-3 ®
Edition 4.0 2010-12
INTERNATIONAL
STANDARD
colour
inside
Cable networks for television signals, sound signals and interactive services –
Part 3: Active wideband equipment for cable networks

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
XB
ICS 33.060.40; 33.170 ISBN 978-2-88912-251-6
– 2 – 60728-3 ã IEC:2010(E)
