EN 60384-23:2015

(Main)

Fixed capacitors for use in electronic equipment - Part 23: Sectional specification - Fixed surface mount metallized polyethylene naphthalate film dielectric DC capacitors

Fixed capacitors for use in electronic equipment - Part 23: Sectional specification - Fixed surface mount metallized polyethylene naphthalate film dielectric DC capacitors

IEC 60384-23:2015 is applicable to fixed surface mount capacitors for direct current, with metallized electrodes and polyethylene naphthalate dielectric for use in electronic equipment. These capacitors have metallized connecting pads or soldering strips and are intended to be mounted directly onto substrates for hybrid circuits or onto printed boards. These capacitors may have "self healing properties" depending on conditions of use. They are primarily intended for applications where the a.c. component is small with respect to the rated voltage. This edition includes the following significant technical changes with respect to the previous edition: a) Revised all parts of the document based on the ISO/IEC Directives, Part 2:2011 (sixth edition) and harmonization between other similar kinds of documents. b) Revised tables and Clause 4 so as to prevent duplications and contradictions.

Festkondensatoren zur Verwendung in Geräten der Elektronik - Teil 23: Rahmenspezifikation - Oberflächenmontierbare metallisierte Polyethylen-Naphthalat-Folienkondensatoren für Gleichspannung

Condensateurs fixes utilisés dans les équipements électroniques - Partie 23: Spécification intermédiaire - Condensateurs fixes pour montage en surface pour courant continu à diélectrique en film de polynaphtalate d'éthylène métallisé

L'IEC 60384-23:2015 s'applique aux condensateurs fixes pour courant continu à électrodes métallisées et à diélectrique en polynaphtalate d'éthylène destinés aux équipements électroniques. Ces condensateurs sont équipés de contacts de connexion métallisés ou de bandes de brasure et sont destinés à être montés directement sur des substrats pour circuits hybrides ou sur des cartes imprimées. Ces condensateurs peuvent avoir des propriétés d'autorégénération en fonction des conditions d'utilisation. Ils sont principalement destinés à des applications dans lesquelles la composante alternative est petite par rapport à la tension assignée. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: a) Révision de toutes les parties du document en se basant sur les Directives ISO/IEC, Partie 2:2011 (sixième édition) et sur l'harmonisation d'autres types de documents similaires. b) Révision des tableaux et de l'Article 4 pour éviter les duplications et les contradictions.

Pritrjeni kondenzatorji za uporabo v elektronski opremi - 23. del: Področna specifikacija: pritrjeni enosmerni kondenzatorji za površinsko namestitev z dielektrikom iz metaliziranega polietilenskega naftalatnega filma

Ta del standarda IEC 60384 se uporablja za pritrjene kondenzatorje za površinsko namestitev za enosmerne napetosti z metaliziranimi elektrodami in polietilenskim naftalatnim dielektrikom za uporabo v elektronski opremi. Ti kondenzatorji imajo metalizirane priključne blazinice ali varilne trakove ter so namenjeni namestitvi neposredno na podloge za hibridne tokokroge ali na tiskana vezja. Ti kondenzatorji imajo lahko »samoozdravljive lastnosti«, odvisno od pogojev uporabe. Namenjeni so predvsem uporabam, pri katerih je izmenična komponenta majhna glede na nazivno napetost. Kondenzatorji za preprečevanje radijskih motenj niso vključeni, vendar so zajeti v standardu IEC 60384-14.

General Information

Status
Published
Publication Date
18-Jun-2015
Withdrawal Date
02-Jun-2018
ICS
31.060.10 - Fixed capacitors
Technical Committee
CLC/TC 40XA - CLC/TC 40XA
Drafting Committee
IEC/TC 40 - IEC_TC_40
Current Stage
6060 - Document made available - Publishing
Start Date
19-Jun-2015
Completion Date
19-Jun-2015
Ref Project
SIST EN 60384-23:2015 - Fixed capacitors for use in electronic equipment - Part 23: Sectional specification - Fixed surface mount metallized polyethylene naphthalate film dielectric DC capacitors

Relations

Replaces
EN 60384-23:2005 - Fixed capacitors for use in electronic equipment - Part 23: Sectional specification - Fixed surface mount metallized polyethylene naphthalate film dielectric DC capacitors
Effective Date
29-Jan-2023
Replaced By
EN IEC 60384-23:2023 - Fixed capacitors for use in electronic equipment - Part 23: Sectional specification - Fixed metallized polyethylene naphthalate film dielectric surface mount DC capacitors
Effective Date
26-Jan-2023

Buy Standard

EN 60384-23:2015EN 60384-23:2015
PreviousNext
Standard
EN 60384-23:2015
English language
33 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI STANDARD
01-september-2015
1DGRPHãþD
SIST EN 60384-23:2005
3ULWUMHQLNRQGHQ]DWRUML]DXSRUDERYHOHNWURQVNLRSUHPLGHO3RGURþQD
VSHFLILNDFLMDSULWUMHQLHQRVPHUQLNRQGHQ]DWRUML]DSRYUãLQVNRQDPHVWLWHY]
GLHOHNWULNRPL]PHWDOL]LUDQHJDSROLHWLOHQVNHJDQDIWDODWQHJDILOPD
Fixed capacitors for use in electronic equipment - Part 23: Sectional specification - Fixed
surface mount metallized polyethylene naphthalate film dielectric DC capacitors
Festkondensatoren zur Verwendung in Geräten der Elektronik - Teil 23:
Rahmenspezifikation - Oberflächenmontierbare metallisierte Polyethylen-Naphthalat-
Folienkondensatoren für Gleichspannung
Condensateurs fixes utilisés dans les équipements électroniques - Partie 23:
Spécification intermédiaire - Condensateurs fixes pour montage en surface pour courant
continu à diélectrique en film de polynaphtalate d'éthylène métallisé
Ta slovenski standard je istoveten z: EN 60384-23:2015
ICS:
31.060.10 Fiksni kondenzatorji Fixed capacitors
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 60384-23

NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2015
ICS 31.060.10 Supersedes EN 60384-23:2005
English Version
Fixed capacitors for use in electronic equipment - Part 23:
Sectional specification - Fixed surface mount metallized
polyethylene naphthalate film dielectric DC capacitors
(IEC 60384-23:2015)
Condensateurs fixes utilisés dans les équipements Festkondensatoren zur Verwendung in Geräten der
électroniques - Partie 23: Spécification intermédiaire - Elektronik - Teil 23: Rahmenspezifikation -
Condensateurs fixes pour montage en surface pour courant Oberflächenmontierbare metallisierte Polyethylen-
continu à diélectrique en film de polynaphtalate d'éthylène Naphthalat-Folienkondensatoren für Gleichspannung
métallisé (IEC 60384-23:2015)
(IEC 60384-23:2015)
This European Standard was approved by CENELEC on 2015-06-03. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 60384-23:2015 E

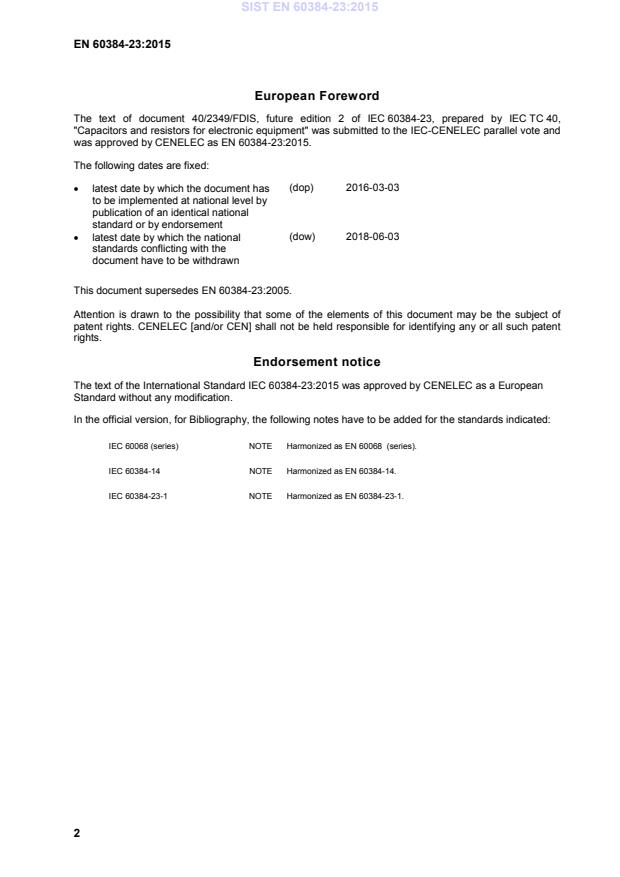

European Foreword
The text of document 40/2349/FDIS, future edition 2 of IEC 60384-23, prepared by IEC TC 40,
"Capacitors and resistors for electronic equipment" was submitted to the IEC-CENELEC parallel vote and
was approved by CENELEC as EN 60384-23:2015.
The following dates are fixed:
(dop) 2016-03-03
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2018-06-03
standards conflicting with the
document have to be withdrawn
This document supersedes EN 60384-23:2005.

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent
rights.
Endorsement notice
The text of the International Standard IEC 60384-23:2015 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60068 (series) NOTE Harmonized as EN 60068 (series).
IEC 60384-14 NOTE Harmonized as EN 60384-14.
IEC 60384-23-1 NOTE Harmonized as EN 60384-23-1.

Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant EN/HD

applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year

IEC 60062 -  Marking codes for resistors and capacitors EN 60062 -
- -  +corrigendum Jan. -
IEC 60063 -  Preferred number series for resistors and EN 60063 -
capacitors
IEC 60068-1 2013 Environmental testing -- Part 1: General and EN 60068-1 2014
guidance
IEC 60384-1 2008 Fixed capacitors for use in electronic EN 60384-1 2009
equipment -- Part 1: Generic specification
IEC 61193-2 2007 Quality assessment systems -- Part 2: EN 61193-2 2007
Selection and use of sampling plans for
inspection of electronic components and
packages
ISO 3 -  Preferred numbers; Series of preferred - -
numbers
IEC 60384-23 ®
Edition 2.0 2015-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Fixed capacitors for use in electronic equipment –

Part 23: Sectional specification – Fixed metallized polyethylene naphthalate film

dielectric surface mount d.c. capacitors

Condensateurs fixes utilisés dans les équipements électroniques –

Partie 23: Spécification intermédiaire – Condensateurs fixes pour montage en

surface pour courant continu à diélectrique en film de polynaphtalate d'éthylène

métallisé
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.060.10 ISBN 978-2-8322-2647-6

– 2 – IEC 60384-23:2015  IEC 2015
CONTENTS
FOREWORD . 5
1 General . 7
1.1 Scope . 7
1.2 Object . 7
1.3 Normative references . 7
1.4 Information to be given in a detail specification . 7
1.4.1 General . 7
1.4.2 Outline drawing and dimensions . 8
1.4.3 Mounting . 8
1.4.4 Ratings and characteristics . 8
1.4.5 Marking . 9
1.5 Terms and definitions . 9
1.6 Marking . 9
1.6.1 General . 9
1.6.2 Information for marking . 9
1.6.3 Marking of capacitors . 9
1.6.4 Marking on packaging . 10
2 Preferred ratings and characteristics . 10
2.1 Preferred characteristics . 10
2.1.1 Preferred climatic categories . 10
2.2 Preferred values of ratings . 10
2.2.1 Nominal capacitance (C ) . 10
N
2.2.2 Tolerance on nominal capacitance . 10
2.2.3 Rated voltage (U ) . 10
R
2.2.4 Category voltage (U ) . 11
C
2.2.5 Rated temperature . 11
3 Quality assessment procedures . 11
3.1 Primary stage of manufacture . 11
3.2 Structurally similar components . 11
3.3 Certified test records of released lots . 11
3.4 Qualification approval procedures . 11
3.4.1 General . 11
3.4.2 Qualification approval on the basis of the fixed sample size procedure . 12
3.5 Quality conformance inspection . 19
3.5.1 Formation of inspection lots . 19
3.5.2 Test schedule . 20
3.5.3 Delayed delivery . 20
3.5.4 Assessment levels . 20
4 Test and measurement procedures . 21
4.1 Mounting . 21
4.2 Visual examination and check of dimensions . 21
4.2.1 General . 21
4.2.2 Visual examination and check of dimensions . 21
4.2.3 Requirements . 21
4.3 Electrical tests . 21
4.3.1 Voltage proof . 21

IEC 60384-23:2015  IEC 2015 – 3 –
4.3.2 Capacitance . 22
4.3.3 Tangent of loss angle (tan δ) . 22
4.3.4 Insulation resistance . 23
4.4 Shear test . 24
4.5 Substrate bending test . 24
4.5.1 General . 24
4.5.2 Initial measurement . 24
4.5.3 Final inspections and requirements . 24
4.6 Resistance to soldering heat . 25
4.6.1 General . 25
4.6.2 Initial inspections . 25
4.6.3 Test conditions .
...
