EUROPEAN STANDARD EN 50288-11-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2015
ICS 33.120.10
English Version
Multi-element metallic cables used in analogue and digital
communication and control - Part 11-2: Sectional specification
for un-screened cables, characterized from 1 MHz up to 500
MHz for work area, patch cord and data centre applications
Câbles métalliques à éléments multiples utilisés pour les Mehradrige metallische Daten- und Kontrollkabel für
transmissions et les commandes analogiques et
analoge und digitale Kommunikation - Teil 11-2:
numériques - Partie 11-2: Spécification intermédiaire pour Rahmenspezifikation für ungeschirmte Kabel von 1 MHz bis
les câbles non écrantés, caractérisés de 1 MHz à 500 MHz 500 MHz für Geräteanschlusskabel, Schaltkabel und
- Câbles horizontaux et câbles verticaux de bâtiment Anwendungen für Rechenzentren
This European Standard was approved by CENELEC on 2015-08-03. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 50288-11-2:2015 E

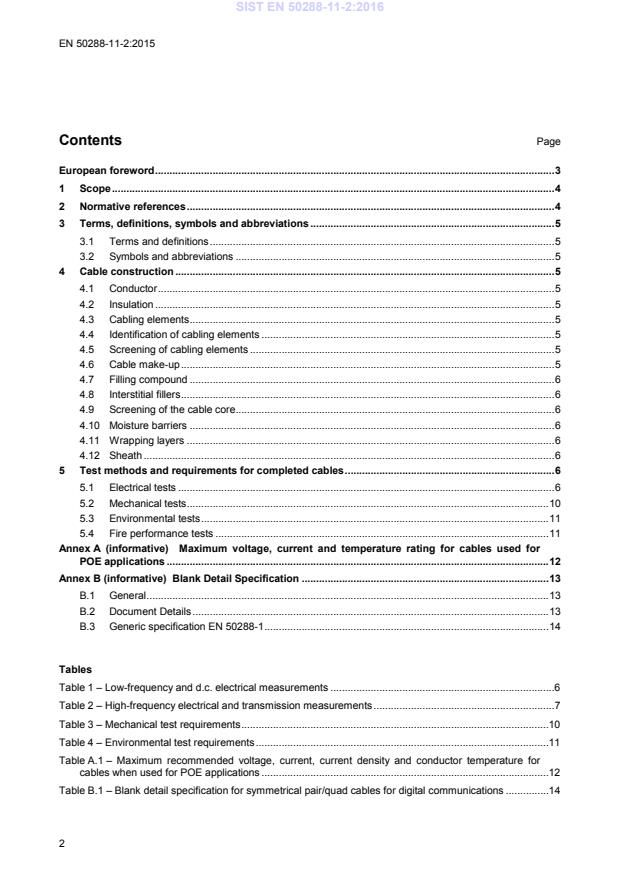

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms, definitions, symbols and abbreviations . 5
3.1 Terms and definitions . 5
3.2 Symbols and abbreviations . 5
4 Cable construction . 5
4.1 Conductor . 5
4.2 Insulation . 5
4.3 Cabling elements . 5
4.4 Identification of cabling elements . 5
4.5 Screening of cabling elements . 5
4.6 Cable make-up . 5
4.7 Filling compound . 6
4.8 Interstitial fillers . 6
4.9 Screening of the cable core . 6
4.10 Moisture barriers . 6
4.11 Wrapping layers . 6
4.12 Sheath . 6
5 Test methods and requirements for completed cables . 6
5.1 Electrical tests . 6
5.2 Mechanical tests . 10
5.3 Environmental tests . 11
5.4 Fire performance tests . 11
Annex A (informative) Maximum voltage, current and temperature rating for cables used for
POE applications . 12
Annex B (informative) Blank Detail Specification . 13
B.1 General . 13
B.2 Document Details . 13
B.3 Generic specification EN 50288-1 . 14
Tables
Table 1 – Low-frequency and d.c. electrical measurements .6
Table 2 – High-frequency electrical and transmission measurements .7
Table 3 – Mechanical test requirements .10
Table 4 – Environmental test requirements .11
Table A.1 – Maximum recommended voltage, current, current density and conductor temperature for
cables when used for POE applications .12
Table B.1 – Blank detail specification for symmetrical pair/quad cables for digital communications .14
European foreword
This document (EN 50288-11-2:2015) has been prepared by CLC/SC 46XC "Multicore, multipair and quad
data communication cables," of CLC/TC 46X, "Communication cables".
The following dates are fixed:
(dop) 2015-08-03
• latest date by which this document has to be
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) 2018-08-03
conflicting with this document have to
be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent rights.
This Part 11-2 is to be read in conjunction to EN 50288-1.
This document has been prepared under a mandate given to CENELEC by the European Commission and
the European Free Trade Association.
This standard covers the Principle Elements of the Safety Objectives for Electrical Equipment Designed for
Use within Certain Voltage Limits (LVD - 2006/95/EC).
1 Scope
This sectional specification covers un-screened cables, characterised from 1 MHz up to 500 MHz, to be used
to construct cords for use in cabling specified in the EN 50173 series of standards.
The premises-specific cabling standards of the EN 50173 series reference the D1 requirements of this
specification for the cable used within cords of the “reference implementations” of those standards. The
alternative D2 requirements of this specification may be used to produce cords for other implementations and
applications including the direct connection of equipment in data centres.
This sectional specification contains the electrical, mechanical, transmission and environmental performance
characteristics and requirements of the cables when tested in accordance with the referenced test methods.
This sectional specification is to be read in conjunction with EN 50288-1, which contains the essential
provisions for its application.
The cables covered in this sectional specification are intended to operate with voltages and currents normally
encountered in communications systems. These cables are not intended to be used in conjunction with low
impedance sources, for example the electrical power supplies of public utility mains.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
EN 50288-1:2013, Multi-element metallic cables used in analogue and digital communication and control –
Part 1: Generic specification
EN 50289-3-2, Communication cables – Specifications for test methods – Part 3-2: Mechanical test
methods – Tensile strength and elongation for conductor
EN 50289-3-4, Communication cables – Specifications for test methods – Part 3-4: Mechanical test
methods – Tensile strength, elongation and shrinkage of insulation and sheath
EN 50289-3-5, Communication cables – Specifications for test methods – Part 3-5: Mechanical test
methods – Crush resistance of the cable
EN 50289-3-6, Communication cables – Specifications for test methods – Part 3-6: Mechanical test
methods – Impact resistance of the cable
EN 50289-3-8, Communication cables – Specifications for test methods – Part 3-8: Mechanical test
methods – Abrasion resistance of cable sheath markings
EN 50289-3-9:2001, Communication cables – Specifications for test methods – Part 3-9: Mechanical test
methods – Bending tests
EN 50289-3-16, Communication cables – Specifications for test methods – Part 3-16: Mechanical test
methods – Cable tensile performance
EN 50289-4-6, Communication cables – Specifications for test methods – Part 4-6: Environmental test
methods – Temperature cycling
EN 50290-2 series, Communication cables – Part 2: Common design rules and construction
EN 60708, Low-frequency cables with polyolefin insulation and moisture barrier polyolefin sheath (IEC 60708)
IEC 60189-2, Low-frequency cables and wires with PVC insulation and PVC sheath – Part 2: Cables in pairs,
triples, quads and quintuples for inside installations
3 Terms, definitions, symbols and abbreviations
3.1 Terms and definitions
For the purposes of this document, the terms and definitions of EN 50288-1 apply.
3.2 Symbols and abbreviations
For the purposes of this document, the following abbreviations apply.
EX Exogenous (derived or originating externally)
POE Power Over Ethernet
4 Cable construction
4.1 Conductor
The conductor shall be solid or stranded annealed copper and meet the requirements of EN 50288-1:2013,
4.1
The solid conductor nominal diameter shall be ≥ 0,40 mm and ≤ 0,80 mm.
The stranded conductor shall consist of seven wires each with a nominal diameter of ≥ 0,10 mm to
≤ 0,21 mm.
NOTE Constructions with ‘copper clad’ conductors do not meet the requirements.
4.2 Insulation
The insulation shall be of a suitable material in accordance with the appropriate part of the EN 50290-2
series.
4.3 Cabling elements
The cable element shall be a pair or quad.
...
