CLC

EN 50052:1986

(Main)

Cast aluminium alloy enclosures for gas-filled high-voltage switchgear and controlgear

Cast aluminium alloy enclosures for gas-filled high-voltage switchgear and controlgear

This standard applies to cast aluminium alloy enclosures pressurized with dry air, insert gases, for example sulphur hexafluoride or nitrogen or a mixture of such gases, used in indoor or outdoor installations of high-voltage switchgear and controlgear with rated voltages above 1 kV, where the gas is used principally for its dielectric and/or arc-quanching properties. The enclosures comprise parts of electrical equipment not necessarily limited to the following examples: circuit breakers, switch-disconnectors, disconnectors, earthing switches, current transformers, voltage transformers, surge arrestors, busbars and connections. The scope also covers pressurized components such as the centre chamber of live tank switchgear, gas-insulated current transformers, etc.

Kapselungen aus Leichtmetallguss fur gasgefüllte Hochspannungs-Schaltgeräte und -Schaltanlagen

Enveloppes en alliage d'aluminium coulé pour l'appareillage à haute tension sous pression de gaz

Cast aluminium alloy enclosures for gas-filled high-voltage switchgear and controlgear

General Information

Status
Withdrawn
Publication Date
02-Dec-1986
Withdrawal Date
02-Jun-1987
Technical Committee
CLC/TC 17AC - High-voltage switchgear and controlgear
Parallel Committee
IEC/SC 17C - IEC_SC_17C
Current Stage
9960 - Withdrawal effective - Withdrawal
Start Date
12-Sep-2019
Completion Date
12-Sep-2019
Ref Project
SIST EN 50052:1998 - Cast aluminium alloy enclosures for gas-filled high-voltage switchgear and controlgear

Relations

Replaced By
EN 50052:2016 - High-voltage switchgear and controlgear - Gas-filled cast aluminium alloy enclosures
Effective Date
28-Jan-2023
Amended By
EN 50052:1986/A2:1993 - Cast aluminium alloy enclosures for gas-filled high-voltage switchgear and controlgear
Effective Date
29-Jan-2023

Buy Standard

EN 50052:1998EN 50052:1998
PreviousNext
Standard
EN 50052:1998
English language
11 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

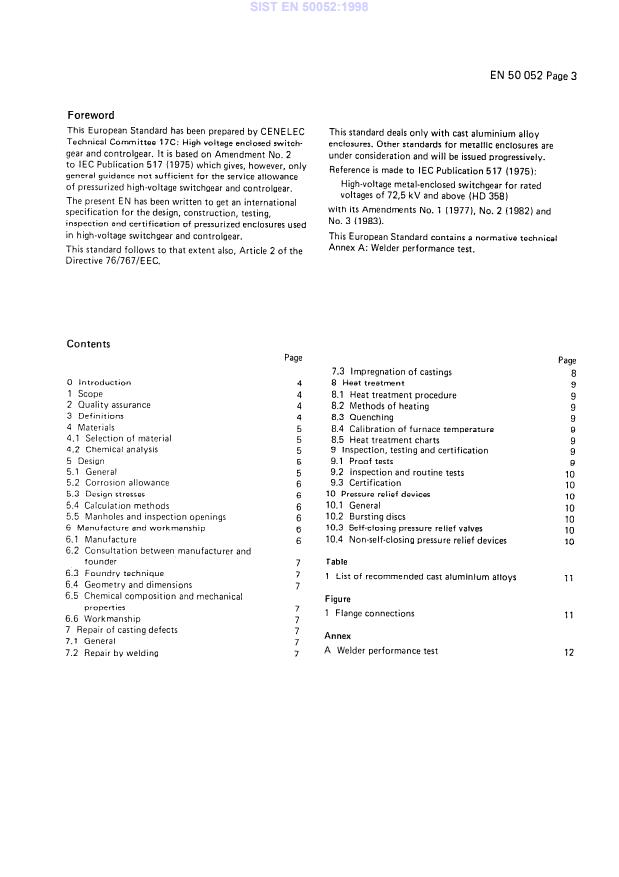

Standards Content (Sample)


SLOVENSKI STANDARD
01-februar-1998
Cast aluminium alloy enclosures for gas-filled high-voltage switchgear and
controlgear
Cast aluminium alloy enclosures for gas-filled high-voltage switchgear and controlgear
Kapselungen aus Leichtmetallguss fur gasgefüllte Hochspannungs-Schaltgeräte und -
Schaltanlagen
Enveloppes en alliage d'aluminium coulé pour l'appareillage à haute tension sous
pression de gaz
Ta slovenski standard je istoveten z: EN 50052:1986
ICS:
29.130.10 Visokonapetostne stikalne in High voltage switchgear and
krmilne naprave controlgear
77.150.10 Aluminijski izdelki Aluminium products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
...
