EN 60947-5-7:2003

STANDARDNizkonapetostne stikalne naprave – 5-7. del: Krmilne naprave in stikalni HOHPHQWL±=DKWHYH]DEOLåLQVNHQDSUDYH]DQDORJQLPL]KRGRP,(&7:2003)Low-voltage switchgear and controlgear - Part 5-7: Control circuit devices and switching elements - Requirements for proximity devices with analogue output (IEC 60947-5-7:2003)! "#$%!&!%'(+'5HIHUHQþQDãWHYLONDSIST EN 60947-5-7:2003(en)ICS29.130.20

EUROPEAN STANDARD
EN 60947-5-7 NORME EUROPÉENNE EUROPÄISCHE NORM
September 2003 CENELEC European Committee for Electrotechnical Standardization Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: rue de Stassart 35, B - 1050 Brussels
© 2003 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60947-5-7:2003 E
ICS 29.130.20 Supersedes EN 50319:1999
English version
Low-voltage switchgear and controlgear Part 5-7: Control circuit devices and switching elements -
Requirements for proximity devices with analogue output (IEC 60947-5-7:2003)
Appareillage à basse tension Partie 5-7: Appareils et éléments
de commutation pour circuits
de commande -
Prescriptions pour les détecteurs
de proximité à sortie analogique (CEI 60947-5-7:2003)
Niederspannungsschaltgeräte Teil 5-7: Steuergeräte und Schaltelemente -Anforderungen an Näherungssensoren
mit Analogausgang (IEC 60947-5-7:2003)
This European Standard was approved by CENELEC on 2003-09-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Lithuania, Luxembourg, Malta, Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and United Kingdom.

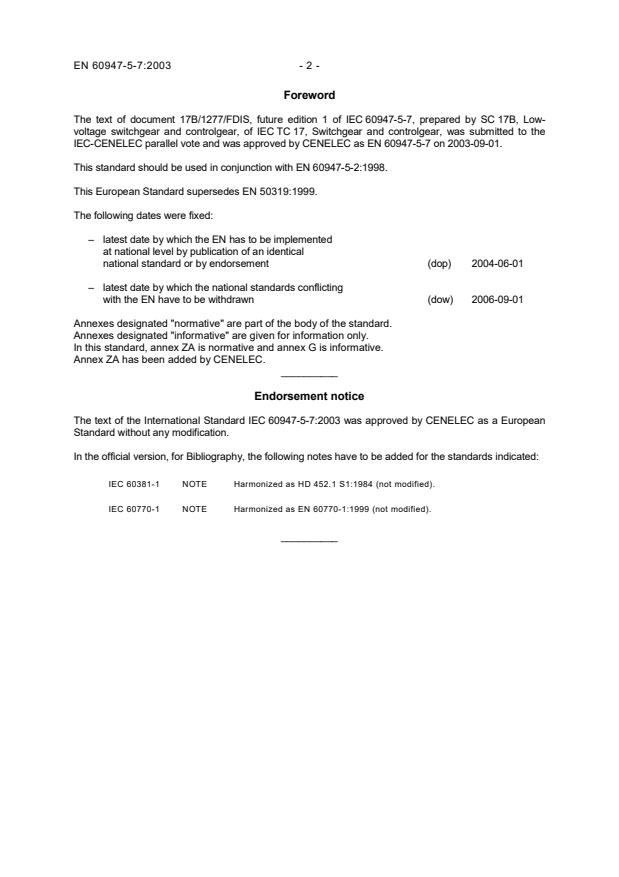

The text of document 17B/1277/FDIS, future edition 1 of IEC 60947-5-7, prepared by SC 17B, Low-voltage switchgear and controlgear, of IEC TC 17, Switchgear and controlgear, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as EN 60947-5-7 on 2003-09-01.
This standard should be used in conjunction with EN 60947-5-2:1998.
This European Standard supersedes EN 50319:1999.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement
(dop) 2004-06-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn
(dow) 2006-09-01
Annexes designated "normative" are part of the body of the standard.
Annexes designated "informative" are given for information only.
In this standard, annex ZA is normative and annex G is informative. Annex ZA has been added by CENELEC. __________
Endorsement notice
The text of the International Standard IEC 60947-5-7:2003 was approved by CENELEC as a European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60381-1 NOTE Harmonized as HD 452.1 S1:1984 (not modified). IEC 60770-1 NOTE Harmonized as EN 60770-1:1999 (not modified). __________

- 3 - EN 60947-5-7:2003
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications This European Standard incorporates by dated or undated reference, provisions from other publications. These normative references are cited at the appropriate places in the text and the publications are listed hereafter. For dated references, subsequent amendments to or revisions of any of these publications apply to this European Standard only when incorporated in it by amendment or revision. For undated references the latest edition of the publication referred to applies (including amendments). NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD applies. Publication Year Title EN/HD Year IEC 60947-5-2 (mod) 1997 Low-voltage switchgear and controlgearPart 5-2: Control circuit devices and switching elements - Proximity switches EN 60947-5-2 1998 A1 1999
A1 1999
NORMEINTERNATIONALECEIIECINTERNATIONALSTANDARD60947-5-7Première éditionFirst edition2003-06Appareillage à basse tension –Partie 5-7:Appareils et éléments de commutationpour circuits de commande –Prescriptions pour les détecteursde proximité à sortie analogiqueLow-voltage switchgear and controlgear –Part 5-7:Control circuit devices and switching elements –Requirements for proximity deviceswith analogue outputPour prix, voir catalogue en vigueurFor price, see current catalogue IEC 2003
Droits de reproduction réservés

Copyright - all rights reservedAucune partie de cette publication ne peut être reproduite niutilisée sous quelque forme que ce soit et par aucun procédé,électronique ou mécanique, y compris la photocopie et lesmicrofilms, sans l'accord écrit de l'éditeur.No part of this publication may be reproduced or utilized in anyform or by any means, electronic or mechanical, includingphotocopying and microfilm, without permission in writing fromthe publisher.International Electrotechnical Commission,
3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, SwitzerlandTelephone: +41 22 919 02 11
Telefax: +41 22 919 03 00
E-mail: inmail@iec.ch
Web: www.iec.chCODE PRIXPRICE CODENCommission Electrotechnique InternationaleInternational Electrotechnical Commission

60947-5-7  IEC:2003– 3 –CONTENTSFOREWORD.5INTRODUCTION.71General.91.1Scope and object.91.2Normative references.92Definitions.92.1Basic definitions.92.3Operation of a proximity device.112.4Output element characteristics.113Classification.133.7Classification according to analogue output.134Characteristics.134.3Rated and limiting values for the proximity device and output elements.135Product information.157Constructional and performance requirements.158Tests.178.6Verification of the electromagnetic compatibility.19Annex G (informative)
Example of the determination of the conformity of an ultrasonicsensor, nominal sensing distance 60 … 500 mm with linear output characteristic.21Bibliography.29Figure G.1 – Error curve plots.27Table 9 – Range of analogue voltage signals.13Table 10 – Range of analogue current signals.15Table G.1 – Error tabulation for travel 1.21Table G.2 – Error tabulation for travel 2.23Table G.3 – Error tabulation for travel 3.23Table G.4 – Computation of the errors.25

60947-5-7  IEC:2003– 5 –INTERNATIONAL ELECTROTECHNICAL COMMISSION____________LOW-VOLTAGE SWITCHGEAR AND CONTROLGEAR –Part 5-7: Control circuit devices and switching elements –Requirements for proximity deviceswith analogue outputFOREWORD1)The IEC (International Electrotechnical Commission) is a worldwide organization for standardization comprisingall national electrotechnical committees (IEC National Committees). The object of the IEC is to promoteinternational co-operation on all questions concerning standardization in the electrical and electronic fields. Tothis end and in addition to other activities, the IEC publishes International Standards. Their preparation isentrusted to technical committees; any IEC National Committee interested in the subject dealt with mayparticipate in this preparatory work. International, governmental and non-governmental organizations liaisingwith the IEC also participate in this preparation. The IEC collaborates closely with the InternationalOrganization for Standardization (ISO) in accordance with conditions determined by agreement between thetwo organizations.2)The formal decisions or agreements of the IEC on technical matters express, as nearly as possible, aninternational consensus of opinion on the relevant subjects since each technical committee has representationfrom all interested National Committees.3)The documents produced have the form of recommendations for international use and are published in the formof standards, technical specifications, technical reports or guides and they are accepted by the NationalCommittees in that sense.4)
In order to promote international unification, IEC National Committees undertake to apply IEC InternationalStandards transparently to the maximum extent possible in their national and regional standards. Anydivergence between the IEC Standard and the corresponding national or regional standard shall be clearlyindicated in the latter.5)
The IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for anyequipment declared to be in conformity with one of its standards.6)
Attention is drawn to the possibility that some of the elements of this International Standard may be the subjectof patent rights. The IEC shall not be held responsible for identifying any or all such patent rights.International Standard IEC 60947-5-7 has been prepared by subcommittee 17B: Low-voltageswitchgear and controlgear, of IEC technical committee 17: Switchgear and controlgear.This standard should be used in conjunction with IEC 60947-5-2.The text of this standard is based on the following documents:FDISReport on voting17B/1277/FDIS17B/1287/RVDFull information on the voting for the approval of this standard can be found in the report onvoting indicated in the above table.This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.The committee has decided that the contents of this publication will remain unchanged until 2005.At this date, the publication will be•reconfirmed;•withdrawn;•replaced by a revised edition, or•amended.

60947-5-7  IEC:2003– 7 –INTRODUCTIONThis part of IEC 60947 modifies the relevant requirements of IEC 60947-5-2, dealing withthe requirements for proximity switches with semiconductor switching elements, to make themapplicable to proximity devices with analogue output.

60947-5-7  IEC:2003– 9 –LOW-VOLTAGE SWITCHGEAR AND CONTROLGEAR –Part 5-7: Control circuit devices and switching elements –Requirements for proximity deviceswith analogue output1 General1.1 Scope and objectThis part of IEC 60947 states the requirements for proximity devices with analogue output.They may consist of one or more parts.The requirements of IEC 60947-5-2 (proximity switches) apply with the additions ormodifications as stated in this standard. The clause numbering in this standard follows theclause numbering of IEC 60947-5-2, modified where necessary.1.2 Normative referencesThe following referenced documents are indispensable for the application of this document.For dated references, only the edition cited applies. For undated references, the latest editionof the referenced document (including any amendments) applies.IEC 60947-5-2:1997, Low-voltage switchgear and controlgear – Part 5-2: Control circuitdevices and switching elements – Proximity switches Amendment 1 (1999)2 Definitions2.1 Basic definitions2.1.2proximity device with analogue outputdevice producing an output signal which varies continuously depending on the distancebetween the sensing face of the proximity device and its target object2.1.3lower distanceminimum stated distance above which the output signal varies continuously2.1.4upper distancemaximum stated distance below which the output signal varies continuously2.1.5distance rangerange of distances between and including the lower and upper distances

60947-5-7  IEC:2003– 11 –2.3
Operation of a proximity device2.3.7distance/output characteristic of the proximity devicerelationship of the output signal (current or voltage value) in the steady state to the distancebetween the sensing face of the proximity device and its target object2.3.8conformitymaximum deviation including the manufacturing tolerances between the nominaldistance/output characteristic curve and the measured value of five defined distances2.3.9repeatabilityvalue of variation of the output signal under specified conditions expressed as a percentageof the upper limit2.3.10upscale errorarithmetic mean of the errors at each value of each measurement cycle with increasingdistance2.3.11downscale errorarithmetic mean of the errors at each
...
