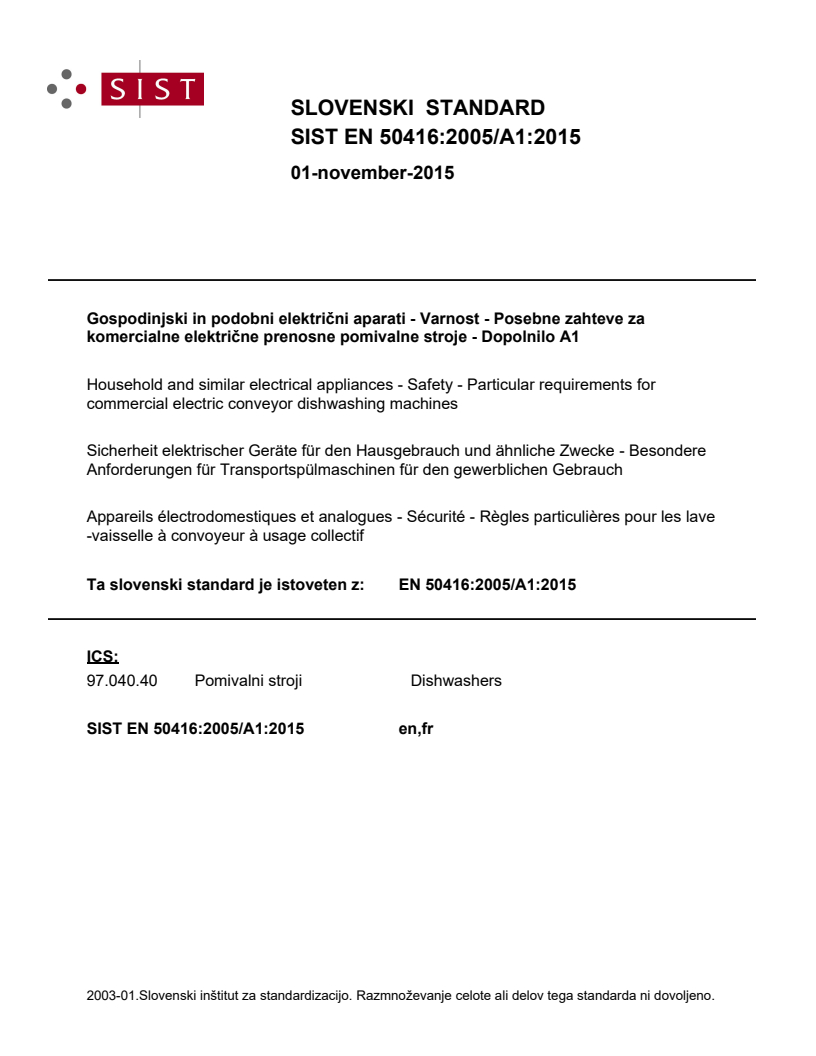

EN 50416:2005/A1:2015

SLOVENSKI STANDARD
01-november-2015
*RVSRGLQMVNLLQSRGREQLHOHNWULþQLDSDUDWL9DUQRVW3RVHEQH]DKWHYH]D
NRPHUFLDOQHHOHNWULþQHSUHQRVQHSRPLYDOQHVWURMH'RSROQLOR$
Household and similar electrical appliances - Safety - Particular requirements for
commercial electric conveyor dishwashing machines
Sicherheit elektrischer Geräte für den Hausgebrauch und ähnliche Zwecke - Besondere
Anforderungen für Transportspülmaschinen für den gewerblichen Gebrauch
Appareils électrodomestiques et analogues - Sécurité - Règles particulières pour les lave
-vaisselle à convoyeur à usage collectif
Ta slovenski standard je istoveten z: EN 50416:2005/A1:2015
ICS:
97.040.40 Pomivalni stroji Dishwashers
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

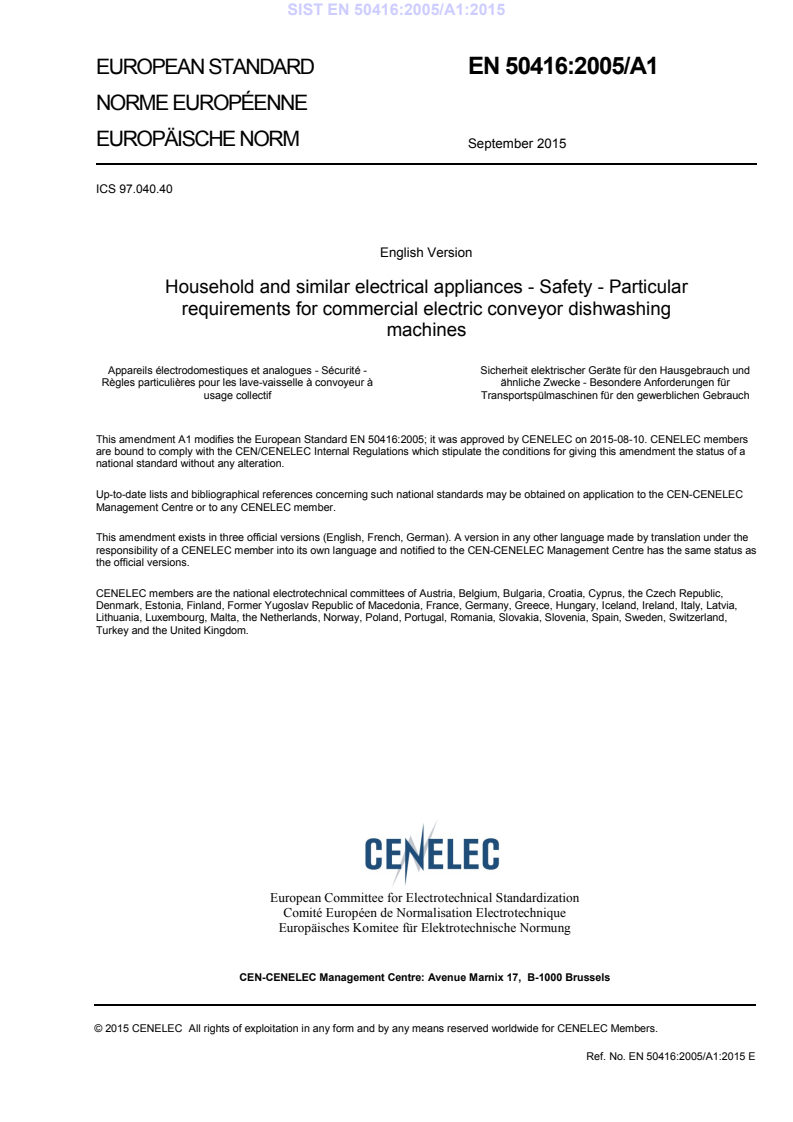

EUROPEAN STANDARD EN 50416:2005/A1

NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2015
ICS 97.040.40
English Version
Household and similar electrical appliances - Safety - Particular
requirements for commercial electric conveyor dishwashing
machines
Appareils électrodomestiques et analogues - Sécurité - Sicherheit elektrischer Geräte für den Hausgebrauch und
Règles particulières pour les lave-vaisselle à convoyeur à ähnliche Zwecke - Besondere Anforderungen für
usage collectif Transportspülmaschinen für den gewerblichen Gebrauch
This amendment A1 modifies the European Standard EN 50416:2005; it was approved by CENELEC on 2015-08-10. CENELEC members
are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the status of a
national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 50416:2005/A1:2015 E

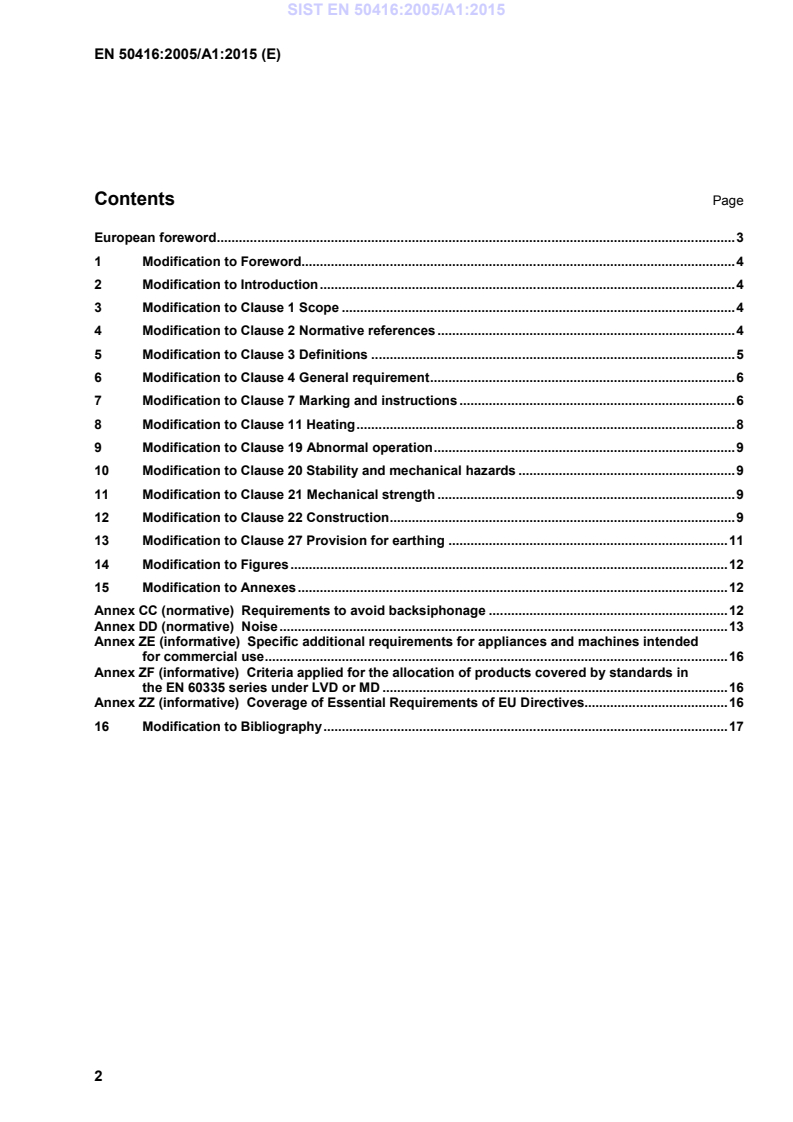

Contents Page
European foreword . 3
1 Modification to Foreword. 4
2 Modification to Introduction . 4
3 Modification to Clause 1 Scope . 4
4 Modification to Clause 2 Normative references . 4
5 Modification to Clause 3 Definitions . 5
6 Modification to Clause 4 General requirement . 6
7 Modification to Clause 7 Marking and instructions . 6
8 Modification to Clause 11 Heating . 8
9 Modification to Clause 19 Abnormal operation . 9
10 Modification to Clause 20 Stability and mechanical hazards . 9
11 Modification to Clause 21 Mechanical strength . 9
12 Modification to Clause 22 Construction. 9
13 Modification to Clause 27 Provision for earthing . 11
14 Modification to Figures . 12
15 Modification to Annexes . 12
Annex CC (normative) Requirements to avoid backsiphonage . 12
Annex DD (normative) Noise . 13
Annex ZE (informative) Specific additional requirements for appliances and machines intended
for commercial use . 16
Annex ZF (informative) Criteria applied for the allocation of products covered by standards in
the EN 60335 series under LVD or MD . 16
Annex ZZ (informative) Coverage of Essential Requirements of EU Directives . 16
16 Modification to Bibliography . 17

European foreword
This document (EN 50416:2005/A1:2015) has been prepared by CLC/TC 61 "Safety of household and similar
electrical appliances".
The following dates are fixed:
– latest date by which this document has to be implemented at (dop) 2016-08-10
national level by publication of an identical national standard
or by endorsement
– latest date by which the national standards conflicting with (dow) 2018-08-10
this document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent rights.

This document has been prepared under a mandate given to CENELEC by the European Commission and
the European Free Trade Association, and supports essential requirements of EU Directive(s).
For the relationship with EU Directive 2006/42/EC, see informative Annex ZZ, which is an integral part of this
document.
NOTE 1 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including those in
a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 2 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the associated noun are also
in bold.
1 Modification to Foreword
Replace the first paragraph after the application dates by the following:
This European Standard applies in conjunction with EN 60335-1:2012 and its amendments, which is referred
to in this document as “Part 1”. This European Standard supplements or modifies the corresponding clauses
of Part 1 as indicated in the text.
2 Modification to Introduction
Replace the text of the Introduction by the following:
This European Standard has been prepared to provide a means of conforming to essential safety
requirements of the Machinery Directive 2006/42/EC. Other requirements and other EU Directives may be
applicable to the machines falling within the scope of this European Standard.
This European Standard is a product family standard dealing with the safety of commercial electric conveyor
dishwashing machines and takes precedence over horizontal and generic standards covering the same
subject.
This European Standard recognizes the level of protection against hazards such as electrical, mechanical,
thermal, fire and radiation of commercial electric conveyor dishwashing machines when operated as in
normal use taking into account the manufacturer's instructions. It also covers any reasonably foreseeable
misuse of the machinery and takes into account the way in which electromagnetic phenomena can affect the
safe operation of commercial electric dishwashing machines.
A commercial electric conveyor dishwashing machine that complies with the text of this European Standard
will not necessarily be considered to comply with the safety principles of the standard if, when examined and
tested, it is found to have other features that impair the level of safety covered by these requirements.
This European Standard takes into account the requirements of HD 60364-1 as far as possible so that there is
compatibility with the wiring rules when the machinery is connected to the supply mains. However, national
wiring rules may differ.
Pressurized components incorporated in machines within the scope of this European Standard are pressure
equipment that is classified no higher than category I of the Pressure Equipment Directive (93/68/EU).
According to Article 1, item 3.6 of the Pressure Equipment Directive, this equipment is excluded from its
scope.
The requirements of Annex CC of this European Standard do not support a relevant ESHR of the Machinery
Directive 2006/42/EC.
3 Modification to Clause 1 Scope
Delete NOTE 103.
4 Modification to Clause 2 Normative references
Delete EN ISO 12100-1:2003 and EN ISO 12100-2:2003.
Replace EN 954-1:1996 by:
EN ISO 13849-1:2008, Safety of machinery – Safety-related parts of control systems – Part 1: General
principles for design (ISO 13849-1:2006)
Replace EN 61770:1999 by:
EN 61770:2009, Electric appliances connected to the water mains – Avoidance of backsiphonage and failure
of hose-sets (IEC 61770:2008)
Replace ISO 1817:1999 by:
ISO 1817:2011, Rubber, vulcanized or thermoplastic – Determination of the effect of liquids
Addition:
EN ISO 3744, Acoustics – Determination of sound power levels and sound energy levels of noise sources
using sound pressure – Engineering methods for an essentially free field over a reflecting plane (ISO 3744)
EN ISO 3746, Acoustics – Determination of sound power levels and sound energy levels of noise sources
using sound pressure – Survey method using an enveloping measurement surface over a reflecting plane
(ISO 3746)
EN ISO 4871:2009, Acoustics – Declaration and verification of noise emission values of machinery and
equipment (ISO 4871:1996)
EN ISO 9614-2, Acoustics – Determination of sound power levels of noise sources using sound intensity –
Part 2: Measurement by scanning (ISO 9614-2)
EN ISO 11201, Acoustics – Noise emitted by machinery and equipment – Determination of emission sound
pressure levels at a work station and at other specified positions in an essentially free field over a reflecting
plane with negligible environmental corrections (ISO 11201)
EN ISO 11204, Acoustics – Noise emitted by machinery and equipment – Determination of emission sound
pressure levels at a work station and at other specified positions applying accurate environmental corrections
(ISO 11204)
EN ISO 11688-1, Acoustics – Recommended practice for the design of low-noise machinery and equipment –
Part 1: Planning (ISO/TR 11688-1)
ISO 3864-1, Graphical symbols – Safety colours and safety signs – Part 1: Design principles for safety signs
and safety markings
5 Modification to Clause 3 Definitions
3.1.9 Replacement:
normal operation
appliances intended to be connected to a water supply are connected to a water supply having the pressure
and temperature specified in the instructions.
If a range of temperatures and pressures is specified in the instructions then the water supply is at the
conditions within the range that will give the most unfavourable temperature results.
Water inlets intended for cold water only are connected to a source supplying water at a temperature of
15 °C ± 5 °C.
The appliance is filled with the maximum quantity of water for which it is designed, without detergents or
rinsing agents. The appliances are tested without dishes.
The appliances are operated continuously.
For normal operation conditions, the appliance is operated as follows:
– appliances are operated in accordance with the instructions for use, but with the controls intended to be
set by the user set at maximum or that setting giving the most unfavourable temperature results.
Add the following:
3.105
guard
part of the appliance specially designed to provide protection by means of a physical barrier
3.106
operator
person installing, operating, adjusting, maintaining, cleaning or moving the appliance
3.107
workstation
place, as defined in the technical documentation of the relevant appliance, where the operator has to be in
attendance to operate, or to adjust, or to control the appliance
EXAMPLE The location where the operator loads the appliance.
6 Modification to Clause 4 General requirement
Replace by the following:
This clause of Part 1 is applicable except as follows:
Replace the first paragraph by the following:
Appliances shall be constructed so t
...
